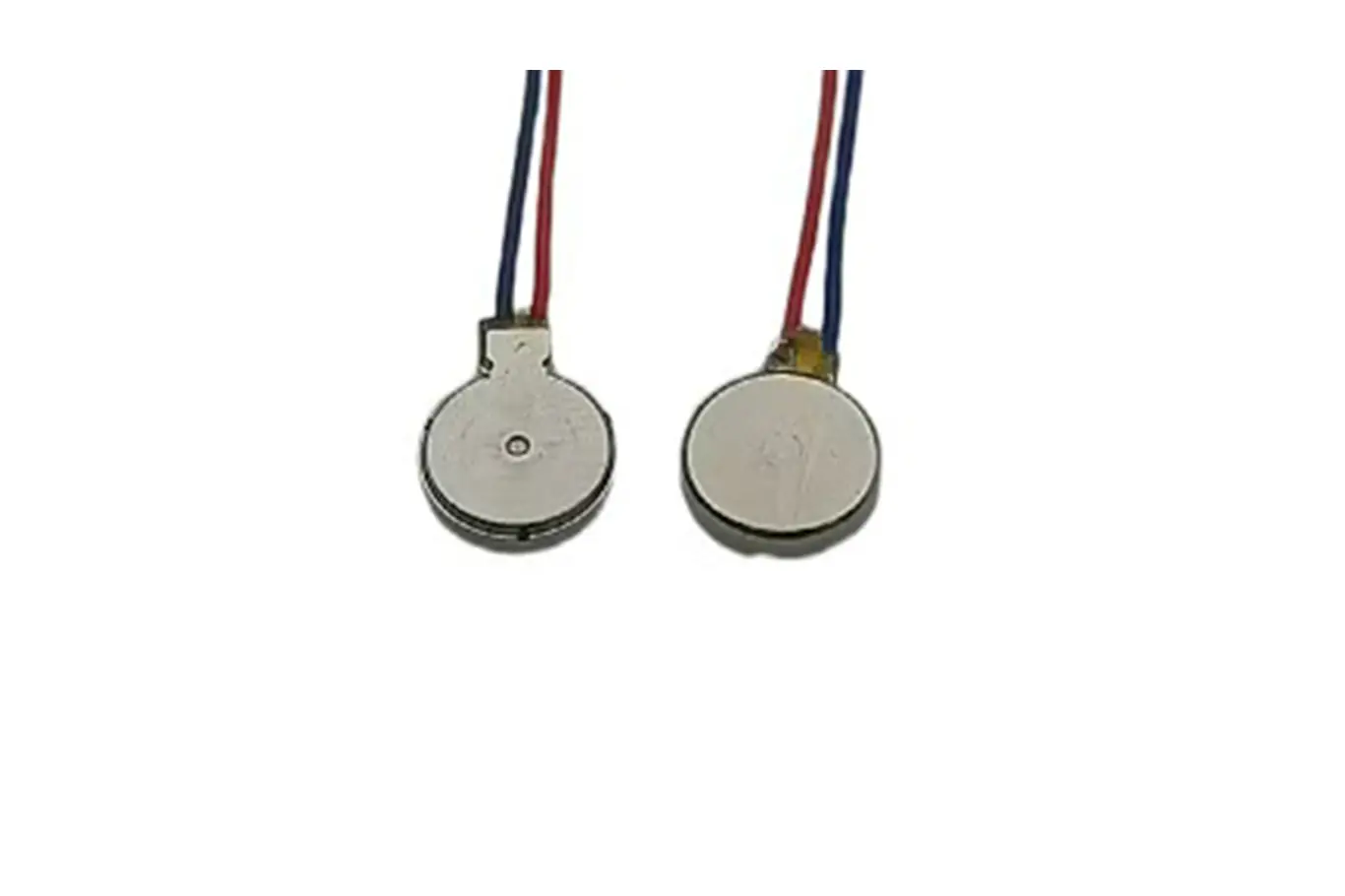

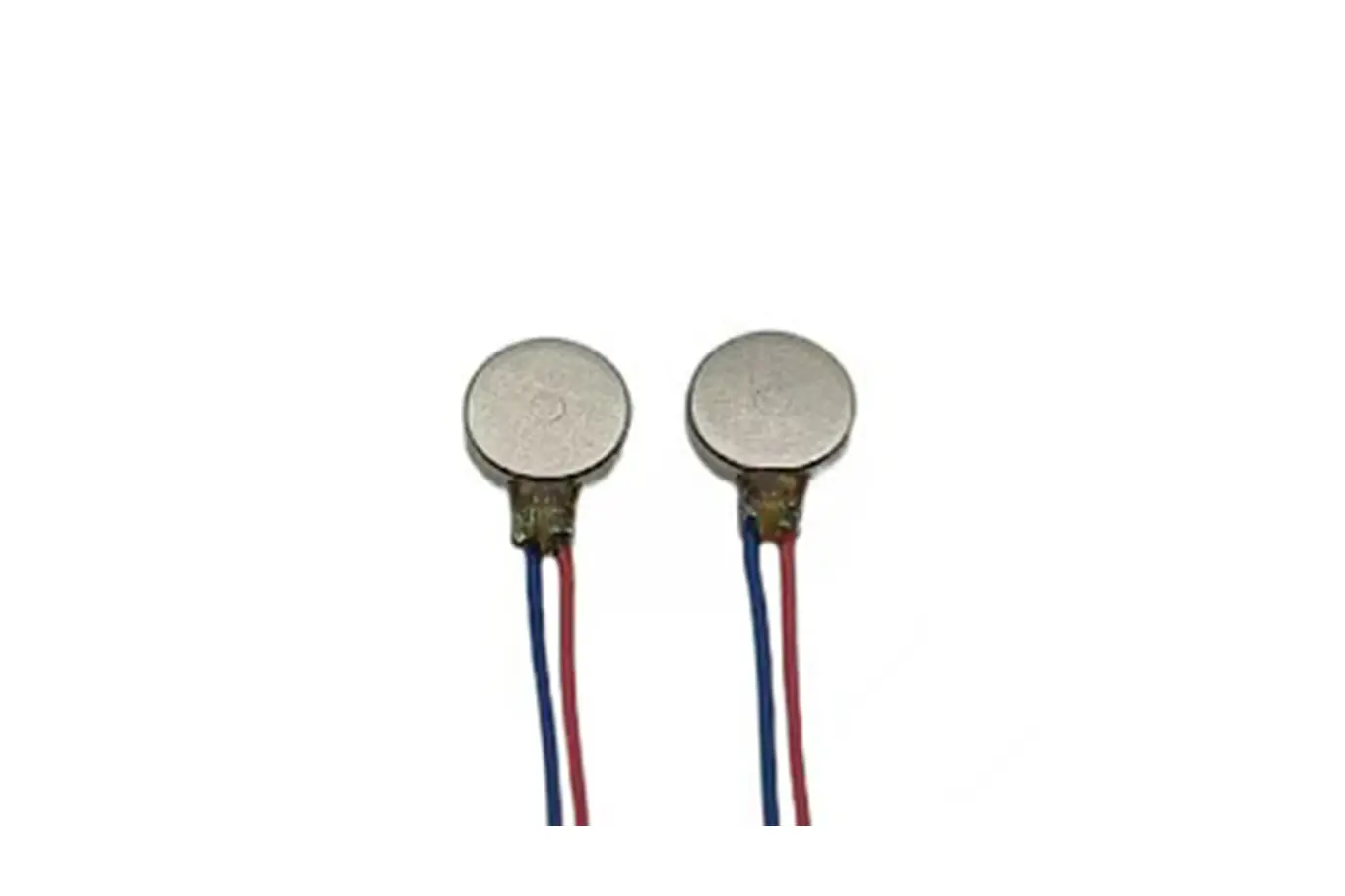

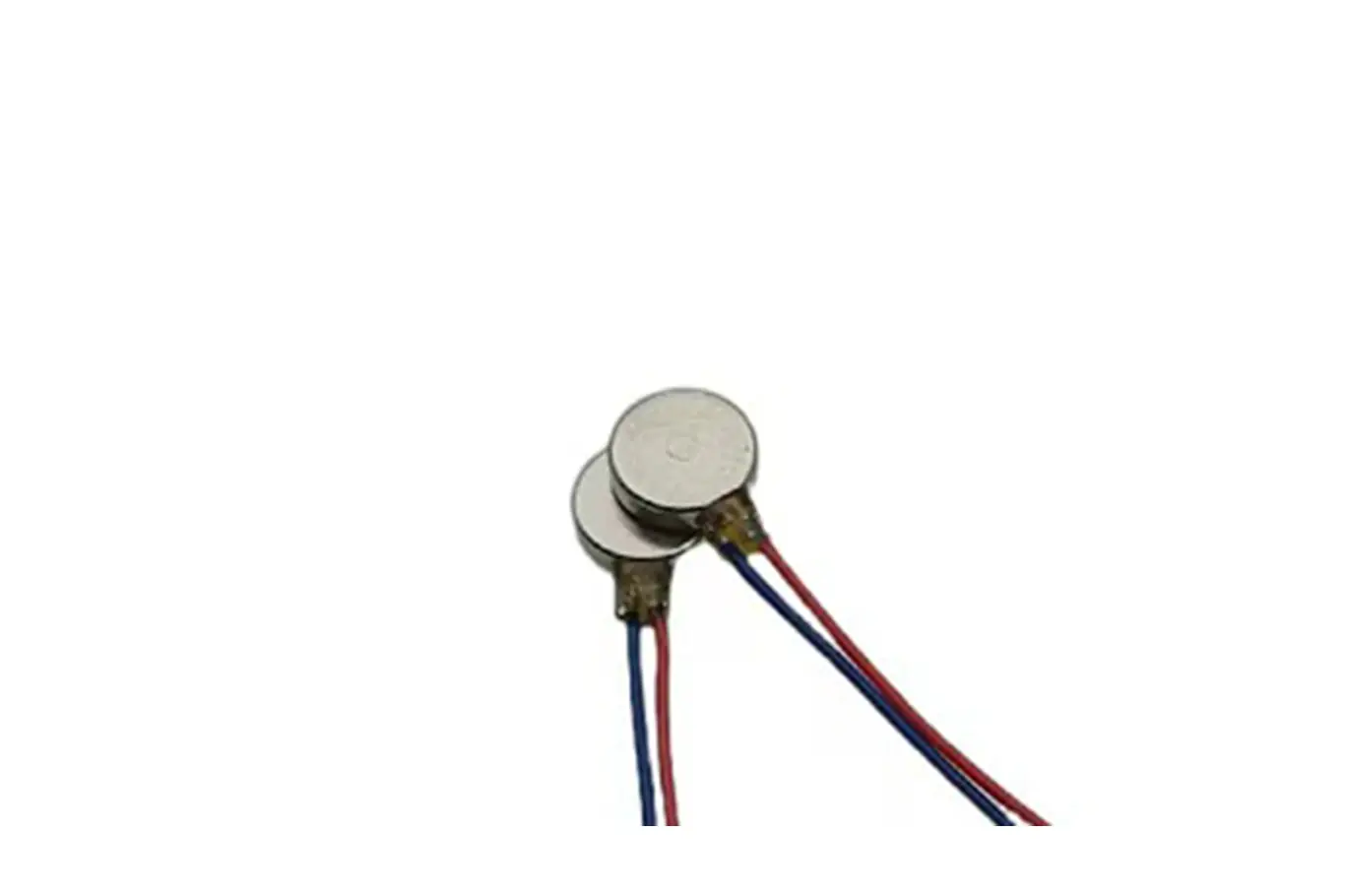

8mm Coin Vibration Motor – 1.6mm Type Model TSL-FLAT-C0816
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-FLAT-C0816
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Diameter:8.0mm
Motor Thickness:1.6mm
3V DC Vibrating Disk Motor Parameters
The TSL-FLAT-C0816 is a high-performance 8mm dc vibrating disk designed for compact applications. With a 1.6mm thickness, it offers efficient, low-power vibration for use in various devices. Ideal for mobile phones, wearables, and other portable electronics, it provides reliable, strong haptic feedback. The compact design ensures easy integration into tight spaces.
This dc vibrating disk engineered to provide strong, clear vibration responses that enhance user experience by delivering precise tactile feedback. It is known for its durability and long lifespan, making it a dependable choice for consumer electronics. The dc vibrating disk is easy to integrate into a variety of designs, offering a balance of size, power efficiency, and vibration performance.
| Motor Model | TSL-FLAT-C0816 |
| Motor Diameter | 8.0mm ± 0.1mm |
| Motor Thickness | 1.6mm ± 0.1mm |
| Rated Voltage | 3.0V DC |
| Rated Speed | 14,000rpm ± 3,000rpm |
| Rated Current | 80mA max |
| Start Voltage | 2.5V DC max |
| Voltage Range | 2.7V – 3.3V |
| Rotation | CW / CCW |
| Typical Norm. Amplitude | 0.5G Min |
Thinest DC Vibrating Disk Motor Mechanical Drawing
Keywords:
flat coin vibration motor, 3v vibration motor, micro vibrating motors, small vibrating motor, electric vibrating motor, mini vibration motor, micro vibration motor, vibrating electric motor, coin vibration motor price, vibration motor coin, coin cell vibration motor, coin motor vibration, coin type vibration motor, coin vibration motor data sheet, vibration motor vibrating,dc vibrating disk
DC Vibrating Disk Key Features:
- Compact size: 8mm diameter, 1.6mm thickness
- Low-power consumption for extended battery life
- Reliable haptic feedback for enhanced user interaction
- Durable construction for long-lasting performance
- Ideal for mobile phones, wearables, gaming devices, and other portable electronics
Development Samples:
The quantities of sampling for models that are stocked can be ordered directly online from us.
Engineering & Manufacturing:
Contact us via one or the Sales Engineers for a quotation for production as well as a consultation regarding customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door 7-10 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you’ve not received the item within the Delivery Time Please send us an email with questions. In most cases, we will send you a response within 24 hours in the event that we don’t, look through your email account. We will try our best to assist you resolve the issue.
4.Please check that your address is in line with the final shipping address prior to you make payment.
5.In order to ensure that you receive your purchase tax-free at the time of import, we’ll declare it as an lower amount, so please note this in your order, thank you!
FAQ For small electric vibrating motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q:What are the different types of coin vibration motors you can provide?
A: We offer three types of coin vibration motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
