TSL Custom Micro Motors Type for Electric Door Lock 12V 184：1
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:Custom Micro Motors
- Rated Speed:48±10%rpm
- Rated Voltage：8V DC/Customizable
- Stall Torque:≥22-28Kg.cm
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Smart locks/small Home Appliances/lighting products.

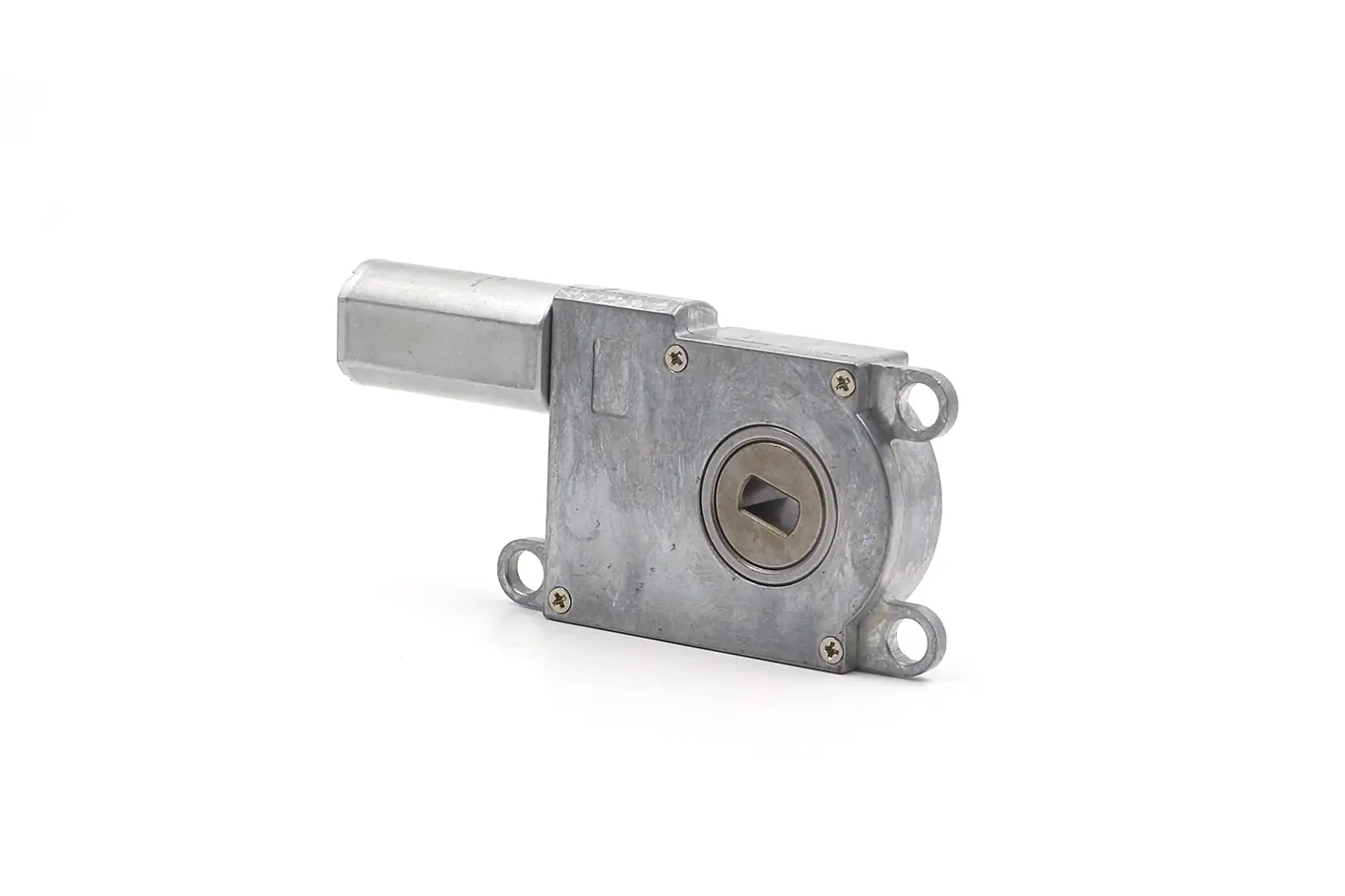

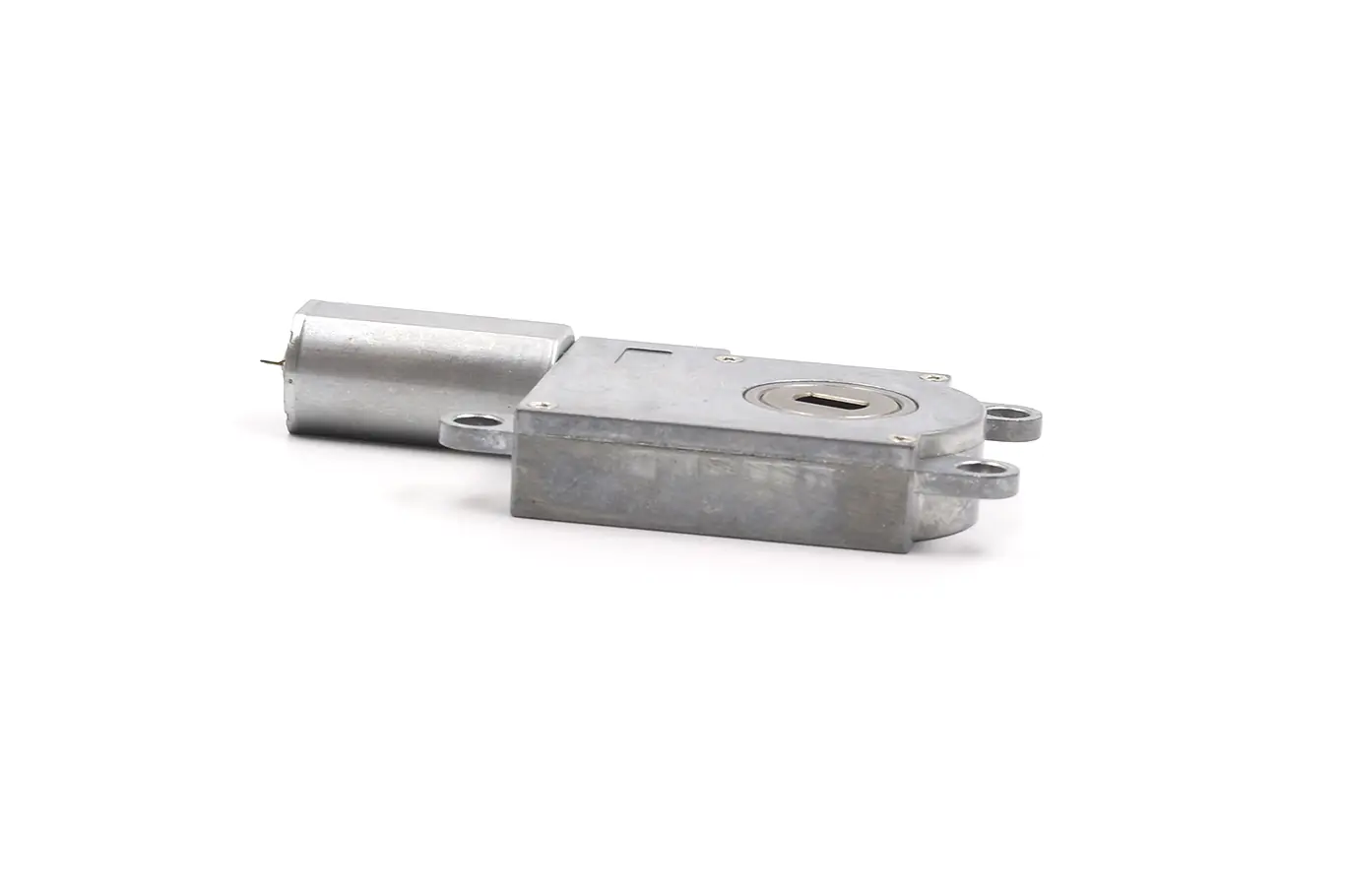

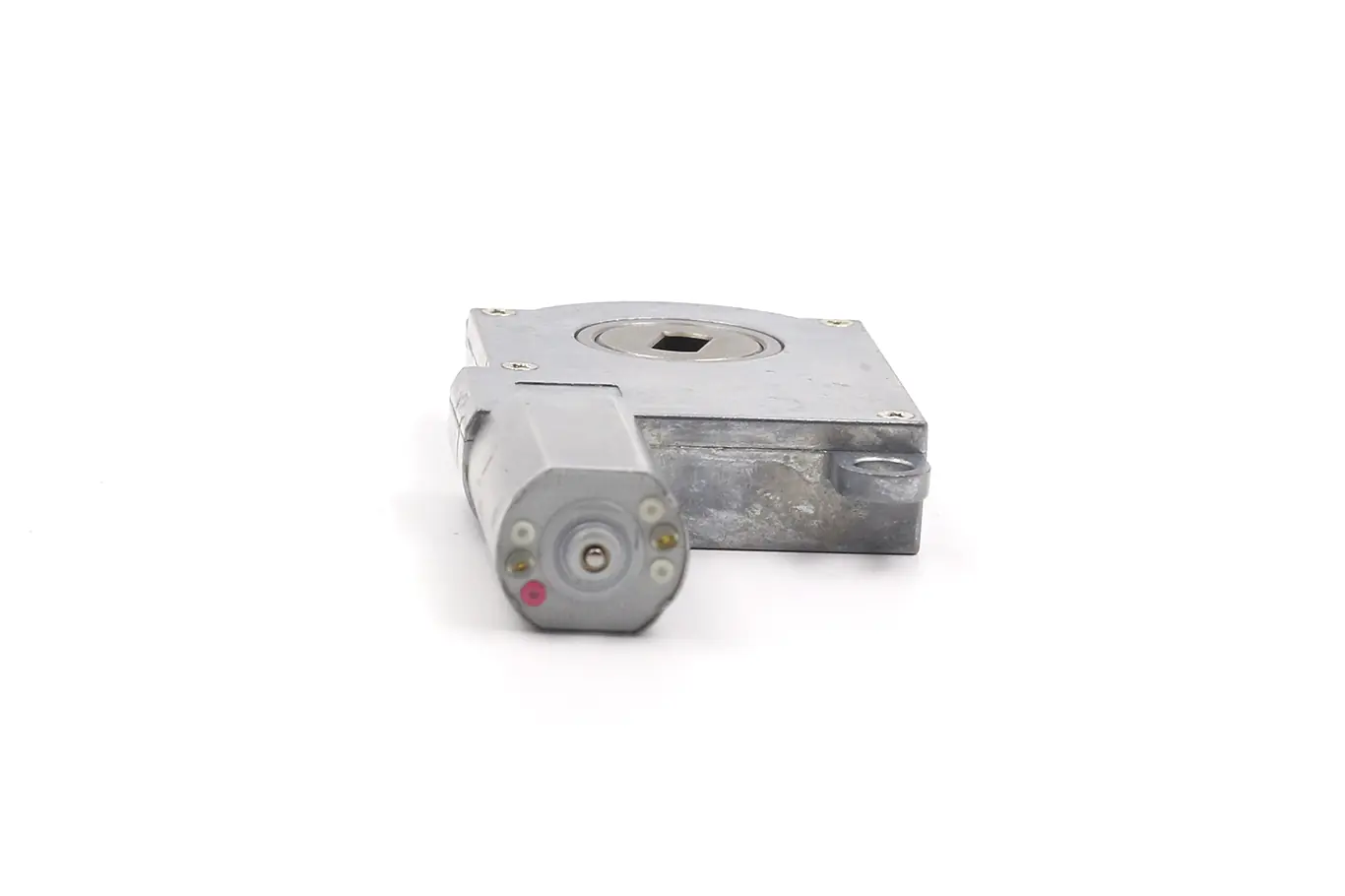

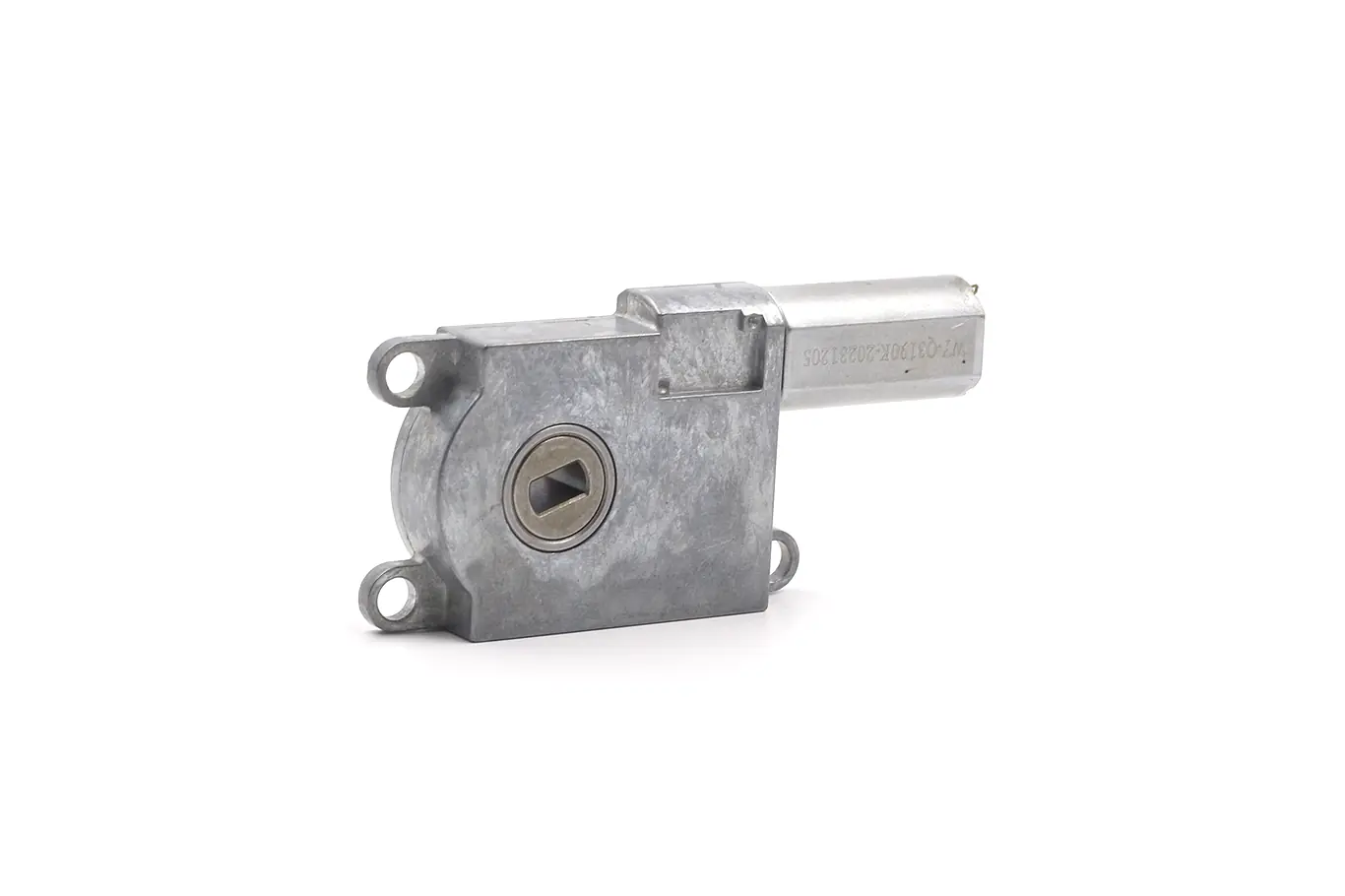

Electric Door Lock Motor High‑Torque Worm Gear DC Motor
High‑torque worm gear DC motor designed for electric door lock systems. The electric door lock motor delivers stable performance, strong output, and reliable operation in compact spaces.
The electric door lock motor features an 184:1 gear ratio and 8V rated voltage. The electric door lock motor provides 60RPM no‑load speed, 48RPM rated speed, and up to 22–28kg·cm stall torque.
| Reduction | No Load | Rated | Stall | ||||||
| Speed | Current | Voltage | Speed | Current | Torque | Current | Torque | Allowed or no | |
| 184：1 | 60±10%RPM | ≤220mA | 12V | 48±10%RPM | ≤1500mA | 4.5Kgf.cm | ≤7500mA | ≥22-28Kgf.cm | No |
💕The electric door lock motor’s technical specifications are for guidance,we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

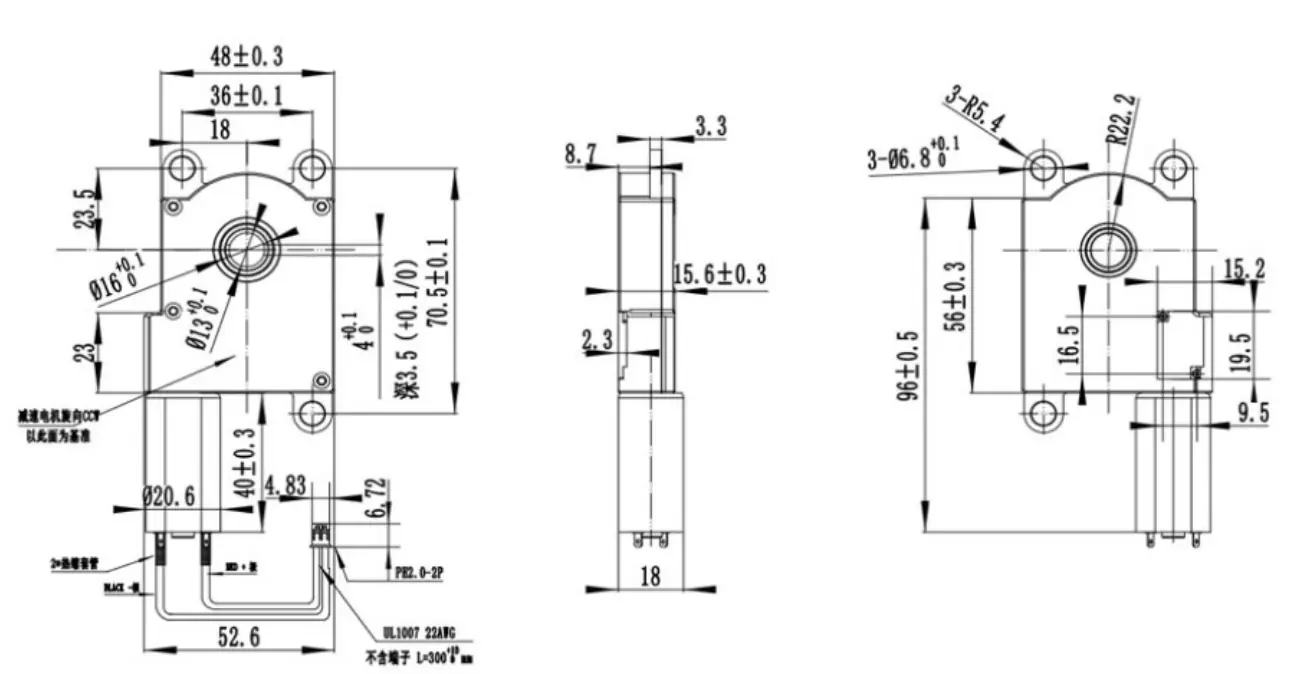

Electric Door Lock Motor Worm Gear DC Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for worm gear motor
Q:What is a worm gear motor?
A:A worm gear motor is an electric motor integrated with a worm drive mechanism, designed to provide high torque at low speeds, often with a self-locking feature and a right-angle output.
Q:Can worm Gear Motor Be Customized?
A: Yes,worm gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
