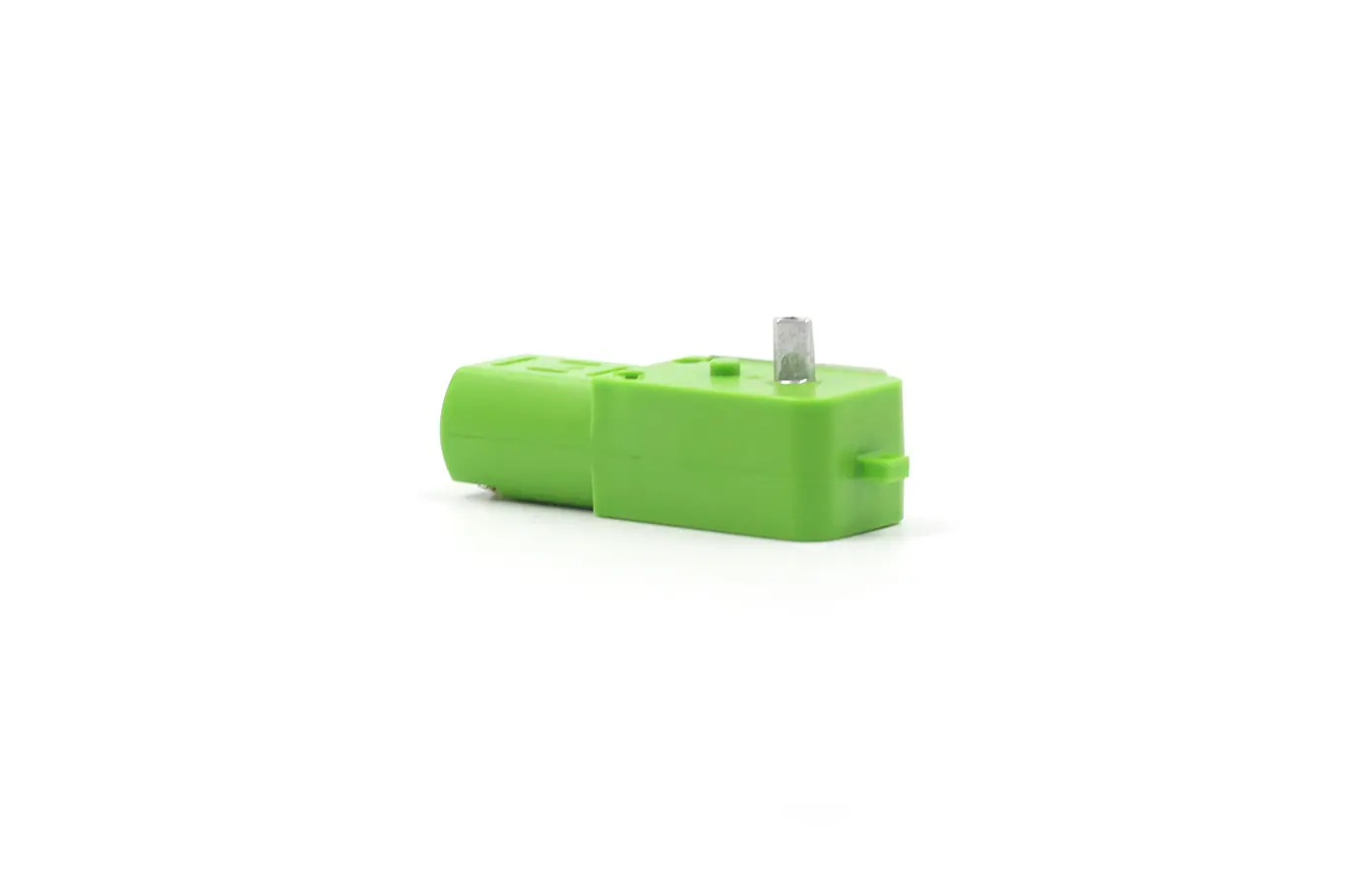

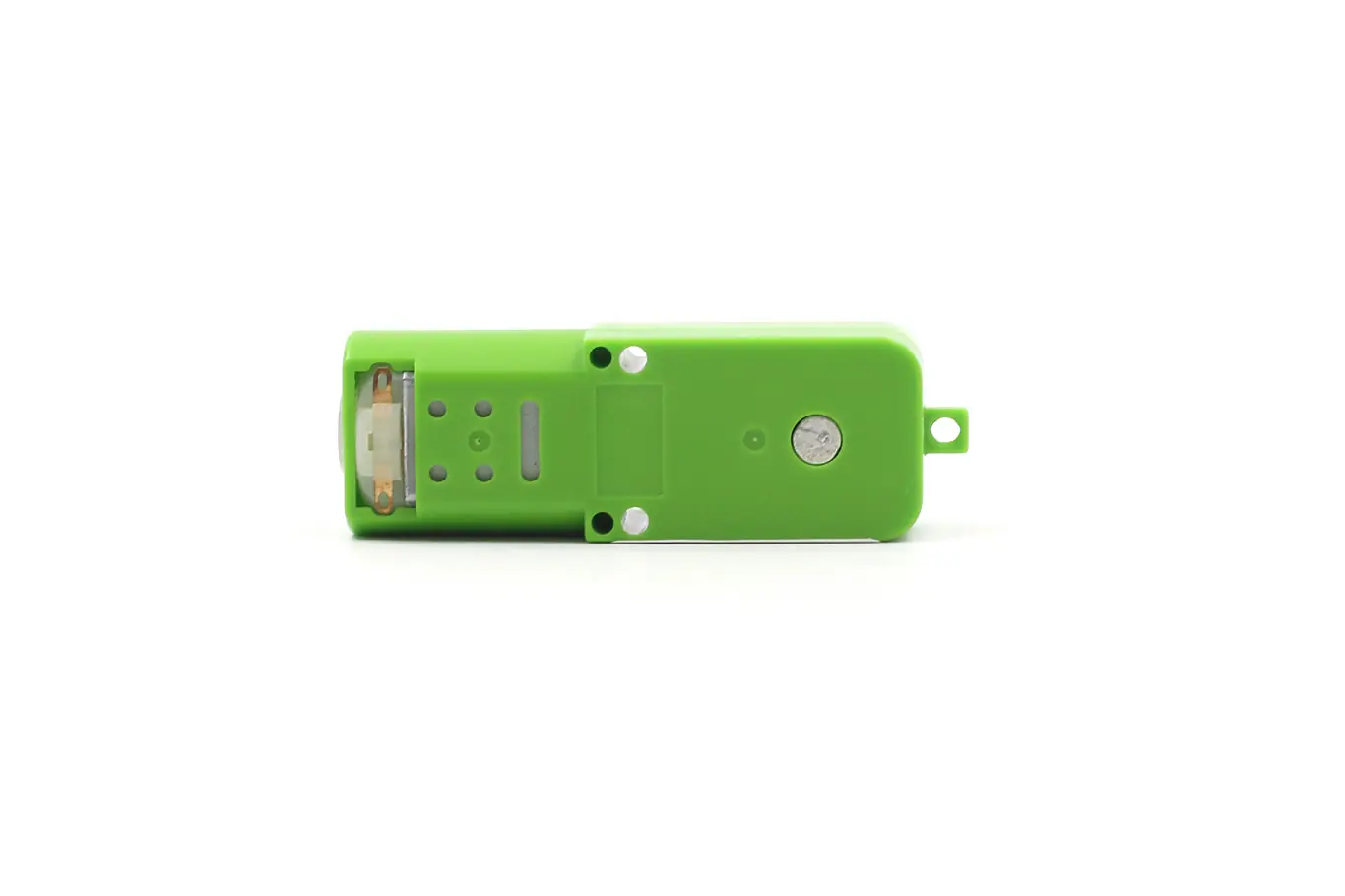

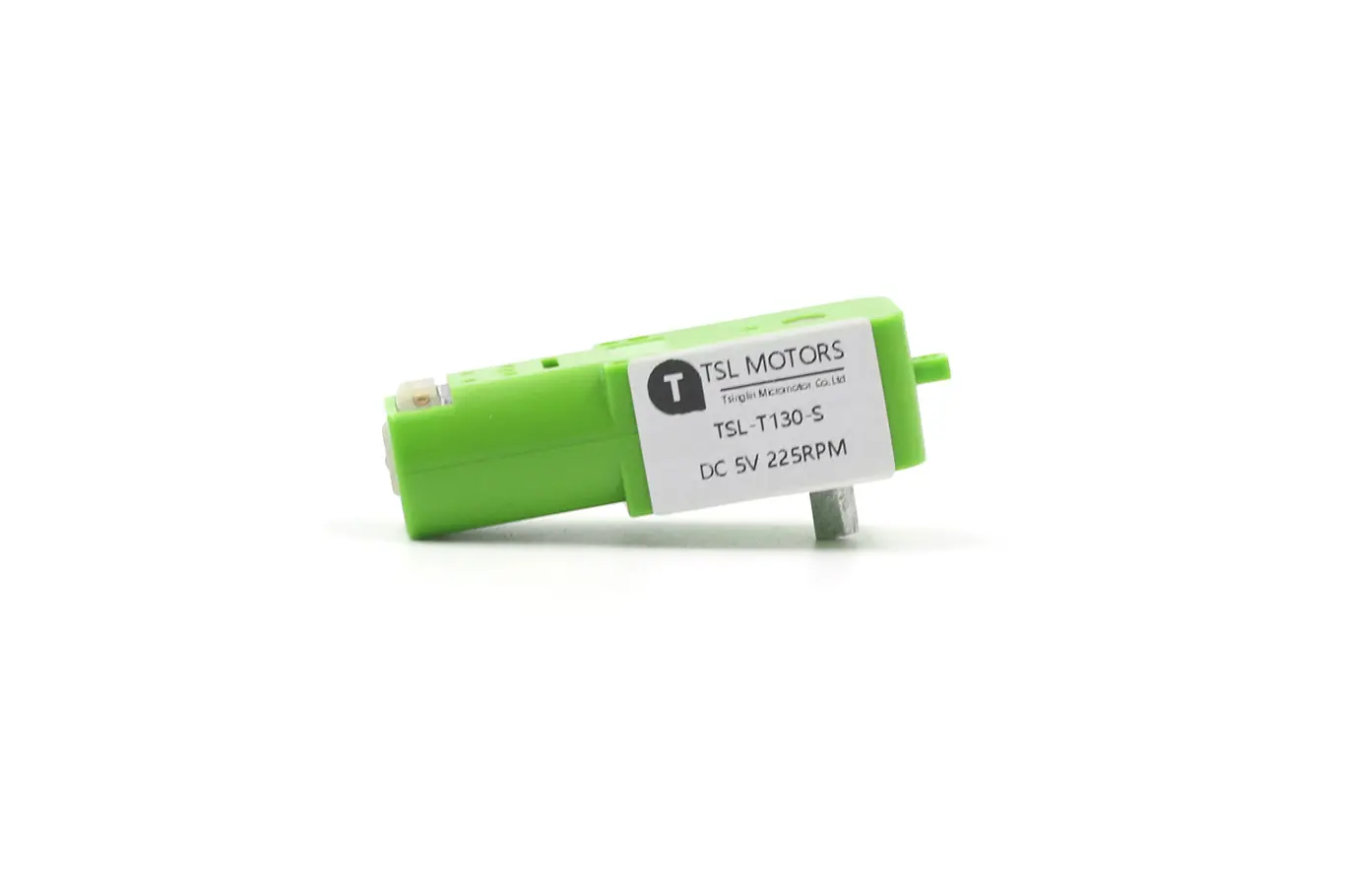

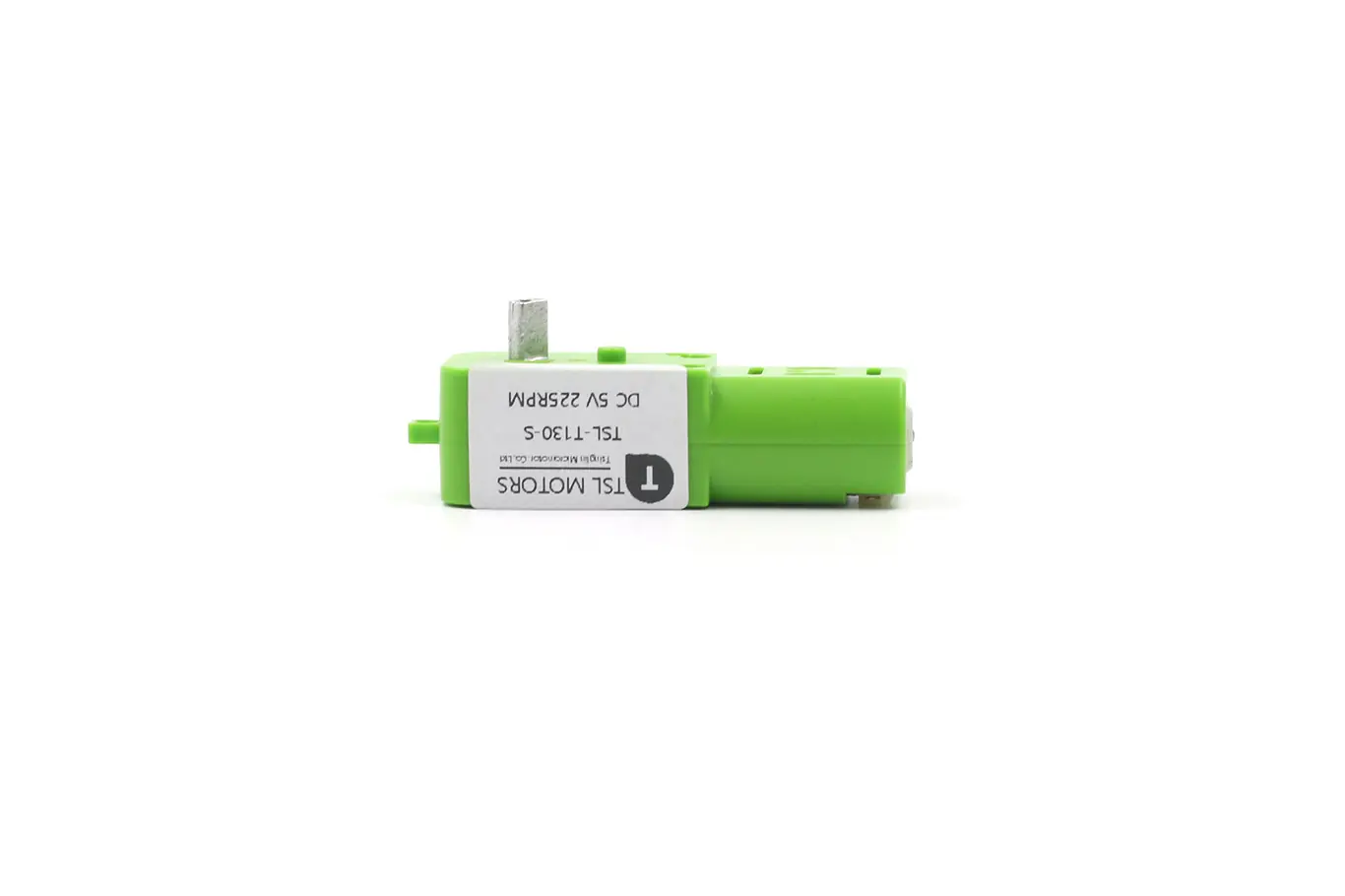

22mm Spur Gear Motor ABS Type Model TSL-T130-S
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:T130-S
- Voltage:DC 5V
- Shaft Diameater:5.5mm
- Shaft Length:9.5mm
- Ratio:90 to 1,48 to 1
- #More Specifications
- #Outline Drawing
- #Performance Curve
♦ Typical Applications:
- R&D Electronics，Robots
- Bubble Gun, Toy Gun
- 4WD Toy Car, Toy Airplanes, Vibrating Products
Electric Motor Hobby With Gearbox Datasheet
TSL-T130S, Ratio 90:1, DC 5V
| Motor Model:TSL-T130-S | ||||
| Voltage | No load speed | No load current | At stall torque | At stall current |
| DC 5V | 135 RPM | 0.11 A | 387.75 mN.m | 1.71A |
| At Max Efficiency | ||||
| Effi | Torque | Speed | Current | Output Power |
| 40.8% | 78.45mN.m | 108 RPM | 0.43A | 0.9W |
| At Max Output Power | ||||
| Effi | Torque | Speed | Current | Output Power |
| 30.13% | 193.8mN.m | 67.5 RPM | 0.91A | 1.37W |
💕The electric motor hobby’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-T130S, Ratio 48:1, DC 5V
| Motor Model:TSL-T130-S | ||||
| Voltage | No load speed | No load current | At stall torque | At stall current |
| DC 5V | 255 RPM | 0.11 A | 204 mN.m | 1.69A |
| At Max Efficiency | ||||
| Effi | Torque | Speed | Current | Output Power |
| 40.9% | 41.46mN.m | 203 RPM | 0.43A | 0.9W |
| At Max Output Power | ||||
| Effi | Torque | Speed | Current | Output Power |
| 30.26% | 102mN.m | 127.5 RPM | 0.9A | 1.36W |
💕The electric motor hobby’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

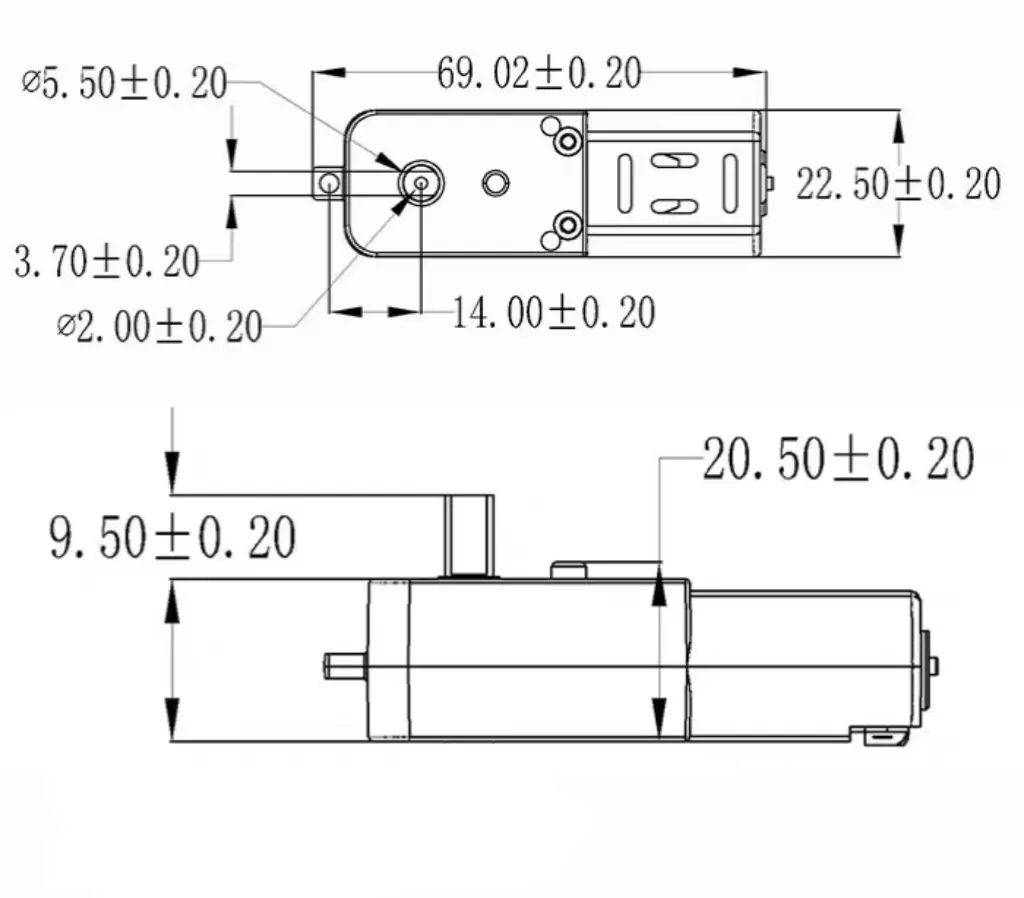

DC Electric Motor Hobby Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Electric Motor Hobby With ABS House Performance Curve

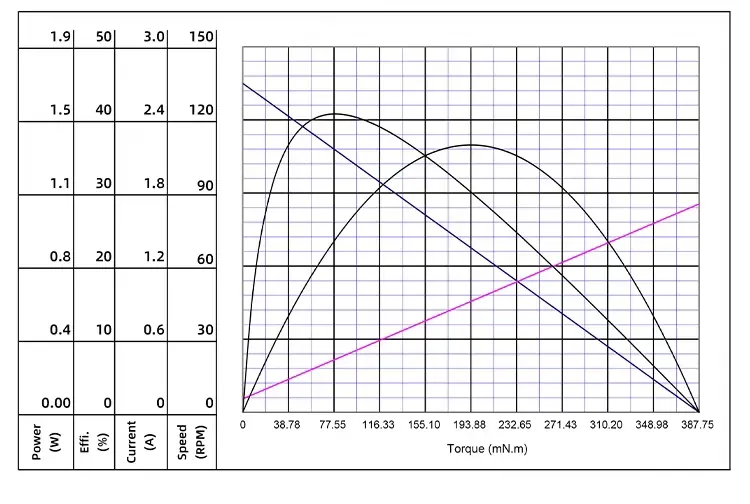

TSL-T130S, Ratio 90:1, DC 5V
TSL-T130S, Ratio 48:1, DC 5V
Electric Motor Hobby Datails

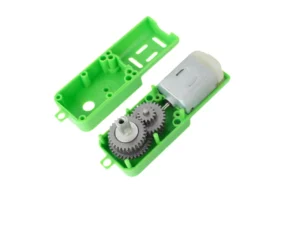

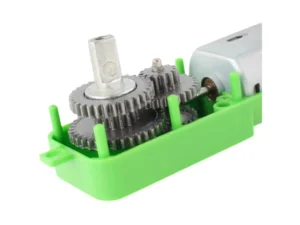

Precision Metal Gears
The hobby gear moto’s precision metal gears are manufactured with high-precision processes to enhance load capacity and wear resistance, thereby extending service life. This ensures high load-bearing capability under high torque.
ABS Material
Made from ABS material (Acrylonitrile Butadiene Styrene), this product is environmentally friendly, durable, and rust-proof. These properties extend the service life of the product.

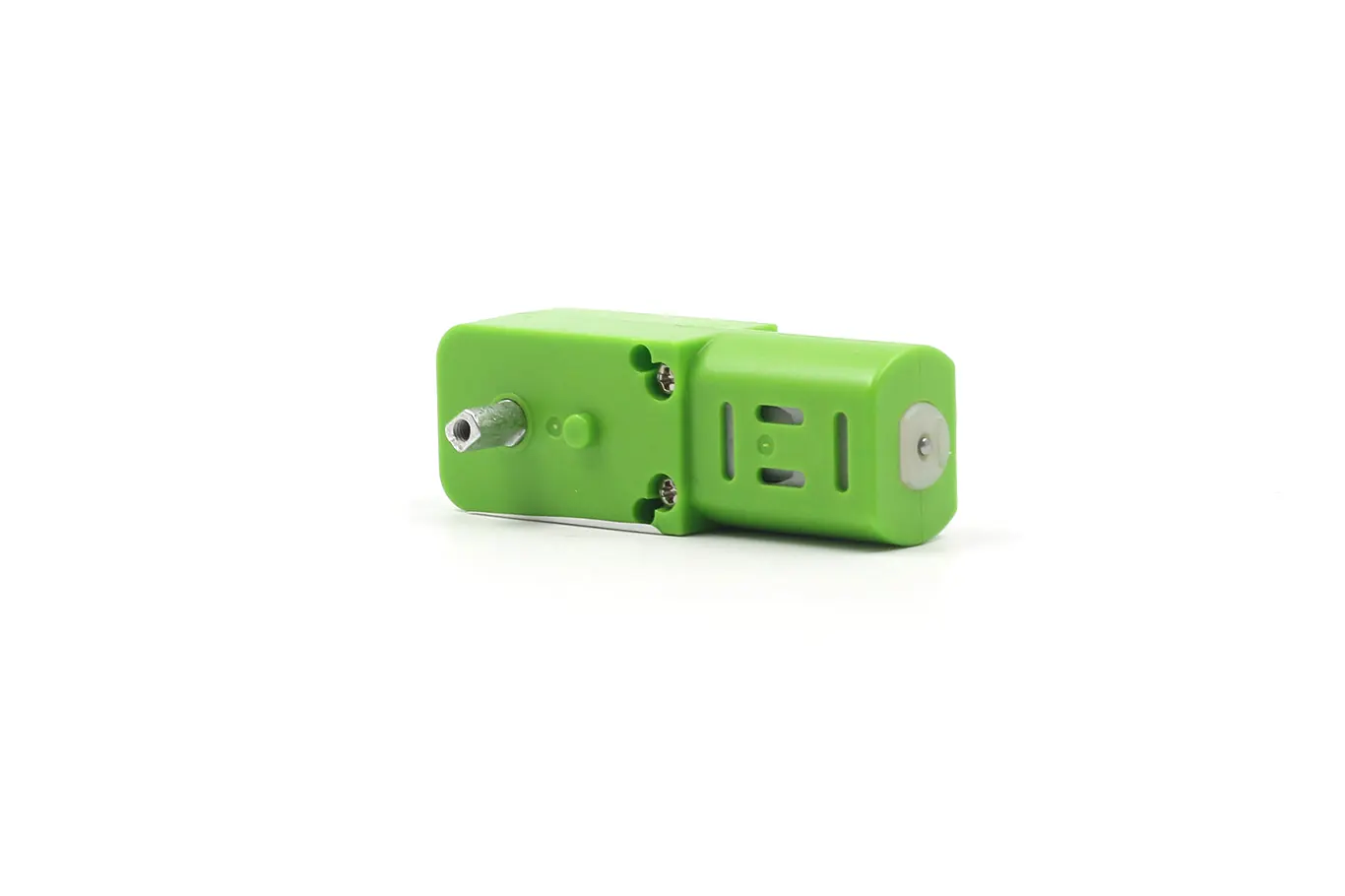

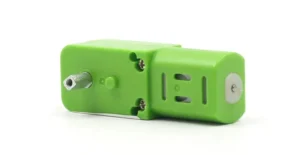

D-shaft Output Structure
Featuring a D-shaft output structure, the center bore is equipped with screw threads. This design ensures compat.

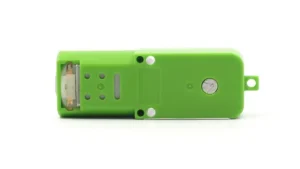

Securely Fastened
The motor is securely fastened, and a custom-made enclosure tightly wraps the motor, ensuring stable operation without any shaking or displacement.
Keywords:
electric motor hobby,dc motor for hobby,small hobby motor,small hobby electric motor,hobby dc electric motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
