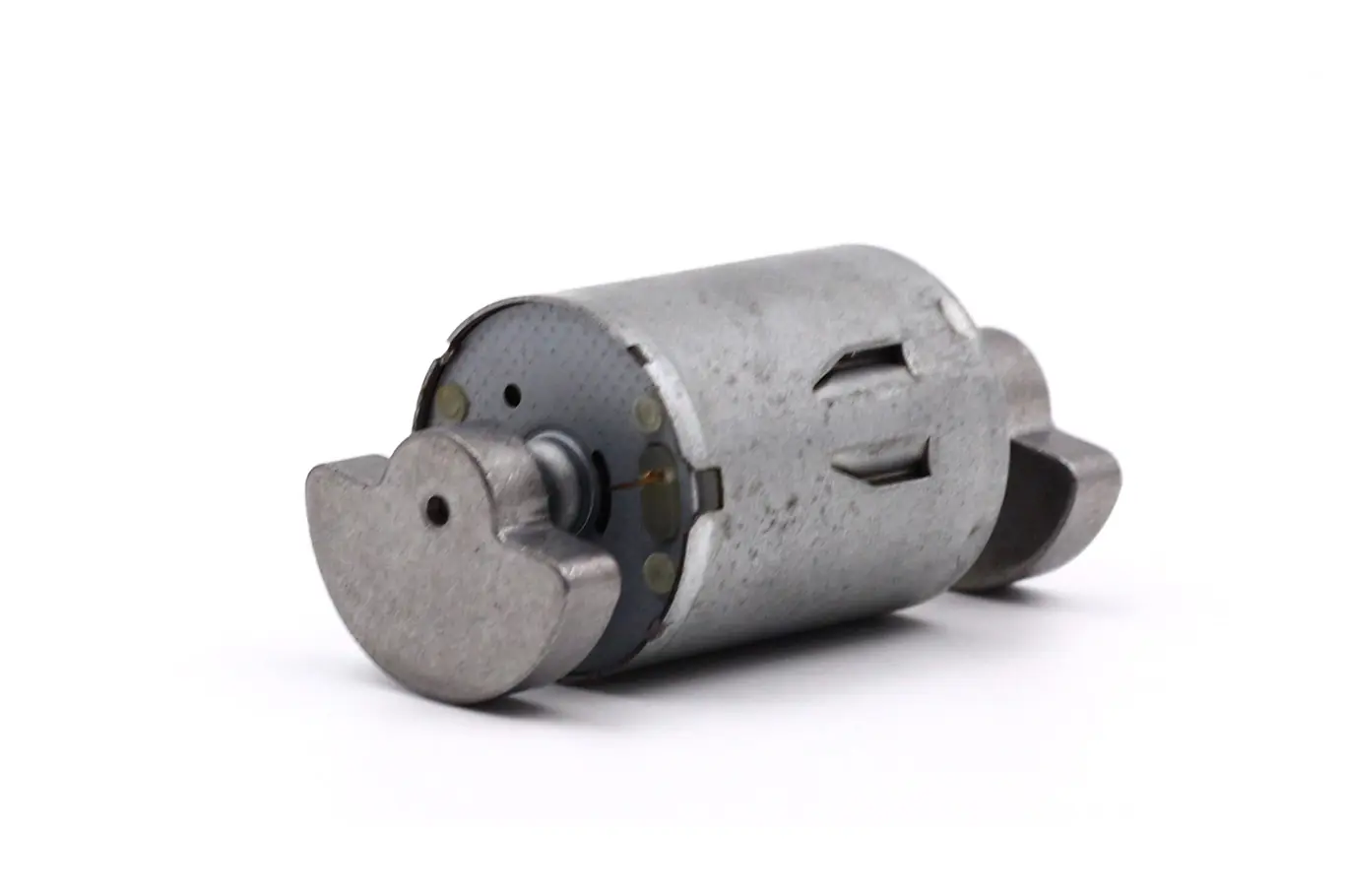

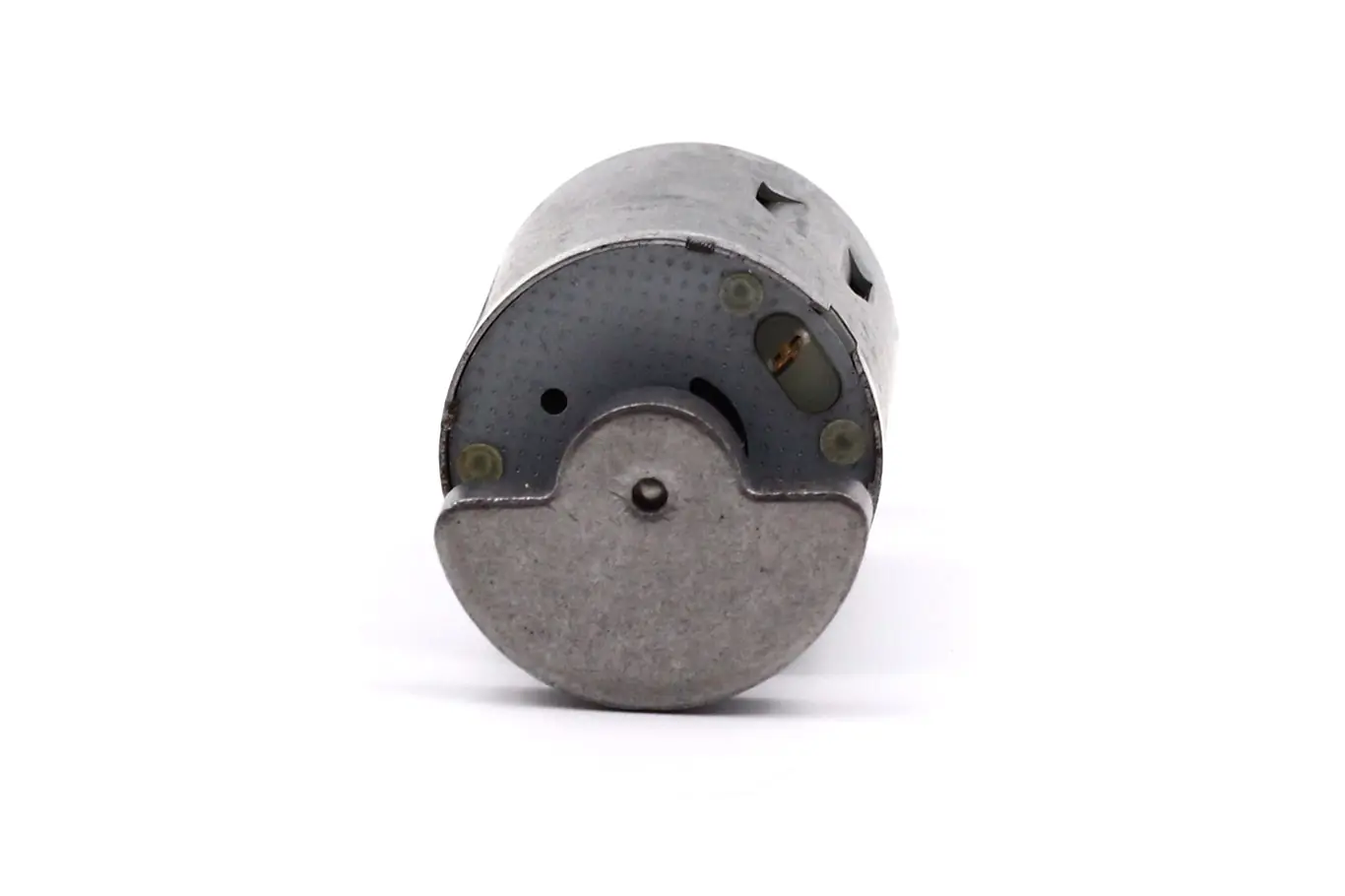

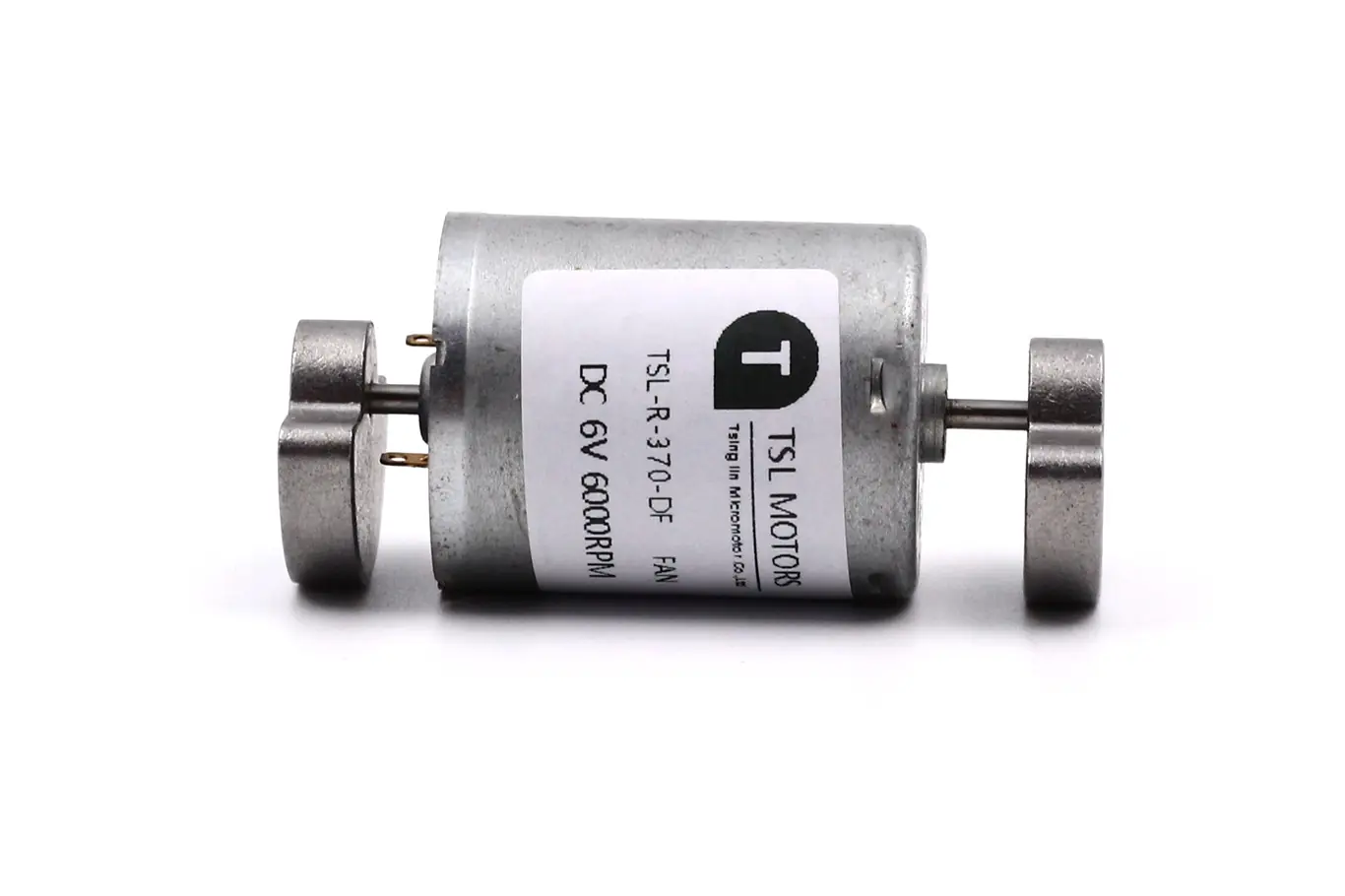

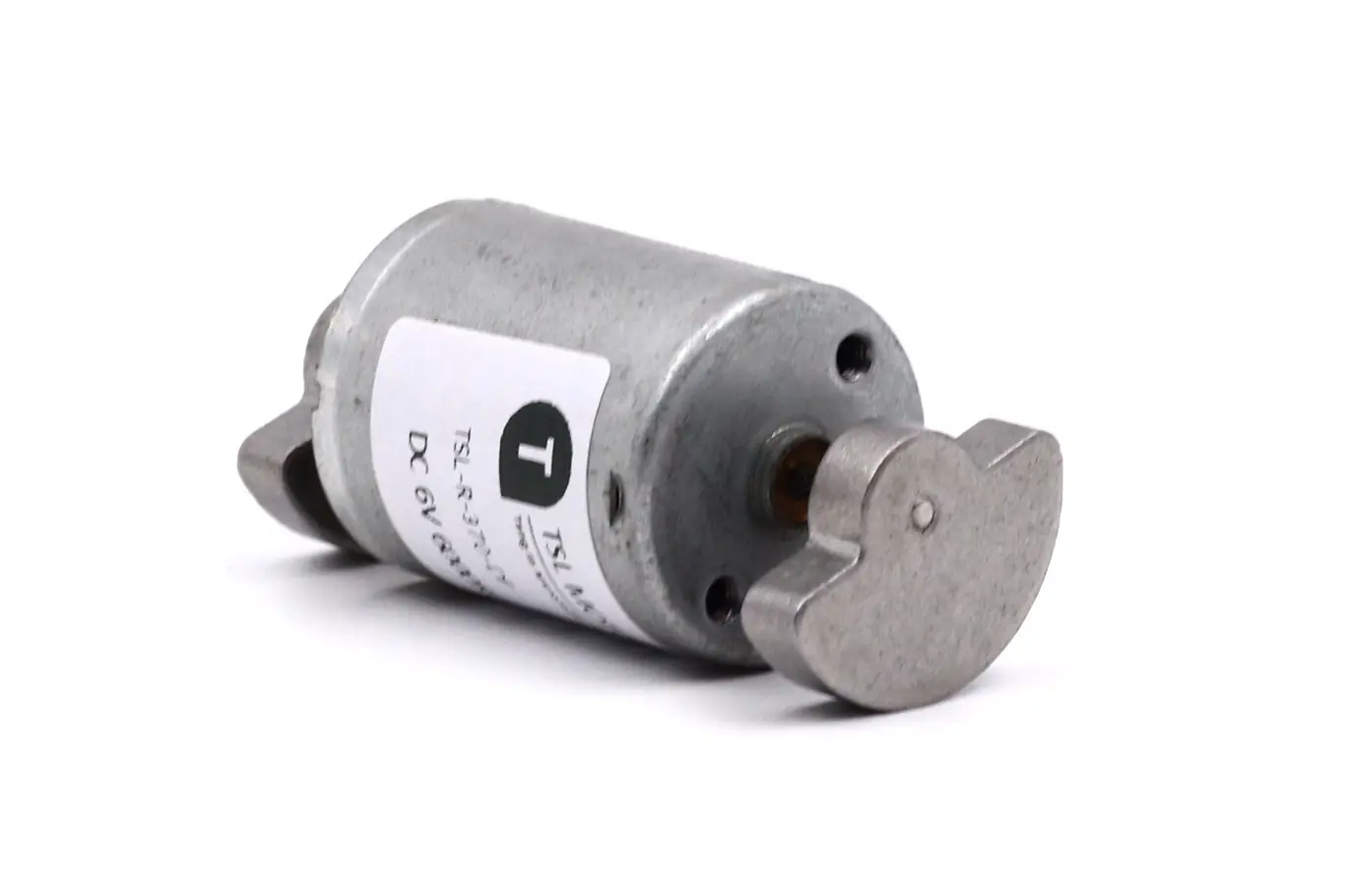

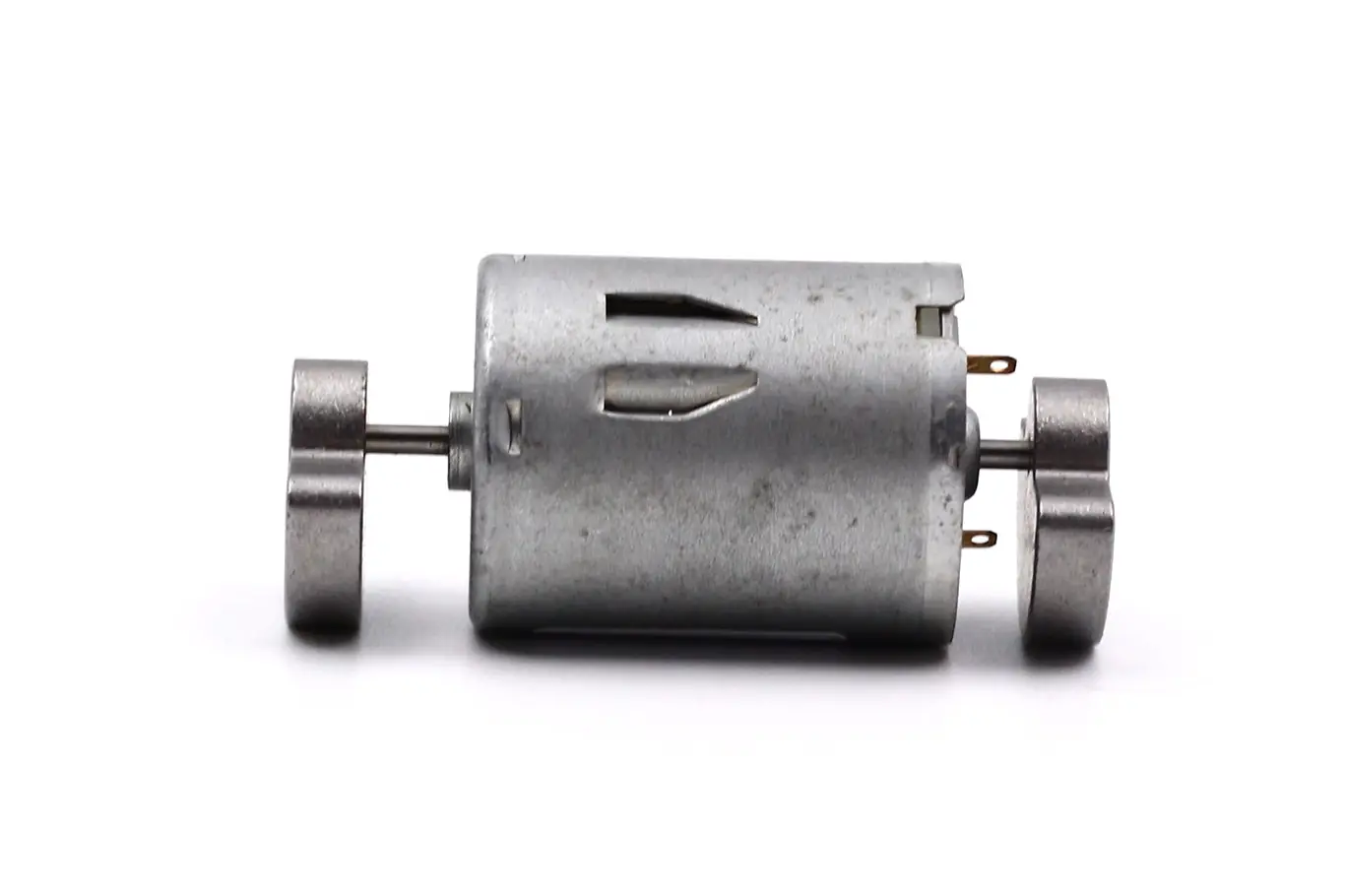

24mm ERM Vibration Motor – 30mm Type Model TSL-R-370-DF
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-R-370-DF
- Motor Type: Powerful Vibration Motor
- Motor Diameter: 24.4 mm
- Motor Length: 31 mm
- Shaft Thickness: 5mm
- Rated Voltage: 6/12/24 V
- Speed: 6000-8500 RPM
- Vibration Head:Fan Shape
- #More Specifications
Fan Shape Double Heads Vibration Motor Parameters
The total length of this powerful fan shape double heads vibration motor is 51mm. Its outside diameter of the motor is 24.2mm. The body length of the two heads vibration motor is 30 millimeters.
| Motor Model | TSL-R-370-DF |
| Motor Diameter | 24mm |
| Motor Length | 30.7mm |
| Vibrator Head Thickness | 5mm |
| Vibrator Head Diameter | 23.5mm |
| Rated Voltage | 6V / 12V / 24V DC |
| Rated Speed | 3,000rpm / 6,000rpm / 8,500rpm |
| Eccentric Rotating Mass | Double Iron Fan Shape Heads |
| Power | 3.69W – 8W |
| No Load Current (12V) | 420mA – 620mA |
| No Load Current (24V) | 250mA – 400mA |
| Rotation | CW / CCW |
| Weight | 66g |
Strong Fan Shape Double Heads Vibration Motor Outline Drawing
Keywords:
Vibration motor, vibrating Motor vibration motor, powerful vibration motor, large vibration motor from Arduino,fan shape double heads vibration motor
Fan Shape Double Heads Vibration Motor Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment Method:
Payment methods: Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door, 5-7 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item within the Delivery Time please contact us via email with any queries. We usually give you a reply within 24 hours If not, please look through your email account. We will try our best to assist you in solving the issues.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.
5.In order to ensure that you receive your purchase tax-free after importation, we’ll declare it at an amount lower than the value you paid for it, please be aware of this, thanks!
FAQ – Frequently Asked Questions
Q: If you are requesting a custom-made version What information do you need to be able to provide?
A: You must give the fundamental specifications of the motor, for example Dimensions and Sizes, Applications, Voltage the speed, and torque. It is recommended to send an application-specific prototype drawing to us whenever possible.
Q: What are your primary motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the principal use of the microdc motor?
A Mini DC motors are used extensively in home Applications, Office Equipment, Health-Care Application, Sanitation Industry The High-Class Toy Banking System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
