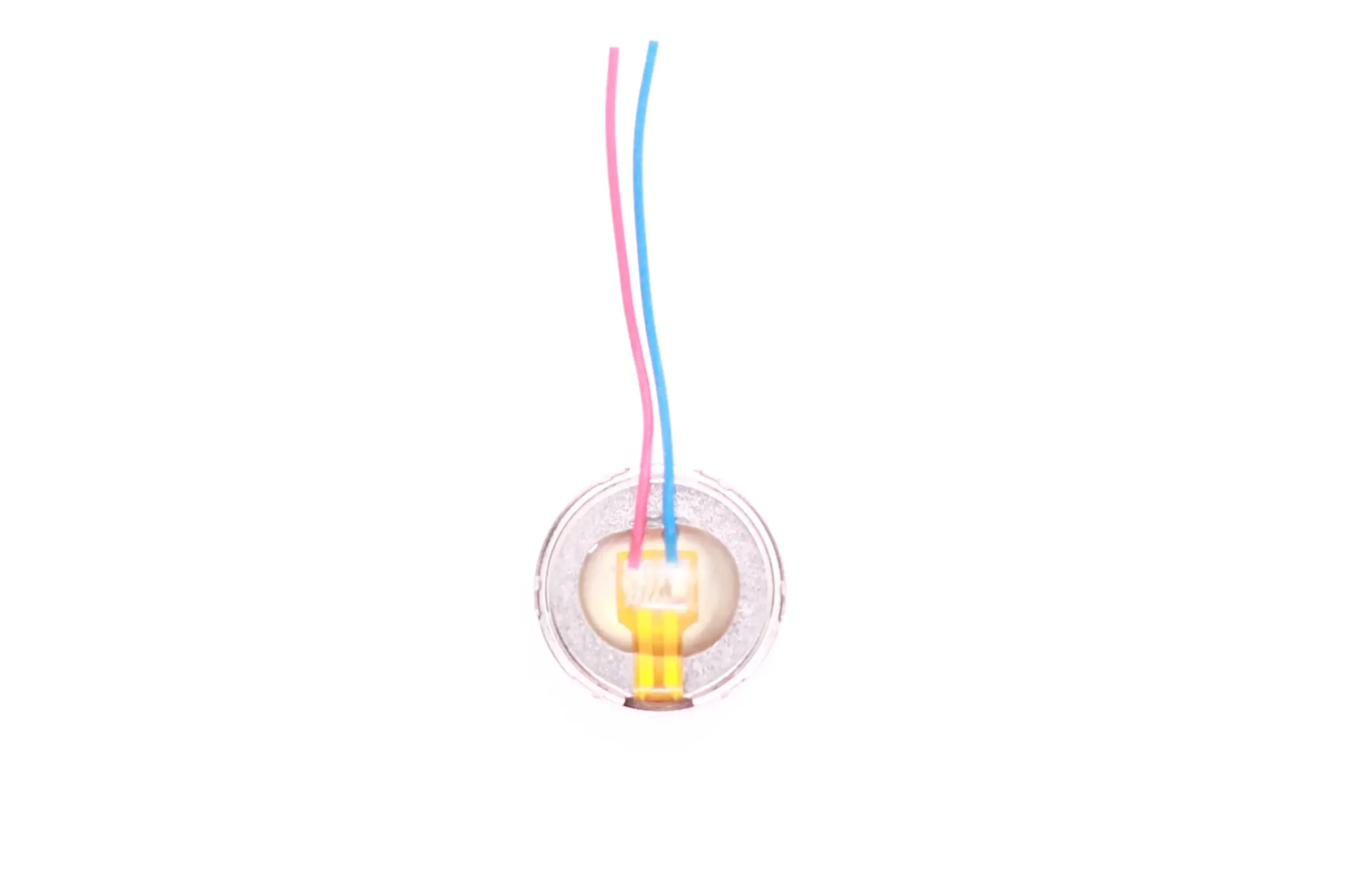

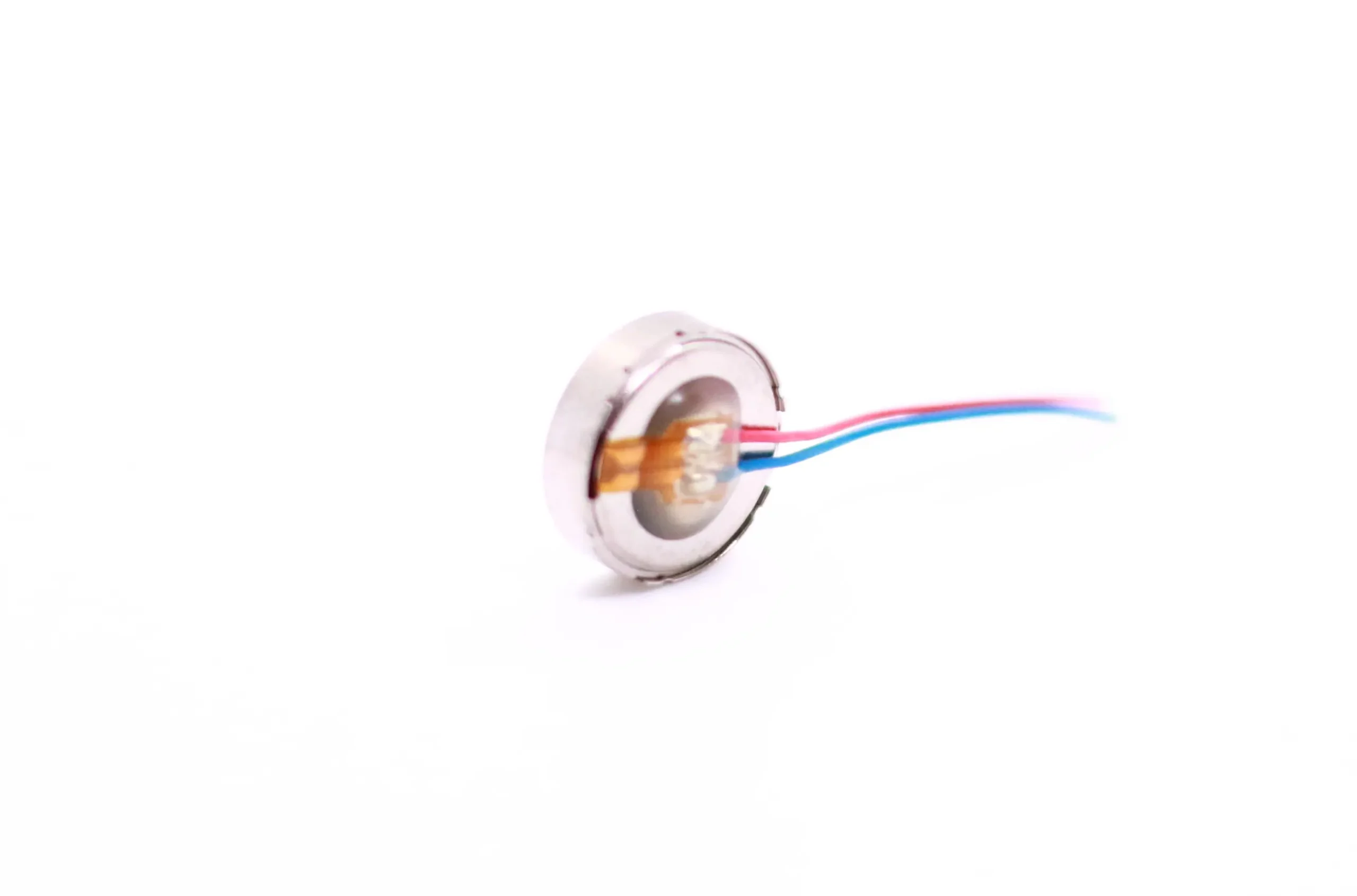

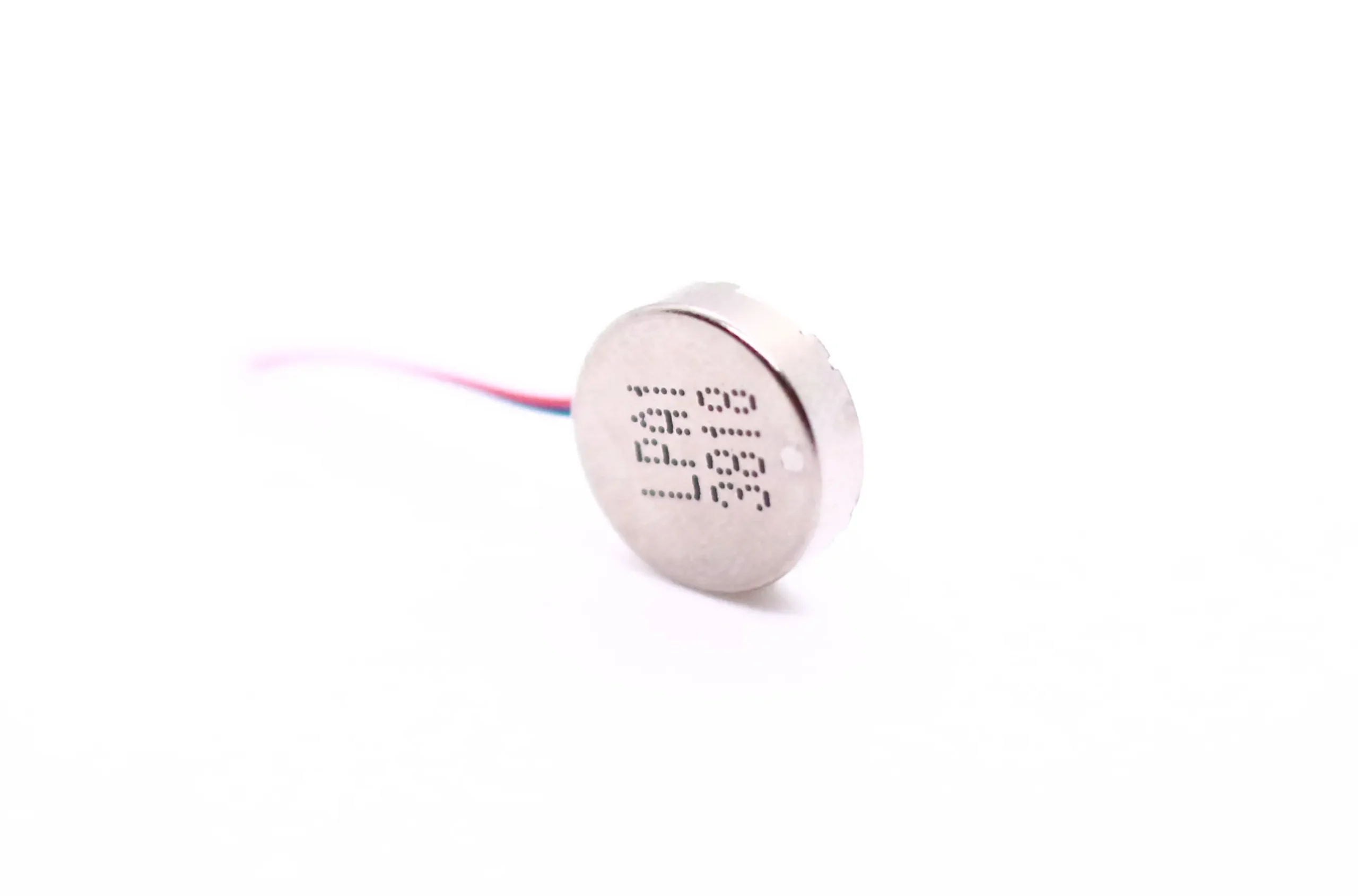

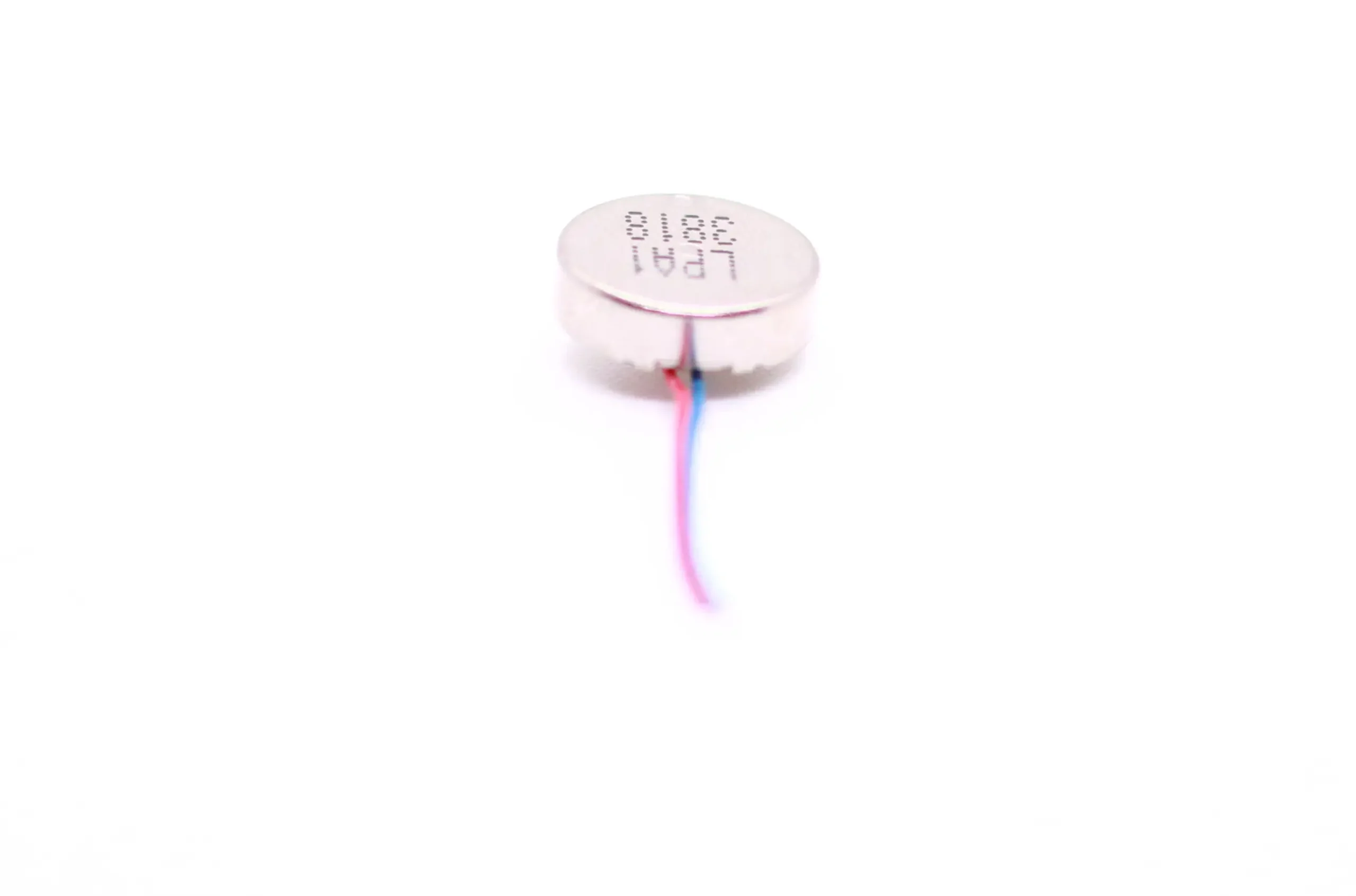

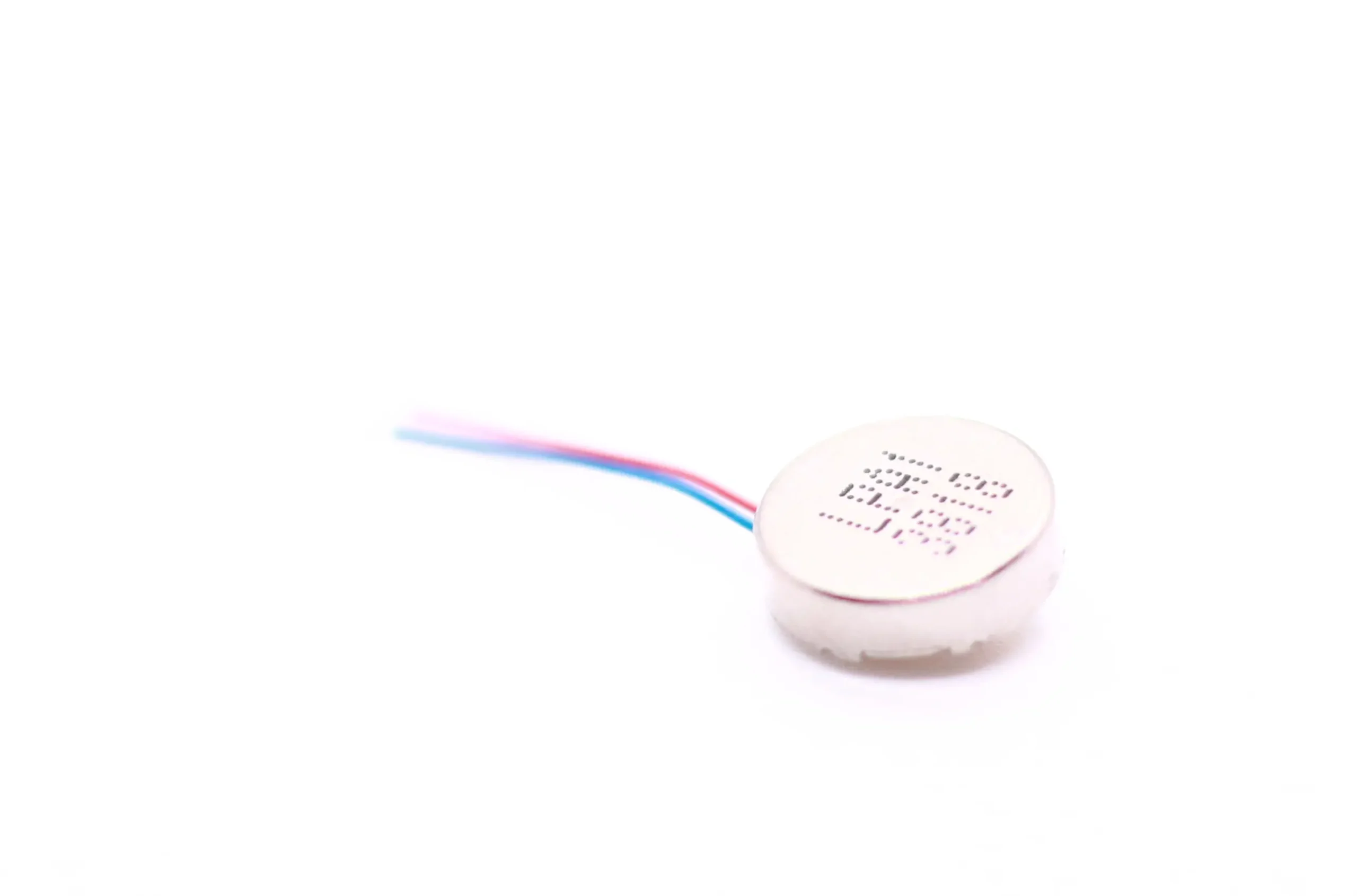

14mm Coin Vibration Motor – 3mm Type Model TSL-C1434
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-C1434
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Diameter:14.0mm
Motor Thickness:3.4mm
Flat Coin Button Type Vibrating Motor Data Sheet
Flat coin button type vibrating motor is widely used in cell phones and wearables devices Pager RFID scanners, bluetooth toy, health products, electronic medical devices, miniature fans brushes, tablets, bristle robots, gaming consoles ,massage machines, industrial tools and others that need haptic feedback devices.
| Motor Model | TSL-C1434 |
| Motor Diameter | 14.0mm |
| Motor Thickness | 3.4mm |
| Rated Voltage | 4.5V DC |
| Rated Speed | 9,000rpm |
| Rated Current | 150mA Max |
| Stall Current | 220mA Max |
| Starting Voltage | 2.3V Max |
| Vibe Force | 3.8Grms |
Flat Coin Button Type Vibrating Motor Technical Dimension
Reinforced vibration motor is made of high-strength body, magnets of high-quality with more powerful vibrations with longer service lives, more robust cable, strengthened treatment at the weld-point and reinforced adhesive backing for better self-adhesive reliability Cable that is pre-peeled, with a longer exposed length, ready for use. No need to be concerned about peeling the cable manually, which can cause damage to the cable. Flexible cable and terminal.
Keywords:
mobile vibration motor, ps4 vibration motor, 4.5v vibration motor, phone vibration motor, electric vibrating motors, mini vibration motor, cell phone vibration motor, small vibrating motor, iphone vibrate motor, iphone vibration motor,Flat Coin Button Type Vibrating Motor
Development Samples:
Quantities for sampling of models in stock can be ordered directly online from us.
Engineering & Manufacturing:
Contact us via one or the Sales Engineers for a quotation for production or consultation on customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door within 5-7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item by the delivery Time Please contact us via email with any queries. In most cases, we will send you a response within 24 hours in the event that we don’t, look through your email account. We will try our best to assist you to solve your issues.
4.Please check that your address is in line with the address of your final shipment before you make payment.
5.In order to ensure that you get your order tax-free at the time of import, we’ll declare it as an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ For Flat Coin Button Type Vibrating Motor
Q:What are the different types of flat coin button type vibrating motors you can provide?
A: We offer three types of flat coin button type vibrating motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.If you need a Vibration Measurement Calculator,click there:https://hansfordsensors.com/tools-resources/vibration-calculator/
