8mm Coin Vibration Motor – 3mm Type Model TSL-C0830
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-C0830
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant

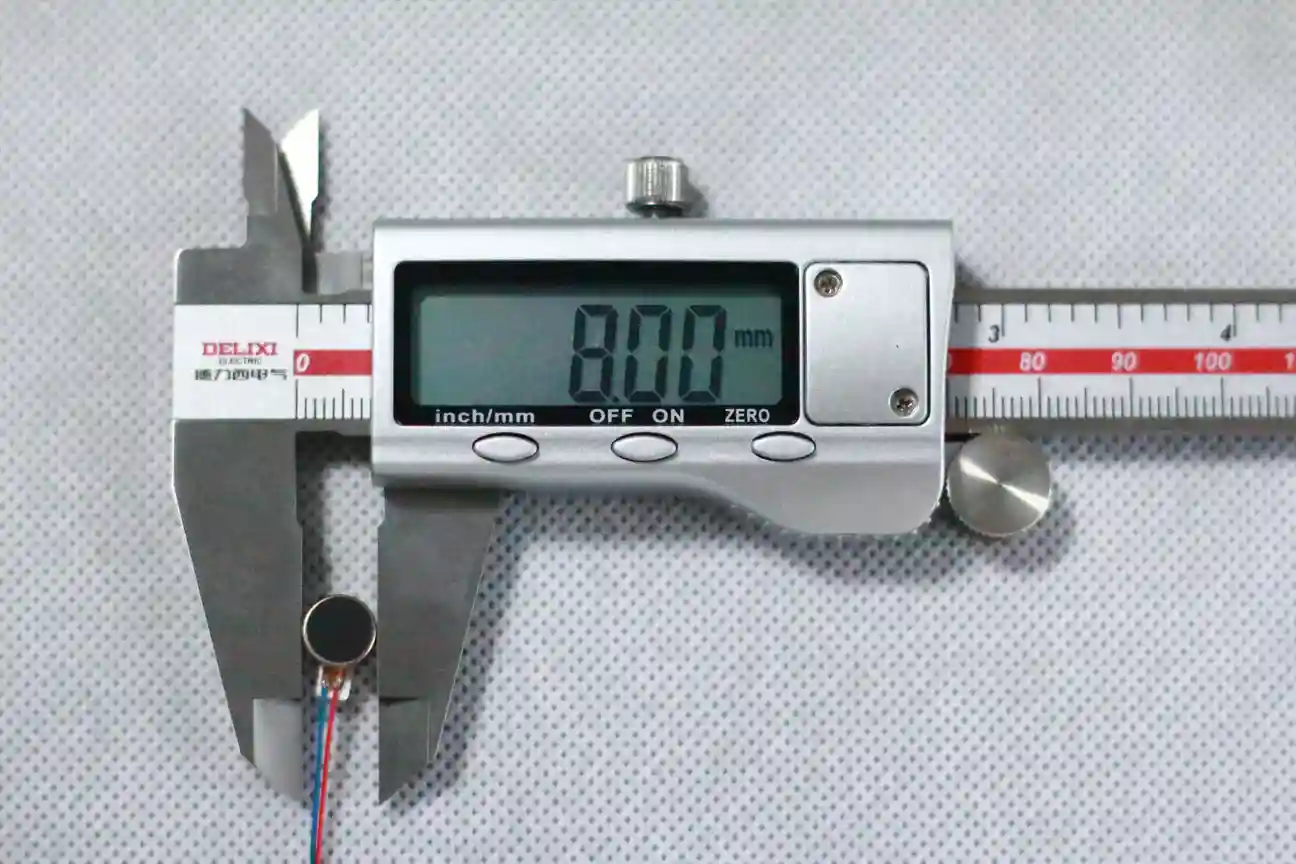

Motor Diameter:8.0mm

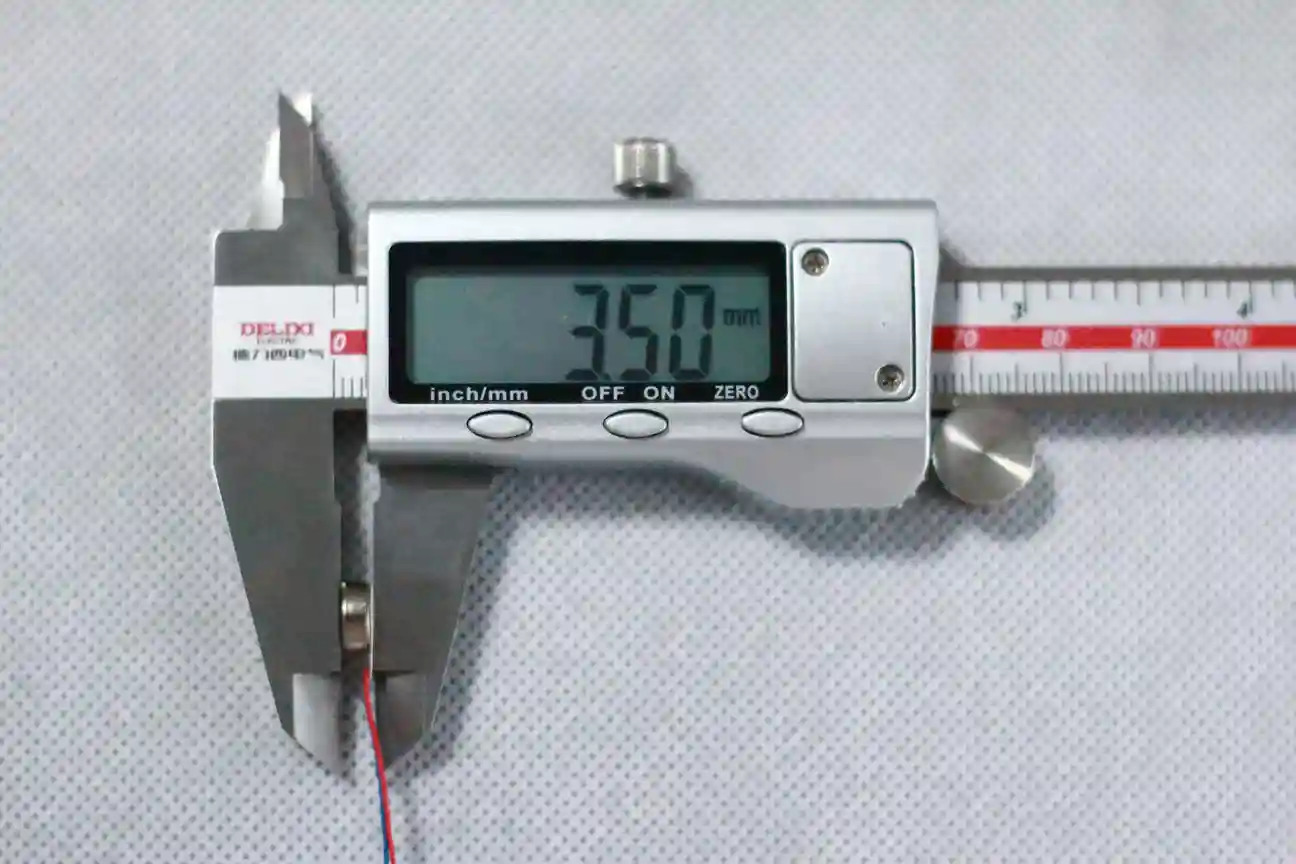

Motor Thickness:3.0mm
8mm Diameter Flat Vibrating Motor– 3mm Type With Lead Wire Datasheet
ERM flat vibrating motor also known as mini power motor. Small and easy to use with no moving parts externally. It is used in handheld instruments that are that use haptic. C0830 series Coin Vibration Motors 8 mm x 3.5 mm flat vibrating motor designed for light weight wearable devices. With a diameter of only 8 millimeters, C0830 series is currently the most sought-after flat vibrating motor in the market.
This flat vibrating motor is developed for devices that require vibration warnings or feedback haptic. Because it produces a minimal force of 1.0G. The haptic motor is best used in lighter-weight devices positioned directly on the skin of the user.
| Motor Model | TSL-C0830 |
| Motor Diameter | 8mm |
| Motor Thickness | 3mm |
| Rated Voltage | 3.0V DC |
| Rated Current | 100mA max |
| Rated Speed | 13,000rpm |
| Operating Voltage | 2.7V – 3.3V |
| Nominal Amplitude Vibe Force | 1.0G |
8mm Button Motors Miniature Haptic Motor Outline Drawing
It could be driven via a DC voltage or an PWM signal. The driver IC is not required, but can be utilized to create different physical effects. Custom foam pads or PSA are readily available for orders of mass production. If a stronger vibration force is required, think about using a MDM’s larger-sized mini power motors. The flat vibrating motors are 6 to 14 millimeters in diameter, and are able to generate the highest forces of vibration, upwards of 4.0G.
Flat Vibrating Motor Perfect For:
Mobile phone, Smart phone pager personal digital devices, health equipment, electric toothbrush and fire security systems. beauty products such as facial massagers eye massager and body massager
Keywords:
Mini power motors, Haptic motor ，coin type vibration motor， small vibration vibrator ，TSL motors, mini vibration motor, manufacturer of vibration motor， small vibrating motor， micro motors vibrate
Development Samples:
Quantities for sampling of models in stock are available to order directly online from us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment Method:
Payment methods: Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item by the delivery Time please contact us via email with any queries. In most cases, we will send you a reply within 24 hours in the event that we don’t, examine the spam in your email inbox. We will try the best we can to help resolve the issue.
4.Please ensure that your address matches the final shipping address prior to you make payment.
5.In order to ensure that you receive your purchase tax-free after importation, we’ll declare it at an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ For Coin Vibration Motor
Q:What are the different types of Coin Vibration Motors you can provide?
A: We offer three types of coin vibration motors: the ERM (Eccentric Rotating Mass) type, coin brushless types, and the LRA (Linear Resonant Actuator) type. All of these motors feature a flat, coin button-shaped casing.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.If you need a Vibration Measurement Calculator,click there:https://hansfordsensors.com/tools-resources/vibration-calculator/
