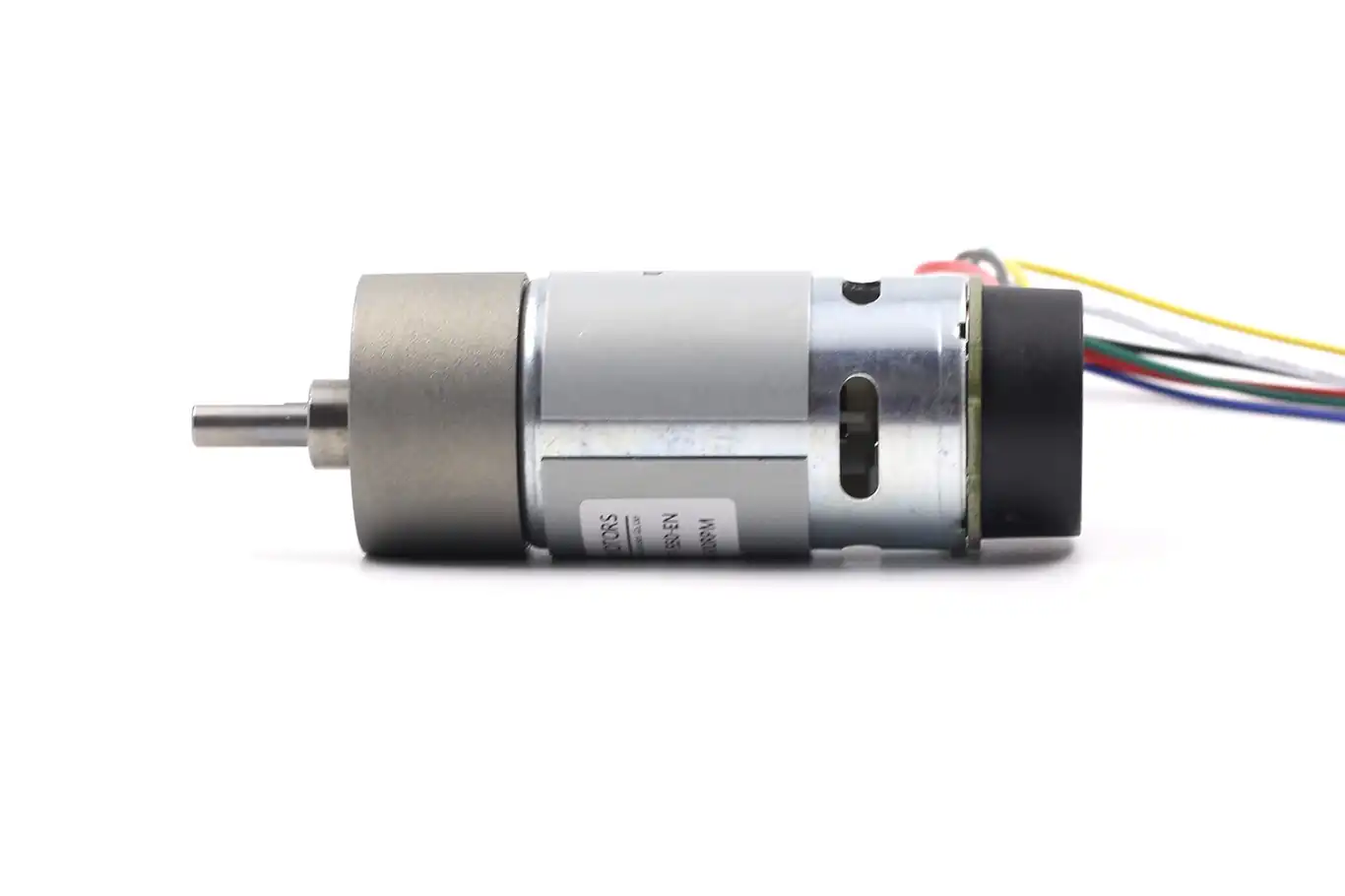

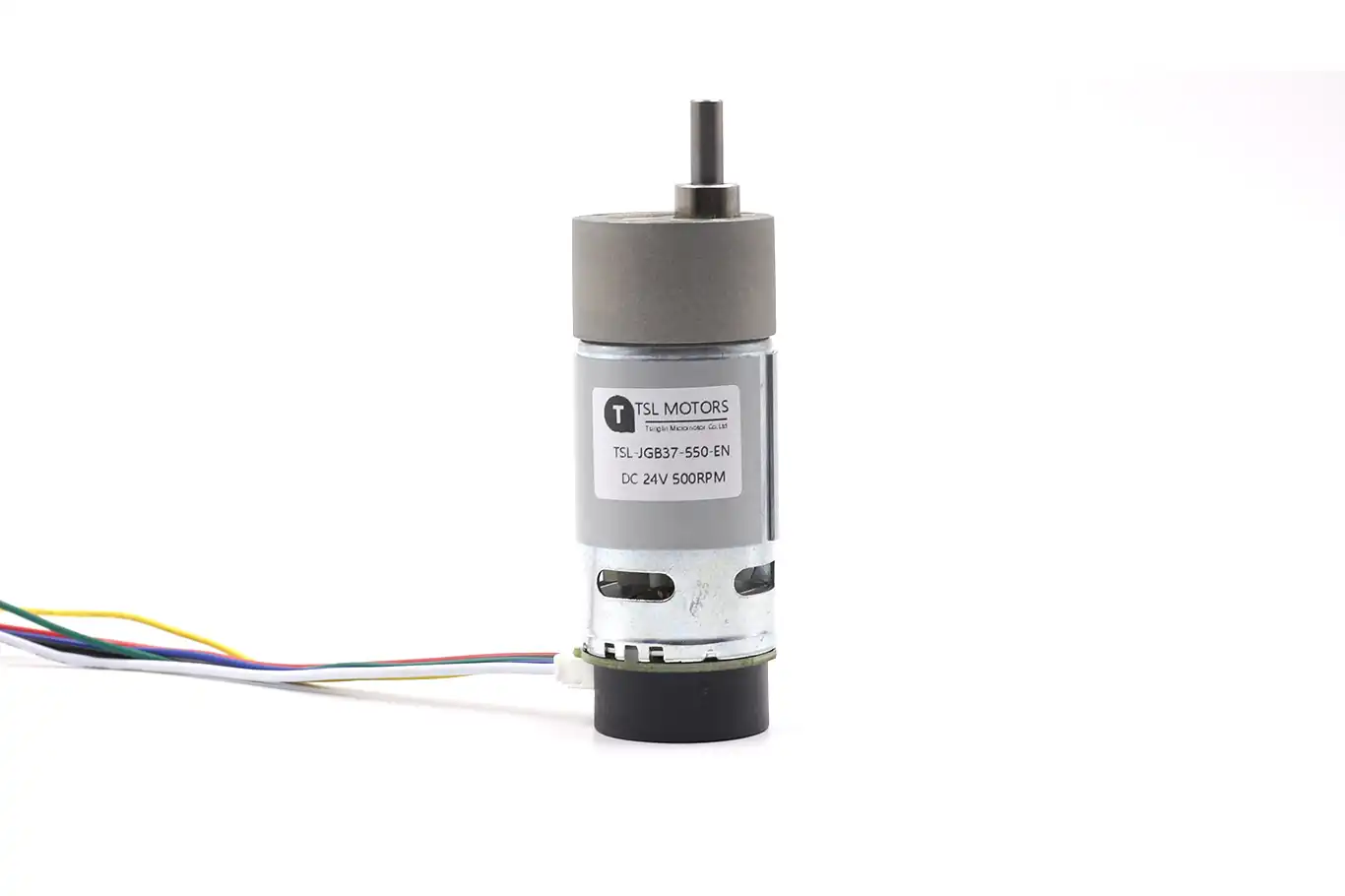

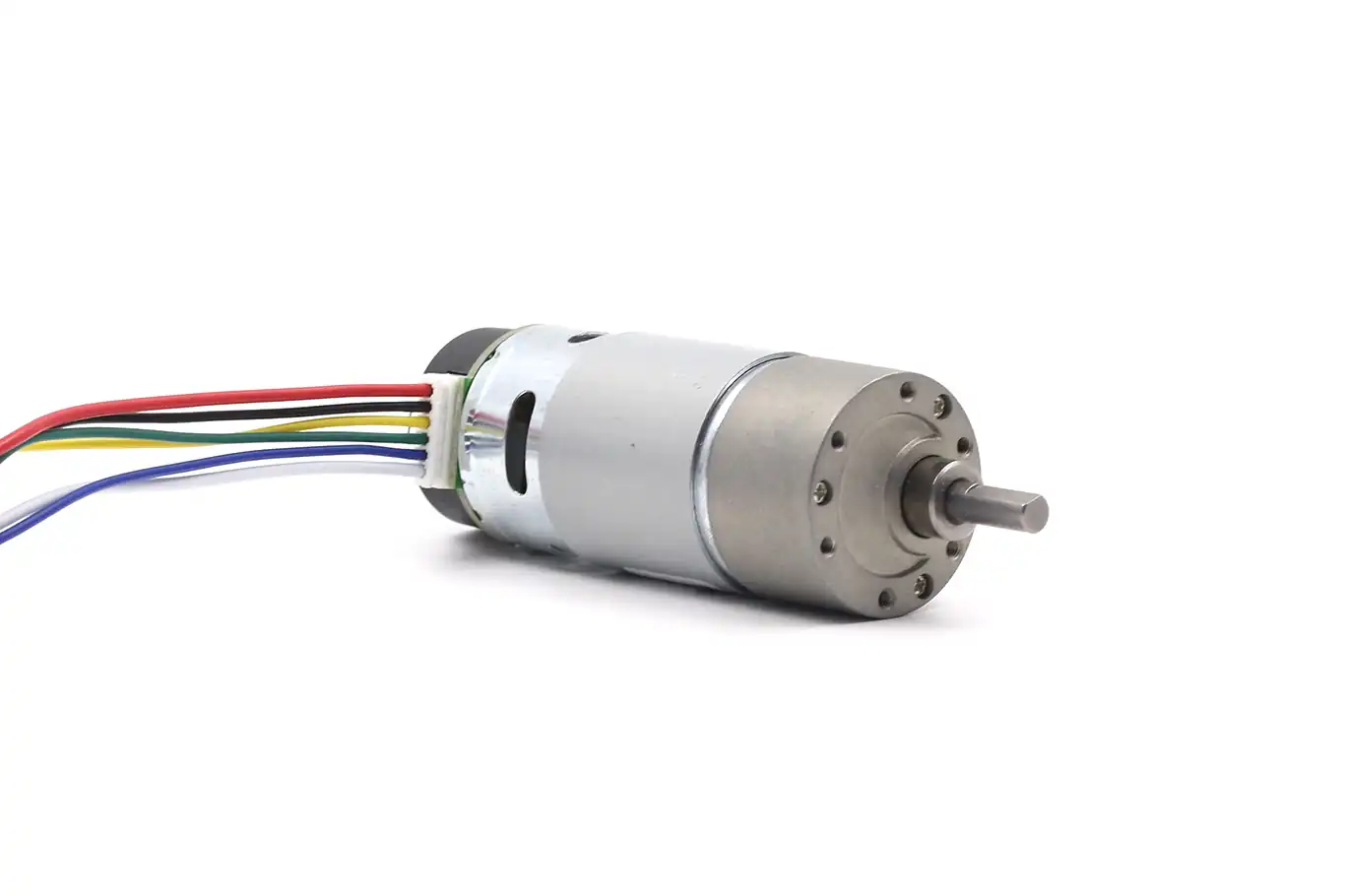

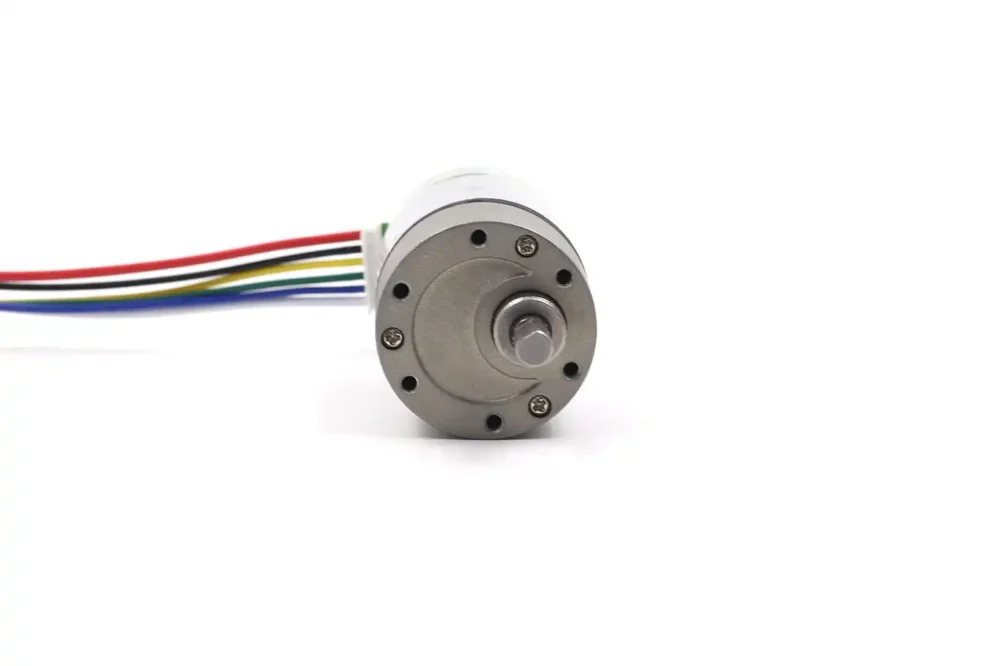

37mm Metal Gear Motor Model TSL-JGB37-550-EN
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-JGB37-550-EN
- Rated Voltage: 6V/12V / 24V DC
- No Load Speed：16rpm – 2650rpm
- No Load Current：≤0.65A / ≤0.45A/≤1.1A/≤0.95A
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Automatic mahjong machine, automatic vending machine
- medical equipment, automatic teller machine (ATM)
- robot, parking lock
Encoder Motor 37mm Metal Gearbox Motor Parameters
Experience powerful performance with our 37mm Metal Gearbox and 550 Motor combo. This encoder motor is built for excellence. It offers top performance, durability, and versatility. Perfect for a range of uses, from robotics to automation. This product is designed for both professionals and hobbyists.
TSL-GM37-550, 6V DC, 10W
| Ratio | Gearbox | No Load | Rated Load | Stall | |||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current |
| mm | mA | rpm | A | rpm | Kg.cm | A | |
| 6.3:1 | 19.0 | ≤950 | 1300 | ≤3.5 | 850 | 1.0 | 10.0 |
| 10:1 | 19.0 | ≤950 | 820 | ≤3.5 | 535 | 1.5 | 10.0 |
| 18:1 | 21.5 | ≤950 | 435 | ≤3.5 | 285 | 2.8 | 10.0 |
| 30:1 | 21.5 | ≤950 | 275 | ≤3.5 | 180 | 4.5 | 10.0 |
| 50:1 | 24.0 | ≤950 | 165 | ≤3.5 | 105 | 7.5 | 10.0 |
| 90:1 | 24.0 | ≤950 | 90 | ≤3.5 | 60 | 13.0 | 10.0 |
| 150:1 | 29.0 | ≤950 | 55 | ≤3.5 | 36 | 21.0 | 10.0 |
| 270:1 | 26.5 | ≤950 | 30 | ≤3.5 | 20 | Max 35.0 | 10.0 |
| 450:1 | 29.0 | ≤950 | 18 | ≤2.5 | 16 | Max 35.0 | 10.0 |
💕The high torque dc electric encoder motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM37-550,12V DC, 40W
| Ratio | Gearbox | No Load | Rated Load | Stall | |||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current |
| mm | mA | rpm | A | rpm | Kg.cm | A | |
| 6.3:1 | 19.0 | ≤1100 | 2650 | ≤6.0 | 850 | 2.0 | 20.0 |
| 10:1 | 19.0 | ≤1100 | 1650 | ≤6.0 | 535 | 3.0 | 20.0 |
| 18:1 | 21.5 | ≤1100 | 875 | ≤6.0 | 285 | 5.5 | 20.0 |
| 30:1 | 21.5 | ≤1100 | 550 | ≤6.0 | 180 | 9.0 | 20.0 |
| 50:1 | 24.0 | ≤1100 | 330 | ≤6.0 | 105 | 15.0 | 20.0 |
| 90:1 | 24.0 | ≤1100 | 180 | ≤6.0 | 60 | 27.0 | 20.0 |
| 150:1 | 29.0 | ≤1100 | 110 | ≤6.0 | 36 | Max 35.0 | 20.0 |
| 270:1 | 26.5 | ≤1100 | 60 | ≤4.5 | 20 | Max 35.0 | 20.0 |
| 450:1 | 29.0 | ≤1100 | 36 | ≤3.8 | 16 | Max 35.0 | 20.0 |
💕The high torque dc electric encoder motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM37-550,12V DC, 21W
| Ratio | Gearbox | No Load | Rated Load | Stall | |||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current |
| mm | mA | rpm | A | rpm | Kg.cm | A | |
| 6.3:1 | 19.0 | ≤450 | 1200 | ≤3.5 | 840 | 2.0 | 13.0 |
| 10:1 | 19.0 | ≤450 | 750 | ≤3.5 | 525 | 3.0 | 13.0 |
| 18:1 | 21.5 | ≤450 | 415 | ≤3.5 | 280 | 5.5 | 13.0 |
| 30:1 | 21.5 | ≤450 | 250 | ≤3.5 | 175 | 9.0 | 13.0 |
| 50:1 | 24.0 | ≤450 | 150 | ≤3.5 | 105 | 15.0 | 13.0 |
| 90:1 | 24.0 | ≤450 | 83 | ≤3.5 | 58 | 27.0 | 13.0 |
| 150:1 | 29.0 | ≤450 | 50 | ≤3.5 | 35 | Max 35.0 | 13.0 |
| 270:1 | 26.5 | ≤450 | 27 | ≤3.5 | 21 | Max 35.0 | 13.0 |
| 450:1 | 29.0 | ≤450 | 16 | ≤3.5 | 12 | Max 35.0 | 13.0 |
💕The high torque dc electric encoder motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM37-550,24V DC, 85W
| Ratio | Gearbox | No Load | Rated Load | Stall | |||
| i : 1 | Length | Current | Speed | Current | Speed | Torque | Current |
| mm | mA | rpm | A | rpm | Kg.cm | A | |
| 6.3:1 | 19.0 | ≤650 | 2400 | ≤3.5 | 1680 | 4.0 | 26.0 |
| 10:1 | 19.0 | ≤650 | 1500 | ≤3.5 | 1050 | 6.0 | 26.0 |
| 18:1 | 21.5 | ≤650 | 830 | ≤3.5 | 560 | 11.0 | 26.0 |
| 30:1 | 21.5 | ≤650 | 500 | ≤3.5 | 350 | 18.0 | 26.0 |
| 50:1 | 24.0 | ≤650 | 300 | ≤3.5 | 210 | 30.0 | 26.0 |
| 90:1 | 24.0 | ≤650 | 165 | ≤3.5 | 120 | Max 35.0 | 26.0 |
| 150:1 | 26.5 | ≤650 | 100 | ≤3.5 | 75 | Max 35.0 | 26.0 |
| 270:1 | 26.5 | ≤650 | 54 | ≤3.5 | 45 | Max 35.0 | 26.0 |
| 450:1 | 29.0 | ≤650 | 32 | ≤3.5 | 25 | Max 35.0 | 26.0 |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
High Torque Encoder Motor 37mm Metal Gearbox Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

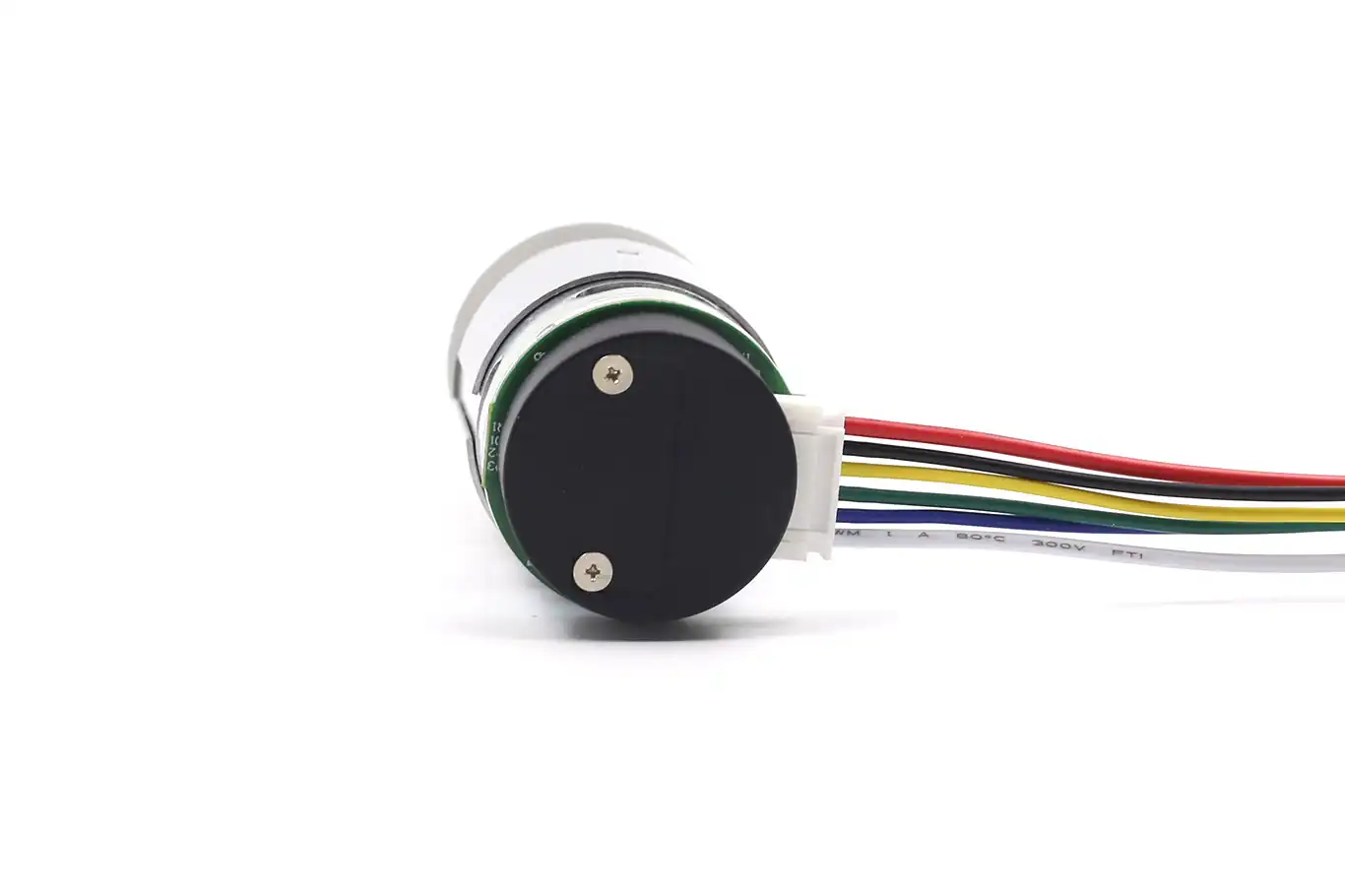

Encoder Motor Connection Method
| Type | AB dual-phase incremental magnetic Hall encoder |
| Line Speed | Base pulse 17 PPR x Gear reduction ratio |
| Supply Voltage | DC 3.3V / DC 5.0V |
| Basic Function | Built-in pull-up shaping resistor, direct connection to microcontroller |
| Interface Type | XH2.54-6PIN (standard connection cable) |
| Output Signal Type | Square wave AB phase |
| Response Frequency | 100KHz |
| Base Pulse Count | 17 PPR |
| Magnetic Ring Poles | 34 poles (17 pairs) |
Keywords:
high torque motor, low speed motor, 12V motor, 24V DC motor,high torque dc electric motor,high
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
