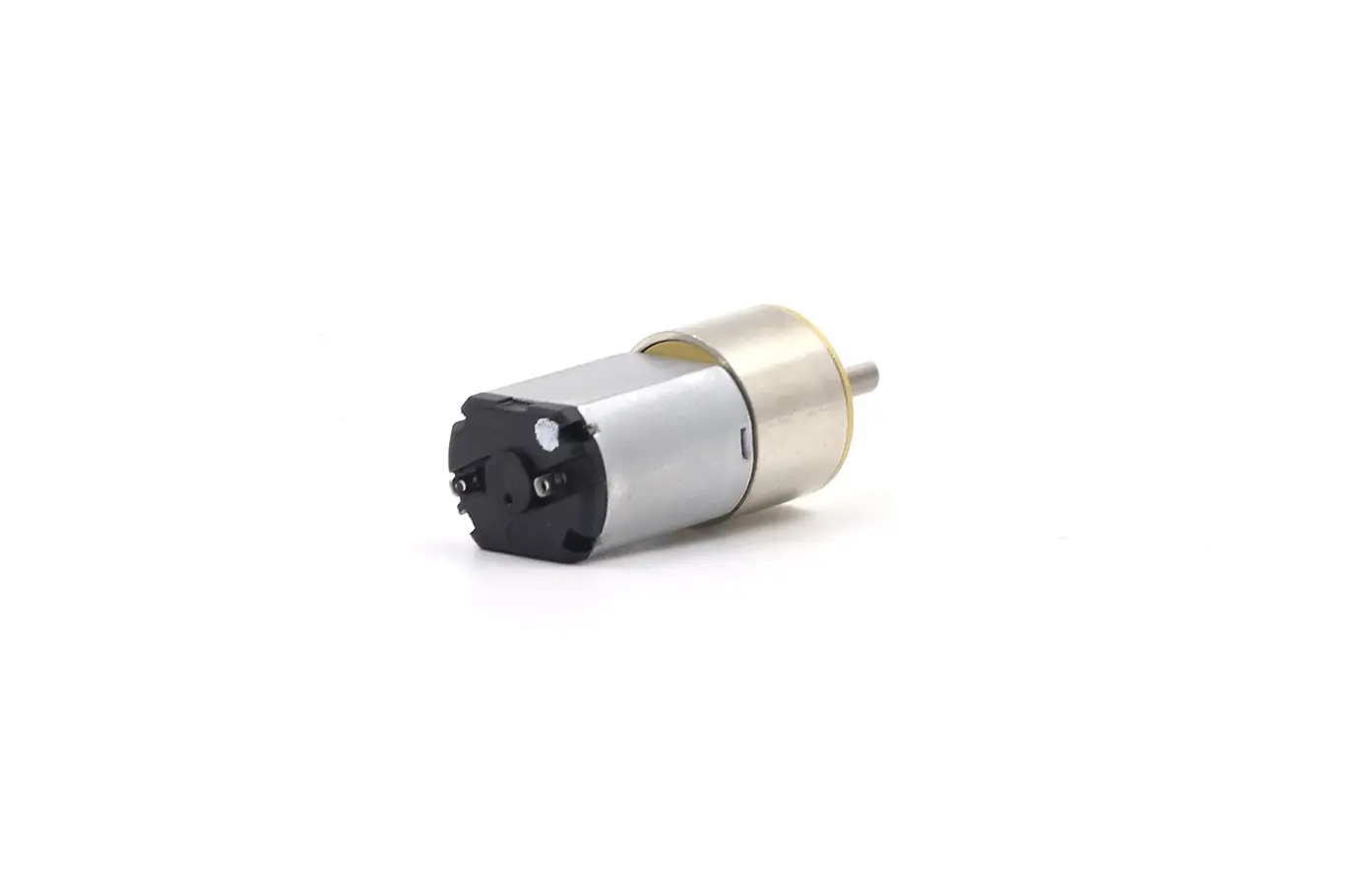

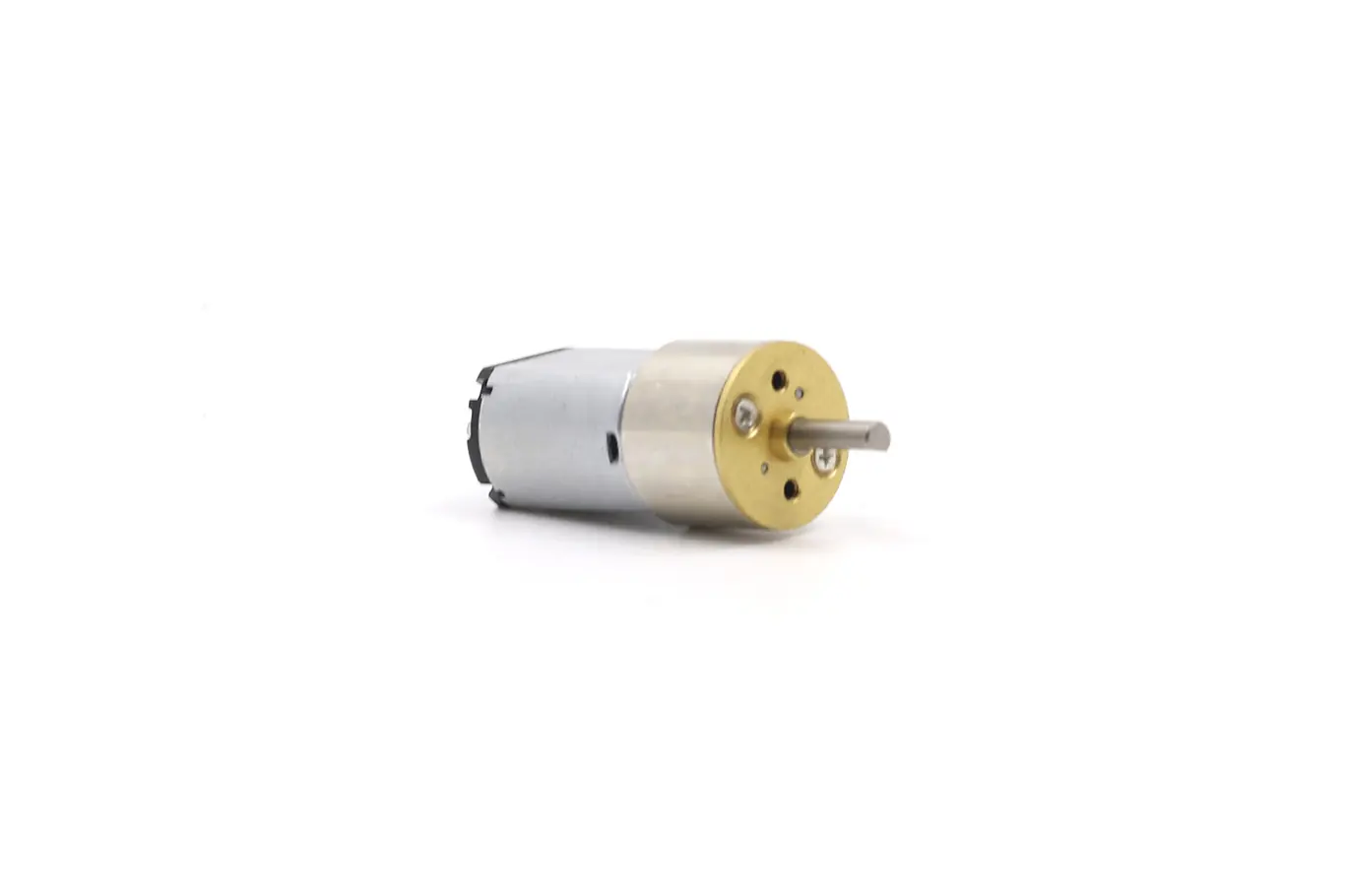

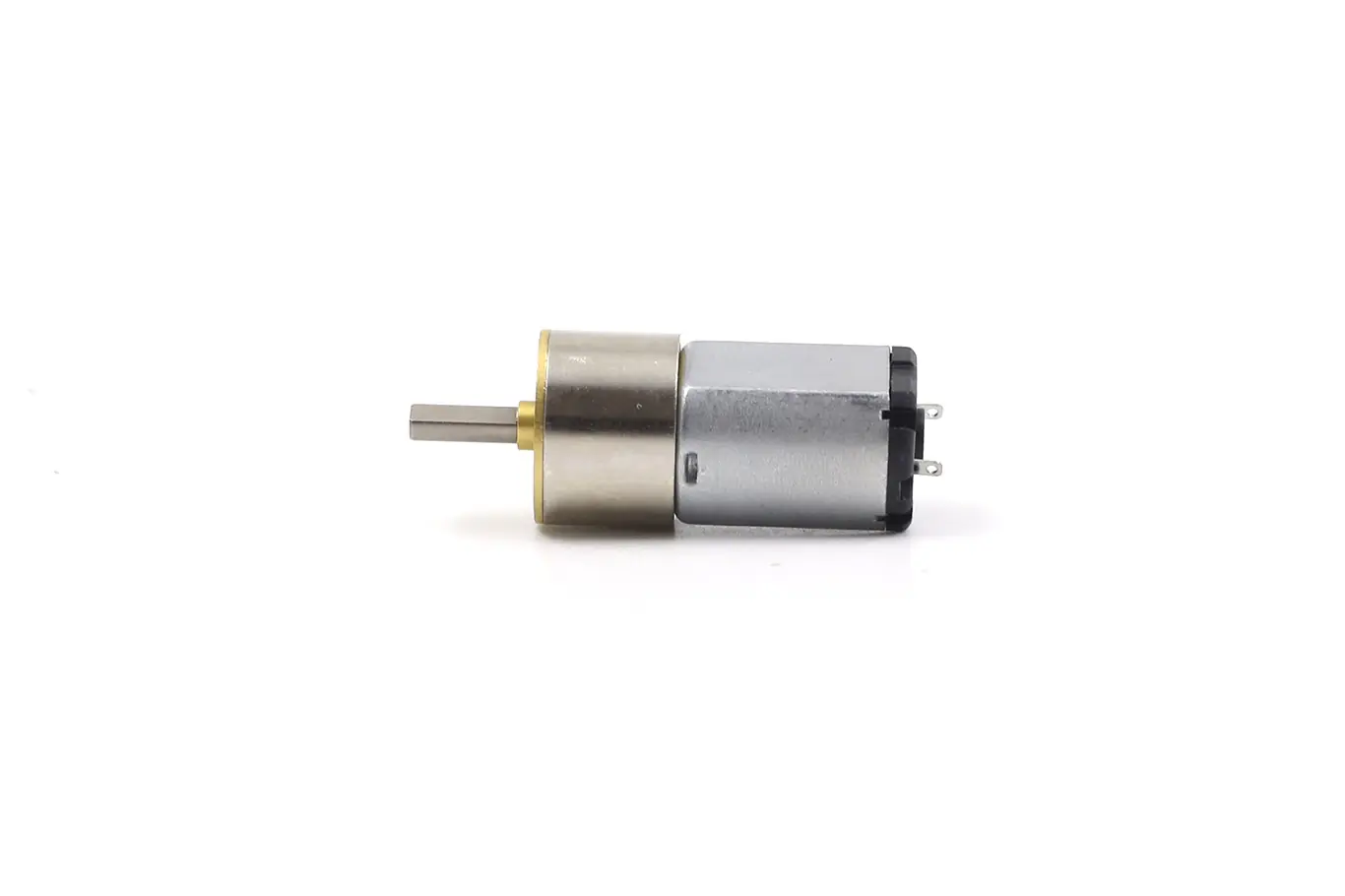

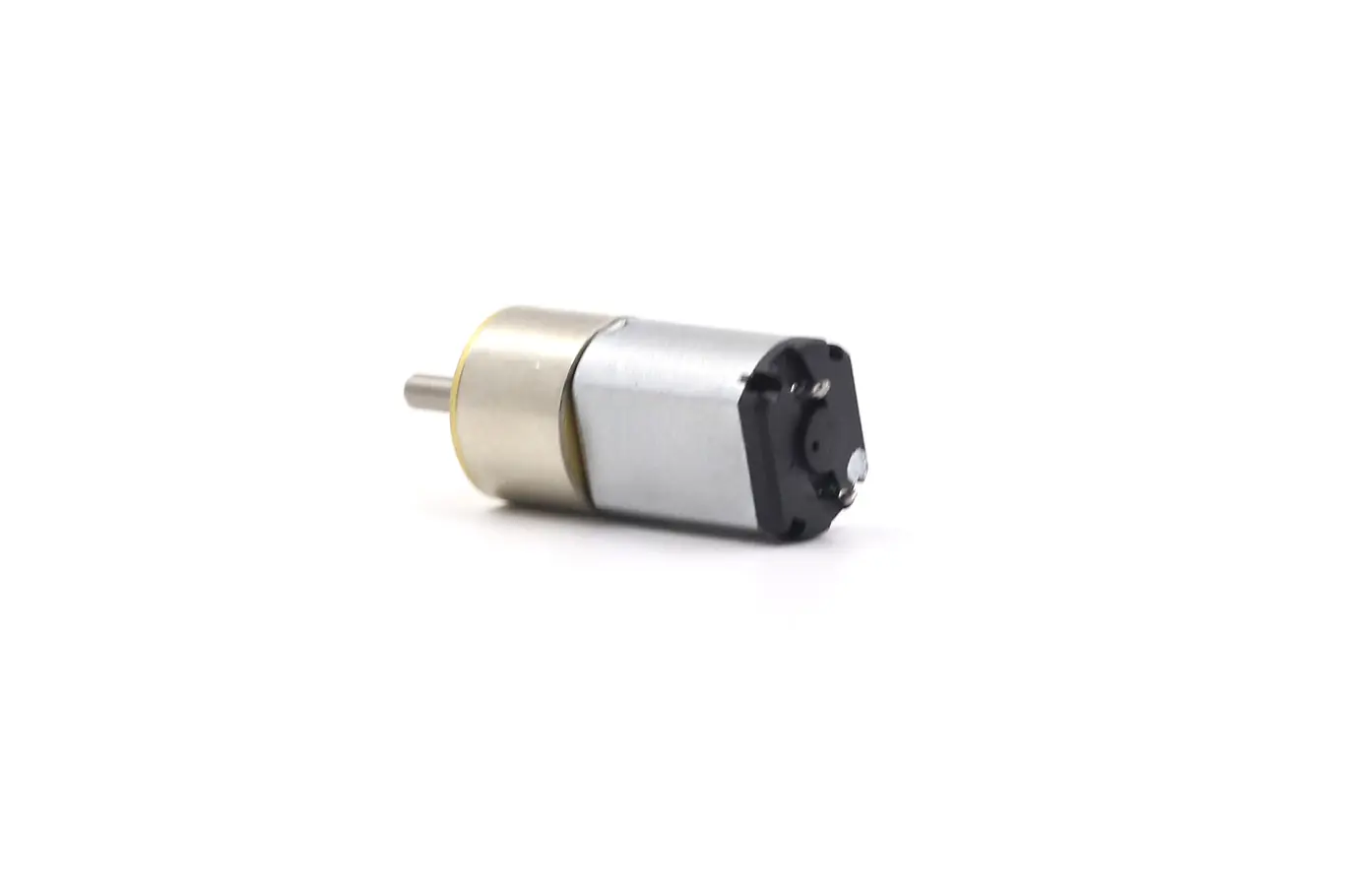

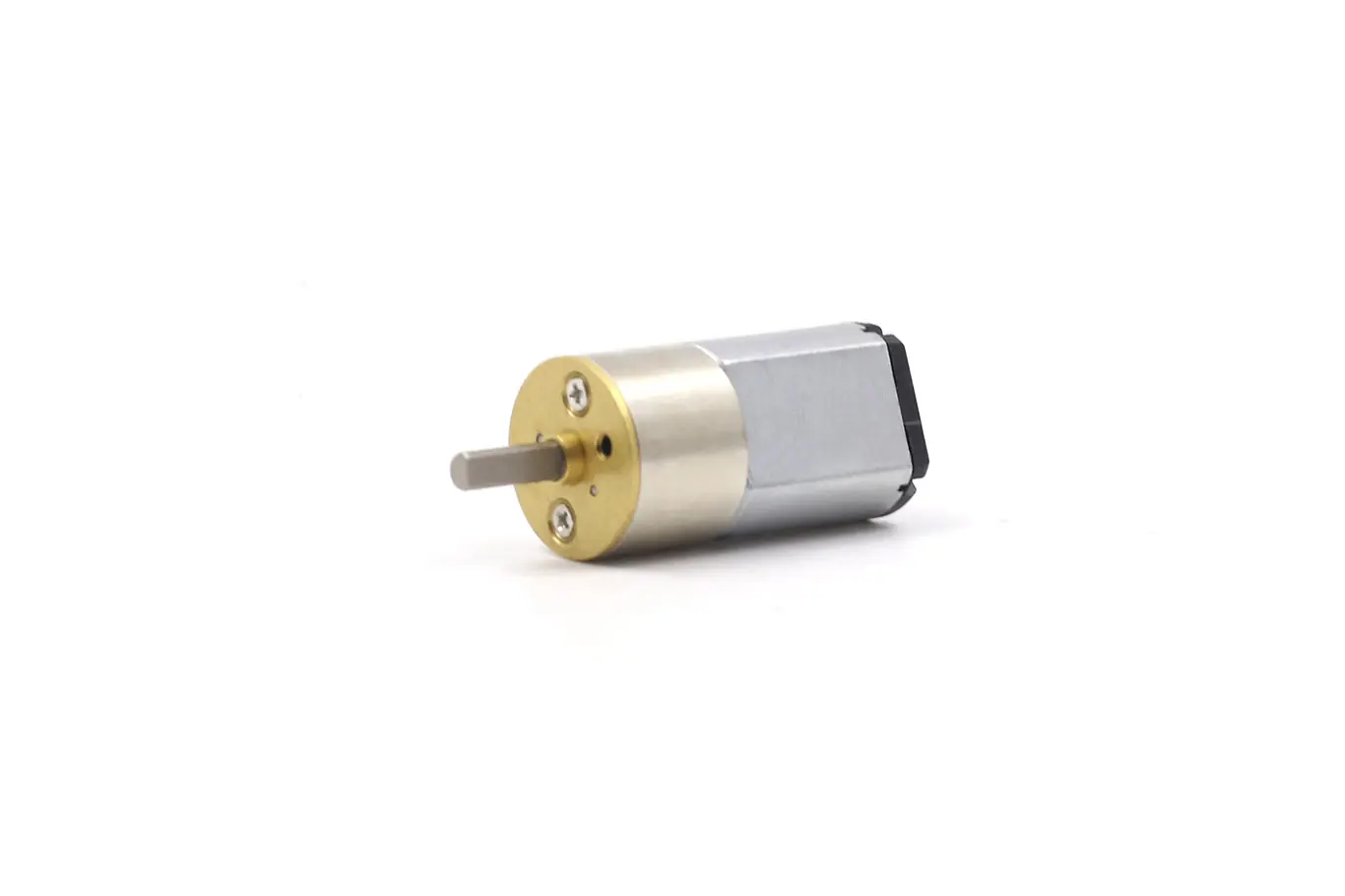

16mm Metal Gear Motor Model TSL-GM16-030

Basic Info:

Brand:TSL
Origin:China
Motor Model:TSL-GM16-030
Voltage:DC 3-12V/Customizable
Shaft Diameater:3mm D2.5mm
Shaft Length:10mm
#More Specifications
#Outline Drawing

♦ Typical Applications:

Smart robots, intelligent robotic arms
smart home, smart focusing systems
miniature pan-tilt heads

Gear Reduction Box Electric Motor Datasheets

TSL-GM16-030, Max Output Power: 0.4W, DC 3V,14 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	1150 rpm	≤100mA	730 rpm	≤0.55A	50 g.cm	≥0.2 kg.cm	≤1.4A
20	580 rpm	≤100mA	360 rpm	≤0.55A	100 g.cm	≥0.45 kg.cm	≤1.4A
35	330 rpm	≤100mA	210 rpm	≤0.55A	170 g.cm	≥0.7 kg.cm	≤1.4A
63	185 rpm	≤100mA	115 rpm	≤0.55A	300 g.cm	≥1.5 kg.cm	≤1.4A
86	135 rpm	≤100mA	85 rpm	≤0.55A	400 g.cm	≥2 kg.cm	≤1.4A
115	100 rpm	≤100mA	60 rpm	≤0.55A	550 g.cm	≥2.3 kg.cm	≤1.4A
150	75 rpm	≤100mA	48 rpm	≤0.55A	750 g.cm	Max 3 kg.cm	≤1.4A
250	45 rpm	≤100mA	29 rpm	≤0.55A	1250 g.cm	Max 3 kg.cm	≤1.4A
360	32 rpm	≤100mA	20 rpm	≤0.55A	1800 g.cm	Max 3 kg.cm	≤1.4A

💕The gear reduction box electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-GM16-030, Max Output Power:0.7W, DC 6V,08 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	900 rpm	≤50mA	780 rpm	≤0.1A	50 g.cm	≥0.2 kg.cm	≤0.38A
20	450 rpm	≤50mA	385 rpm	≤0.1A	100 g.cm	≥0.45 kg.cm	≤0.38A
35	250 rpm	≤50mA	220 rpm	≤0.1A	170 g.cm	≥0.7 kg.cm	≤0.38A
63	140 rpm	≤50mA	120 rpm	≤0.1A	300 g.cm	≥1.5 kg.cm	≤0.38A
86	105 rpm	≤50mA	90 rpm	≤0.1A	400 g.cm	≥2 kg.cm	≤0.38A
115	80 rpm	≤50mA	68 rpm	≤0.1A	550 g.cm	≥2.3 kg.cm	≤0.38A
150	60 rpm	≤50mA	50 rpm	≤0.1A	750 g.cm	Max 3 kg.cm	≤0.38A
250	35 rpm	≤50mA	30 rpm	≤0.1A	1250 g.cm	Max 3 kg.cm	≤0.38A
360	25 rpm	≤50mA	22 rpm	≤0.1A	1800 g.cm	Max 3 kg.cm	≤0.38A

TSL-GM16-030, Max Output Power:0.9W, DC 6V,10 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	1350 rpm	≤65mA	1100 rpm	≤0.23A	50 g.cm	≥0.25 kg.cm	≤0.9A
20	680 rpm	≤65mA	550 rpm	≤0.23A	100 g.cm	≥0.5 kg.cm	≤0.9A
35	390 rpm	≤65mA	315 rpm	≤0.23A	170 g.cm	≥0.8 kg.cm	≤0.9A
63	220 rpm	≤65mA	175 rpm	≤0.23A	300 g.cm	≥1.8 kg.cm	≤0.9A
86	160 rpm	≤65mA	125 rpm	≤0.23A	400 g.cm	≥2.3 kg.cm	≤0.9A
115	120 rpm	≤65mA	95 rpm	≤0.23A	550 g.cm	Max 3 kg.cm	≤0.9A
150	90 rpm	≤65mA	73 rpm	≤0.23A	750 g.cm	Max 3 kg.cm	≤0.9A
250	55 rpm	≤65mA	45 rpm	≤0.23A	1250 g.cm	Max 3 kg.cm	≤0.9A
360	38 rpm	≤65mA	30 rpm	≤0.23A	1800 g.cm	Max 3 kg.cm	≤0.9A

TSL-GM16-030, Max Output Power:2.0W, DC 6V,14 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	2350 rpm	≤150mA	1900 rpm	≤0.6A	60 g.cm	≥0.3 kg.cm	≤2.5A
20	1175 rpm	≤150mA	950 rpm	≤0.6A	120 g.cm	≥0.6 kg.cm	≤2.5A
35	670 rpm	≤150mA	540 rpm	≤0.6A	210 g.cm	≥1 kg.cm	≤2.5A
63	370 rpm	≤150mA	300 rpm	≤0.6A	380 g.cm	≥1.9 kg.cm	≤2.5A
86	270 rpm	≤150mA	220 rpm	≤0.6A	500 g.cm	≥2.5 kg.cm	≤2.5A
115	200 rpm	≤150mA	165 rpm	≤0.6A	700 g.cm	Max 3 kg.cm	≤2.5A
150	155 rpm	≤150mA	125 rpm	≤0.6A	900 g.cm	Max 3 kg.cm	≤2.5A
250	95 rpm	≤150mA	75 rpm	≤0.6A	1500 g.cm	Max 3 kg.cm	≤2.5A
360	65 rpm	≤150mA	50 rpm	≤0.6A	2000 g.cm	Max 3 kg.cm	≤2.5A

TSL-GM16-030, Max Output Power:1.2W, DC 9V,08 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	1350 rpm	≤55mA	1150 rpm	≤0.12A	50 g.cm	≥0.25 kg.cm	≤0.56A
20	675 rpm	≤55mA	580 rpm	≤0.12A	100 g.cm	≥0.5 kg.cm	≤0.56A
35	385 rpm	≤55mA	330 rpm	≤0.12A	170 g.cm	≥0.8 kg.cm	≤0.56A
63	215 rpm	≤55mA	185 rpm	≤0.12A	300 g.cm	≥1.8 kg.cm	≤0.56A
86	160 rpm	≤55mA	135 rpm	≤0.12A	400 g.cm	≥2.3 kg.cm	≤0.56A
115	120 rpm	≤55mA	100 rpm	≤0.12A	550 g.cm	Max 3 kg.cm	≤0.56A
150	90 rpm	≤55mA	77 rpm	≤0.12A	750 g.cm	Max 3 kg.cm	≤0.56A
250	55 rpm	≤55mA	45 rpm	≤0.12A	1250 g.cm	Max 3 kg.cm	≤0.56A
360	38 rpm	≤55mA	32 rpm	≤0.12A	1800 g.cm	Max 3 kg.cm	≤0.56A

TSL-GM16-030, Max Output Power:1.5W, DC 12V,08 Type

Ratio	No Load		Rated Load			Stall
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current
10	1750 rpm	≤65mA	1450 rpm	≤0.16A	50 g.cm	≥0.3 kg.cm	≤0.75A
20	880 rpm	≤65mA	730 rpm	≤0.16A	100 g.cm	≥0.6 kg.cm	≤0.75A
35	500 rpm	≤65mA	420 rpm	≤0.16A	170 g.cm	≥1 kg.cm	≤0.75A
63	280 rpm	≤65mA	230 rpm	≤0.16A	300 g.cm	≥2 kg.cm	≤0.75A
86	205 rpm	≤65mA	170 rpm	≤0.16A	400 g.cm	≥2.5 kg.cm	≤0.75A
115	155 rpm	≤65mA	125 rpm	≤0.16A	550 g.cm	Max 3 kg.cm	≤0.75A
150	115 rpm	≤65mA	100 rpm	≤0.16A	750 g.cm	Max 3 kg.cm	≤0.75A
250	70 rpm	≤65mA	58 rpm	≤0.16A	1250 g.cm	Max 3 kg.cm	≤0.75A
360	50 rpm	≤65mA	40 rpm	≤0.16A	1800 g.cm	Max 3 kg.cm	≤0.75A

💕The gear reduction box electric motor’s technical specifications are for guidance，we offer custom solutions upon request.

⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

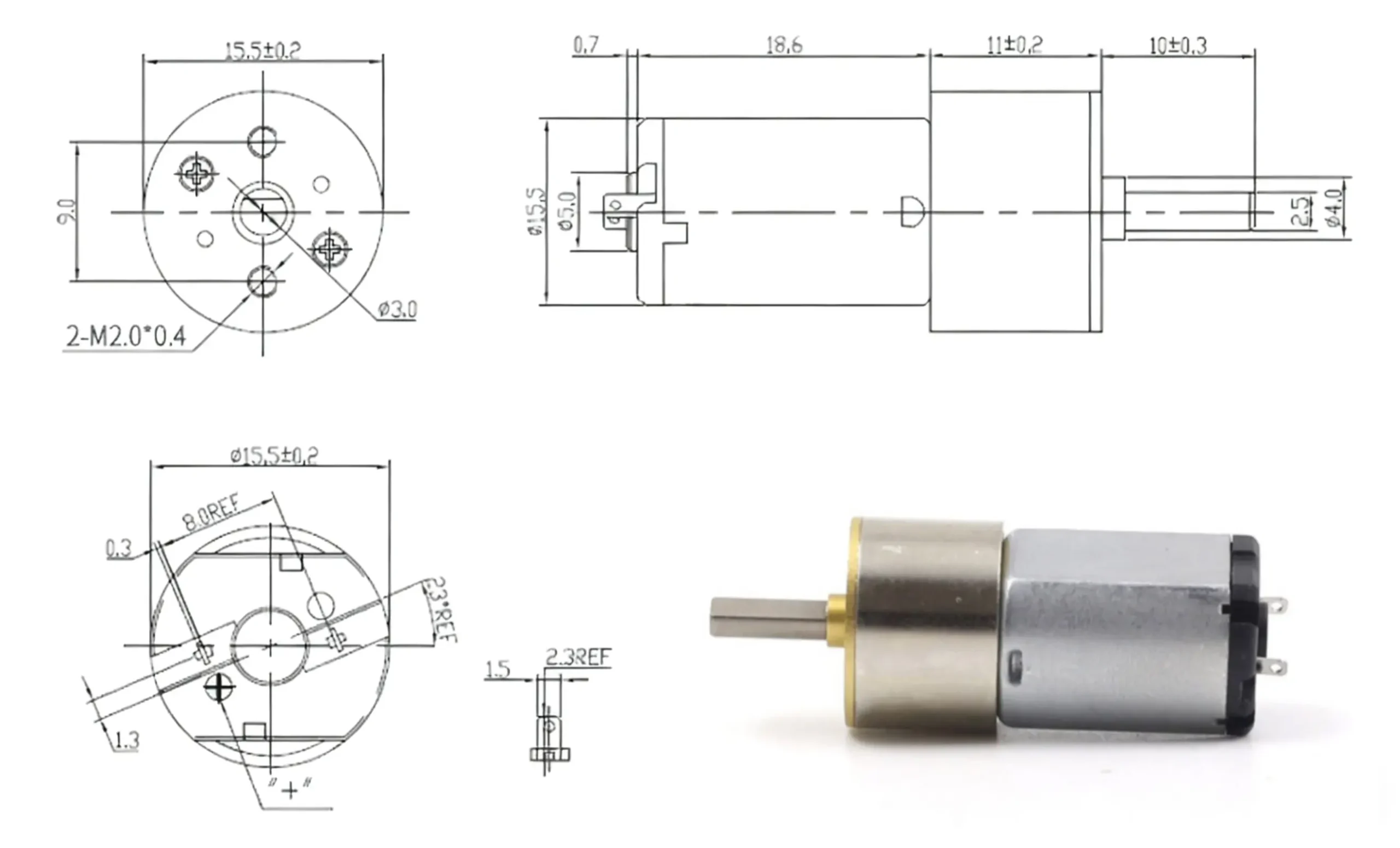

Metal Gear Reduction Box Electric Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

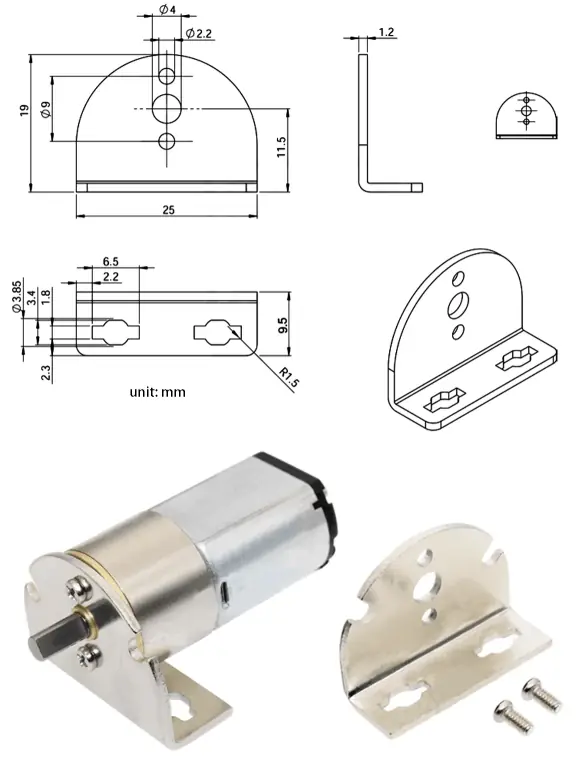

16MM Gear Reduction Box Electric Motor Mounting Bracket Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

Gear Reduction Box Electric Motor Details

All-Metal Gears

Constructed with all-metal gear material, this enhances wear resistance and extends the service life.

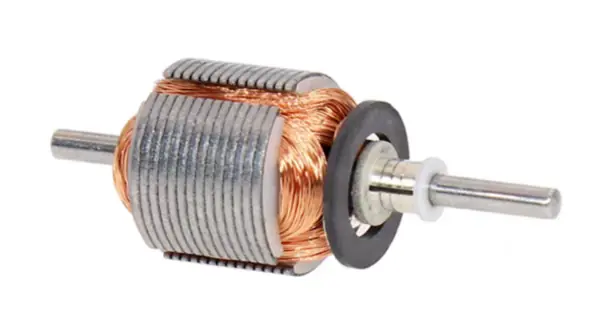

Pure Copper Wire Winding

The rotor section utilizes pure copper wire winding, which offers low resistance and strong conductivity, thereby increasing the motor’s torque.

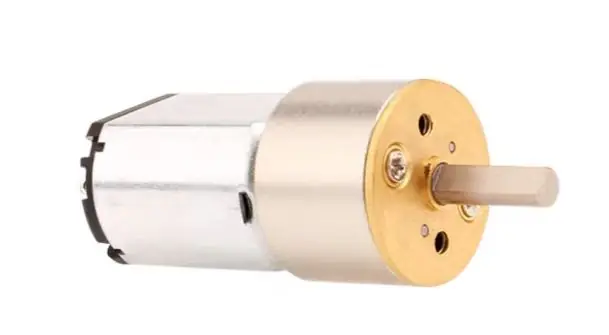

D-Shaped Output Shaft

The D-shaped output shaft is designed for easy installation, prevents slippage, and saves installation time.

Keywords:

electric motor with gear reduction,gear reduction motor 12v,12 volt electric motors with gear reduction,12v dc gear reduction motor,12v gear reduction motor

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for spur gear motor

Q：What is a Spur Gear Motor?

A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.

If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks

Q:Can Spur Gear Motor Be Customized?

A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
