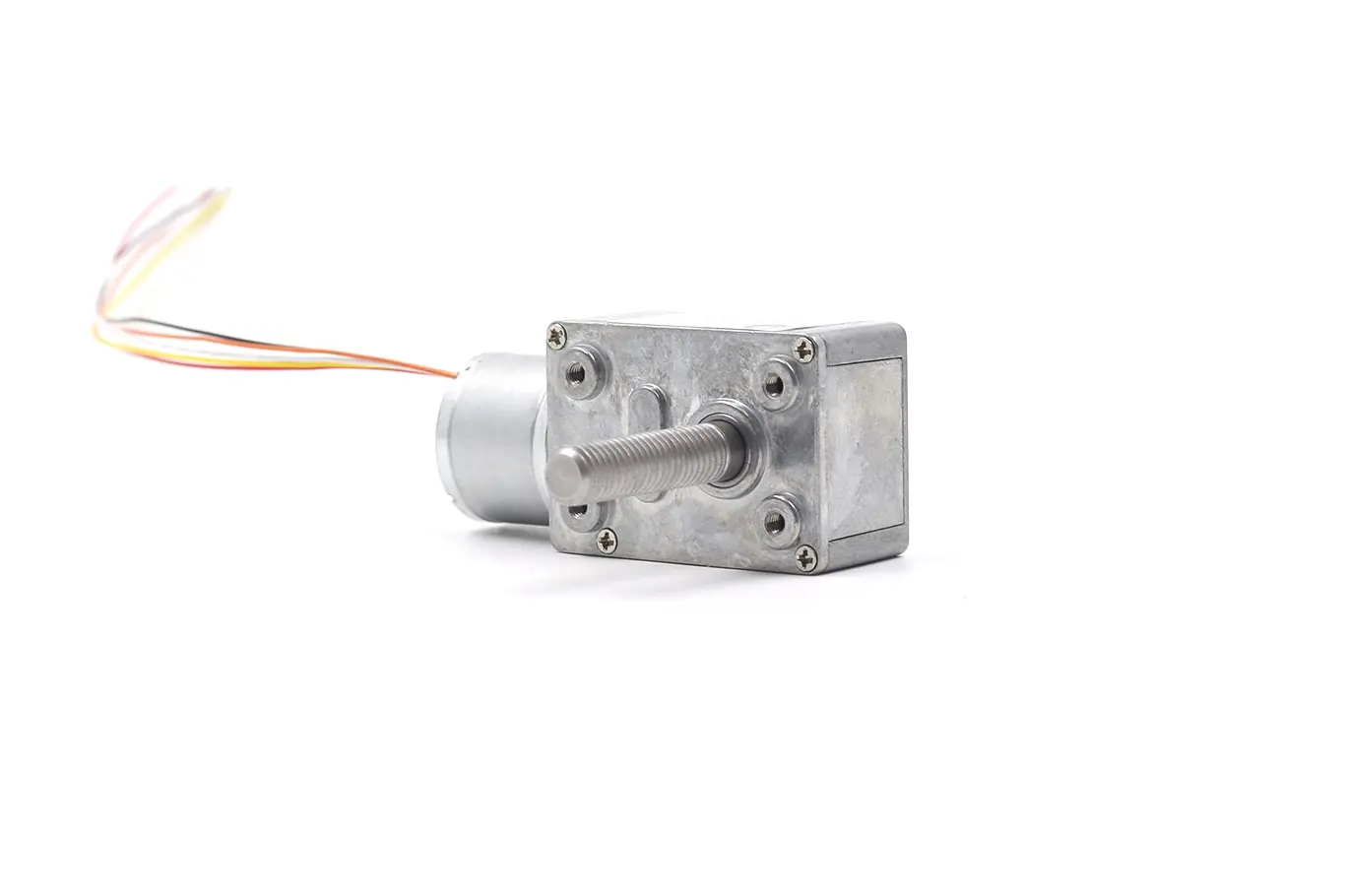

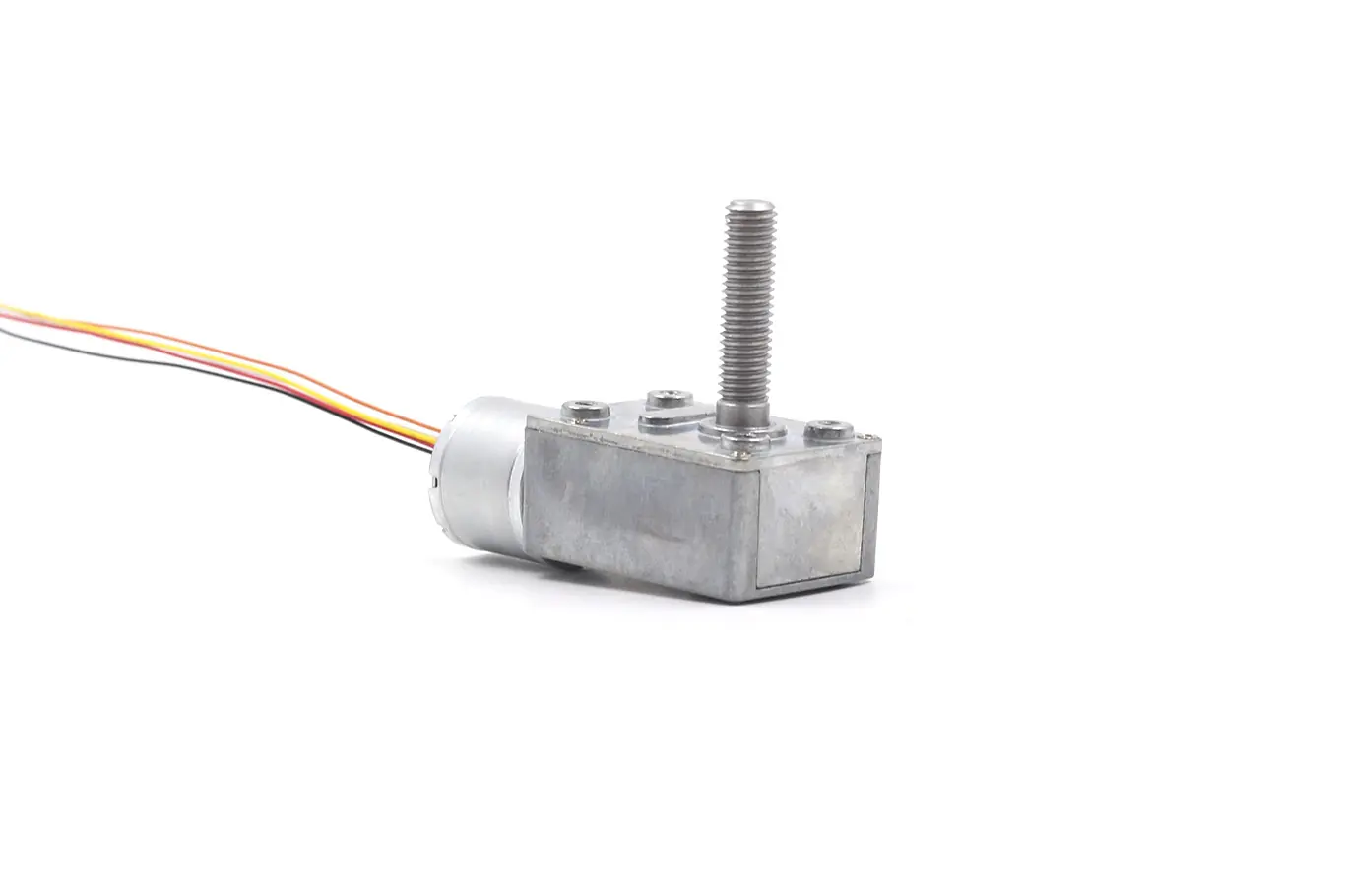

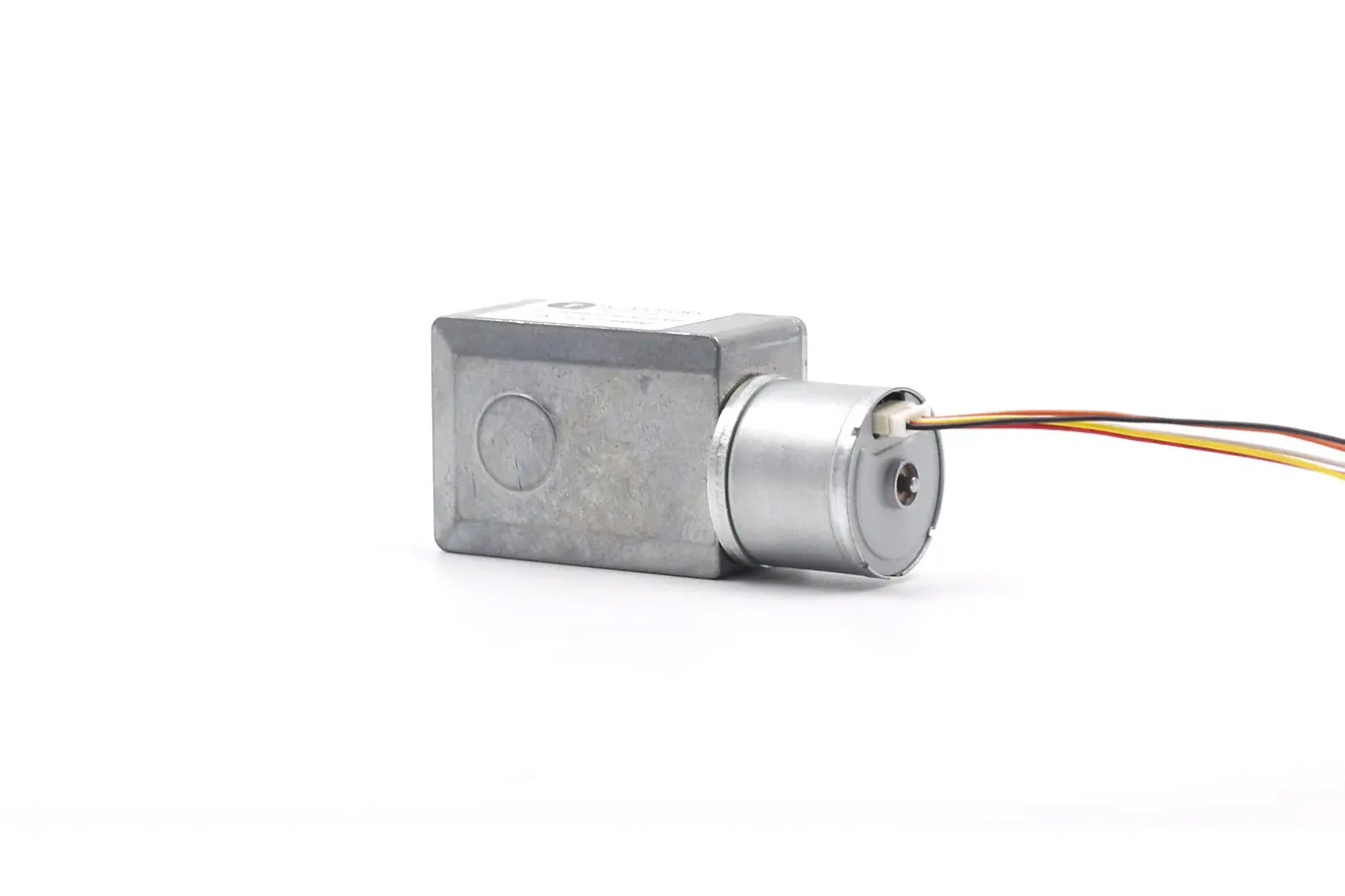

24mm Brushless Worm Gear Motor TSL-GW4632-BL2418-M8

Intelligent robot, intelligent manipulator
inelligent furmiturelntelligent focusing system,
miniature head, etc

Geared BLDC Motor With Thread Shaft Self-locking Worm Datasheet

TSL-GW4632-BL2418-M8,12 V, 2.0W

Ratio	No Load		Rated Load			Stall		Starting
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current	Voltage
37.3: 1	120 rpm	0.05A	101 rpm	0.15A	0.2kg.cm	0.6kg.cm	0.31A	6V
65: 1	69 rpm	0.05A	58 rpm	0.15A	0.3kg.cm	1.1kg.cm	0.31A	6V
90: 1	50 rpm	0.05A	42 rpm	0.15A	0.5kg.cm	1.5kg.cm	0.31A	6V
150: 1	30 rpm	0.05A	25 rpm	0.15A	0.8kg.cm	2.6kg.cm	0.31A	6V
200: 1	22.5 rpm	0.05A	19 rpm	0.15A	1kg.cm	3.4kg.cm	0.31A	6V
260: 1	17 rpm	0.05A	14 rpm	0.15A	1.3kg.cm	4.4kg.cm	0.31A	6V
338: 1	13 rpm	0.05A	11 rpm	0.15A	1.7kg.cm	5.7kg.cm	0.31A	6V
600: 1	7.5 rpm	0.05A	6 rpm	0.15A	3kg.cm	10kg.cm	0.31A	6V
1000: 1	4.5 rpm	0.05A	3.8 rpm	0.15A	5kg.cm	17kg.cm	0.31A	6V
1800: 1	2.5 rpm	0.05A	2 rpm	0.15A	9kg.cm	30kg.cm	0.31A	6V
3000: 1	1.5 rpm	0.05A	1.2 rpm	0.15A	15kg.cm	50kg.cm	0.31A	6V

💕The geared bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

TSL-GW4632-BL2418-M8,24 V, 6W

Ratio	No Load		Rated Load			Stall		Starting
i : 1	Speed	Current	Speed	Current	Torque	Torque	Current	Voltage
37.3: 1	241 rpm	0.1A	203 rpm	0.25A	0.4kg.cm	1.3kg.cm	0.6A	6V
65: 1	138 rpm	0.1A	117 rpm	0.25A	0.7kg.cm	2.3kg.cm	0.6A	6V
90: 1	100 rpm	0.1A	84 rpm	0.25A	1kg.cm	3.3kg.cm	0.6A	6V
150: 1	60 rpm	0.1A	51 rpm	0.25A	1.5kg.cm	5.5kg.cm	0.6A	6V
200: 1	45 rpm	0.1A	38 rpm	0.25A	2kg.cm	7kg.cm	0.6A	6V
260: 1	35 rpm	0.1A	29 rpm	0.25A	3kg.cm	9.5kg.cm	0.6A	6V
338: 1	27 rpm	0.1A	22 rpm	0.25A	4kg.cm	12kg.cm	0.6A	6V
600: 1	15 rpm	0.1A	13 rpm	0.25A	7kg.cm	22kg.cm	0.6A	6V
1000: 1	9 rpm	0.1A	7.5 rpm	0.25A	11kg.cm	36kg.cm	0.6A	6V
1800: 1	5 rpm	0.1A	4 rpm	0.25A	20kg.cm	60kg.cm	0.6A	6V
3000: 1	3 rpm	0.1A	2.5 rpm	0.25A	30kg.cm	100kg.cm	0.6A	6V

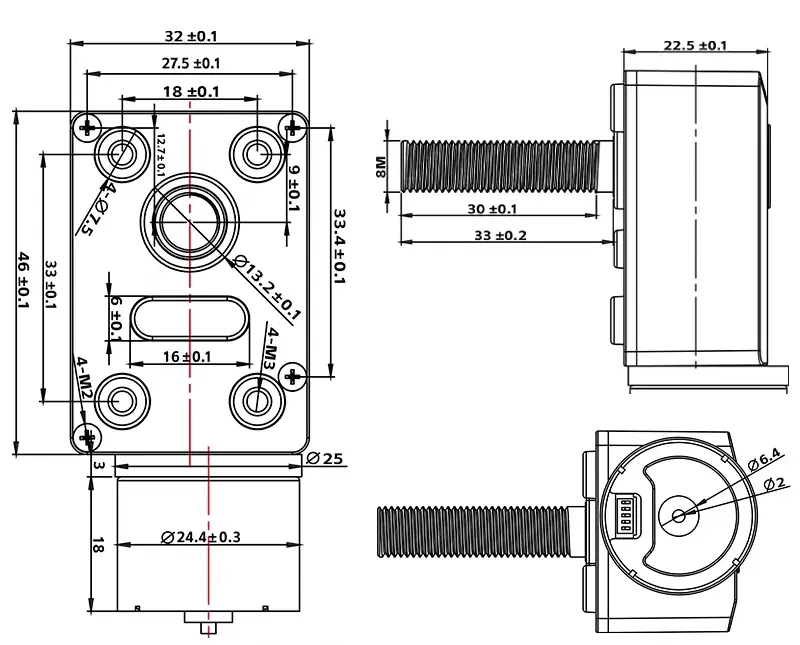

Worm Geared BLDC Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

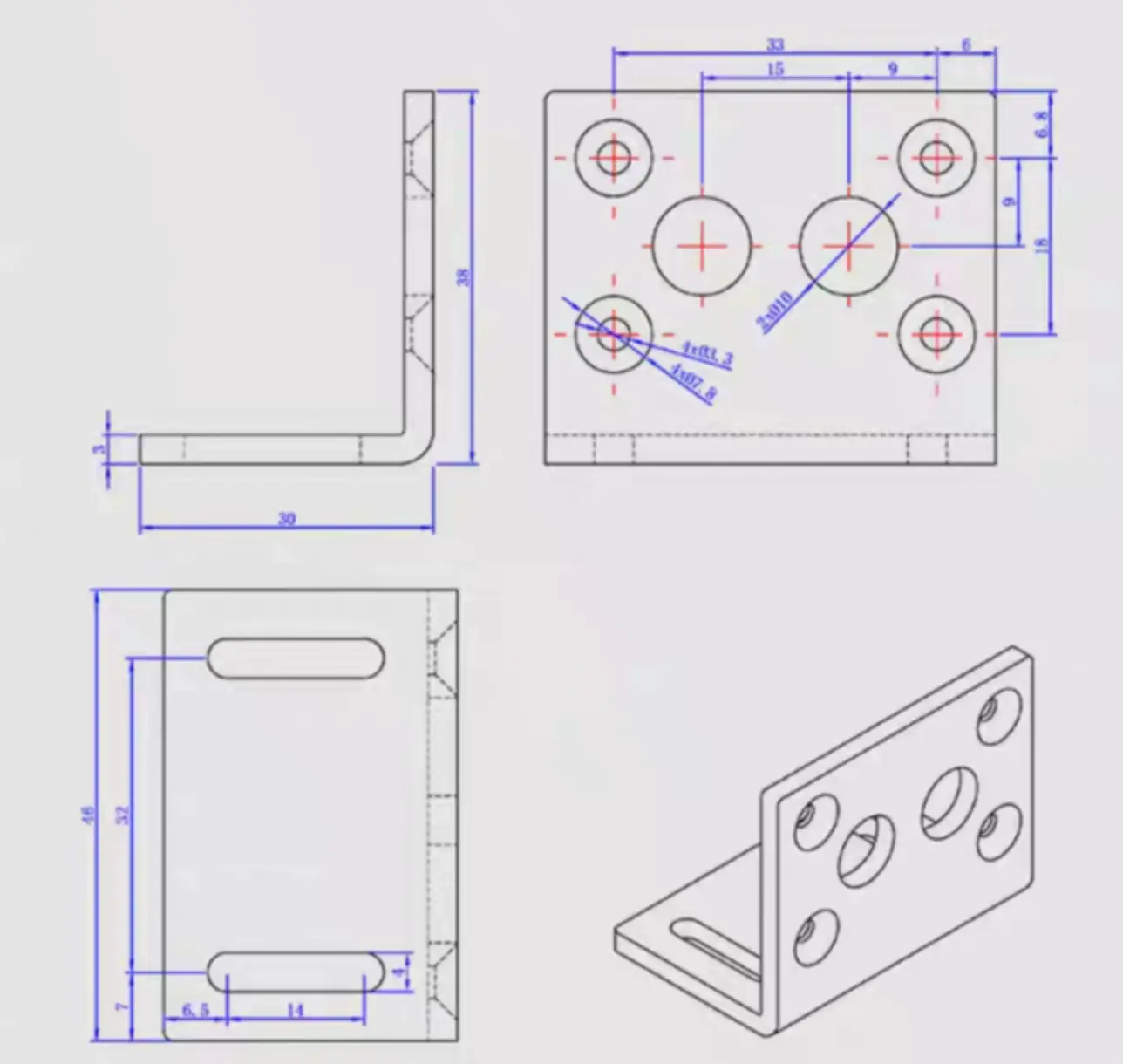

Worm Geared BLDC Motor 4632 Worm Gearbox Mounting Bracket

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

Geared BLDC Motor Custom Shafts Available

These are just a few examples of our output shafts. For customization or special requests, please contact us.

Geared BLDC Motor Datail Presentation

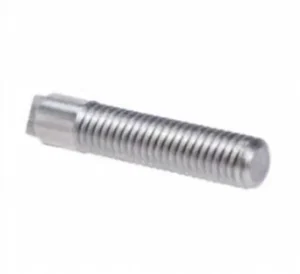

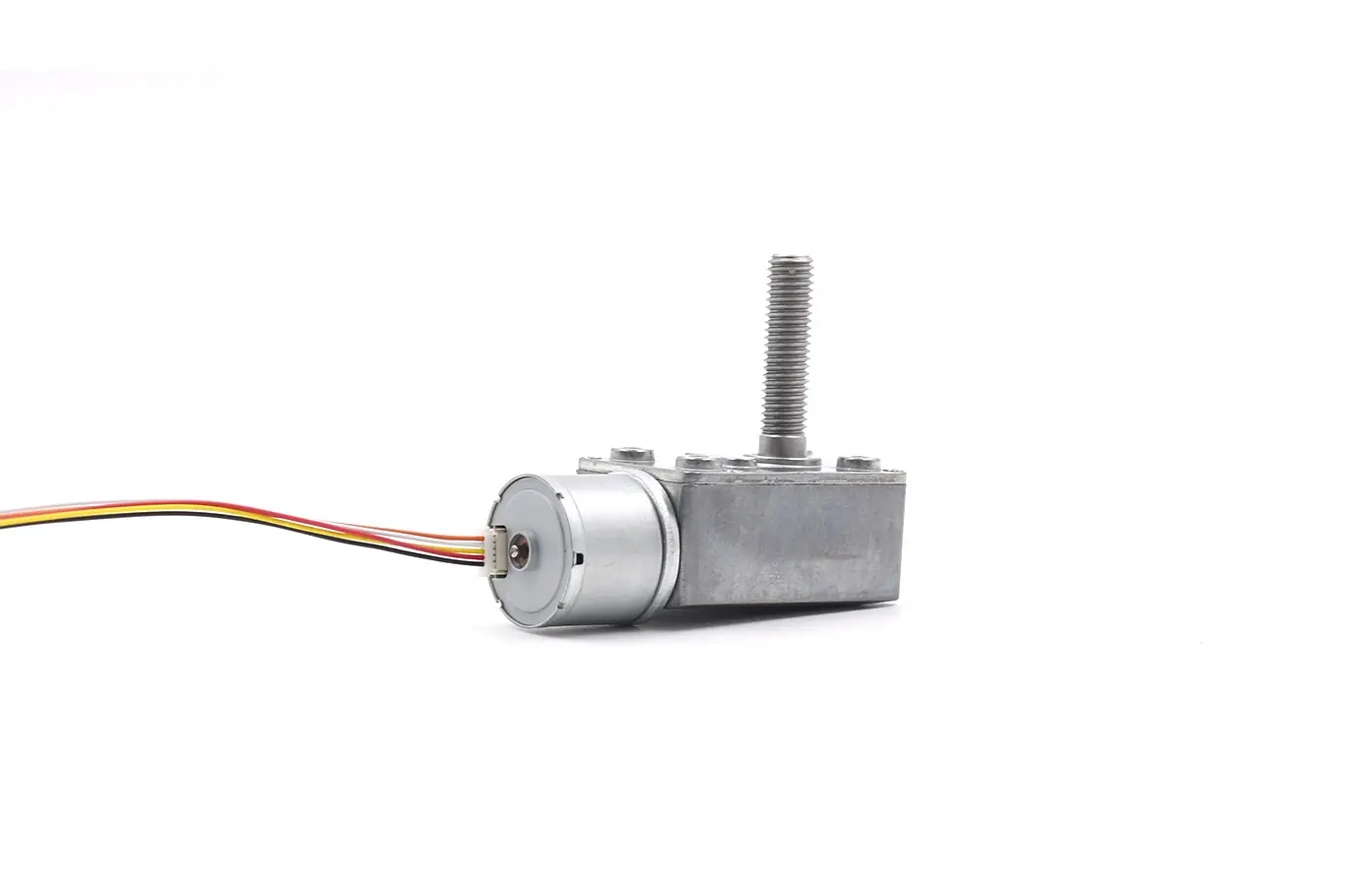

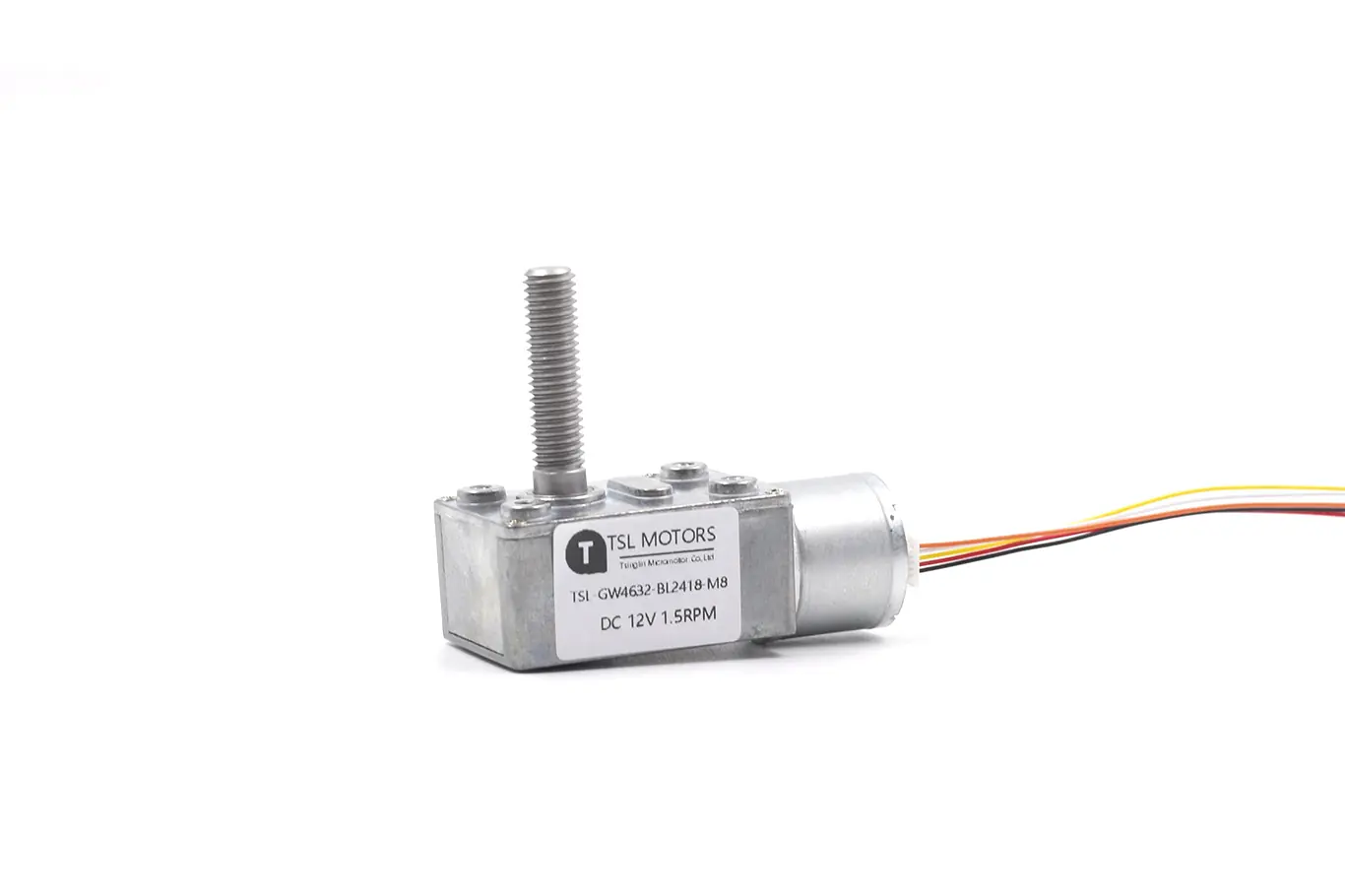

Threaded Output Shaft

The threaded output shaft provides a reliable connection that is easy to install and remove. Furthermore, it boasts excellent self-locking capability, high structural strength, and good retraction/extension performance.

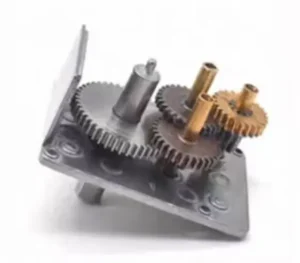

Metal Gears are Stable and Efficient

All are made of high-quality metal materials, which have the characteristics of good impact resistance, durability, and noise reduction, thereby prolonging the service life of the reducer. The output shaft is made of 1140 steel, which is more durable and wear-resistant.

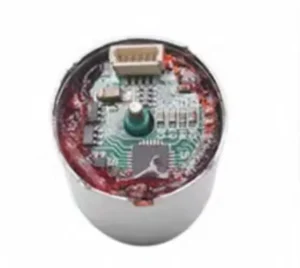

Built-in Hall Driver

Pulse PWM speed regulation function, free switching between forward and reverse rotation, FG signal speed regulation function, overcurrent protection function 0.8A, overvoltage protection function 30V, overtemperature protection function 80°C.

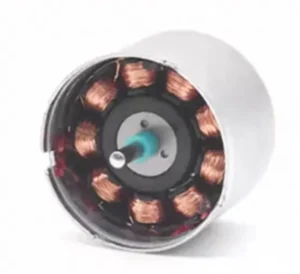

Small Body And Big Power

100% pure copper coils have less resistance than aluminum wires and stronger conductivity. At the same time, copper wires also have the characteristics of low heat generation and long service life, maximizing the reduction of energy loss and making the motor’s power output continuously.

Geared BLDC Motor Installation Knowledge

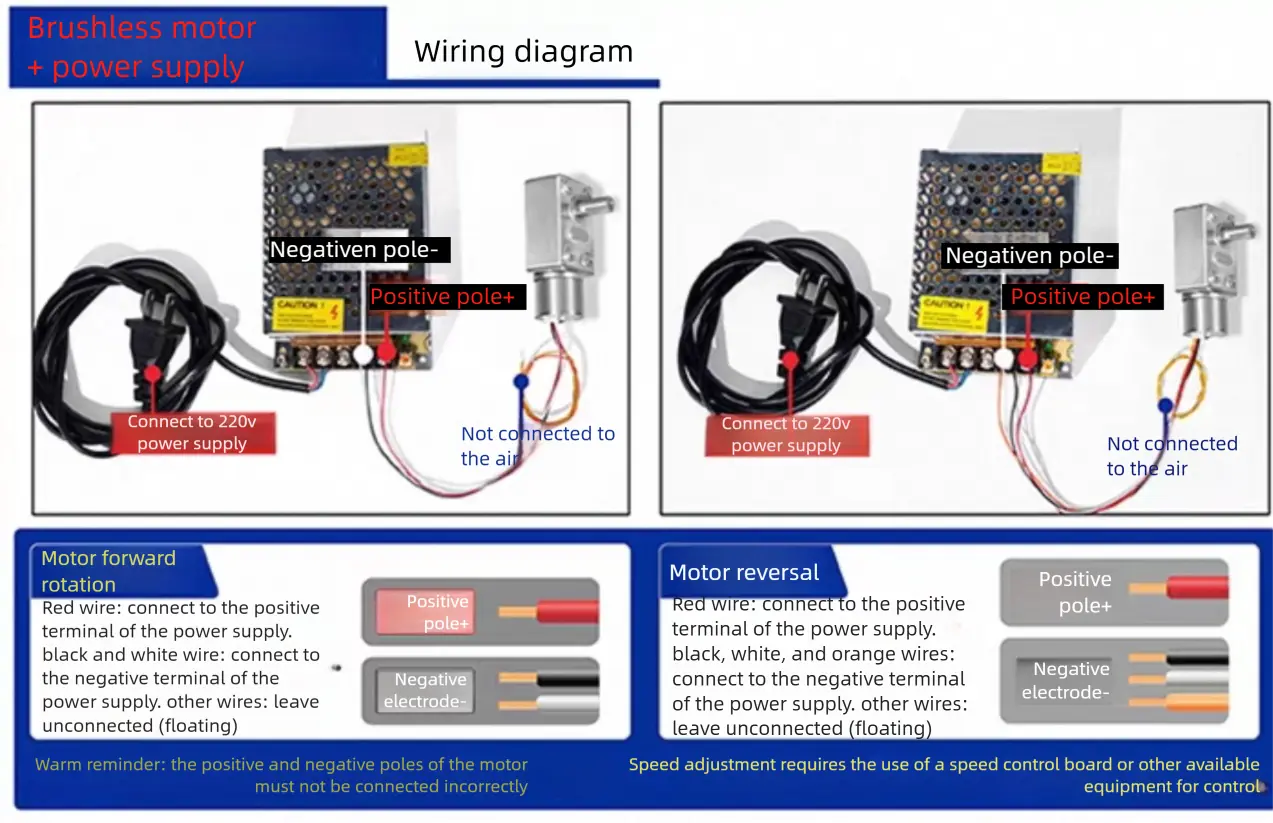

Geared BLDC Motor Wiring Mode

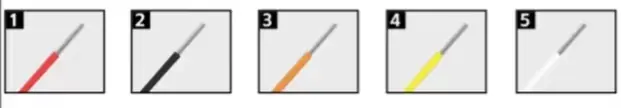

Wiring Sequence Description of 2418 (Built - in Drive Version) Brushless Motor
No.	Signal		I/O	specs	Remark
1	Motor Power Supply Port (VCC)		Input	DC12V (OPERATING RANGE: 8V - 15V), DC24V (OPERATING RANGE: 8V - 26V)	red lead, motor power supply input
2	Ground(GND)		Input	Ground	black lead, ground
3	CW&CCW	Input Voltage	Input	0-5.0V	range lead, direction switching
		High - level VIH		Min 5V	reverse rotation, high - level = CCW
		Low - level VIL		Max 0.3V	forward rotation, low - level = CW
4	Frequency Generator (FG)	High - level VOH	Ouput	1.5V ≤ U ≤ 5.0V, AT 5V	yellow lead, this is an open - collector output (NPN), and the FG output can be used to detect the speed according to the phase shift
		Low - level VOL		0.6V Max
		Signal current		3 MA Max
		Number of pulse outputs		18 pulses
5	Pulse Width Modulation (PWM)	Input Voltage	Input	0-5.0V	white lead
		High-Level VIH		Min 5V	motor stops, high - level = motor stops
		Low-level VIL		Max 0.23V	motor runs, low - level = motor runs
				recommended pulse usage range 15KHZ - 35KHZ	speed regulation from 0.23V to 5V, the motor runs at high speed to low speed until it stops

Remarks

The positive and negative poles must not be connected incorrectly and must not be used interchangeably.
When changing the direction, be sure to stop the motor before switching the direction; otherwise, the electronic and mechanical parts may be damaged!
Due to the reduction gear structure, the factory – set rotation direction of the motor is not uniformly forward/reverse (some reduction ratios may default to reverse/forward output).
Lowering the speed will reduce the output torque. Please select the output speed reasonably (the reduction ratio determines the torque).
