DC Geared Brushless Motor Datasheet

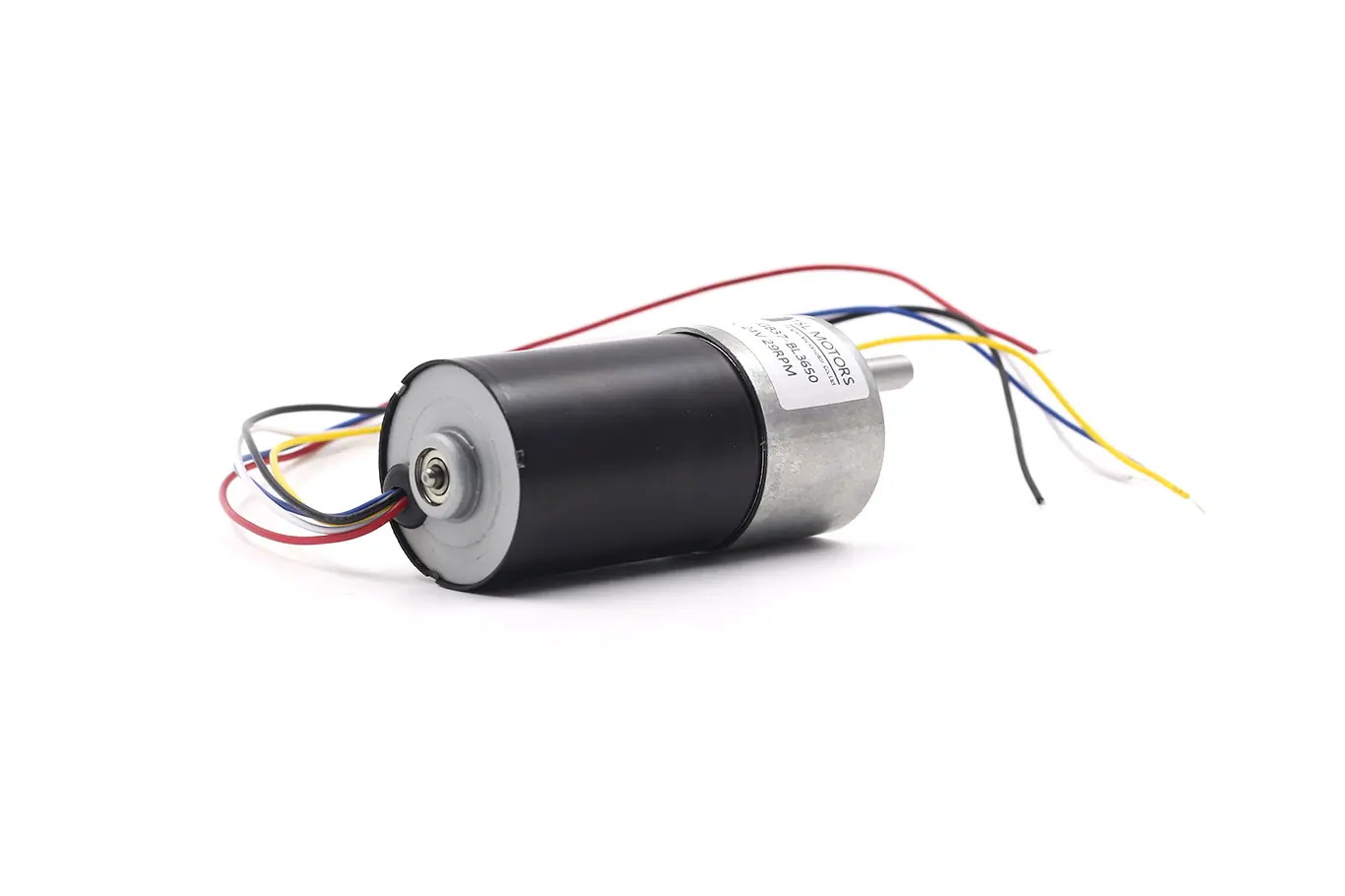

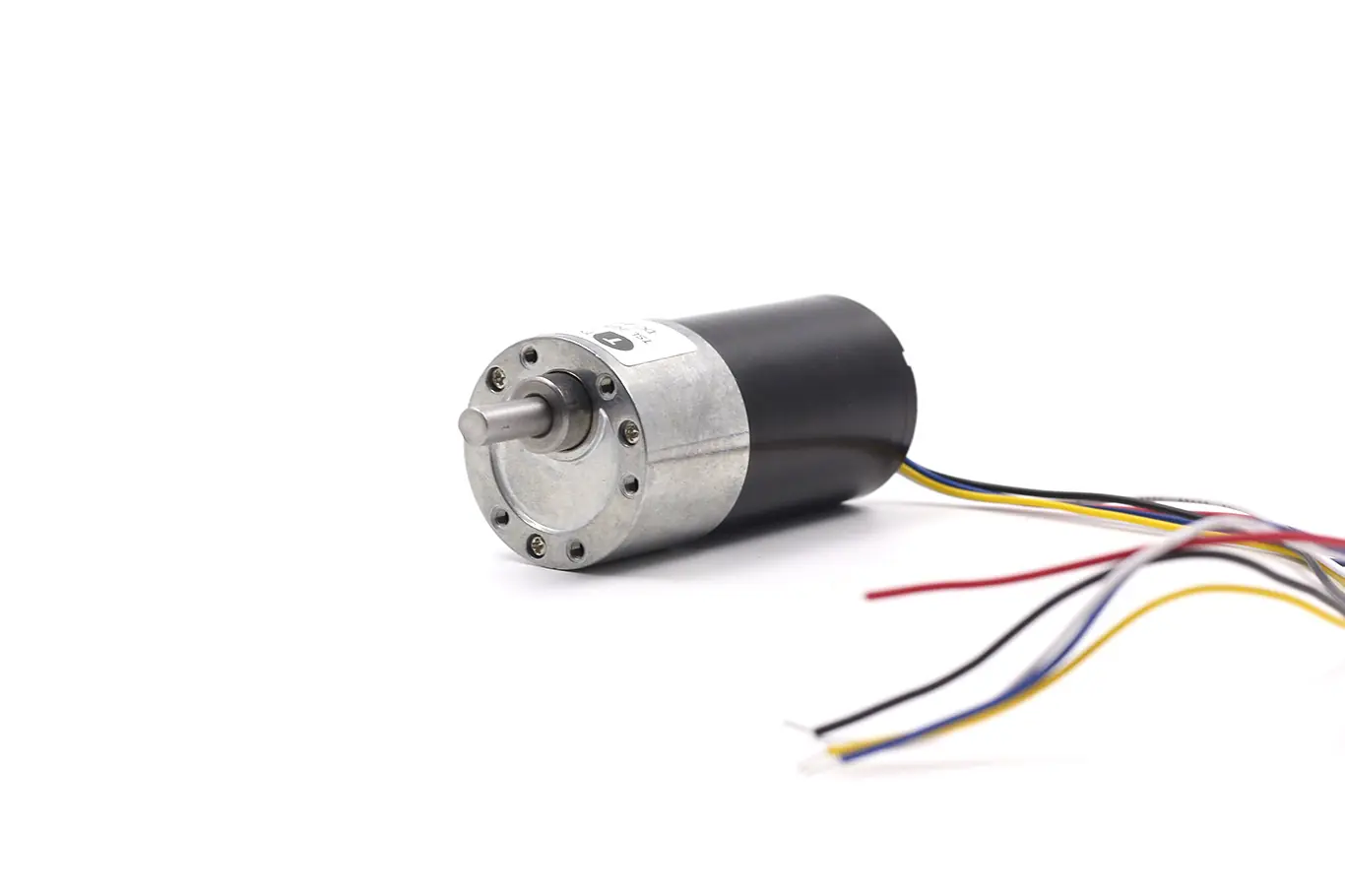

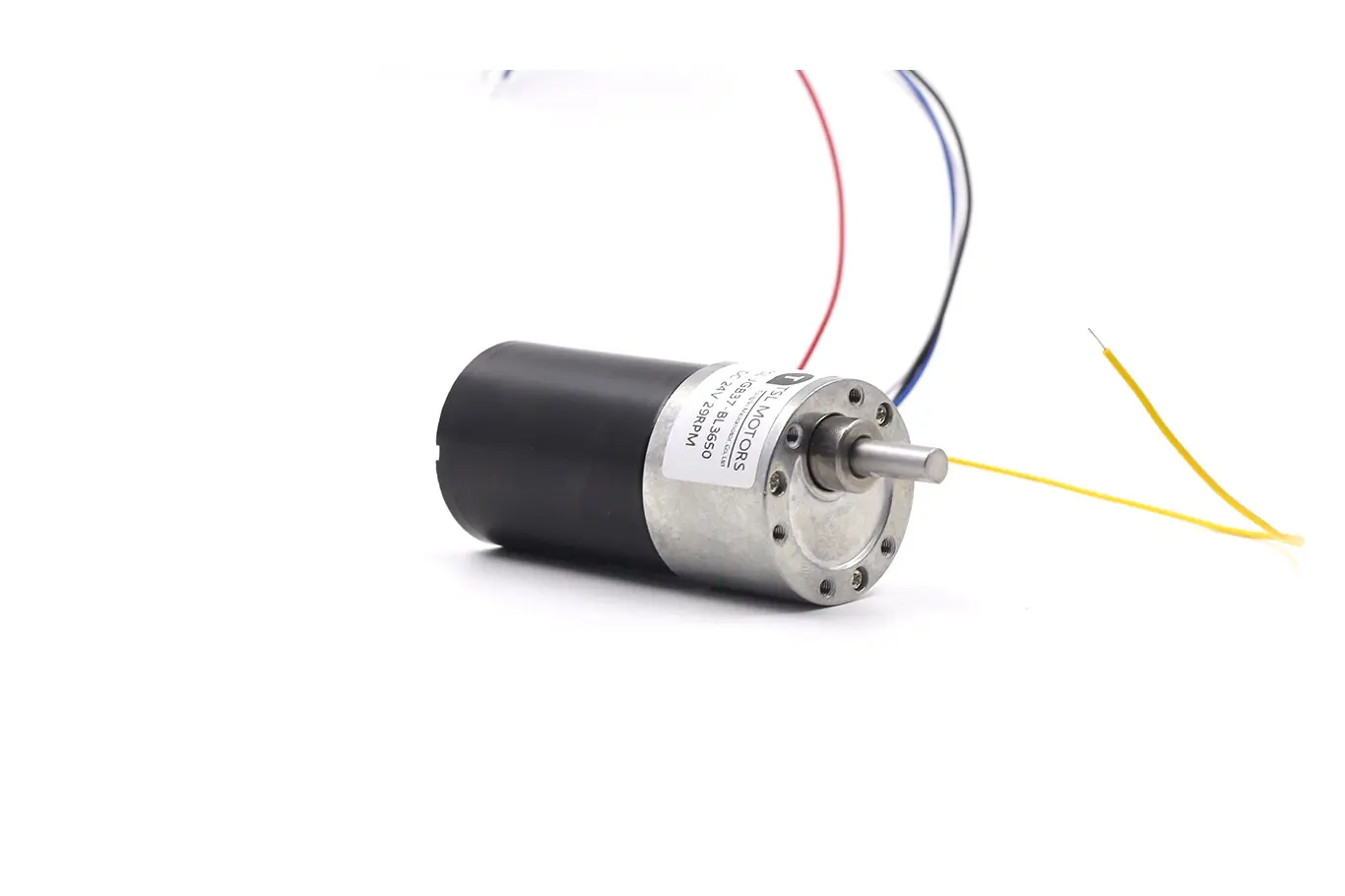

Looking for a powerful and reliable geared brushless motor? Our 37mm geared brushless DC motor delivers high torque and low speed performance. It’s an ideal solution for applications requiring significant power in a compact size. We specialize in producing these geared brushless motors, ensuring each unit meets strict quality standards.

We are a leading manufacturer in China, offering fully customized DC geared brushless motors. Our products feature a built-in Hall drive board, allowing them to run immediately upon power-up without the need for an external drive circuit. This simplifies your design and integration process. We provide long-life micro brushless gear motors that are designed for durability.

Our geared brushless motors are built with advanced features for quiet and efficient operation. They utilize a ball bearing structure to reduce friction and minimize noise. The all-metal gears are designed with a helical structure for smooth startup and exceptional durability. This robust construction ensures that our brushless DC motors provide long-lasting, reliable performance for your projects.

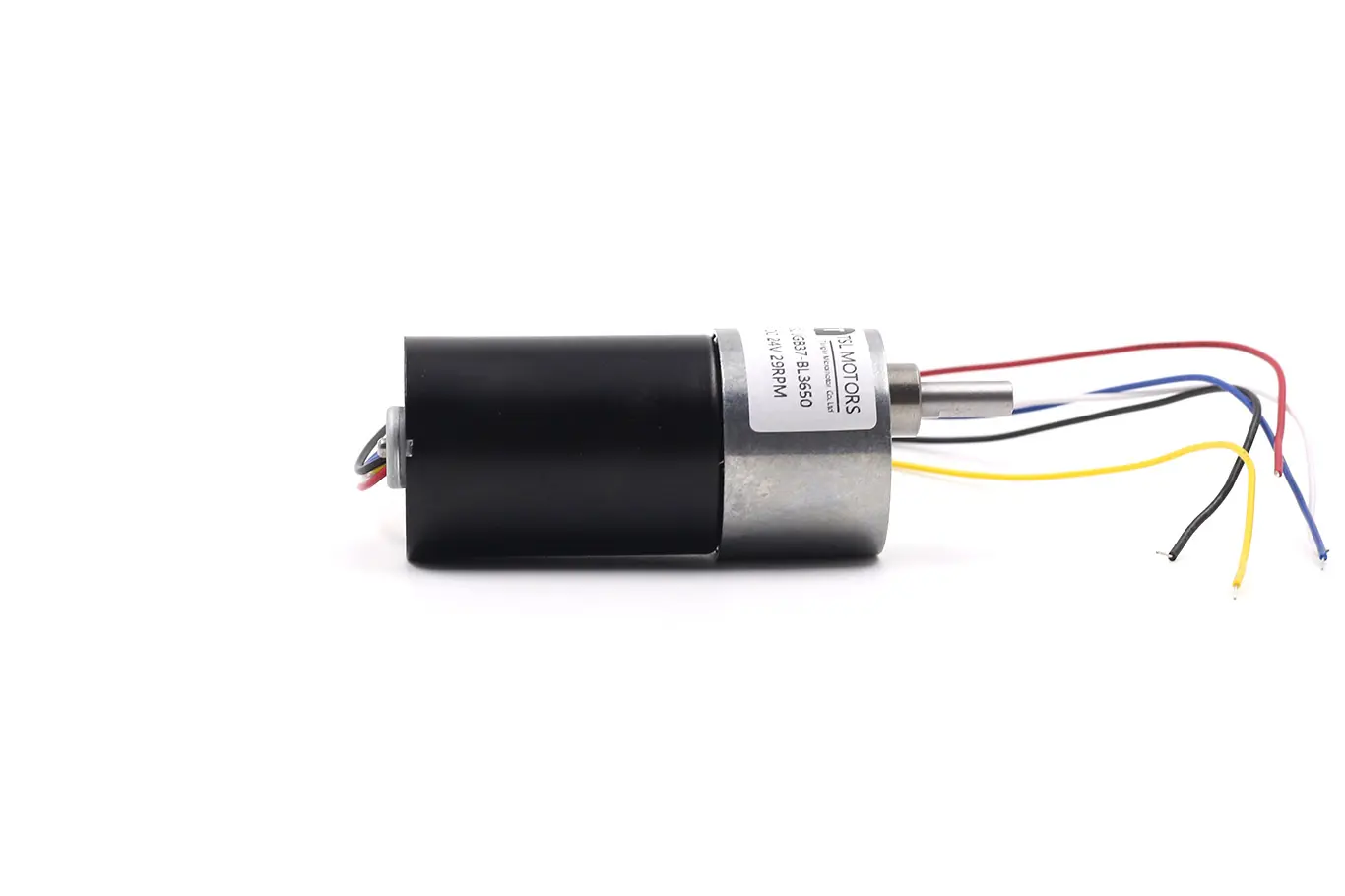

TSL-JGB37-BL3650，DC 12.0 V,≤7W

💟The geared brushless motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-JGB37-BL3650，DC 24.0 V,≤30W

⚠️Maximum permissible load is 35.0 kg.cm / 3.5 N.m. Exceeding this will break the gears.

💟The geared brushless motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

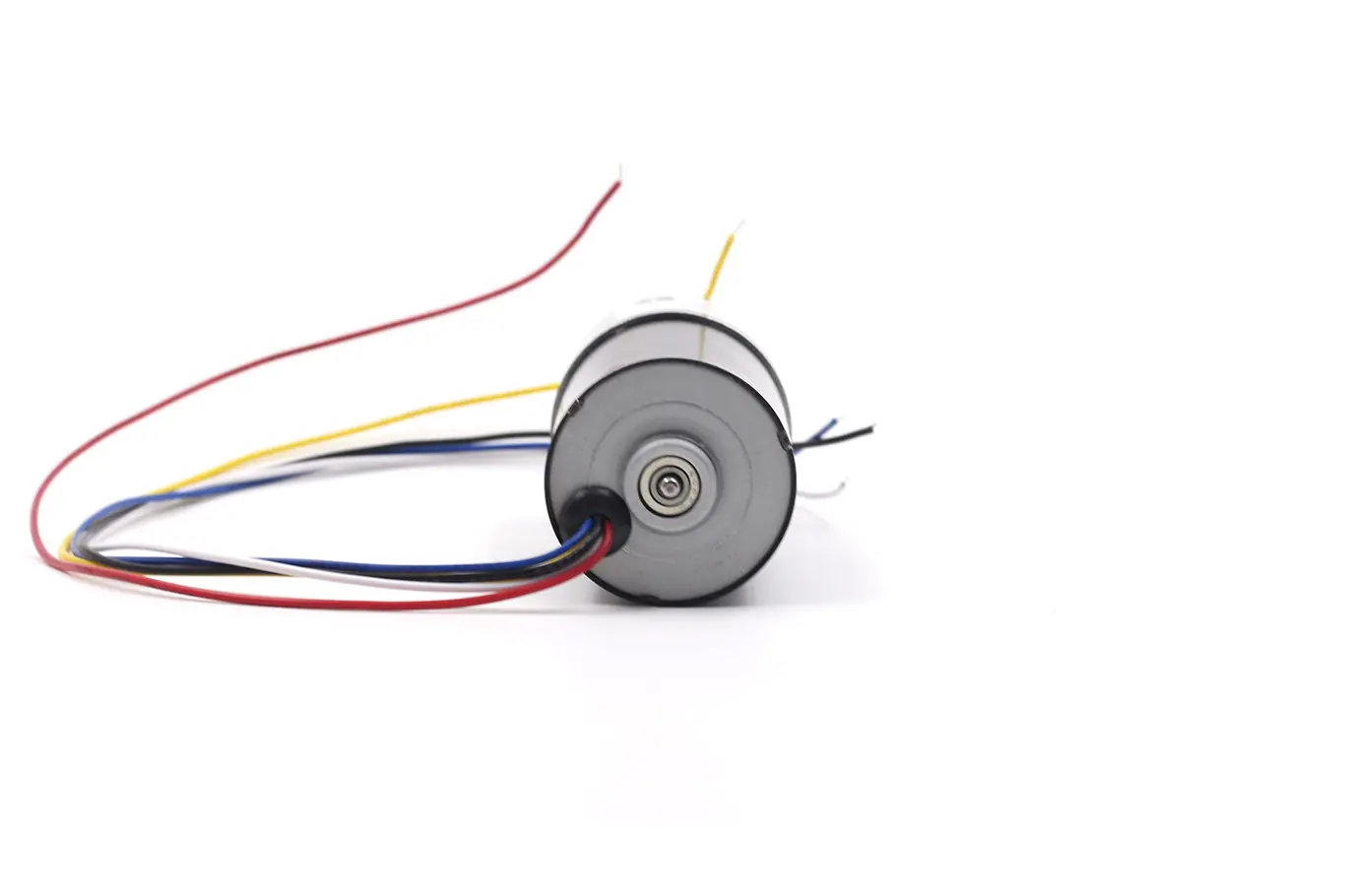

Precision Geared Brushless Motor Wiring Instruction

3650 (Wiring Instructions for 5-wire Motor)

🔴Red wire: Motor power positive (+) “DC power supply is selected according to motor specifications”

⚫ Black wire: Motor power negative (-)

🟡Yellow wire: FG signal output (for external devices to detect motor speed, the motor outputs 6 square wave pulses per revolution)

⚪White wire: Motor forward and reverse rotation control: When the port is not connected, the motor rotates CCW; when the port is connected to a low level (≤0.6V), the motor rotates CW

🔵Blue wire: Speed control-Analog voltage speed regulation

3650 (Wiring Instructions for 6-wire Motor)

🔴- Red wire: Motor power positive (+) “DC power supply is selected according to motor specifications”

⚫- Black wire: Motor power negative (-)

🟡- Yellow wire: FG signal output (for external devices to detect motor speed, the motor outputs 6 square wave pulses per revolution)

⚪- White wire: Motor forward and reverse rotation control: When the port is not connected, the motor rotates CCW; when the port is connected to a low level (≤0.6V), the motor rotates CW

🔵- Blue wire: Speed control-PWM speed regulation

🟢- Green wire: Brake-When the port is floating, the motor runs; when connected to the negative pole (0V), the brake is applied

💞The difference between a 6-wire and 5-wire 3650 motor is that the 6-wire version has an extra wire for braking.

Keywords:

brushless dc gear motors, geared brushless motor, brushless dc motor with gearbox,  brushless gear motor factories

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for Geared Brushless Motor

Q：What is a geared brushless motor?

A:A geared brushless motor combines a brushless DC motor with a gear system. This gear system can either be a spur or planetary gearbox. The gears work together to lower the motor’s speed while boosting its output torque.

Q:Can Geared Brushless Motors Be Customized?

A: Yes, geared brushless motors can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
