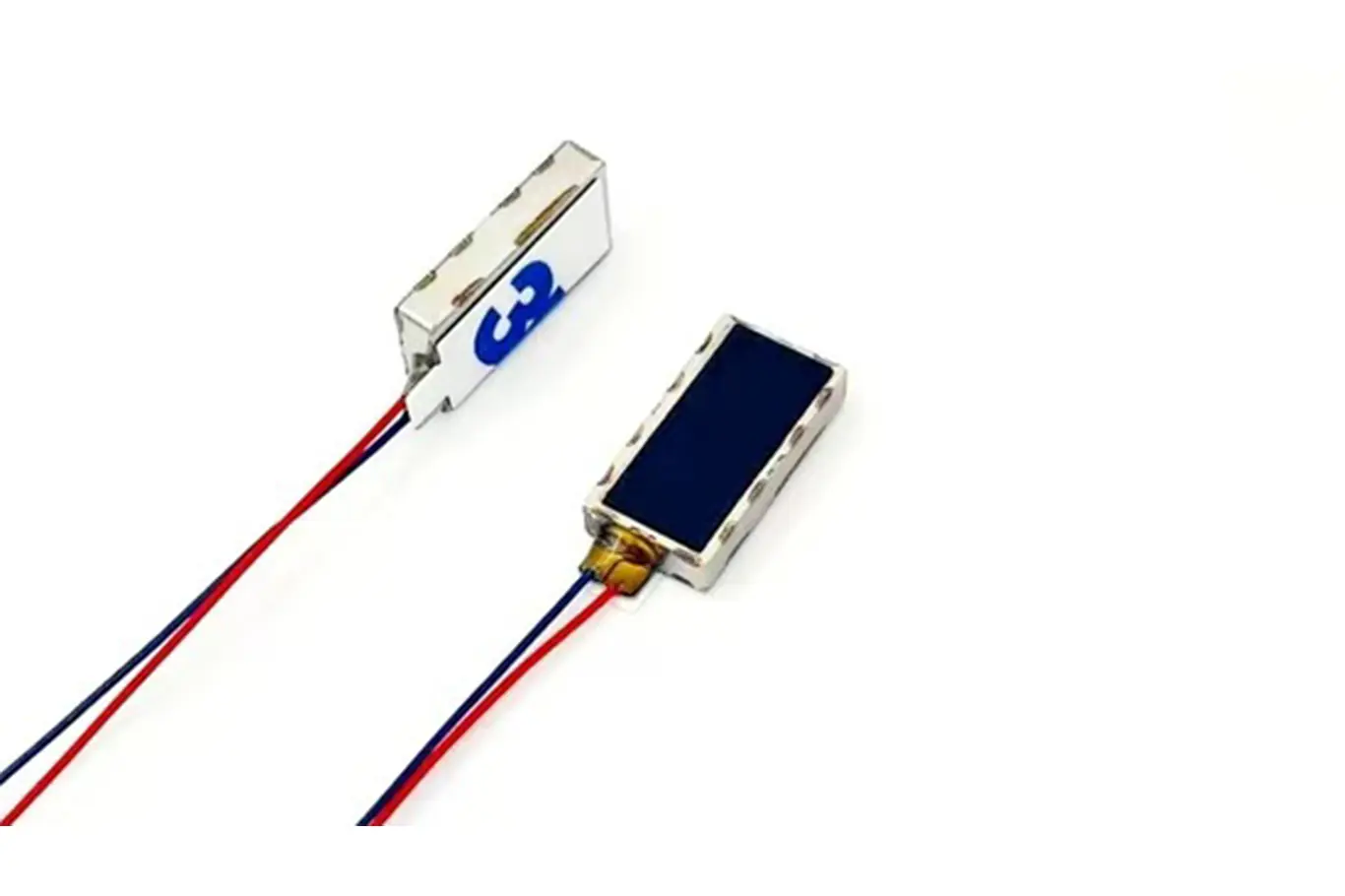

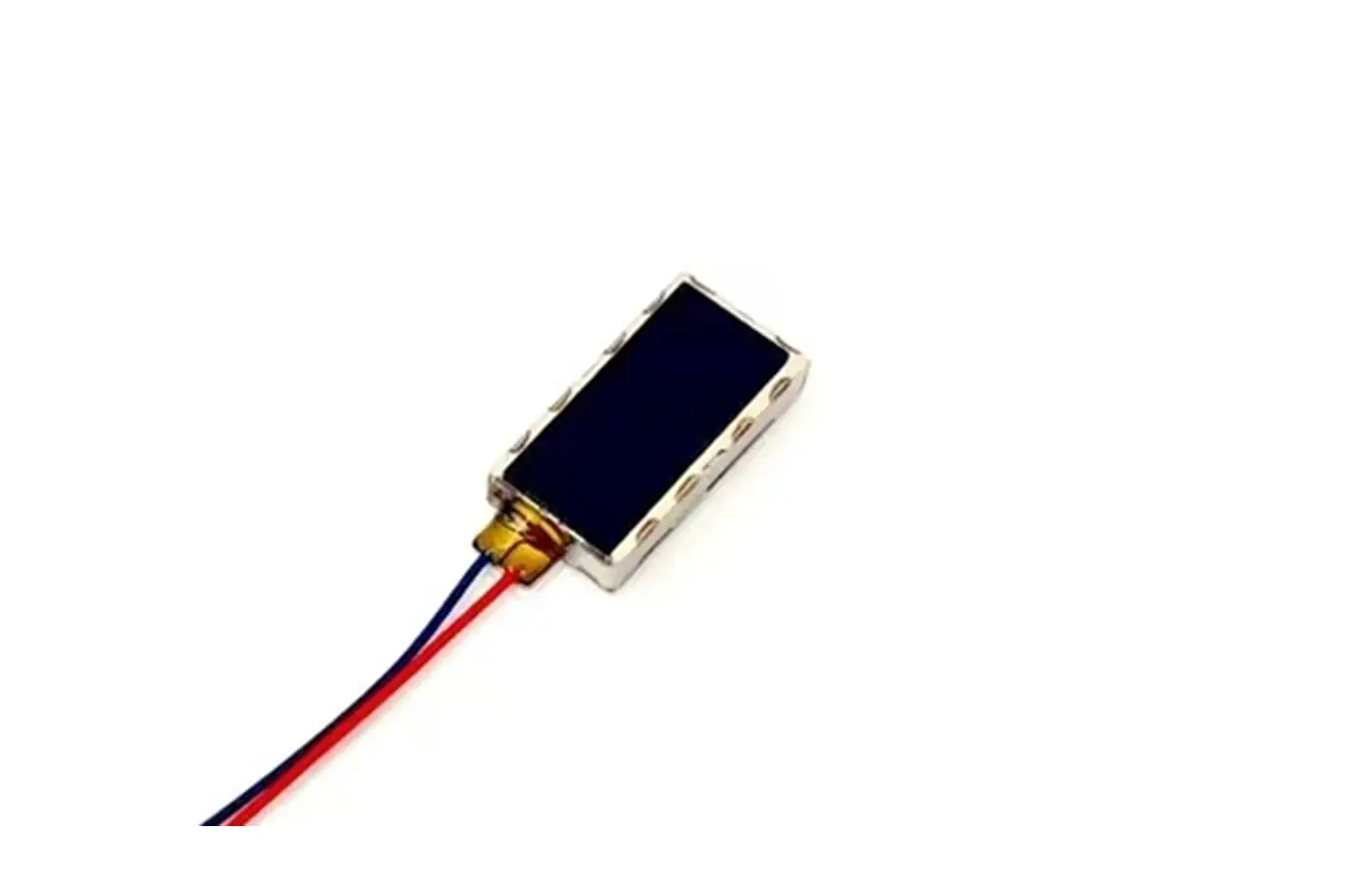

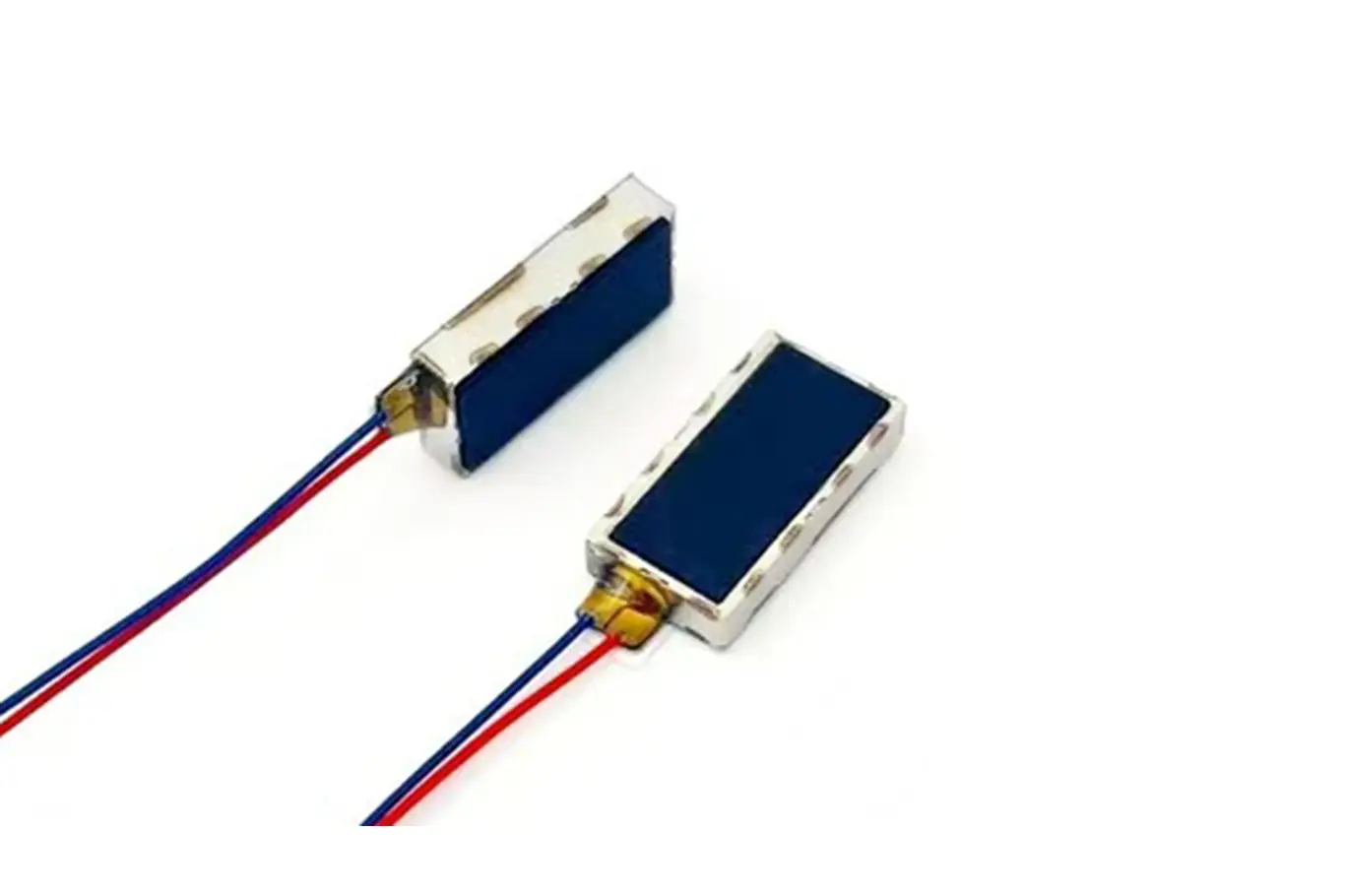

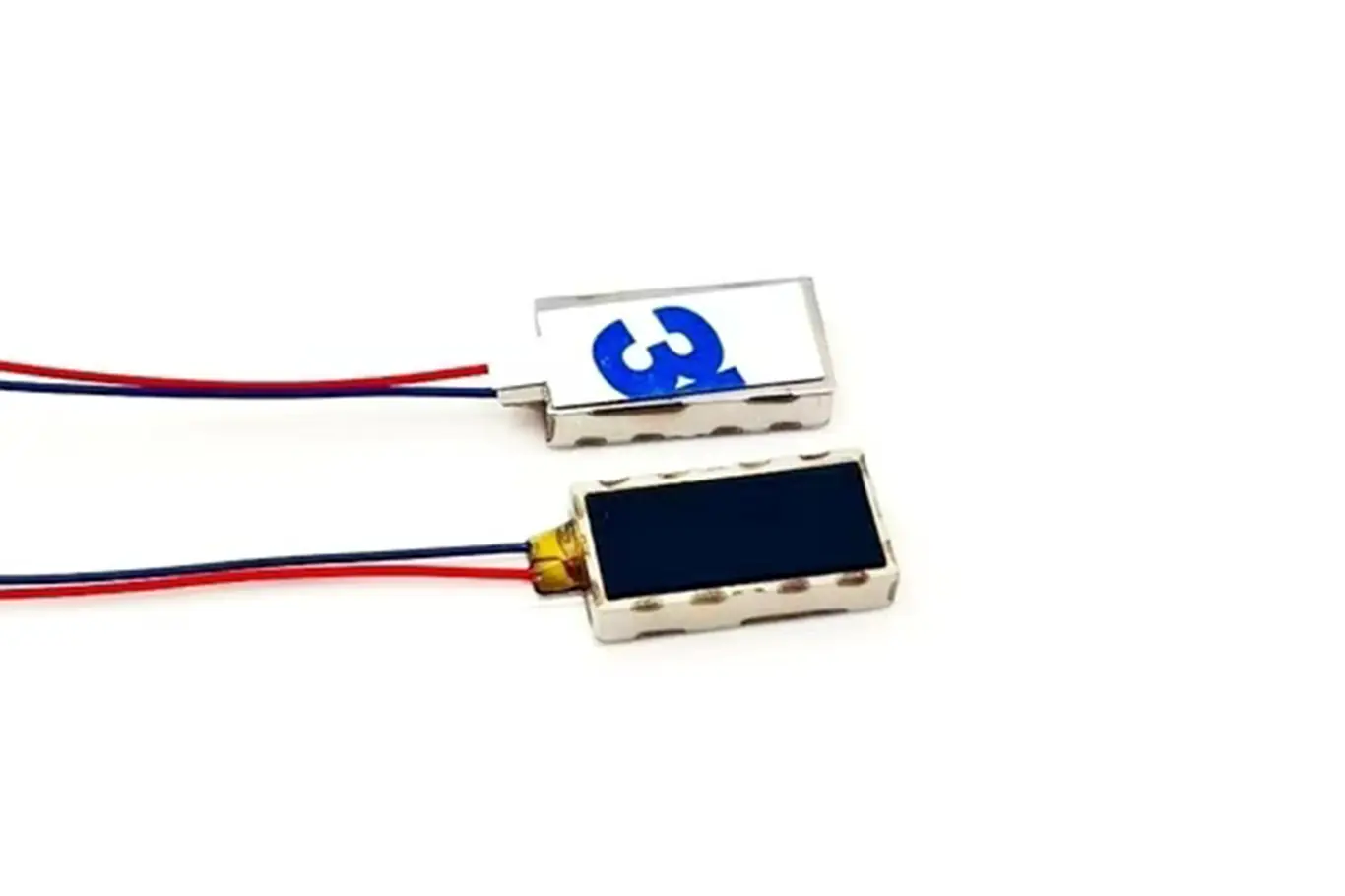

15mm Length LRA Linear Vibration Motor – 8mm Width Model TSL-ELV081530
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-ELV081530
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Length:15 ± 0.1 mm
Motor Width:8 ± 0.1 mm
Motor Height:3.0 ± 0.05 mm
X-Axis Haptic Feedback Engine Performance
–The rated frequency, or the motor’s stability and the frequency point that corresponds to the peak-to-peak portion in the curve of acceleration is the highest.
–Low temperature vibration is less than 0.55Grms (-10degC conditions and rated voltage), and the speed of motor if the vibration is steady).
–The rising time ranges from zero to 90 percent of normal vibration at 1.5Vrms F0. Falling time ranges from 100 percent to 10 percent of normal frequency at 1.5Vrms F0.
–The value of acceleration that is effective in the event that the lra vibrating motor is stable, and it is vibrating at the voltage of the motor and the resonant frequency.
–The drive voltage is important for the long-term, normal operation of the motor.
–Noise 10cm distance from the microphone, input source F0 1.5Vrms AC, sine wave
| Motor Model | TSL-ELV081530 |
| Motor Length | 15 ± 0.1 mm |
| Motor Width | 8 ± 0.1 mm |
| Motor Height | 3.0 ± 0.05 mm |
| Rated Voltage | 0.9Vrms AC |
| Work Voltage | 0.1Vrms-1.0Vrms AC |
| Overdriver Voltage | 9Vp AC Motor quick start voltage |
| Rated Current | Max 130 mArms |
| Resistance | 9 ± 1Ω |
| Rated Vibration | 0.9 ± 0.15Grms |
| Resonance Frequency | 170 ± 8 Hz |
| Rising Time | Max. 100 msec |
| Falling Time | Max. 130 msec |
| Mechanical Noise | Min 10MΩ @100VDC |
| Weight | 2.1 ± 0.1 Gram |
To trigger this kind of lra vibrating You can make use of the TI DRV26XX series. You can purchase at the following hyperlink:
https://www.digikey.com/en/product-highlight/t/texas-instruments/drv2605-haptic-driver

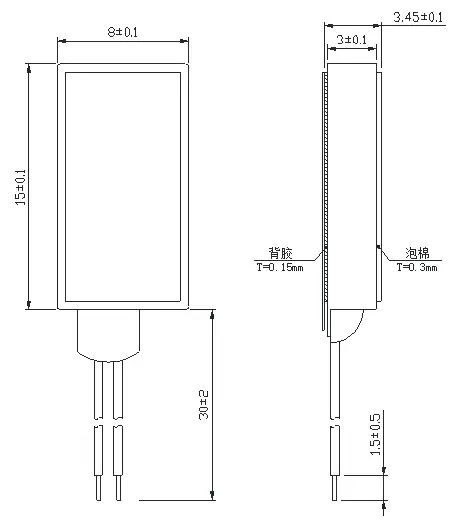

Linear Actuator With Haptic Feedback Vibration Motor Outline Drawing
This type of vibrating haptic feedback motor’s principal characteristic is its fast rise and fall times, as well as better braking capabilities, LRA vibration motors make a great option for haptic devices like wearable devices.
Their fairly simple internal structure provides high reliability and a long-lasting life span when compared to the brushed eccentric mass vibration motors. NFP-motors that you can choose NFP-motor’s LRA feature an internal mass that oscillates on the X-axis in accordance with the frequency of resonance.
Application Of Haptic Feedback Linear Resonant Actuator
Keywords:
Lra vibrator linear actuator that has feedback small vibration motor exact vibration motor the best vibrator, X-Axis linear vibration motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on customizing and integration services.
Payment Method:
Payment methods: Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door within 5-7 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time please contact us via email with any queries. We usually give you a reply within 24 hours in the event that we don’t, look through your email account. We will try the best we can to assist you with the issues.
4.Please ensure that your address matches the address of your final shipment before you make payment.
5.In order to make sure you get your order tax-free after importation, we’ll declare it at an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ For LRA Vibration Motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q:How does an LRA vibration motor differ from an ERM vibration motor?
A: An ERM vibration motor uses an unbalanced mass on a DC motor, which generates vibrations as the motor spins. In contrast, an LRA vibration motor uses a voice coil to move the mass, with the springs being the only components at risk of wear or damage.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
