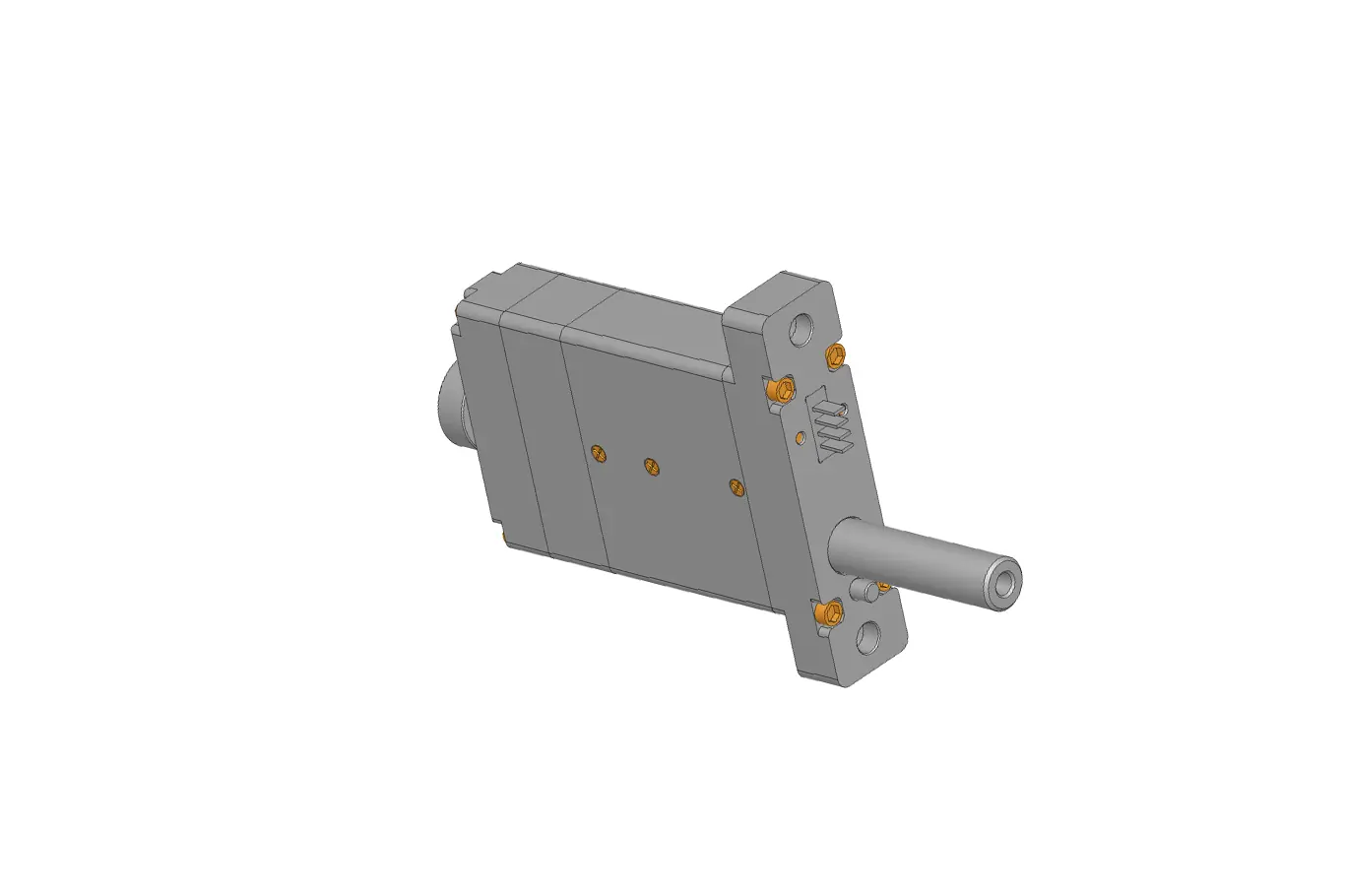

Planetary Roller Screw Servo Electric Cylinder SAG-1565-END
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:SAG-1565-END
- Rated Voltage:DC 12V
- Rated Push/Pull Force:300N
- Actuator Repeat Positioning Accuracy:± 3 μm
- #More Specifications
- #Outline Drawing
- Download Datasheet
♦ Typical Applications:Dexterous Hand
| Planetary Roller Screw High Force Linear Actuator Datasheet
| Motor Model | SAG-1565-END |
| Rated Voltage | 12V |
| Rated Current | 800mA |
| Peak Current | 2A |
| Operating Temperature | -10 ~ 60℃ |
| Actuator Stroke | 12mm |
| Rated Push & Pull Force | 300N |
| Maximum Push & Pull Force | 500N |
| No-load Actuator Speed | ≥ 0.4mm/s |
| Actuator Repeat Positioning Accuracy | ± 3μm |
💕The micro servo planetary roller screw actuator’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

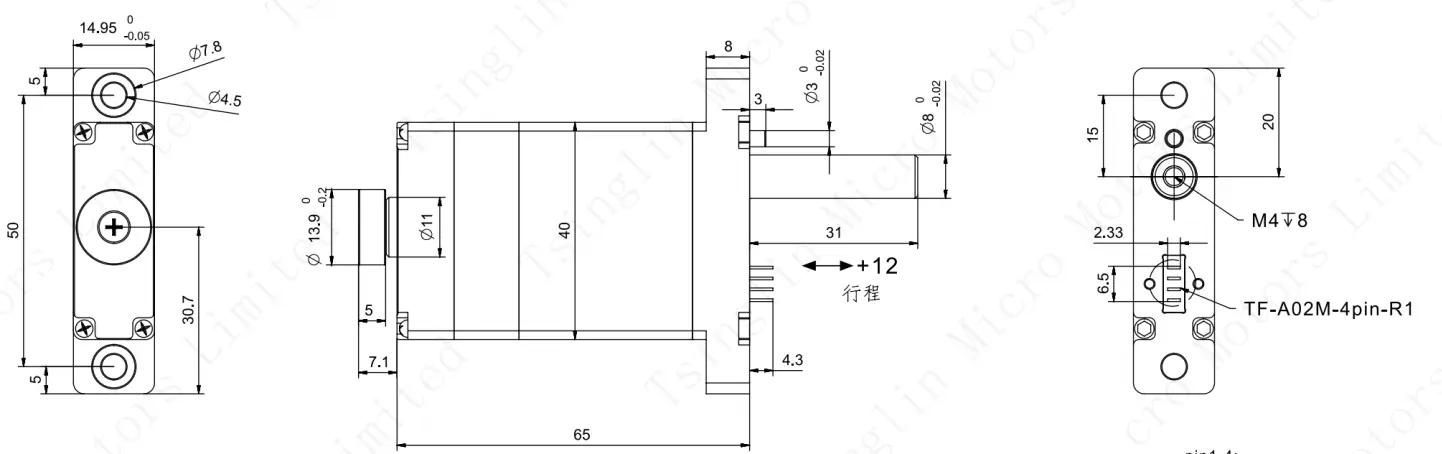

| High Force Linear Actuator SAG-1565-END Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for planetary roller screw
Q:What is a planetary roller screw?
A:A planetary roller screw converts rotary motion into linear motion using threaded rollers orbiting a central screw. This design provides multiple contact points, allowing it to handle much heavier loads with higher precision and durability than standard ball screws.
If you want a video to explain the principle of planetary roller screw, you can click on this link：Sleeping Giants
Q:Can Planetary Gear Motor Be Customized?
A: Yes,Planetary gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery.
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
