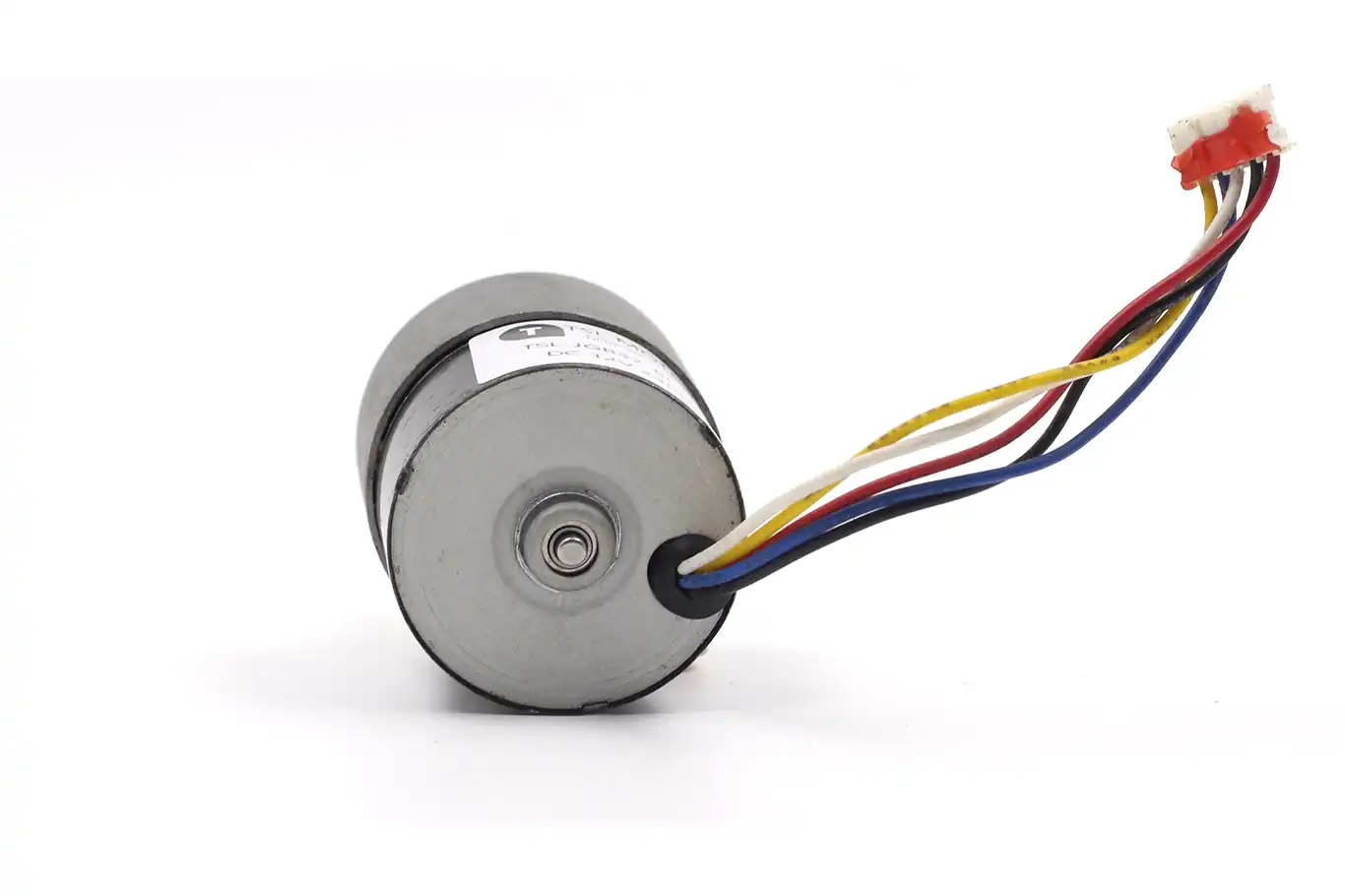

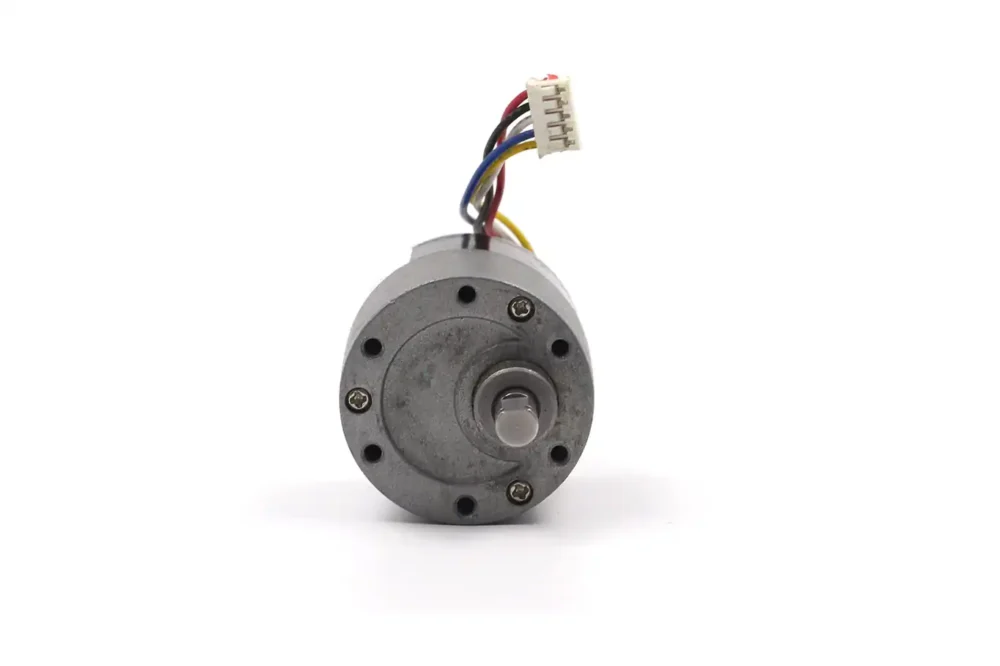

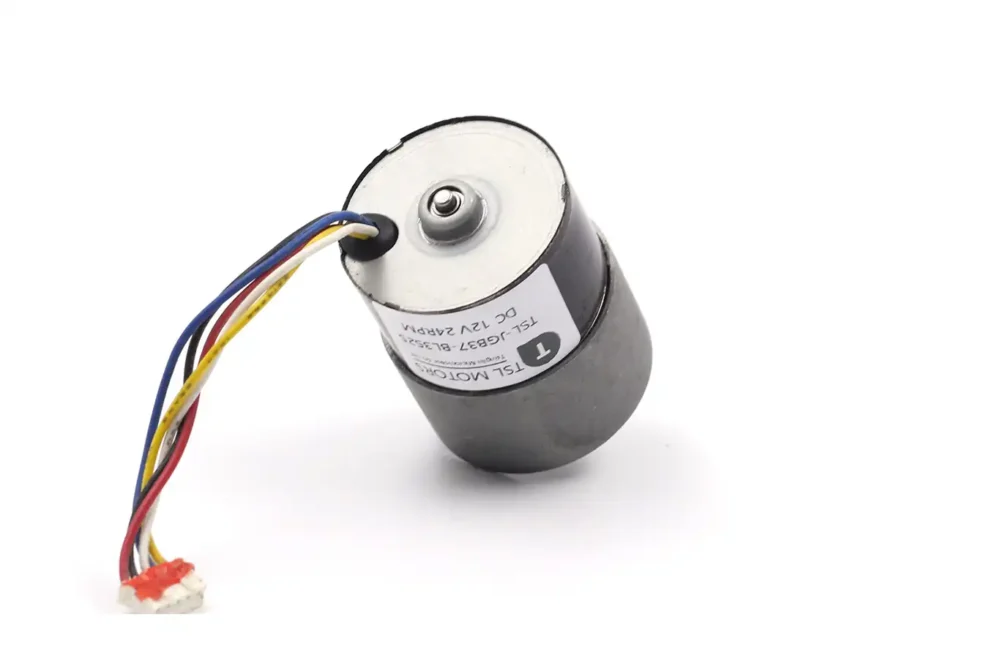

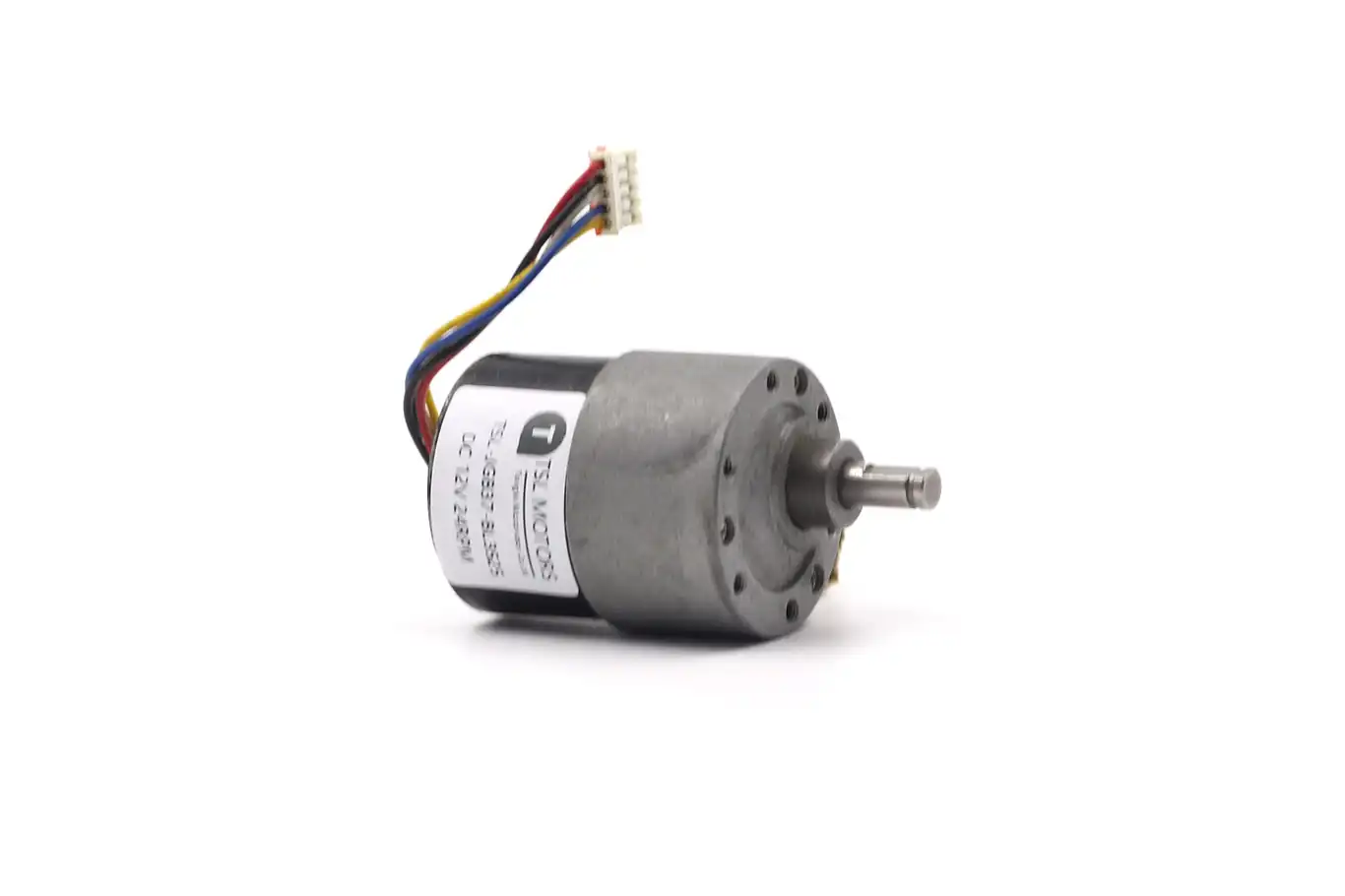

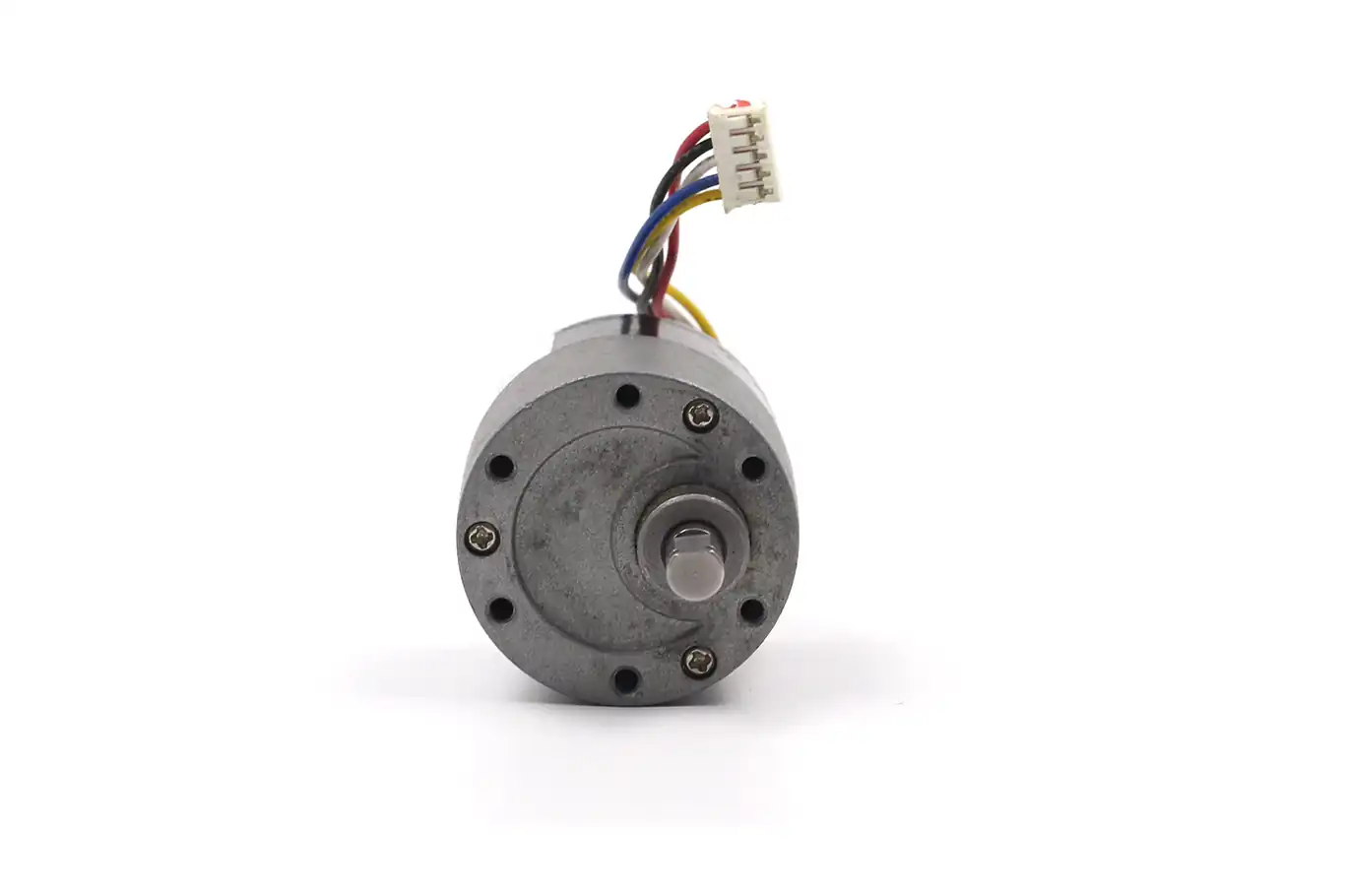

37mm Brushless Gear Motor Model TSL-JGB37-BL3525
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-JGB37-BL3525
- Rated Voltage: 12V / 24V DC DC
- No Load Speed：4.5rpm – 930rpm
- No Load Current：≤0.1A / ≤0.13A
- Rated Torque：0.04N.m – 3.0N.m
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Robots, mechanical equipment
- intelligent machines, electric windows and doors
- automatic rotating equipment, pan-tilt heads, etc.
High Torque Brushless DC Motor Parameters
Our high torque brushless DC motor offers a long, stable life. It lasts 3-5 times longer than brushed motors. The motor operates over a wide voltage range. It runs with low noise and high torque.
You get stable and reliable performance. It also supports bi-directional rotation. The motor features emergency stop on power loss. Speed can be controlled and measured.
TSL-GM37-BL3525, 12V DC, Max 2W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 6.3:1 | 465rpm | ≤0.1A | 330rpm | ≤0.3A | 0.04N.m | ≥0.1Nm | ≤3A |
| 10:1 | 290rpm | ≤0.1A | 220rpm | ≤0.3A | 0.07N.m | ≥0.17Nm | ≤3A |
| 18.8:1 | 155rpm | ≤0.1A | 115rpm | ≤0.3A | 0.12N.m | ≥0.3Nm | ≤3A |
| 30:1 | 95rpm | ≤0.1A | 72rpm | ≤0.3A | 0.2N.m | ≥0.5Nm | ≤3A |
| 50:1 | 57rpm | ≤0.1A | 42rpm | ≤0.3A | 0.35N.m | ≥0.7Nm | ≤3A |
| 90:1 | 32rpm | ≤0.1A | 24rpm | ≤0.3A | 0.6N.m | ≥1.2Nm | ≤3A |
| 150:1 | 20rpm | ≤0.1A | 14rpm | ≤0.3A | 1.0N.m | ≥1.5Nm | ≤3A |
| 260:1 | 11rpm | ≤0.1A | 8rpm | ≤0.3A | 1.5N.m | ≥2.0Nm | ≤3A |
| 450:1 | 6rpm | ≤0.1A | 4rpm | ≤0.3A | 2.5N.m | ≥3.0Nm | ≤3A |
| 630:1 | 4.5rpm | ≤0.1A | 3rpm | ≤0.3A | 3.0N.m | ≥3.0Nm | ≤3A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM37-BL3525, 24V DC, Max 8W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 6.3:1 | 930rpm | ≤0.13A | 700rpm | ≤0.4A | 0.09N.m | ≥0.2Nm | ≤3A |
| 10:1 | 585rpm | ≤0.13A | 445rpm | ≤0.4A | 0.14N.m | ≥0.35Nm | ≤3A |
| 18.8:1 | 310rpm | ≤0.13A | 235rpm | ≤0.4A | 0.25N.m | ≥0.65Nm | ≤3A |
| 30:1 | 195rpm | ≤0.13A | 145rpm | ≤0.4A | 0.4N.m | ≥1.0Nm | ≤3A |
| 50:1 | 117rpm | ≤0.13A | 85rpm | ≤0.4A | 0.7N.m | ≥1.5Nm | ≤3A |
| 90:1 | 65rpm | ≤0.13A | 48rpm | ≤0.4A | 1.2N.m | ≥2.5Nm | ≤3A |
| 150:1 | 39rpm | ≤0.13A | 29rpm | ≤0.4A | 2.1N.m | ≥3.0Nm | ≤3A |
| 260:1 | 23rpm | ≤0.13A | 17rpm | ≤0.4A | 3.0N.m | ≥3.0Nm | ≤3A |
| 450:1 | 13rpm | ≤0.13A | 9rpm | ≤0.4A | 3.0N.m | ≥3.0Nm | ≤3A |
| 630:1 | 9rpm | ≤0.13A | 6rpm | ≤0.4A | 3.0N.m | ≥3.0Nm | ≤3A |
💕The high torque brushless DC motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
High Torque Brushless DC Motor 37mm Metal Gearbox Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
High Torque Brushless DC Motor 37mm Metal Gearbox Mounting Bracket
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
High Torque Brushless DC Motor Forward/Reverse & Speed Control Function Description：5 wires without brake
Forward rotation wiring:
– Positive pole of power supply → connect to the red wire of the motor
– Negative pole of power supply → connect to the black wire of the motor
Other wires are left unconnected
Reverse rotation wiring:
– Positive pole of power supply → connect to the red wire of the motor
– Negative pole of power supply → connect to the black wire + white wire of the motor.Other wires are left unconnected
Note: The positive and negative poles of the motor must not be reversed
High Torque Brushless DC Motor Forward/Reverse & Speed Control Function Description：Using the speed control board
Micro DC Brushless High Torque Reducer Wiring Diagram
⚫Black Wire:Connect to the negative pole of the power supply; the positive and negative poles must not be connected incorrectly.
🔴Red Wire:Connect to the positive pole of the power supply; the positive and negative poles must not be connected incorrectly.
⚪White Wire:Forward and reverse rotation control wire: When disconnected, the motor rotates in one direction.
Connect to the negative pole together with the black wire, and the motor reverses direction.
🔵Blue Wire:PWM speed control wire,Connect to a 0 – 5V pulse width speed governor
🟡FG signal wire: Outputs 9 square wave pulses. The rotation speed can be obtained by detecting the frequency of the pulses (equivalent to a single – wire encoder).
⚠️Note: Frequent starting or frequent forward and reverse rotation is prohibited,to prevent excessive instantaneous current from burning out the internal driver of the motor.
