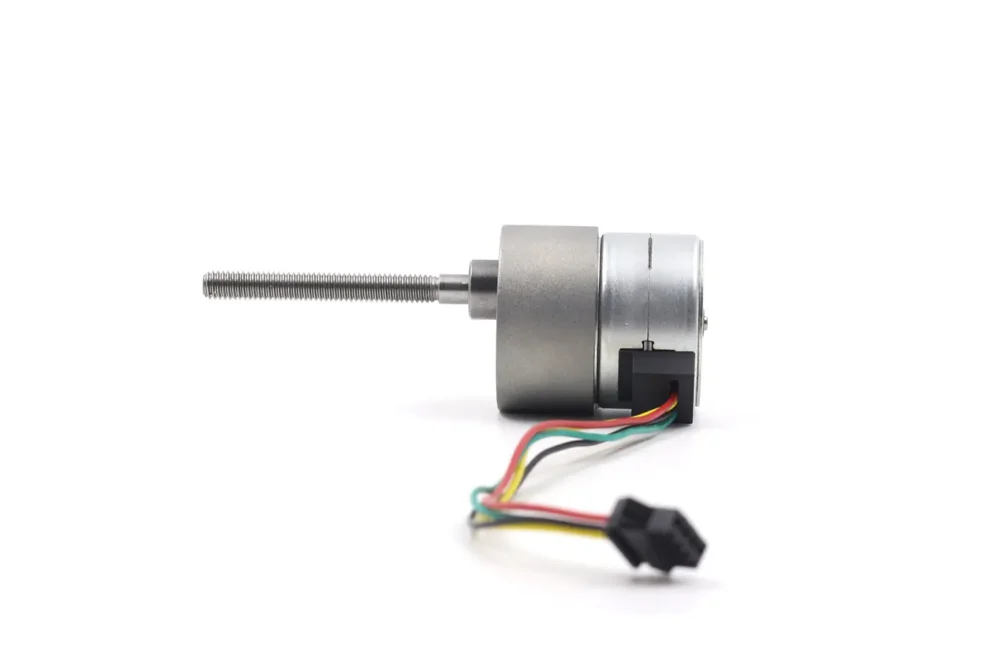

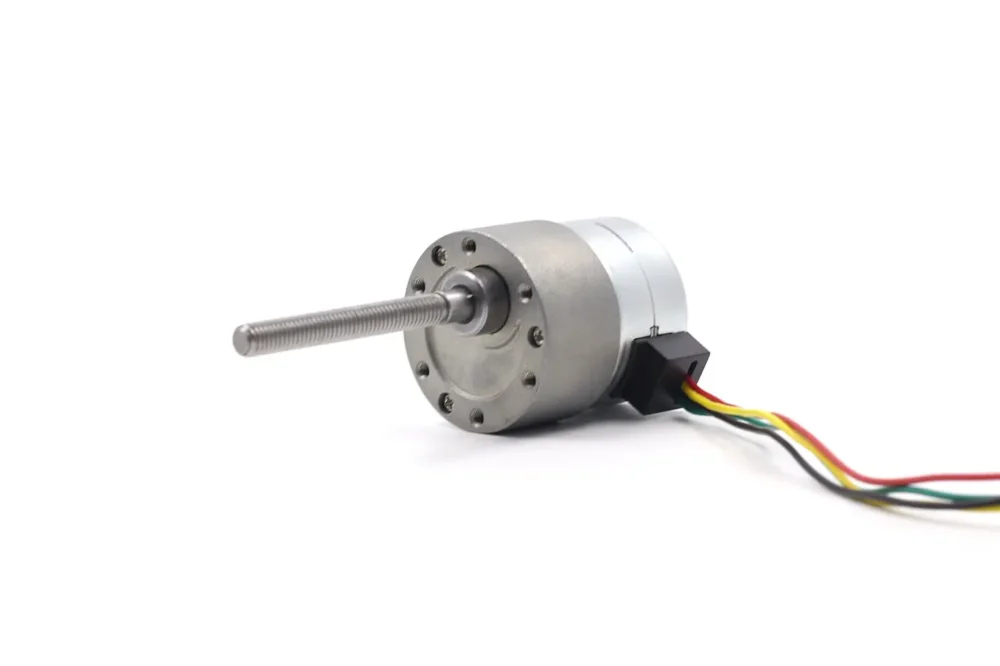

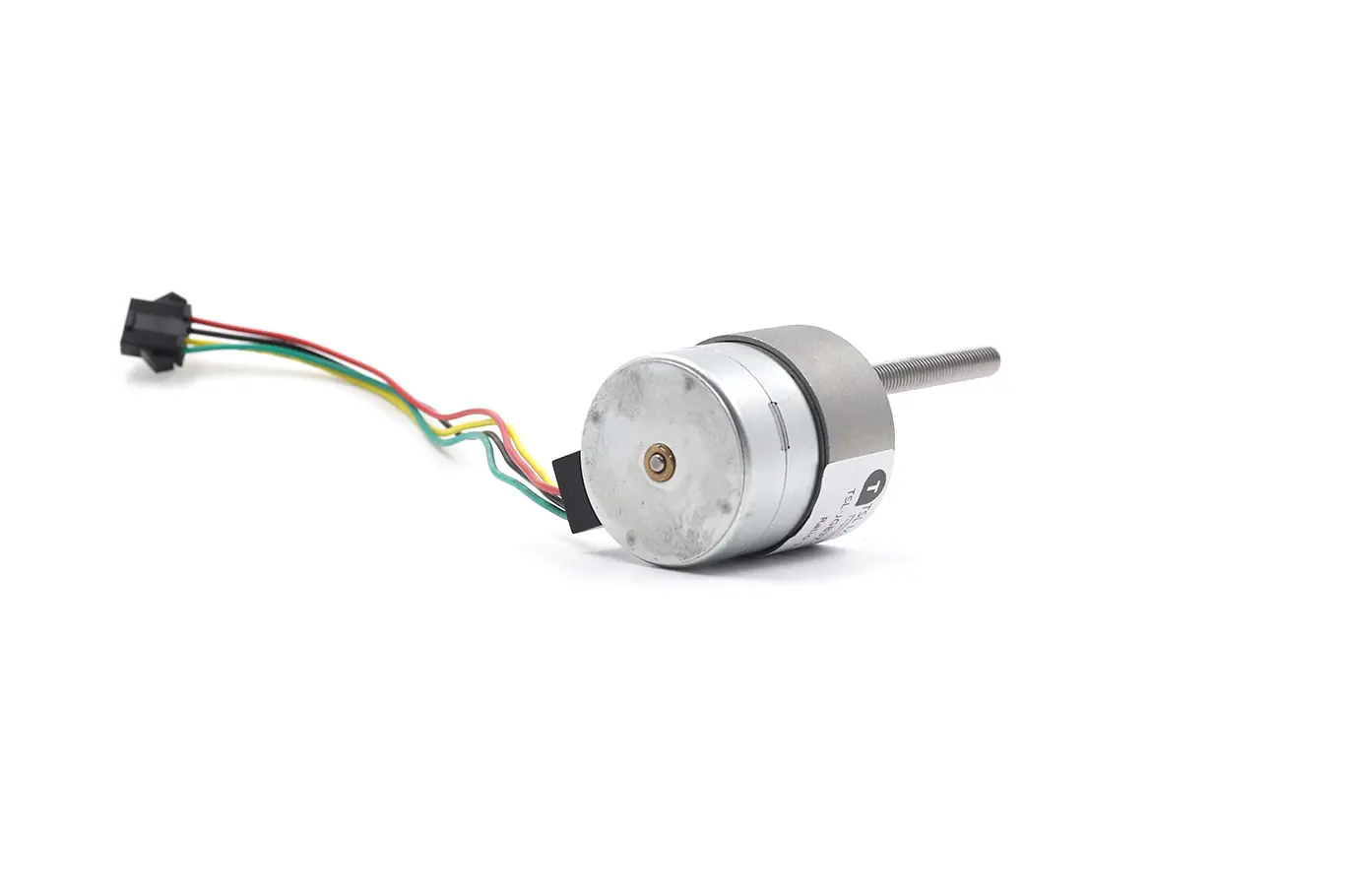

35mm Stepper Motor With Spur Gearbox TSL-JGB37-35SM-M6
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-JGB37-35SM-M6
- Shaft length:58 mm
- Shaft Diameter:M6 Thread the shaft
- Voltage:12V/24V DC
- Umber of phase:2 Phase
- Step Angel:7.5° Step Angle
- Phase Resistance:30±15% Ω/Phase
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Smart selfe stick, smart camera holder
- Intelligent robot camera Angle
- intelligent micro robot, etc.
High Torque Brushless Electric Motor Input Stepper Motor Parameters
Elevate your project with our high torque brushless electric motors! As a leading Chinese manufacturer and factory, we specialize in the M6 58mm Brushless Stepping Gear Reduction Motor, a versatile solution perfect for a wide range of applications.
Our high torque brushless electric motors are the go-to choice for PTW CTW Type Airsoft Motors and other Airsoft Motor needs, thanks to their precision and power. We also offer an array of Motor Related Accessories and Long Shaft AEG Motors to ensure you have everything you need for your builds.
Looking for a DC high torque electronic motor for a custom project? We excel at customized production, providing tailored solutions for industries from airsoft to Education Intelligent Car Accessories. Contact us today to discuss your specific requirements and see how we can help power your innovations.
| Motor Model:TSL-JGB37-35SM-M6 | |||
| Rated Voltage: 12 VDC | |||
| Coil Resistance | 30Ω/phase ± 15% | Current Per Phase | 0.4A/phase |
| Step Angle | 7.5°/Step | Phase Number | 2 phases |
| Drive Mode | Bipolar Drive | Excitation Method | 2 Phases Excitation |
| Pull-out Torque | ≥300g.cm at 100PPS | Holding Torque | ≥600g.cm at 0PPS |
| Max Response Frequency | 750PPS/Hz | Max Starting Frequency | 700PPS/Hz |
| Insulation Class | Class E for coils | Insulation Strength | 100V AC for one second |
| Insulation Resistance | 100MΩ DC 500V | Operating Temperature | -10°C ～ +55°C |
High Torque Brushless Electric Motor Output Parameters
TSL-JGB37-35SM-M6,Voltage: DC 12V,Test frequency:400 PPS/HZ 500RPM
| Ratio | Step | No Load Speed | Holding Torque | Pull-out Torque |
| 6.3 :1 | 1.19° | 79 rpm | 2.8 kgf.cm | 1.2 kgf.cm |
| 10 :1 | 0.75° | 50 rpm | 4.5 kgf.cm | 2 kgf.cm |
| 18.8 :1 | 0.399° | 26 rpm | 8 kgf.cm | 3.5 kgf.cm |
| 30 :1 | 0.25° | 16 rpm | 13 kgf.cm | 6 kgf.cm |
| 50 :1 | 0.15° | 10 rpm | 22 kgf.cm | 10 kgf.cm |
| 67 :1 | 0.112° | 7 rpm | 30 kgf.cm | 13 kgf.cm |
| 90 :1 | 0.083° | 5.5 rpm | ≤30 kgf.cm | 18 kgf.cm |
| 150 :1 | 0.05° | 3.3 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 270 :1 | 0.027° | 1.9 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 450 :1 | 0.0167° | 1.1 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 630 :1 | 0.012° | 0.8 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 810 :1 | 0.0093° | 0.6 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
💕The high torque brushless electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
TSL-JGB37-35SM-M6,Voltage: DC 12V,Test frequency:400 PPS/HZ 500RPM
| Ratio | Step | No Load Speed | Holding Torque | Pull-out Torque |
| 6.3 :1 | 1.19° | 119 rpm | 3.5 kgf.cm | 2 kgf.cm |
| 10 :1 | 0.75° | 75 rpm | 5.5 kgf.cm | 3.2 kgf.cm |
| 18.8 :1 | 0.399° | 40 rpm | 10 kgf.cm | 5.8 kgf.cm |
| 30 :1 | 0.25° | 25 rpm | 16.5 kgf.cm | 9 kgf.cm |
| 50 :1 | 0.15° | 15 rpm | 25 kgf.cm | 15 kgf.cm |
| 67 :1 | 0.112° | 11 rpm | ≤30 kgf.cm | 20 kgf.cm |
| 90 :1 | 0.083° | 8.3 rpm | ≤30 kgf.cm | 28 kgf.cm |
| 150 :1 | 0.05° | 5 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 270 :1 | 0.027° | 2.7 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 450 :1 | 0.0167° | 1.7 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 630 :1 | 0.012° | 1.2 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
| 810 :1 | 0.0093° | 0.9 rpm | ≤30 kgf.cm | ≤30 kgf.cm |
💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
💕The high torque brushless electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
Recommended Driver Parameters Table at Various Voltages
High Torque Brushless Electric Motor Stepper Motor Comprehensive Tester Test – Full Step Drive
- Test Method: Full Step Drive
- Drive Mode: Unlimited Current Drive
- Governing Principle: Voltage = Induced Voltage + Armature Current x Resistance
- Result: Tested with no significant change in motor resonance.
| Test Voltage | Maximum Drive Frequency/current | Motor Speed at Max.Drive Frequency | Minimum Drive Frequency/current | Motor Speed at Minimum Drive | Phase-locked selef-locking current 0 HZ |
| DC24.0V | 670 HZ/ ≤0.12A | 837.5RPM | 550 HZ/≤0.16A | 687.5RPM | 687.5RPM |
| DC12.0V | 460 HZ/ ≤0.07A | 575RPM | 330 HZ/≤0.10A | 412.5RPM | 687.5RPM |
| DC6.0V | 280 HZ/ ≤0.06A | 350RPM | 200 HZ/≤0.16A | 250RPM | 687.5RPM |
| DC3.7V | 150 HZ/≤0.06A | 187.5RPM | 60 HZ/≤0.15A | 75RPM | 687.5RPM |
High Torque Brushless Electric Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
35SM Stepper Gear Motor Mounting Bracket & Flange Coupling
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

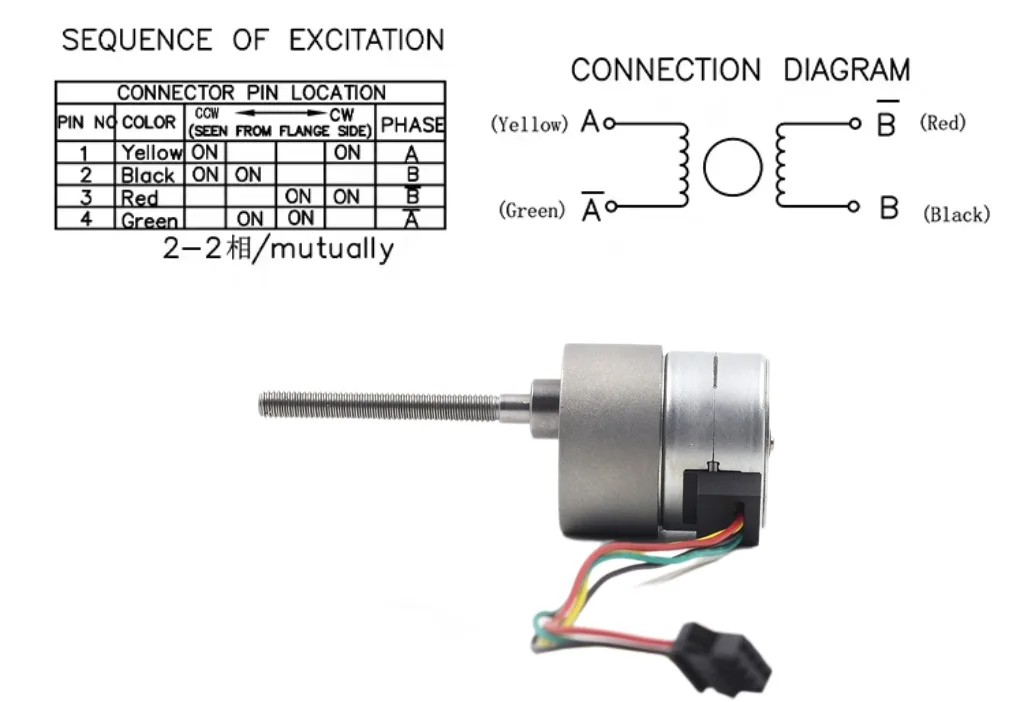

Worm Drive Stepper Motor Two Phase Connection Diagram
