High Torque DC Electric Motor Datasheet

Boost your performance with the upgraded 528 reduction motor. It’s an improvement on the popular 520 model. We increased the motor length by 8.5mm. This delivers 30% more torque.

The high torque dc electric motor features a durable carbon brush. It’s built with high-quality materials and a damping strip for stability. This design ensures it will last.

TSL-GM37-528,   12V DC,  10W

💕The high torque dc electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-GM37-528,   24V DC,  12W

💕The high torque dc electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

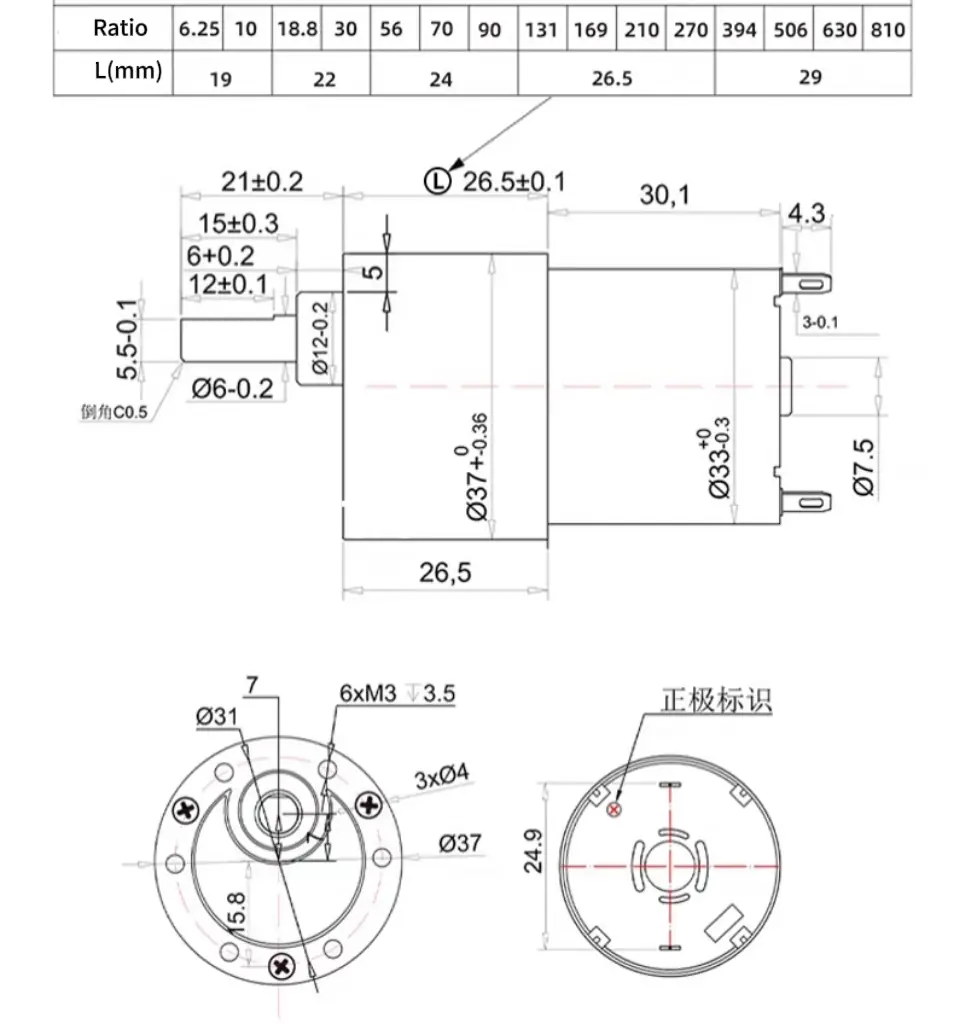

High Torque DC Electric Motor With Gearbox Outline Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

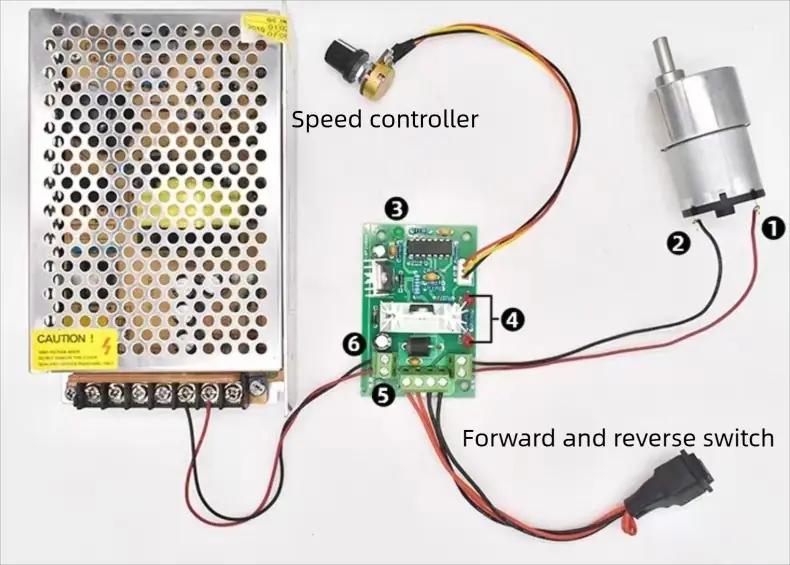

High Torque DC Electric Motor Wiring method

①Red wire – positive pole of power supply

②Black wire – negative pole of power supply

③Black wire – negative pole of motor

④Red wire – positive pole of motor

⑤White wire – forward – reverse interface

⑥Emergency stop access port

⚠️By swapping the connections of the “positive/negative poles of the motor” and the “positive/negative poles of the power supply”, the “forward/reverse rotation of the motor output shaft” can be achieved.

Keywords:

high torque motor, low speed motor, 12V motor, 24V DC motor,high torque dc electric motor,high

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for spur gear motor

Q：What is a Spur Gear Motor?

A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.

If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks

Q:Can Spur Gear Motor Be Customized?

A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
