31mm Brushless DC Motor – 63mm Type Model TSL-BLDC-3163A
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-3163A
- Motor Type:Inrunner Rotor BLDC Motor
- Rated Voltage:21V DC
- No Load Current:≤1.8A
- No Load Speed:19,700rpm
- Number of Slots / Poles: 6 / 4
- #More Specifications
- #Outline Drawing
♦ Typical Applications:3.0 cm Pruner
Inrunner BLDC Motor TSL-BLDC-3163A Datasheet
The TSL-BLDC-3163A inrunner brushless DC motor spins up to 19,700 RPM, delivering consistent power for high-efficiency tools. Perfect for garden pruners or precision devices, it ensures smooth, reliable operation every time.
Operating at only 21VDC and 1.4A, it provides strong output with low energy consumption. Its compact inrunner design allows flexible installation, quiet operation, and long service life—ideal for demanding applications.
| Motor Model | Rated Voltage | At No Load | At Stall(Extrapolated) | At Maximum Efficiency | ||||||
| Speed | Current | Torque | Current | Efficiency | Torque | Speed | Current | Output | ||
| V | RPM | A | mNm | A | % | mNm | RPM | A | W | |
| TSL-BLDC-3163A | 21 | 19700 | 1.400 | 955.236 | 88.537 | 83.62 | 106.702 | 17499 | 11.133 | 195.535 |
💕The inrunner bldc motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

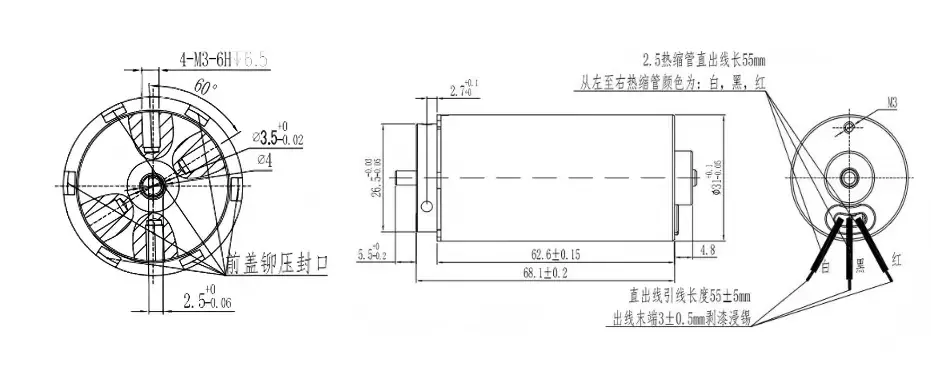

Inrunner BLDC Motor TSL-BLDC-3163A Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters.

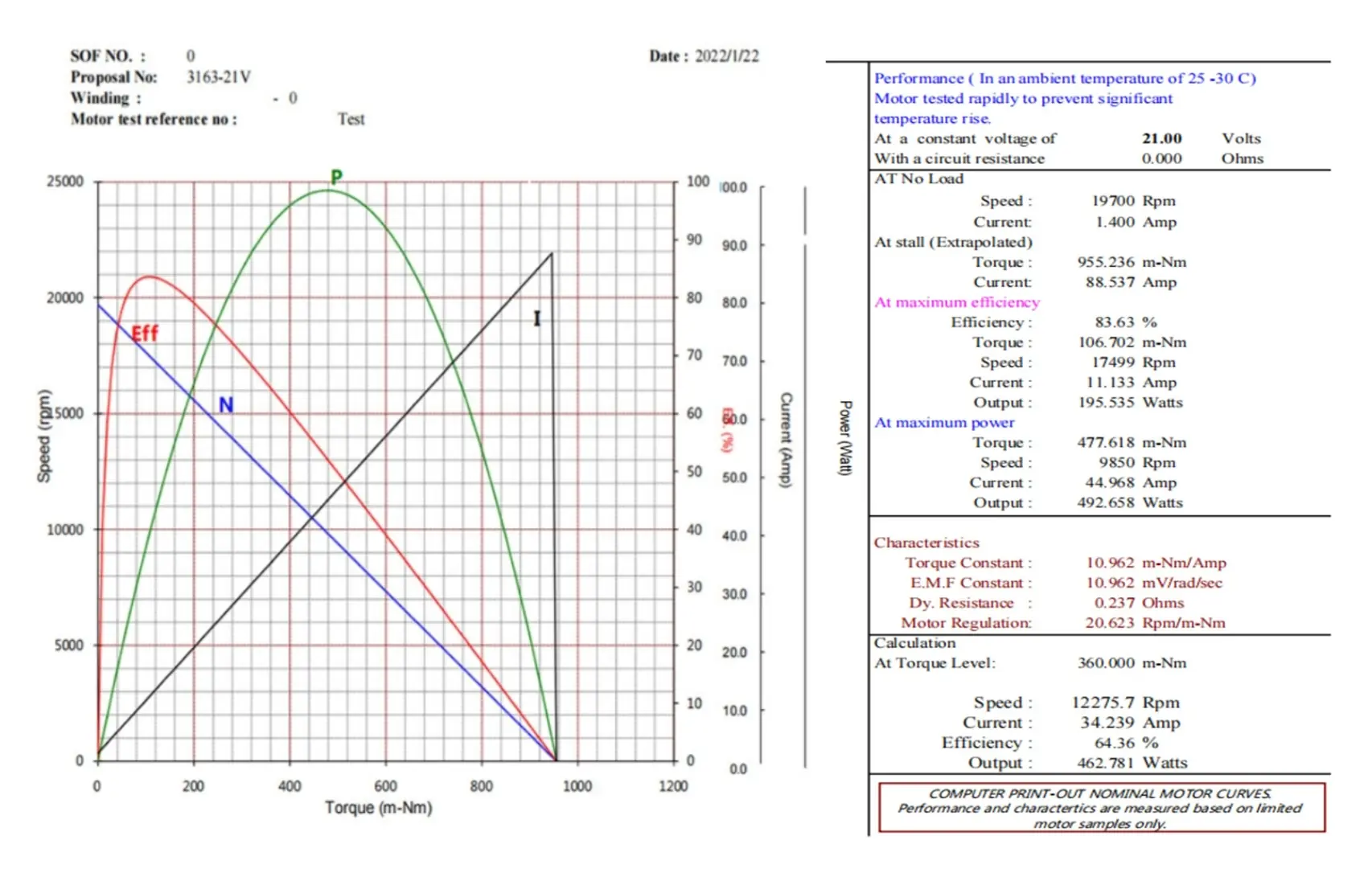

Inrunner BLDC Motor TSL-BLDC-3163A Performance Curve
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for 24V Brushless Motor
Q：What is Brushless DC motor?
A:A brushless DC motor eliminates the need for a commutator and brushes by placing permanent magnets on the rotor. The rotor’s rotation is controlled by detecting its magnetic poles and adjusting the current flow through the coils accordingly.
If you want a video to explain the principle of Brushless DC motor, you can click on this link：https://www.youtube.com/watch?v=1AaUK6pT_cE
Q:Can Brushless DC Electric motor Be Customized?
A: Yes,Brushless DC Electric motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
