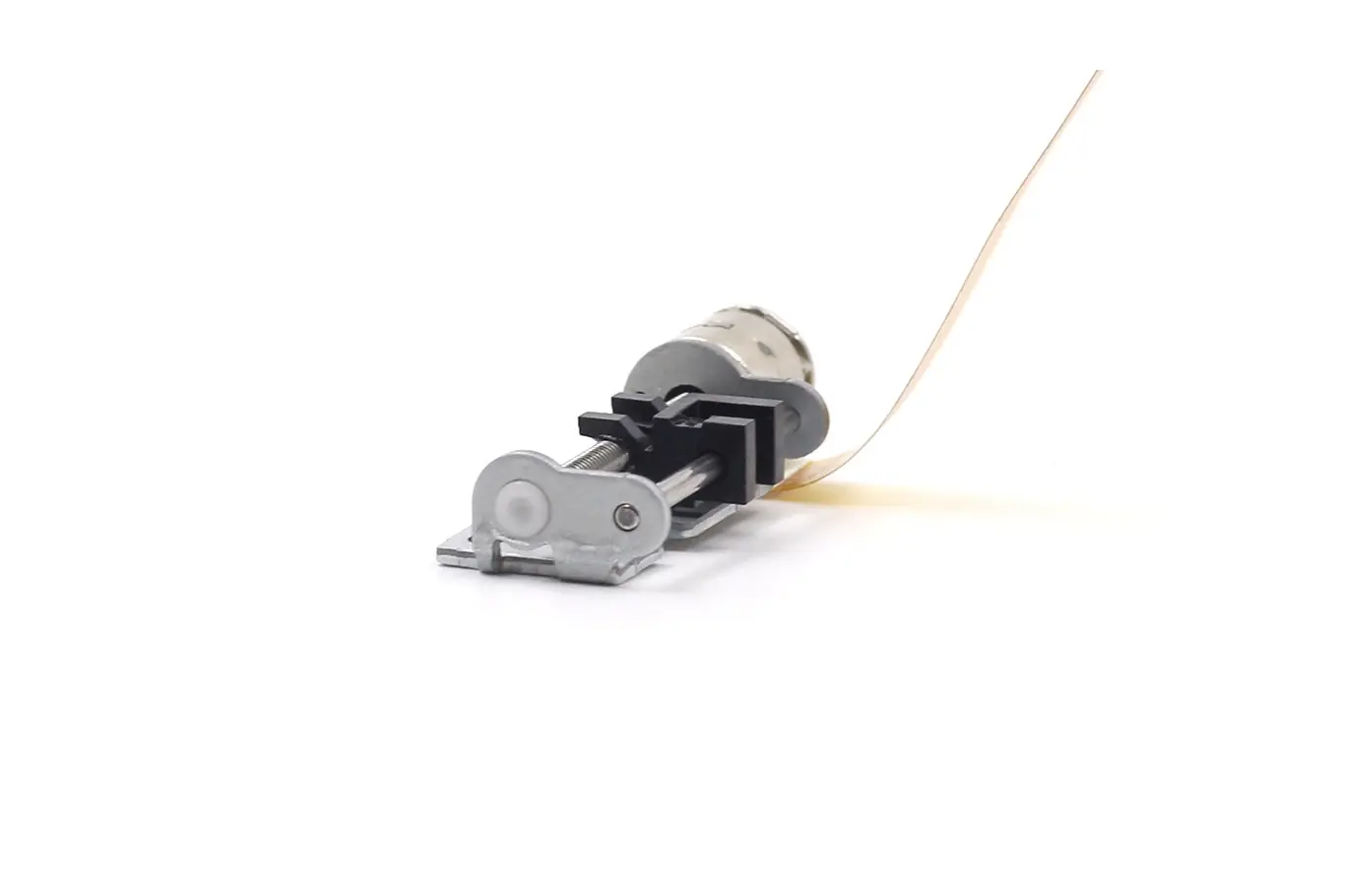

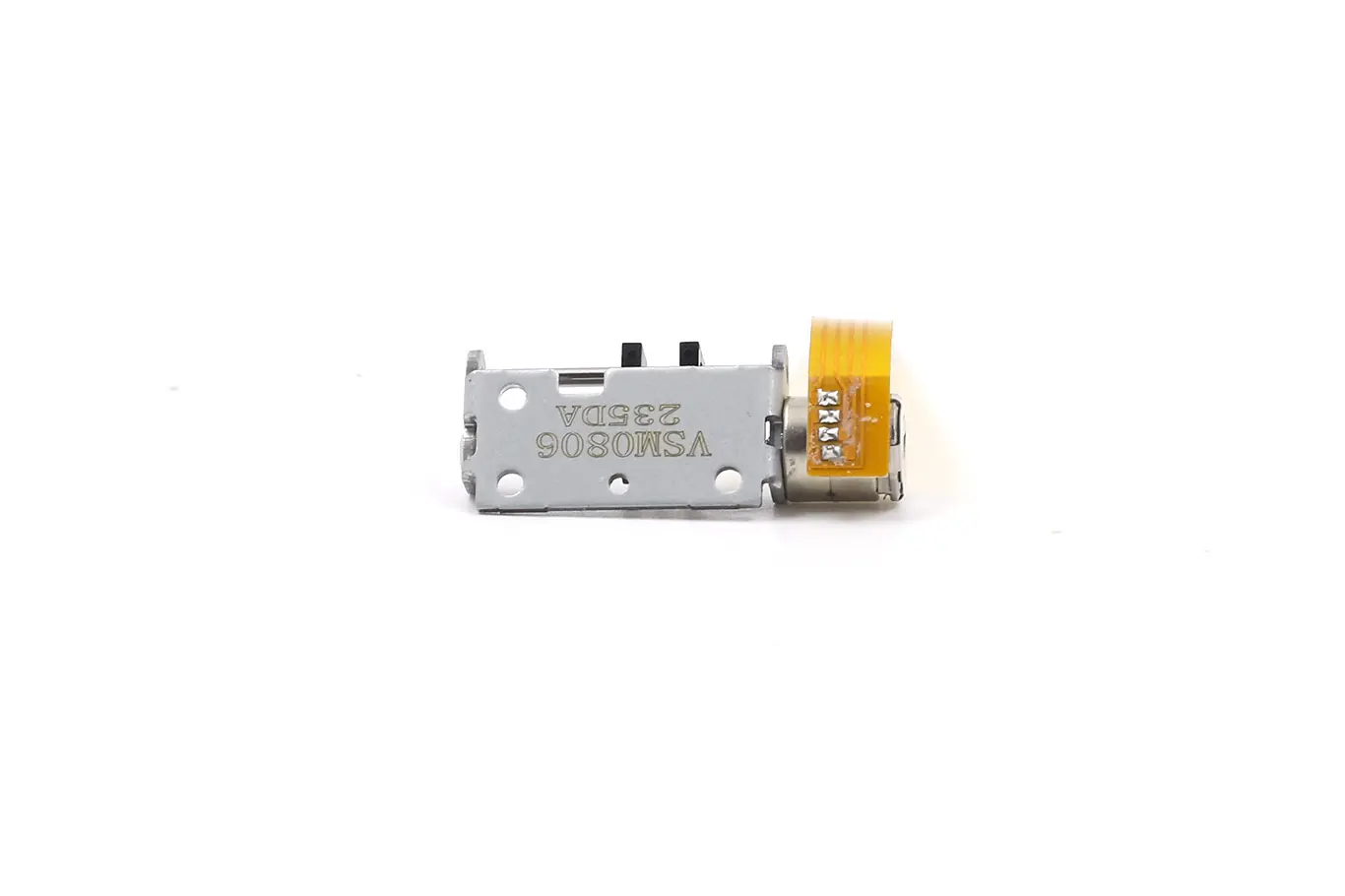

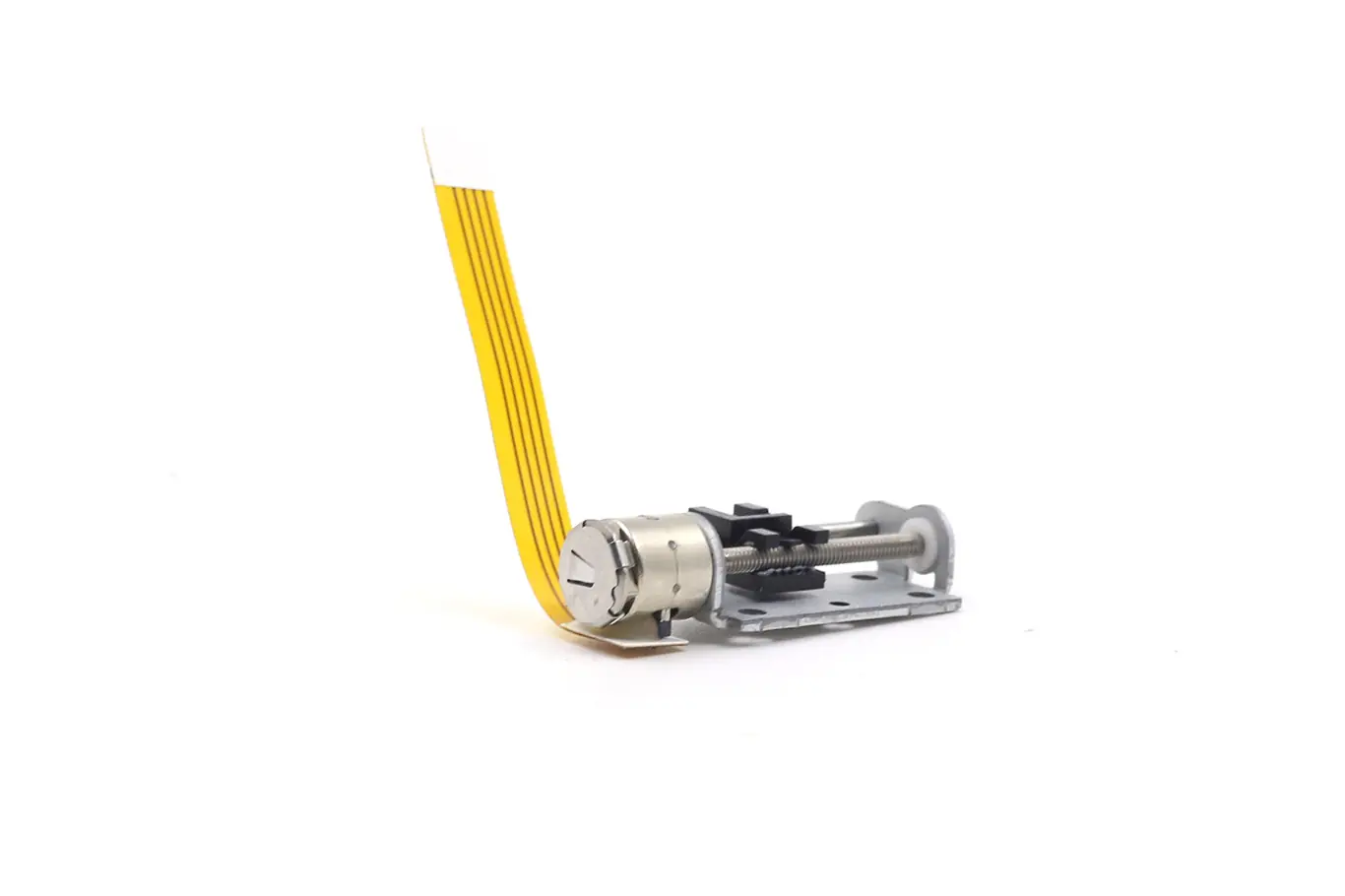

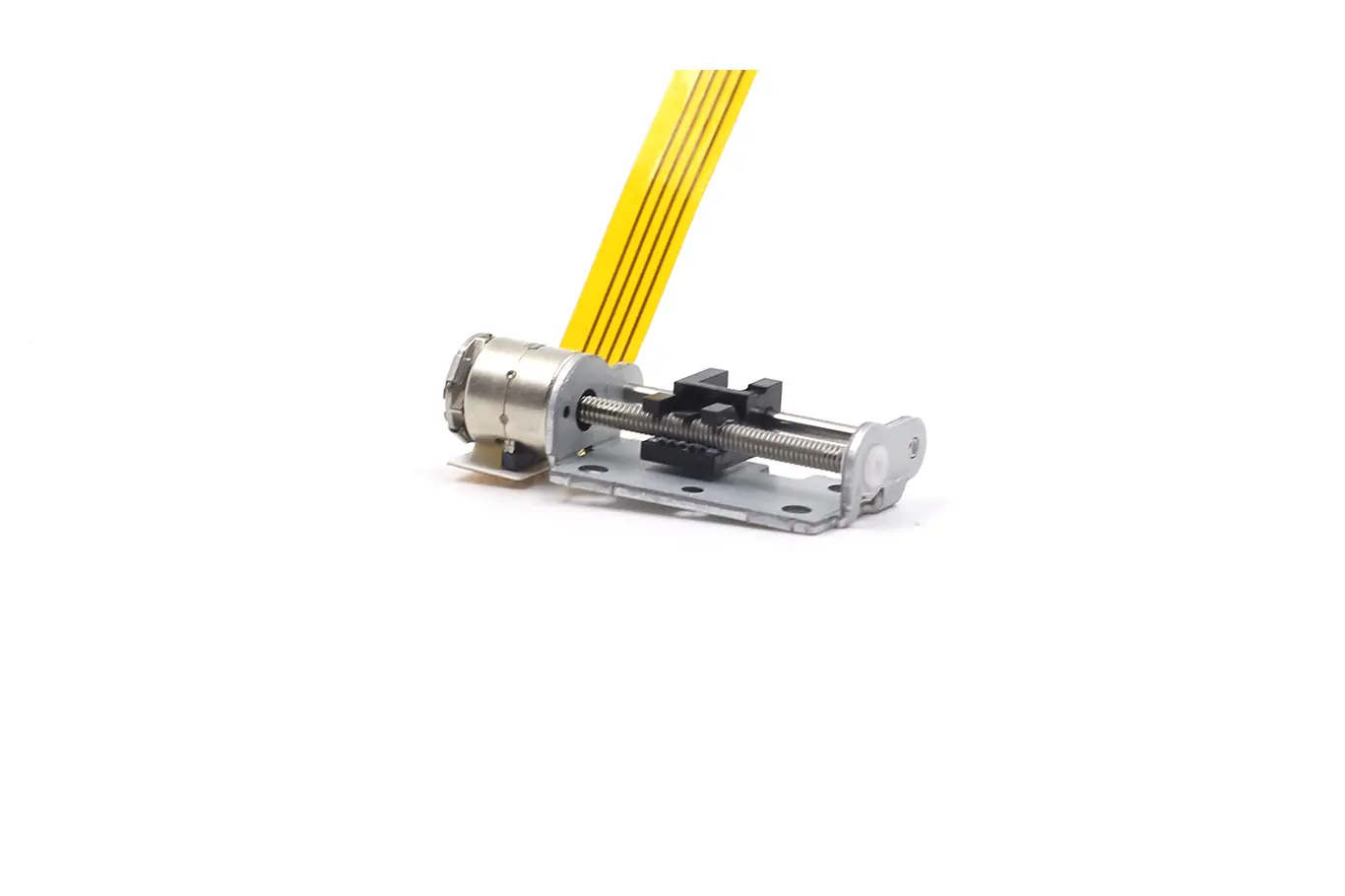

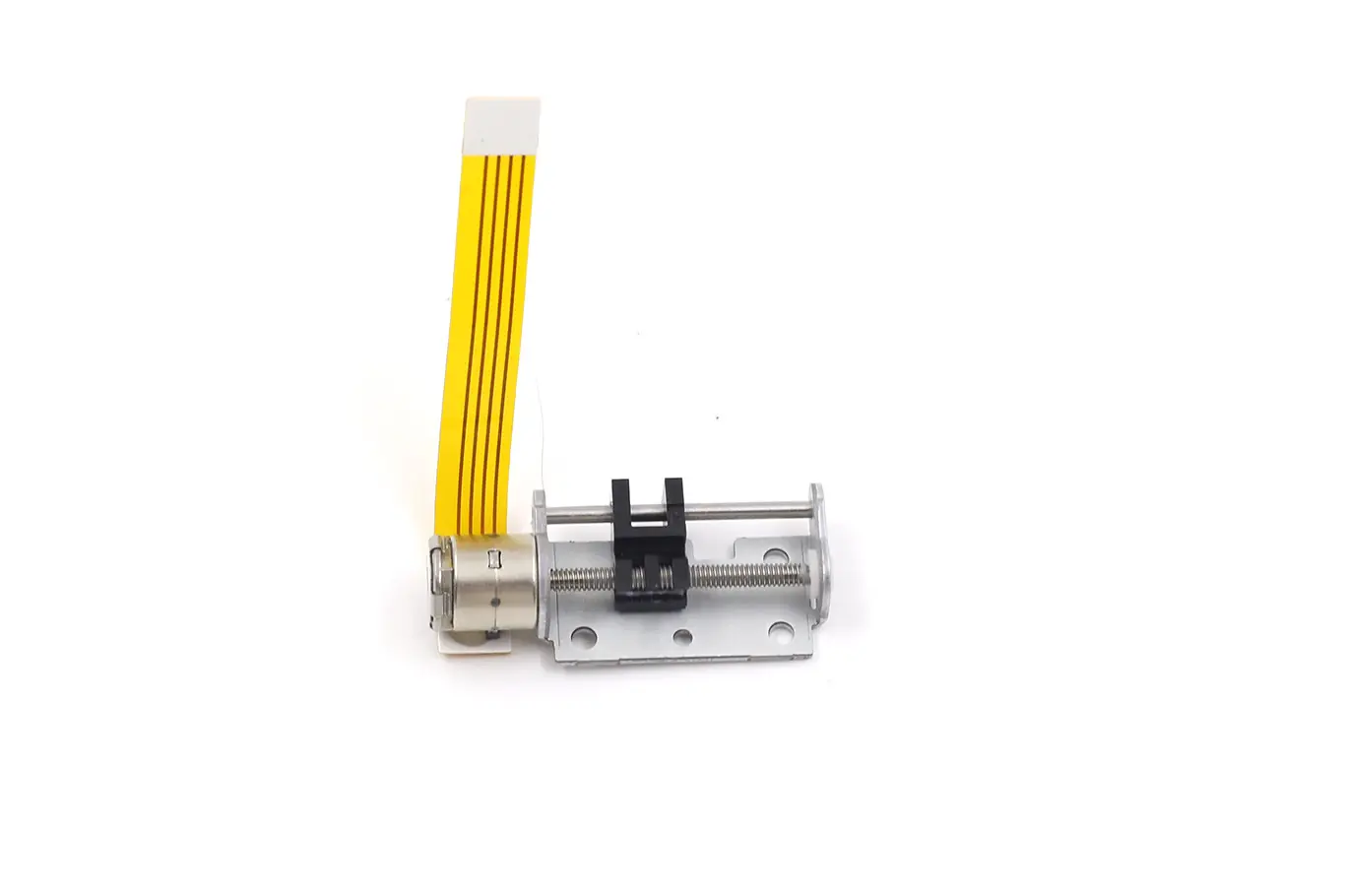

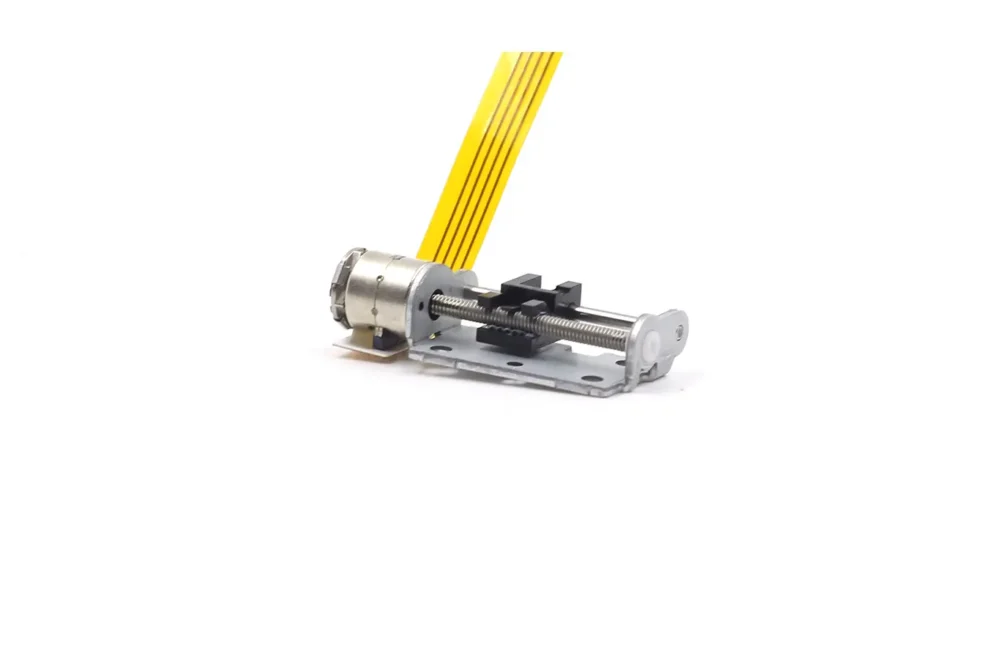

8mm Stepper Motor Linear Actuator 15mm Travel TSL-VSM0806
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-VSM0806
- Voltage:3.3V
- Phase No.:2 Phase
- Step Angel:18° Step Angle
- Phase Resistance:20±10%ohm
- Stroke:About 15mm
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- industrial precise control
- Intelligent robot camera Angle
- medical equipment
Linear Actuator With Stepper Motor Parameters
Searching for an ultra-compact linear actuator with stepper motor that delivers super-fine positioning control?
Meet the VSM 0806! This linear actuator with stepper motor system comes fully integrated, featuring a standard M2 x P0.4 lead screw, slider, and bracket. Thanks to its step angle, we achieve an outstanding linear resolution (step length) of , providing the high precision required for medical, optical, or micro-adjustment applications.
The linear actuator with stepper motor standard travel is , but we understand that different projects have unique requirements. We can customize different lead screw lengths based on your specific stroke needs. Please let us know your required travel distance, and we will provide the perfect solution!
| Motor Model:TSL-VSM0806 | |
| Rated voltage | 3.3V |
| Rated Current | 0.16A |
| Coil Resistance | 20Ω±10% |
| Phase No. | 2 phases (4 wires) |
| Step angle | 18° |
| Lead screw | M2*P0.4 |
| Stroke | About 15mm |
| Connector Type | FPC |
| Pull-in Torque | 1.5 gf.cm min(500 PPS,3.3 V DC) |
| pull-out Torque | 2.0 gf.cm min(500 PPS,3.3 V DC) |
💕The linear actuator with stepper motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

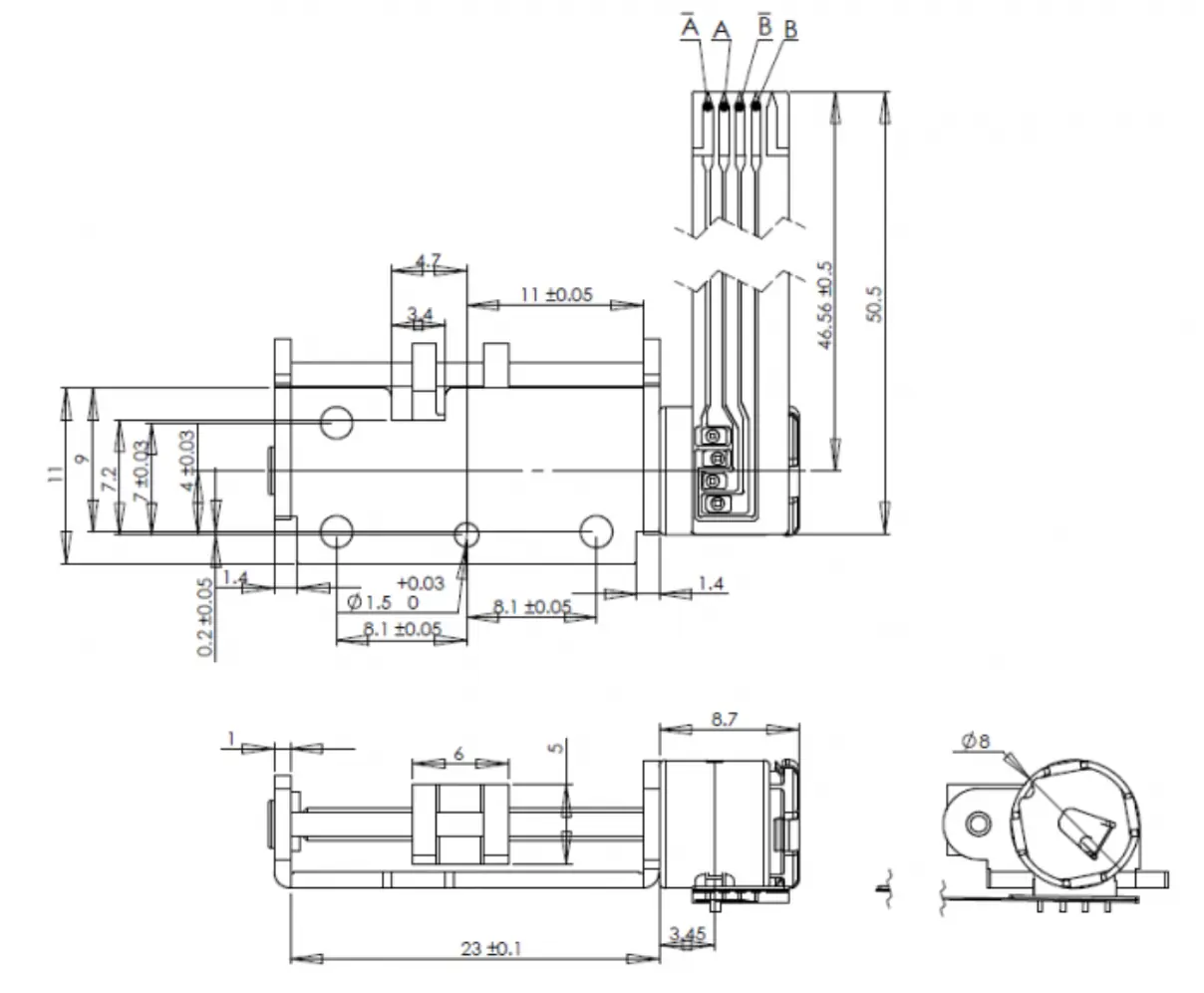

Linear Actuator With Stepper Motor Mechanical Drawing
Keywords:
stepper motor with linear actuator,miniature stepper motors with linear actuation,linear stepper motor actuator,linear stepper motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for stepper gear motor
Q：What is a Stepper Motor?
A:A stepper gear motor combines a stepper motor with a gearbox.It’s a brushless DC motor that moves in small, precise steps. You can set it to any position without a sensor. The gearbox then lets it drive heavier loads with slow, controlled movements.
If you want to know more about how stepper motor work, you can click on this link：Stepper motor – Wikipedia
Q:Can Stepper Gear Motor Be Customized?
A: Yes,stepper gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
