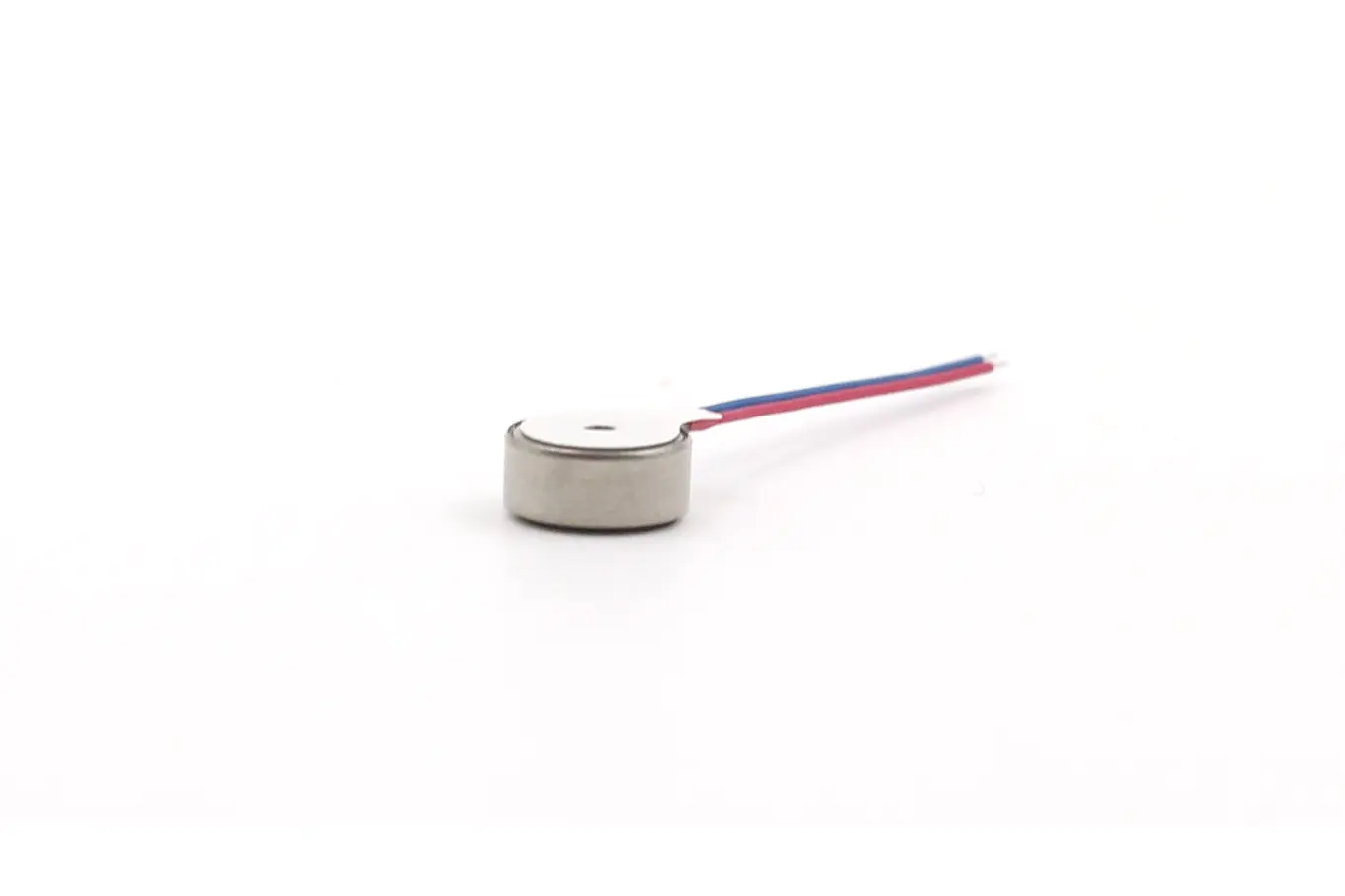

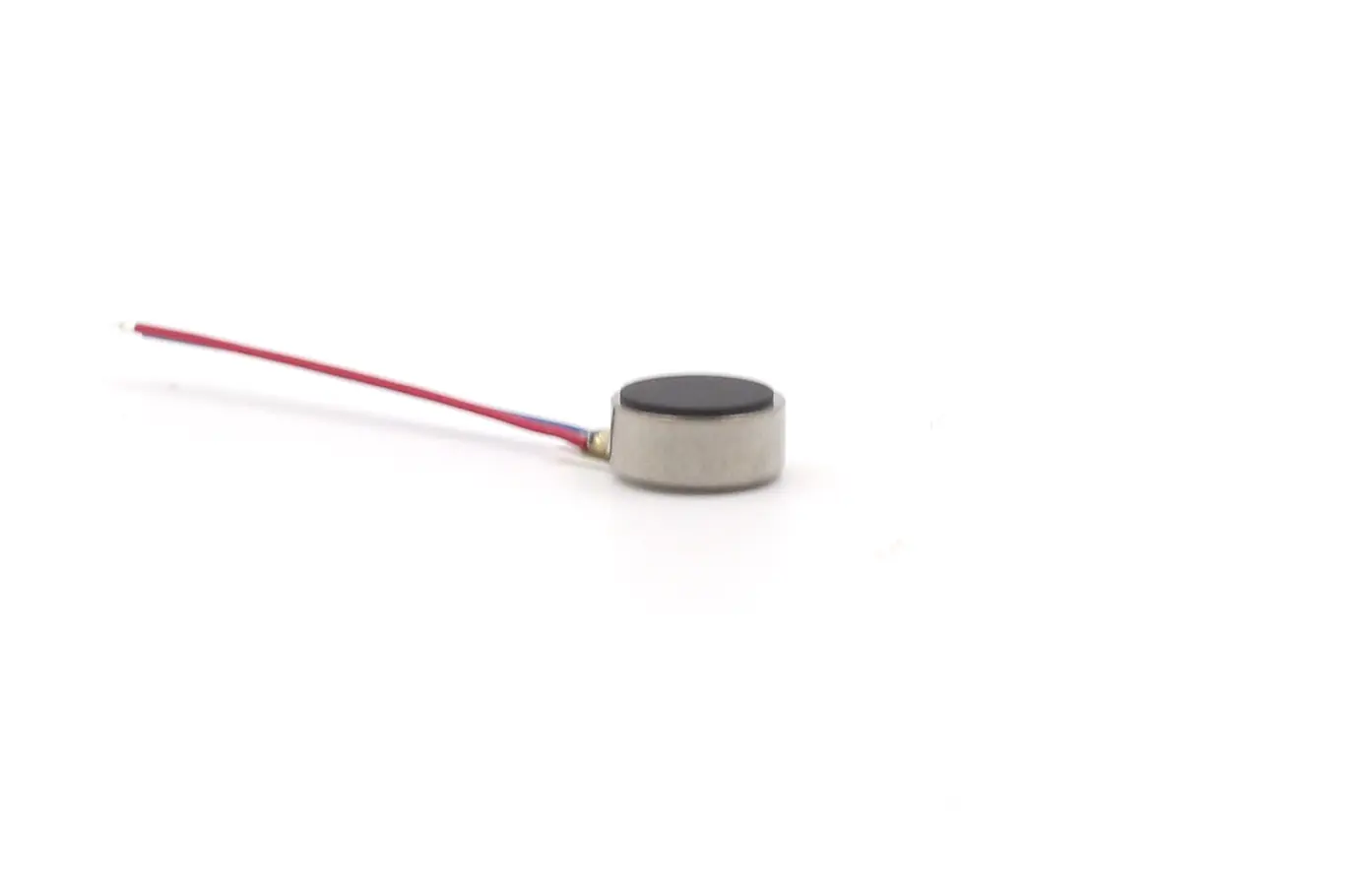

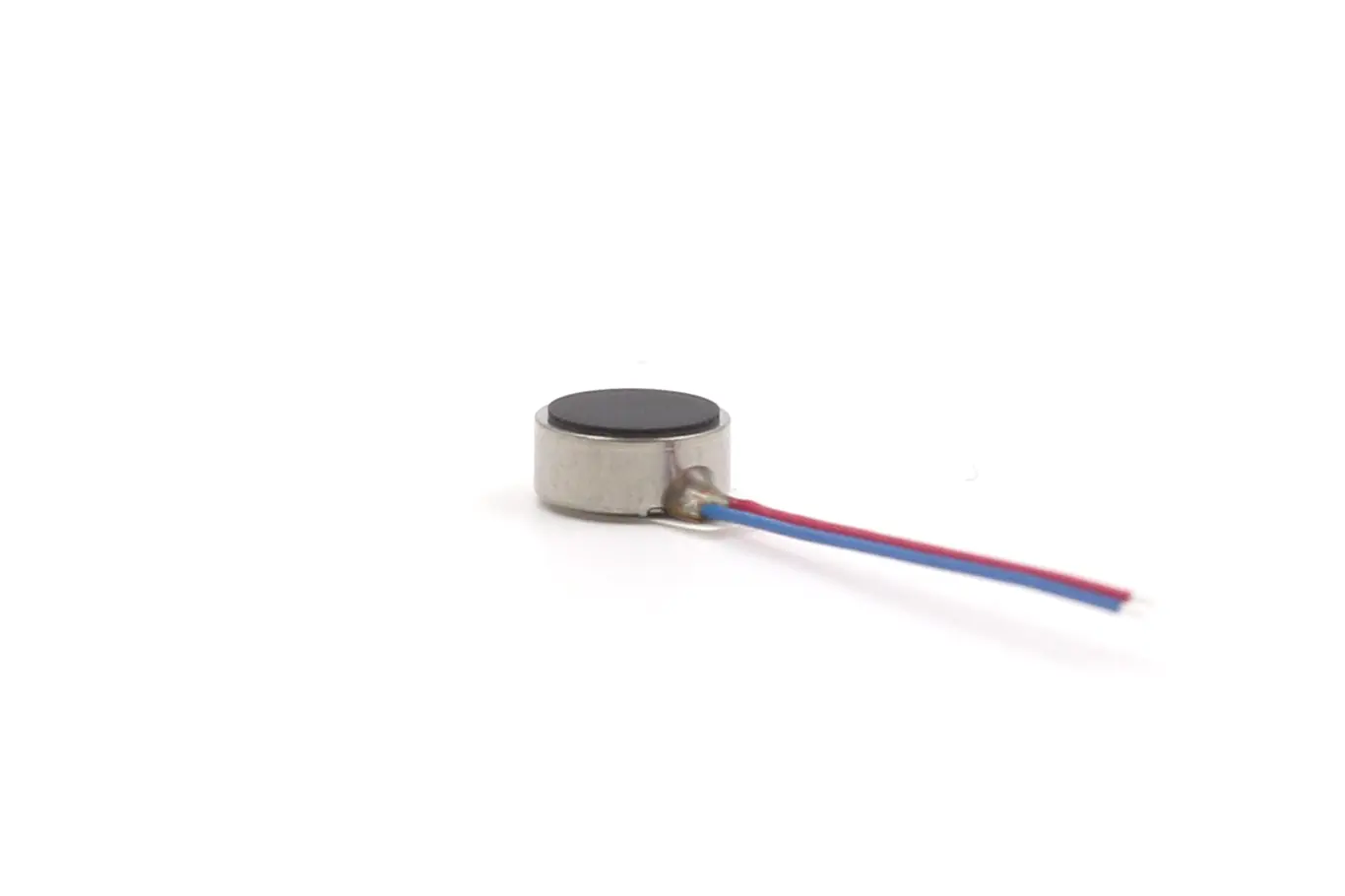

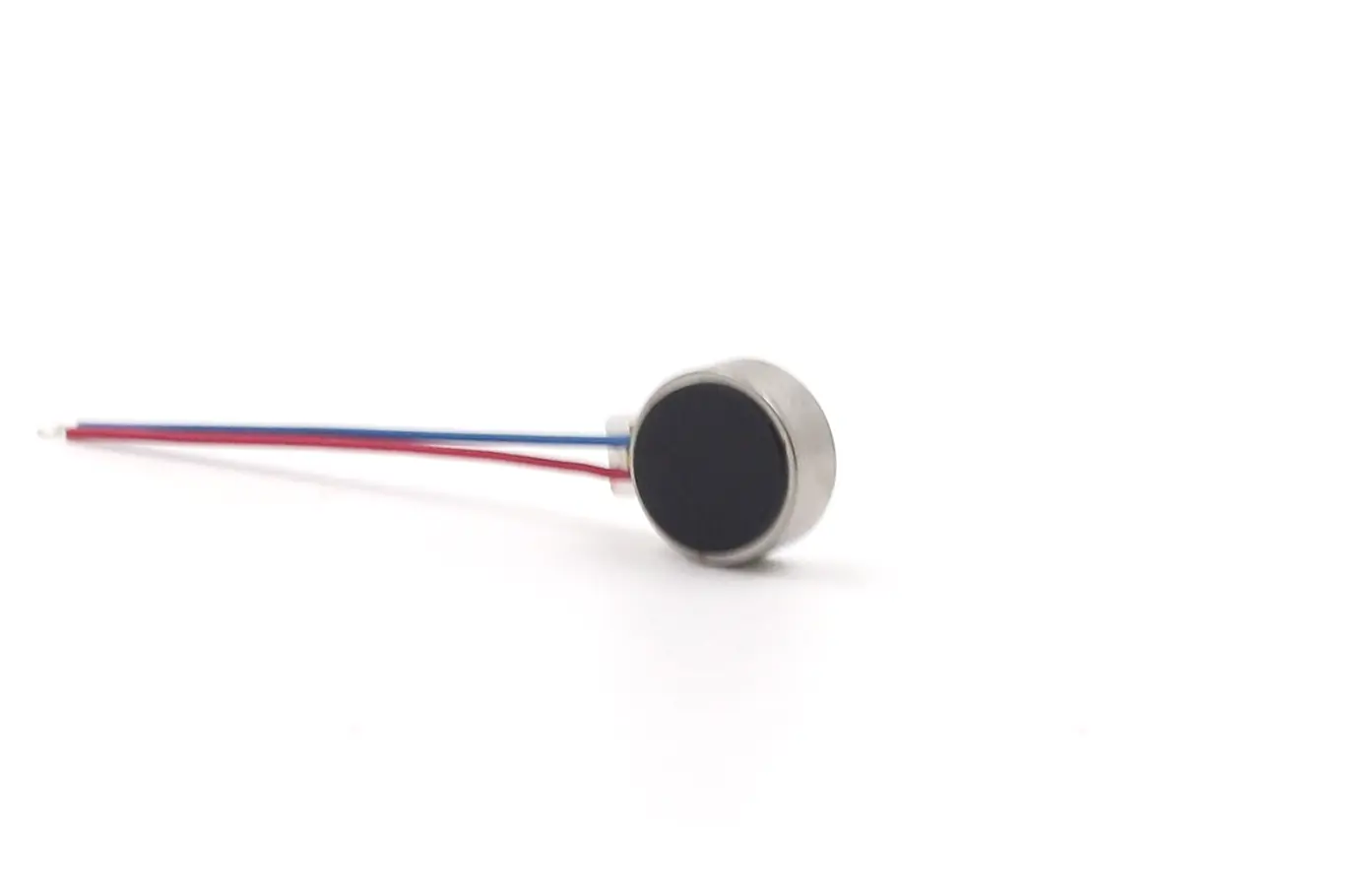

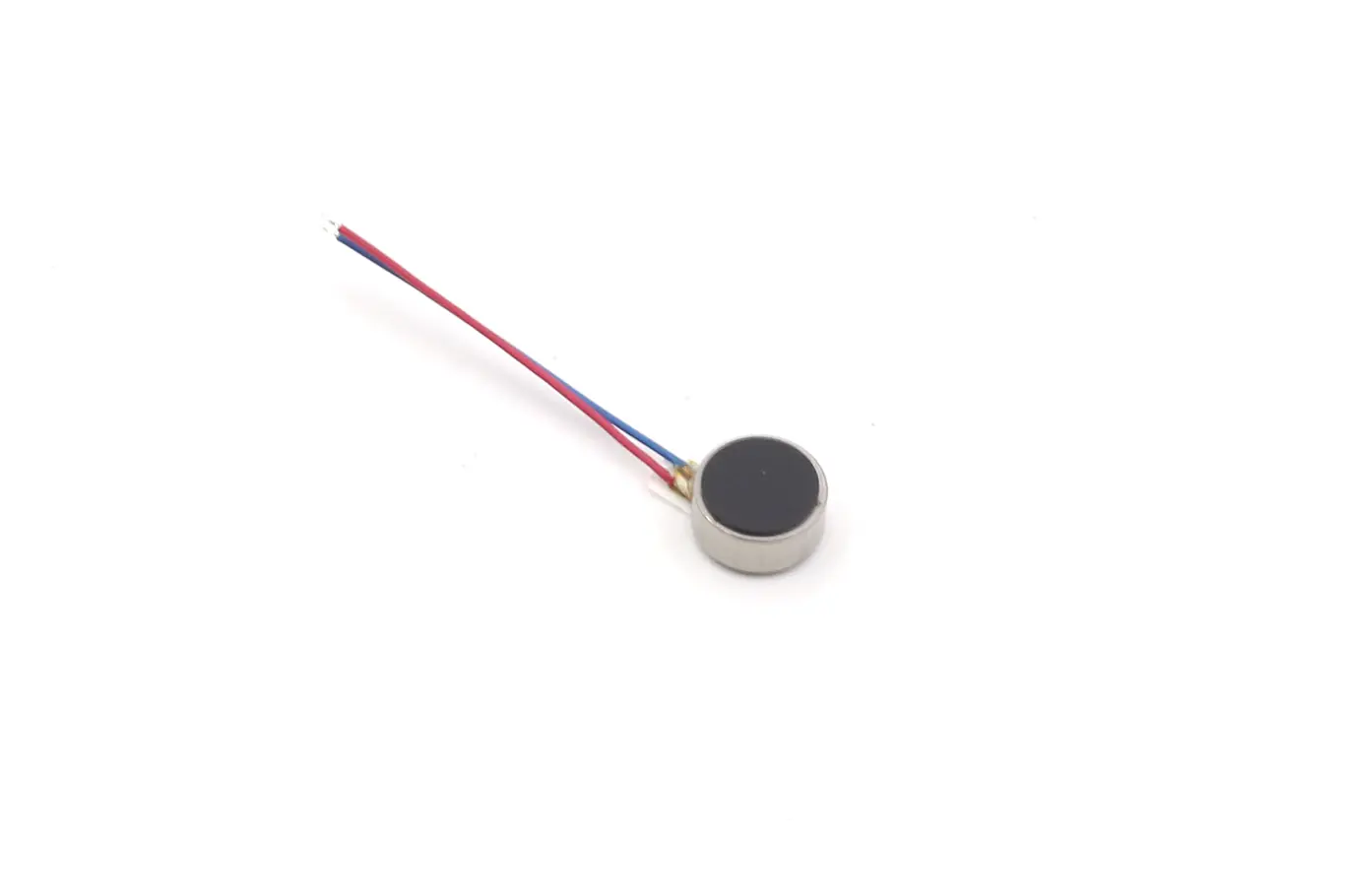

8mm LRA Vibration Motor – 3.2mm Type Model TSL-ELV0832C
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-ELV0832C
- Voltage:1.8Vrms Ac
- Diameter : 8mm
- Thickness:3.25mm
- Rated Frequency : 235±10Hz
- Direction of vibration: Z axis
- Vibration Force: 1Grms Min
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- igh-end phones and smartwatches
- VR glasses, game controllers
LRA Electric Vibrating Motor Specification
The LRA electric vibrating motor TSL‑ELV0832C delivers quick, sharp vibration feedback with a stable 1.8Vrms sine‑wave drive. It installs easily with a strong self‑adhesive base, making it simple to place and secure in compact devices.
Choose from lead‑wire, FPCB, or spring‑contact versions. Customize wire length and connectors as needed. Low noise, long lifespan, adjustable force, and Z‑axis vibration make it a reliable choice for modern haptic designs
| Motor Model | TSL-ELV0832C |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 3.2 |
| Rated Voltage (VrmsAc): | 1.8 |
| Operating Voltage (VrmsAc): | 0.1~1.9V |
| Rated Current MAX (mA): | 90 |
| Rated Frequency (Hz): | 235±10Hz |
| Direction of vibration: | Z axis |
| Vibration Force (Grms): | 1.0 min |
💕The LRA electric vibrating motor’s technical specifications are for guidance，we offer custom solutions upon request.

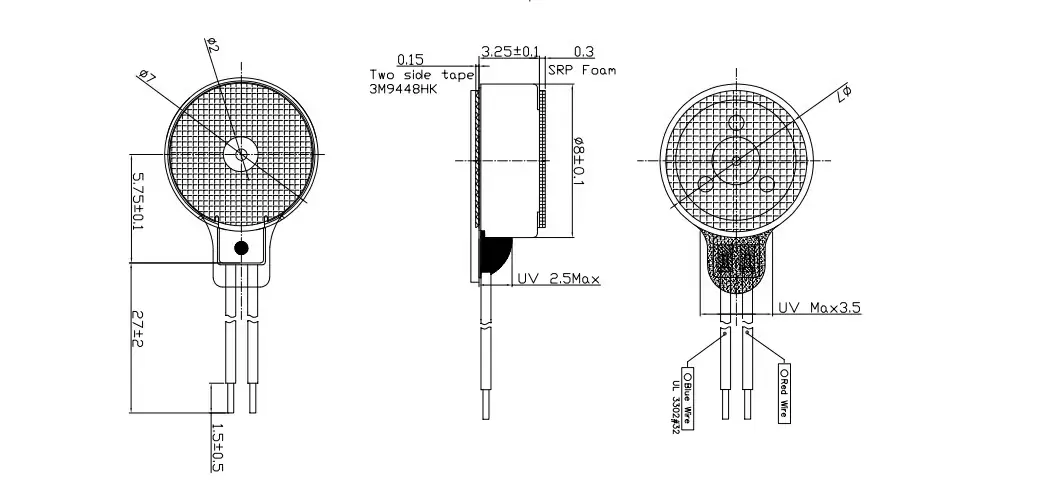

LRA Coin Type Electric Vibrating Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters.
Development Samples:
If you need the LRA electric vibrating motor samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for LRA Vibration Motor
Q：What is a LRA Motor?
A:An LRA motor is a vibration motor for haptic feedback. It uses a resonant moving‑mass system to create fast, precise, and low‑noise vibration.
Q: What driver should I use to control a linear resonant actuator (LRA)?
A：To control an actuator that is linear resonant of this kind it is recommended to use the DRV26XX series by Texas Instruments is a suitable choice. It can be acquired through this link: https://www.digikey.com/en/product-highlight/t/texas-instruments/drv2605-haptic-driver.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
