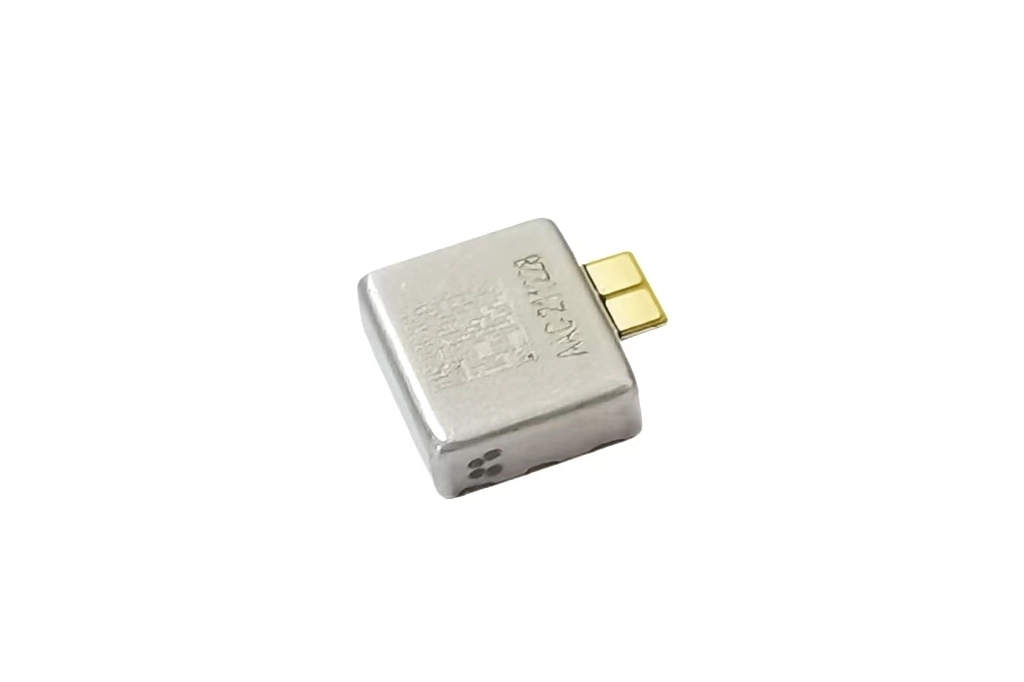

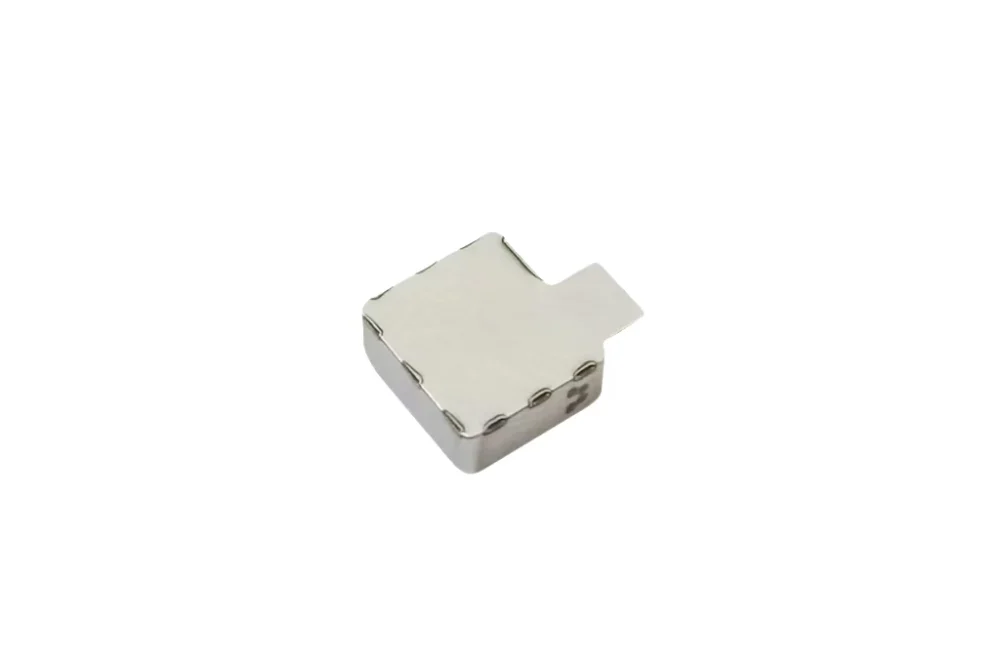

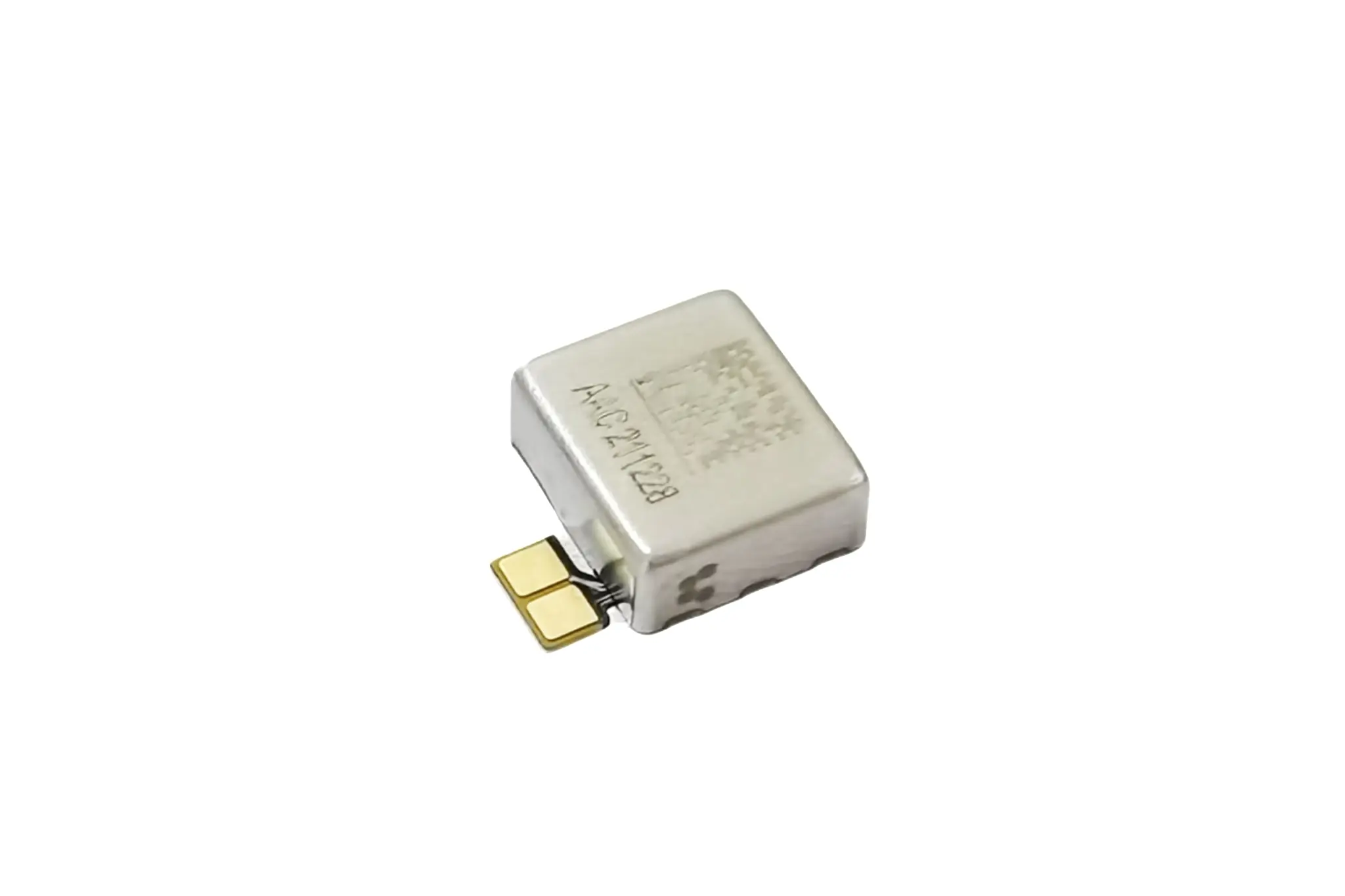

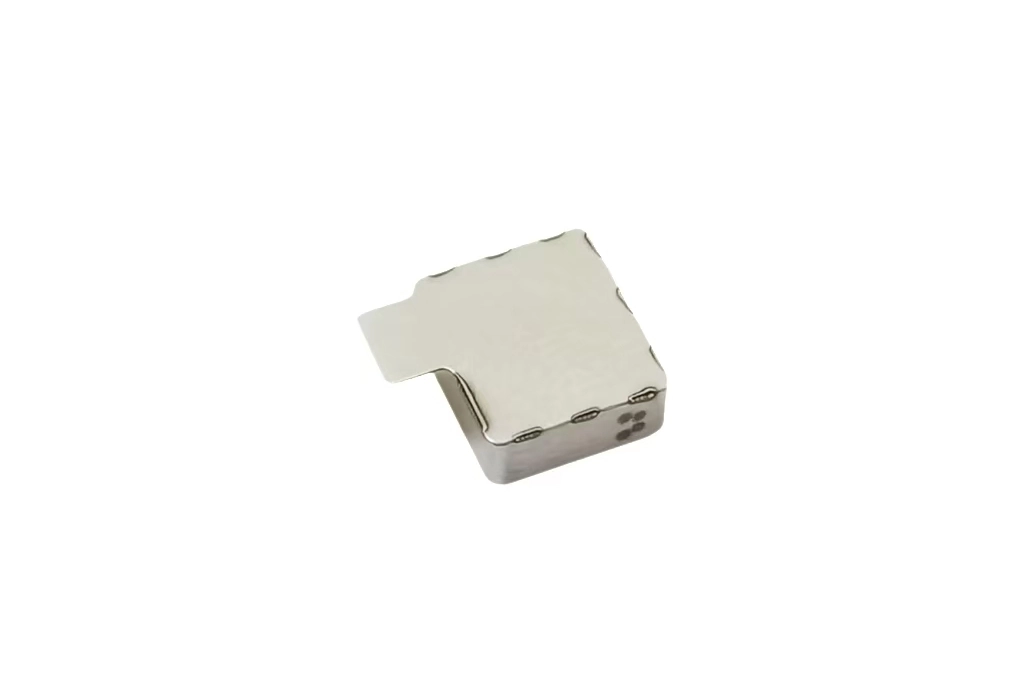

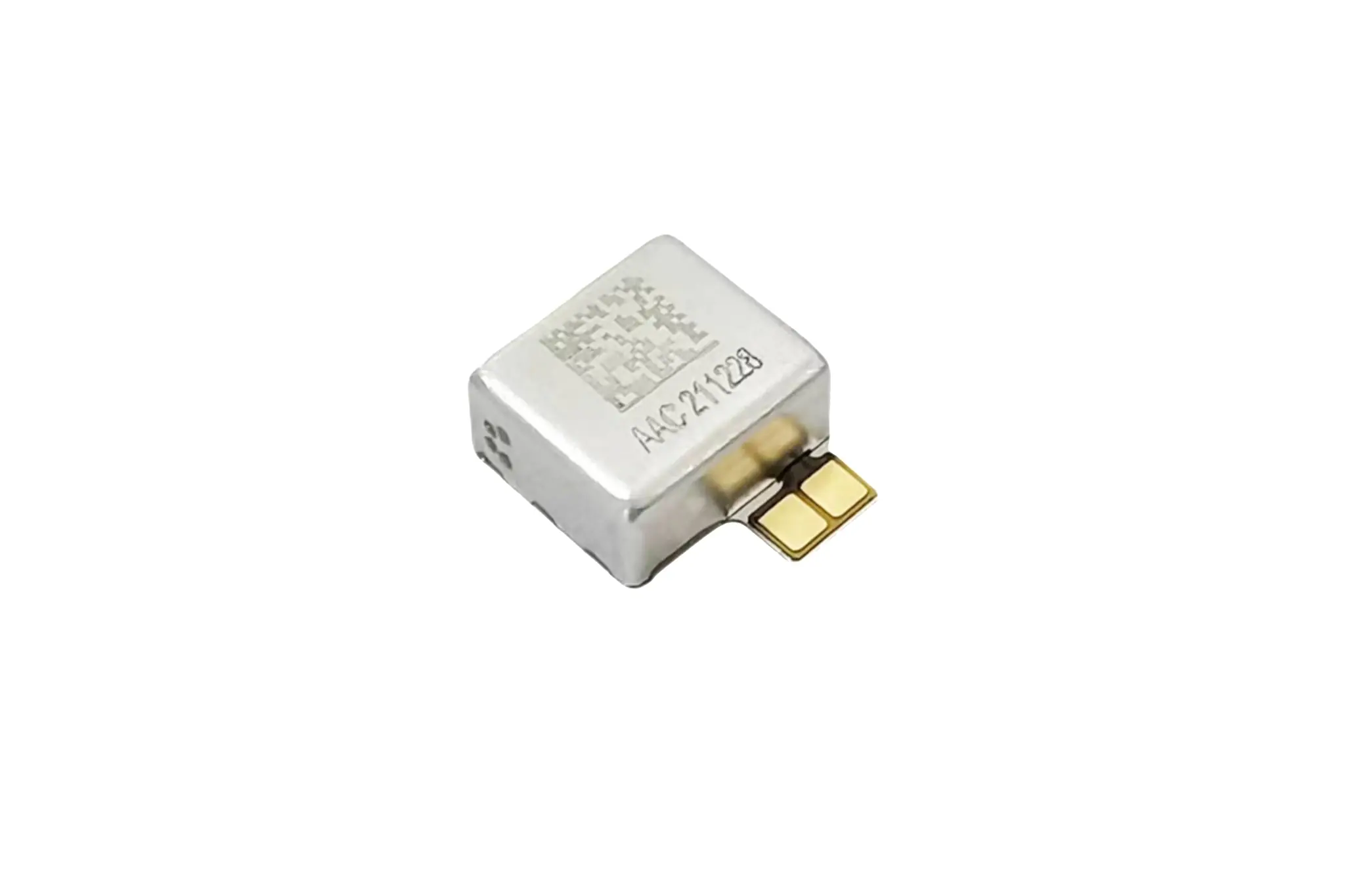

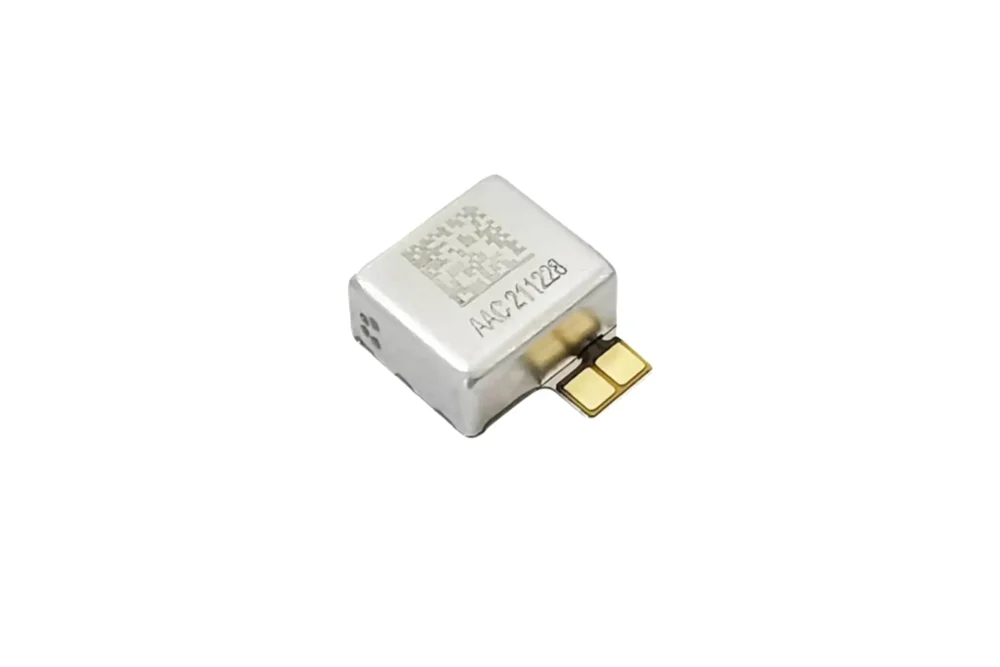

8mm Length LRA Linear Vibration Motor – 9mm Width Type Model TSL-ELV080935
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-ELV080935
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Length:9.00 ± 0.1 mm
Motor Width:8.00 ± 0.1 mm
Motor Height:3.5 ± 0.05 mm
X-Axis 8mm Length Rectangular Linear Vibration Motor Data Sheet
Our 8mm length rectangular linear vibration motor, offer several advantages=>Precision Control, Rapid Response, Consume Less Power, Less Prone To Wear & Tear, Compact Size, High Quality Haptic Feedback. These benefits make linear vibration motors ideal for wearable devices, smartphones, devices, as well as other electronics in which space is a problem and a high-quality haptic feedback sought-after.
| Motor Model | TSL-ELV080935 |
| Motor Length | 9.00 ± 0.1 mm |
| Motor Width | 8.00 ± 0.1 mm |
| Motor Height | 3.5 ± 0.05 mm |
| Rated Voltage | 0.9 Vrms AC |
| Rated Current | 145mA max |
| Resonance Frequency | 170 ± 10Hz |
| Rise Time | 100ms max from 0 up to 90% maximum acceleration |
| Fall Time | 130ms max fall acceleration from 100% down to 10%. |
| Transient Vibration Acceleration | 0.90+/-0.15Gp, 9Vp+1cycle sine wave@F0 |
LRA Rectangular Linear Vibration Motor Outline Drawing
Linear Resonant Actuators (LRAs) come with the distinct advantages of speedy start and stop, large vibrato-amplitude, and ability to determine the frequency of resonance (f0). When paired with a powerful driver they allow the customization of vibration patterns that are in line with the aspirations of top devices.
Keywords:
tiny shaker motor lra motor, haptics, linear resonance actuator
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production as well as a consultation regarding customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door within 5-7 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time please contact us via email with any queries. We usually give you a reply within 24 hours in the event that we don’t, look through your email account. We will try the best we can to assist you with the issues.
4.Please ensure that your address matches the address of your final shipment before you make payment.
5.In order to make sure you get your order tax-free after importation, we’ll declare it at an amount lower than the value you paid for it, please note this in your order, thank you!
FAQ For LRA Vibration Motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q:How does an LRA vibration motor differ from an ERM vibration motor?
A: An ERM vibration motor uses an unbalanced mass on a DC motor, which generates vibrations as the motor spins. In contrast, an LRA vibration motor uses a voice coil to move the mass, with the springs being the only components at risk of wear or damage.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
