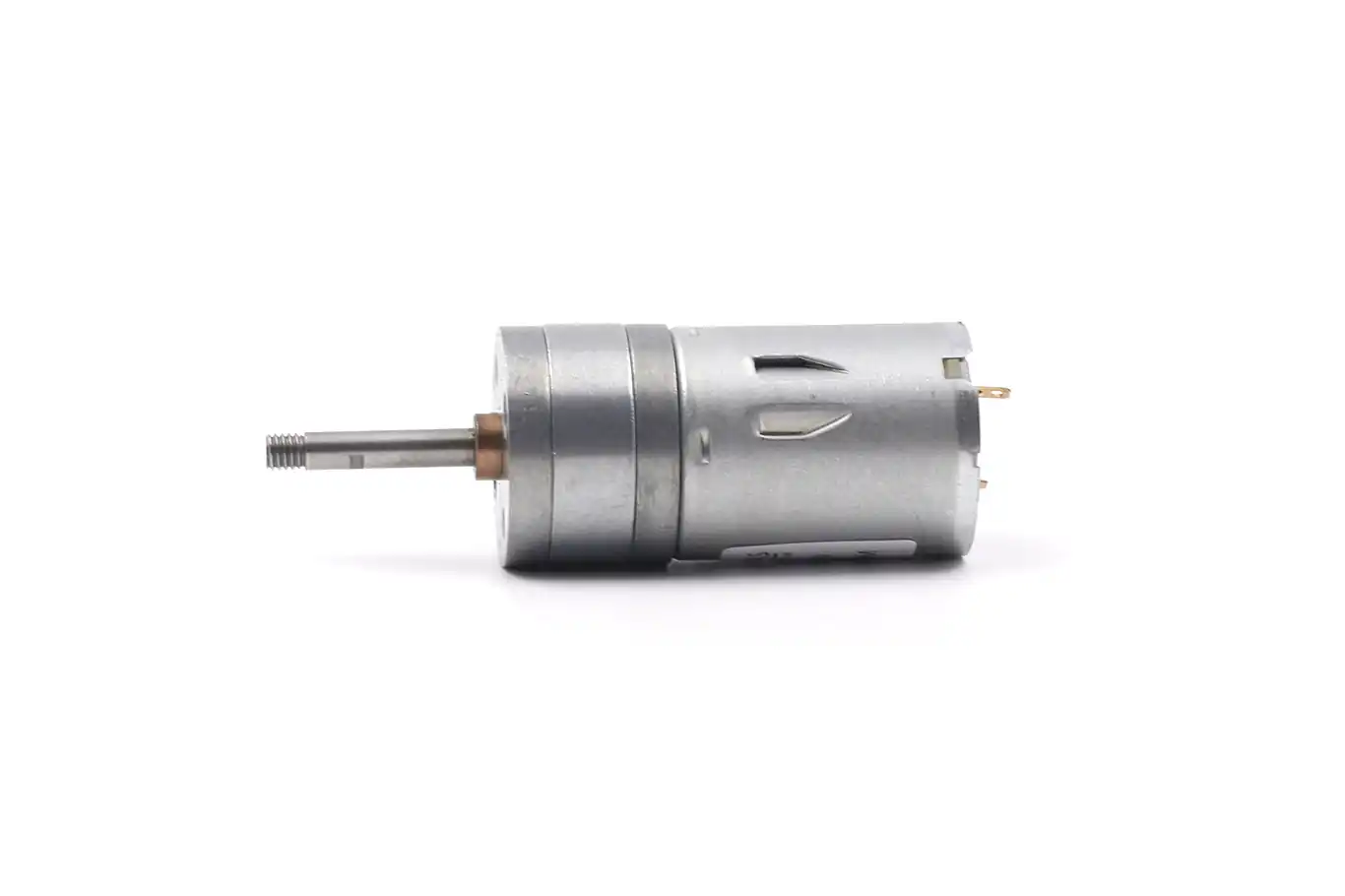

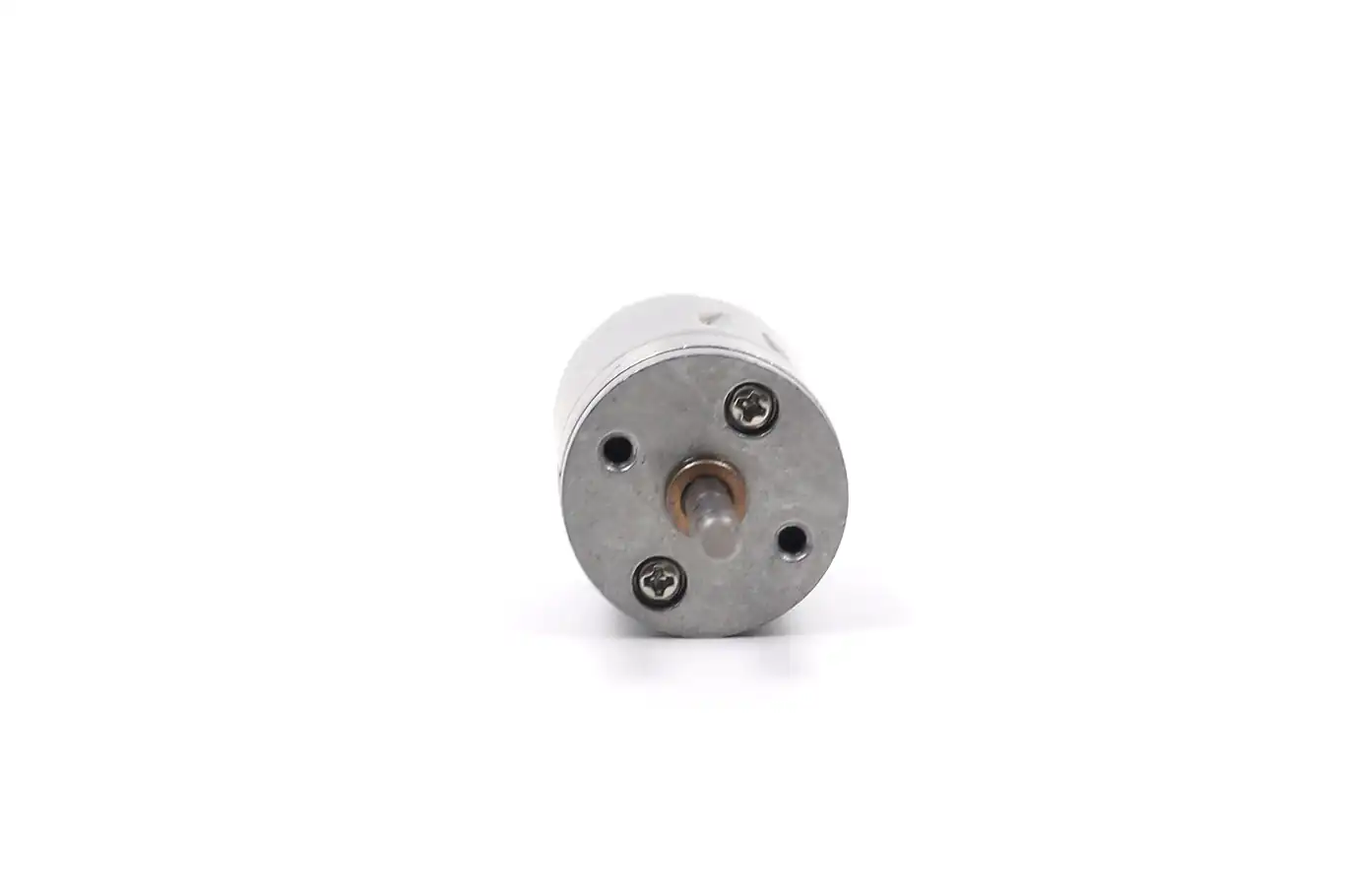

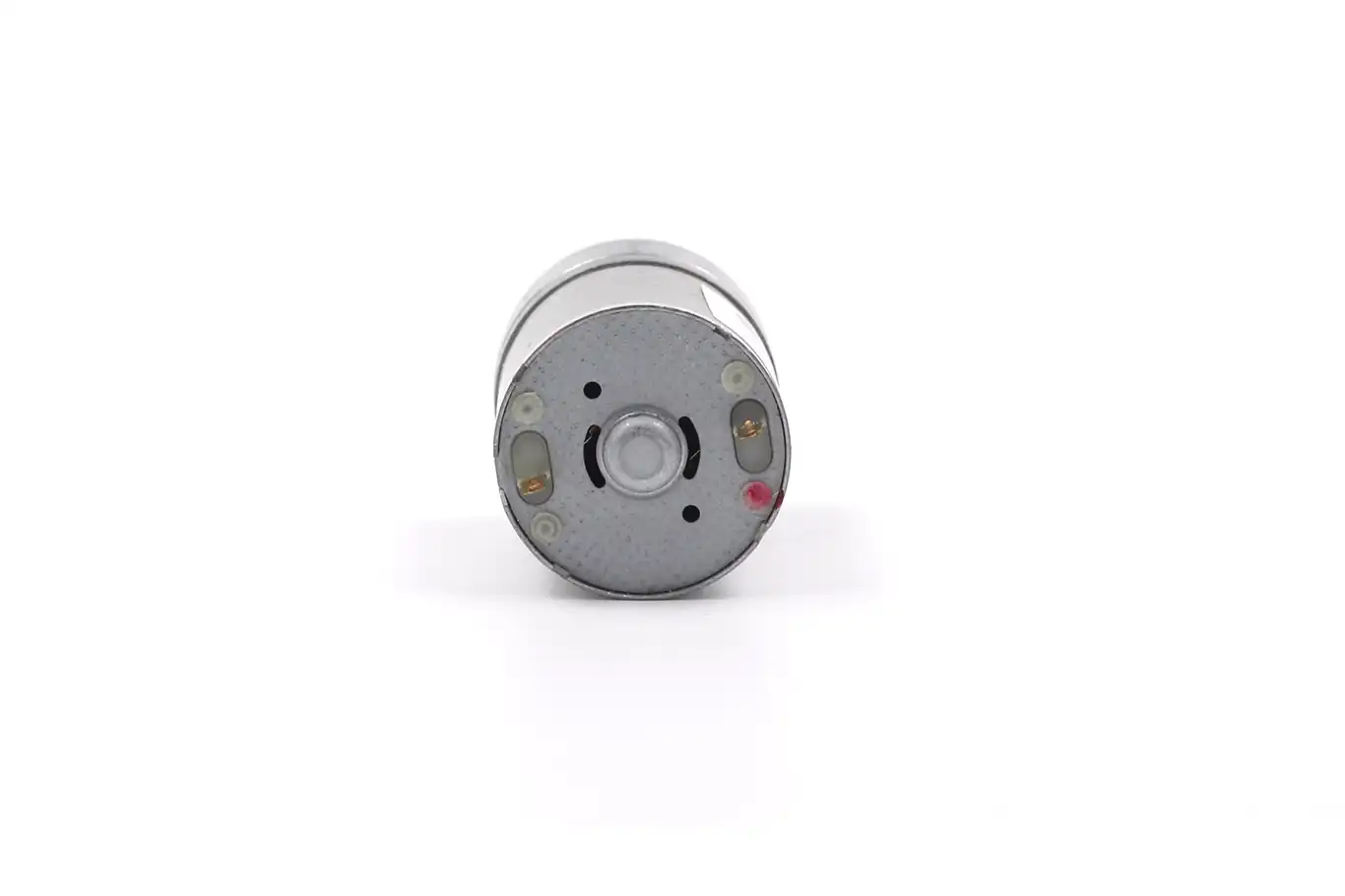

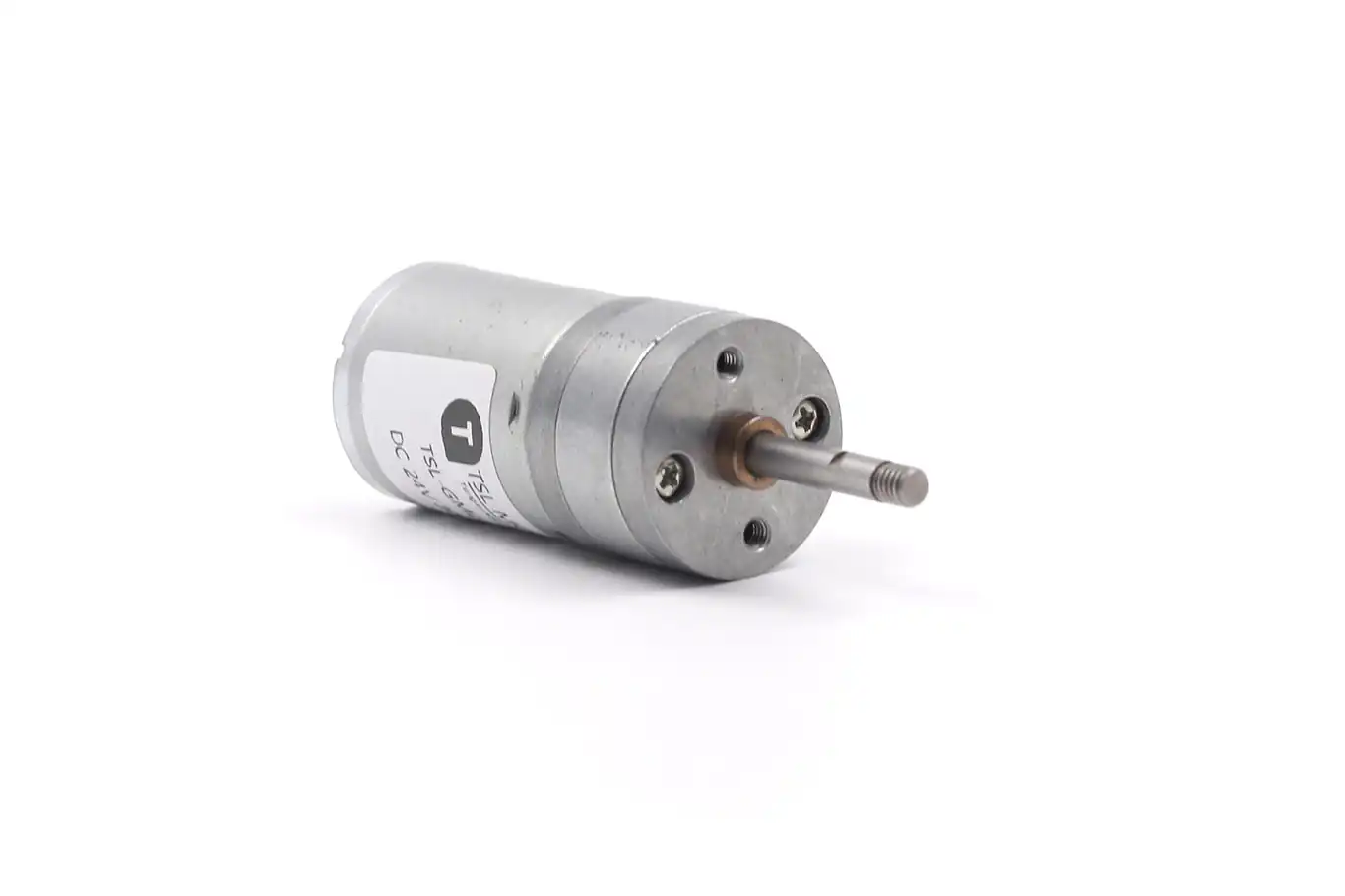

25mm Metal Gear Motor Model TSL-GM25-370
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM25-370
- Gearbox Diameter:25mm
- Rated voltage:6V/12V/24V DC
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Smart self-balancing two-wheeled vehicle
- intelligent tracking vehicle, smart home appliances
- robot, camera rock arm, electric tape dispenser.
12v Gear Motor DC Motor Datasheet
This 12v gear motor offers precise control. It’s a reliable solution for many applications. The compact design features a 25mm diameter gearbox. This makes it ideal for tight spaces.
An RS-370 motor powers this unit. It’s known for high efficiency and durability. Expect consistent performance over time.
You can customize its performance. A wide range of gear ratios are available. This 12v gear motor fits robotics, automation, and industrial needs. Its brushed design ensures smooth operation. The integrated gearbox increases torque. It’s perfect for high-torque, low-speed tasks. This versatile 12v gear motor delivers dependable power.
TSL-GM25-370, 6V DC, 1.6W
| Ratio | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | ≤0.13A | 1,350rpm | ≤0.5A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤3A | 19.0mm |
| 9.3:1 | ≤0.13A | 630rpm | ≤0.5A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤3A | 19.0mm |
| 20:1 | ≤0.13A | 300rpm | ≤0.5A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤3A | 19.0mm |
| 34:1 | ≤0.13A | 175rpm | ≤0.5A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤3A | 21.0mm |
| 45:1 | ≤0.13A | 130rpm | ≤0.5A | 100rpm | 1.8kg.cm | 6kg.cm | ≤3A | 21.0mm |
| 75:1 | ≤0.13A | 80rpm | ≤0.5A | 60rpm | 3kg.cm | 9kg.cm | ≤3A | 23.0mm |
| 100:1 | ≤0.13A | 60rpm | ≤0.5A | 45rpm | 4kg.cm | ≤9kg.cm | ≤3A | 23.0mm |
| 165:1 | ≤0.13A | 35rpm | ≤0.5A | 27rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 217:1 | ≤0.13A | 27rpm | ≤0.5A | 20rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 478:1 | ≤0.13A | 12rpm | ≤0.5A | 11rpm | 8kg.cm | ≤9kg.cm | ≤3A | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM25-370, 12V DC, 2W
| Ratio | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | ≤0.08A | 1,350rpm | ≤0.25A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤1.5A | 19.0mm |
| 9.3:1 | ≤0.08A | 630rpm | ≤0.25A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤3A | 19.0mm |
| 20:1 | ≤0.08A | 300rpm | ≤0.25A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤3A | 19.0mm |
| 34:1 | ≤0.08A | 175rpm | ≤0.25A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤3A | 21.0mm |
| 45:1 | ≤0.08A | 130rpm | ≤0.25A | 100rpm | 1.8kg.cm | 6kg.cm | ≤3A | 21.0mm |
| 75:1 | ≤0.08A | 80rpm | ≤0.25A | 60rpm | 3kg.cm | 9kg.cm | ≤3A | 23.0mm |
| 100:1 | ≤0.08A | 60rpm | ≤0.25A | 45rpm | 4kg.cm | ≤9kg.cm | ≤3A | 23.0mm |
| 165:1 | ≤0.08A | 35rpm | ≤0.25A | 27rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 217:1 | ≤0.08A | 27rpm | ≤0.25A | 20rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 478:1 | ≤0.08A | 12rpm | ≤0.25A | 11rpm | 8kg.cm | ≤9kg.cm | ≤3A | 27.0mm |
| i : 1 | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM25-370, 24V DC, 3W
| Ratio | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | ≤0.07A | 1,350rpm | ≤0.18A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤1A | 19.0mm |
| 9.3:1 | ≤0.07A | 630rpm | ≤0.18A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤1A | 19.0mm |
| 20:1 | ≤0.07A | 300rpm | ≤0.18A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤1A | 19.0mm |
| 34:1 | ≤0.07A | 175rpm | ≤0.18A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤1A | 21.0mm |
| 45:1 | ≤0.07A | 130rpm | ≤0.18A | 100rpm | 1.8kg.cm | 6kg.cm | ≤1A | 21.0mm |
| 75:1 | ≤0.07A | 80rpm | ≤0.18A | 60rpm | 3kg.cm | 9kg.cm | ≤1A | 23.0mm |
| 100:1 | ≤0.07A | 60rpm | ≤0.18A | 45rpm | 4kg.cm | ≤9kg.cm | ≤1A | 23.0mm |
| 165:1 | ≤0.07A | 35rpm | ≤0.18A | 27rpm | 8kg.cm | ≤9kg.cm | ≤1A | 25.0mm |
| 217:1 | ≤0.07A | 27rpm | ≤0.18A | 20rpm | 8kg.cm | ≤9kg.cm | ≤1A | 25.0mm |
| 478:1 | ≤0.07A | 12rpm | ≤0.18A | 11rpm | 8kg.cm | ≤9kg.cm | ≤1A | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
Smart Balancing Vehicle Application Data Sheet (High Speed, High Torque)
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 6V,Application Parameter Table
| Gear Ratio | 1：10 | 1：20 | 1：34 | 1：34 | 1：75 |
| No-Load Current（mA) | ≤60 | ≤100 | ≤130 | ≤130 | ≤130 |
| No-Load Speed（rpm) | 600 | 300 | 210 | 165 | 100 |
| Rated Torque(Kg.cm) | 0.90 | 1.80 | 5.20 | 2.90 | 7.00 |
| Rated Speed(rpm) | 310 | 160 | 110 | 90 | 55 |
| Rated Current(A) | ≤0.8 | ≤0.8 | ≤1.1 | ≤1.1 | ≤1.5 |
| Stall Current(A) | ≤2.7 | ≤2.7 | ≤3.5 | ≤3.0 | ≤3.5 |
| Stall Torque(Kg.cm) | 1.8 | 3.6 | 10.0 | 6.0 | 10.0 |
| Encoder Lines After Reduction | 102.3 | 224.5 | 341.2 | 341.2 | 823.1 |
| Gearbox Length L | 19.0 | 19.0 | 21.0 | 21.0 | 23.0 |
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 12V,Application Parameter Table
| Gear Ratio | 1:4.4 | 1:10 | 1:20 | 1：34 | 1:20 | 1:45 |
| No-Load Current（mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤130 | ≤150 |
| No-Load Speed（rpm) | 2700 | 1290 | 600 | 350 | 220 | 140 |
| Rated Torque(Kg.cm) | 0.8 | 1.7 | 3.5 | 5.8 | 2.9 | 4.3 |
| Rated Speed(rpm) | 1600 | 700 | 350 | 180 | 130 | 70 |
| Rated Current(A) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.7 | ≤1.0 | ≤0.8 |
| Stall Current(A) | ≤5.6 | ≤5.6 | ≤5.6 | ≤5.6 | ≤2.5 | ≤2.5 |
| Stall Torque(Kg.cm) | 1.8 | 3.5 | 7.0 | 12.0 | 5.0 | 8.5 |
| Encoder Lines After Reduction | 44 | 102.3 | 224.5 | 341.2 | 224.5 | 493.9 |
| Gearbox Length L | 19.0 | 19.0 | 19.0 | 21.0 | 19.0 | 21.0 |
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 24V,Application Parameter Table
| Gear Ratio | 1:4.4 | 1:10 | 1:20 | 1：34 | 1:45 | 1:24 |
| No-Load Current（mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤100 |
| No-Load Speed（rpm) | 2700 | 1290 | 600 | 350 | 220 | 180 |
| Rated Torque(Kg.cm) | 0.6 | 1.4 | 2.8 | 5.0 | 6.5 | 3.0 |
| Rated Speed(rpm) | 1200 | 580 | 300 | 170 | 130 | 110 |
| Rated Current(A) | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤1.3 |
| Stall Current(A) | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤2.5 |
| Stall Torque(Kg.cm) | 1.0 | 2.2 | 4.5 | 8.0 | 10.0 | 6.0 |
| Encoder Lines After Reduction | 44 | 102.3 | 224.5 | 341.2 | 493.9 | 341.2 |
| Gearbox Length L | 19.0 | 19.0 | 19.0 | 21.0 | 21.0 | 21.0 |

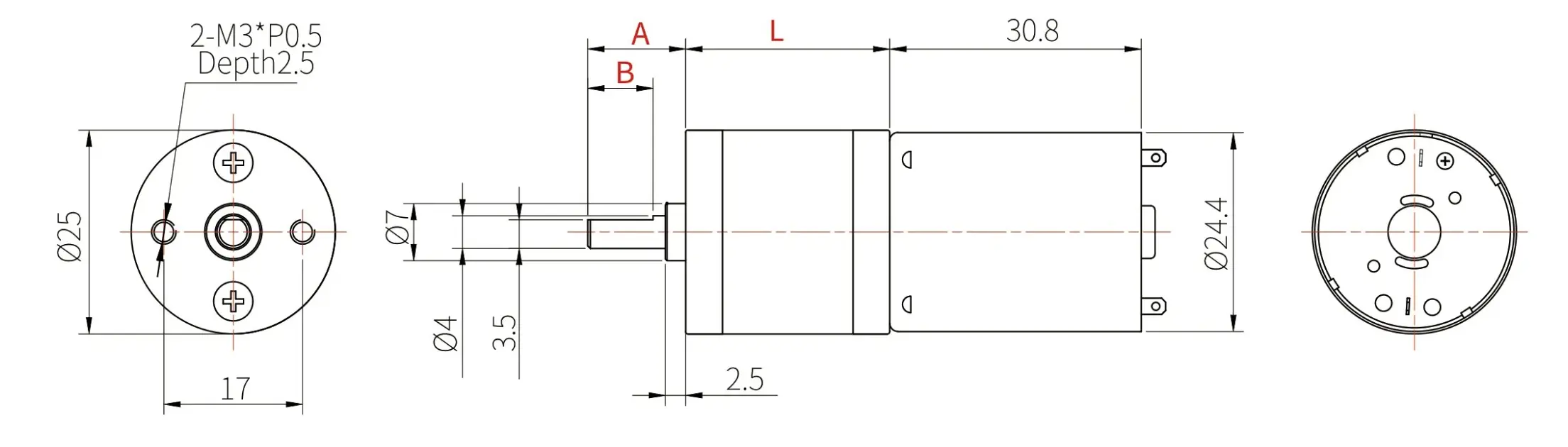

12v Gear Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

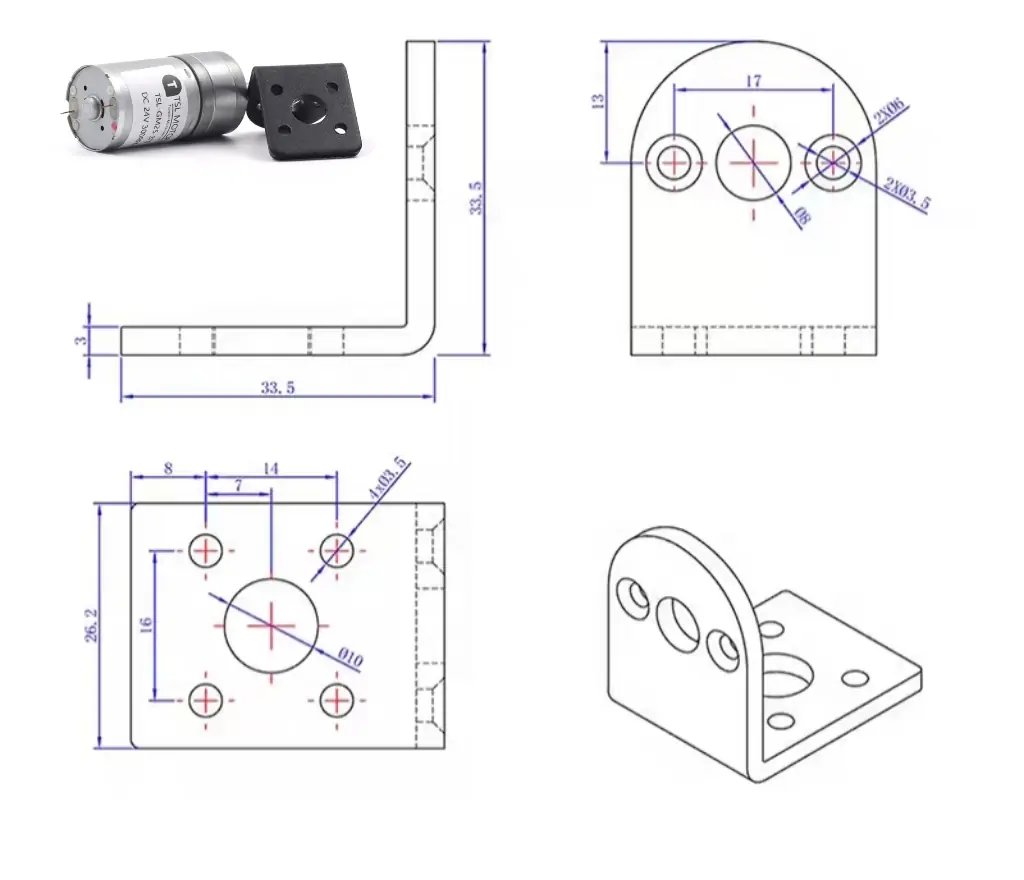

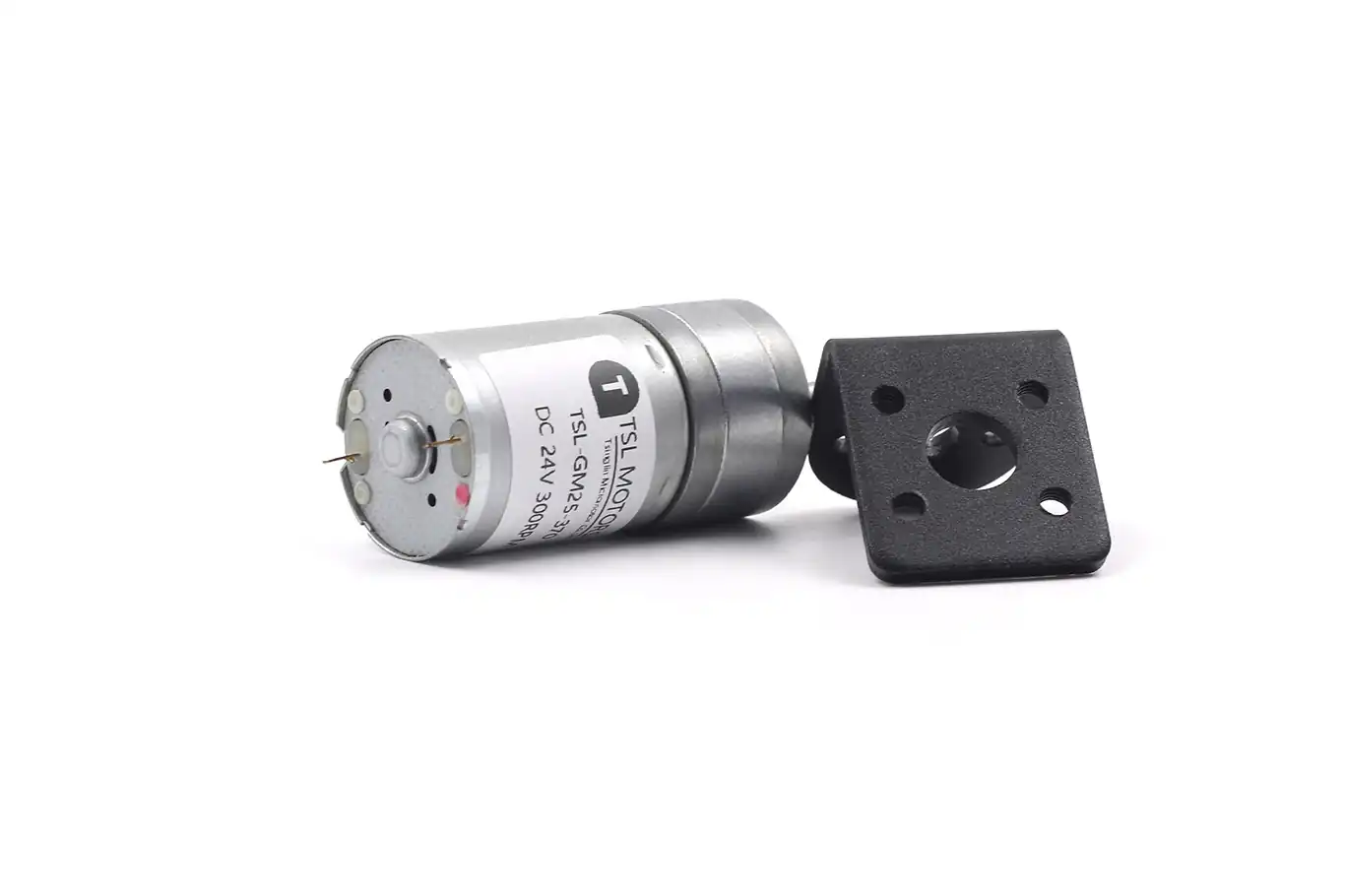

25mm Gearbox 12v Gear Motor Mounting Bracket
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
12v gear motor,12v dc gear motor,12v geared electric motors,12v gear motor high torque,gear motor 12v
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
