High Efficiency 12V-24V BLDC Gearbox Motor with High Torque Data Sheet

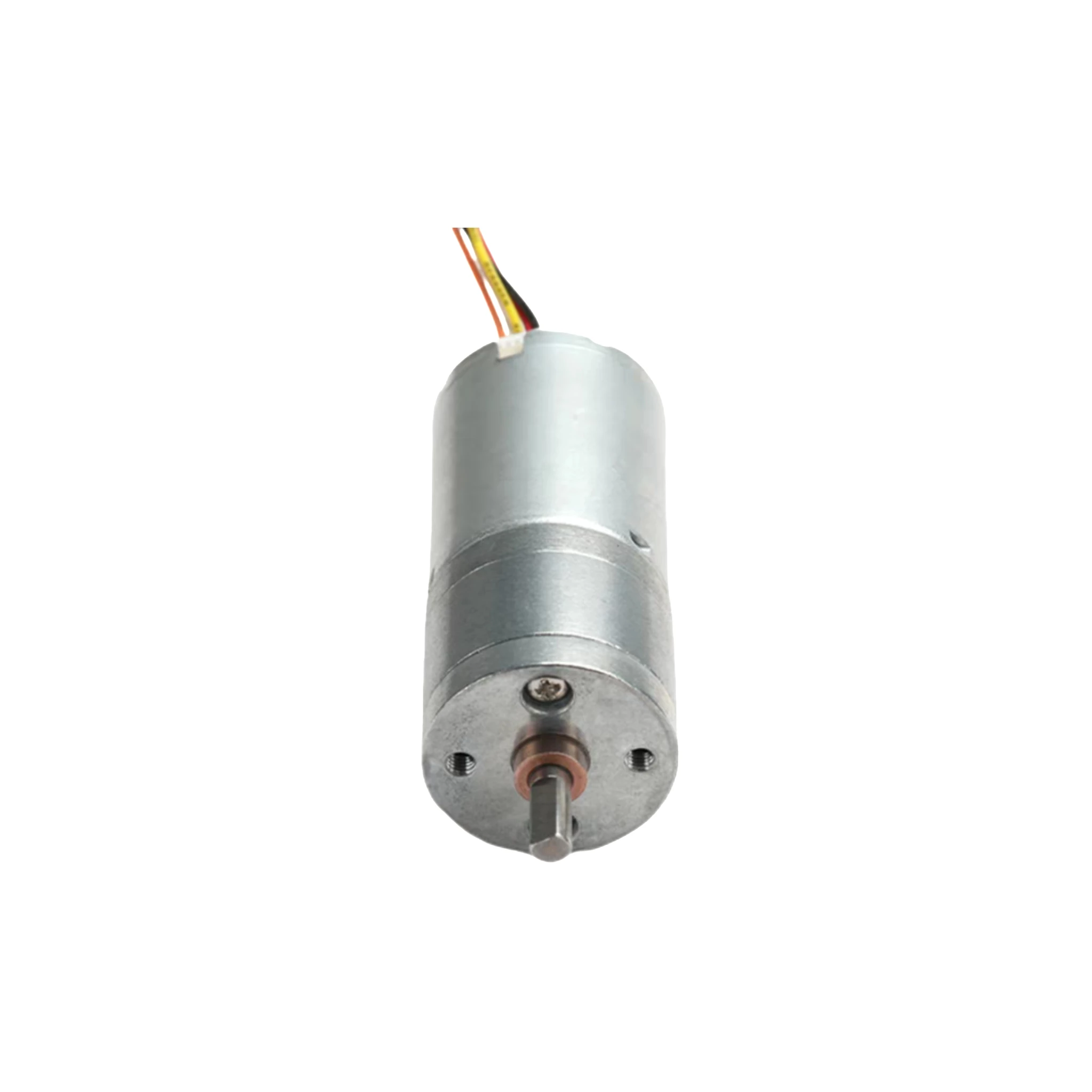

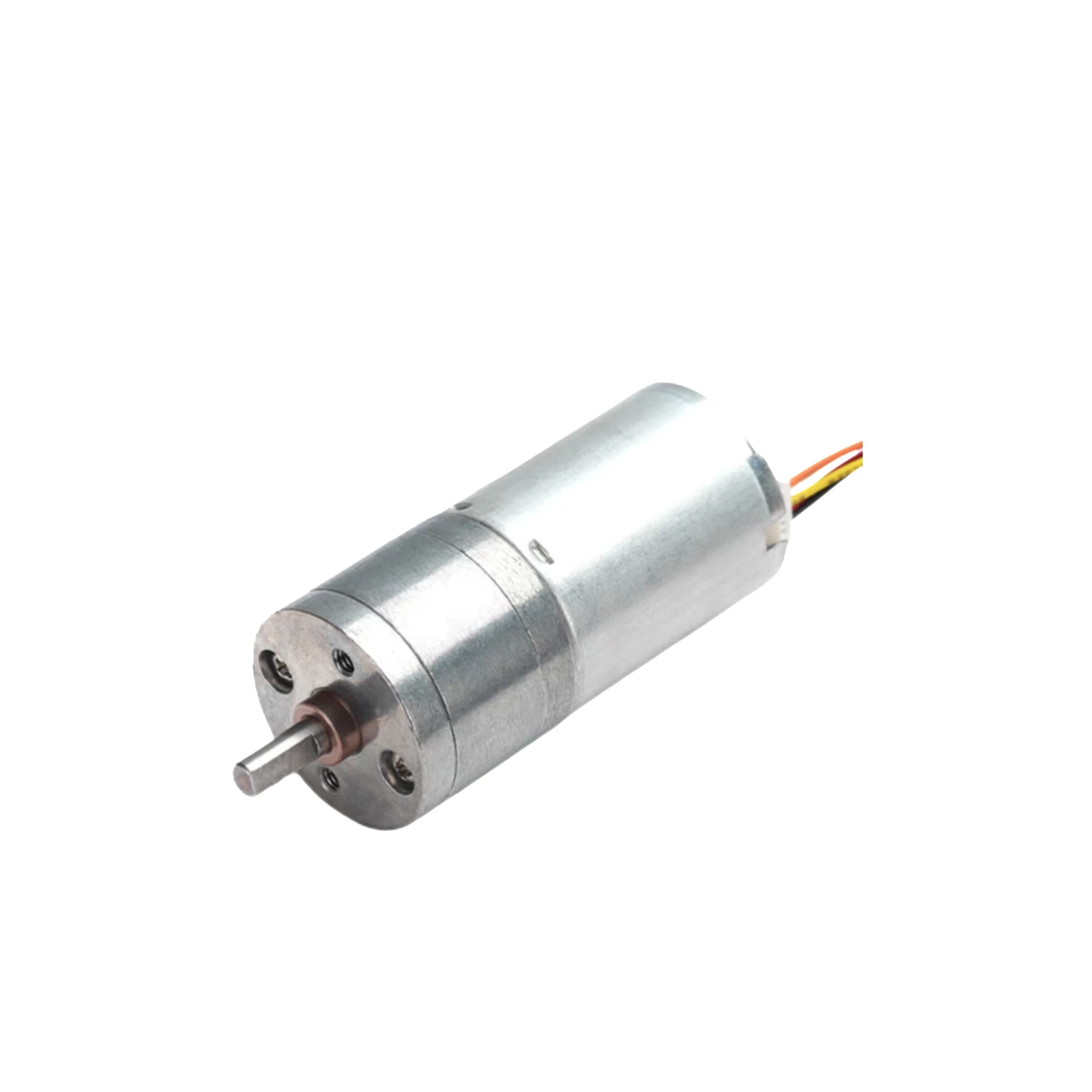

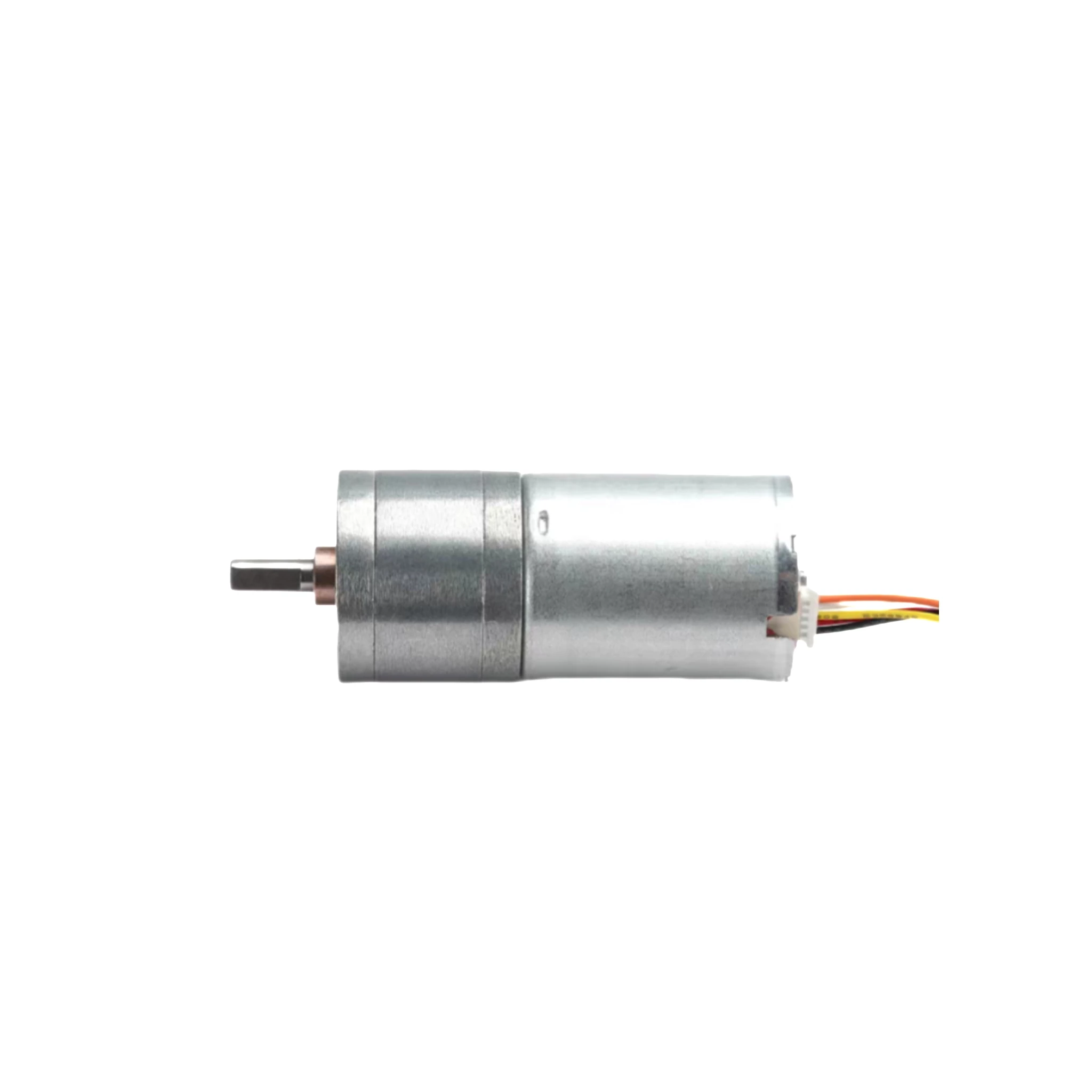

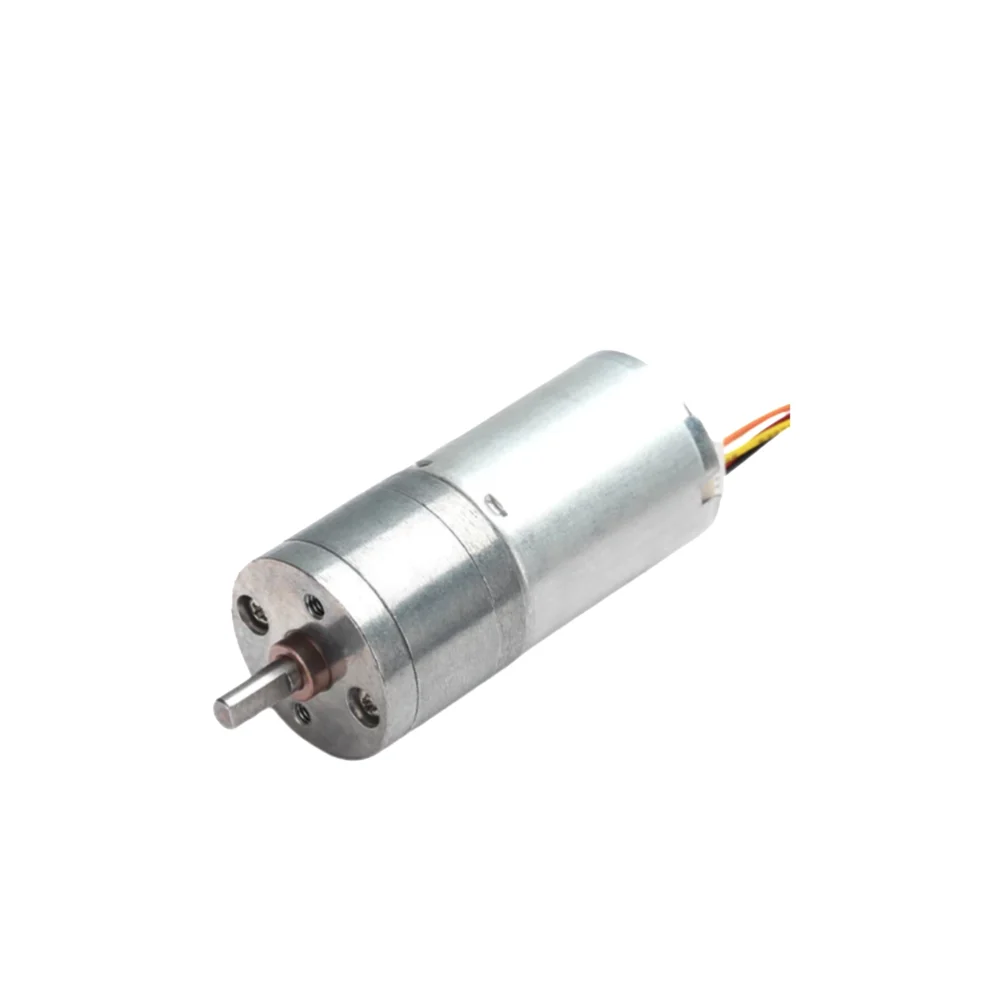

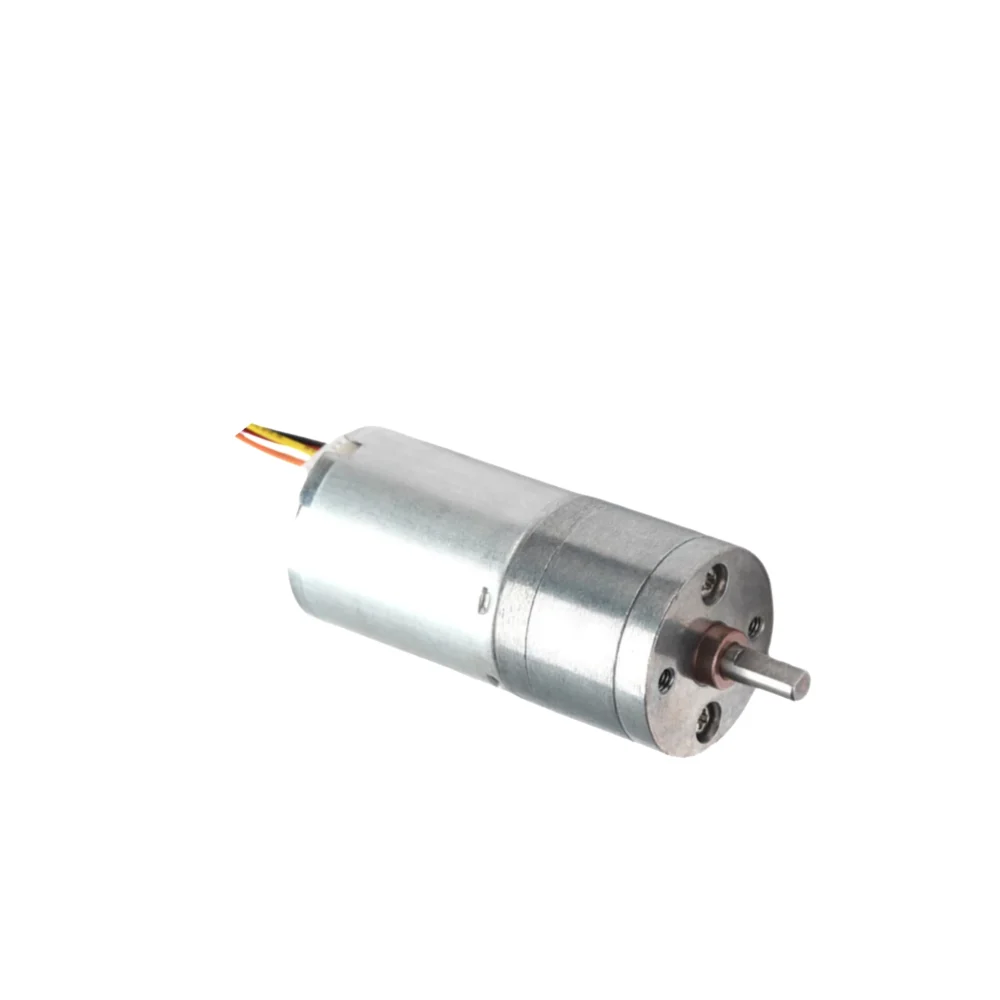

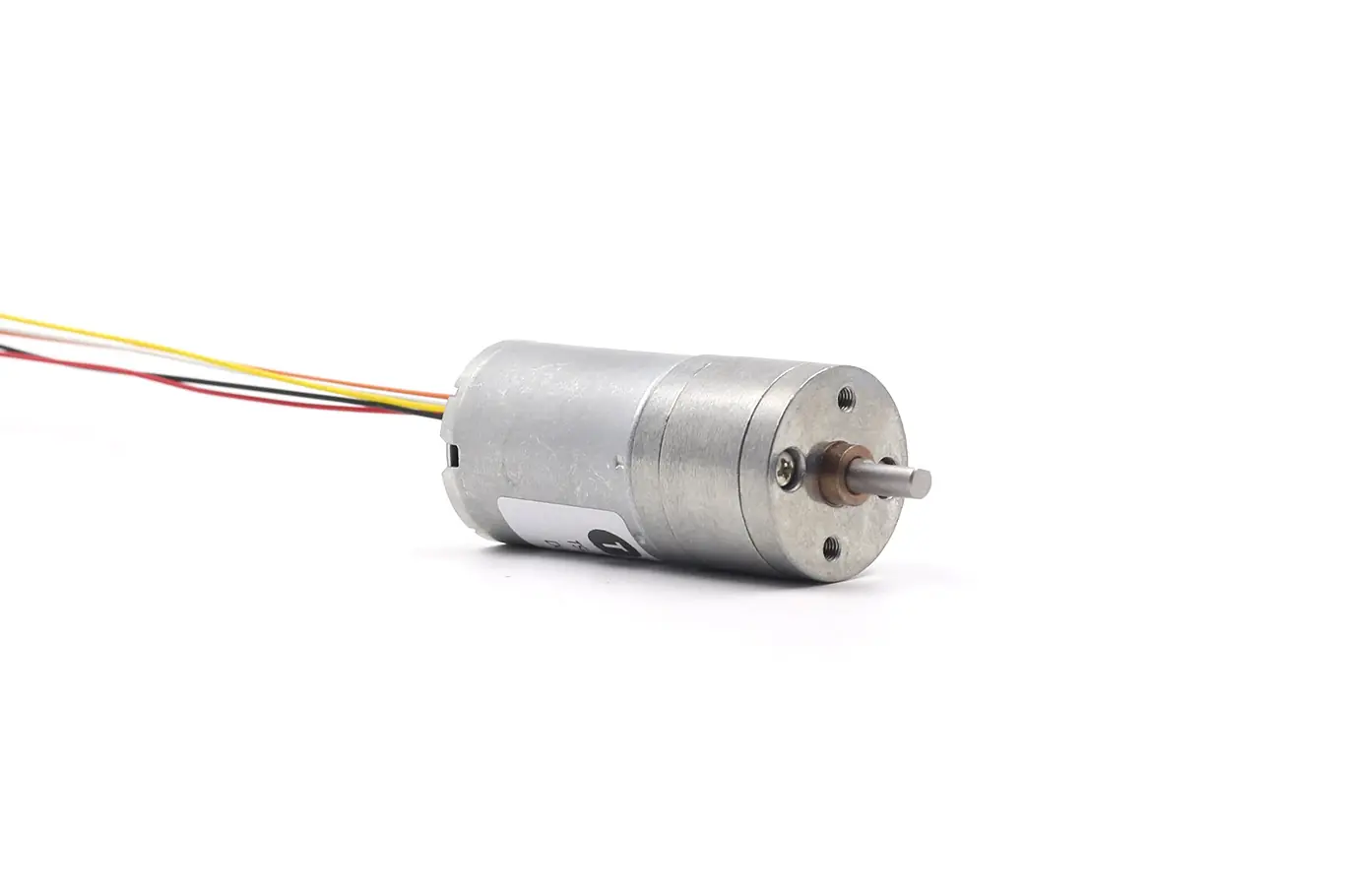

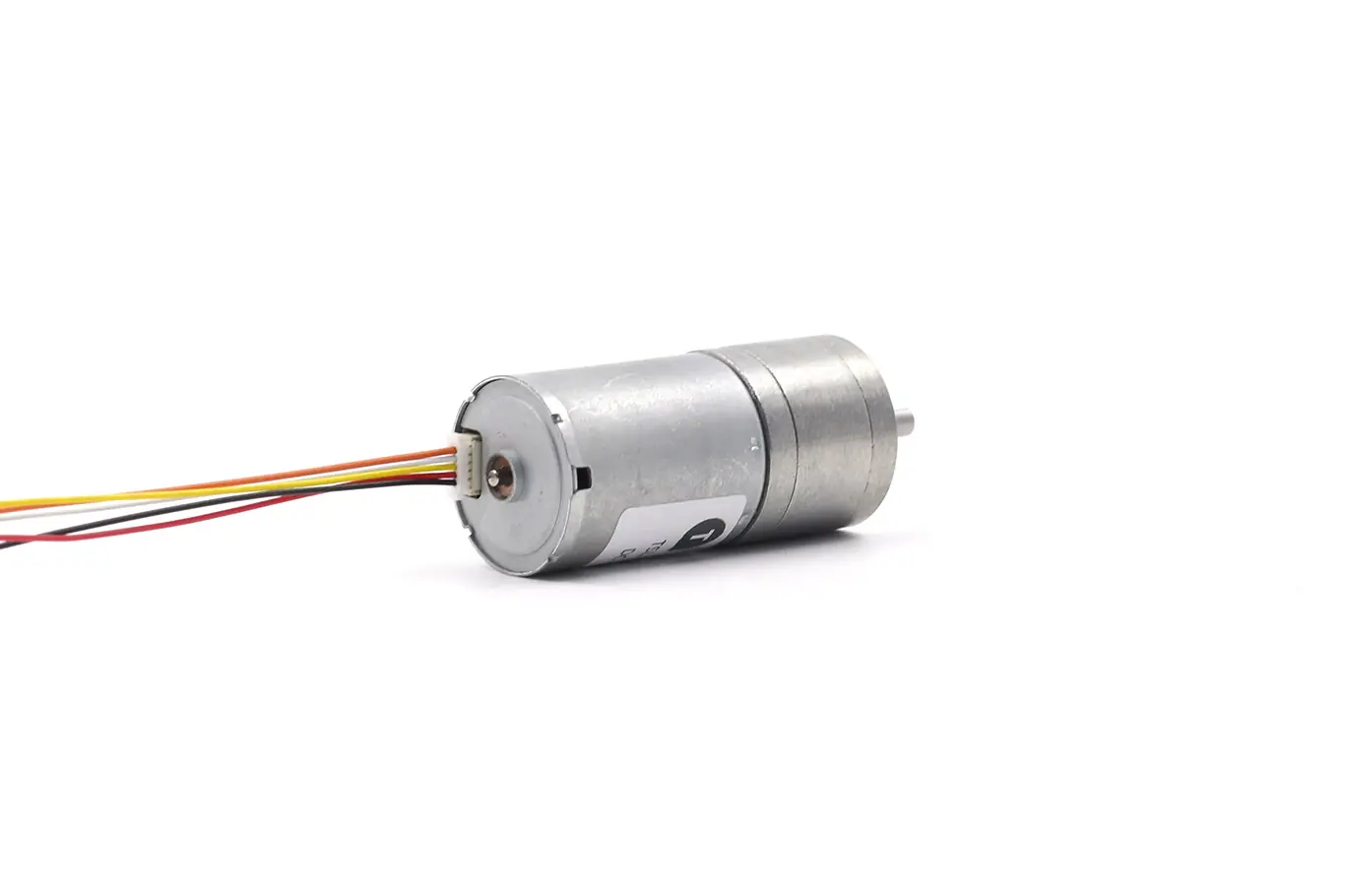

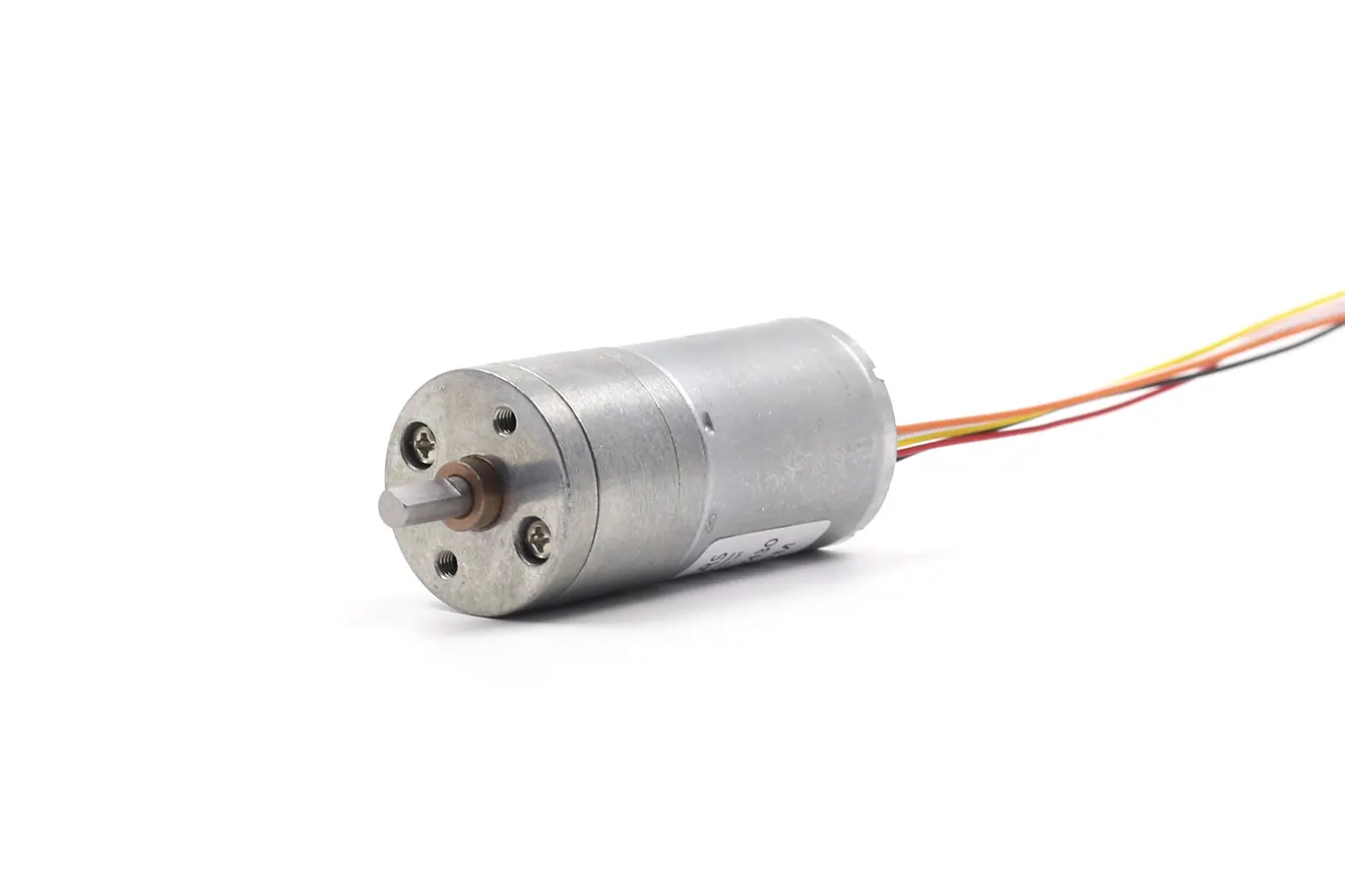

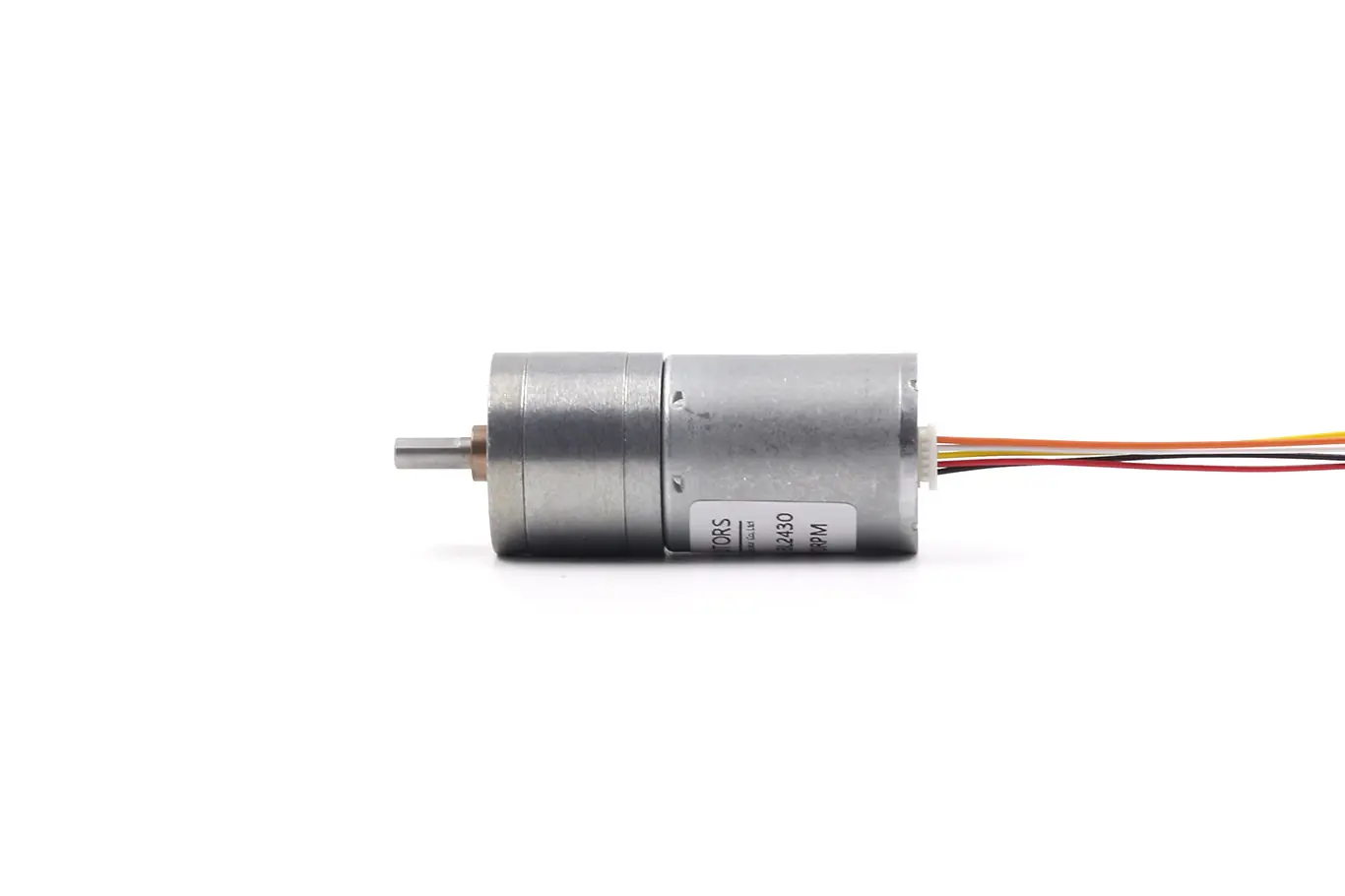

BLDC Gearbox Motor TSL-GM25-BL2430 .This BLDC gearbox motor features adjustable speeds as well as reverse and forward functions to accommodate torques up to 8kg.cm. Constructed using durable all-metal gears that ensure long term performance, its key characteristics also include low noise output and extended service life – making it suitable for precise applications that demand precision.

MTSL-GM25-BL2430,12V DC

Note: Reducing speeds without loading require have an acceptable tolerance of +15 percent.

TSL-GM25-BL2430,24V DC

Note: All speeds with reduced no-load rates have an acceptable variance of +15 percent.

Miniature BLDC Gearbox motor Outline Drawing

25mm BLDC gearbox motors can be found powering robotic arms, motorized robots, infusion pumps, conveyor belts, packaging equipment electric scooters, CNC machinery drones bikes and bicycles as well as packaging equipment electric scooters electric scooters CNC machinery drones bikes and bicycles. In addition, 25mm gear motors are suitable for fans vacuum cleaners smart home automation systems among many others.

BLDC Gearbox motor Installation Bracket

Motors can be customized to meet the needs for your particular project. If you require an easy, steady spin or a powerful, rapid motion.

High Performance BLDC Gearbox Motor Wiring Diagram

Type-1

When installing BLDC motors, it’s critical that all wires are joined properly in order to ensure optimal operation. Connect red to the positive terminal, with black or blue wires leading back towards negative terminal.

Type-2:

[Red Wire] Connect to the positive terminal of the power supply.
[Black Wire + Blue Wire + Yellow Wire] Connect in parallel to the negative terminal (to change the original direction of rotation).
[Blue Wire] PWM speed control line, connects to 0-5V pulse width modulator.
[Green Wire] FG signal, basic pulse count of 3 signals.

🔥Be mindful that when working with brushless gear motors, both negative and positive terminals should never be reversed, as incorrect polarity of connections could result in motor failure.

Keywords:
12v dc gear motor high torque, miniature dc gear motor, custom gear motor, mini geared motor, 24v dc gear motor, miniature brushless gear motor,BLDC gearbox motor

Payment:
Payment options : Paypal T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time Please send us an email with questions. In most cases, we will send you a response within 24 hours. If not, examine the spam in your email inbox. We will try the best we can to assist you with the issues.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.

FAQ for BLDC gearbox motor

Q：What is a BLDC Gear Motor?

A:A BLDC gear motor combines a brushless DC motor with a gear system. This gear system can either be a spur or planetary gearbox. The gears work together to lower the motor’s speed while boosting its output torque.

Q:Can Brushless Gear Motors Be Customized?

A: Yes, brushless gear motors can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Q: What’s one of your main motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the principal use of the microdc motor?
A Mini DC motors are used extensively in home Applications, Office Equipment, Health-Care Application, Sanitation Industry The High-Class Toy Banking System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
