20mm Metal Gear Motor Model TSL-GM20-N20VA-M3
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM20-N20VA-M3
- Rated voltage:3V / 6V / 12V DC
- Speed:27rpm – 72rpm
- No-load current:≤0.03A / ≤0.035A / ≤0.04A / ≤0.045A / ≤0.05A / ≤0.2A
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Smart robots, intelligent robotic arms
- smart home, smart focusing systems
- miniature pan-tilt heads

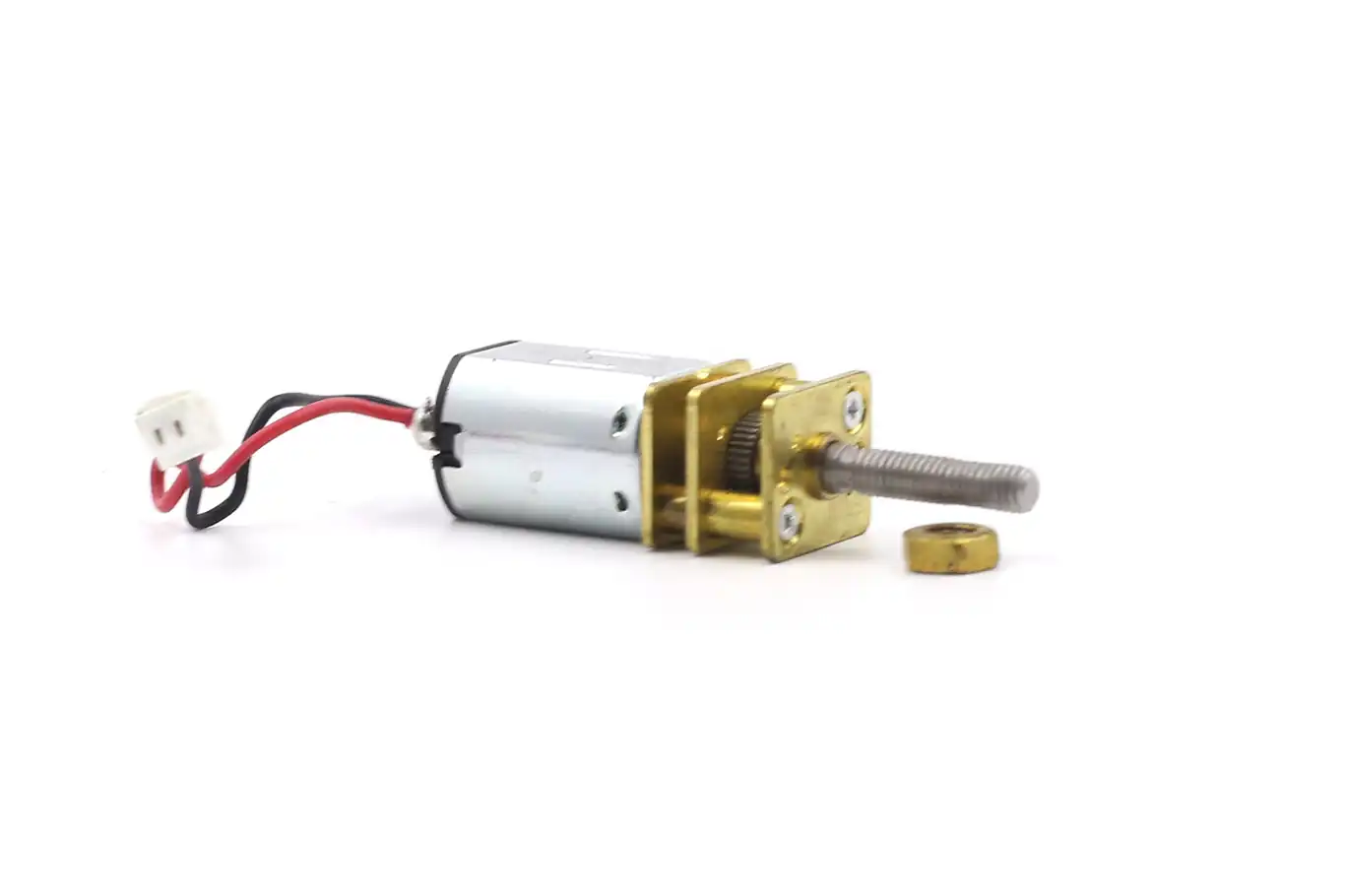

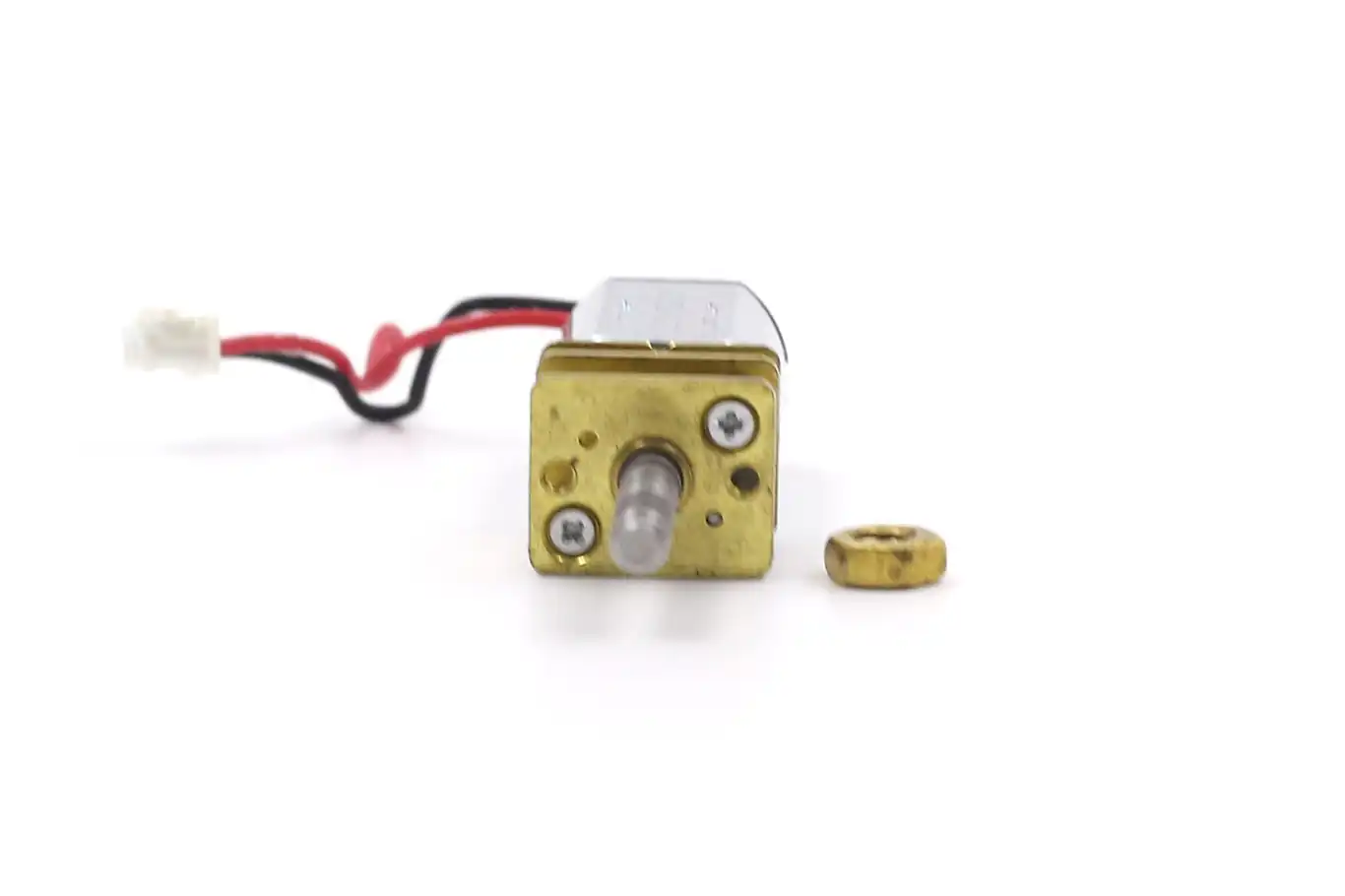

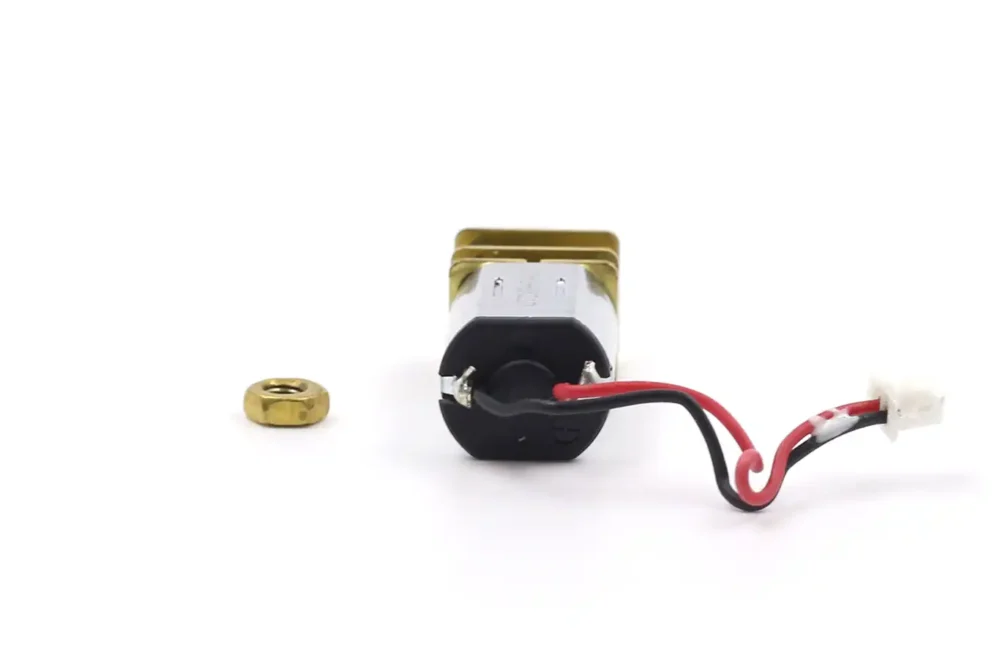

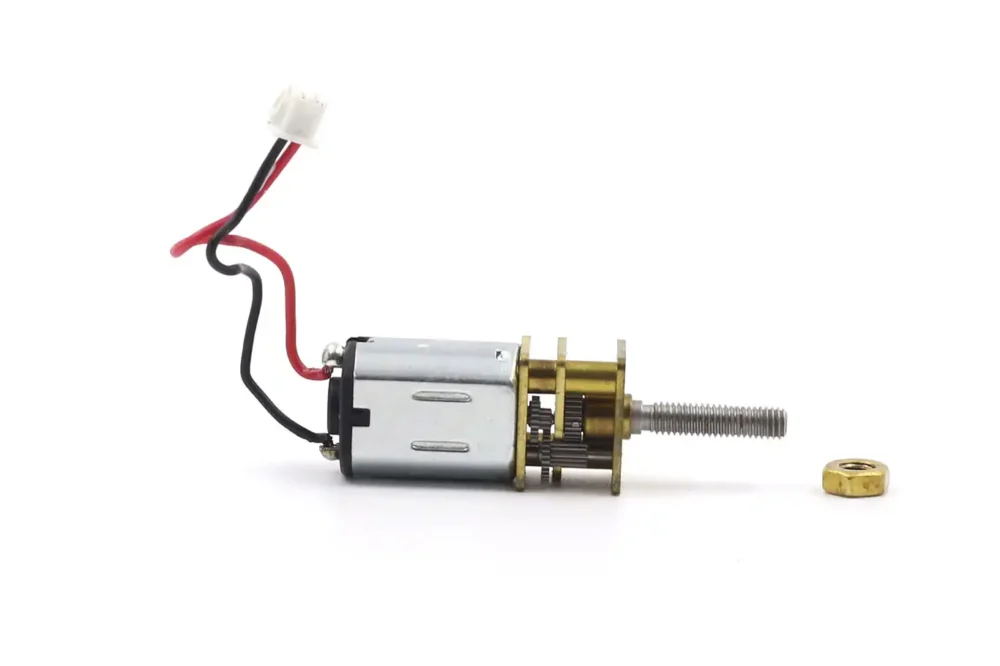

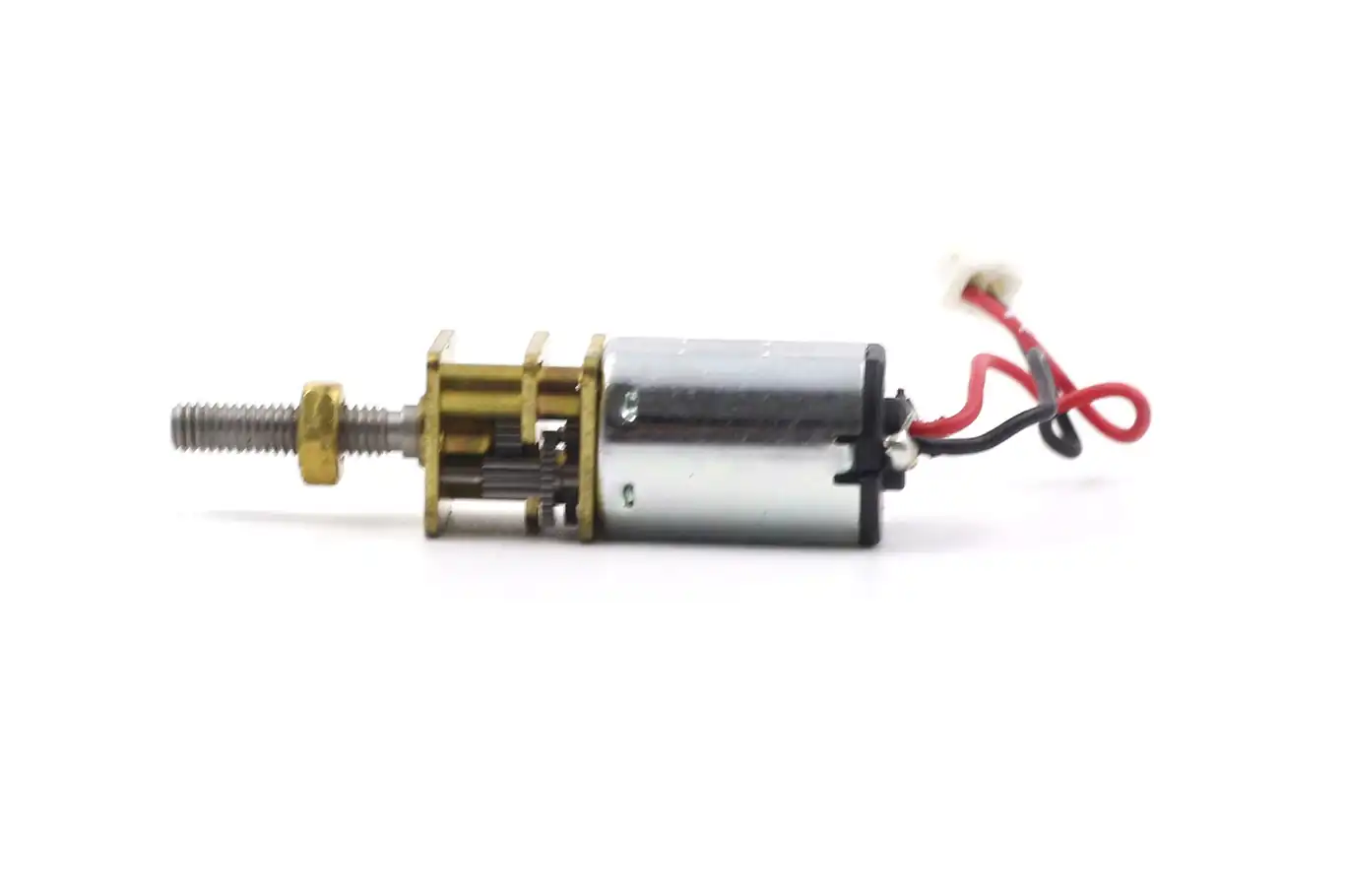

DC Gear Motor With M3 Threaded Output Shaft Parameters
This DC gear motor features an M3 threaded output shaft, making it ideal for a variety of smart applications. Built with all-metal gears and pure copper wire windings, it ensures durability and reliable performance. Its robust design is perfect for powering smart robots, intelligent robotic arms, smart home devices, smart focusing systems, and miniature pan-tilt heads, offering a versatile and efficient solution for your projects.
Ratio: 298:1
| Operating | Motor | No Load | Rated Load | Stall | ||||
| Voltage | Model | Speed | Current | Torque | Speed | Current | Torque | Current |
| 3V | A26 | 27rpm | ≤0.035A | 1.2kg.cm | 15rpm | ≤0.18A | 2.5kg.cm | ≤0.35A |
| 3V | A45 | 40rpm | ≤0.045A | 1.2kg.cm | 26rpm | ≤0.27A | 3.0kg.cm | ≤0.65A |
| 3V | A15 | 50rpm | ≤0.05A | 1.2kg.cm | 30rpm | ≤0.33A | 3.0kg.cm | ≤0.75A |
| 6V | A05 | 26rpm | ≤0.03A | 0.6kg.cm | 10rpm | ≤0.08A | 1.3kg.cm | ≤0.2A |
| 6V | A35 | 36rpm | ≤0.04A | 1.2kg.cm | 18rpm | ≤0.15A | 2.3kg.cm | ≤0.3A |
| 6V | A26 | 55rpm | ≤0.05A | 1.5kg.cm | 32rpm | ≤0.25A | 3.0kg.cm | ≤0.6A |
| 6V | K100 | 105rpm | ≤0.20A | 2.4kg.cm | 56rpm | ≤0.90A | 3.0kg.cm | ≤2.0A |
| 12V | A05 | 50rpm | ≤0.04A | 1,2kg.cm | 28rpm | ≤0.10A | 2.6kg.cm | ≤0.3A |
| 12V | A35 | 72rpm | ≤0.05A | 1.5kg.cm | 45rpm | ≤0.20A | 3.0kg.cm | ≤0.6A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
DC Gear Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
dc gear motor,dc gearbox motor,dc geared motor,dc gear motors
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
