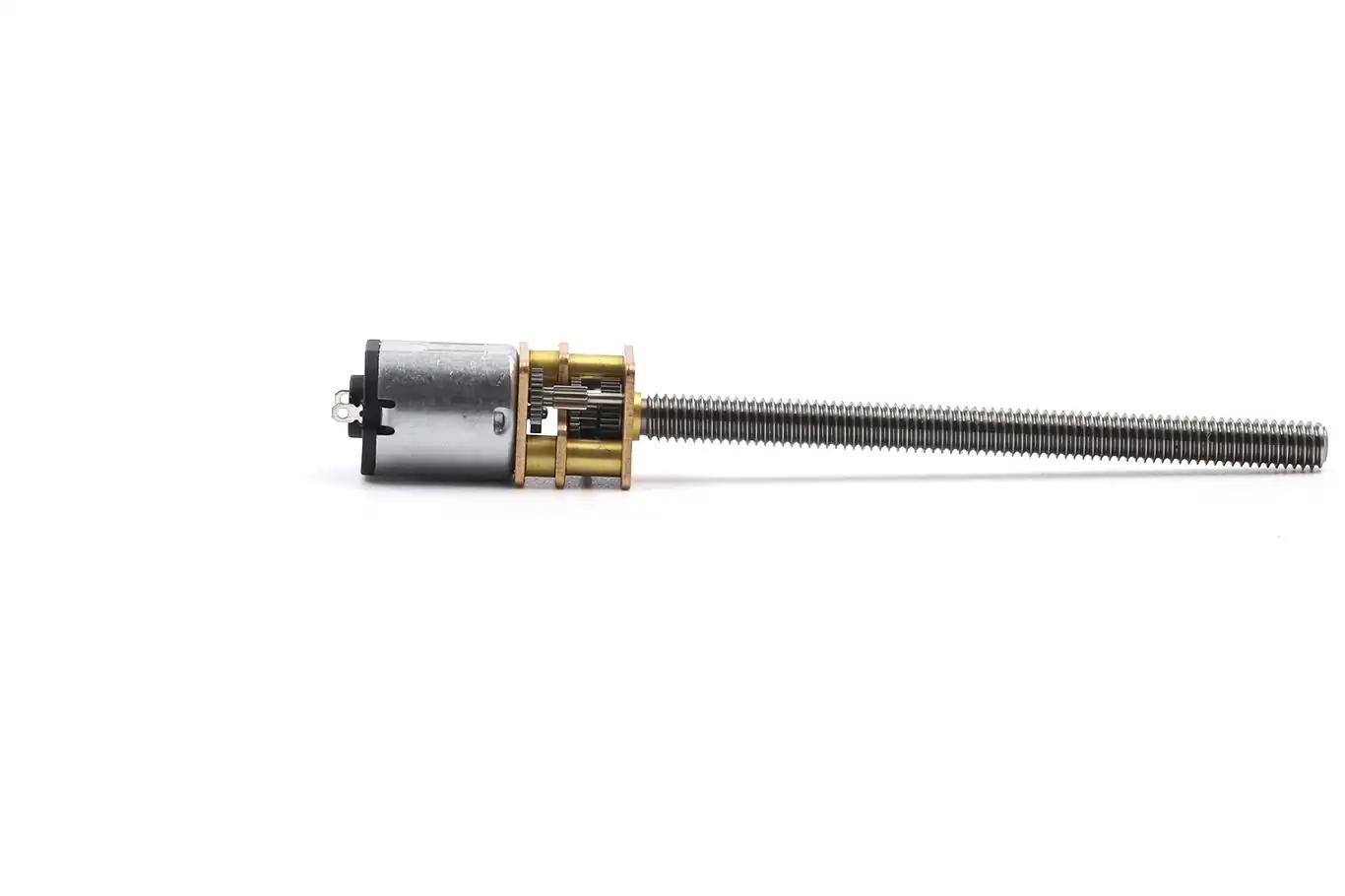

12mm Metal Gear Motor Model TSL-GM12-N10VA-M4
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM12-N10-M4
- Rated voltage:1.5V / 3V / 6V DC
- Speed:25rpm – 2,150rpm
- Power:0.5W / 2W / 2.3W
- No-load current:≤0.05A / ≤0.065A / ≤0.085A
- Max Torque:1.5kg.cm
- Threaded Shaft Length:55mm
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Smart selfie sticks, smart camera gimbals
- smart robot camera rotation mechanisms
- smart micro robots

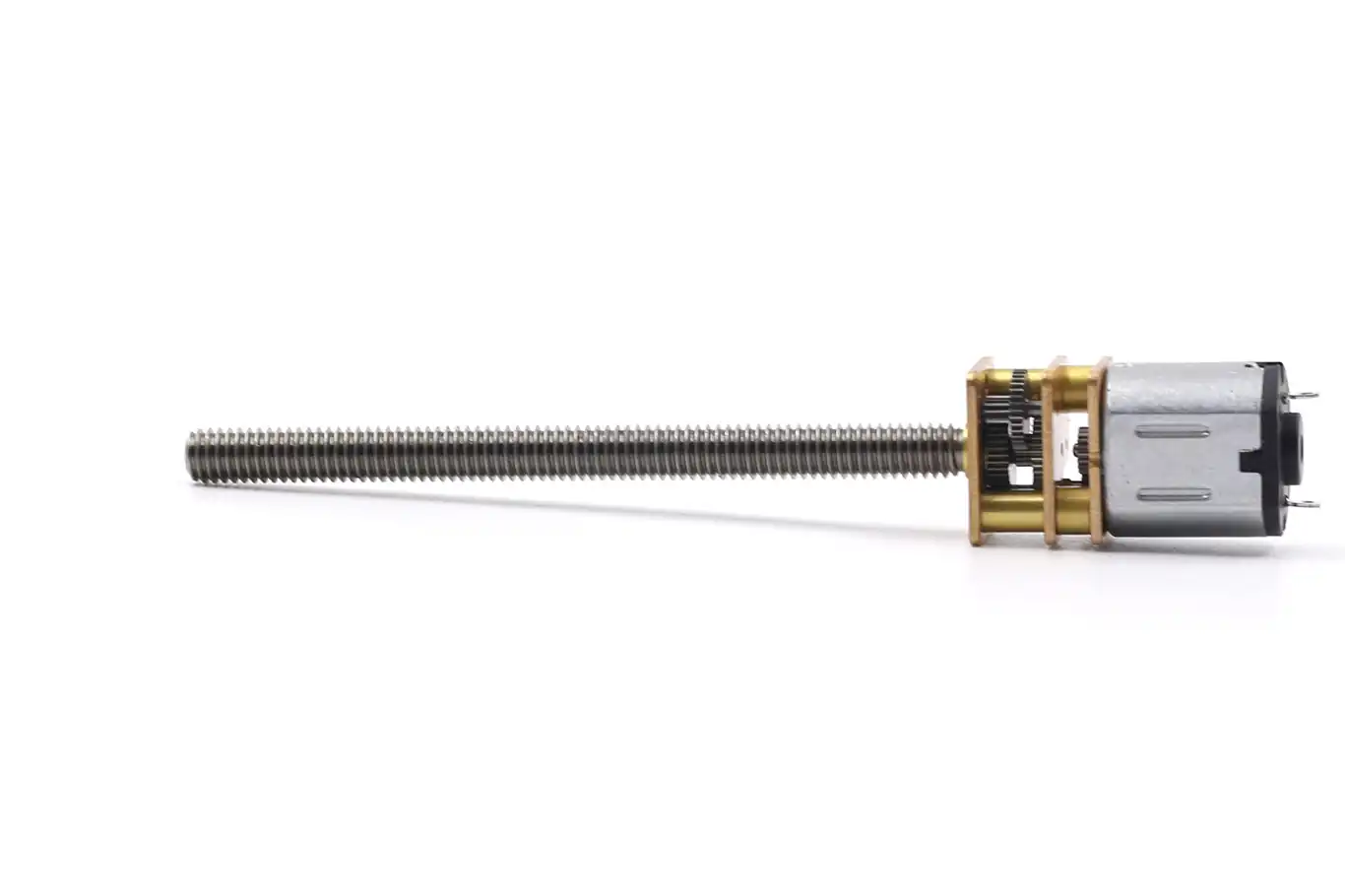

Geared DC Motor With Threaded Screw Shaft Parameters
TSL-GM10-N10VA-M4: A New Micro Power Solution
This permanent magnet micro geared dc motor is a small but powerful marvel. Its model number is TSL-GM10-N10VA-M4. The geared dc motor weighs only 12 grams. It’s incredibly light.
Key Advantages and Durable Design
It features all-metal gears. This ensures excellent wear resistance. Its anti-torsion capability is outstanding. It has a long lifespan. Heat dissipation is fast. Its composite capability is strong, adapting to various complex conditions. The rotor uses pure copper wire windings. This reduces resistance. Conductivity is enhanced. The geared dc motor torque is significantly increased as a result.
Flexible Voltage and Broad Applications
This geared dc motor has a wide operating voltage range. It supports DC 1.5V to 6.0V. Its shaft length is 55mm. The shaft diameter is a unique M4 threaded screw rod shaft. This design offers great flexibility.
Ideal for Smart Devices
The TSL-GM10-N10VA-M4 geared dc motor is widely used in smart devices. It’s perfect for smart selfie sticks. It can also power smart camera gimbals. Smart robot camera rotation relies on it too. For smart miniature robots, it’s a core power source. It provides stable and reliable drive for these innovative products.
TSL-GM12-N10VA-M4, 1.5V DC, Max 0.15W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 10:1 | ≤0.065A | 1,050rpm | ≤0.25A | 500rpm | 0.03kg.cm | ≤0.5A | ≥0.06kg.cm |
| 20:1 | ≤0.065A | 530rpm | ≤0.25A | 250rpm | 0.06kg.cm | ≤0.5A | ≥0.12kg.cm |
| 30:1 | ≤0.065A | 350rpm | ≤0.25A | 165rpm | 0.1kg.cm | ≤0.5A | ≥0.18kg.cm |
| 50:1 | ≤0.065A | 210rpm | ≤0.25A | 100rpm | 0.15kg.cm | ≤0.5A | ≥0.3kg.cm |
| 100:1 | ≤0.065A | 105rpm | ≤0.25A | 50rpm | 0.3kg.cm | ≤0.5A | ≥0.6kg.cm |
| 150:1 | ≤0.065A | 70rpm | ≤0.25A | 33rpm | 0.45kg.cm | ≤0.5A | ≥0.9kg.cm |
| 210:1 | ≤0.065A | 50rpm | ≤0.25A | 23rpm | 0.63kg.cm | ≤0.5A | ≥1.2kg.cm |
| 298:1 | ≤0.065A | 35rpm | ≤0.25A | 16rpm | 0.9kg.cm | ≤0.5A | ≥1.6kg.cm |
| 380:1 | ≤0.065A | 27rpm | ≤0.25A | 13rpm | 1.1kg.cm | ≤0.5A | ≥2.0kg.cm |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N10VA-M4, 3V DC, Max 0.12W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 10:1 | ≤0.05A | 950rpm | ≤0.13A | 480rpm | 0.03kg.cm | ≤0.25A | ≥0.06kg.cm |
| 20:1 | ≤0.05A | 480rpm | ≤0.13A | 240rpm | 0.06kg.cm | ≤0.25A | ≥0.12kg.cm |
| 30:1 | ≤0.05A | 315rpm | ≤0.13A | 160rpm | 0.1kg.cm | ≤0.25A | ≥0.18kg.cm |
| 50:1 | ≤0.05A | 190rpm | ≤0.13A | 95rpm | 0.15kg.cm | ≤0.25A | ≥0.3kg.cm |
| 100:1 | ≤0.05A | 95rpm | ≤0.13A | 48rpm | 0.3kg.cm | ≤0.25A | ≥0.6kg.cm |
| 150:1 | ≤0.05A | 62rpm | ≤0.13A | 31rpm | 0.45kg.cm | ≤0.25A | ≥0.9kg.cm |
| 210:1 | ≤0.05A | 45rpm | ≤0.13A | 22rpm | 0.63kg.cm | ≤0.25A | ≥1.2kg.cm |
| 298:1 | ≤0.05A | 32rpm | ≤0.13A | 15rpm | 0.9kg.cm | ≤0.25A | ≥1.6kg.cm |
| 380:1 | ≤0.05A | 25rpm | ≤0.13A | 12rpm | 1.1kg.cm | ≤0.25A | ≥2.0kg.cm |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N10VA-M4, 3V DC, Max 0.42W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 10:1 | ≤0.085A | 2,150rpm | ≤0.50A | 1,050rpm | 0.04kg.cm | ≤1.0A | ≥0.08kg.cm |
| 20:1 | ≤0.085A | 1,080rpm | ≤0.50A | 520rpm | 0.08kg.cm | ≤1.0A | ≥0.16kg.cm |
| 30:1 | ≤0.085A | 720rpm | ≤0.50A | 350rpm | 0.12kg.cm | ≤1.0A | ≥0.24kg.cm |
| 50:1 | ≤0.085A | 430rpm | ≤0.50A | 210rpm | 0.2kg.cm | ≤1.0A | ≥0.4kg.cm |
| 100:1 | ≤0.085A | 215rpm | ≤0.50A | 105rpm | 0.4kg.cm | ≤1.0A | ≥0.8kg.cm |
| 150:1 | ≤0.085A | 145rpm | ≤0.50A | 70rpm | 0.6kg.cm | ≤1.0A | ≥1.2kg.cm |
| 210:1 | ≤0.085A | 105rpm | ≤0.50A | 50rpm | 0.8kg.cm | ≤1.0A | ≥1.7kg.cm |
| 298:1 | ≤0.085A | 72rpm | ≤0.50A | 35rpm | 1.2kg.cm | ≤1.0A | ≥2.2kg.cm |
| 380:1 | ≤0.085A | 57rpm | ≤0.50A | 27rpm | 1.5kg.cm | ≤1.0A | ≥3.0kg.cm |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N10VA-M4, 6V DC, Max 0.35W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 10:1 | ≤0.065A | 2,100rpm | ≤0.25A | 1,000rpm | 0.04kg.cm | ≤0.6A | ≥0.08kg.cm |
| 20:1 | ≤0.065A | 1050rpm | ≤0.25A | 500rpm | 0.08kg.cm | ≤0.6A | ≥0.16kg.cm |
| 30:1 | ≤0.065A | 700rpm | ≤0.25A | 330rpm | 0.12kg.cm | ≤0.6A | ≥0.24kg.cm |
| 50:1 | ≤0.065A | 420rpm | ≤0.25A | 200rpm | 0.2kg.cm | ≤0.6A | ≥0.4kg.cm |
| 100:1 | ≤0.065A | 210rpm | ≤0.25A | 100rpm | 0.4kg.cm | ≤0.6A | ≥0.8kg.cm |
| 150:1 | ≤0.065A | 140rpm | ≤0.25A | 65rpm | 0.6kg.cm | ≤0.6A | ≥1.2kg.cm |
| 210:1 | ≤0.065A | 100rpm | ≤0.25A | 47rpm | 0.8kg.cm | ≤0.6A | ≥1.7kg.cm |
| 298:1 | ≤0.065A | 70rpm | ≤0.25A | 33rpm | 1.2kg.cm | ≤0.6A | ≥2.2kg.cm |
| 380:1 | ≤0.065A | 55rpm | ≤0.25A | 26rpm | 1.5kg.cm | ≤0.6A | ≥3.0kg.cm |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

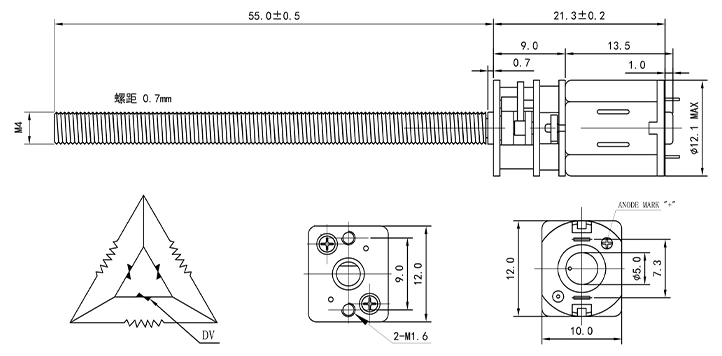

Geared DC Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
geared dc motor,motor gearbox,gear in motor,geared electric motors,motor gears
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
