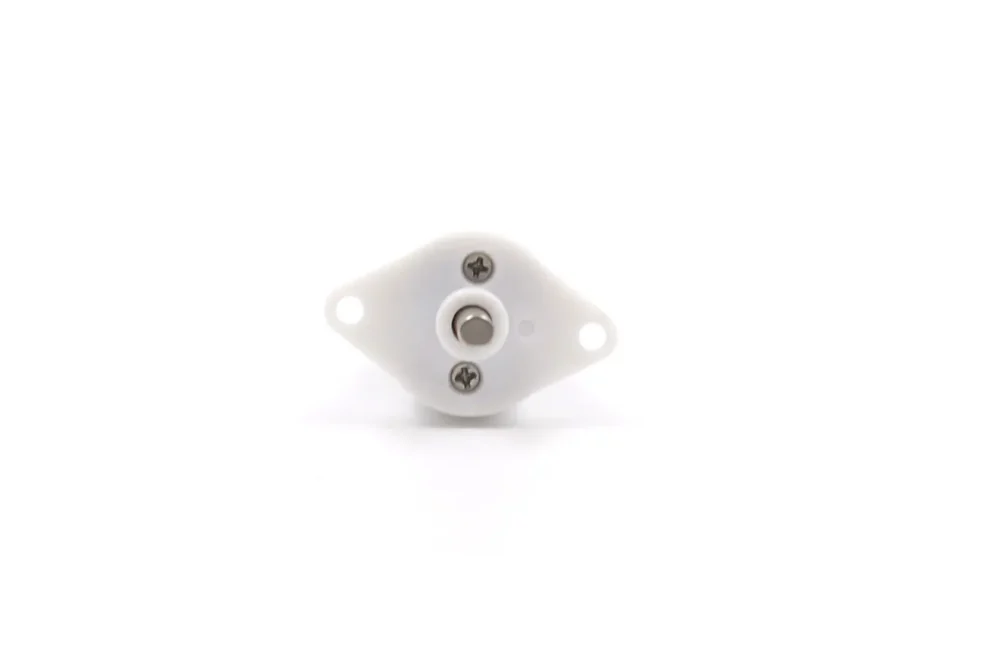

metal inline gear motor gm12 n20va dr top view

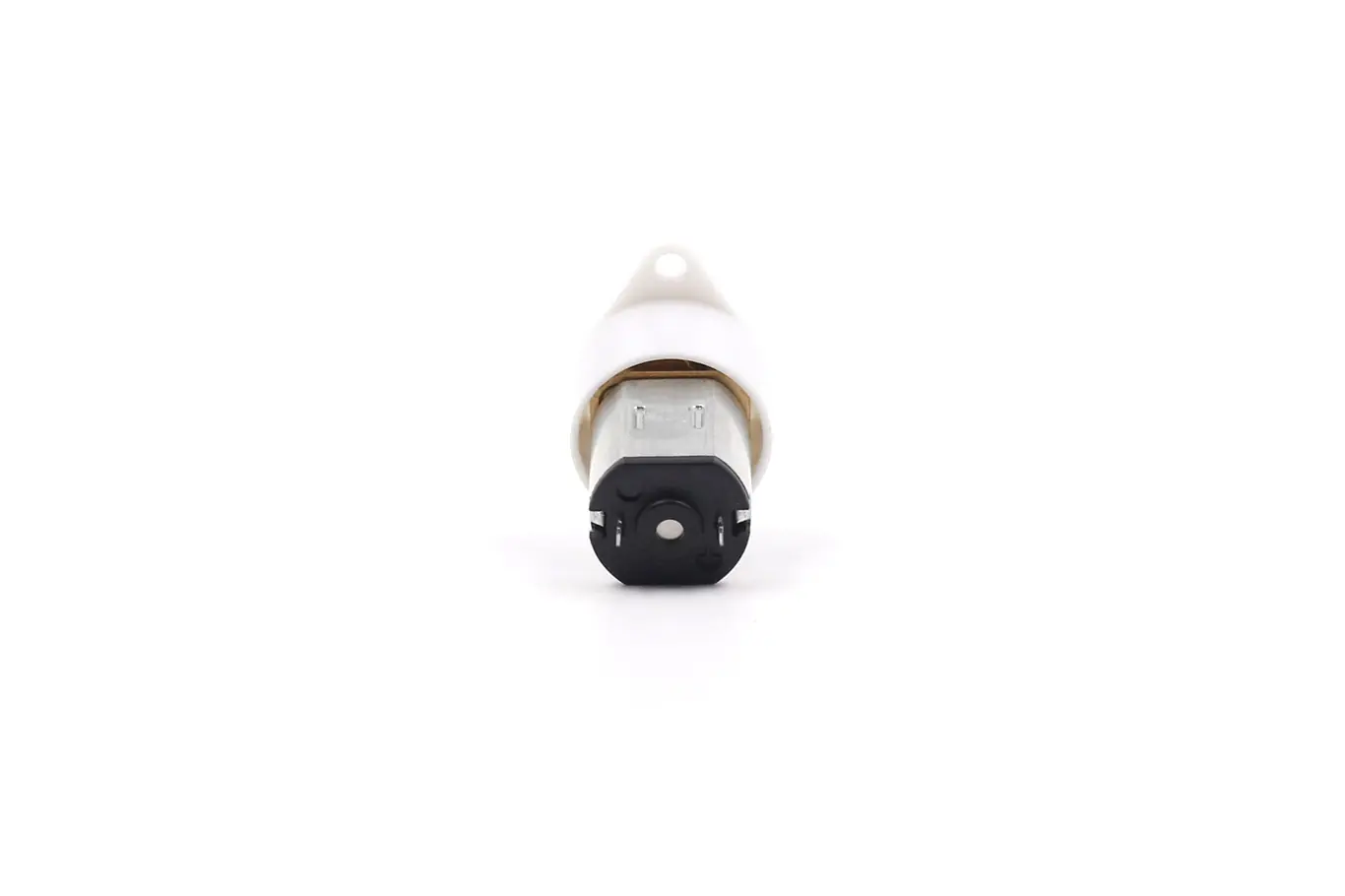

metal inline gear motor gm12 n20va dr bottom view

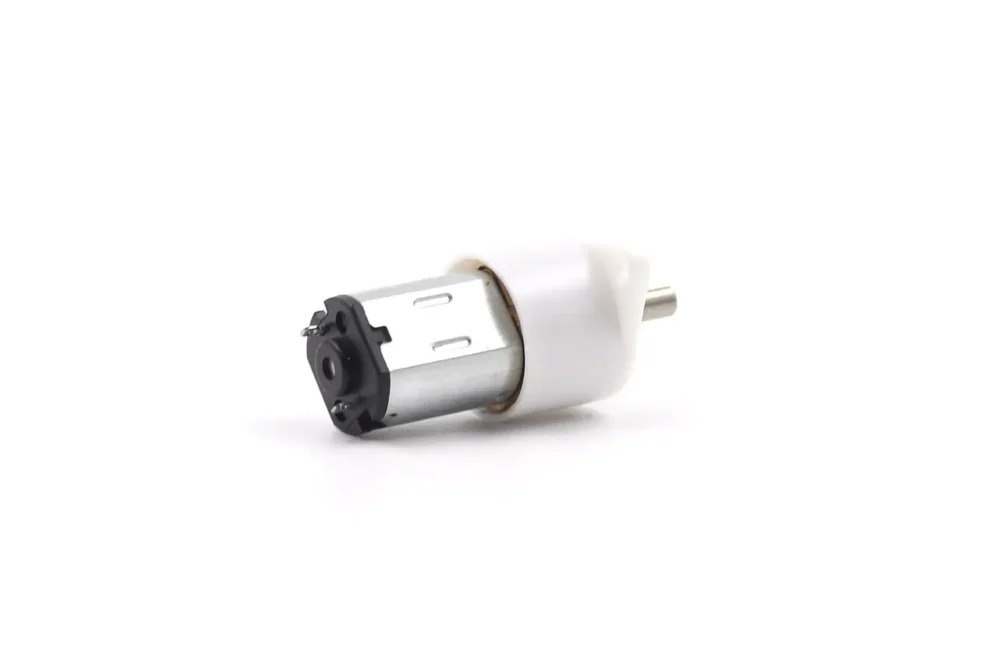

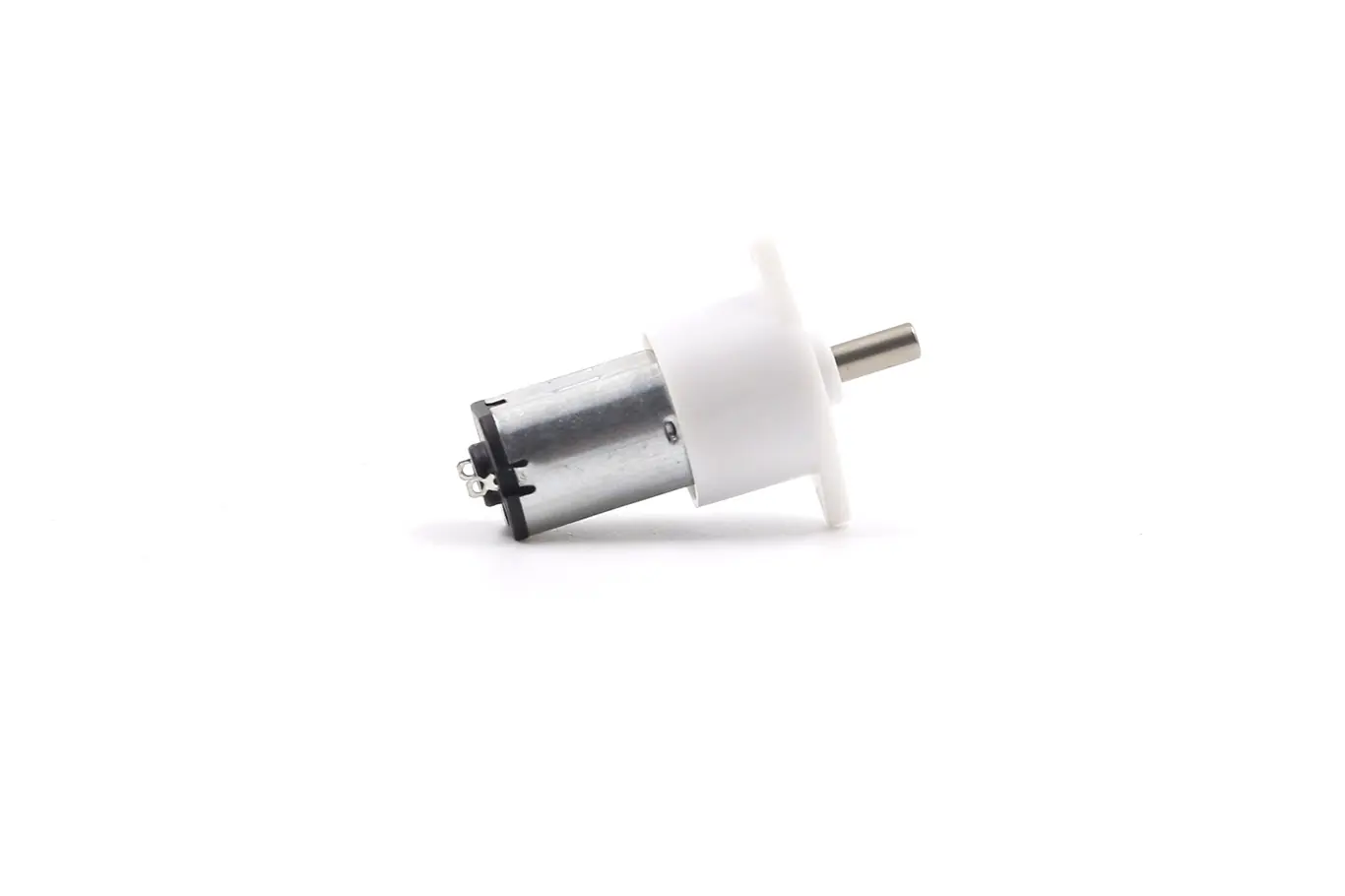

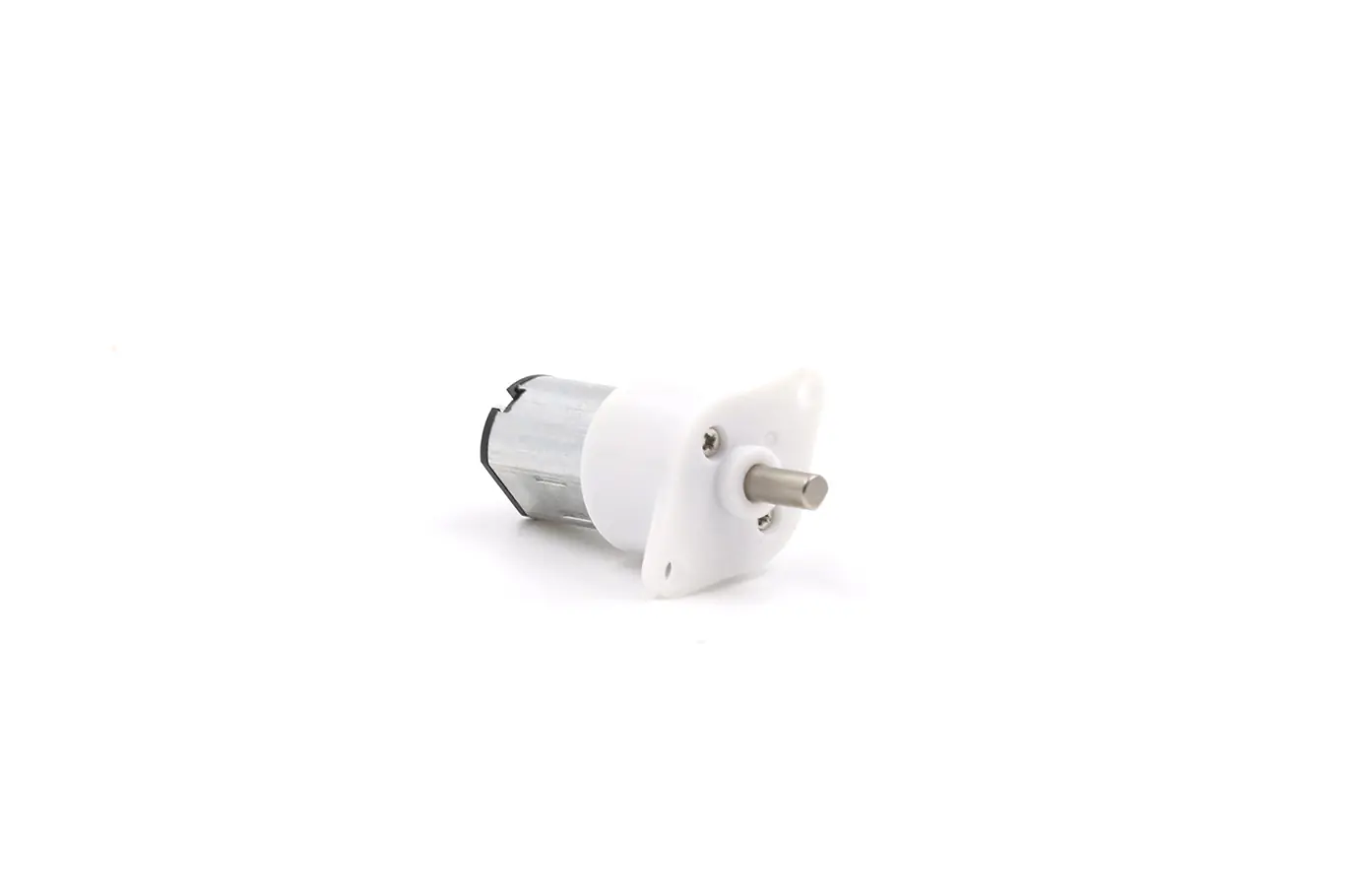

12mm Metal Gear Motor Model TSL-GM12-N20VA-DR

♦ Basic Info:

Brand:TSL
Origin:China
Motor Model:TSL-GM37-550
Shaft diameter:3mm
Shaft length:9mm
Rated voltage:3V / 6V/12V DC/customized
Rotation:CW / CCW
#More Specifications

♦ Typical Applications:

smart robots, electric curtains
smart balance cars
intelligent mechanical arms

DC Inline Gear Motor With Dustroof TSL-GM12-N20VA-DR

Our permanent magnet DC inline gear motor with a dustproof enclosure is perfect for your projects. It operates on a voltage range of 3V to 12V DC and features a D-shaped output shaft. This motor is ideal for a wide range of applications, including smart robots, electric curtains, smart balance cars, and intelligent mechanical arms.

Usage Precautions:

Avoid frequent starting and stopping or frequent forward and reverse rotation.
Do not use the motor in a stalled condition.
The motor starts and runs when powered. Do not use external force to rotate the shaft when the motor is not powered, as this may damage the gearbox.

TSL-GM-N20VA-DR, DC 3V, 0.5W, 45 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤45	1200	40	780	≤0.27	0.1	≤0.65
20:1	≤45	600	80	390	≤0.27	0.2	≤0.65
30:1	≤45	400	120	260	≤0.27	0.3	≤0.65
50:1	≤45	240	200	150	≤0.27	0.5	≤0.65
100:1	≤45	120	400	80	≤0.27	1	≤0.65
150:1	≤45	80	600	52	≤0.27	1.5	≤0.65
210:1	≤45	57	800	37	≤0.27	2	≤0.65
298:1	≤45	40	1200	26	≤0.27	3	≤0.65
380:1	≤45	32	1600	20	≤0.27	3.5	≤0.65

💕The inline gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-GM-N20VA-DR, DC 3V, 0.2W, 26 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤45	810	25	460	≤0.14	0.06	≤0.75
20:1	≤45	405	100	240	≤0.14	0.12	≤0.75
30:1	≤45	270	75	160	≤0.14	0.15	≤0.75
50:1	≤45	162	120	90	≤0.14	0.4	≤0.75
100:1	≤45	81	250	47	≤0.14	0.8	≤0.75
150:1	≤45	54	350	32	≤0.14	1.0	≤0.75
210:1	≤45	38	500	23	≤0.14	1.3	≤0.75
298:1	≤45	27	1000	16	≤0.14	1.8	≤0.75
380:1	≤45	21	1200	12	≤0.14	2.0	≤0.75

TSL-GM-N20VA-DR, DC 6V, 0.6W, 26 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤45	1650	50	980	≤0.23	0.11	≤0.55
20:1	≤45	825	100	490	≤0.23	0.22	≤0.55
30:1	≤45	550	150	326	≤0.23	0.35	≤0.55
50:1	≤45	330	250	193	≤0.23	0.6	≤0.55
100:1	≤45	165	500	98	≤0.23	1.1	≤0.55
150:1	≤45	110	750	65	≤0.23	1.8	≤0.55
210:1	≤45	78	1000	46	≤0.23	2.5	≤0.55
298:1	≤45	54	1500	32	≤0.23	2.5	≤0.55
380:1	≤45	43	1900	25	≤0.23	2.5	≤0.55

TSL-GM-N20VA-DR, DC 6V, 0.4W, 35 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤40	1050	20	750	≤0.1	0.10	≤0.3
20:1	≤40	525	40	375	≤0.1	0.16	≤0.3
30:1	≤40	350	60	250	≤0.1	0.24	≤0.3
50:1	≤40	210	100	150	≤0.1	0.4	≤0.3
100:1	≤40	105	200	75	≤0.1	0.8	≤0.3
150:1	≤40	70	300	50	≤0.1	1.2	≤0.3
210:1	≤40	50	400	35	≤0.1	1.6	≤0.3
298:1	≤40	35	600	25	≤0.1	2.3	≤0.3
380:1	≤40	28	750	20	≤0.1	3.0	≤0.3

TSL-GM-N20VA-DR, DC 12V, 0.6W, 05 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤30	1500	20	1200	≤0.07	0.10	≤0.3
20:1	≤30	750	40	600	≤0.07	0.16	≤0.3
30:1	≤30	500	60	400	≤0.07	0.24	≤0.3
50:1	≤30	300	100	240	≤0.07	0.4	≤0.3
100:1	≤30	150	200	120	≤0.07	0.8	≤0.3
150:1	≤30	100	300	80	≤0.07	1.2	≤0.3
210:1	≤30	71	400	57	≤0.07	1.6	≤0.3
298:1	≤30	50	600	40	≤0.07	2.3	≤0.3
380:1	≤30	39	750	31	≤0.07	3.0	≤0.3

TSL-GM-N20VA-DR, DC 12V, 1.4W, 35 type

Ratio	No Load		Rated Load			Stall
i:1	Current	Speed	Torque	Speed	Current	Torque	Current
i:1	mA	RPM	g.cm	RPM	A	Kg.cm	A
10:1	≤55	2150	50	1450	≤0.2	0.13	≤0.50
20:1	≤55	1075	100	720	≤0.2	0.26	≤0.50
30:1	≤55	717	150	480	≤0.2	0.39	≤0.50
50:1	≤55	430	250	290	≤0.2	0.7	≤0.50
100:1	≤55	215	500	145	≤0.2	1.3	≤0.50
150:1	≤55	143	750	95	≤0.2	2.0	≤0.50
210:1	≤55	102	1000	70	≤0.2	2.7	≤0.50
298:1	≤55	72	1500	48	≤0.2	3.0	≤0.50
380:1	≤55	57	1900	38	≤0.2	3.0	≤0.50

Low Speed Inline Gear Motor With Dustroof Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications

Keywords:

inline c-face gear motors，inline geared motor，inline speed gear motor

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 1-3 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for spur gear motor

Q：What is a Spur Gear Motor?

A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.

If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks

Q:Can Spur Gear Motor Be Customized?

A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
