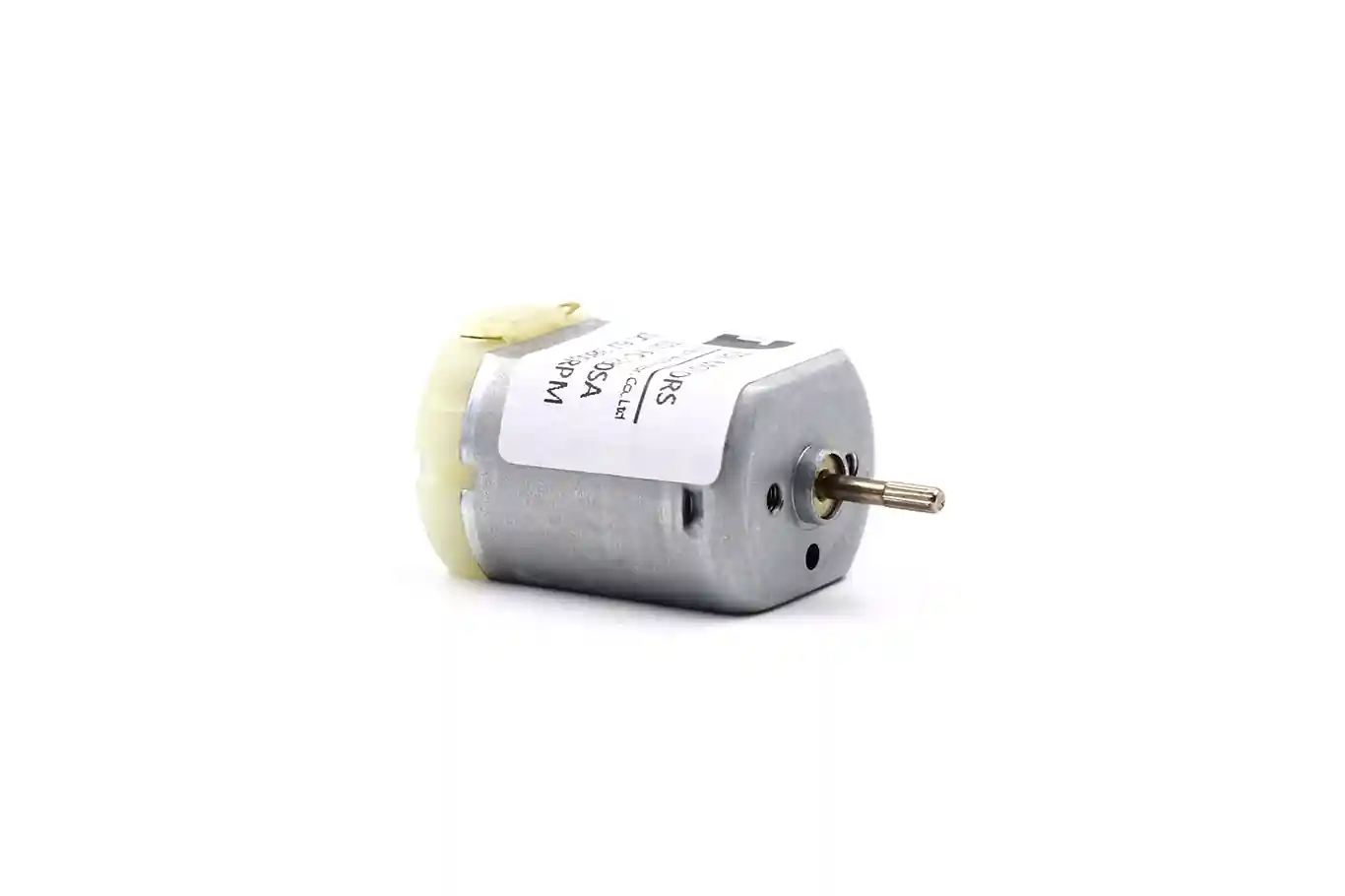

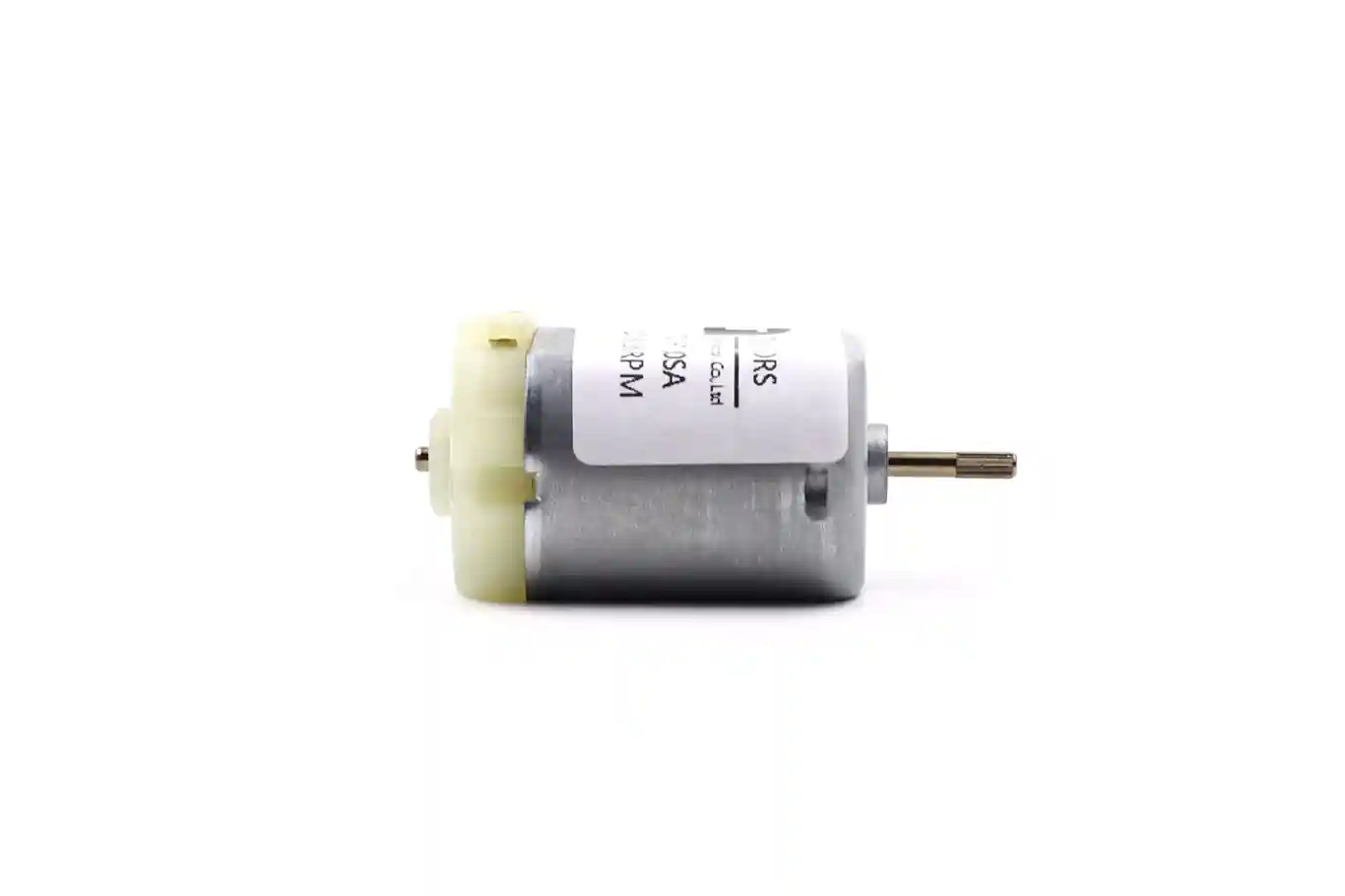

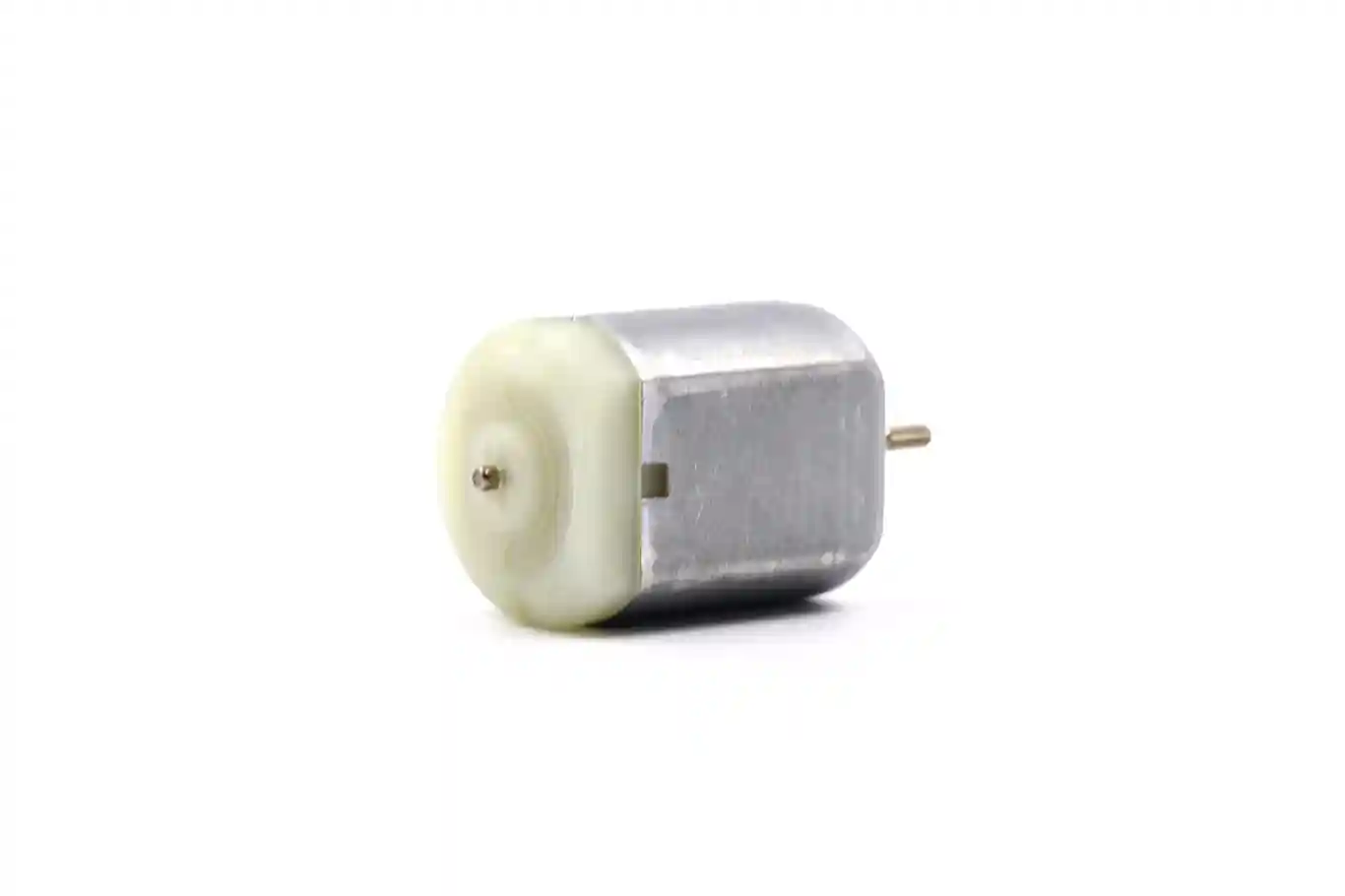

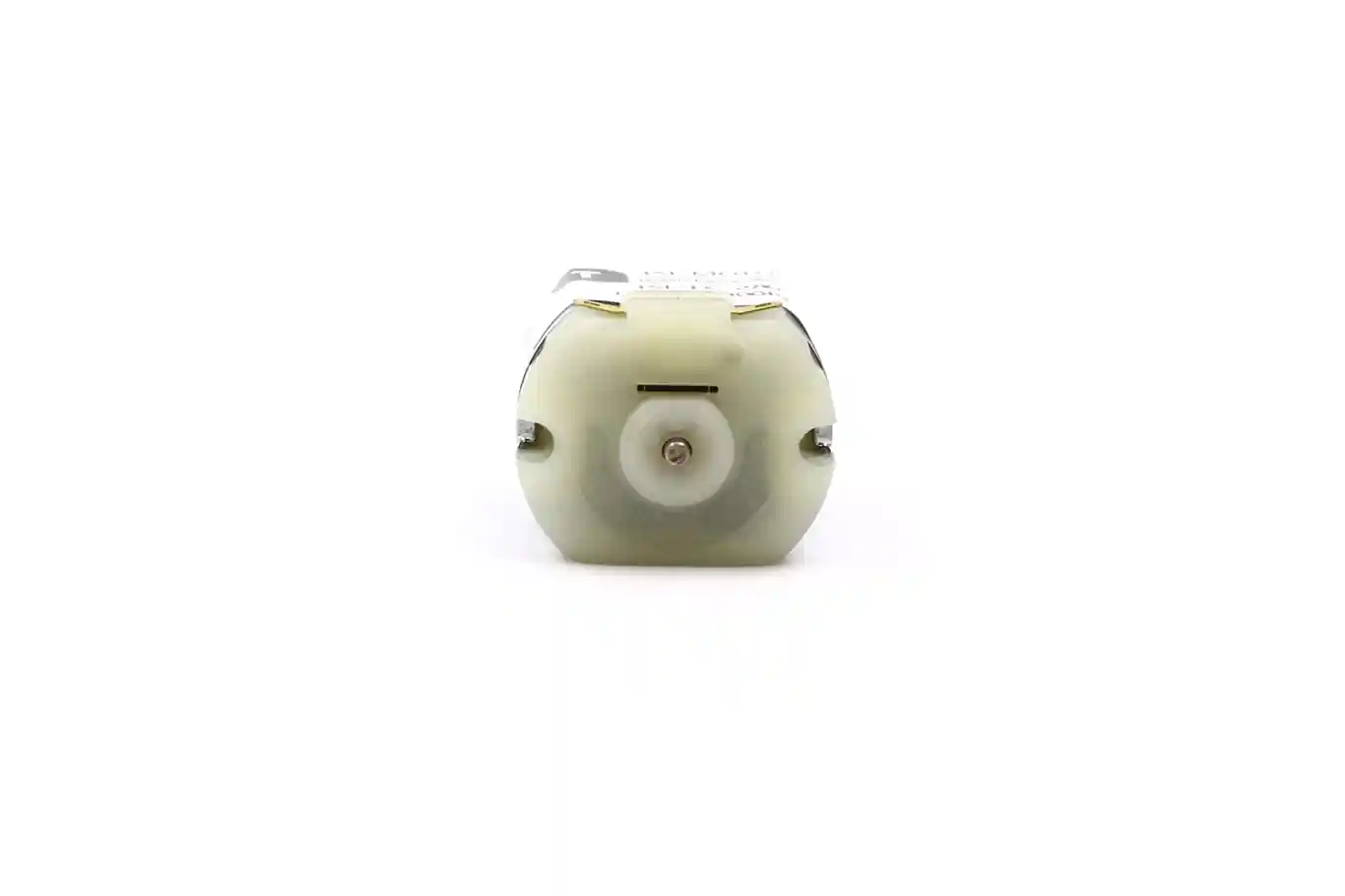

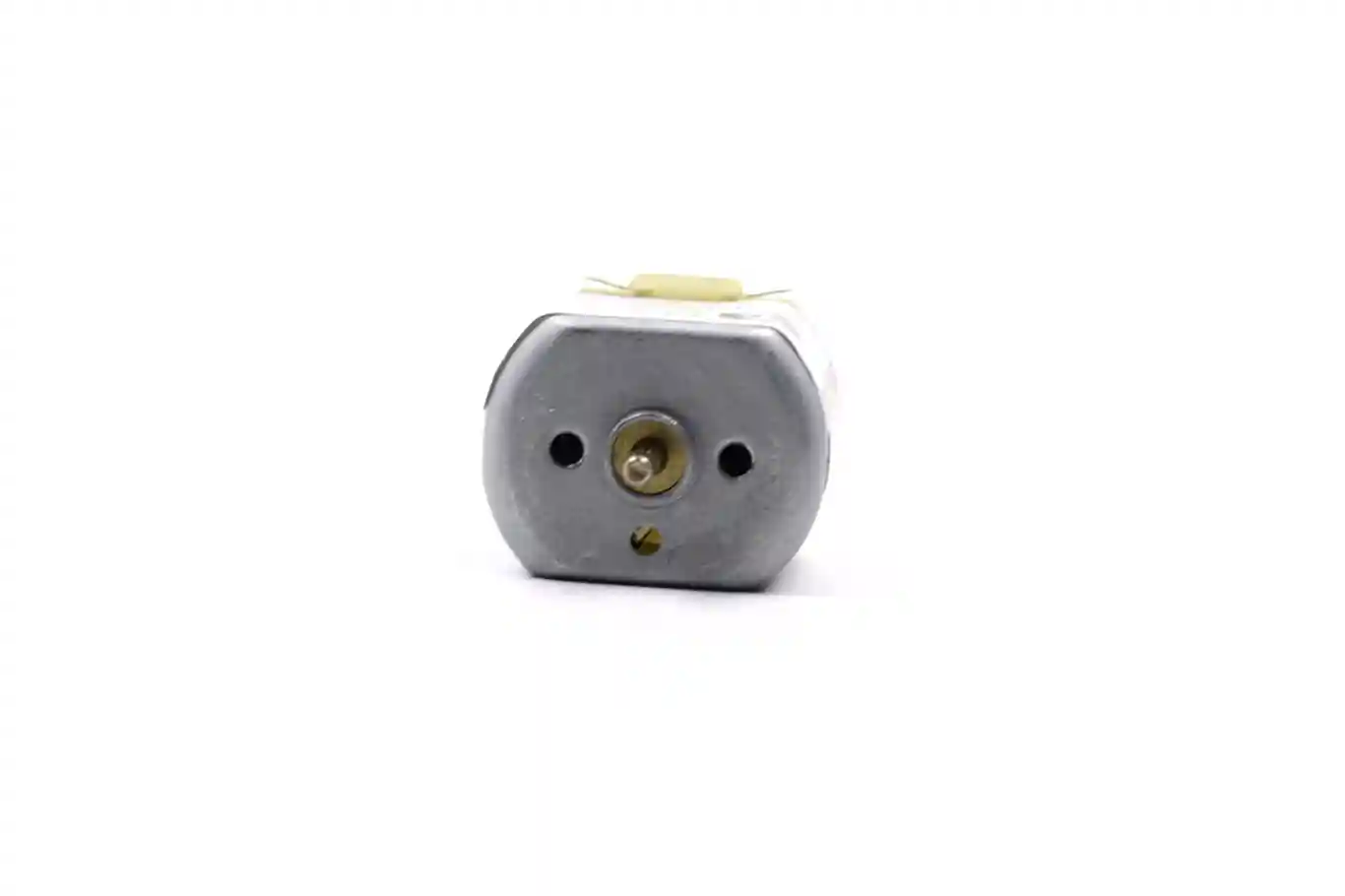

24mm Micro DC Motor – 30mm Type Model TSL-FC-280SA
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-FC-280SA
- Motor Type: Brushed DC Motor
- Motor Diameter: 24.2 mm
- Motor Length: 30.5 mm
- Shaft Diameter: φ 2 mm
- Rated Voltage:6V/12V/24V
- #More Specifications
♦ Typical Applications:
- door locks, electric shavers, toys, and security systems.
Brushed Direct Current Motor Datasheets
The brushed direct current motor boasts a modest diameter of 24.2 mm and a length of 30.5 mm, making it suitable for space-constrained applications. A 2 mm shaft ensures compatibility with various mechanical linkages. This brushed direct current motor’s brushed DC technology provides reliable and straightforward operation, known for consistent torque output.
The inherent versatility of the TSL-FC-280SA brushed direct current motor makes it a preferred choice across diverse industries. Its design is particularly well-suited for applications demanding efficiency within a small footprint. For instance, in door locks, it provides the necessary actuation for secure and reliable operation.
Similarly, its steady power output is ideal for the precise movements required in electric shavers. This brushed direct current motor’s adaptability also extends to consumer goods like toys, where it drives various functionalities.
Reliability is a hallmark of the brushed direct current motor TSL-FC-280SA, making it a valuable component in critical systems. Its robust construction ensures consistent performance over time, even with frequent use. This dependability is paramount in applications such as security systems.
Here, the brushed direct current motor might power crucial elements like camera adjustments or sensor mechanisms. The TSL-FC-280SA embodies a blend of power, precision, and durability, catering to the evolving needs of modern electromechanical designs.
We can optimize and customize the brushed direct current motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-FC-280SA-15200 | 6.0 | 0.05 | 4716 | 0.22 | 3851 | 23.02 | 0.91 | 0.99 | 125.55 |
| TSL-FC-280SA-20136 | 12.0 | 0.096 | 12005 | 0.65 | 10460 | 48.91 | 5.26 | 4.4 | 380.04 |
| TSL-FC-280SA-18160 | 12.0 | 0.072 | 10377 | 0.51 | 9091 | 43.36 | 4.05 | 3.61 | 349.88 |
| TSL-FC-280SA-11320 | 24.0 | 0.059 | 11500 | 0.28 | 9513 | 43.35 | 4.23 | 1.34 | 250.89 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

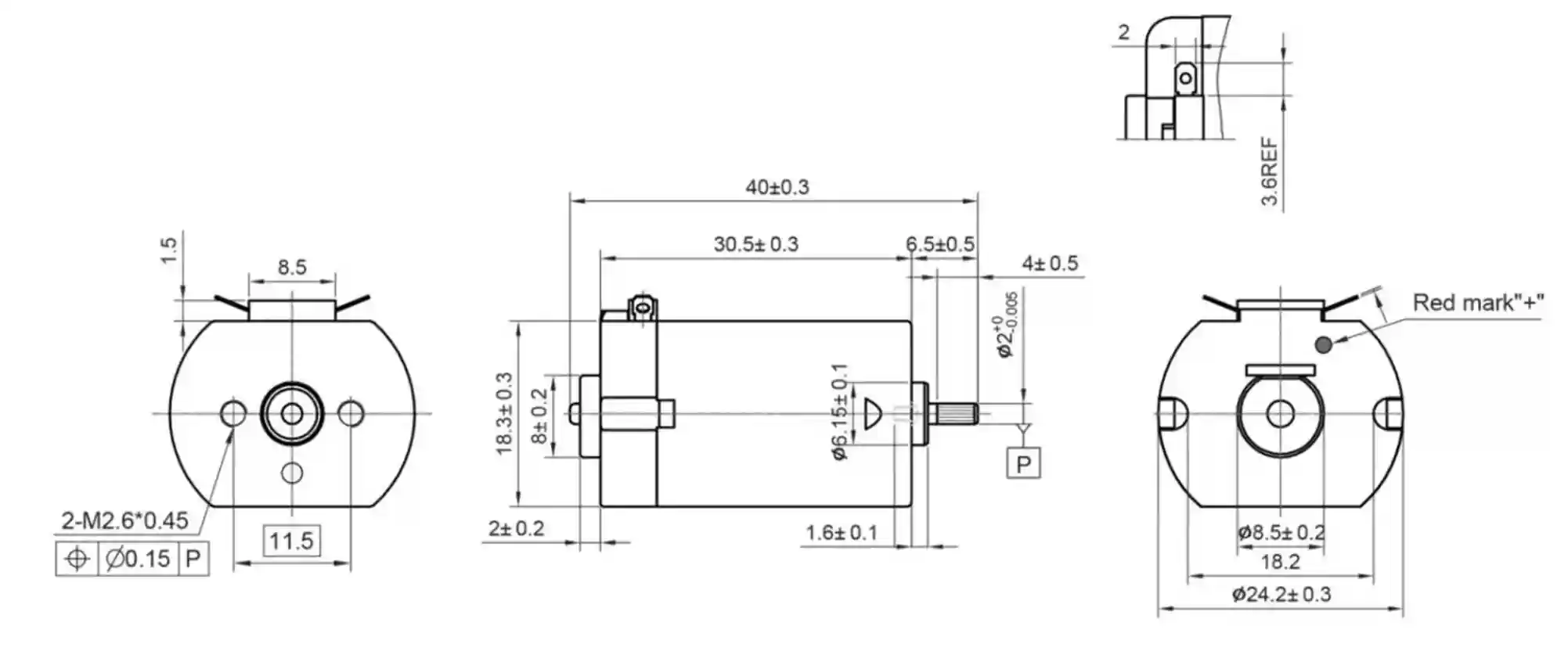

Brushed Direct Current Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
