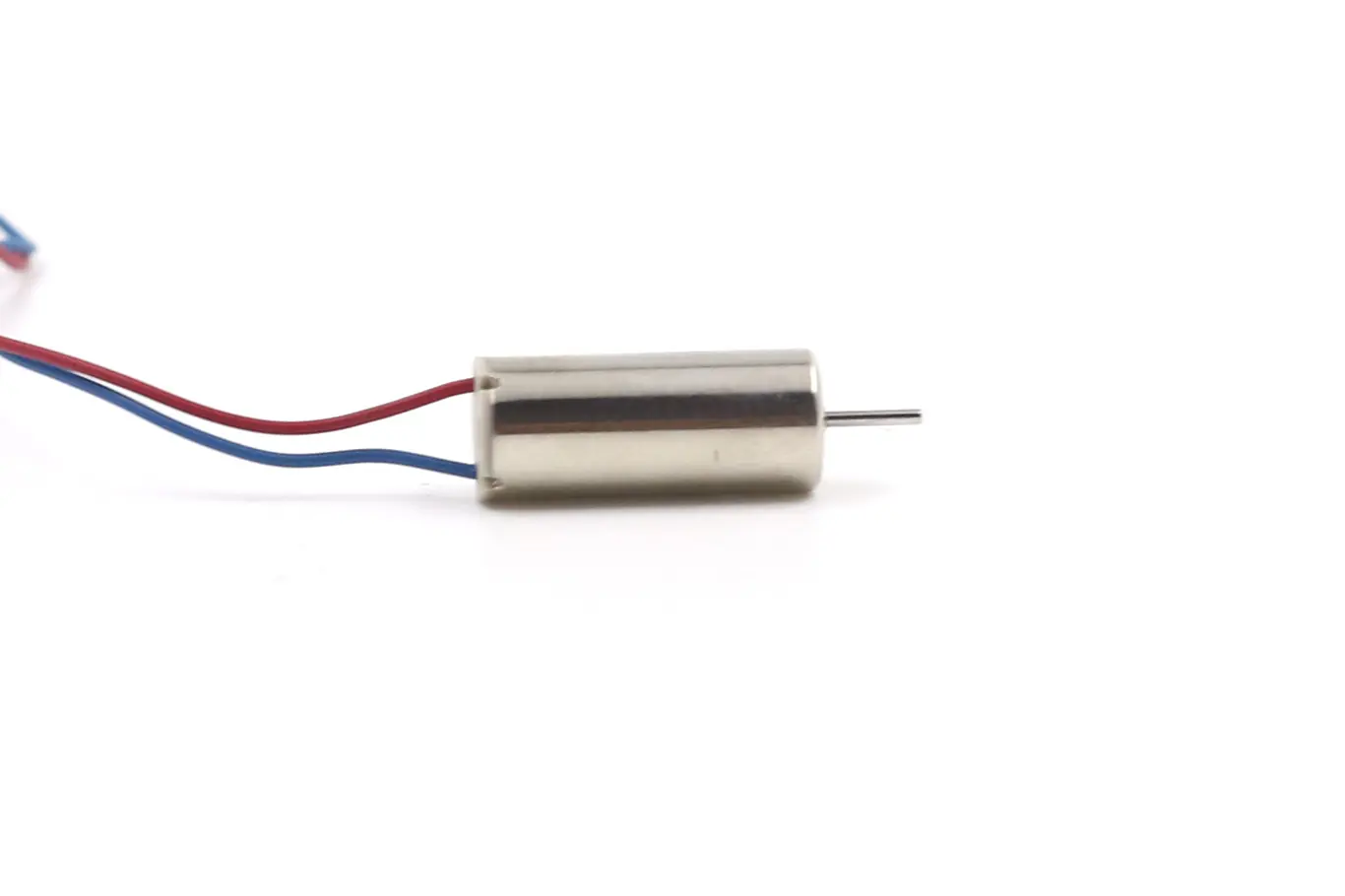

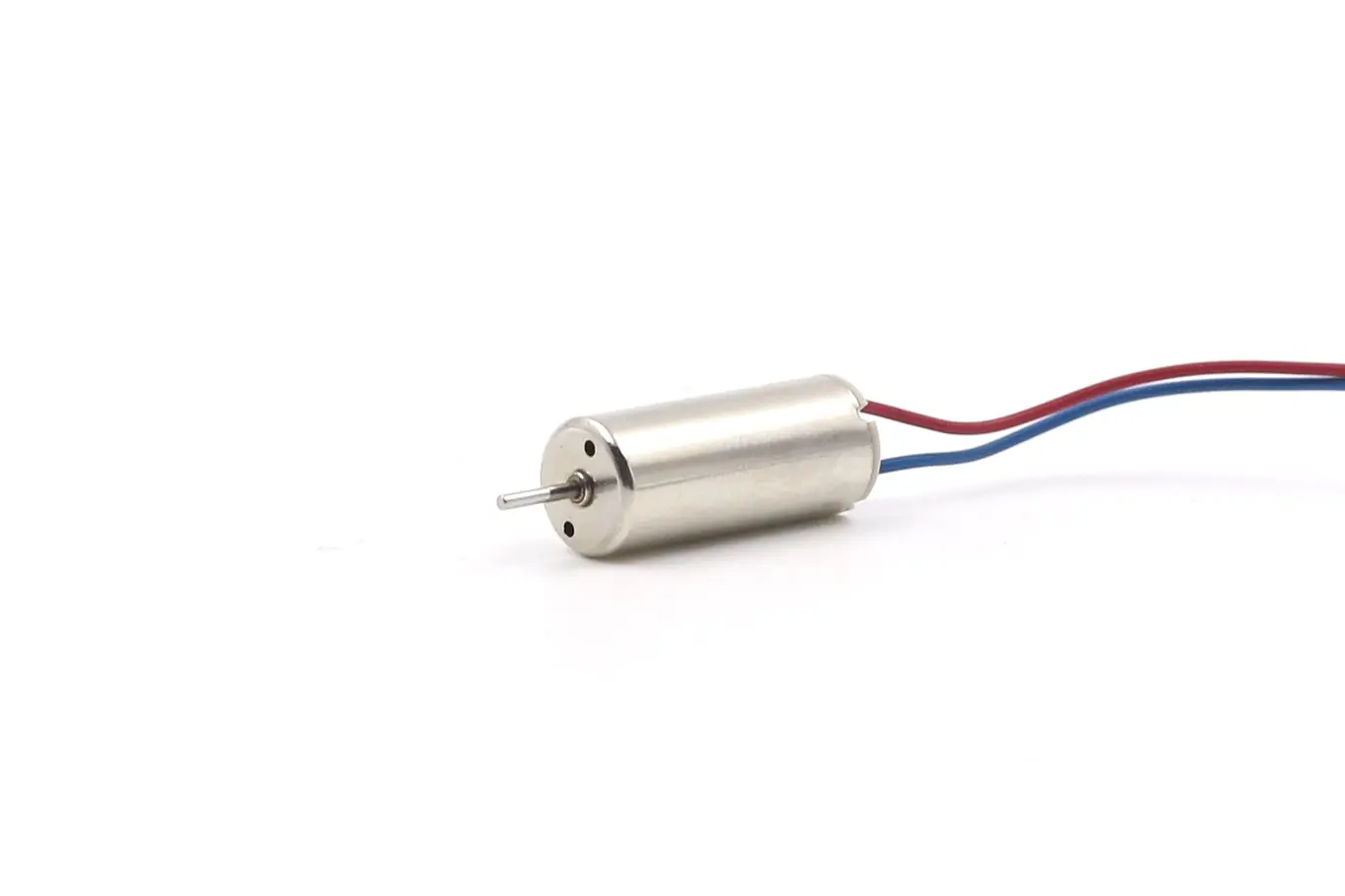

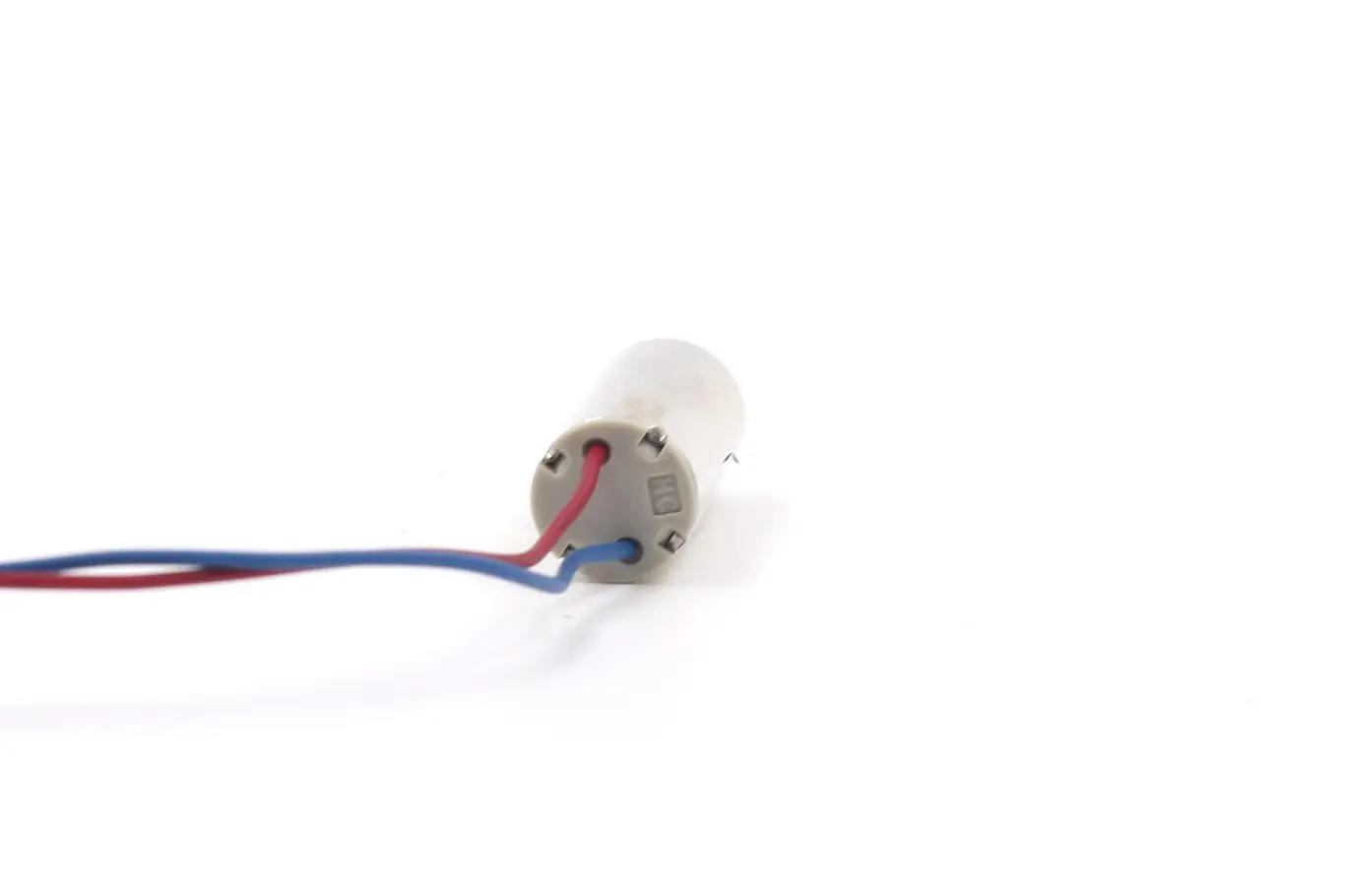

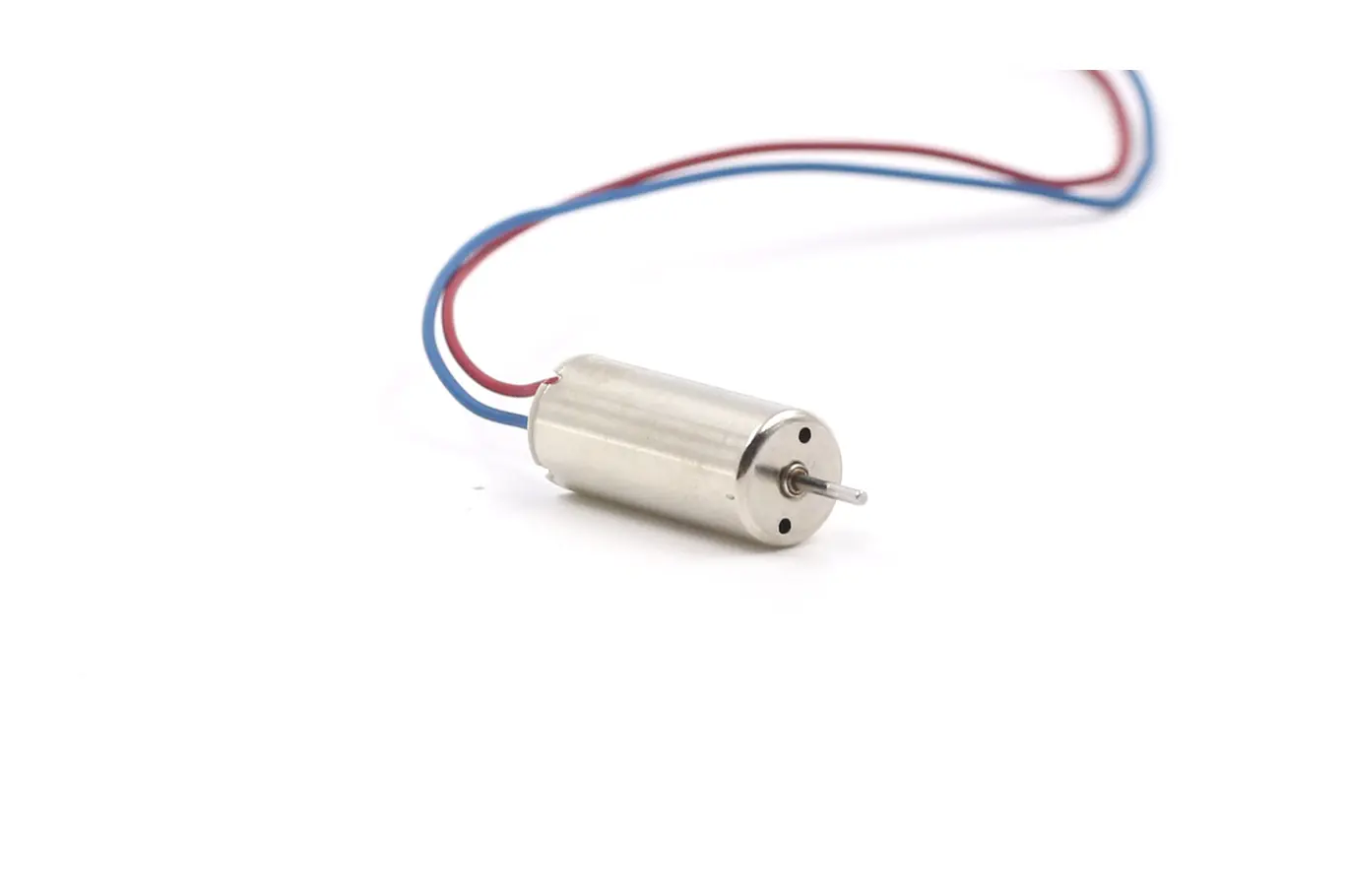

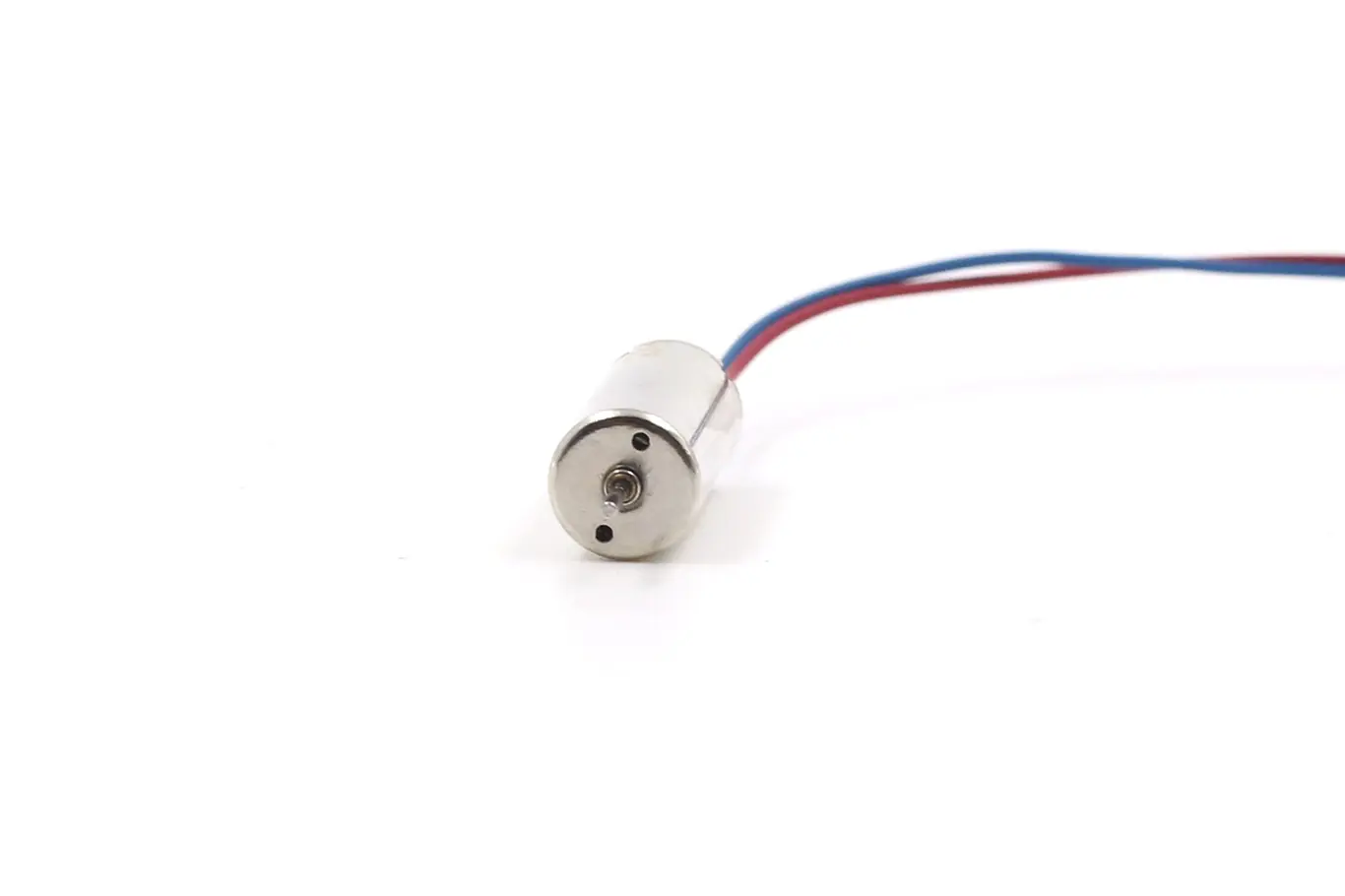

7mm Coreless DC Motor – 16mm Type Model TSL-CL0716
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-CL0716
- Motor Type:Coreless DC Motor
- Motor Diameter: 7.0±0.1mm
- Motor Length:16.7±0.2mm
- Max.permissible No-load speed:50000rpm
- Voltage:3.7V/4.5V DC/customizable
- #More Specifications
- #Outline Drawing
Mini Drone Motor Coreless DC Motor Datasheet
For a mini drone, the motor is everything. As a mini drone motor, a coreless design delivers unmatched advantages. Its coreless structure provides instant throttle response. This is essential for agile flight and quick acrobatic maneuvers.
Efficiency is a major benefit. These motors convert more power directly into thrust. This means longer flight times from a single battery charge. Less energy is wasted, keeping the motor cooler during demanding flights.
Operation is incredibly smooth. The cog-free rotation reduces vibrations, leading to more stable flight and clearer FPV video. This design also lowers electronic interference, protecting sensitive components like your flight controller and receiver for a more reliable connection.
| Motor Parameter--Values at nominal voltage | Motor Model | |||||||||
| TSL-CL0716-018152 | TSL-CL0716-018162 | TSL-CL0716-020152 | TSL-CL0716-022142 | TSL-CL0716-022152 | TSL-CL0716-022162 | TSL-CL0716-022142 | TSL-CL0716-017211 | |||
| Rated voltage | V | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | 4.5 | 3.7 | |
| Free Load | No load speed | rpm | 48000 | 47100 | 43300 | 39600 | 40100 | 50800 | 48200 | 50000 |
| No load current | mA | 110 | 93 | 95 | 58 | 88 | 88 | 75 | 77 | |
| At Max. Efficiency | Max.efficiency | % | 57% | 61% | 58% | 62% | 59% | 63% | 61% | 67% |
| Speed | rpm | 39200 | 39300 | 35500 | 33200 | 33100 | 42700 | 40200 | 43200 | |
| Current | mA | 491 | 469 | 434 | 303 | 415 | 467 | 375 | 479 | |
| Torque | g.cm | 2.56 | 2.61 | 2.54 | 2.02 | 2.65 | 2.45 | 2.5 | 2.67 | |
| At Max. OUtput | Max. output | W | 1.72 | 1.91 | 1.57 | 1.28 | 1.56 | 2.01 | 1.85 | 2.49 |
| Speed | rpm | 24000 | 23600 | 21600 | 19800 | 20100 | 25400 | 24100 | 25000 | |
| Current | mA | 1147 | 1230 | 1040 | 817 | 1023 | 1280 | 975 | 1538 | |
| Torque | g.cm | 6.98 | 7.89 | 7.07 | 6.27 | 7.58 | 7.7 | 7.5 | 9.7 | |
| At Stall | Stall current | A | 2.18 | 2.37 | 1.99 | 1.57 | 1.96 | 2.47 | 1.88 | 3 |
| Stall torque | g.cm | 13.96 | 15.77 | 14.14 | 12.55 | 15.16 | 15.39 | 14.99 | 19.4 | |
| Motor Constants | ||||||||||
| Terminal resistance | Ω | 1.7 | 1.6 | 1.9 | 2.4 | 1.9 | 1.5 | 2.4 | 1.2 | |
| Torque constant | g.cm/A | 6.7 | 6.9 | 7.5 | 8.3 | 8.1 | 6.5 | 8.3 | 6.6 | |
| Speed constant | rpm/V | 13700 | 13300 | 12300 | 11100 | 11400 | 14200 | 11100 | 13900 | |
| Speed/Torque constant | rpm/g.cm | 3440 | 2990 | 3060 | 3160 | 2650 | 3300 | 3160 | 2580 | |
Remarks:
➡️The mini drone motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
➡️The mini drone motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm

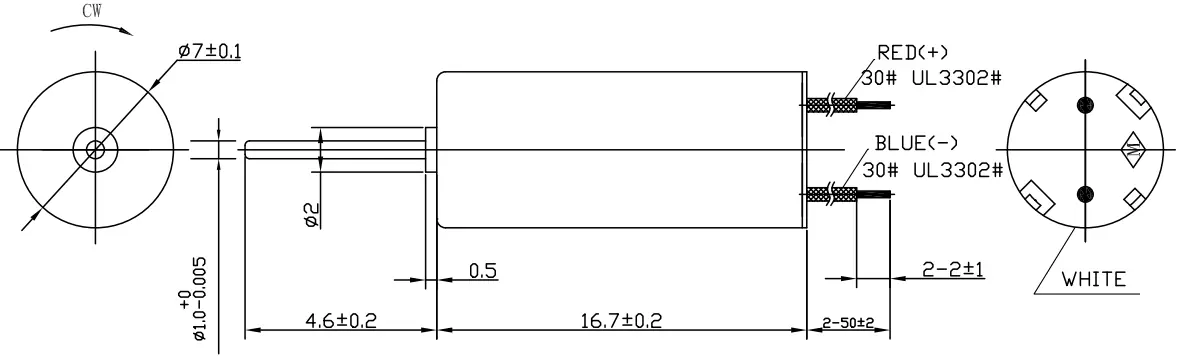

Mini Drone Motor Coreless Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

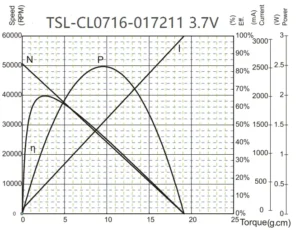

Mini Drone Motor DC Motor Typical Performance
❗NOTE: Ambient temperature 25 -30°C
