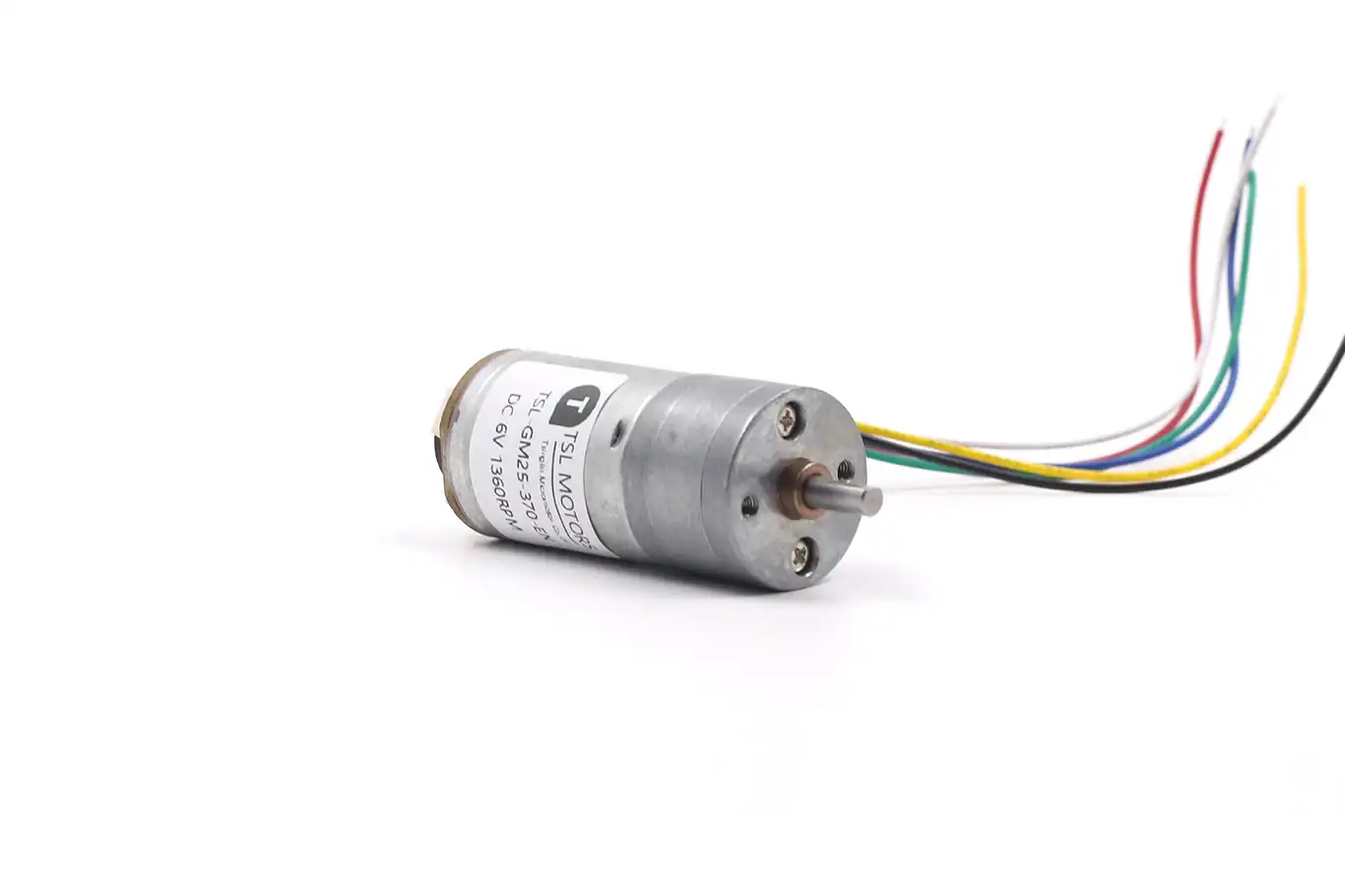

25mm Metal Gear Motor Model TSL-GM25-370-EN
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM25-370-EN
- No Load Speed:12rpm – 1,350rpm
- Rated voltage:6V/12V/24V DC
- No Load Current:≤0.07A / ≤0.08A / ≤0.13A
- Output Power:1.6W / 2W / 3W
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Smart self-balancing two-wheel scooter
- smart home appliances, robotic camera arm
- electric paper cutter

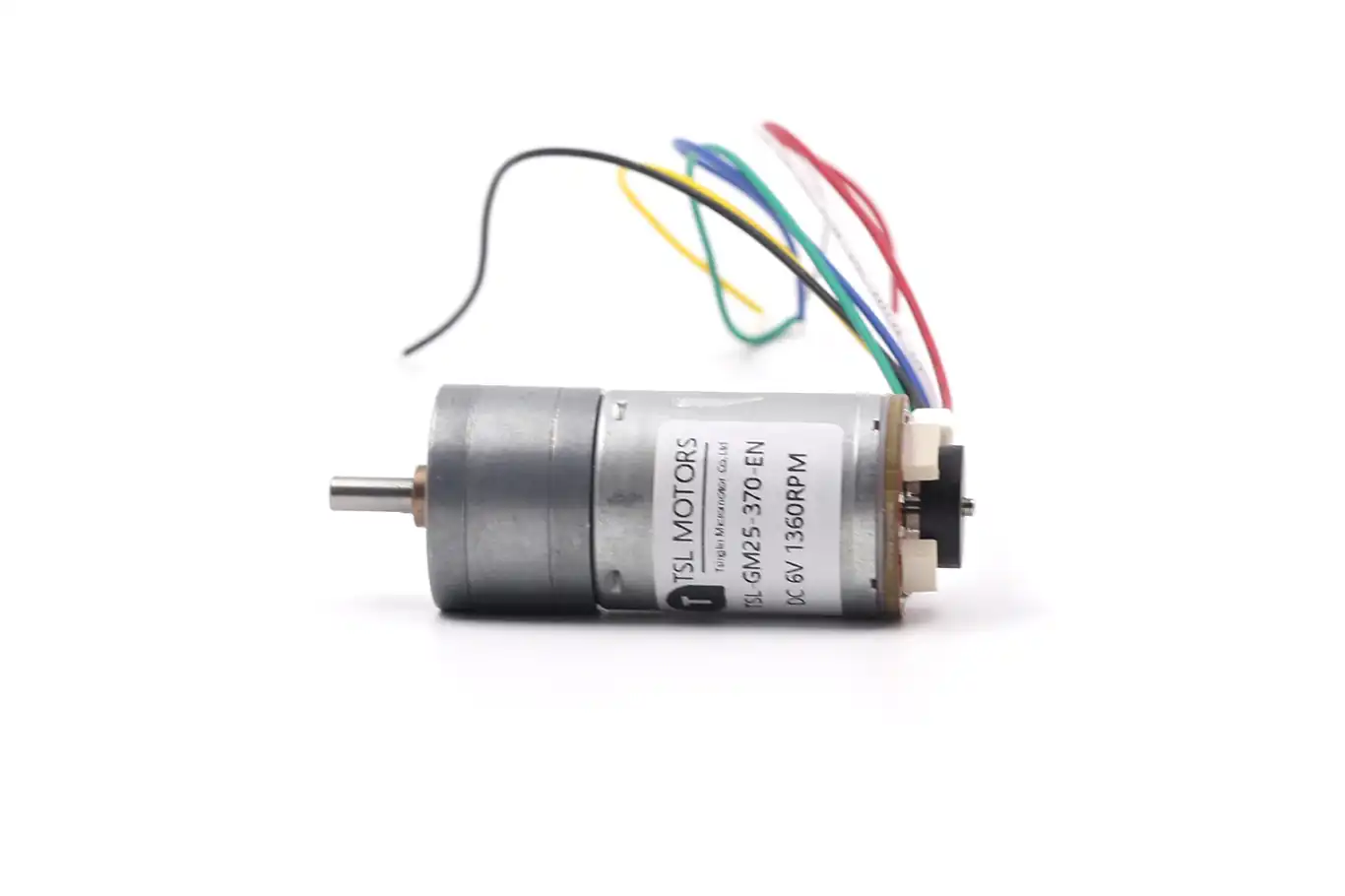

Motor With Encoder DC Gear Motor Datasheet
This small DC motor with encoder is compact and versatile. It supports multiple rated voltages: 6V, 12V, and 24V. Its no-load speed ranges from a low of 12 rpm to a fast 1,350 rpm.
The motor with encoder consumes minimal power. The no-load current is very low, between 0.07A and 0.13A. It provides an output power of up to 3W.

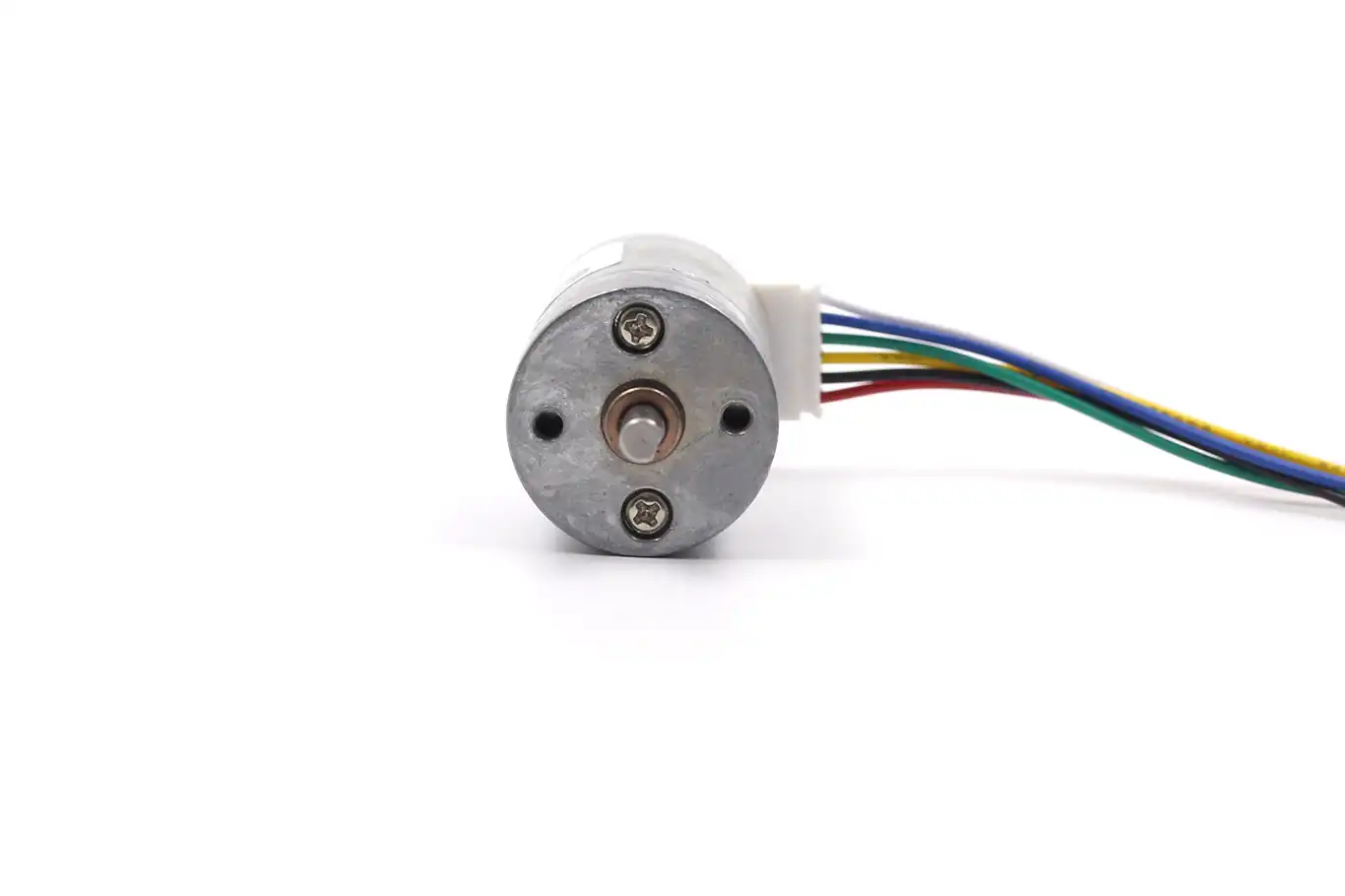

It features a 4mm diameter shaft that is 12mm long. The motor with encoder can rotate both clockwise and counter-clockwise. At only 110g, it is a lightweight component.
TSL-GM25-370-EN 6V DC, 1.6W
| Ratio | After Reduction | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | PPR | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | 48.4 | ≤0.13A | 1,350rpm | ≤0.5A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤3A | 19.0mm |
| 9.3:1 | 102.04 | ≤0.13A | 630rpm | ≤0.5A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤3A | 19.0mm |
| 20:1 | 224.52 | ≤0.13A | 300rpm | ≤0.5A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤3A | 19.0mm |
| 34:1 | 374.11 | ≤0.13A | 175rpm | ≤0.5A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤3A | 21.0mm |
| 45:1 | 493.877 | ≤0.13A | 130rpm | ≤0.5A | 100rpm | 1.8kg.cm | 6kg.cm | ≤3A | 21.0mm |
| 75:1 | 823.13 | ≤0.13A | 80rpm | ≤0.5A | 60rpm | 3kg.cm | 9kg.cm | ≤3A | 23.0mm |
| 100:1 | 1,086.58 | ≤0.13A | 60rpm | ≤0.5A | 45rpm | 4kg.cm | ≤9kg.cm | ≤3A | 23.0mm |
| 165:1 | 1,810.95 | ≤0.13A | 35rpm | ≤0.5A | 27rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 217:1 | 2,390.43 | ≤0.13A | 27rpm | ≤0.5A | 20rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 478:1 | 5,258.92 | ≤0.13A | 12rpm | ≤0.5A | 11rpm | 8kg.cm | ≤9kg.cm | ≤3A | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM25-370-EN 12V DC, 2W
| Ratio | After Reduction | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | PPR | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | 48.4 | ≤0.08A | 1,350rpm | ≤0.25A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤1.5A | 19.0mm |
| 9.3:1 | 102.04 | ≤0.08A | 630rpm | ≤0.25A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤3A | 19.0mm |
| 20:1 | 224.52 | ≤0.08A | 300rpm | ≤0.25A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤3A | 19.0mm |
| 34:1 | 374.11 | ≤0.08A | 175rpm | ≤0.25A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤3A | 21.0mm |
| 45:1 | 493.877 | ≤0.08A | 130rpm | ≤0.25A | 100rpm | 1.8kg.cm | 6kg.cm | ≤3A | 21.0mm |
| 75:1 | 823.13 | ≤0.08A | 80rpm | ≤0.25A | 60rpm | 3kg.cm | 9kg.cm | ≤3A | 23.0mm |
| 100:1 | 1,086.58 | ≤0.08A | 60rpm | ≤0.25A | 45rpm | 4kg.cm | ≤9kg.cm | ≤3A | 23.0mm |
| 165:1 | 1,810.95 | ≤0.08A | 35rpm | ≤0.25A | 27rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 217:1 | 2,390.43 | ≤0.08A | 27rpm | ≤0.25A | 20rpm | 8kg.cm | ≤9kg.cm | ≤3A | 25.0mm |
| 478:1 | 5,258.92 | ≤0.08A | 12rpm | ≤0.25A | 11rpm | 8kg.cm | ≤9kg.cm | ≤3A | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM25-370-EN 24V DC, 3W
| Ratio | After Reduction | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | PPR | Current | Speed | Current | Speed | Torque | Torque | Current | Length |
| 4.4:1 | 48.4 | ≤0.07A | 1,350rpm | ≤0.18A | 1,000rpm | 0.15kg.cm | 0.6kg.cm | ≤1A | 19.0mm |
| 9.3:1 | 102.04 | ≤0.07A | 630rpm | ≤0.18A | 480rpm | 0.35kg.cm | 1.1kg.cm | ≤1A | 19.0mm |
| 20:1 | 224.52 | ≤0.07A | 300rpm | ≤0.18A | 225rpm | 0.75kg.cm | 2.7kg.cm | ≤1A | 19.0mm |
| 34:1 | 374.11 | ≤0.07A | 175rpm | ≤0.18A | 130rpm | 1.3kg.cm | 4.5kg.cm | ≤1A | 21.0mm |
| 45:1 | 493.877 | ≤0.07A | 130rpm | ≤0.18A | 100rpm | 1.8kg.cm | 6kg.cm | ≤1A | 21.0mm |
| 75:1 | 823.13 | ≤0.07A | 80rpm | ≤0.18A | 60rpm | 3kg.cm | 9kg.cm | ≤1A | 23.0mm |
| 100:1 | 1,086.58 | ≤0.07A | 60rpm | ≤0.18A | 45rpm | 4kg.cm | ≤9kg.cm | ≤1A | 23.0mm |
| 165:1 | 1,810.95 | ≤0.07A | 35rpm | ≤0.18A | 27rpm | 8kg.cm | ≤9kg.cm | ≤1A | 25.0mm |
| 217:1 | 2,390.43 | ≤0.07A | 27rpm | ≤0.18A | 20rpm | 8kg.cm | ≤9kg.cm | ≤1A | 25.0mm |
| 478:1 | 5,258.92 | ≤0.07A | 12rpm | ≤0.18A | 11rpm | 8kg.cm | ≤9kg.cm | ≤1A | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
Smart Balancing Vehicle Application Data Sheet (High Speed, High Torque)
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 6V,Application Parameter Table
| Gear Ratio | 1：10 | 1：20 | 1：34 | 1：34 | 1：75 |
| No-Load Current（mA) | ≤60 | ≤100 | ≤130 | ≤130 | ≤130 |
| No-Load Speed（rpm) | 600 | 300 | 210 | 165 | 100 |
| Rated Torque(Kg.cm) | 0.90 | 1.80 | 5.20 | 2.90 | 7.00 |
| Rated Speed(rpm) | 310 | 160 | 110 | 90 | 55 |
| Rated Current(A) | ≤0.8 | ≤0.8 | ≤1.1 | ≤1.1 | ≤1.5 |
| Stall Current(A) | ≤2.7 | ≤2.7 | ≤3.5 | ≤3.0 | ≤3.5 |
| Stall Torque(Kg.cm) | 1.8 | 3.6 | 10.0 | 6.0 | 10.0 |
| Encoder Lines After Reduction | 102.3 | 224.5 | 341.2 | 341.2 | 823.1 |
| Gearbox Length L | 19.0 | 19.0 | 21.0 | 21.0 | 23.0 |
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 12V,Application Parameter Table
| Gear Ratio | 1:4.4 | 1:10 | 1:20 | 1：34 | 1:20 | 1:45 |
| No-Load Current（mA) | ≤200 | ≤200 | ≤200 | ≤200 | ≤130 | ≤150 |
| No-Load Speed（rpm) | 2700 | 1290 | 600 | 350 | 220 | 140 |
| Rated Torque(Kg.cm) | 0.8 | 1.7 | 3.5 | 5.8 | 2.9 | 4.3 |
| Rated Speed(rpm) | 1600 | 700 | 350 | 180 | 130 | 70 |
| Rated Current(A) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.7 | ≤1.0 | ≤0.8 |
| Stall Current(A) | ≤5.6 | ≤5.6 | ≤5.6 | ≤5.6 | ≤2.5 | ≤2.5 |
| Stall Torque(Kg.cm) | 1.8 | 3.5 | 7.0 | 12.0 | 5.0 | 8.5 |
| Encoder Lines After Reduction | 44 | 102.3 | 224.5 | 341.2 | 224.5 | 493.9 |
| Gearbox Length L | 19.0 | 19.0 | 19.0 | 21.0 | 19.0 | 21.0 |
TSL-GM25-370-EN，Hall Encoder Geared Motor，DC 24V,Application Parameter Table
| Gear Ratio | 1:4.4 | 1:10 | 1:20 | 1：34 | 1:45 | 1:24 |
| No-Load Current（mA) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤100 |
| No-Load Speed（rpm) | 2700 | 1290 | 600 | 350 | 220 | 180 |
| Rated Torque(Kg.cm) | 0.6 | 1.4 | 2.8 | 5.0 | 6.5 | 3.0 |
| Rated Speed(rpm) | 1200 | 580 | 300 | 170 | 130 | 110 |
| Rated Current(A) | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤2.4 | ≤1.3 |
| Stall Current(A) | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤2.5 |
| Stall Torque(Kg.cm) | 1.0 | 2.2 | 4.5 | 8.0 | 10.0 | 6.0 |
| Encoder Lines After Reduction | 44 | 102.3 | 224.5 | 341.2 | 493.9 | 341.2 |
| Gearbox Length L | 19.0 | 19.0 | 19.0 | 21.0 | 21.0 | 21.0 |

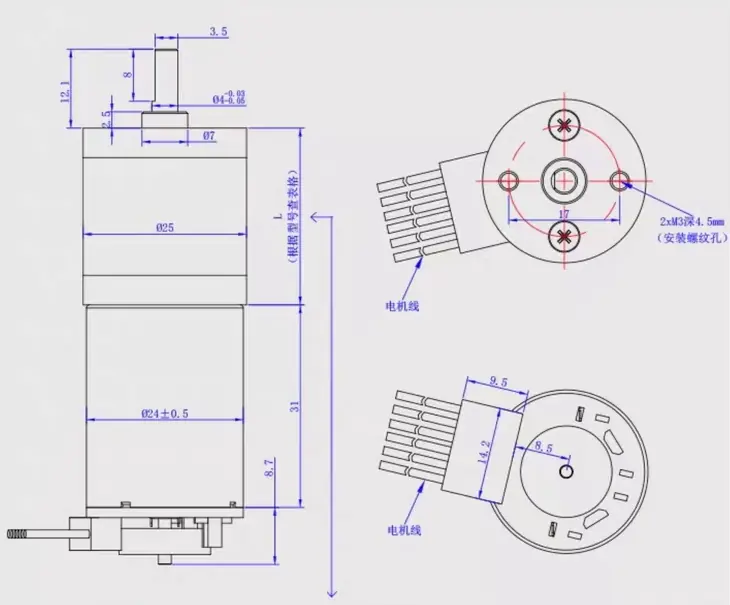

DC Motor With Encoder Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

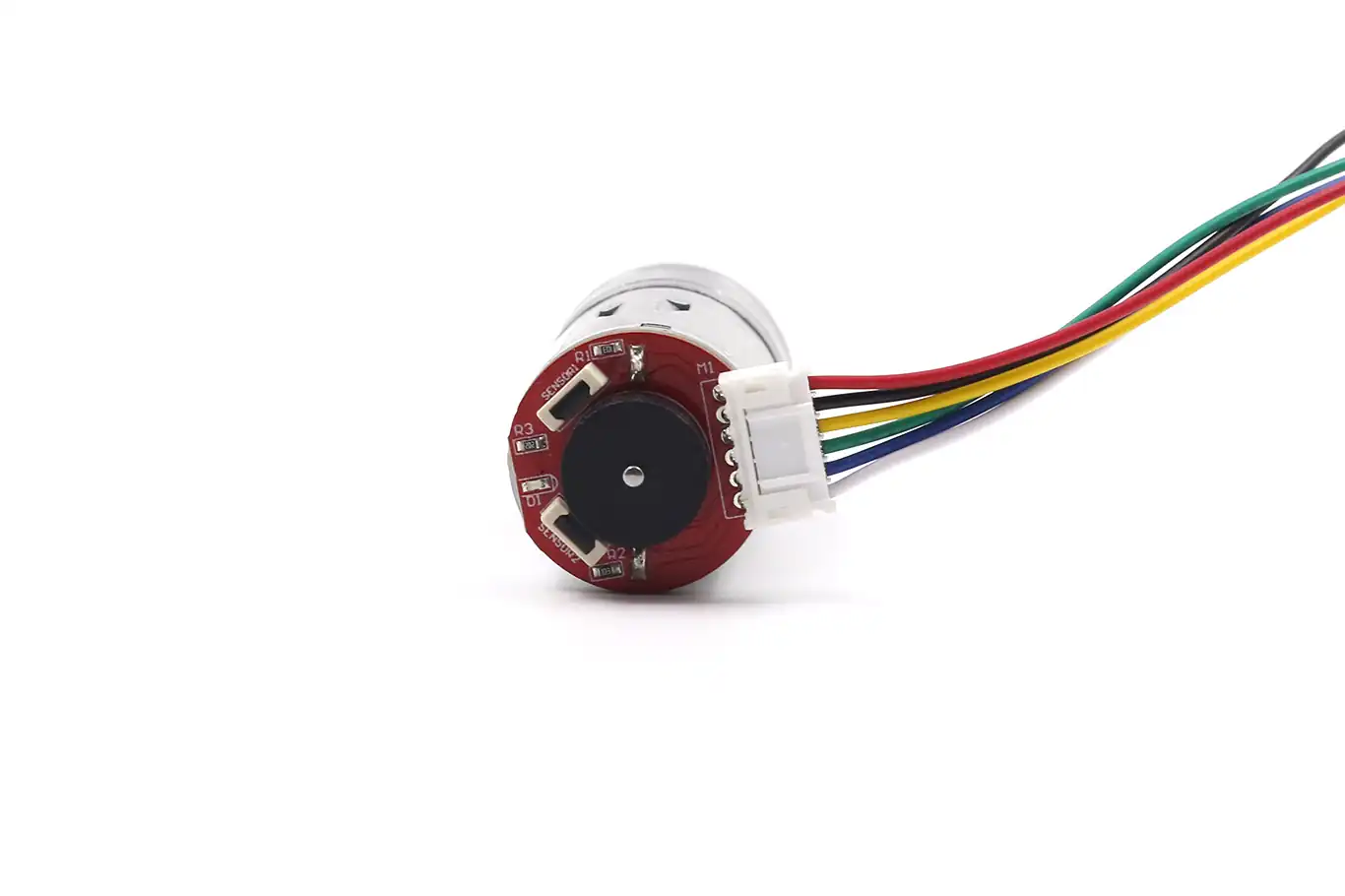

Small Noise DC Gear Motor with Encoder Data
| Encoder Type | AB Dual-phase incremental magnetic Hall encoder |
| Line Speed | Basic Pulse11PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5.0V DC |
| Basic Skills | Built-In Pull-Up Shaping Resistor, Directly Connected To The Microcontroller |
| Interface Type | PH2.0 (Standard Connecting Cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100Khz |
| Basic Pulse Number | 11 PPR |
| Number Of Magnetic Ring Trigger Poles | 22 Poles (11 Pairs Of Poles) |

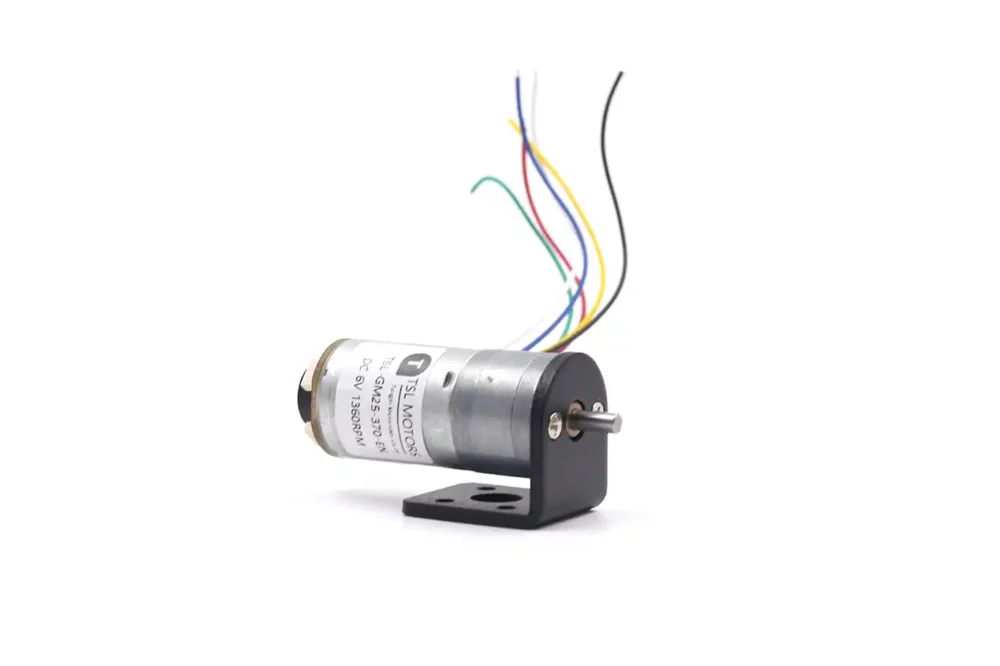

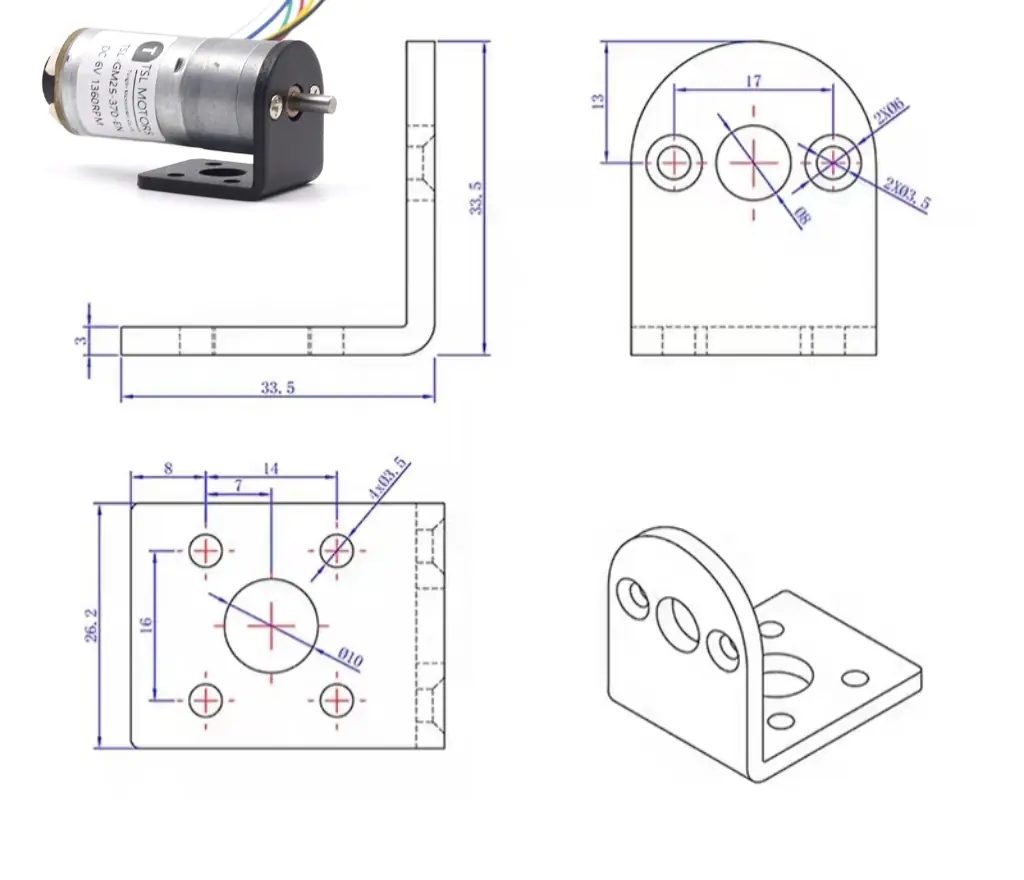

25mm Gearbox Motor With Encoder Mounting Bracket
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
