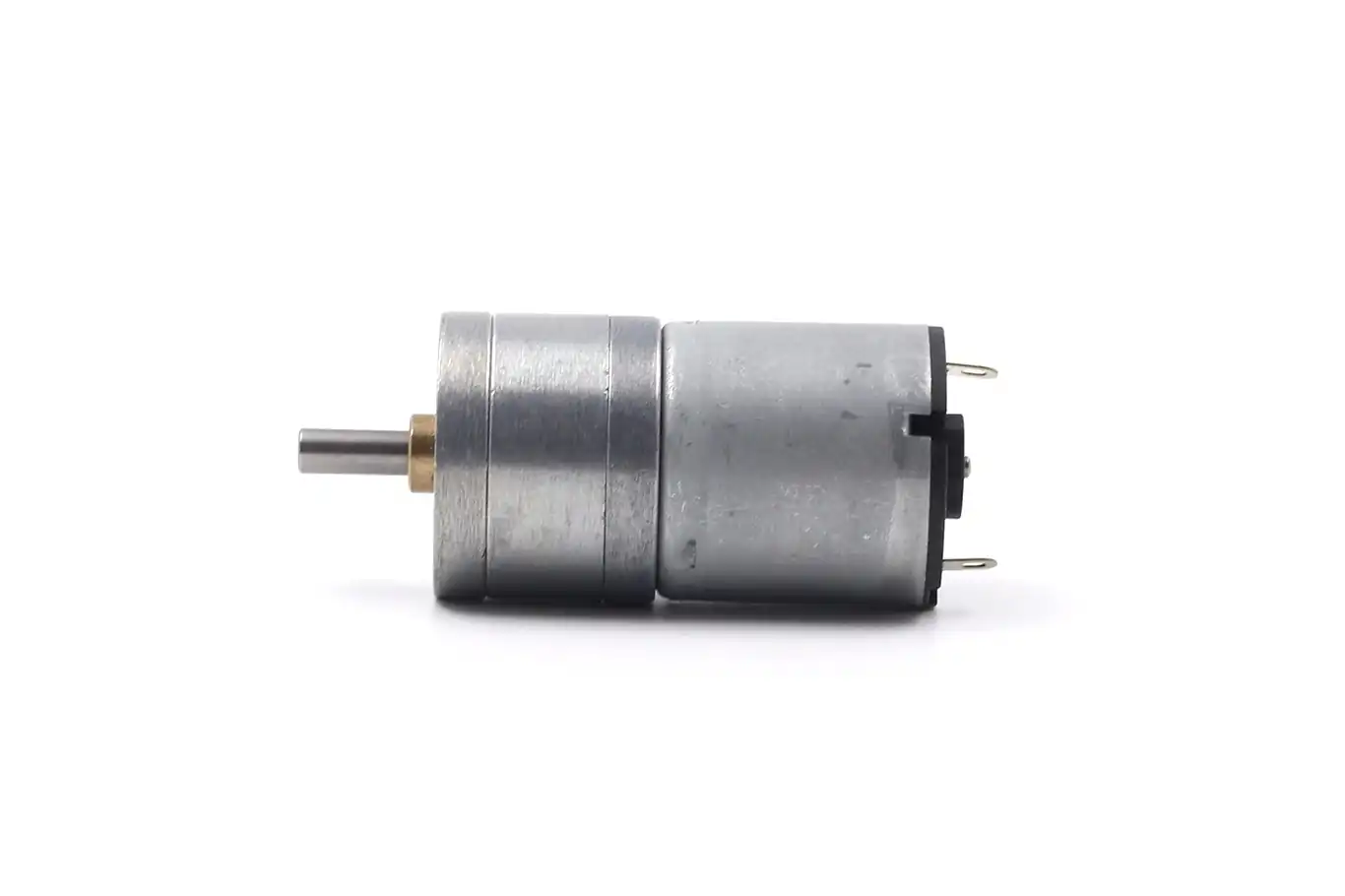

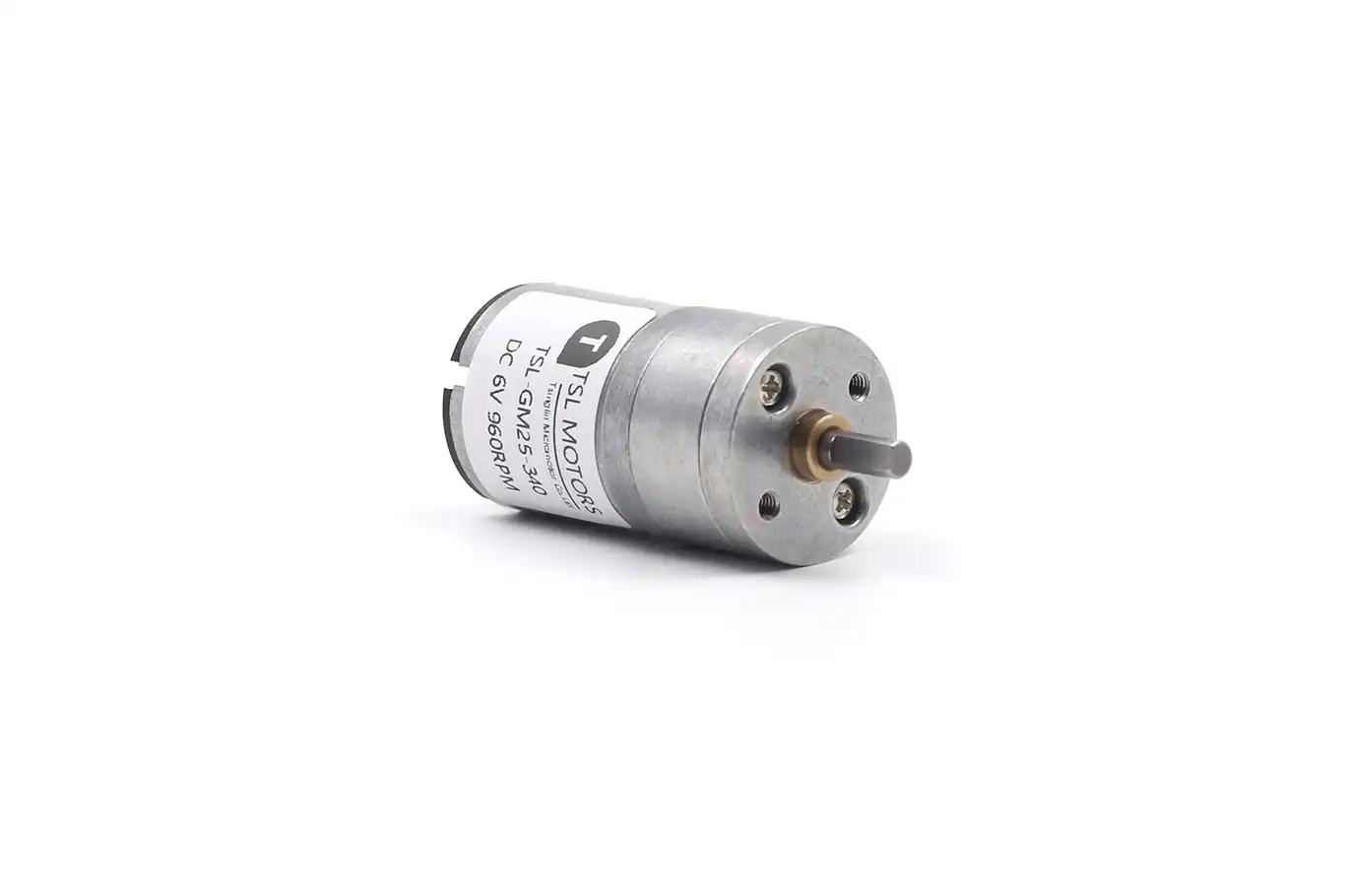

25mm Metal Gear Motor Model TSL-GM25-340
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM25-340
- Rated voltage:6V DC
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- Smart self-balancing two-wheeled vehicle
- smart line-following car, smart home appliances
- robot, camera jib, electric tape dispenser.
Motor With Gear Reduction Datasheet
The motor with gear reduction TSL-GM25-340 motor boasts an all-metal gearbox. This design enhances wear resistance. It also significantly improves rust resistance. These features work together to extend the motor’s service life.

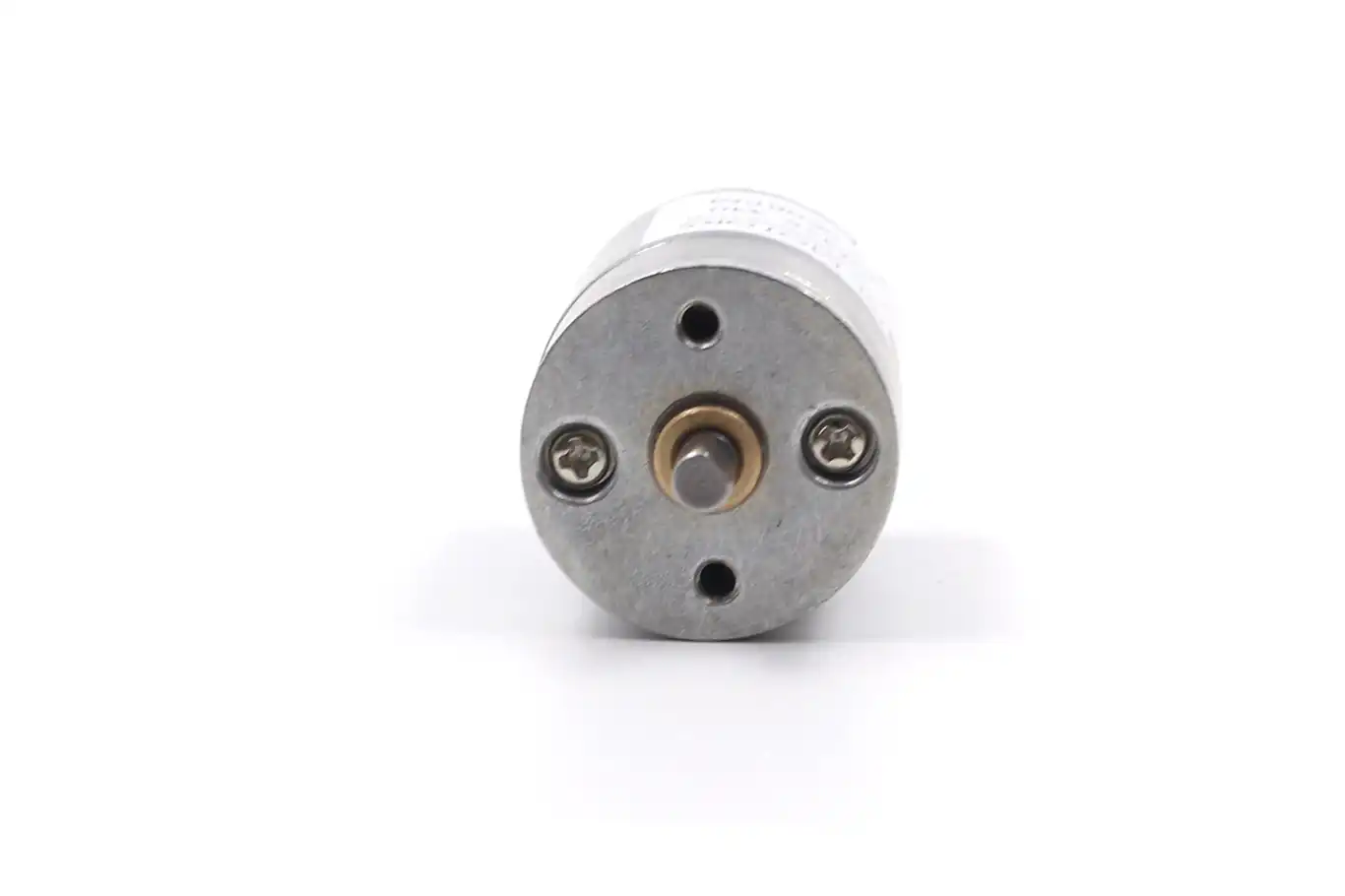

Durability is key. The gears are all-metal. They provide anti-slip performance. This ensures long-lasting operation. The motor with gear reduction output shaft is a flat D-type. This design offers a secure connection.

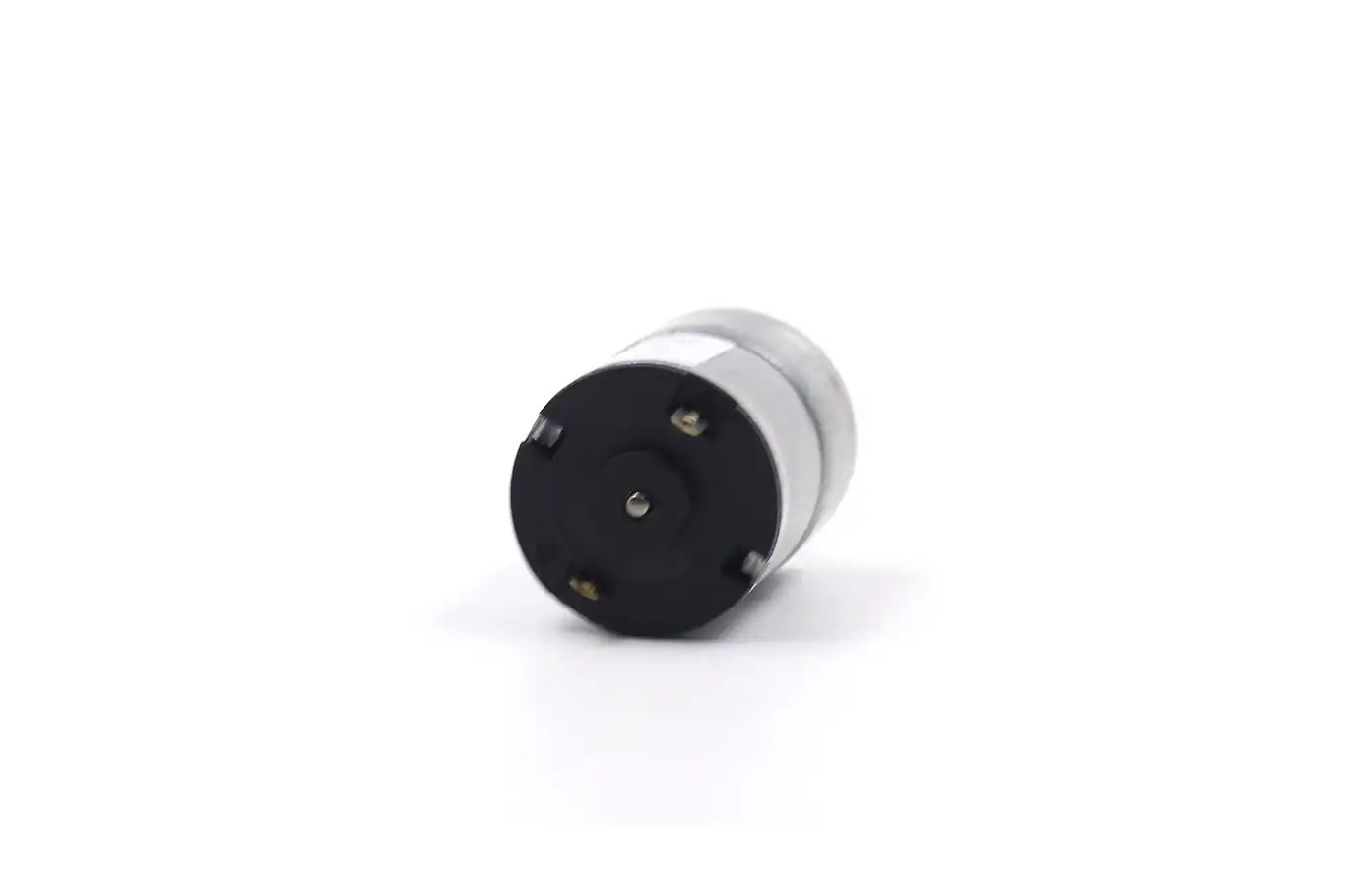

Wiring is simple. For forward rotation, connect the red dot or “+” terminal to positive. The other terminal connects to negative. To reverse direction, simply switch the power supply’s positive and negative connections.
| Ratio | No Load | Rated Load | Stall | Gearbox | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque | Length |
| 4.4:1 | ≤0.13A | 2,045rpm | ≤0.65A | 1,450rpm | 0.07kg.cm | ≤3.5A | 0.3kg.cm | 19.0mm |
| 9.3:1 | ≤0.13A | 960rpm | ≤0.65A | 700rpm | 0.14kg.cm | ≤3.5A | 0.75kg.cm | 19.0mm |
| 20:1 | ≤0.13A | 450rpm | ≤0.65A | 350rpm | 0.25kg.cm | ≤3.5A | 1.5kg.cm | 19.0mm |
| 34:1 | ≤0.13A | 264rpm | ≤0.65A | 190rpm | 0.5kg.cm | ≤3.5A | 3kg.cm | 21.0mm |
| 45:1 | ≤0.13A | 200rpm | ≤0.65A | 140rpm | 0.65kg.cm | ≤3.5A | 4kg.cm | 21.0mm |
| 57:1 | ≤0.13A | 157rpm | ≤0.65A | 110rpm | 0.8kg.cm | ≤3.5A | 5kg.cm | 21.0mm |
| 75:1 | ≤0.13A | 120rpm | ≤0.65A | 72rpm | 1.3kg.cm | ≤3.5A | 7kg.cm | 23.0mm |
| 100:1 | ≤0.13A | 90rpm | ≤0.65A | 65rpm | 1.5kg.cm | ≤3.5A | ≥9kg.cm | 23.0mm |
| 217:1 | ≤0.13A | 41rpm | ≤0.65A | 30rpm | 3.1kg.cm | ≤3.5A | ≥9kg.cm | 25.0mm |
| 478:1 | ≤0.13A | 18rpm | ≤0.65A | 14rpm | 6.5kg.cm | ≤3.5A | ≥9kg.cm | 27.0mm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

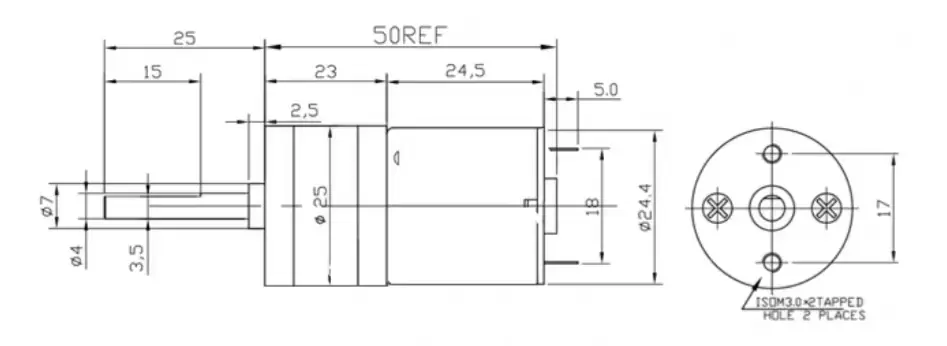

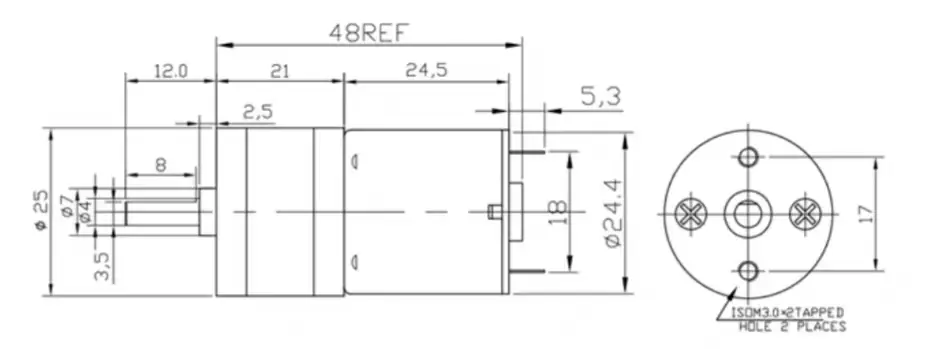

DC Motor With Gear Reduction Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

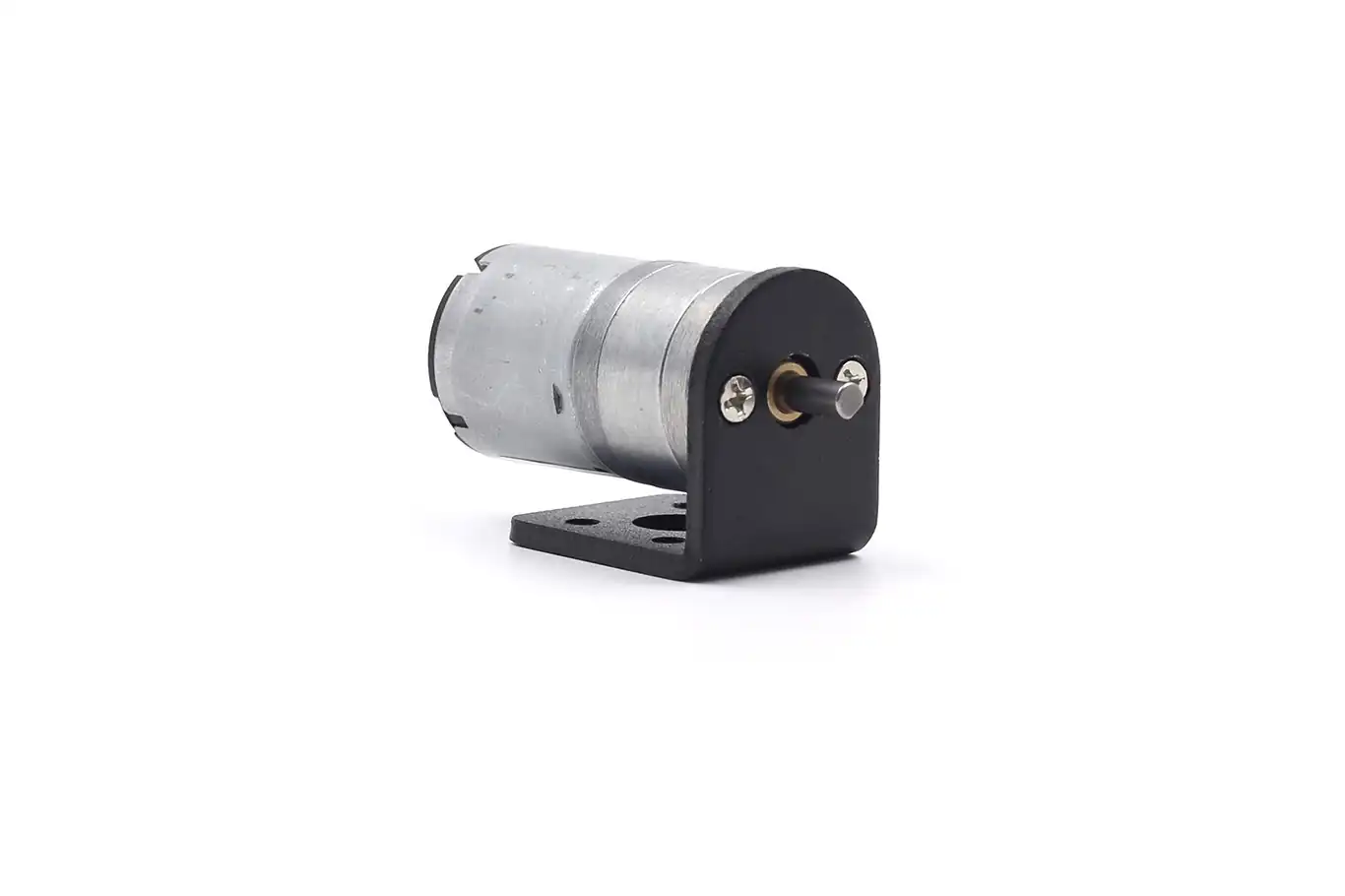

25mm Gearbox Motor With Gear Reduction Mounting Bracket
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
motor with gear reduction,high torque geared dc motor,dc gearmotors,hobby electric motor gears,hobby motors and gears
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
