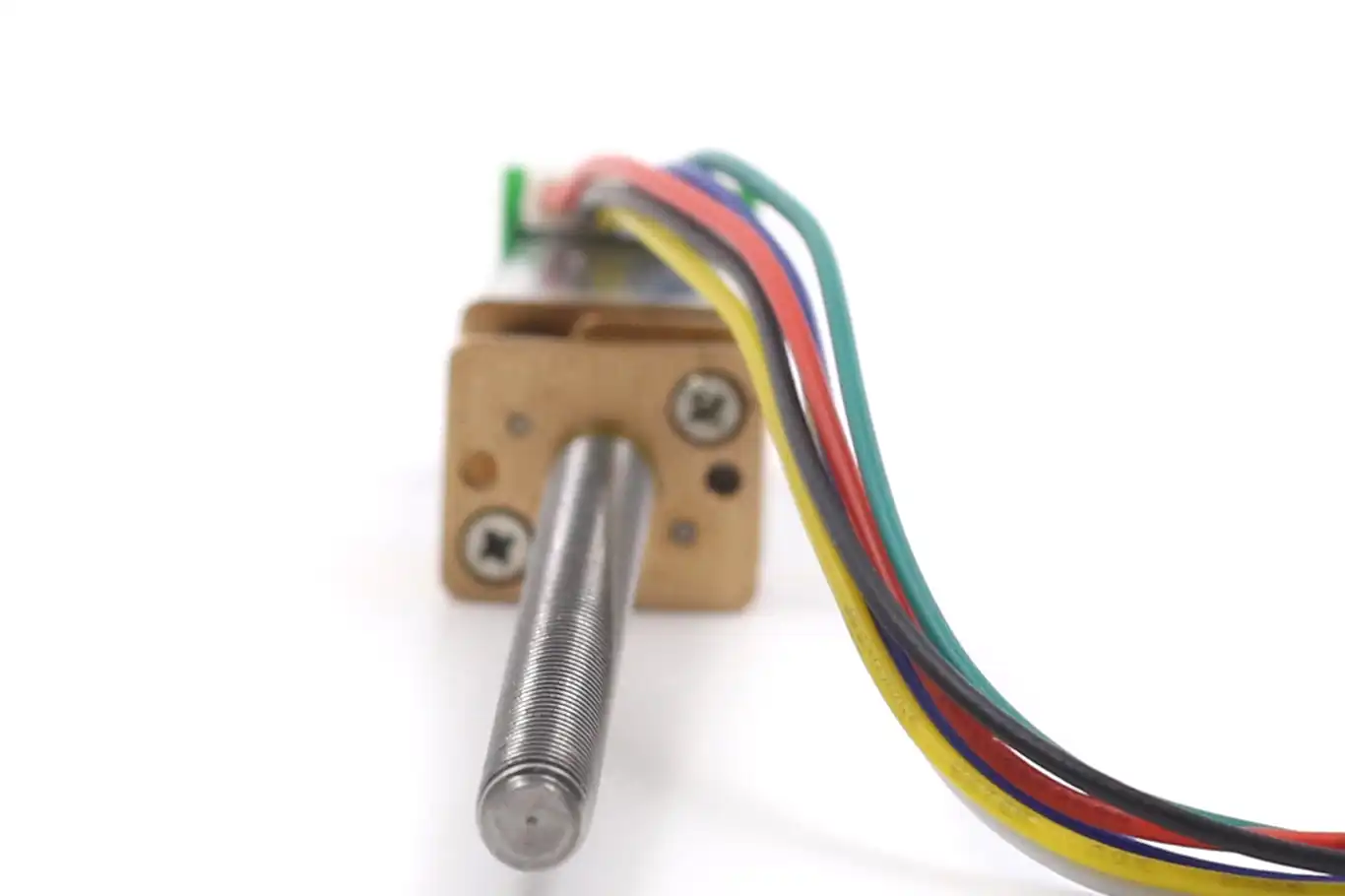

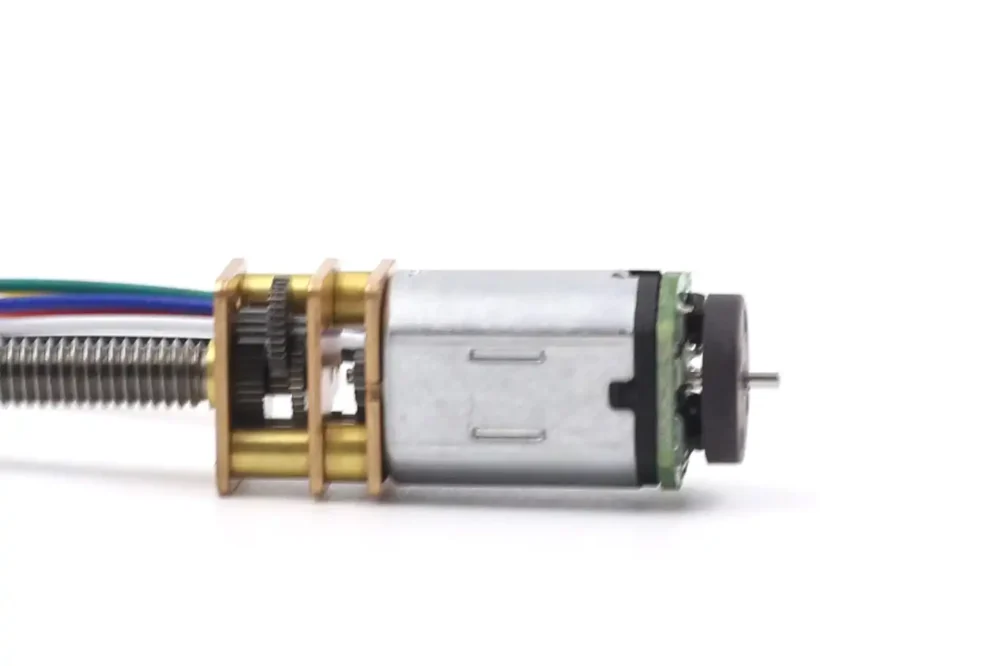

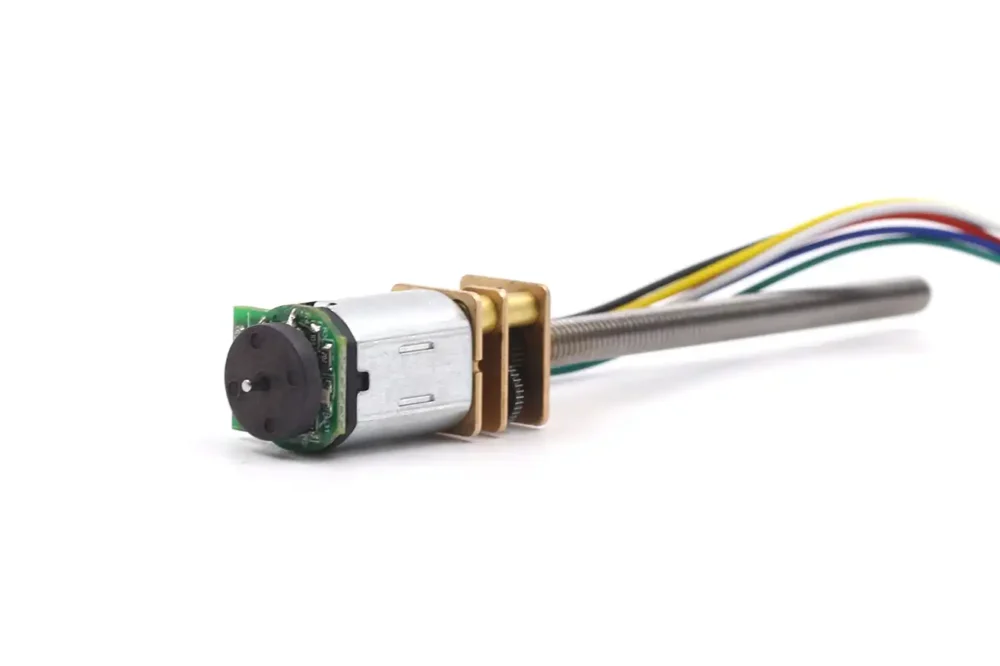

12mm Metal Gear Motor Model TSL-GM12-N20VA-M4-EN
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM12-N20VA-M4-EN
- Voltage range:DC 3-12V
- Wiring specification:ZH1.25-6PIN terminal connector
- Encoder specifications:AB dual phase encoder 3 line basic signal voltage 3.3V or 5.0V
- Speed Rpm:58-2200 rpm
- #More Specifications
♦ Typical Applications:
- Intelligent robot, intelligent manipulator
- intelligent furniture
- Intelligent focusing system, miniature head
DC Motor With Gearbox & Encoder Parameters
This is a DC Motor With Gearbox. It offers high torque output. This makes it perfect for demanding robotics and automation tasks. The durable build features a metal gearbox.
This ensures long-lasting performance. You get precise control thanks to an integrated encoder. The encoder provides accurate speed and position feedback. Its compact design has a 12mm diameter.
This allows for easy integration into tight spaces. The motor is versatile. It suits many industrial, robotics, and automation projects. It delivers both strength and precision.
TSL-GM12-N20VA-M4-EN, 3V DC, Max Power: 0.1W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 10 | 780 rpm | ≤45mA | 450 rpm | ≤0.1A | 0.03 kg.cm | 0.08 kg.cm | 0.3A |
| 20 | 400 rpm | ≤45mA | 230 rpm | ≤0.1A | 0.06 kg.cm | 0.16 kg.cm | 0.3A |
| 30 | 265 rpm | ≤45mA | 150 rpm | ≤0.1A | 0.1 kg.cm | 0.23 kg.cm | 0.3A |
| 50 | 155 rpm | ≤45mA | 90 rpm | ≤0.1A | 0.17 kg.cm | 0.4 kg.cm | 0.3A |
| 100 | 77 rpm | ≤45mA | 45 rpm | ≤0.1A | 0.35 kg.cm | 0.75 kg.cm | 0.3A |
| 150 | 52 rpm | ≤45mA | 30 rpm | ≤0.1A | 0.5 kg.cm | 1.1 kg.cm | 0.3A |
| 210 | 37 rpm | ≤45mA | 21 rpm | ≤0.1A | 0.7 kg.cm | 1.5 kg.cm | 0.3A |
| 298 | 26 rpm | ≤45mA | 15 rpm | ≤0.1A | 1 kg.cm | 2.8 kg.cm | 0.3A |
| 380 | 20 rpm | ≤45mA | 12 rpm | ≤0.1A | 1.2 kg.cm | 3.5 kg.cm | 0.3A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N20VA-M4-EN, 6V DC, Max Power: 0.45W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 10 | 1550 rpm | ≤60mA | 900 rpm | ≤0.17A | 0.07 kg.cm | 0.16 kg.cm | 0.6A |
| 20 | 800 rpm | ≤60mA | 460 rpm | ≤0.17A | 0.14 kg.cm | 0.3 kg.cm | 0.6A |
| 30 | 530 rpm | ≤60mA | 300 rpm | ≤0.17A | 0.2 kg.cm | 0.5 kg.cm | 0.6A |
| 50 | 310 rpm | ≤60mA | 180 rpm | ≤0.17A | 0.35 kg.cm | 0.8 kg.cm | 0.6A |
| 100 | 155 rpm | ≤60mA | 90 rpm | ≤0.17A | 0.7 kg.cm | 1.5 kg.cm | 0.6A |
| 150 | 105 rpm | ≤60mA | 60 rpm | ≤0.17A | 1 kg.cm | 2.2 kg.cm | 0.6A |
| 210 | 75 rpm | ≤60mA | 42 rpm | ≤0.17A | 1.4 kg.cm | 2.8 kg.cm | 0.6A |
| 298 | 52 rpm | ≤60mA | 30 rpm | ≤0.17A | 2 kg.cm | 3 kg.cm | 0.6A |
| 380 | 41 rpm | ≤60mA | 24 rpm | ≤0.17A | 2.5 kg.cm | 4 kg.cm | 0.6A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N20VA-M4-EN,6V DC, Max Power: 0.2W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 10 | 1000 rpm | ≤45mA | 700 rpm | ≤0.1A | 0.05 kg.cm | 0.07 kg.cm | 0.2A |
| 20 | 500 rpm | ≤45mA | 350 rpm | ≤0.1A | 0.09 kg.cm | 0.12 kg.cm | 0.2A |
| 30 | 330 rpm | ≤45mA | 200 rpm | ≤0.1A | 0.12 kg.cm | 0.2 kg.cm | 0.2A |
| 50 | 200 rpm | ≤45mA | 120 rpm | ≤0.1A | 0.2 kg.cm | 0.32 kg.cm | 0.2A |
| 100 | 100 rpm | ≤45mA | 65 rpm | ≤0.1A | 0.4 kg.cm | 0.7 kg.cm | 0.2A |
| 150 | 65 rpm | ≤45mA | 45 rpm | ≤0.1A | 0.6 kg.cm | 0.9 kg.cm | 0.2A |
| 210 | 47 rpm | ≤45mA | 30 rpm | ≤0.1A | 0.8 kg.cm | 1.2 kg.cm | 0.2A |
| 298 | 33 rpm | ≤45mA | 20 rpm | ≤0.1A | 1.15 kg.cm | 1.5 kg.cm | 0.2A |
| 380 | 26 rpm | ≤45mA | 17 rpm | ≤0.1A | 1.5 kg.cm | 2 kg.cm | 0.2A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM12-N20VA-M4-EN,12V DC, Max Power: 0.9W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 10 | 2200 rpm | ≤60mA | 1000 rpm | ≤0.22A | 0.1 kg.cm | 0.15 kg.cm | 0.4A |
| 20 | 1100 rpm | ≤60mA | 500 rpm | ≤0.22A | 0.15 kg.cm | 0.28 kg.cm | 0.4A |
| 30 | 730 rpm | ≤60mA | 380 rpm | ≤0.22A | 0.2 kg.cm | 0.4 kg.cm | 0.4A |
| 50 | 440 rpm | ≤60mA | 230 rpm | ≤0.22A | 0.4 kg.cm | 0.65 kg.cm | 0.4A |
| 100 | 220 rpm | ≤60mA | 130 rpm | ≤0.22A | 0.8 kg.cm | 1.3 kg.cm | 0.4A |
| 150 | 145 rpm | ≤60mA | 85 rpm | ≤0.22A | 1.2 kg.cm | 1.9 kg.cm | 0.4A |
| 210 | 105 rpm | ≤60mA | 60 rpm | ≤0.22A | 1.6 kg.cm | 2.5 kg.cm | 0.4A |
| 298 | 73 rpm | ≤60mA | 42 rpm | ≤0.22A | 2.3 kg.cm | 3 kg.cm | 0.4A |
| 380 | 58 rpm | ≤60mA | 34 rpm | ≤0.22A | 3 kg.cm | 4 kg.cm | 0.4A |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
DC Motor With Gearbox Gear Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

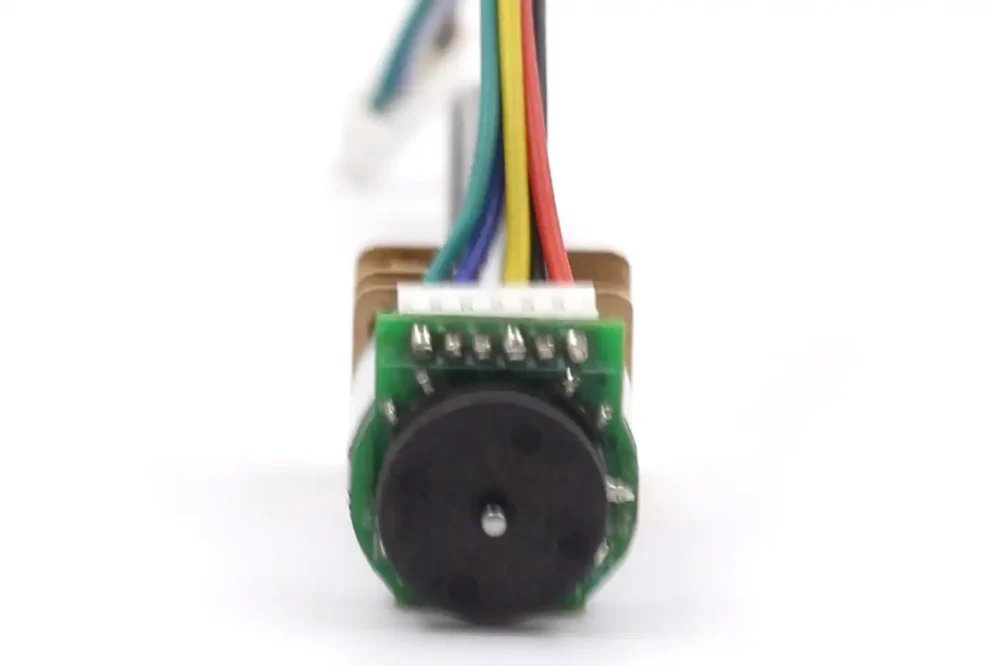

M4 Threaded Shaft DC Motor With Gearbox Encoder Wiring Tips
The dc motor with gearbox is remarkably efficient despite its small size. It draws low current while still delivering optimal performance. This makes it an excellent choice for battery-operated devices. It’s also perfect for any system where energy conservation is critical.
| Type | AB dual phase increme ntal enc oder |
| pulse outputs of rotation: | Basic pulse 3PPRX gear reduction ratio |
| Holzer power supply voltage: | DC 3.3V/DC 5.0V |
| Basic function: | With the pull-up shaping resistor,the singlechip microcomputer can be used |
| Encoder Interface type | ZH1.25mm-6PlN (standard wiring) |
| Output signal type: | Square wave AB phase |
| Response frequency: | 100KHz |
| Basic pulse number. | 3PPR |
| Number of trigger polesof magnetic ring: | 6 poles (3 pairs of poles ) |
