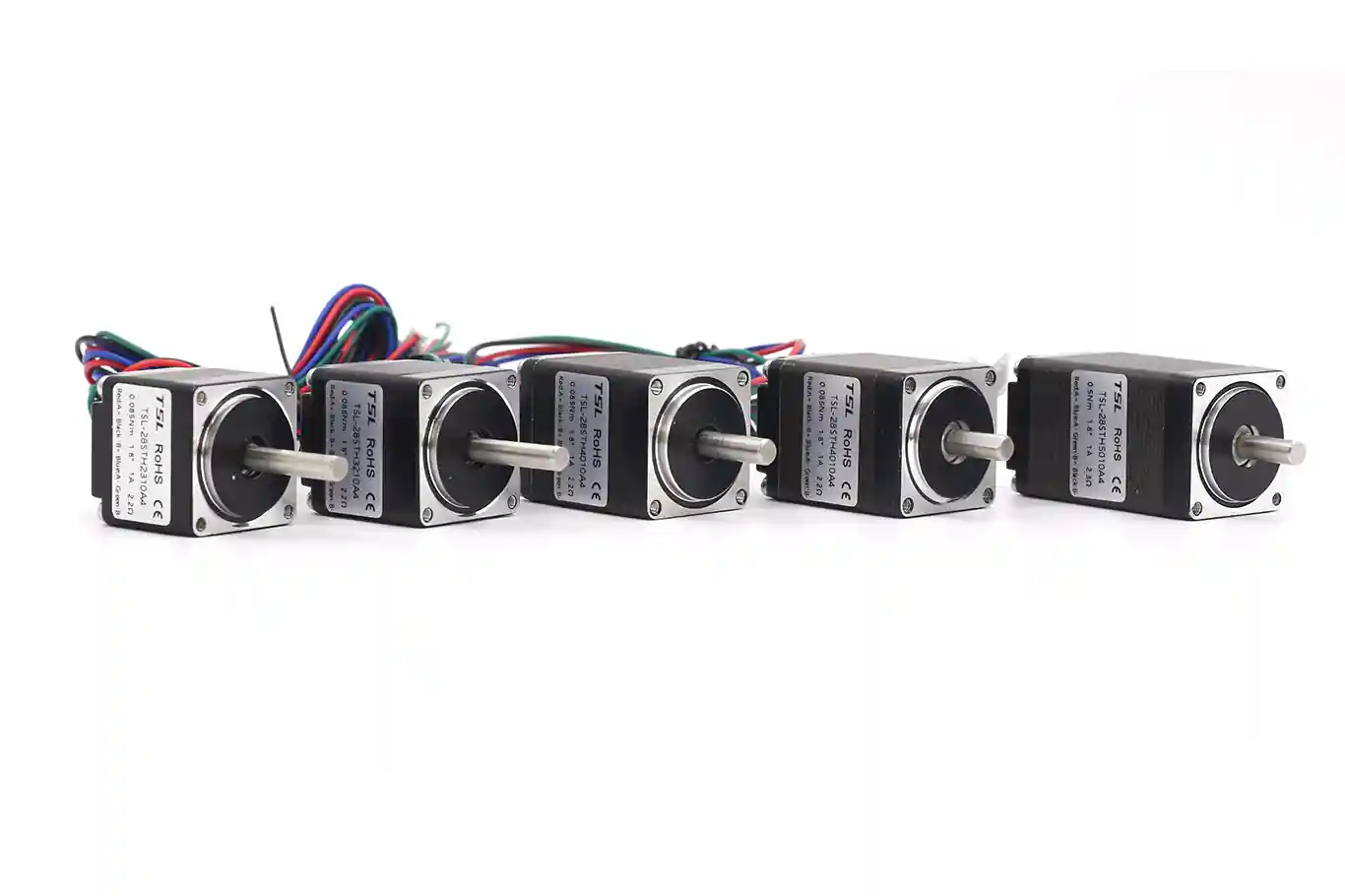

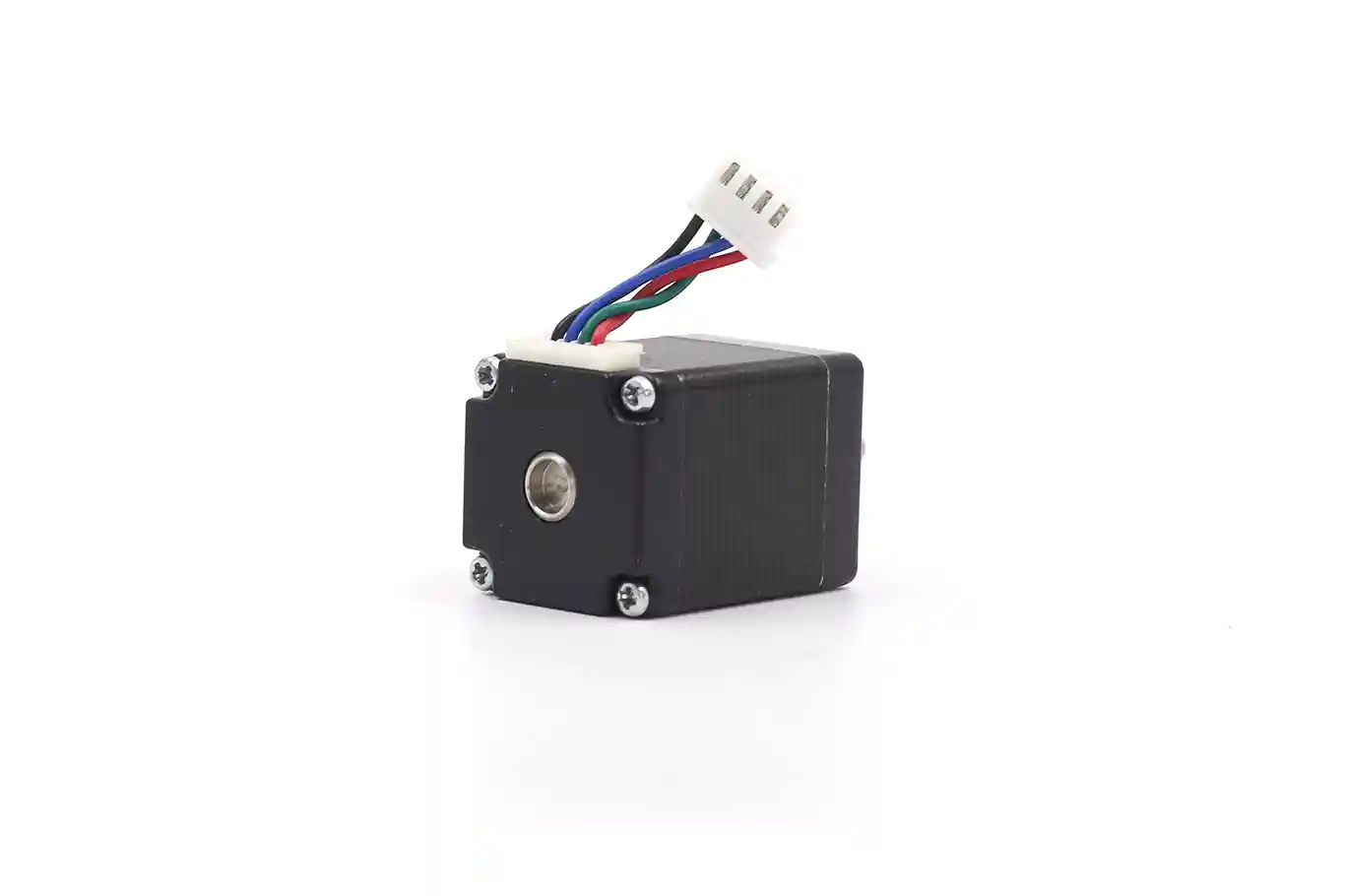

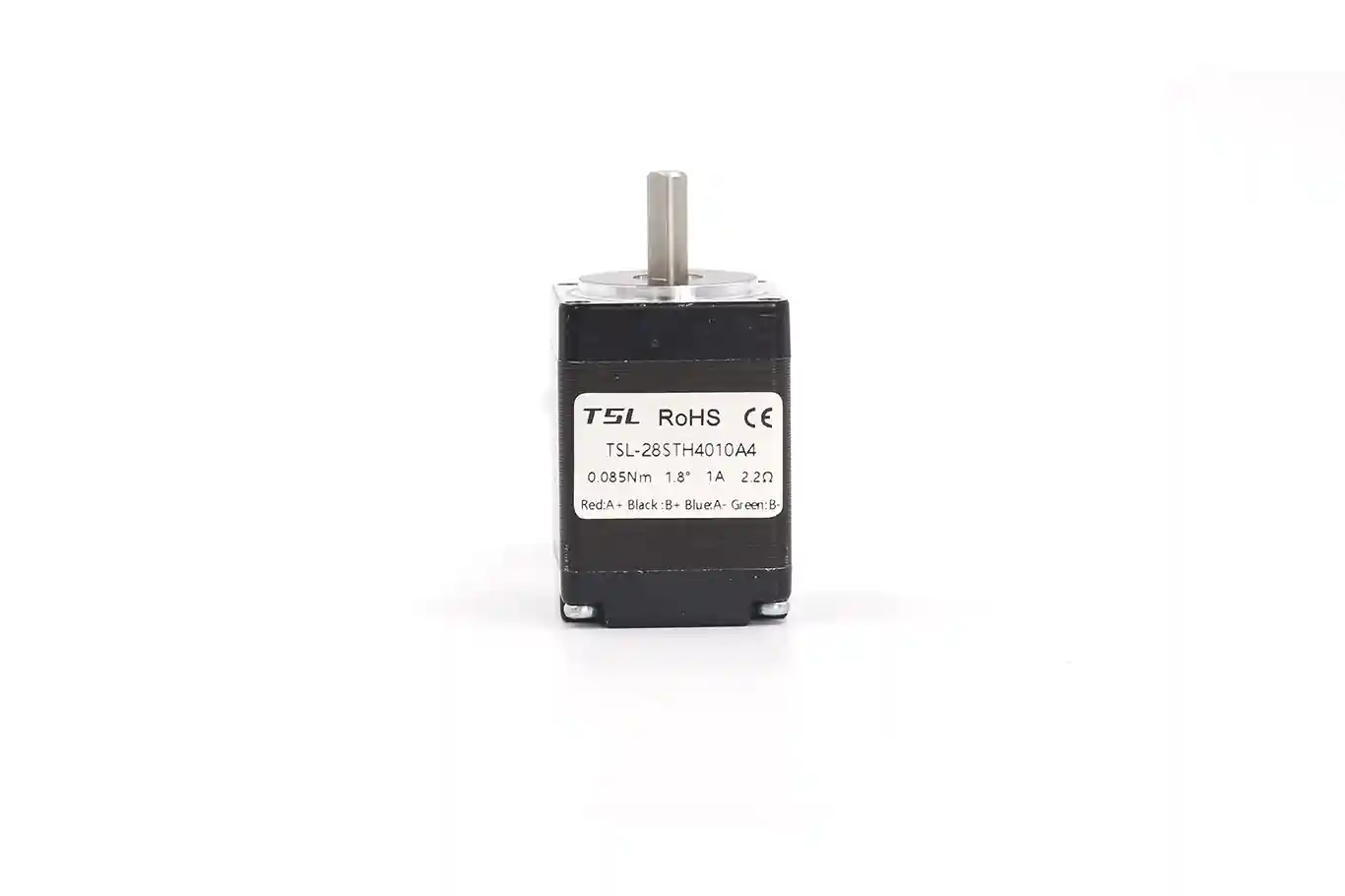

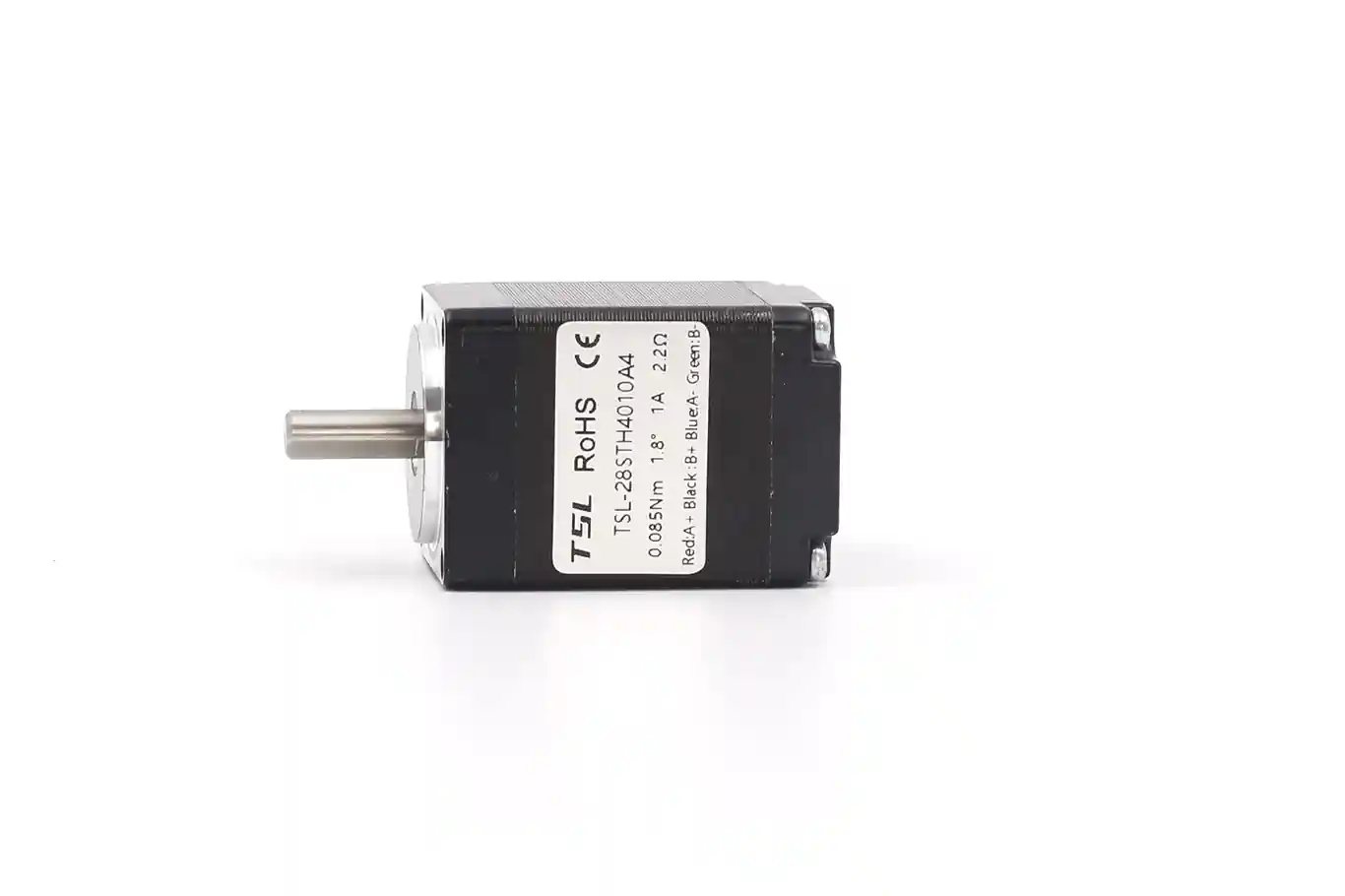

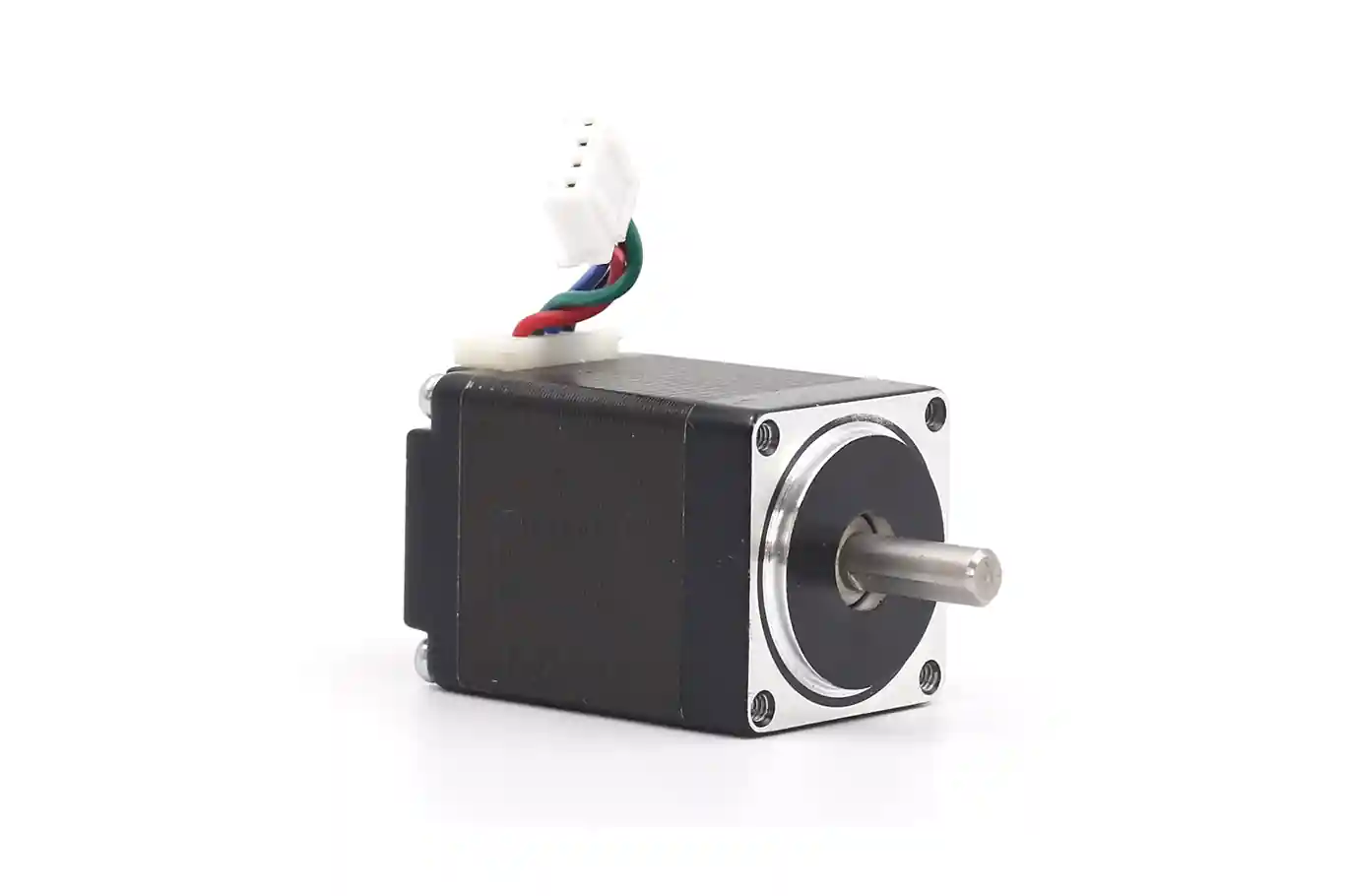

NEMA 11 (28mm) Hybrid Stepper Motor 1.8° Solid Single Shaft TSL‑28STH4010A4
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-28STH4010A4
- Motor Size:NEMA 11(28mm)
- Motor Length:23mm/28mm/32mm/33mm/34mm/40mm/Customizable
- Phase:2 Phase
- Step Angel:1.8° Step Angle
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- 3D Printing Technology
- Industrial Control (CNC, Automatic Milling Machines, Textile Machinery)
- Computer Peripheral Devices
- Packaging Machines
NEMA 11 Stepper Motor TSL-28STH Series Datasheet
The TSL‑28STH4010A4 is a compact nema 11stepper motor designed for precise and stable motion control. Its 1.8° step angle and solid single‑shaft structure ensure smooth operation and reliable positioning in limited‑space applications.
With a balanced torque‑to‑size ratio, this nema 11 stepper motor performs well in medical devices, optical systems, 3D printers, and micro‑automation equipment. It offers consistent accuracy, low vibration, and dependable long‑term performance for demanding OEM projects.

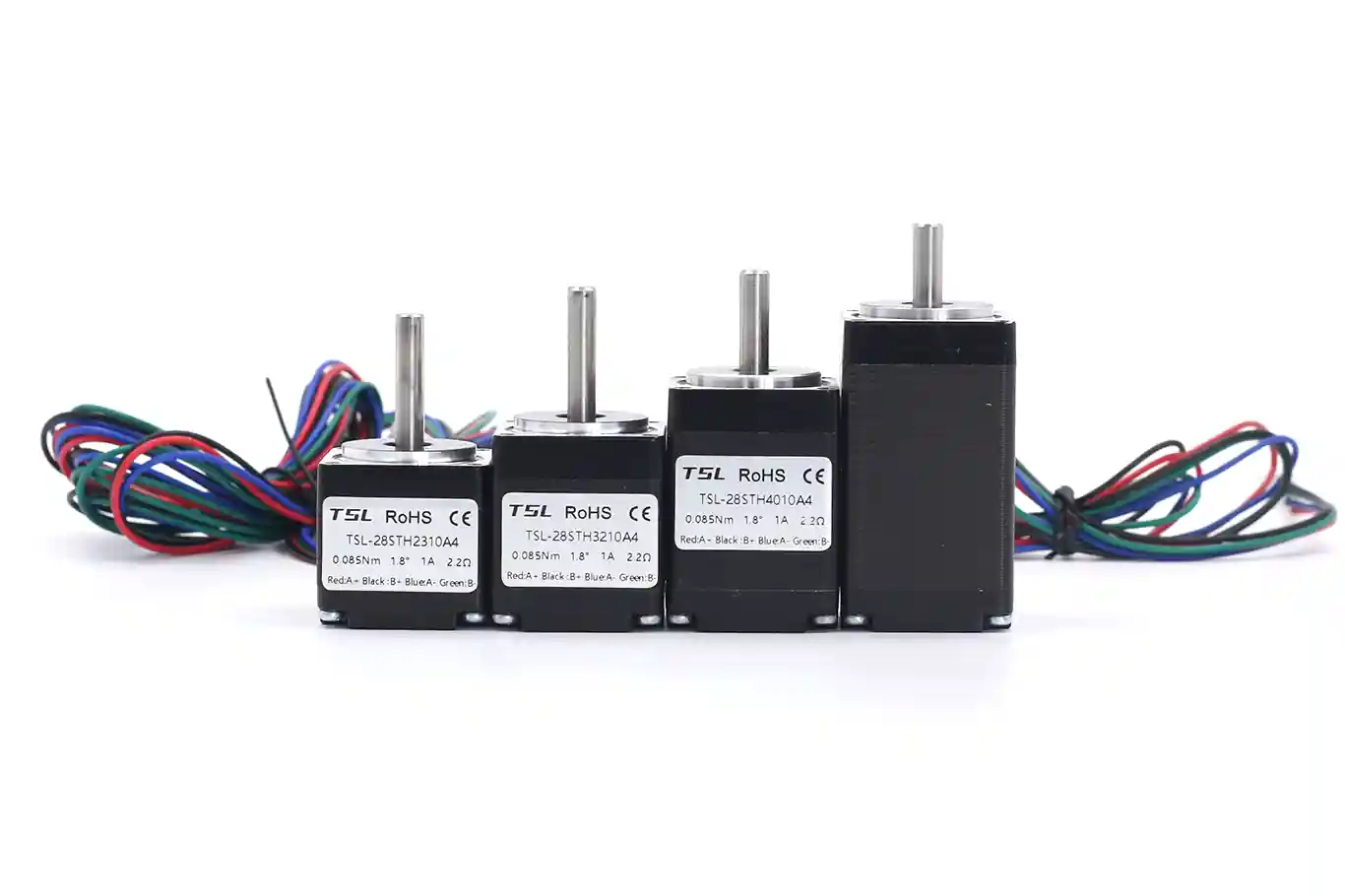

While this page highlights the TSL-28STH4010A4 (40mm body length), our NEMA 11 hybrid series offers a range of motor lengths (L) from 23mm to 50mm. All models in this series share the high-precision 1.8° step angle and robust hybrid construction. Refer to the specifications table below for the full performance range of the TSL-28STH Series.
| Motor Model | Step Angle | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Detent Torque | Rotor Inertia | Motor Length | Lead Wire | Motor Weight |
| ° | A | Ω | mH | N.m | N.m | g.cm² | mm | No. | g | |
| TSL-28STH2806A4 | 1.8 | 0.6 | 4.2 | 2.2 | 0.045 | 0.3 | 6 | 28 | 4 | 105 |
| TSL-28STH2803A4 | 1.8 | 0.35 | 12 | 5.8 | 0.045 | 0.3 | 6 | 28 | 4 | 105 |
| TSL-28STH3306A4 | 1.8 | 0.6 | 5.5 | 3.2 | 0.06 | 0.4 | 8 | 33 | 4 | 110 |
| TSL-28STH3303A4 | 1.8 | 0.35 | 15 | 9.2 | 0.06 | 0.4 | 8 | 33 | 4 | 110 |
| TSL-28STH4106A4 | 1.8 | 0.6 | 7 | 6 | 0.06 | 0.5 | 11 | 41 | 4 | 140 |
| TSL-28STH4103A4 | 1.8 | 0.35 | 20 | 15 | 0.06 | 0.5 | 11 | 41 | 4 | 140 |
| TSL-28STH5006A4 | 1.8 | 0.6 | 9 | 7.2 | 0.1 | 0.8 | 13 | 50 | 4 | 180 |
| TSL-28STH5003A4 | 1.8 | 0.35 | 24 | 18.5 | 0.1 | 0.8 | 13 | 50 | 4 | 180 |
💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
💕The nema 11 stepper motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

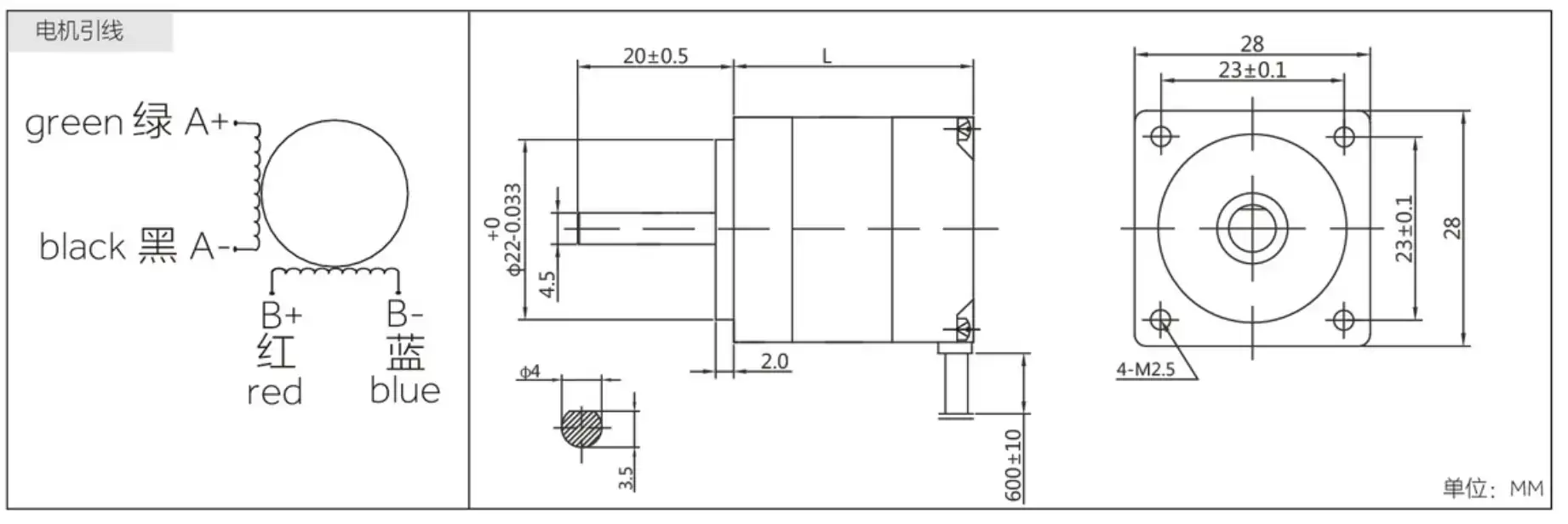

NEMA 11 Stepper Motor Solid Single Shaft Mechanical Drawing
