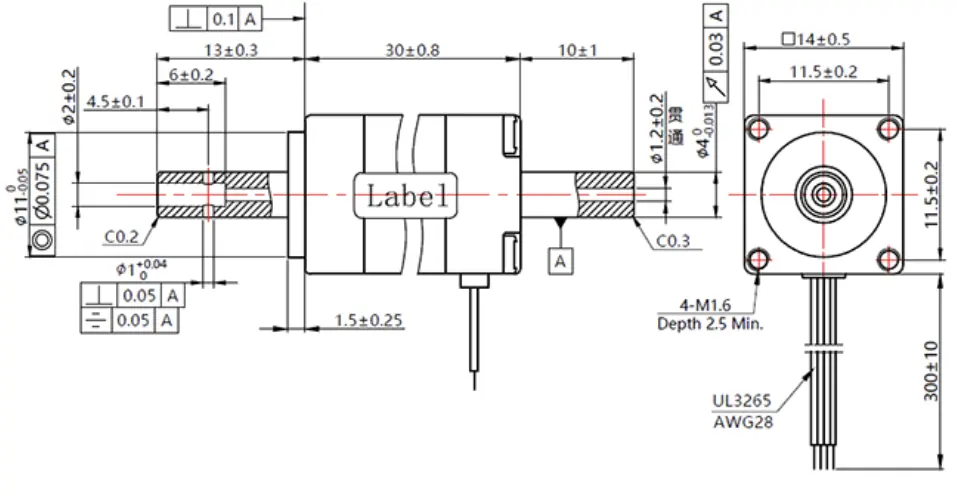

NEMA 6 Stepper Motor Hollow‑Shaft Type Motor Specs

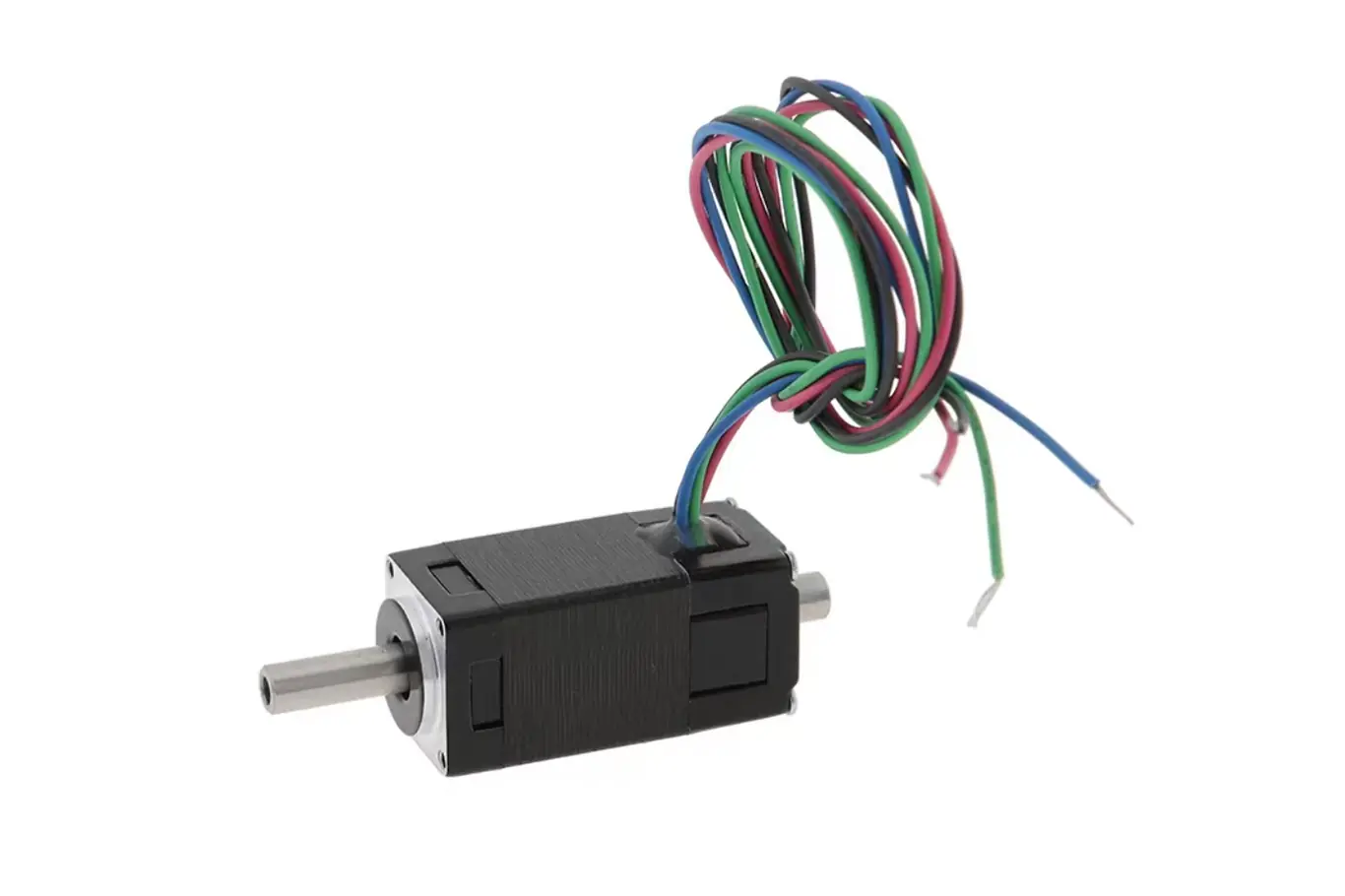

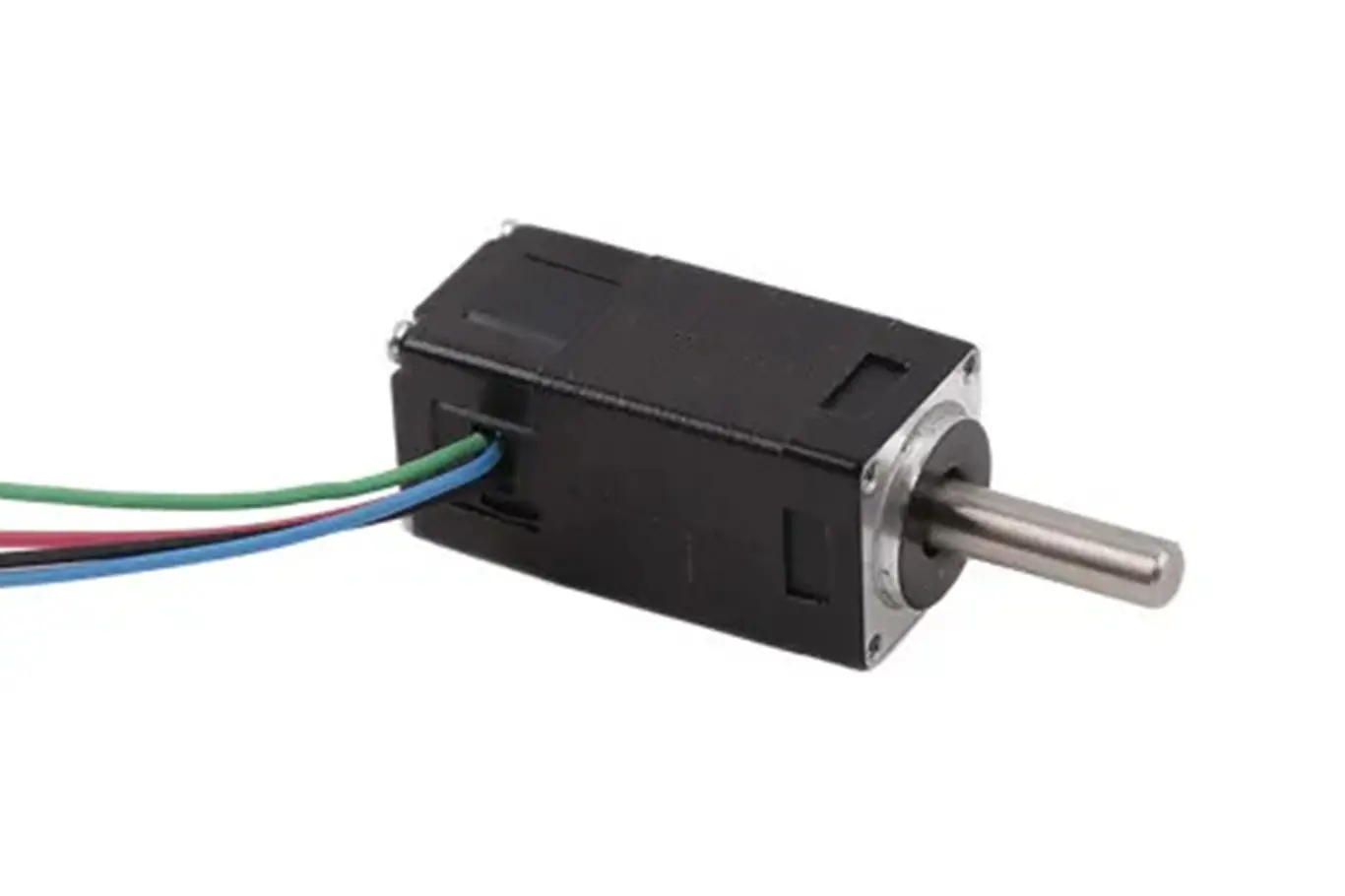

The TSL‑14STH30L NEMA 6 stepper motor is engineered for applications where space is limited but precision cannot be compromised. With a diameter of only 14mm, this miniature mema 6 stepper motor delivers remarkable positioning accuracy, stable performance, and long service life, making it ideal for high‑end compact devices.

Featuring a 1.8° step angle (200 steps/rev), two‑phase hybrid structure, and 0.3A rated current, the nema 6 stepper motor  ensures smooth, reliable motion even without a closed‑loop encoder. Its robust design supports operation in challenging environments from ‑20°C to +50°C, while maintaining a lifespan of over 6000 hours.

If you’re looking for a small, lightweight, yet powerful stepper motor for precision instruments, optical systems, medical devices, or micro‑automation equipment, this NEMA 6 stepper motor model delivers outstanding value and performance.

💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.

💕The nema 6 stepper motor’s technical specifications are for guidance，we offer custom solutions upon request.

⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

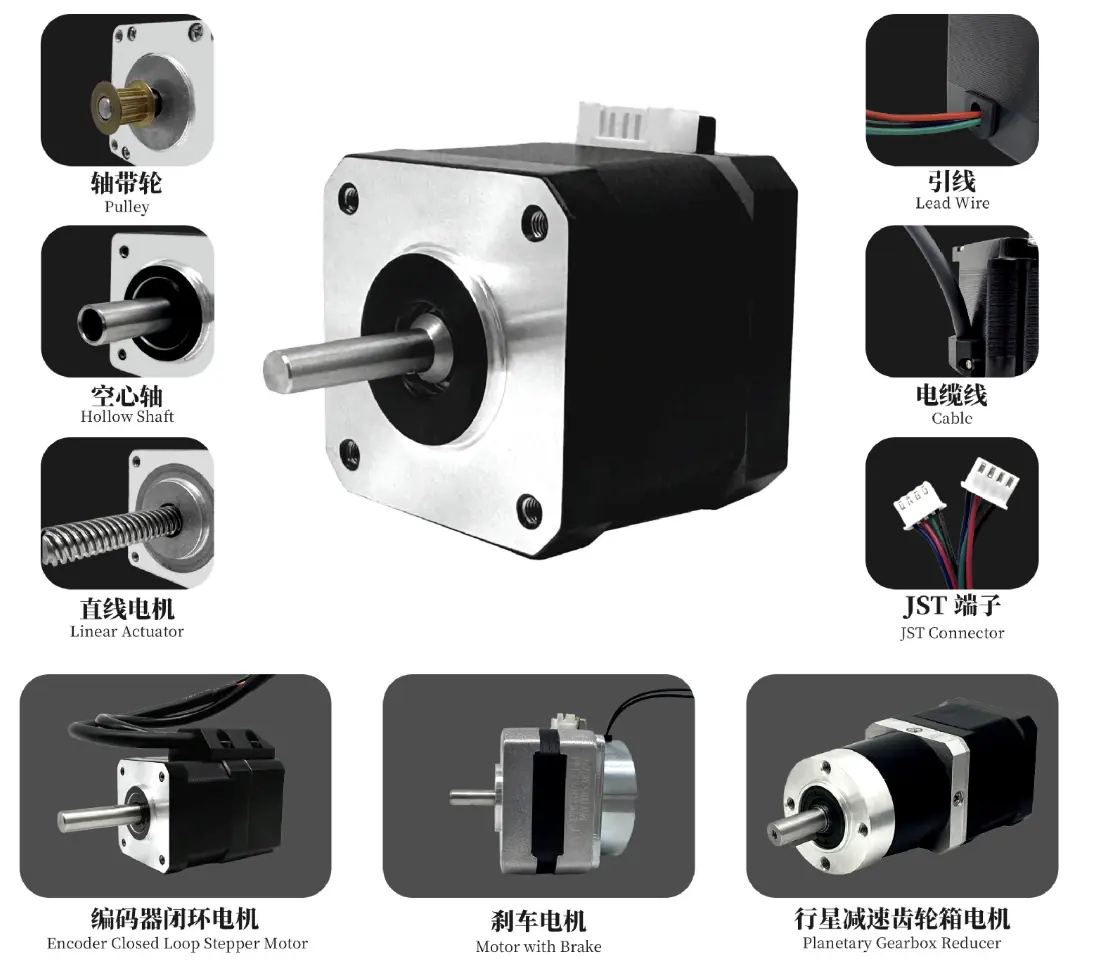

If the customization options listed below still do not meet your requirements, please feel free to contact us.

Development Samples:

If you need samples, please contact us.

Engineering & Manufacturing:

Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.

2.Item will be shipped within 7 business days after the payment.

3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.

4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ for gear reducer stepper motor

Q：What is a Stepper Motor?

A:A stepper gear motor combines a stepper motor with a gearbox.It’s a brushless DC motor that moves in small, precise steps. You can set it to any position without a sensor. The gearbox then lets it drive heavier loads with slow, controlled movements.

If you want to know more about how stepper motor work, you can click on this link：Stepper motor – Wikipedia

Q:Can Stepper Gear Motor Be Customized?

A: Yes,stepper gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
