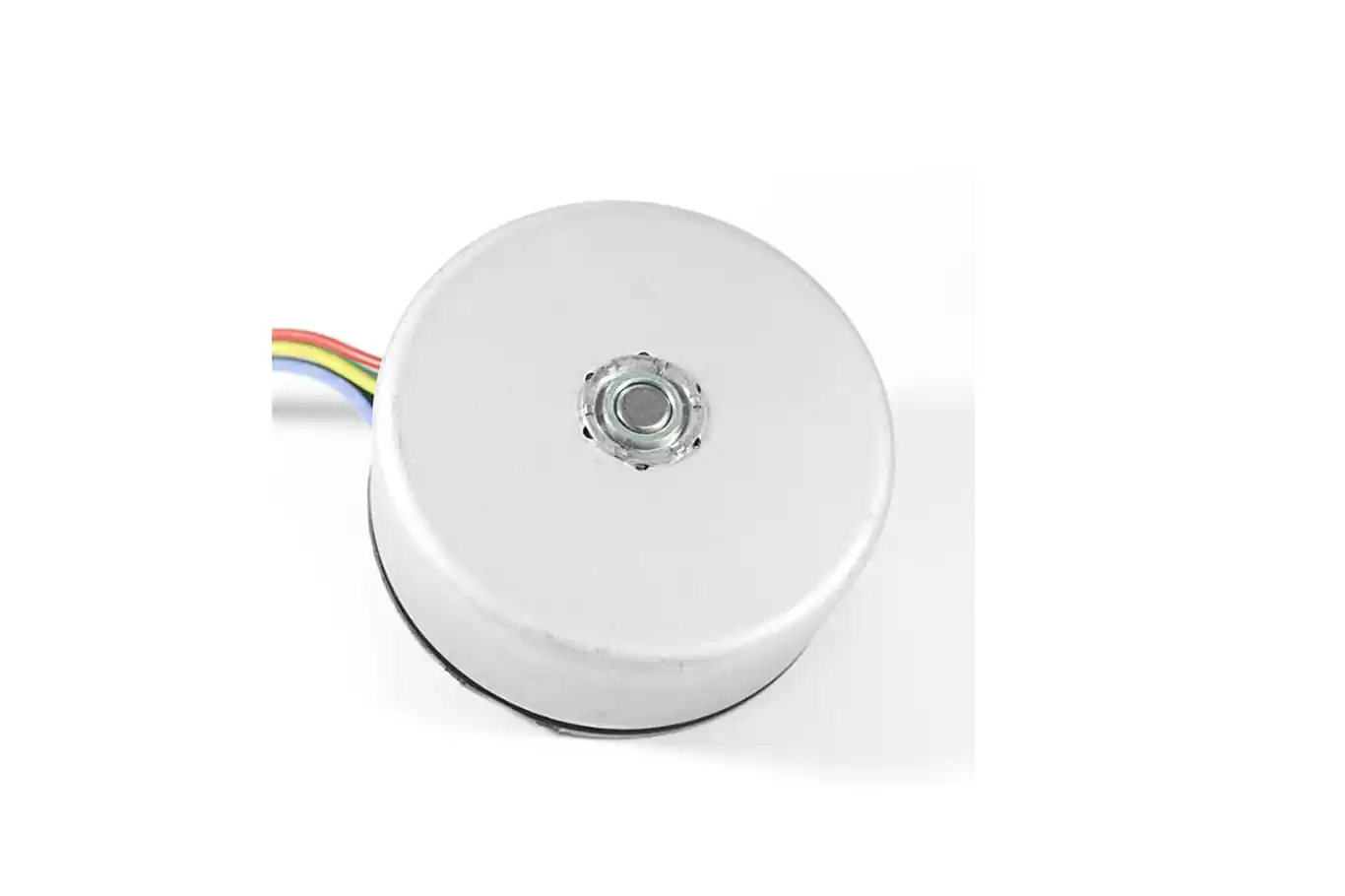

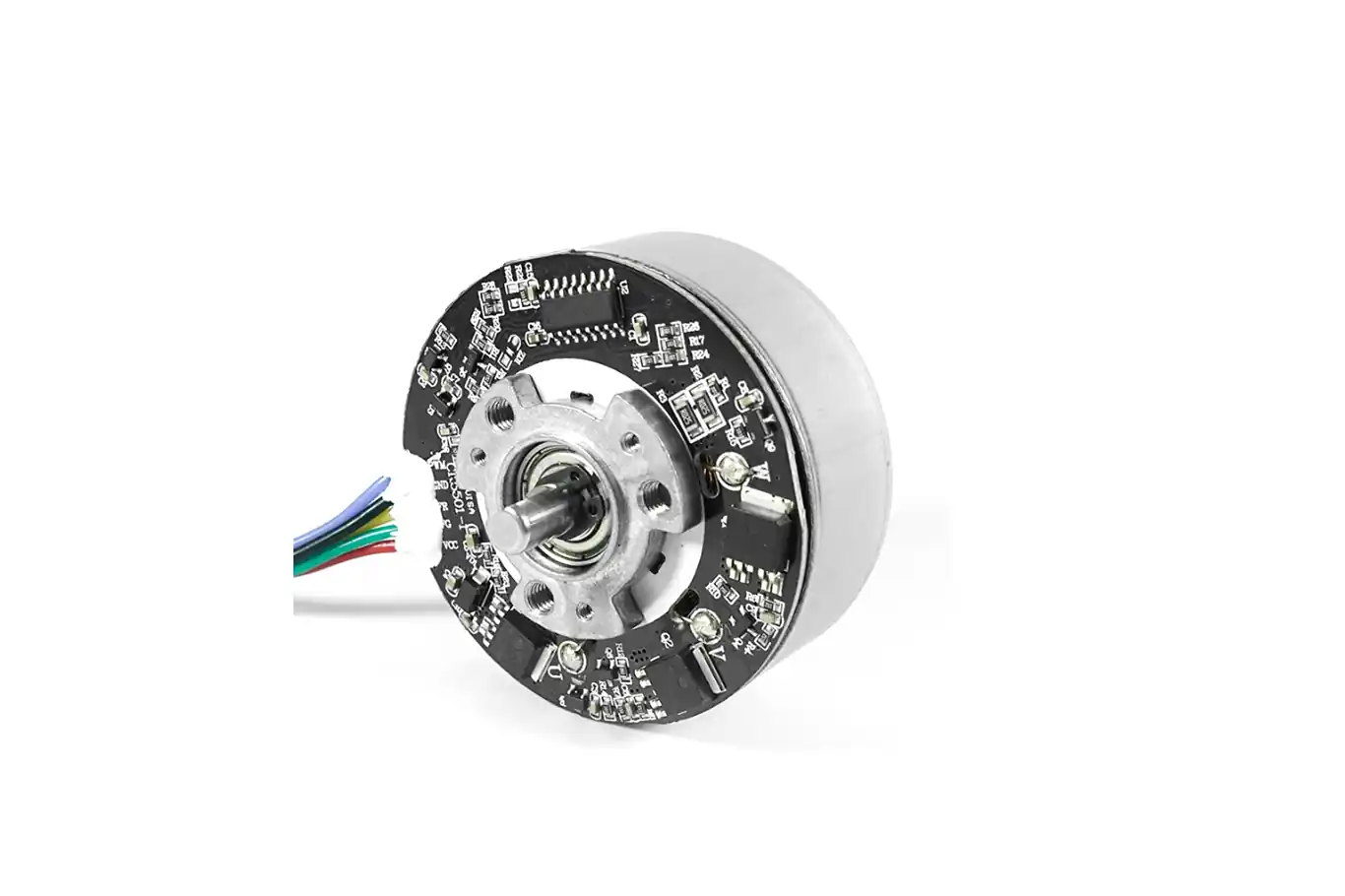

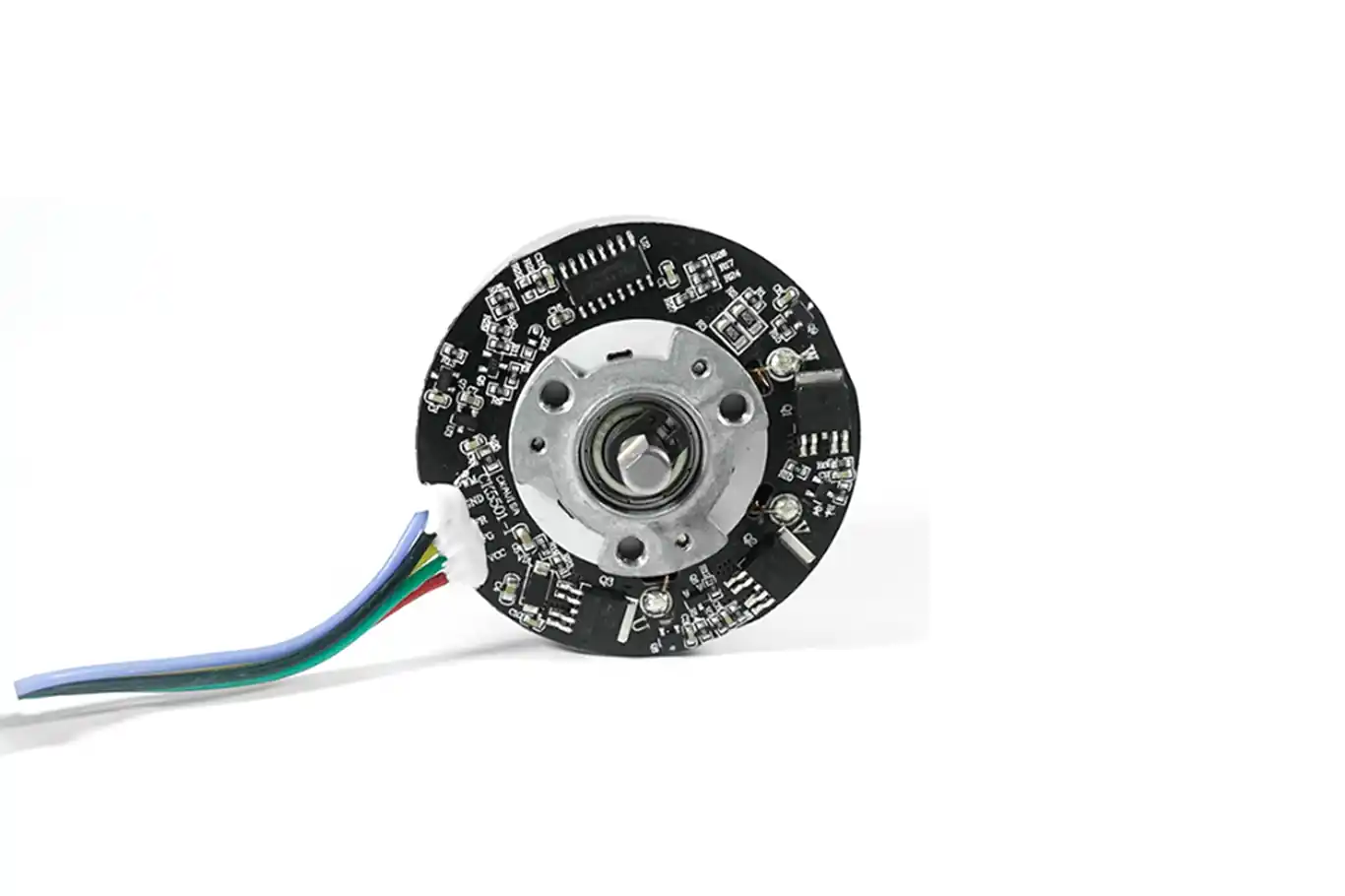

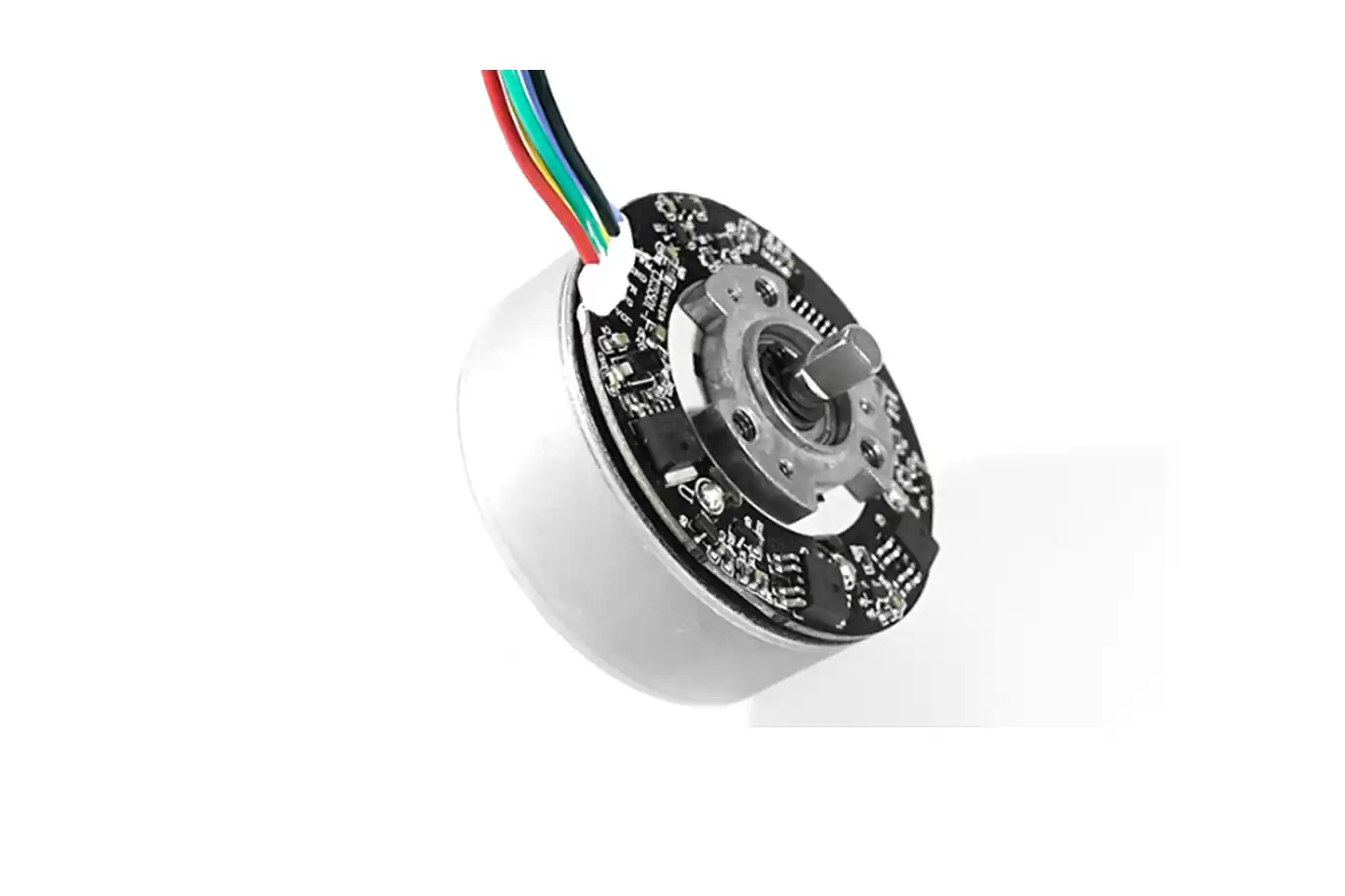

55mm Outrunner Rotor BLDC Motor TSL-BLDC-5525
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-BLDC-5525
- Voltage:12V-24V
- No-Load Speed : 2000-7200RPM
- Load Speed: 1800-6500RPM
- Stall Torque:5936-8226g.cm
- Stall Current:10.5-52.1A
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Power Tools: electric drill, cordless screwdriver, angle grinder
- Personal Care Devices: fascia gun, massage chair, handheld massager
- Smart Equipment: mini PC cooling modules, embedded drive systems, gaming peripherals
- Home Appliances: humidifier, compact fan, water pump
- Industrial Automation: dosing pumps, micro conveyors, precision actuators
Brushless Outrunner Electric Motor Parameters
The TSL-BLDC-5525 outrunner electric motor is designed for high-performance compact systems, delivering exceptional torque, quiet operation, and long-term reliability. With its external rotor architecture and broad voltage compatibility (12V–24V), this outrunner electric motor ensures smooth, efficient power delivery across a wide range of consumer and industrial devices.
Whether you’re building electric tools, massage equipment, or gaming peripherals, the TSL-BLDC-5525 outrunner electric motor offers the precision, power, and durability needed for demanding applications.
✅ Key Features
- Brushless outrunner design for reduced maintenance and extended service life
- External rotor structure enhances torque density and thermal efficiency
- Wide operating voltage: 12V–24V for flexible integration
- High-speed capability: up to 7,200 rpm for dynamic performance
- Ideal for: electric drills, screwdrivers, massage guns, mini PCs, and more
📊 Technical Specifications
See the table below for full performance data and dimensions of the TSL-BLDC-5525 outrunner electric motor.
| Motor Model | Rated Voltage | No Load | Load | Stall | ||||
| Speed | Curremt | Speed | Current | Torque | Torque | Current | ||
| V | RPM | A | RPM | A | g.cm | g.cm | A | |
| TSL-BLDC-5525-12V | 12.0 | 2000 | 0.1 | 1800 | 0.5 | 600 | 5936 | 10.5 |
| TSL-BLDC-5525-24V | 24.0 | 7200 | 0.4 | 6500 | 2.2 | 800 | 8226 | 52.1 |
💕The outrunner electric motor ’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

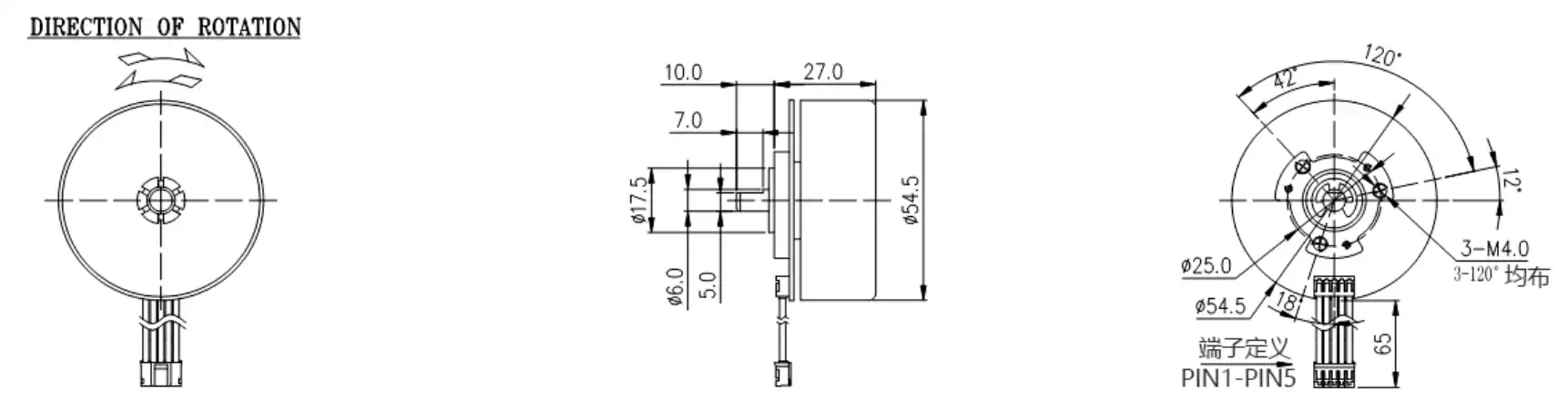

High Torque DC Outrunner Electric Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords
outrunner electric motor,electric outrunner motor,outrunner dc motor,
Development Samples:
If you need the blender motor samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for Outrunner BLDC Motor
Q：What is a Outrunner Brushless Motor?
A:In this outrunner brushless motor, the rotor (the outer casing with permanent magnets) spins around the stationary stator (the inner core with windings).This configuration provides a higher torque output at lower rotational speeds, making it ideal for applications that require strong turning force without a gearbox, such as direct-drive drone propellers.
Q:Can outrunner brushless motor Be Customized?
A: Yes,outrunner brushless motor can be customized. TSL Motors, a top dc motor manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q:Should I Choose an Inrunner or an Outrunner Brushless Motor?
A:Choose an Inrunner Motor if: You require extremely high rotational speed and excellent heat dissipation, and your application does not demand high torque, or if you are willing to use it with a gearbox.
Choose an Outrunner Motor if: You need powerful torque for direct drive applications (such as propellers or wheels), require moderate speed, and prioritize a compact structure and quiet operation.
Which motor is right for you? Outrunner vs Inrunner – Motor school with Holmes Hobbies part 1
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
