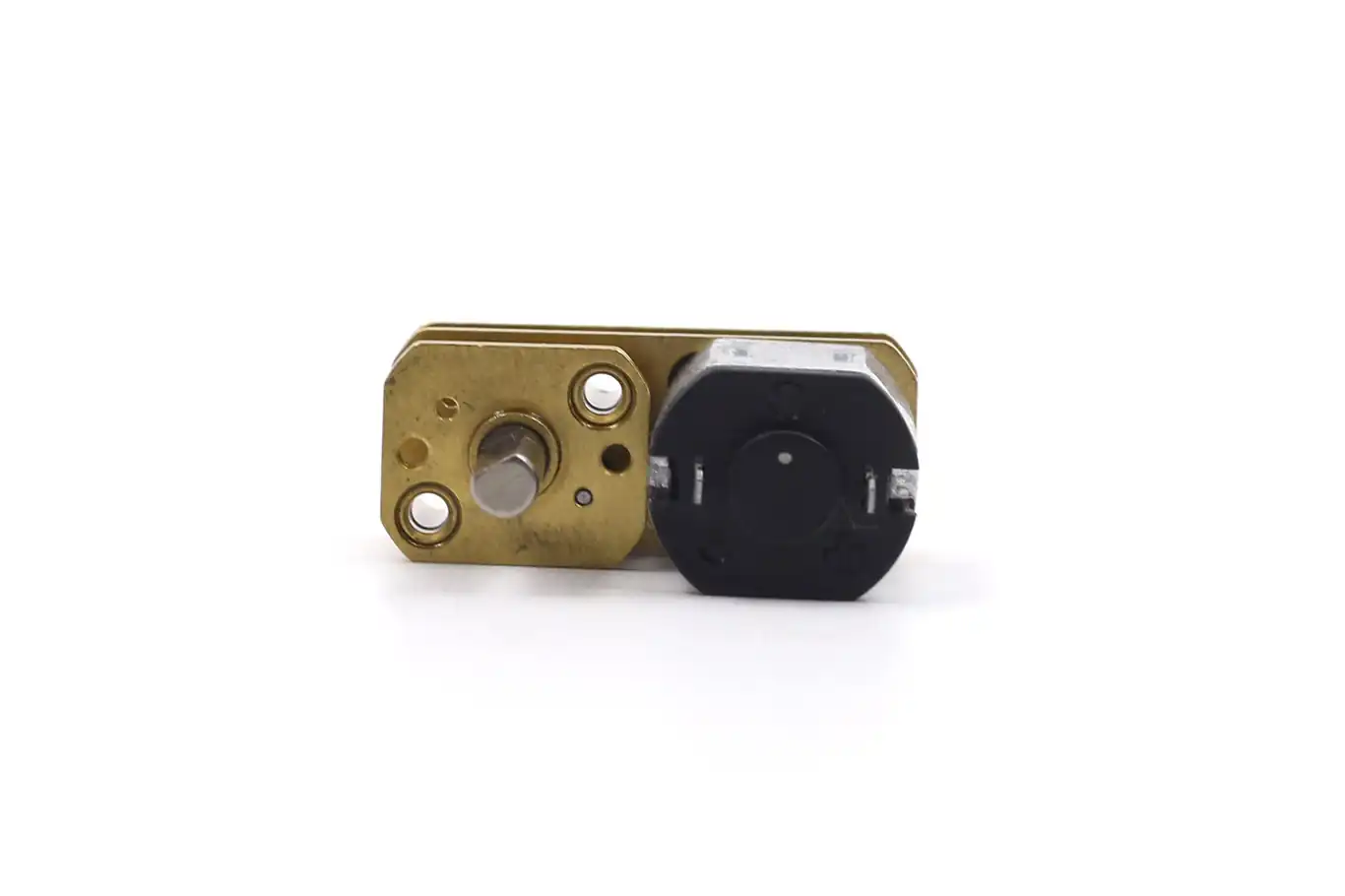

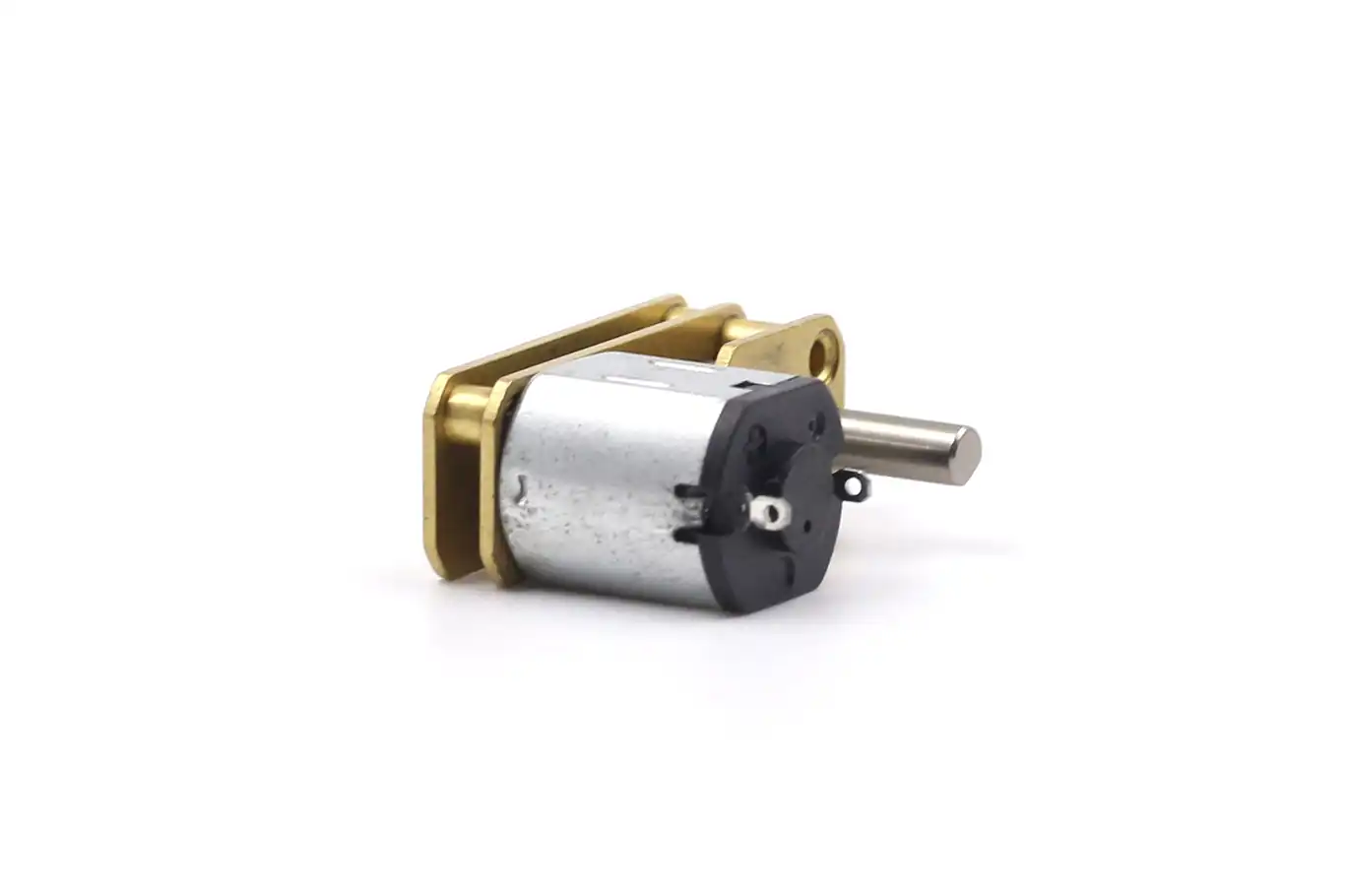

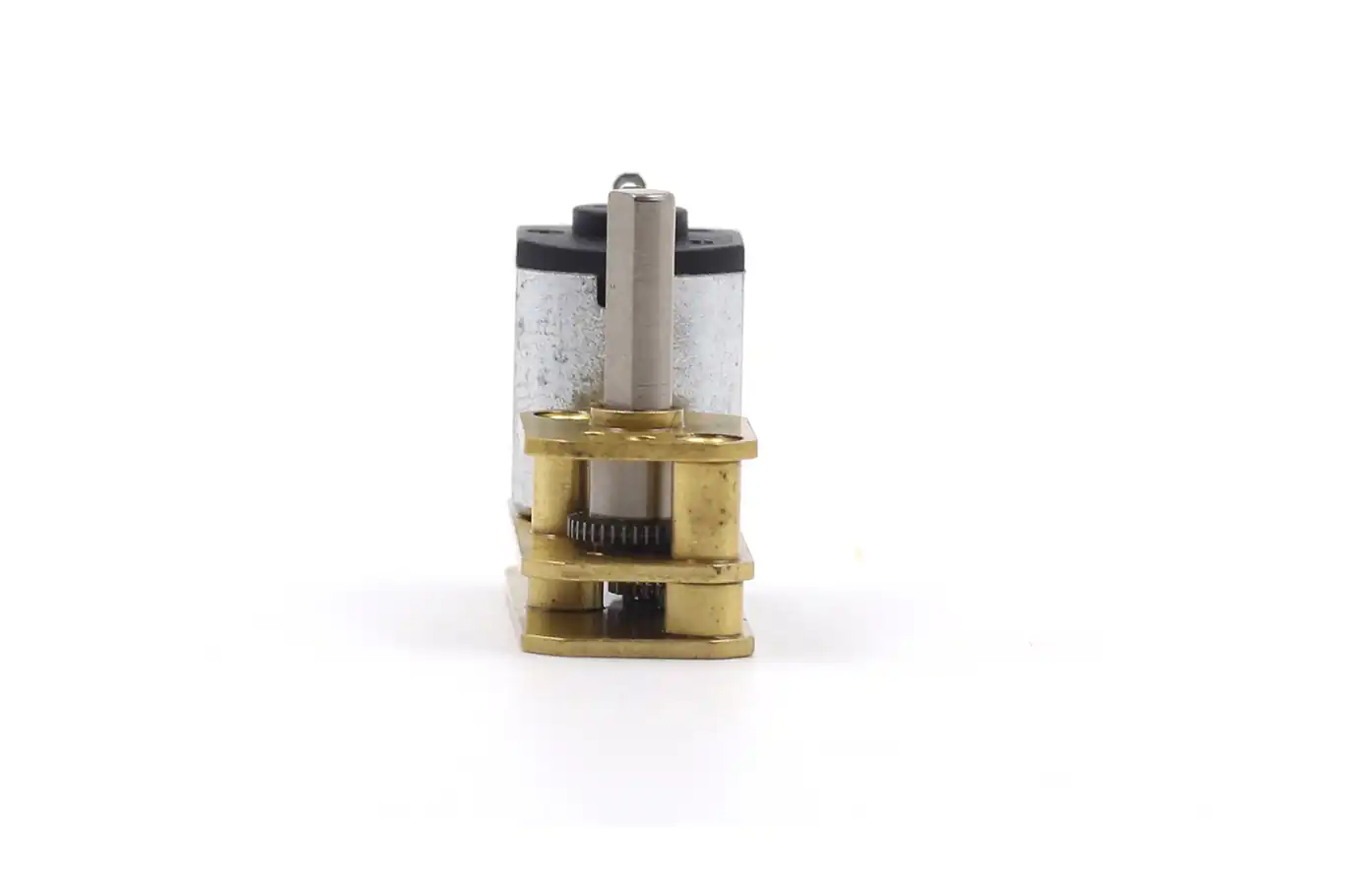

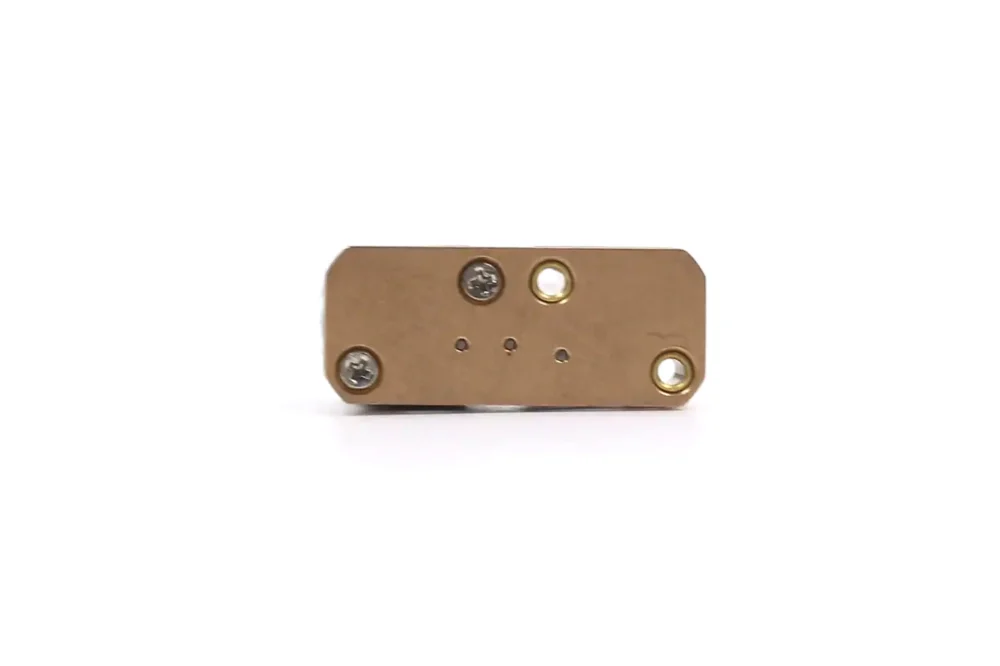

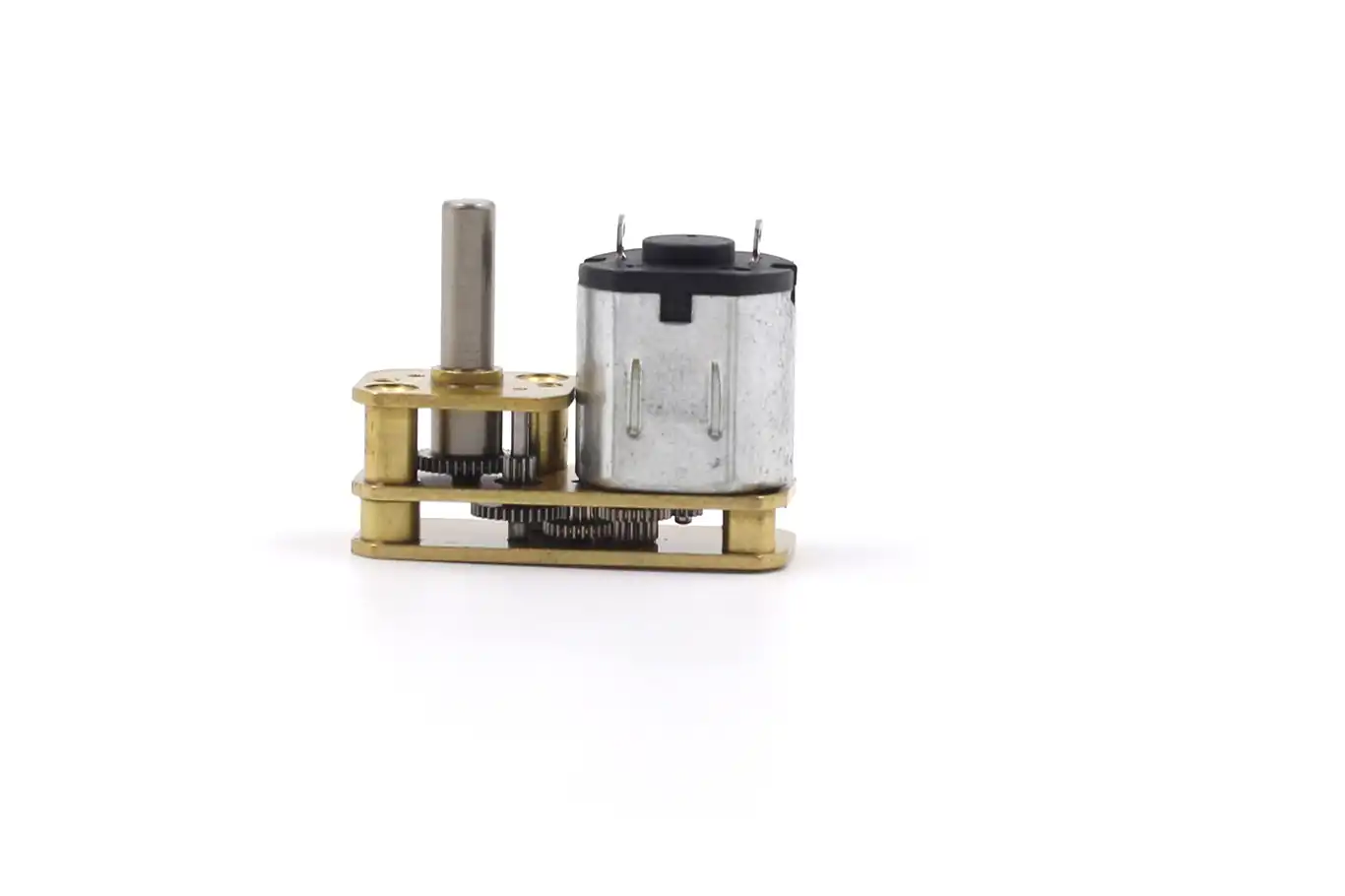

12mm Metal Gear Motor Model TSL-GM1024-N10VA
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM1024-N10VA
- Rated Voltage:3V / 6V DC
- No Load Speed：19rpm – 430rpm
- No Load Current：≤0.05A / ≤0.065A / ≤0.085A
- Power:0.15W / 0.35W / 0.42W
- Rotation:CW / CCW
- #More Specifications
♦ Typical Applications:
- intelligent robots, smart robotic arms
- smart home furnishings, intelligent focus systems
- miniature pan-tilt heads
Parallel Shaft Gear Motor DC Motor Specifications
Get ready for smooth, quiet power. Our parallel shaft gear motor is engineered for excellence.
The precision-cut gears ensure smooth operation. You get consistent torque, even with heavy loads.
This parallel shaft gear motor finds the perfect balance of speed and power. It’s built for efficient performance across many applications.
Enjoy ultra-quiet operation. This parallel shaft gear motor gets the job done without any noise, so you can work without disturbance.
TSL-GM1024-N10, 3V DC, 0.42W 22,000rpm
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 50:1 | ≤0.085A | 430rpm | ≤0.42A | 300rpm | 0.15kg.cm | ≤1.0A | ≥0.3kg.cm |
| 100:1 | ≤0.085A | 215rpm | ≤0.42A | 150rpm | 0.3kg.cm | ≤1.0A | ≥0.7kg.cm |
| 150:1 | ≤0.085A | 140rpm | ≤0.42A | 100rpm | 0.45kg.cm | ≤1.0A | ≥0.9kg.cm |
| 200:1 | ≤0.085A | 105rpm | ≤0.42A | 75rpm | 0.6kg.cm | ≤1.0A | ≥1.5kg.cm |
| 350:1 | ≤0.085A | 60rpm | ≤0.42A | 42rpm | 1.0kg.cm | ≤1.0A | ≥2.4kg.cm |
| 500:1 | ≤0.085A | 42rpm | ≤0.42A | 30rpm | 1.5kg.cm | ≤1.0A | ≥3.0kg.cm |
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM1024-N10, 3V DC, 0.12W 10,000rpm
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 50:1 | ≤0.05A | 190rpm | ≤0.11A | 125rpm | 0.1kg.cm | ≤0.25A | ≥0.2kg.cm |
| 100:1 | ≤0.05A | 95rpm | ≤0.11A | 63rpm | 0.2kg.cm | ≤0.25A | ≥0.4kg.cm |
| 150:1 | ≤0.05A | 63rpm | ≤0.11A | 42rpm | 0.3kg.cm | ≤0.25A | ≥0.6kg.cm |
| 200:1 | ≤0.05A | 47rpm | ≤0.11A | 31rpm | 0.4kg.cm | ≤0.25A | ≥0.8kg.cm |
| 350:1 | ≤0.05A | 27rpm | ≤0.11A | 18rpm | 0.7kg.cm | ≤0.25A | ≥1.5kg.cm |
| 500:1 | ≤0.05A | 19rpm | ≤0.11A | 12rpm | 1.0kg.cm | ≤0.25A | ≥2.0kg.cm |
💕The parallel shaft gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-GM1024-N10, 6V DC, 0.35W 21,000rpm
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| i : 1 | Current | Speed | Current | Speed | Torque | Current | Torque |
| 50:1 | ≤0.065A | 400rpm | ≤0.25A | 280rpm | 0.15kg.cm | ≤0.6A | ≥0.3kg.cm |
| 100:1 | ≤0.065A | 200rpm | ≤0.25A | 140rpm | 0.3kg.cm | ≤0.6A | ≥0.7kg.cm |
| 150:1 | ≤0.065A | 133rpm | ≤0.25A | 92rpm | 0.45kg.cm | ≤0.6A | ≥0.9kg.cm |
| 200:1 | ≤0.065A | 100rpm | ≤0.25A | 70rpm | 0.6kg.cm | ≤0.6A | ≥1.5kg.cm |
| 350:1 | ≤0.065A | 57rpm | ≤0.25A | 40rpm | 1.0kg.cm | ≤0.6A | ≥2.4kg.cm |
| 500:1 | ≤0.065A | 40rpm | ≤0.25A | 28rpm | 1.5kg.cm | ≤0.6A | ≥3.0kg.cm |
💕The parallel shaft gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
Small High Torque Motor Inverted DC Geared Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
parallel shaft gear motor,parallel shaft geared motor,reduction gearbox 20/40/60rpm, 3v geared motor, reversible gear motor 3mm shaft
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
