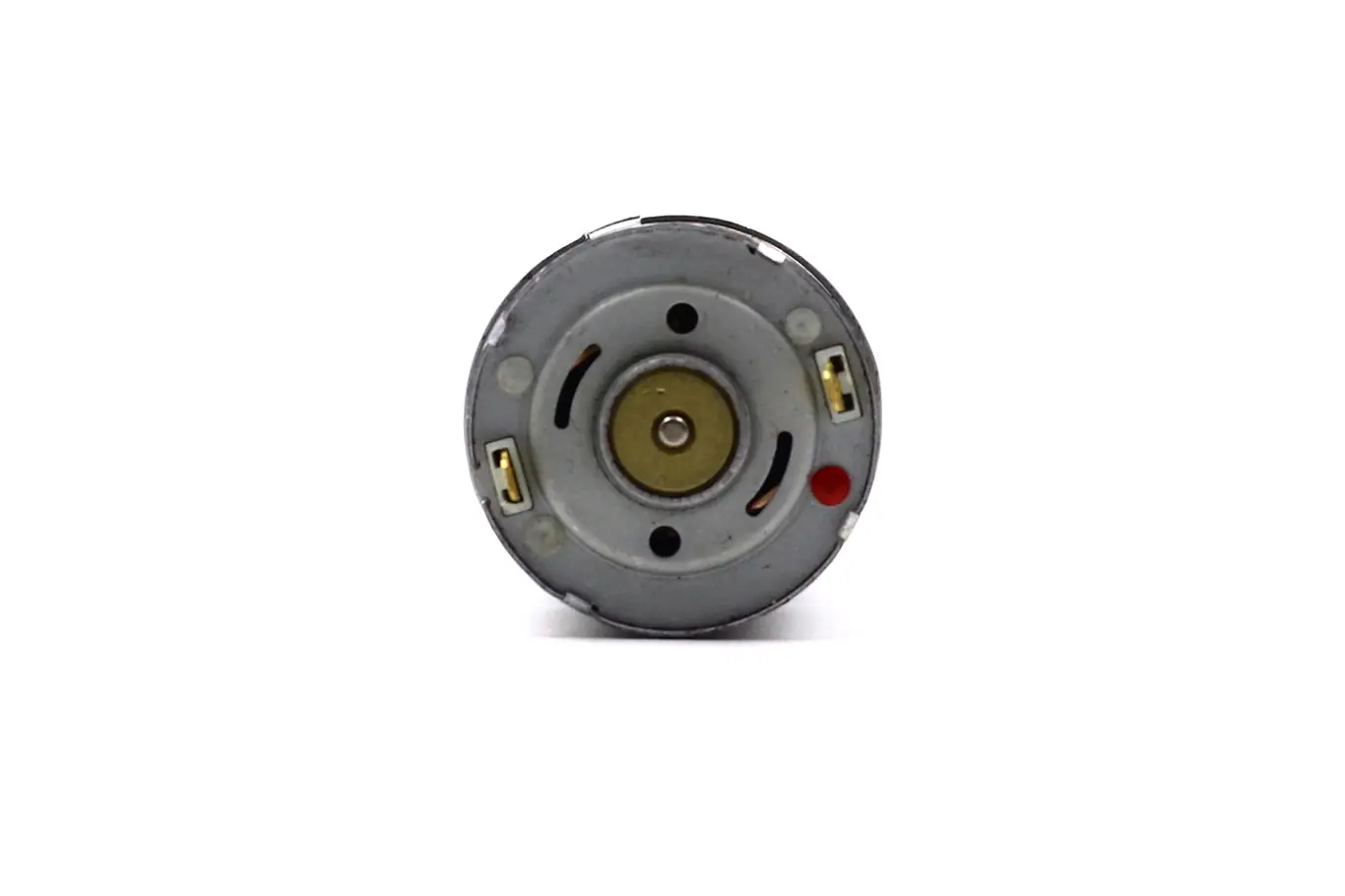

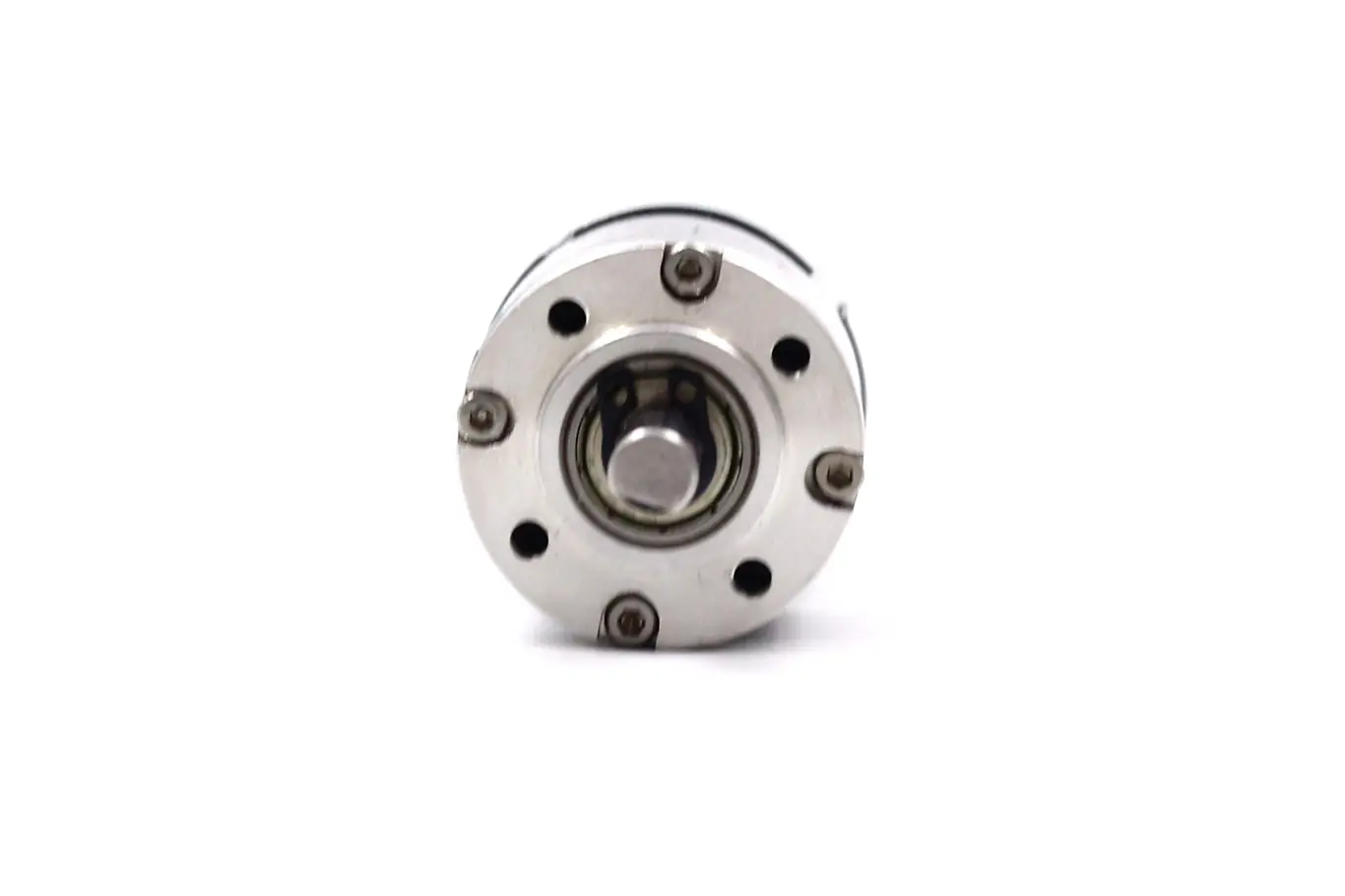

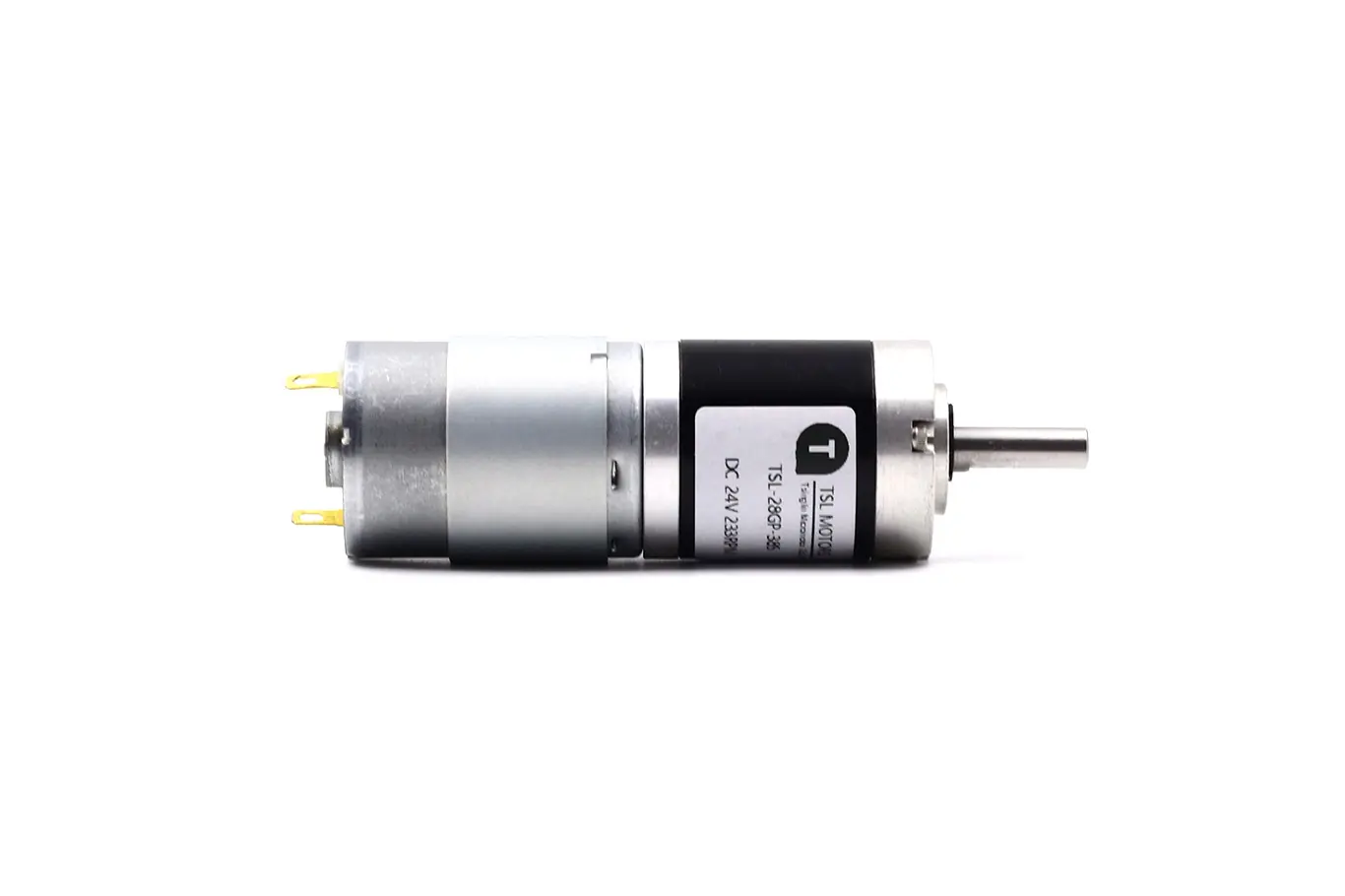

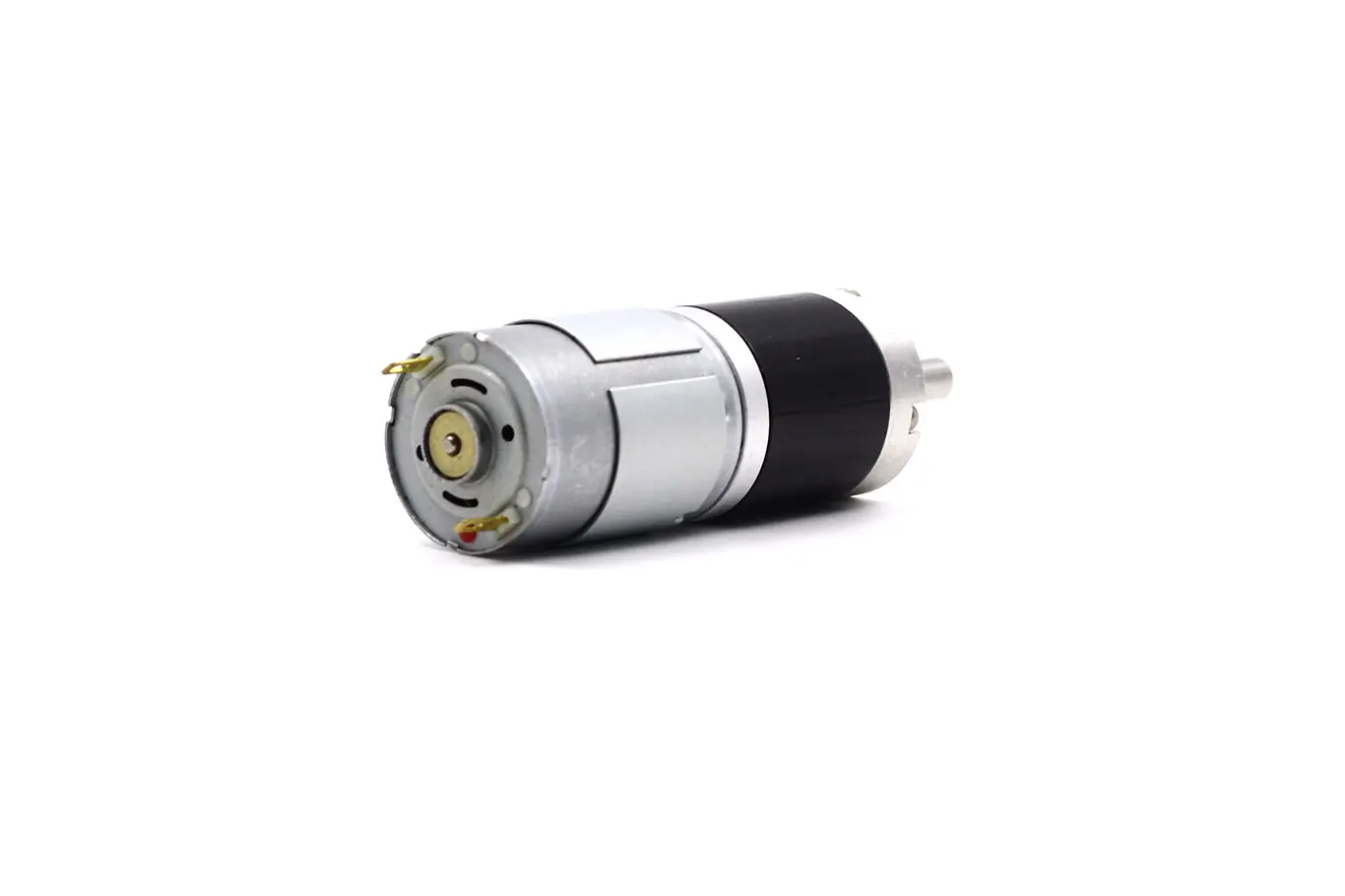

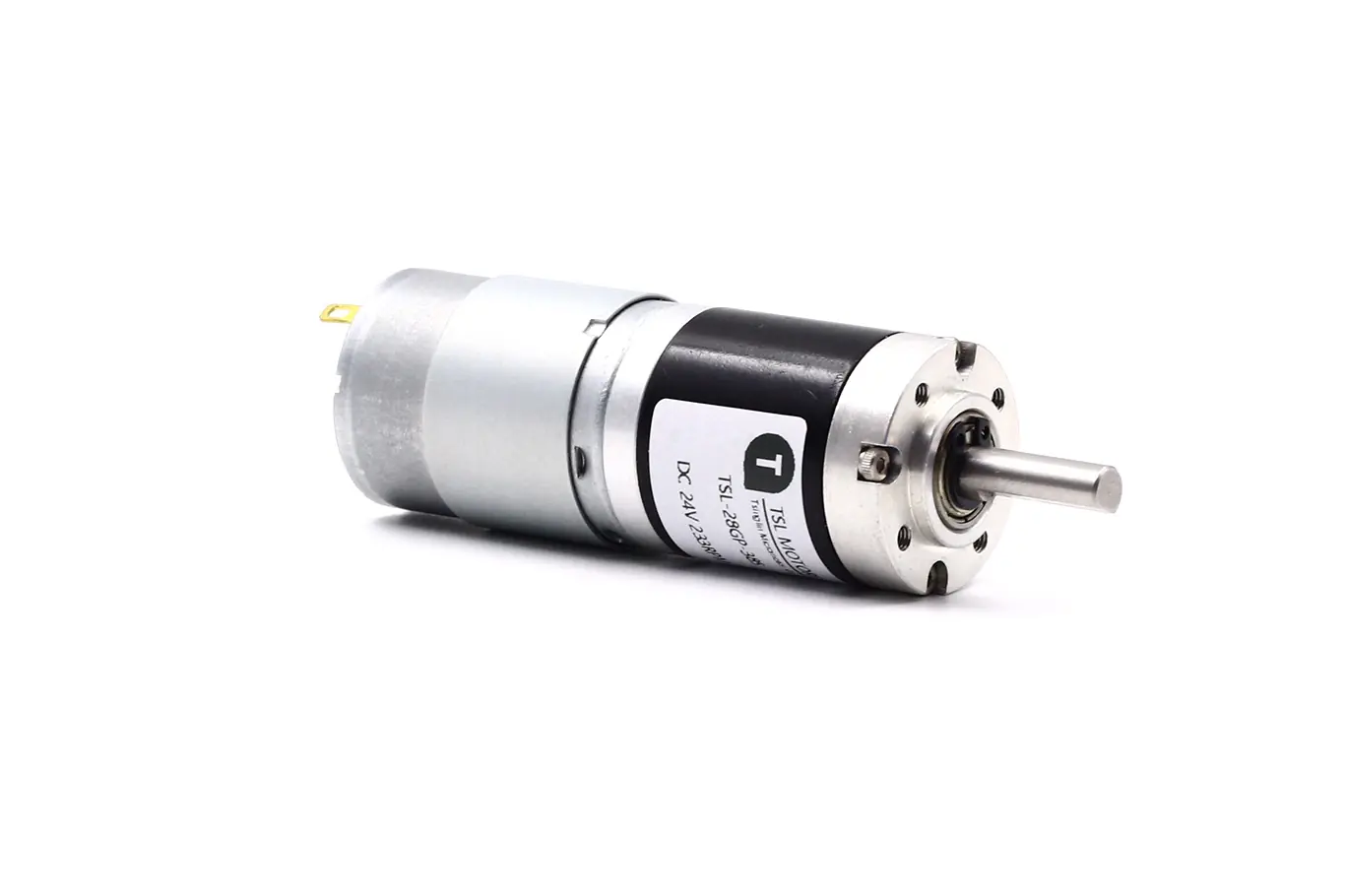

28mm Planetary Gear Motor Model TSL-28GP-385
♦ Basic Info:
- Motor Type:Planetary Gear Motor
- Motor Diameter: 29 mm
- Motor Length: 38 mm
- Gearbox Diameter:28mm
- Shaft Diameter: φ 6mm
- Rated Voltage: 12V / 24V DC
- No Load Current：0.05A / 0.1A / 0.25A
- No Load Speed: 6rpm – 2,000rpm
- Max Torque:35kg.cm
- Rotation:CW / CCW
- #More Specifications
Typical application:
- robotics, automation, model vehicles, and other precision gear-driven systems.
Gear Reduction Motor TSL-28GP-385 Specifications
The TSL-28GP-385 planetary dc gear reduction motor delivers exceptional torque. Its gears are precision-engineered. This gear reduction motor handles heavy-duty applications with ease.
It’s an excellent choice for robotics. Consider it for automation systems and drones. Robotic arms also benefit from its power. It’s perfect for automated machinery and precise positioning systems.
This gear reduction motor offers smooth operation. Its precision gear mechanism ensures steady, low-speed output. Expect high torque with minimal noise.
The gear reduction motor TSL-28GP-385 supports CW & CCW rotation. It operates on 12V or 24V DC. No-load speeds range from 6rpm to 2,000rpm. No-load current is low: 0.05A, 0.1A, or 0.25A. It provides a max torque of 35kg.cm. Output power options are 3W, 6W, or 12W. The output shaft diameter is 6mm. The gear reduction motor weighs between 185g and 215g.
TSL-28GP-385, 12V DC, 4,000RPM, 3.0W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 4:1 | 1,000rpm | 0.05A | 800rpm | 0.25A | 0.08kg.cm | 0.3kg.cm | 0.7A |
| 16:1 | 250rpm | 0.05A | 200rpm | 0.25A | 0.3kg.cm | 1.25kg.cm | 0.7A |
| 25:1 | 160rpm | 0.05A | 128rpm | 0.25A | 0.5kg.cm | 2.0kg.cm | 0.7A |
| 64:1 | 62.5rpm | 0.05A | 50rpm | 0.25A | 1.25kg.cm | 5.0kg.cm | 0.7A |
| 88:1 | 45.5rpm | 0.05A | 36rpm | 0.25A | 1.75kg.cm | 7.0kg.cm | 0.7A |
| 110:1 | 36rpm | 0.05A | 29rpm | 0.25A | 2.0kg.cm | 8.5kg.cm | 0.7A |
| 125:1 | 32rpm | 0.05A | 25.5rpm | 0.25A | 2.5kg.cm | 10.0kg.cm | 0.7A |
| 138:1 | 29rpm | 0.05A | 23rpm | 0.25A | 2.75kg.cm | 11.0kg.cm | 0.7A |
| 256:1 | 15.5rpm | 0.05A | 12.5rpm | 0.25A | 5.0kg.cm | 20.0kg.cm | 0.7A |
| 320:1 | 12.5rpm | 0.05A | 10rpm | 0.25A | 6.25kg.cm | 25.5kg.cm | 0.7A |
| 400:1 | 10rpm | 0.05A | 8rpm | 0.25A | 8.0kg.cm | 32.0kg.cm | 0.7A |
| 500:1 | 8rpm | 0.05A | 6rpm | 0.25A | 13.0kg.cm | 40.0kg.cm | 0.7A |
| 625:1 | 6rpm | 0.05A | 5rpm | 0.25A | 17.5kg.cm | 50.0kg.cm | 0.7A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
TSL-28GP-385,12V DC, 8,000RPM, 9.2W
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 4:1 | 2,000rpm | 0.25A | 1,600rpm | 0.75A | 0.16kg.cm | 0.6kg.cm | 3.2A |
| 16:1 | 500rpm | 0.25A | 400rpm | 0.75A | 0.6kg.cm | 2.5kg.cm | 3.2A |
| 25:1 | 320rpm | 0.25A | 256rpm | 0.75A | 1.0kg.cm | 4.0kg.cm | 3.2A |
| 64:1 | 125rpm | 0.25A | 100rpm | 0.75A | 2.5kg.cm | 10.0kg.cm | 3.2A |
| 88:1 | 90rpm | 0.25A | 72rpm | 0.75A | 3.5kg.cm | 14.0kg.cm | 3.2A |
| 110:1 | 72rpm | 0.25A | 58rpm | 0.75A | 4.0kg.cm | 17.0kg.cm | 3.2A |
| 125:1 | 64rpm | 0.25A | 51rpm | 0.75A | 5.0kg.cm | 20.0kg.cm | 3.2A |
| 138:1 | 58rpm | 0.25A | 46rpm | 0.75A | 5.5kg.cm | 22.0kg.cm | 3.2A |
| 256:1 | 31rpm | 0.25A | 25rpm | 0.75A | 10.0kg.cm | 40.0kg.cm | 3.2A |
| 320:1 | 25rpm | 0.25A | 20rpm | 0.75A | 12.5kg.cm | 51.0kg.cm | 3.2A |
| 400:1 | 20rpm | 0.25A | 16rpm | 0.75A | 16.0kg.cm | 64.0kg.cm | 3.2A |
| 500:1 | 16rpm | 0.25A | 12.5rpm | 0.75A | 26.0kg.cm | 80.0kg.cm | 3.2A |
| 625:1 | 12.5rpm | 0.25A | 10rpm | 0.75A | 35.0kg.cm | 100.0kg.cm | 3.2A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 4:1 | 2,000rpm | 0.1A | 1,600rpm | 0.5A | 0.16kg.cm | 0.6kg.cm | 1.4A |
| 16:1 | 500rpm | 0.1A | 400rpm | 0.5A | 0.6kg.cm | 2.5kg.cm | 1.4A |
| 25:1 | 320rpm | 0.1A | 256rpm | 0.5A | 1.0kg.cm | 4.0kg.cm | 1.4A |
| 64:1 | 125rpm | 0.1A | 100rpm | 0.5A | 2.5kg.cm | 10.0kg.cm | 1.4A |
| 88:1 | 91rpm | 0.1A | 72rpm | 0.5A | 3.5kg.cm | 14.0kg.cm | 1.4A |
| 110:1 | 72rpm | 0.1A | 58rpm | 0.5A | 4.0kg.cm | 17.0kg.cm | 1.4A |
| 125:1 | 64rpm | 0.1A | 51rpm | 0.5A | 5.0kg.cm | 20.0kg.cm | 1.4A |
| 138:1 | 58rpm | 0.1A | 46rpm | 0.5A | 5.5kg.cm | 22.0kg.cm | 1.4A |
| 256:1 | 31rpm | 0.1A | 25rpm | 0.5A | 10.0kg.cm | 40.0kg.cm | 1.4A |
| 320:1 | 25rpm | 0.1A | 20rpm | 0.5A | 12.5kg.cm | 51.0kg.cm | 1.4A |
| 400:1 | 20rpm | 0.1A | 16rpm | 0.5A | 16.0kg.cm | 64.0kg.cm | 1.4A |
| 500:1 | 16rpm | 0.1A | 12.5rpm | 0.5A | 26.0kg.cm | 80.0kg.cm | 1.4A |
| 625:1 | 12.5rpm | 0.1A | 10rpm | 0.5A | 35.0kg.cm | 100.0kg.cm | 1.4A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
Small Gear Reduction Motors Outline Drawing
The L-value (gearbox length) varies for different reduction ratios in the diagram. For more details, please contact us.
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Keywords:
gear reduction motor,planetary gear dc motor,dc gear motor,dc motor with planetary gearbox,planetary gearbox
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for planetary gear motor
Q:What is a planetary gear motor?
A:A planetary gear motor is a type of motor that mimics the movement of a planetary system. The input shaft turns a central gear known as the sun gear, which then drives multiple surrounding planet gears. This setup allows the motor to efficiently increase or reduce speed and is commonly used across various industries due to its compact design and high performance.
If you want a video to explain the principle of planetary gear motor, you can click on this link：https://www.youtube.com/watch?v=Ho4AniHtgxM
Q:Can Planetary Gear Motor Be Customized?
A: Yes,Planetary gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
