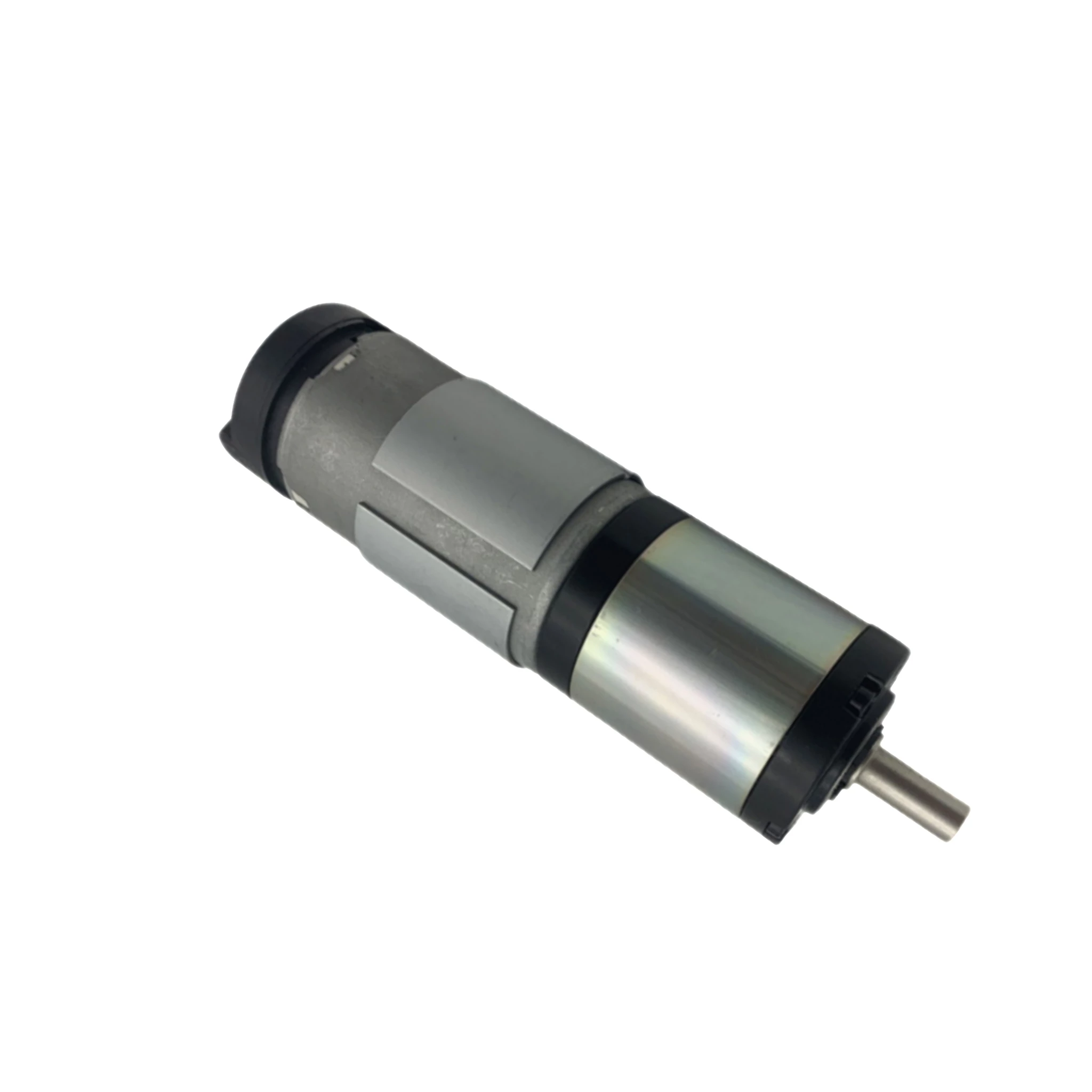

High Torque Output Planetary Gear Motor with Encoder Data Sheet

Simple Integration: The planetary gear motors were created with ease-of-use in mind. It features standard mounting interfaces that permit simple installation into systems, without any complicated adjustments.

📍With dust protection cover

📍Optional=>With/Without Motor Mount

TSL-42GP-775-EN,   12V DC,  Max 35W

Note: All speeds that are reduced rates of no-load have an acceptable tolerance of +15%.

TSL-42GP-775-EN,   24V DC,  Max 150W

Note: All speeds that are reduced rates of no-load have an acceptable tolerance of +15%.

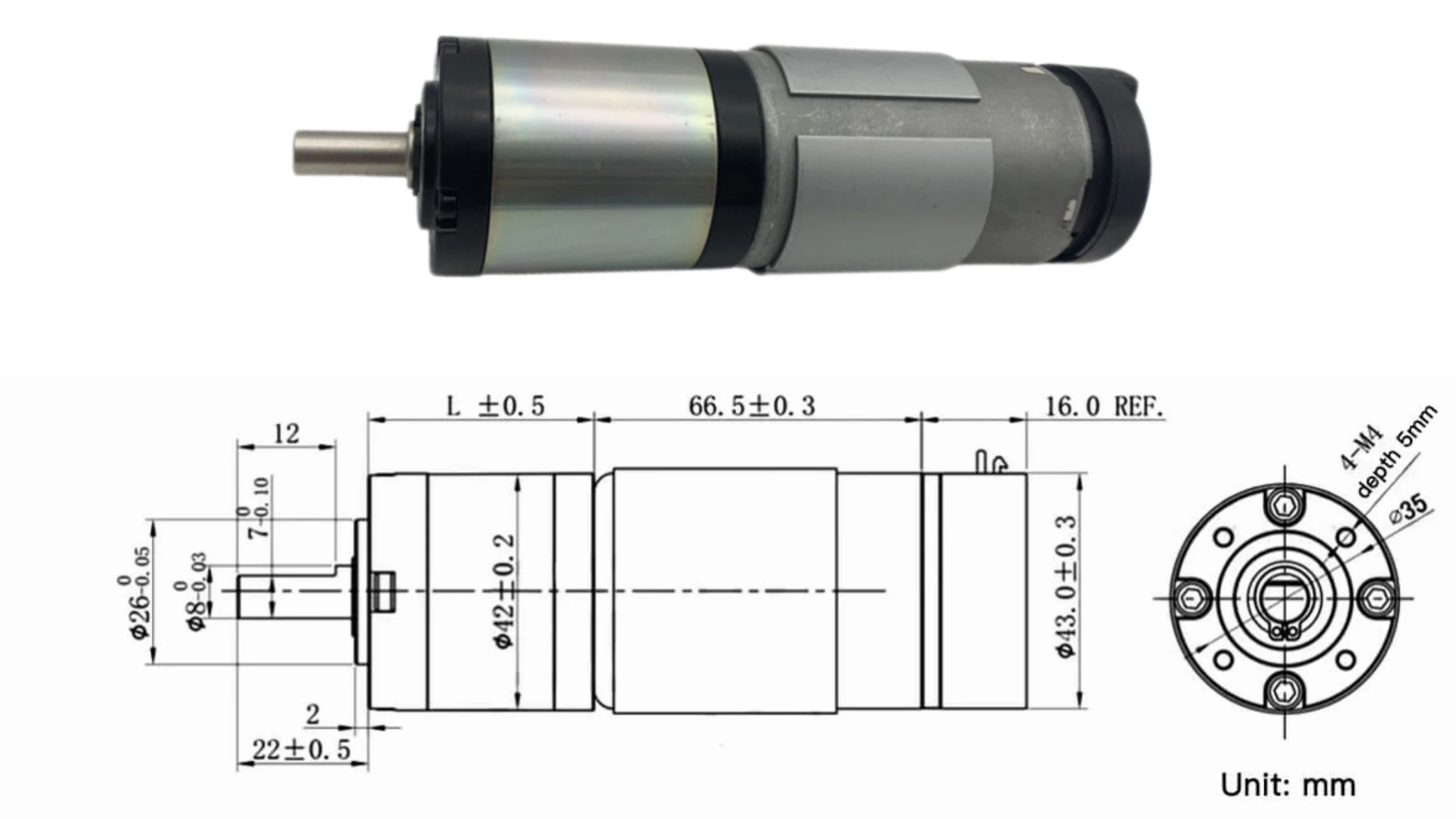

The High Performance Planetary Gear Motor With Encoder Dimension

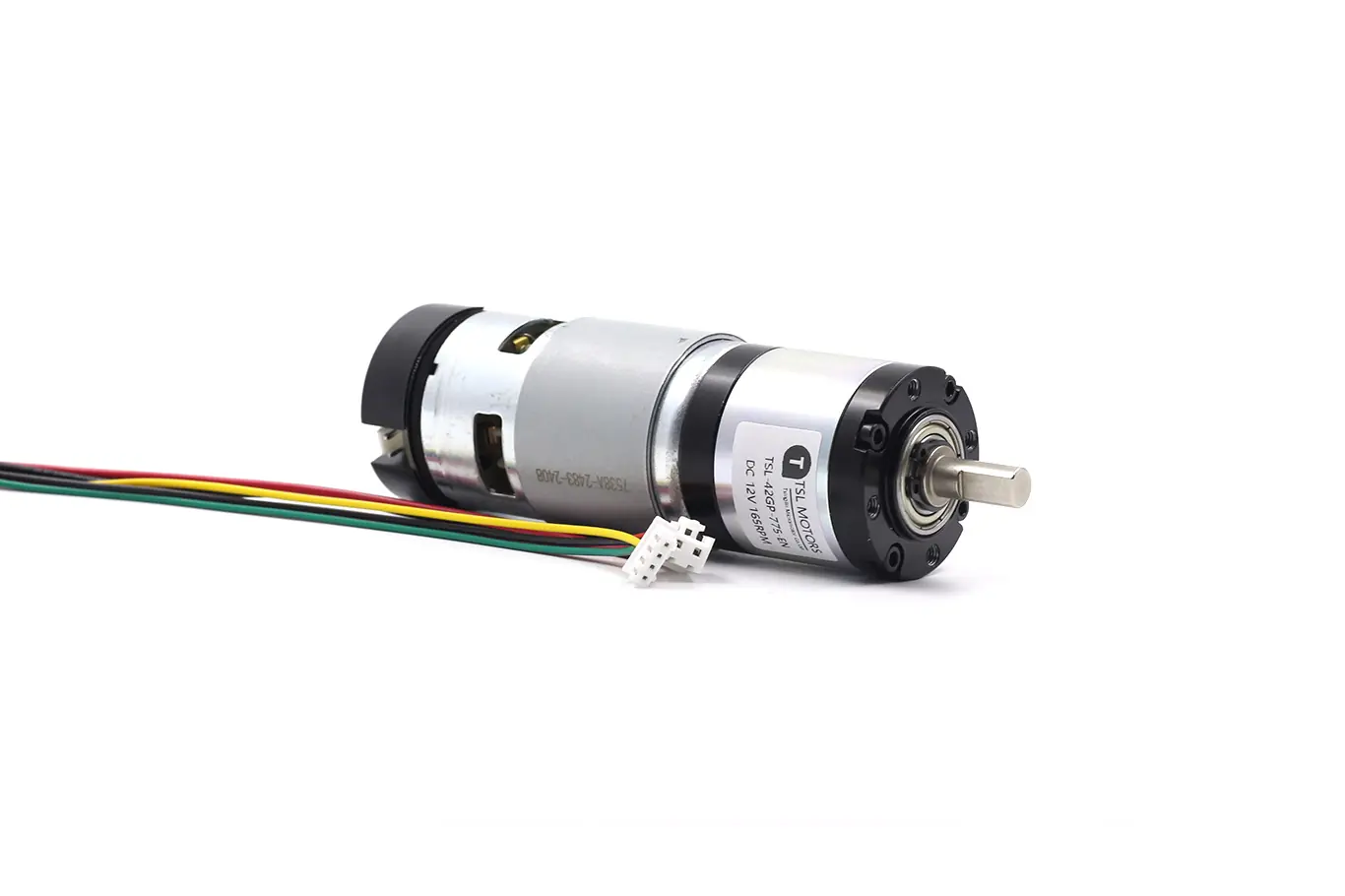

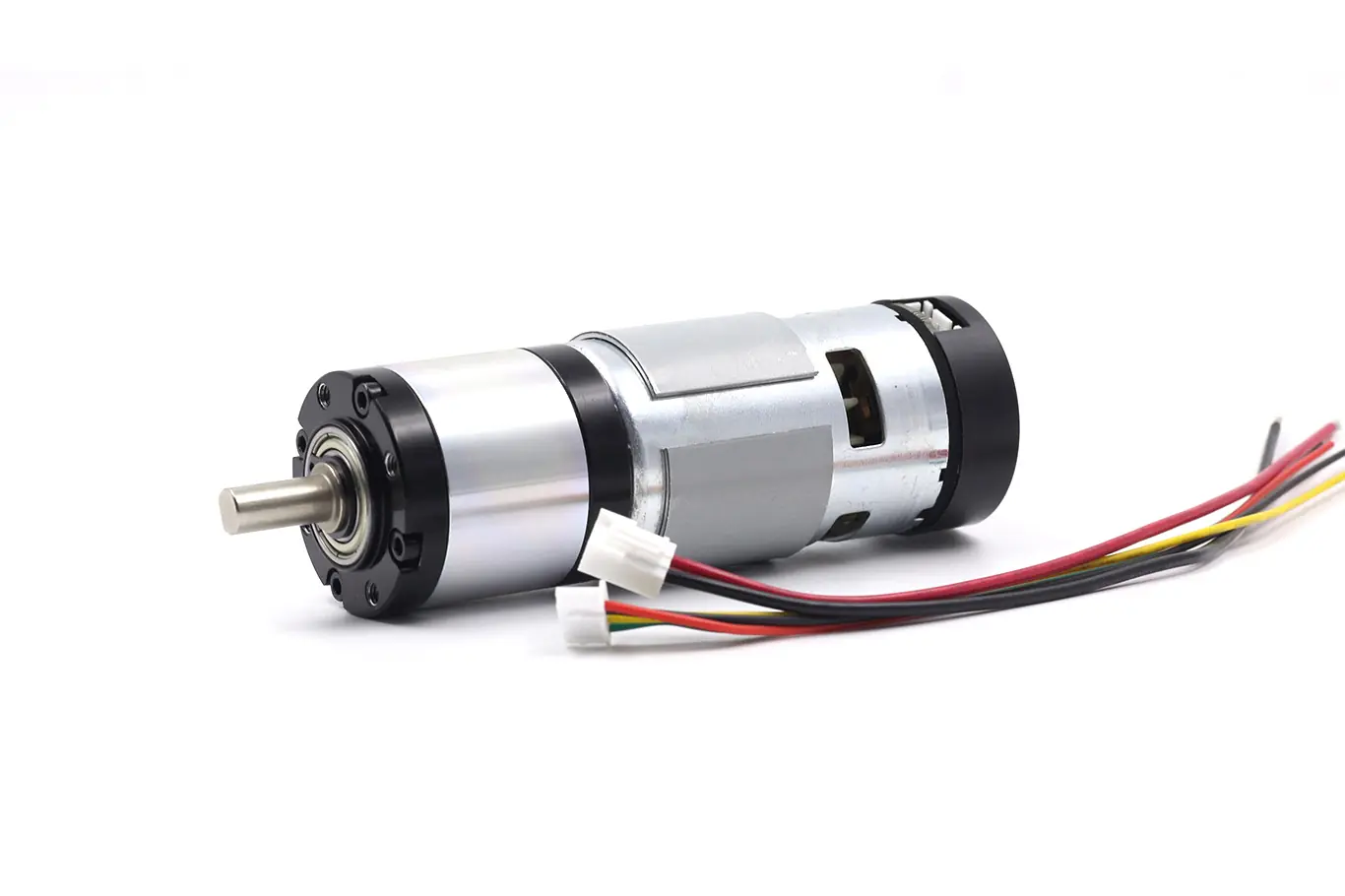

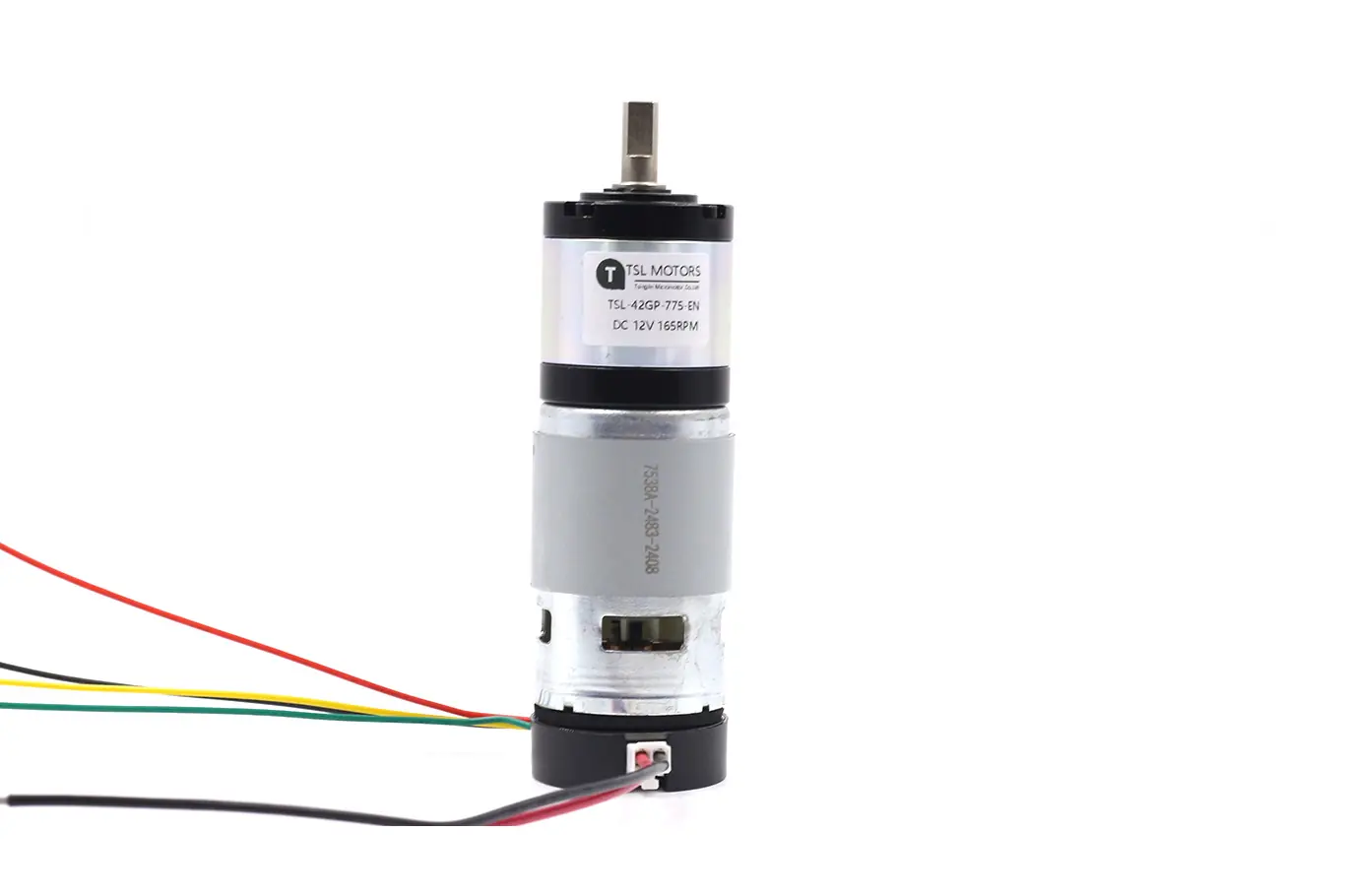

You’re looking for a planetary gear motor which offers both power and precision? The TSL-42GP-775-EN blends advanced technology with a practical layout, making it ideal for robotics and automation projects. The 42mm diameter DC planetary gear motor is distinctive by its integrated encoder system and durable construction.

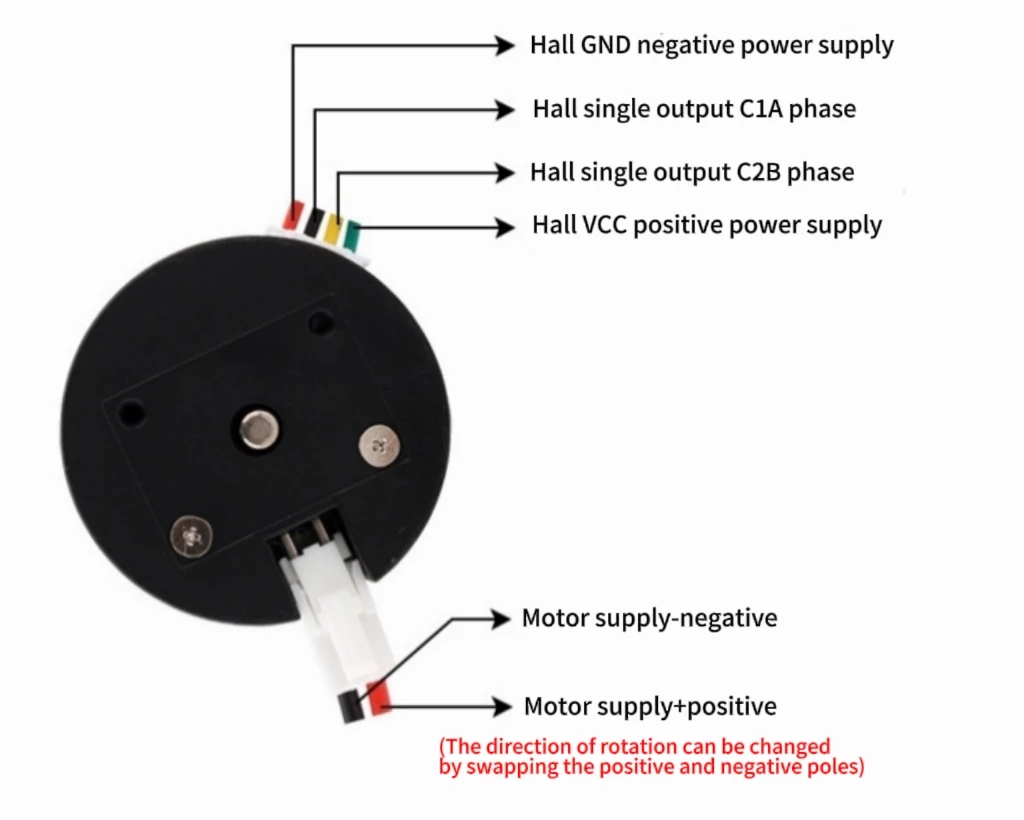

High Gear Reduction Motor with Planetary Gearbox Wiring Diagram

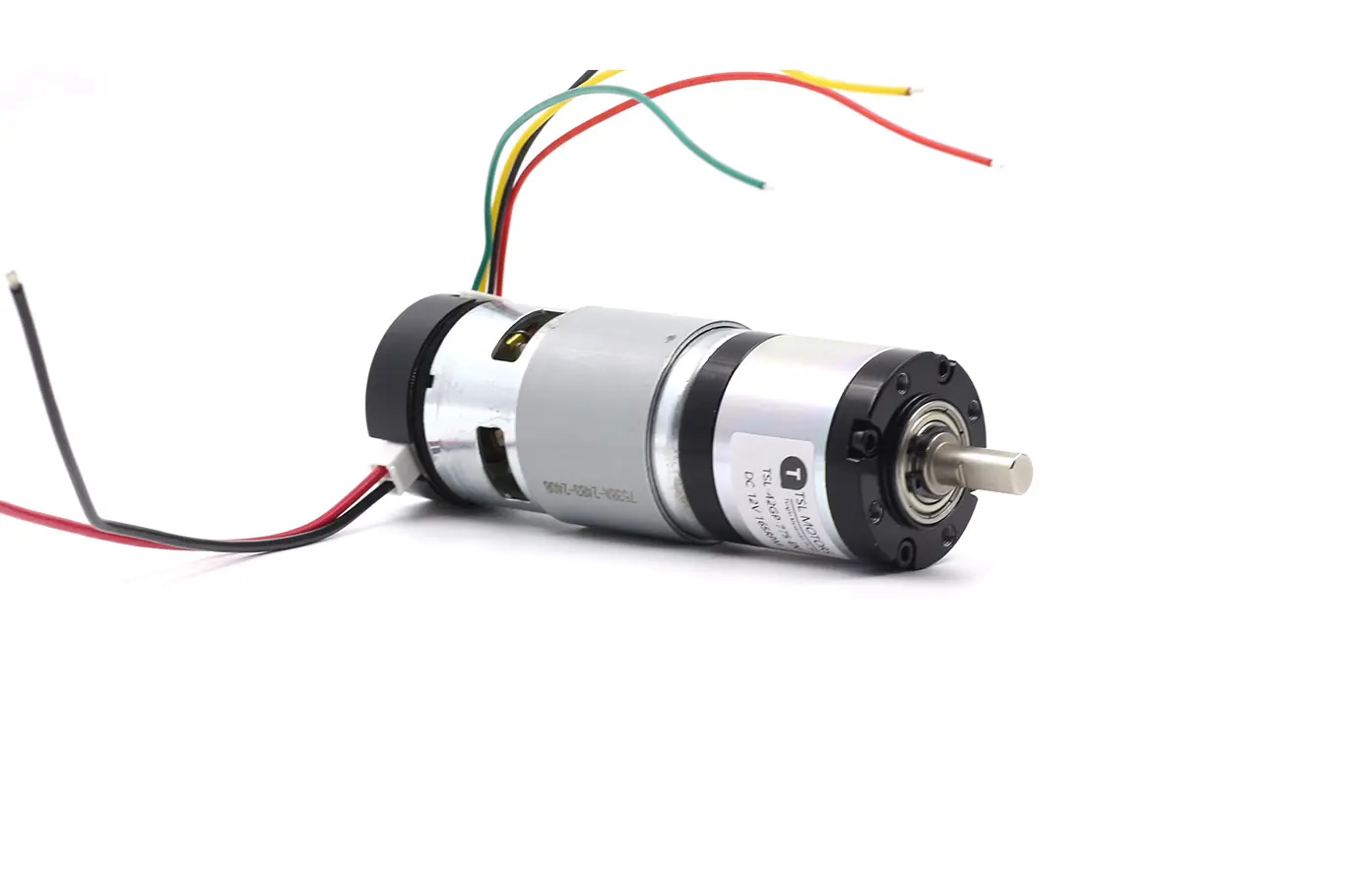

775 DC planetary gear motor comes with the latest planetary gear system that is made of hardened steel, which ensures long-lasting durability and reliability. The exact engineering of the gears result in smooth operation and low noise, which is ideal for environments with high levels of sensitivity.

Smart Control at Your Fingertips

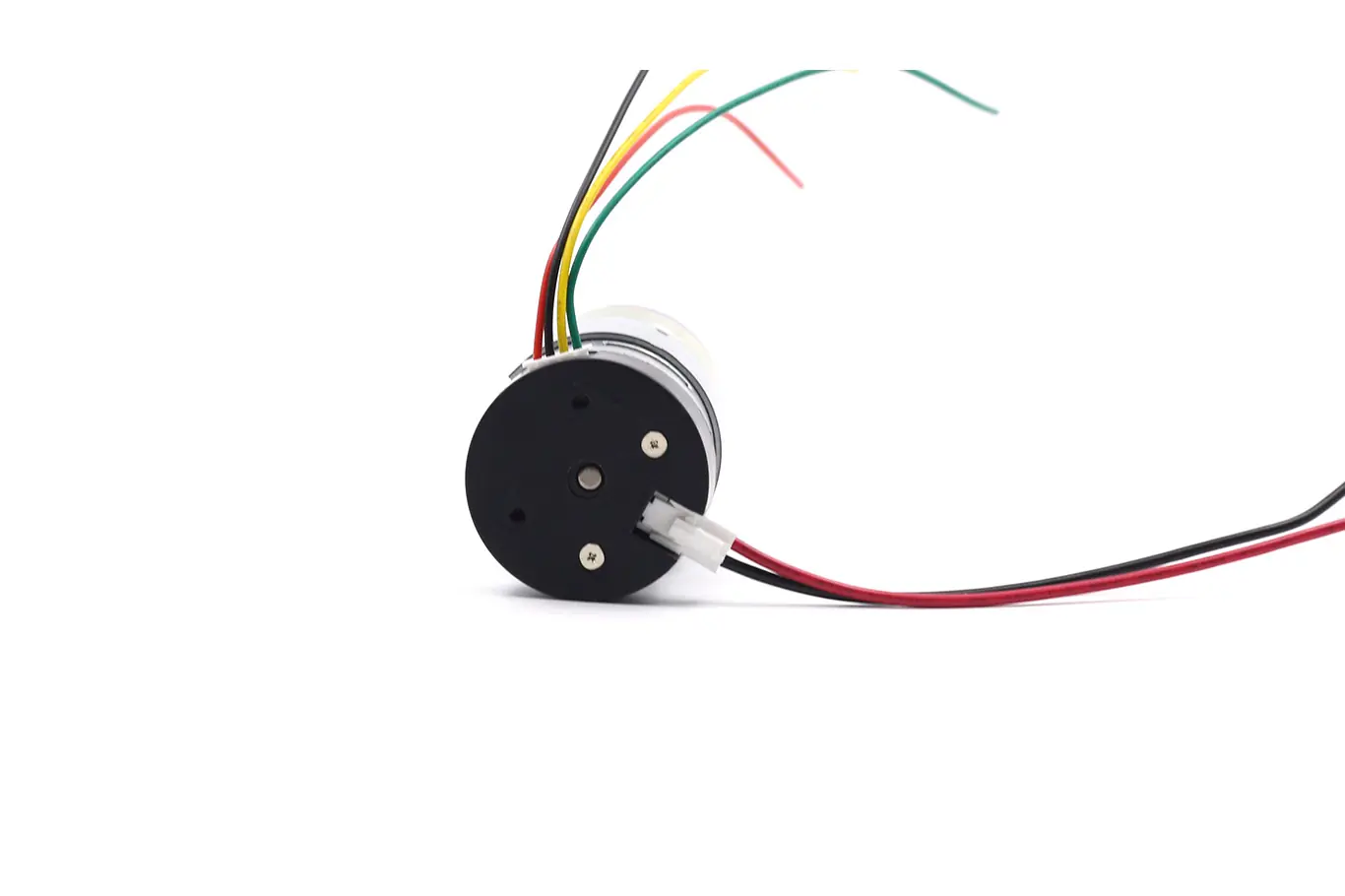

What distinguishes this motor is the embedded AB double-phase, incrementally magnet Hall encoder. This precise feedback system offers:

⭐Accurate tracking of the position with 17 pulses of base per revolution

⭐This product is suitable for both 3.3V as well as 5.0V DC control systems. Compatible with both 3.3V and 5.0V DC control

⭐Clear output of a square wave

⭐Quick connection with the PH2.0-4PIN interface

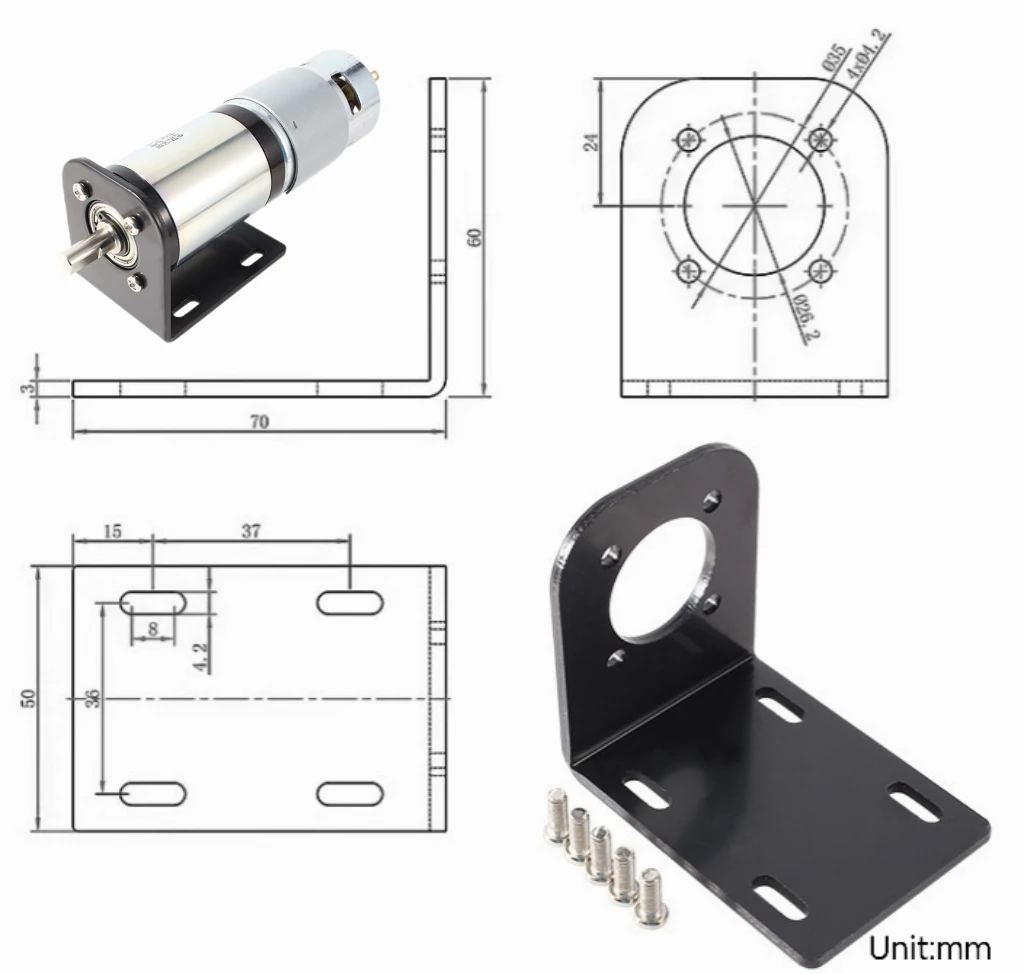

Long Service Life Gearmotor Installation Bracket

Motors can be customized to meet the needs for your particular project. If you require an easy, steady spin or a powerful, rapid motion.

Keywords

small planetary geared electric motor, planetary dc motor manufacturers, planetary gear motor with encoder,planetary gear motor

Payment:
Payment options : Paypal T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 days of the payment.
3.If you don’t have the item by the delivery Time Please send us an email with questions. In most cases, we will send you a response within 24 hours. If not, examine the spam in your email inbox. We will try the best we can to assist you with the issues.
4.Please ensure that your address is in line with the final shipping address prior to you make payment.

FAQ for planetary gear motor

Q:What is a planetary gear motor?

Q:Do you trade with a your own company or manufacturing?

A: We are factory.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.

Q: What’s one of your main motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the principal use of the microdc motor?
A Mini DC motors are used extensively in home Applications, Office Equipment, Health-Care Application, Sanitation Industry The High-Class Toy Banking System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
