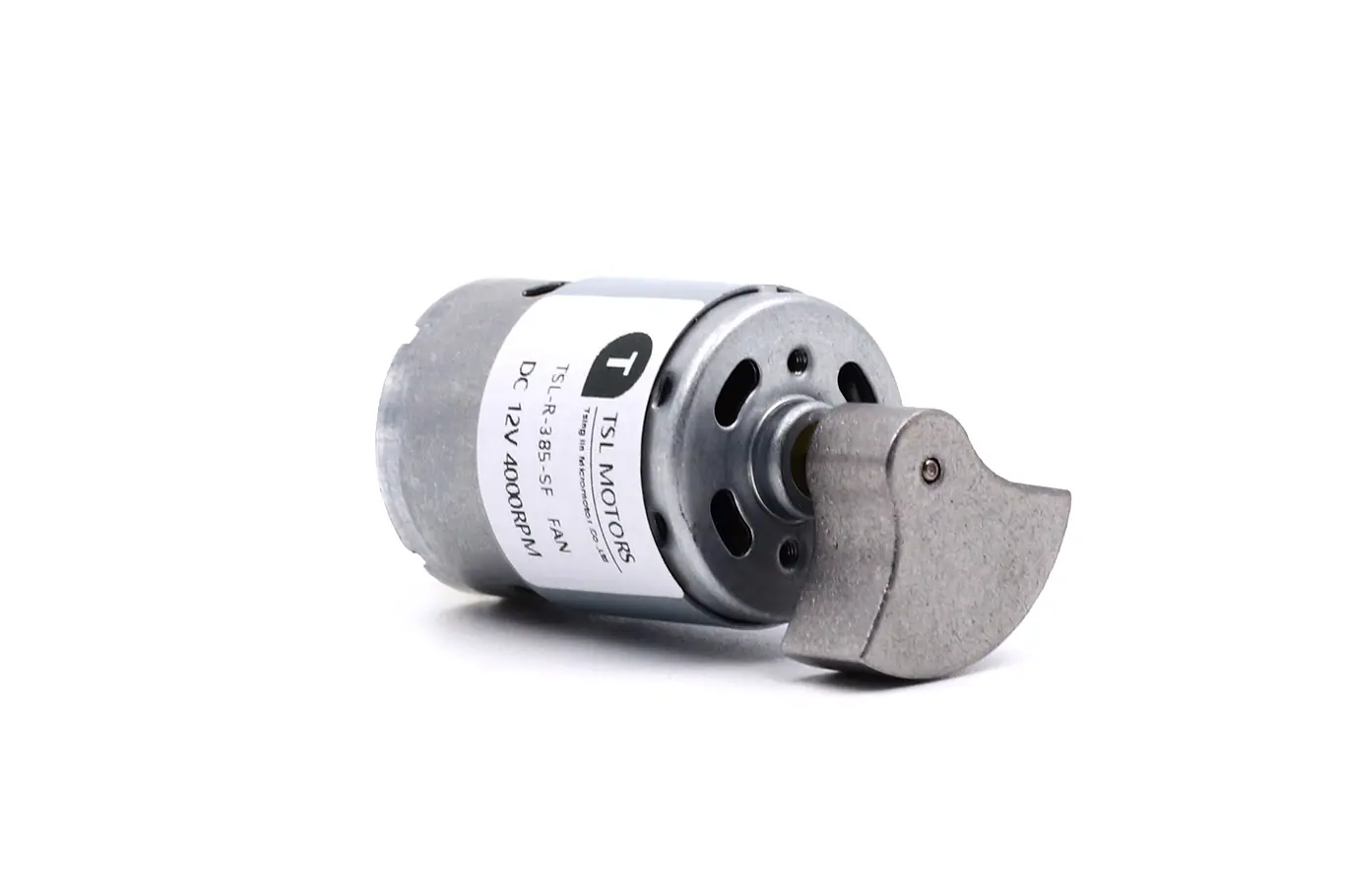

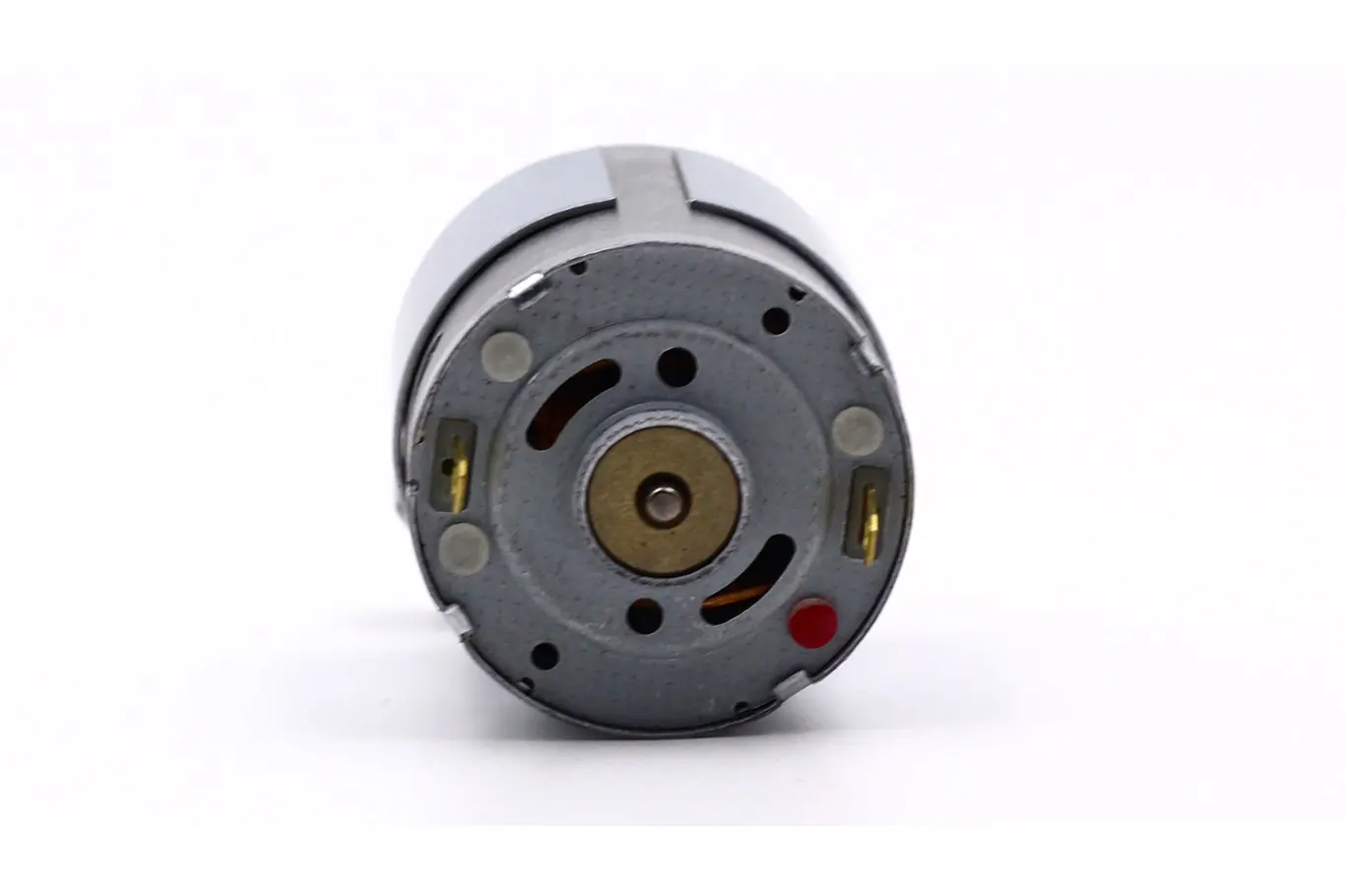

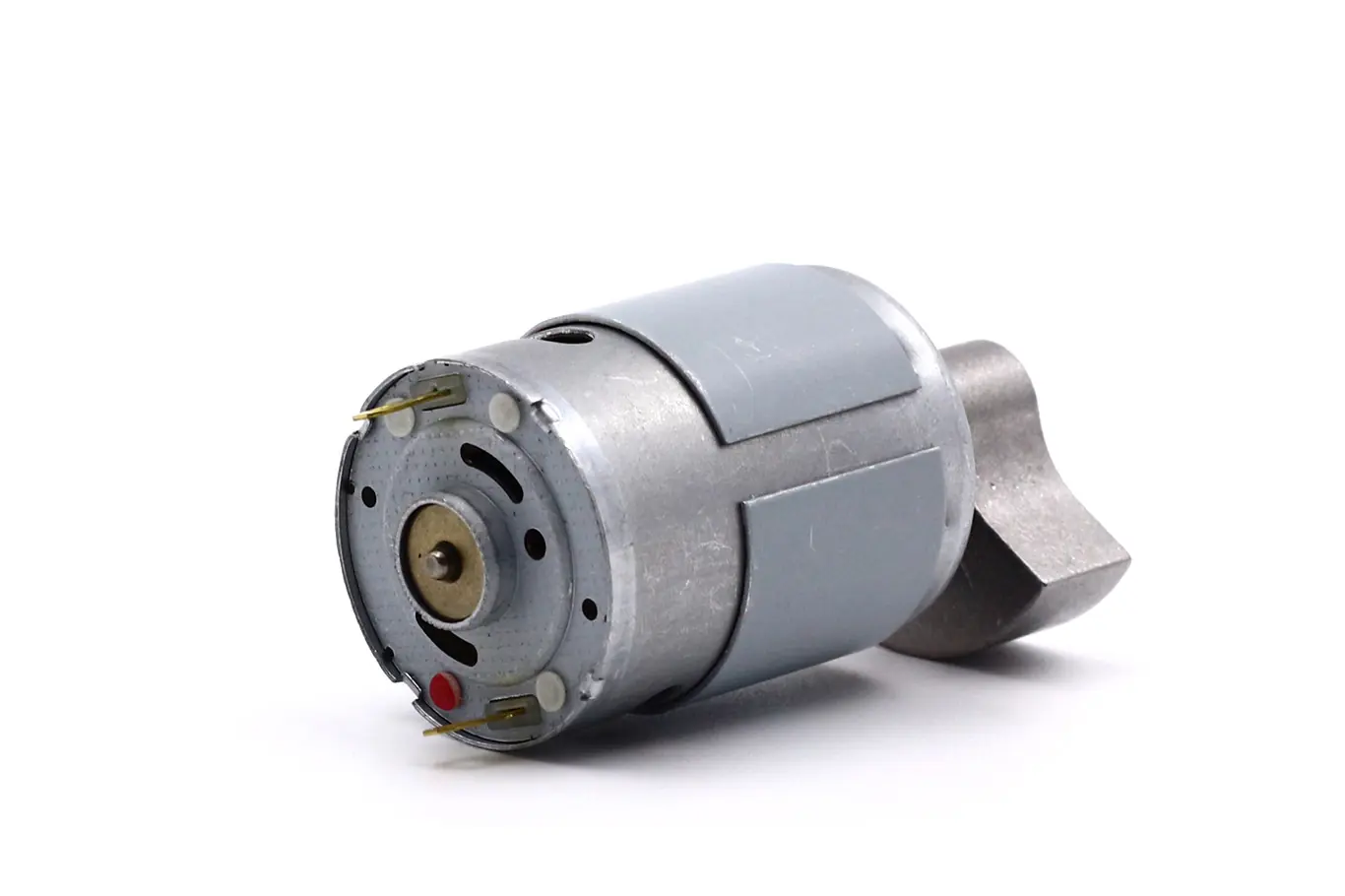

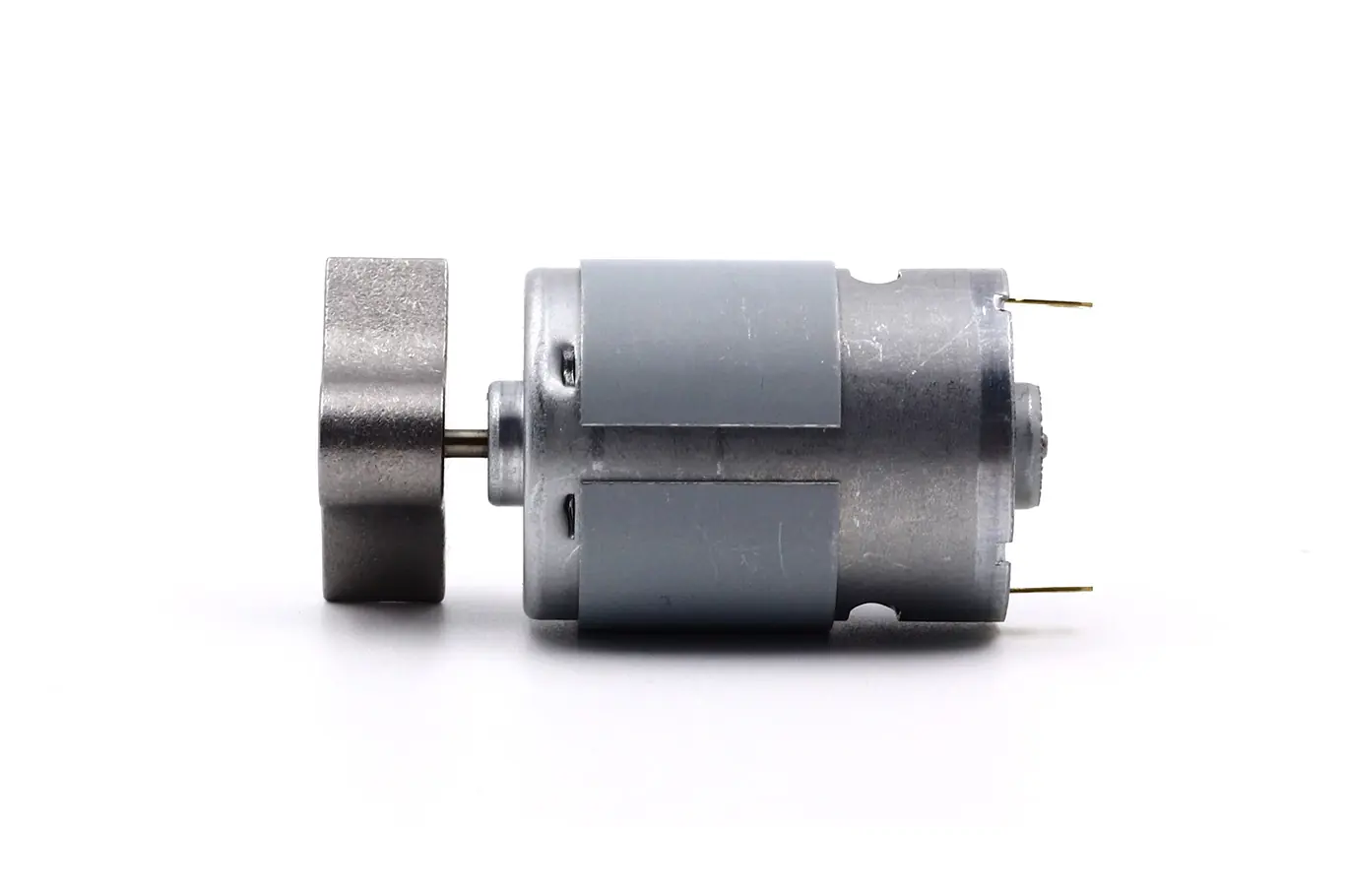

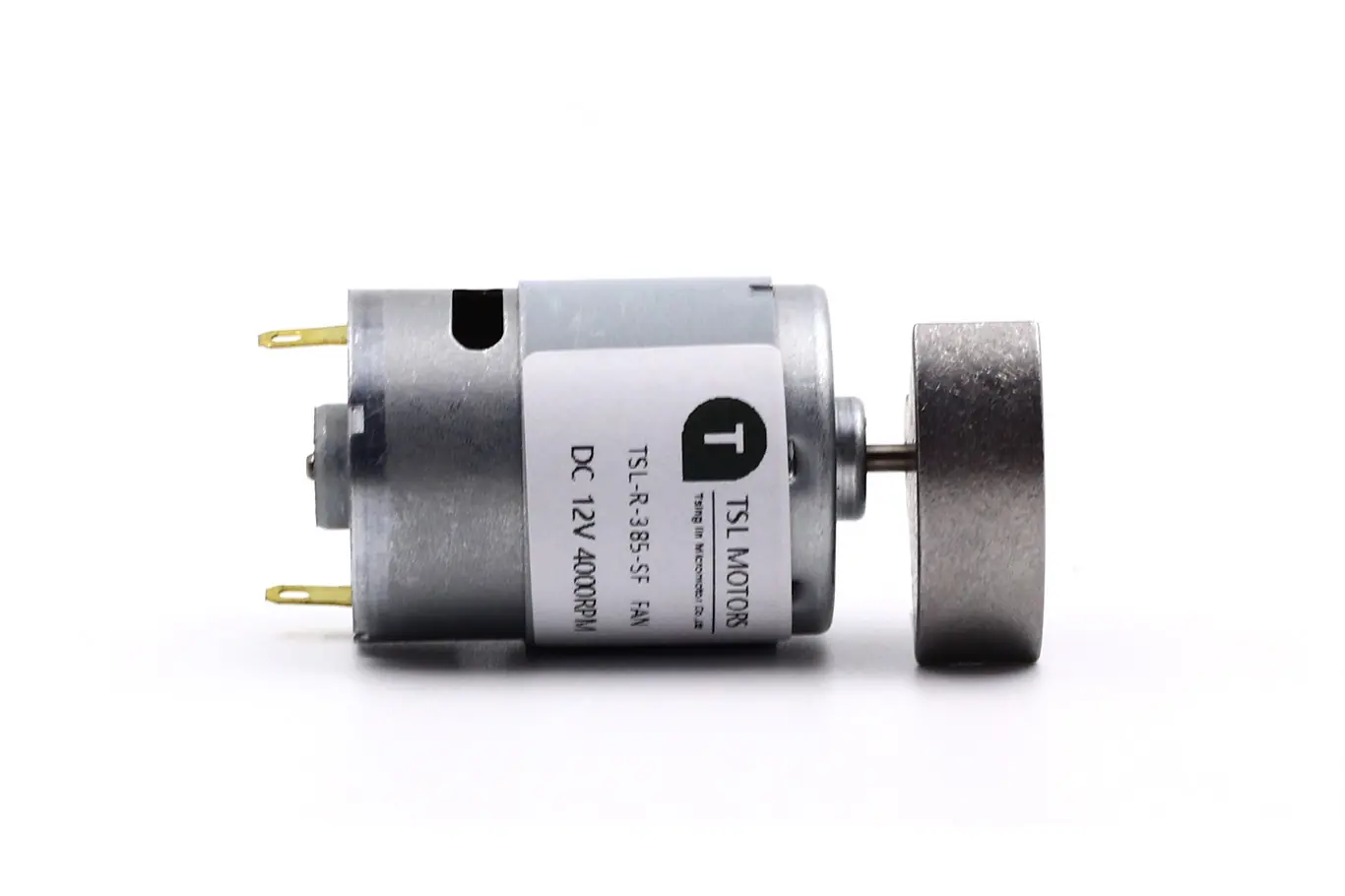

28mm ERM Vibration Motor – 38mm Type Model TSL-R-385-SF
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-R-385-SF
- Motor Type: Powerful Vibration Motor
- Motor Diameter: 28 mm
- Motor Length: 38 mm
- Shaft Thickness: 10 mm
- Rated Voltage: 12/24 V
- Vibration Head: Fan Shape
- #More Specifications
12V 24V Micro DC Single Fan Shape Head Motors Data Sheet
The TSL-R-385-SF is a 28mm ERM vibration motor with a 38mm type design, designed as a micro DC single fan shape head motor for efficient and precise vibration performance. With a motor diameter of 28mm and a body length of 37.7mm, it features a vibrator head diameter of 27.5mm and a thickness of 10mm, ensuring compact yet robust construction. Operating at 12V/24V DC, it delivers 4,000 RPM (12V) or 8,000 RPM (24V), providing versatile speed options for various applications.
| Motor Model | TSL-R-385-SF |
| Motor Diameter | 28mm |
| Motor Body Length | 37.8mm |
| Vibrator Head Diameter | 27.5mm |
| Vibrator Head Thickness | 10mm |
| Rated Voltage | 12V / 24V DC |
| Rated Speed | 4,000rpm / 8,000rpm |
| No Load Current | 0.064A – 0.142A |
| Power | 4.48W – 4.83W |
| Rotation | CW / CCW |
| Weight | 98g |
ERM Type Miniature Vibrator Single Fan Shape Head Motor Dimension
Keywords:
A haptic motor, 24v vibrating motor, miniature vibrating powerful vibrator,single fan shape head motor
Development Samples:
The quantities of sampling for models that are stocked are available to order directly online from us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on customizing and integration services.
Payment Method:
Payment methods : PayPal or T/T
Shipping Method:
1.Delivery: DHL door to door, 5-7 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you don’t have the item within the Delivery Time please email us for any queries. In most cases, we will send you a response within 24 hours If not, please look through your email account. We will try our best to assist you resolve the issue.
4.Please check that your address matches the final shipping address prior to you make payment.
5.In order to make sure you get your order tax-free at the time of import, we’ll declare it at an amount lower than the value you paid for it, please be aware of this, thanks!
FAQ – Frequently Asked Questions
Q: If it is a custom request What information do you need to be able to provide?
A: You must give the fundamental specifications of the motor, for example Dimensions, Sizes, Applications as well as Voltage, Speed and Torque. It is better to provide sketches of the application when you can.
Q: What are your primary motor?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What is the primary purpose of the micro DC motor?
A Mini DC motors are extensively used in home Applications, Office Equipment, Health-Care Application, Sanitation Industry High-Class Toys Bank System Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
