18mm Brushed DC Motor – 30mm Type Model TSL-RS-280A
Basic Info:
- Motor Type: Brushed DC Motor
- Motor Diameter: 18.3 mm
- Motor Length: 30.5 mm
- Shaft Diameter: φ 2.0 mm
- Rated Voltage: 12 V
- Rated Speed: 10457 RPM
- Output Power: 5.63 W
- Output Torque: 52.46 g·cm
- #More Specifications
Typical application:
- industrial equipment, consumer electronics
- automotive accessories or small tools
Long Lifetime RS-280 Small 12 Volt Electric Motors Key Feature
The small 12 volt electric motors TSL-RS-280A are compact, high-performance brushed DC motors. They’re built for efficient driving. These small 12 volt electric motors measure just 18.3 mm in diameter and 30.5 mm in length. It weighs only 40g, making it easy to install in various devices.
Impressive Performance and Robust Design
At 12V, the small 12 volt electric motors TSL-RS-280A reaches a rated speed of 12,000 RPM. It provides an output torque of 52.46 g·cm. This ensures stable, efficient operation. Internally, the small 12 volt electric motors use H-class enameled wire, a coated rotor, and a bakelite commutator. It also features a built-in varistor and PTC protection device. These components provide excellent temperature control and electrical protection, allowing it to adapt to complex environments.
Versatile and Customizable
Whether for industrial equipment, consumer electronics, automotive accessories, or small tools, the TSL-RS-280A delivers reliable performance. Its adaptable design meets diverse needs, offering efficient and durable drive solutions.
We also support custom designs to optimize the small 12 volt electric motors’ performance and structure for your specific applications.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| TSL-RS-280SAV-15250B | 15 | 0.08 | 9000 | 0.38 | 7433 | 46.10 | 3.52 | 1.80 | 264.80 |
| TSL-RS-280PAVT-20150B | 12 | 0.115 | 12300 | 0.65 | 10457 | 52.46 | 5.63 | 3.69 | 350.11 |
| TSL-RS-FT-280SAV-18182LG | 12 | 0.07 | 9565 | 0.44 | 8259 | 40.96 | 3.48 | 2.56 | 299.99 |
| TSL-RS-280PAVT-21120R | 12 | 0.11 | 12850 | 0.68 | 11060 | 48.75 | 5.54 | 4.20 | 349.97 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

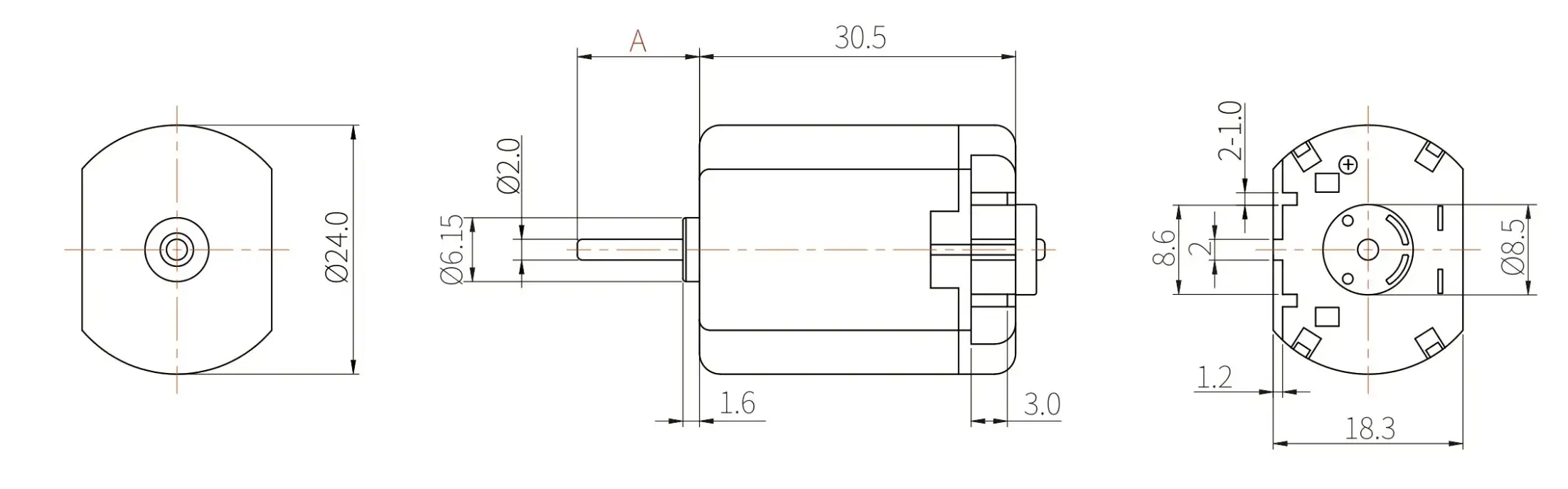

Small 12 Volt Electric Motors Dimension
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
