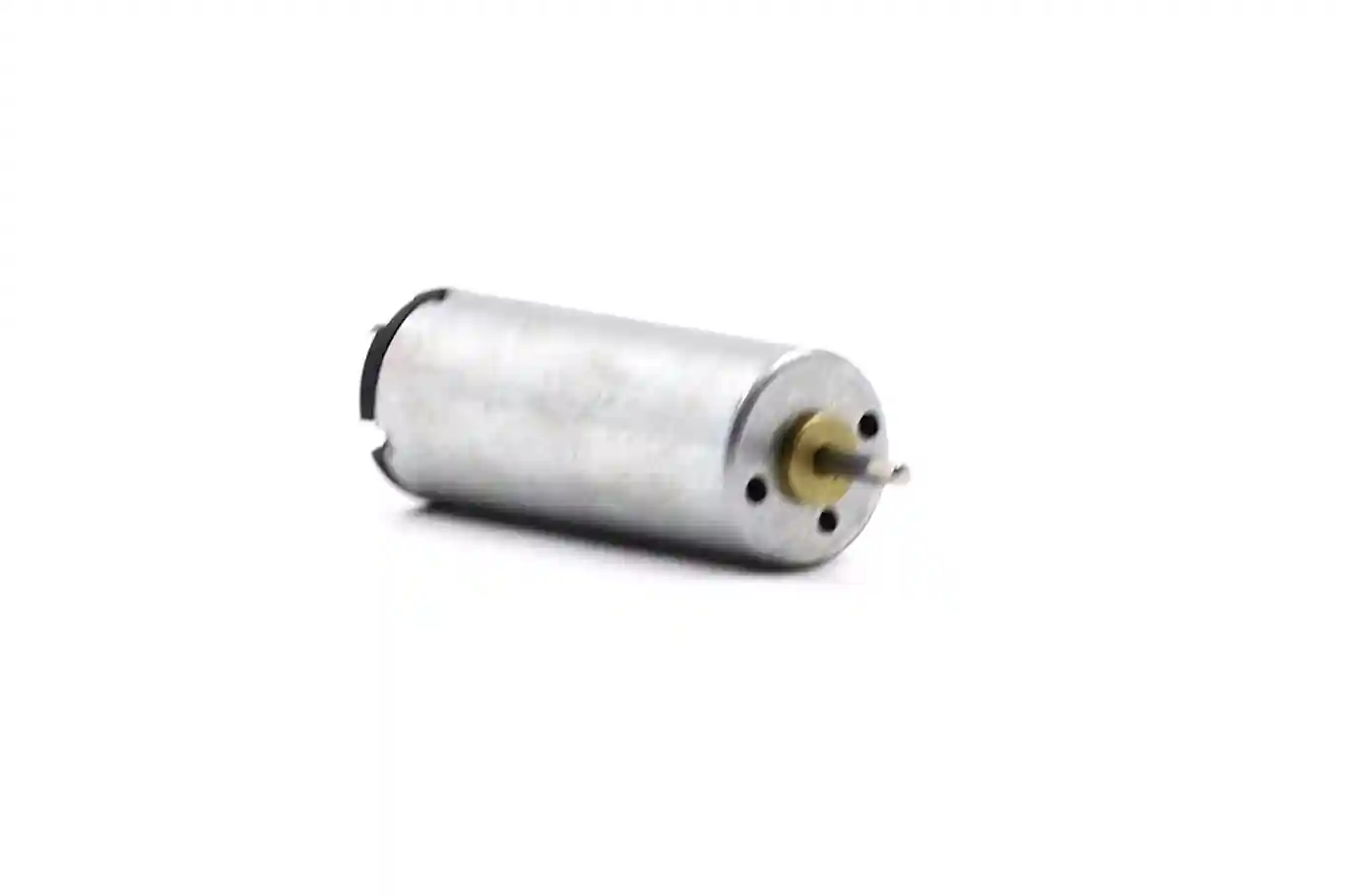

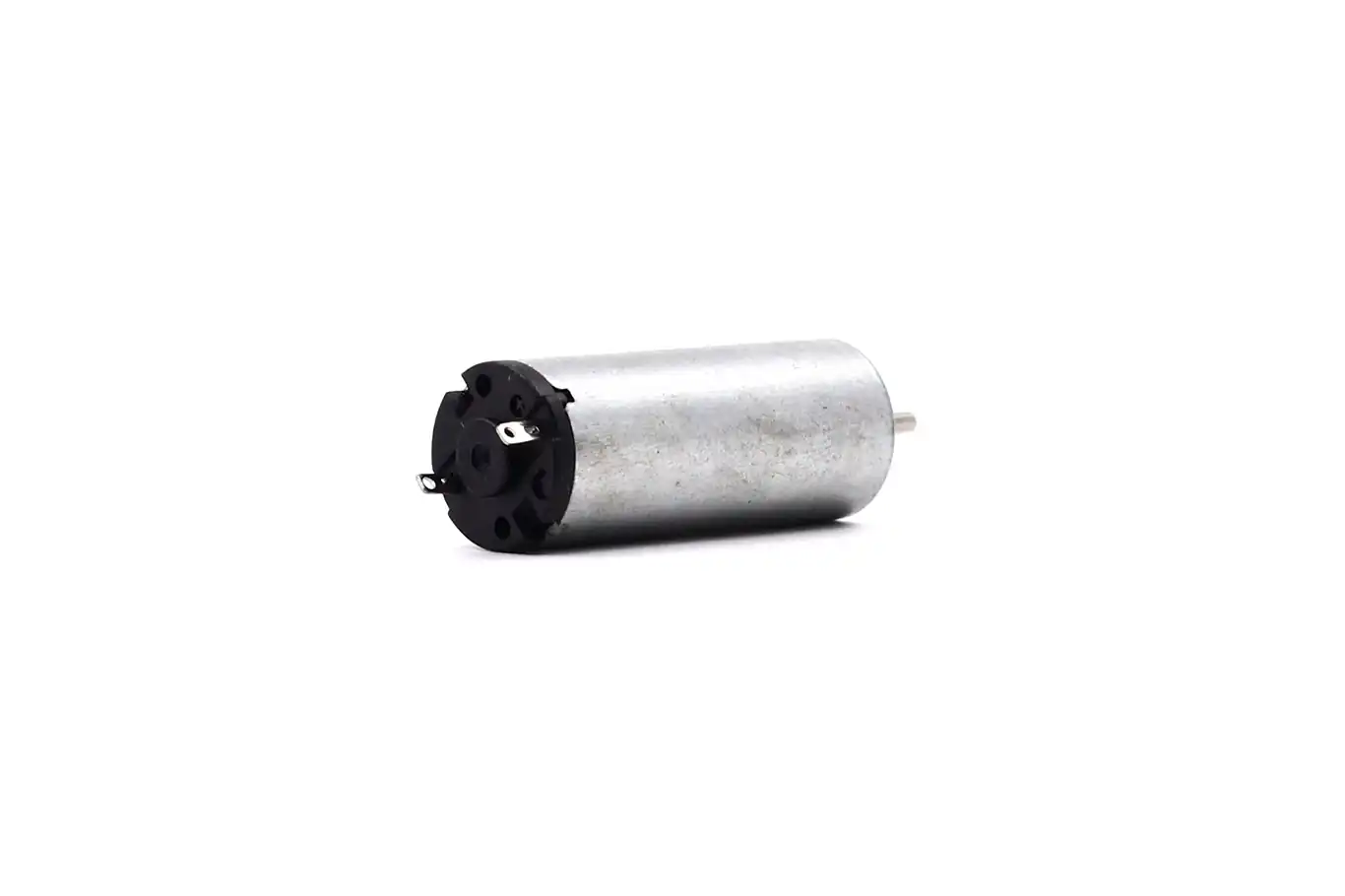

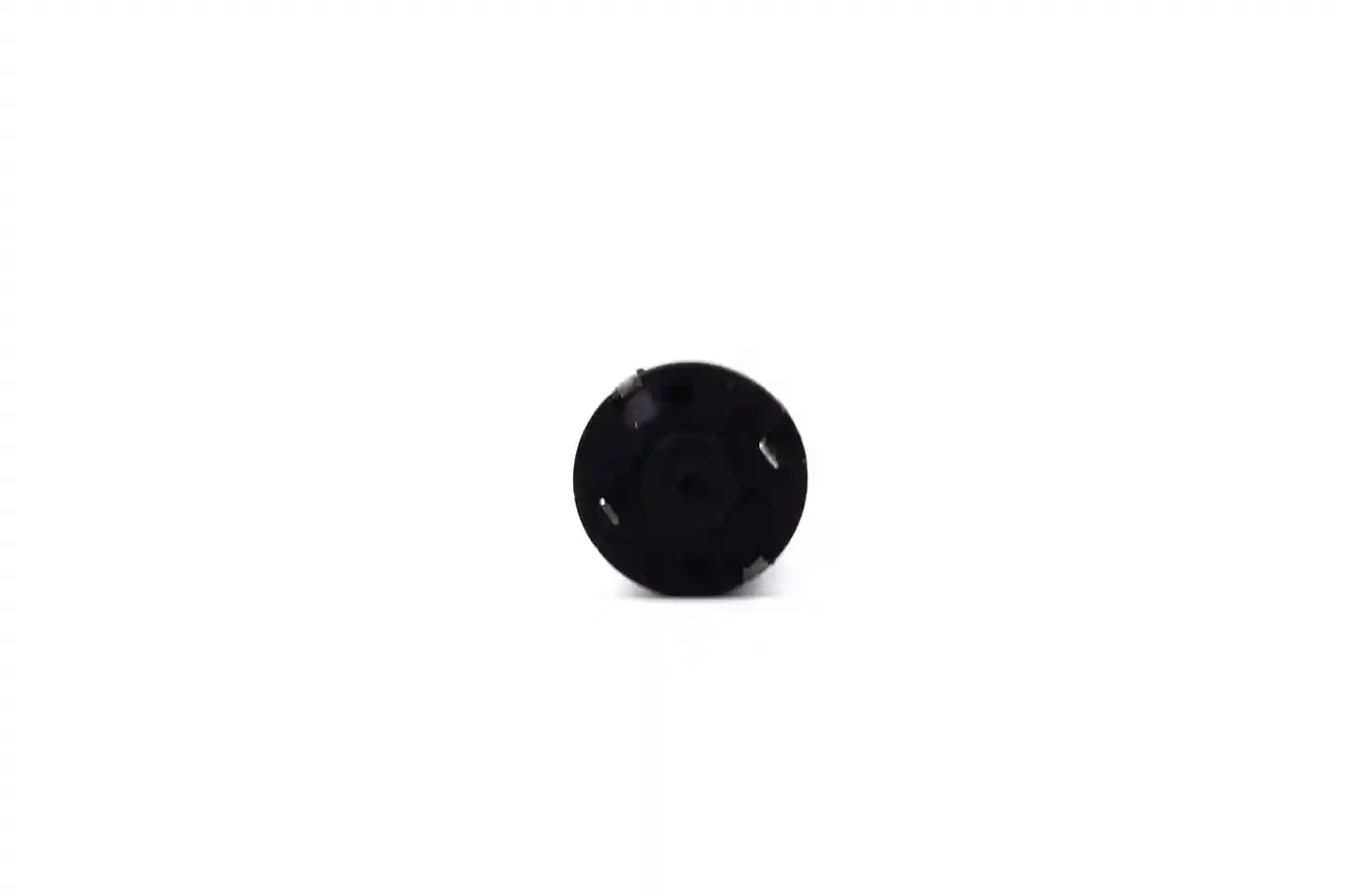

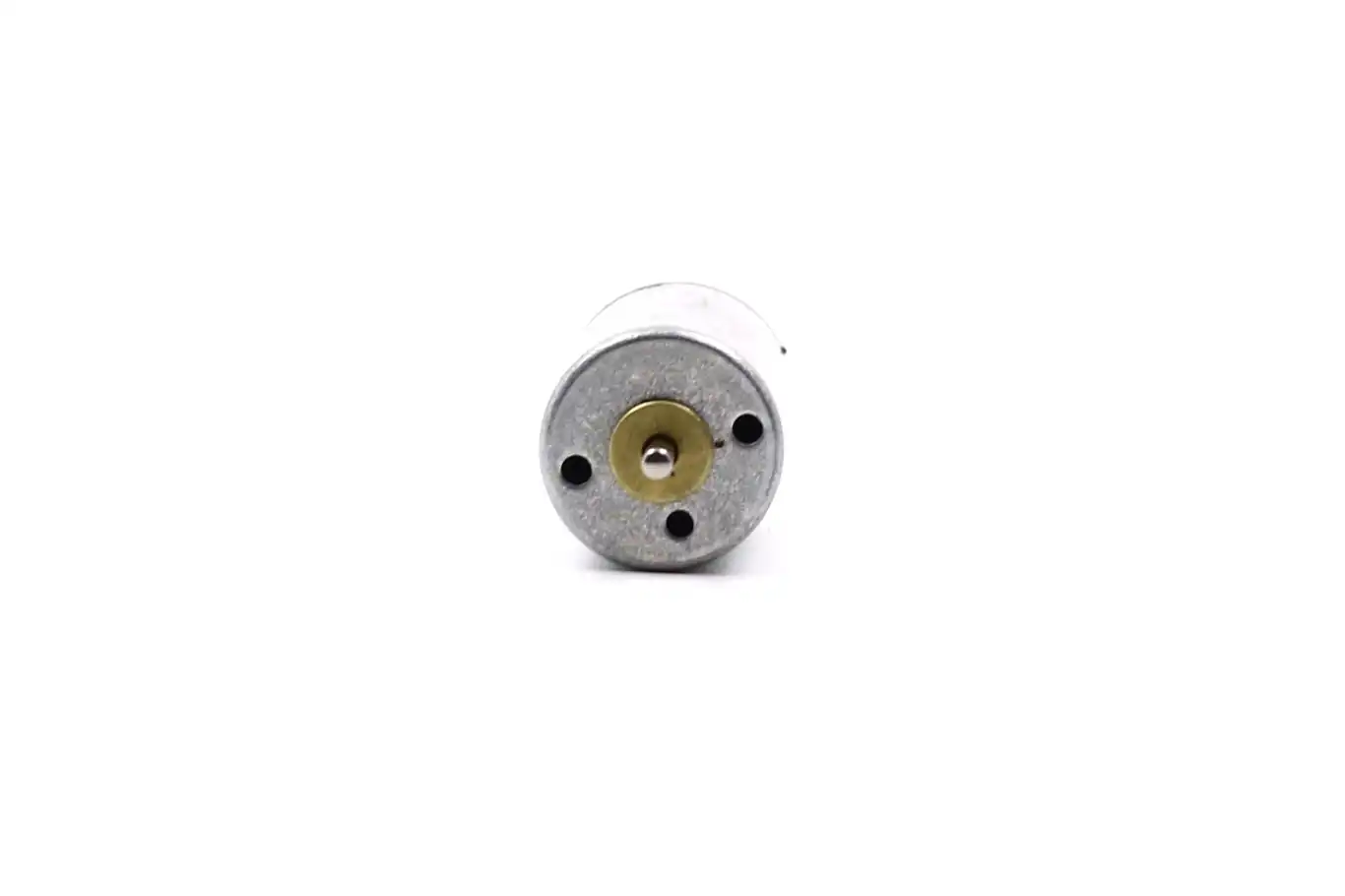

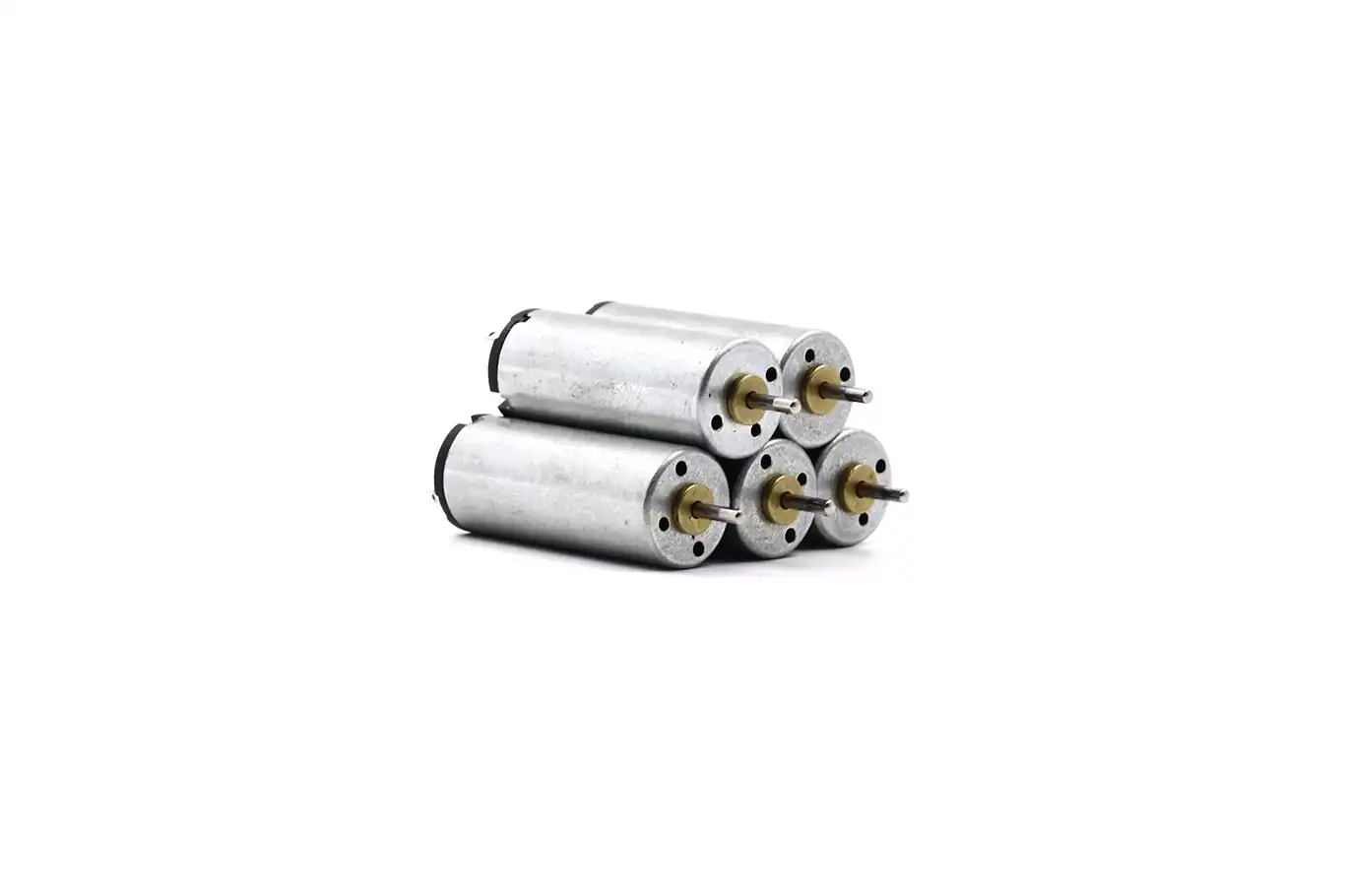

12mm Micro DC Motor – 30mm Type Model TSL-RF-1230
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RF-1230
- Motor Type: Micro DC Motor(Brushed DC Motor)
- Motor Diameter:12 mm
- Motor Length: 30 mm
- Shaft Diameter: φ 1.5 mm
- Rated Voltage:1.5V/2.4V/3V/ 3.7V
- #More Specifications
♦ Typical Applications:
- electric toothbrushes
- medical equipment
- ear surgery instruments
- electric fishing rod reel systems
Small Boat Electric Motor Datasheets
The TSL-RF-1230 permanent magnet DC small boat electric motor excels in high-speed response. This brushed DC small boat electric motor provides 14,750 RPM and 8.0 g·cm output torque under rated conditions, ensuring stable performance in light-load drives. The small boat electric motor operates quietly, under 58dB, suitable for low-noise household and medical devices.
With a compact structure, measuring 12 mm in diameter, 30 mm in length, and a 1.5 mm shaft diameter, the small boat electric motor offers balanced performance.
Its broad applications include electric toothbrushes, medical equipment, ear surgery instruments, and electric fishing rod reel systems.
We can optimize and customize the tiny electric motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RF-1230-1573 | 2.4 | 0.063 | 10512 | 0.24 | 8345 | 4.18 | 0.36 | 0.92 | 20.29 |
| TSL-RF-1230-13100 | 3 | 0.058 | 9100 | 0.20 | 7088 | 3.88 | 0.28 | 0.70 | 17.53 |
| TSL-RF-1230-1859 | 3.7 | 0.11 | 19535 | 0.54 | 16216 | 6.18 | 1.03 | 2.64 | 36.37 |
| TSL-RF-1230-2046 | 1.5 | 0.094 | 9758 | 0.39 | 7861 | 3.52 | 0.28 | 1.62 | 18.11 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

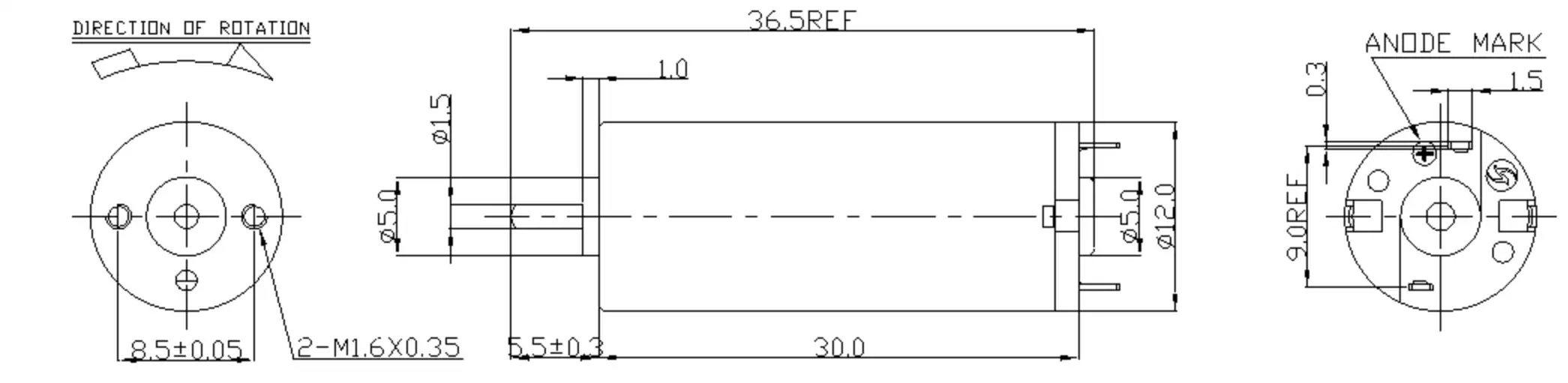

DC Small Boat Electric Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
