10mm Coreless DC Motor – 20mm Type Model TSL-CL1020
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-CL1020
- Motor Type:Coreless DC Motor
- Motor Diameter: 10±0.1mm
- Motor Length:20.7±0.2mm
- Max.permissible No-load speed:33800rpm
- Voltage:1.5V/3V/4.5V/6VDC/customizable
- #More Specifications
- #Outline Drawing

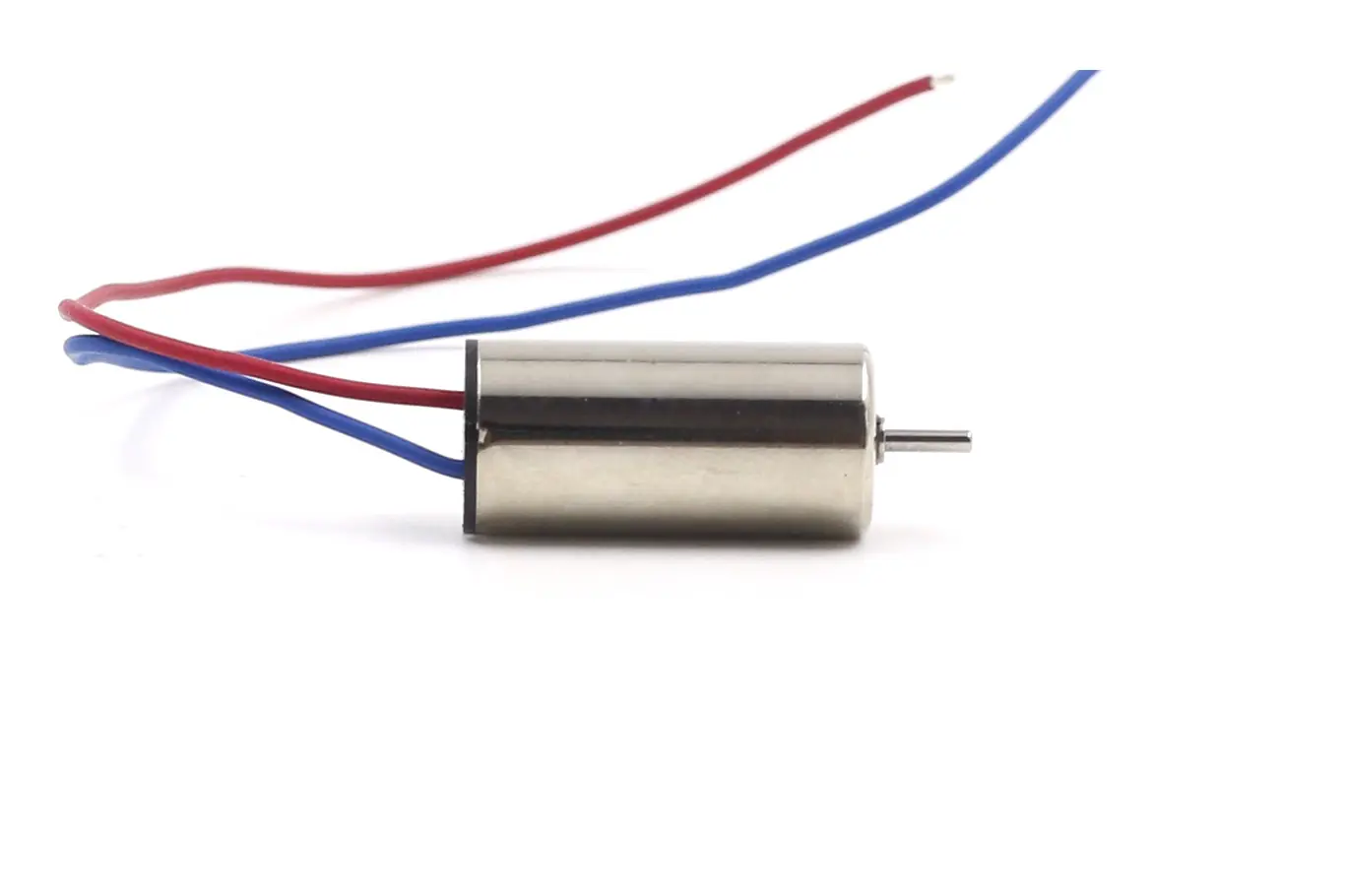

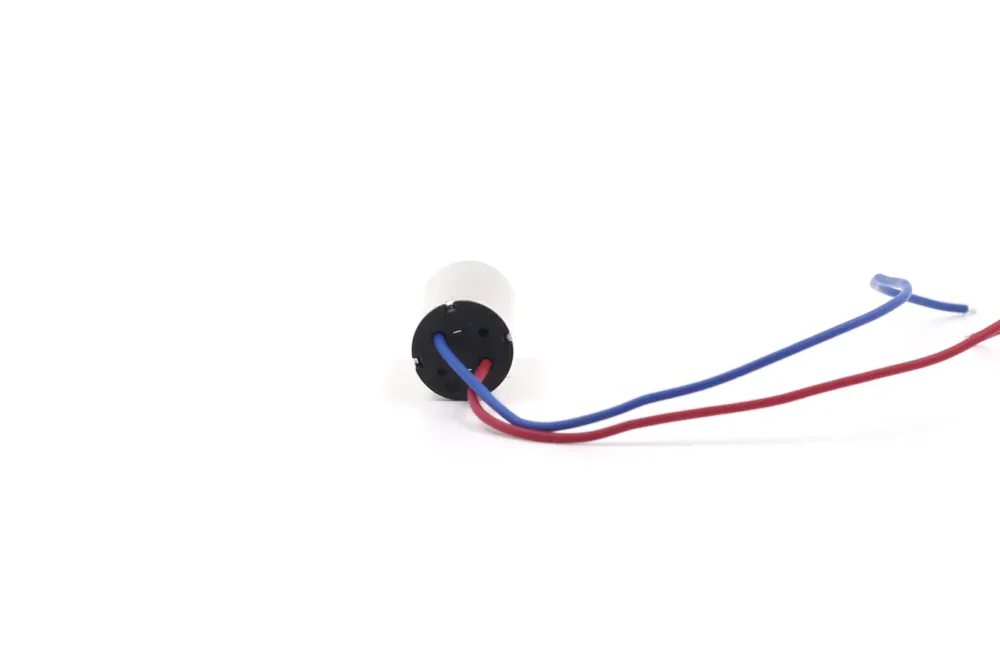

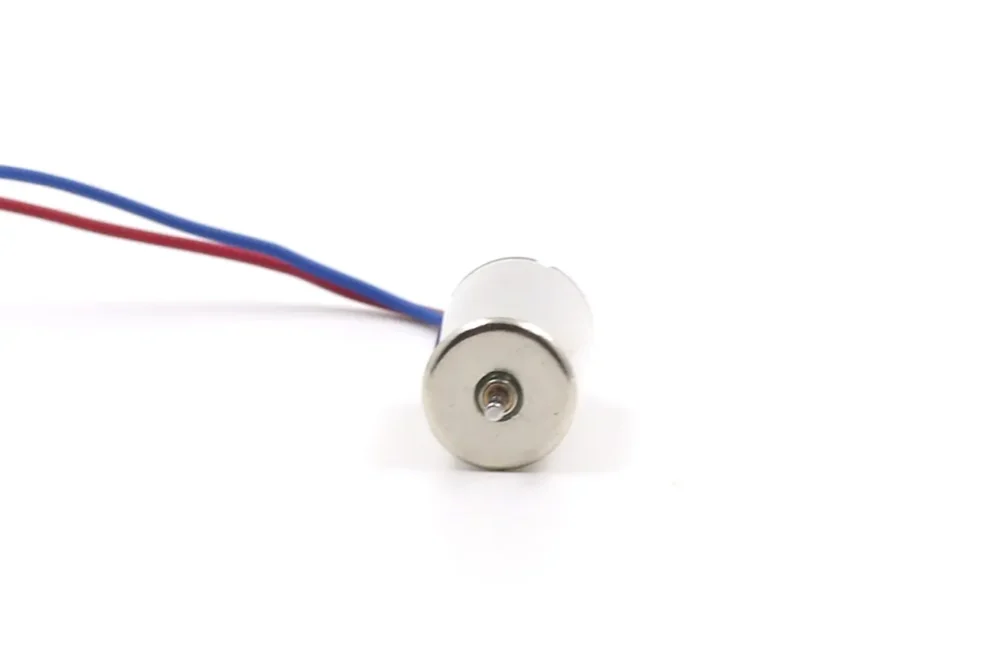

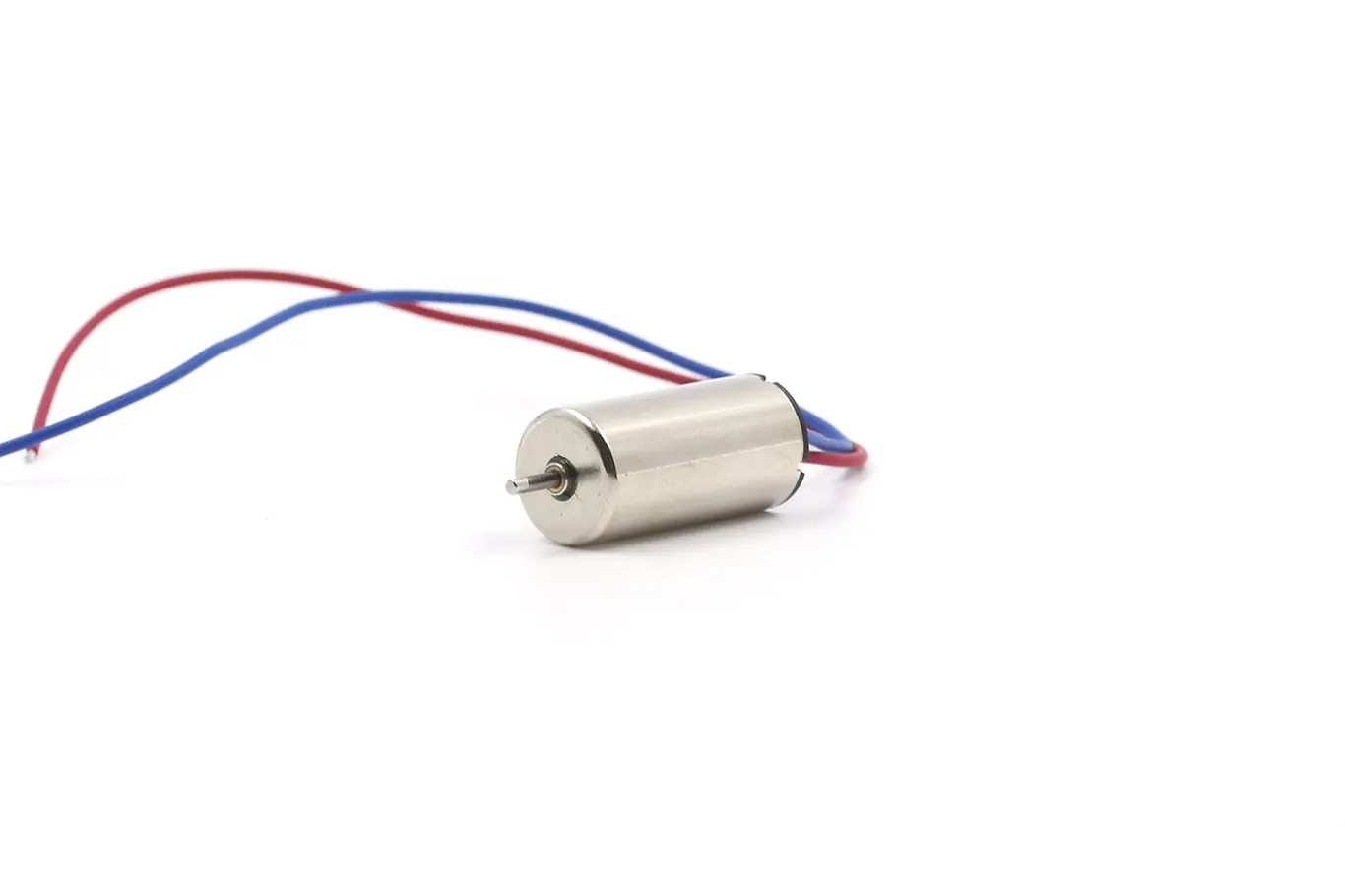

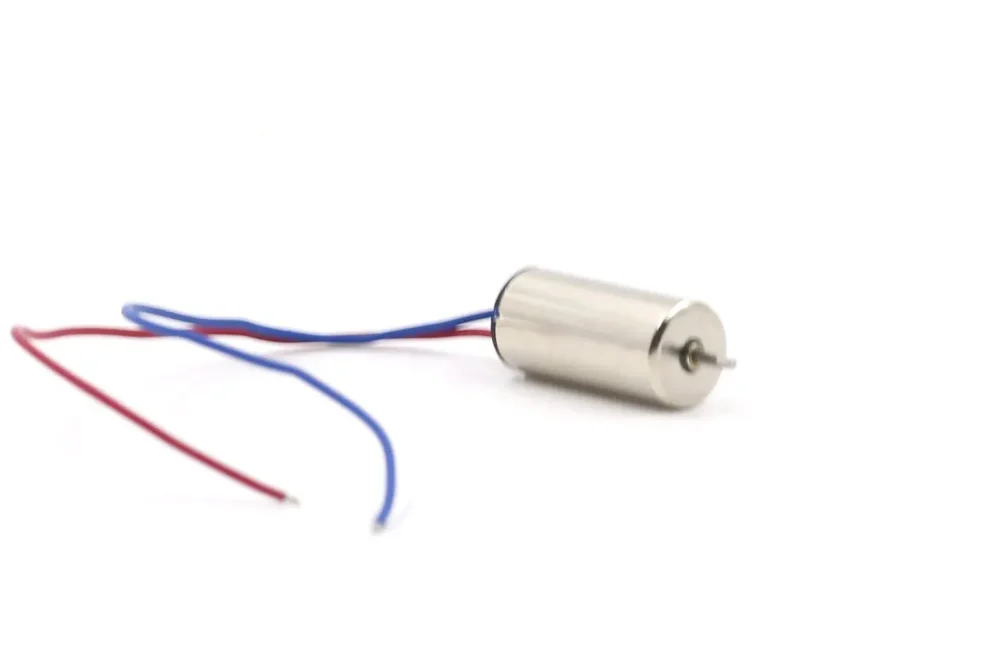

Small Drone Motor 1020 Coreless Motor DC Datasheet
This is a 1020 coreless motor. It has a very small size. It is lightweight and compact. The coreless design allows fast starts.
It is made for small drones. It provides power for quadcopters. This is ideal for RC hobby projects. It’s also used in various micro-devices.
This small drone motor has very high speed. It delivers powerful performance. The motor response is very quick. It runs smoothly and efficiently
| Motor Parameter---Values at nominal voltage | Motor Model | ||||||
| TSL-CL1020-040142 | TSL-CL1020-040142 | TSL-CL1020-060122 | TSL-CL1020-060122 | TSL-CL1020-060122 | |||
| Rated voltage | V | 1.5 | 3 | 3 | 4.5 | 6 | |
| Free Load | No load speed | rpm | 12900 | 25700 | 16900 | 25400 | 33800 |
| No load current | mA | 25 | 41 | 22 | 35 | 44 | |
| At Max Efficiency | Max.efficiency | % | 57% | 64% | 64% | 64% | 66% |
| Speed | rpm | 10800 | 21900 | 14400 | 21500 | 28800 | |
| Current | mA | 131 | 239 | 125 | 194 | 251 | |
| Torque | g.cm | 0.99 | 2.05 | 1.6 | 2.53 | 3.35 | |
| At Max. Efficiency | Max.output | W | 0.2 | 0.91 | 0.47 | 1.08 | 1.94 |
| Speed | rpm | 6500 | 12800 | 8500 | 12700 | 16900 | |
| Current | mA | 353 | 712 | 367 | 553 | 736 | |
| Torque | g.cm | 3.09 | 6.93 | 5.36 | 8.26 | 11.21 | |
| At Stall | Stall current | A | 0.63 | 1.38 | 0.71 | 1.07 | 1.43 |
| Stall torque | g.cm | 6.18 | 13.87 | 10.73 | 16.51 | 22.41 | |
| Motor Contants | |||||||
| Terminal resistance | Ω | 2.2 | 2.2 | 4.2 | 4.2 | 4.2 | |
| Torque constant | g.cm/A | 10.3 | 10.3 | 15.5 | 15.5 | 15.5 | |
| Speed constant | rpm/V | 8800 | 8800 | 5800 | 5800 | 5800 | |
| Speed/Torque constant | rpm/g.cm | 1850 | 1850 | 1580 | 1580 | 1580 | |
Remarks:
➡️The small drone motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
➡️The small drone motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz 1inch=25.4mm 1g.cm=0.098mN.m 1oz=28.35g 1mm=0.0394inch 1mN.m=10.2g.cm
Small Drone Motor DC Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Small Drone Motor DC Motor Typical Performance
❗NOTE: Ambient temperature 25 -30°C
