12mm Micro DC Motor – 15mm Type Model TSL-RF-1215
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-RF-1215
- Motor Type: Micro DC Motor(Brushed DC Motor)
- Motor Diameter:12 mm
- Motor Length: 15mm
- Shaft Diameter: φ 1.5 mm
- Rated Voltage:2.4V/2.5V
- #More Specifications
♦ Typical Applications:
- medical equipment
- portable instruments
- precision control systems
Small Electric Boat Motor Datasheets
The TSL-RF-1215 small electric boat motor is built for high-speed small electric boat. This small electric boat motor uses strong NdFeB magnets and precious metal brushes for great energy efficiency and quick response. At 2.5V, it hits 18,500 RPM no-load.
It features a stainless steel shaft and oil-containing bearings, boosting stability and lifespan. This small electric boat motor also cuts down noise and maintenance.
Compact at 12mm diameter, 15mm length, and a 1.5mm shaft, small electric boat motor is perfect where space, efficiency, and reliability are key. Typical uses include medical gear, high-speed boat portable tools, and precision control systems.
We can optimize and customize the tiny electric motor. This ensures strong, reliable power for different products. It meets many customer needs.
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g.cm | W | A | g.cm | |
| TSL-RF-1215-10150 | 2.5 | 0.12 | 19530 | 0.30 | 13454 | 1.6 | 0.22 | 0.7 | 5.14 |
| TSL-RF-1215-10150 | 2.4 | 0.128 | 18500 | 0.34 | 13362 | 1.6 | 0.219 | 0.89 | 5.76 |
- lbf⋅ft= 1.3558179483314004 N⋅m
- 1pdl⋅ft = 4.21401100938048×10−2 N⋅m
- lbf⋅in== 0.1129848290276167 N⋅m
- 1kgf⋅m== 9.80665 N⋅m

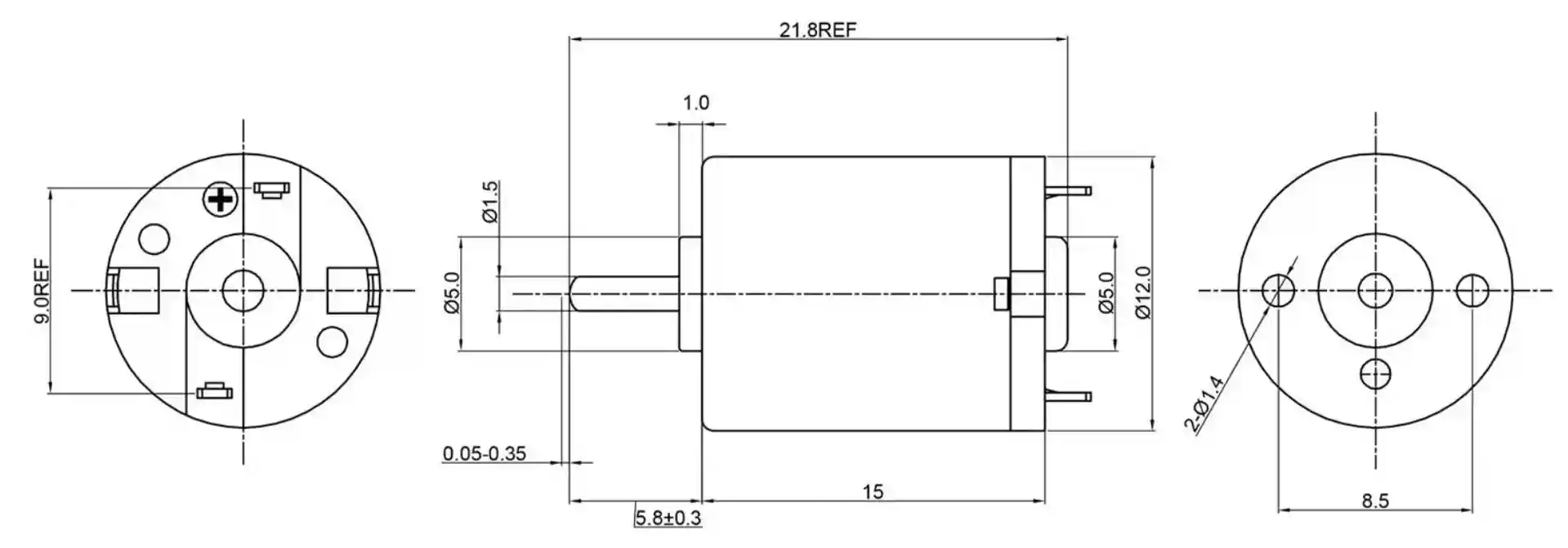

DC Small Electric Boat Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
