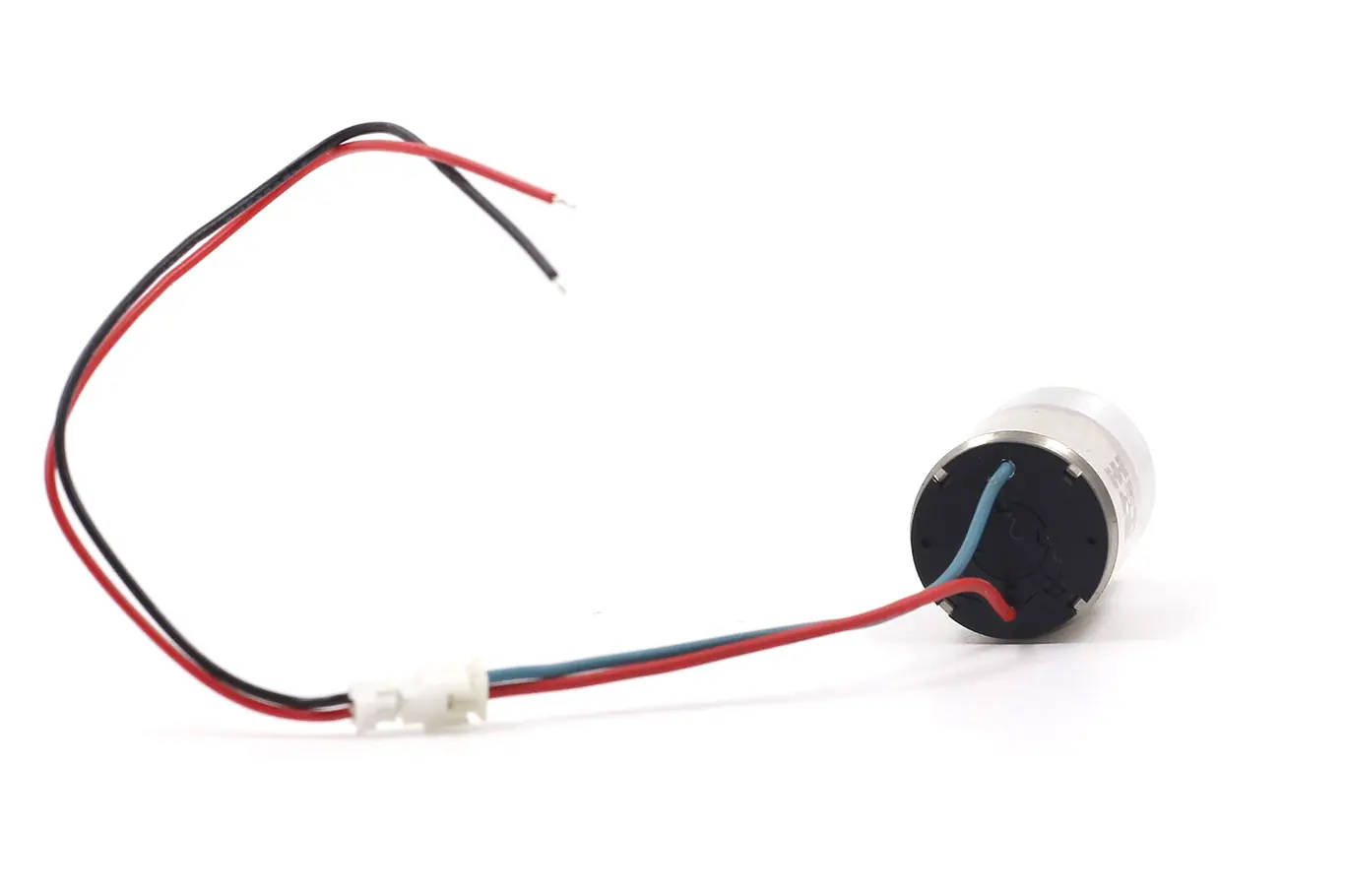

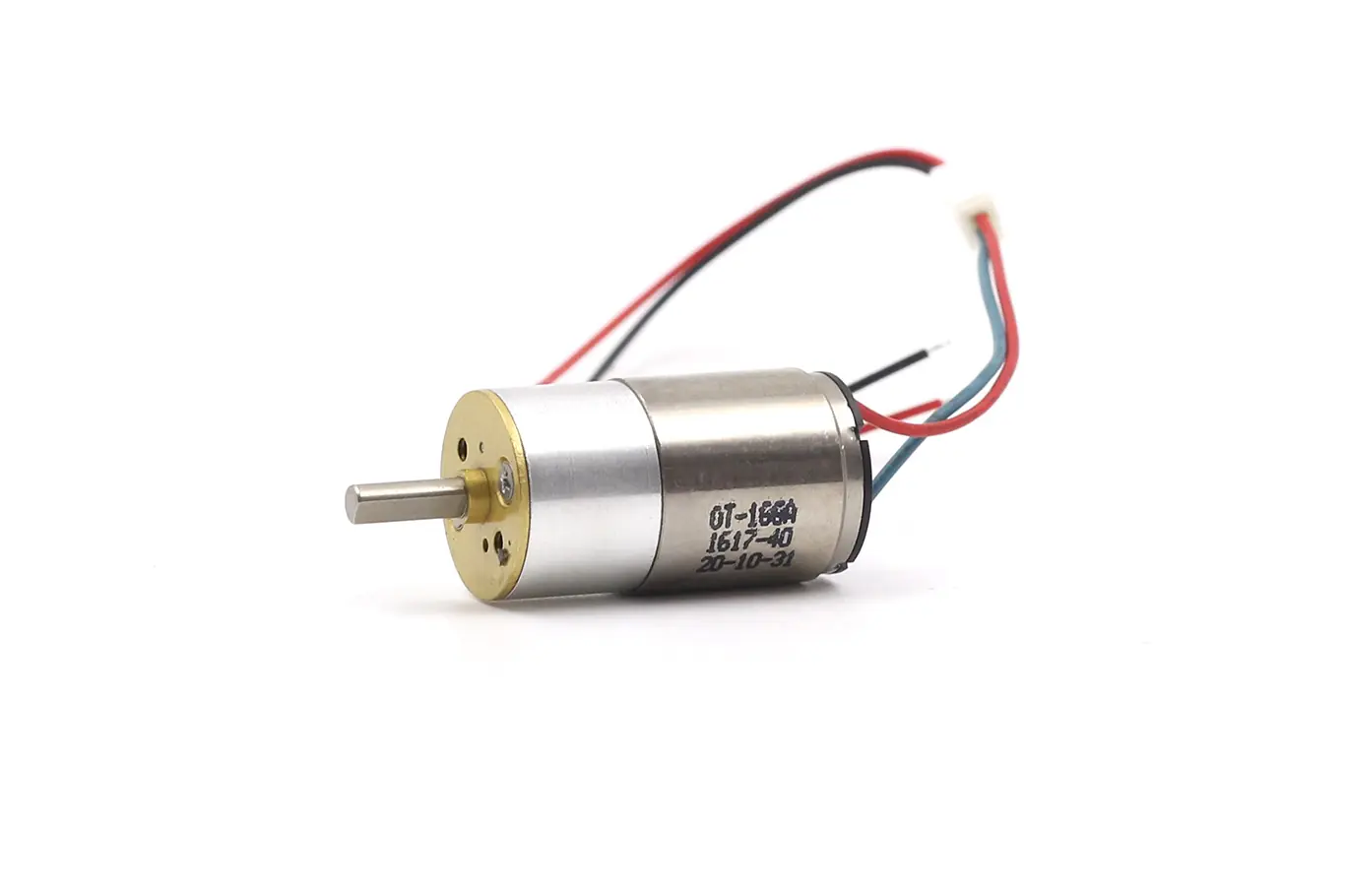

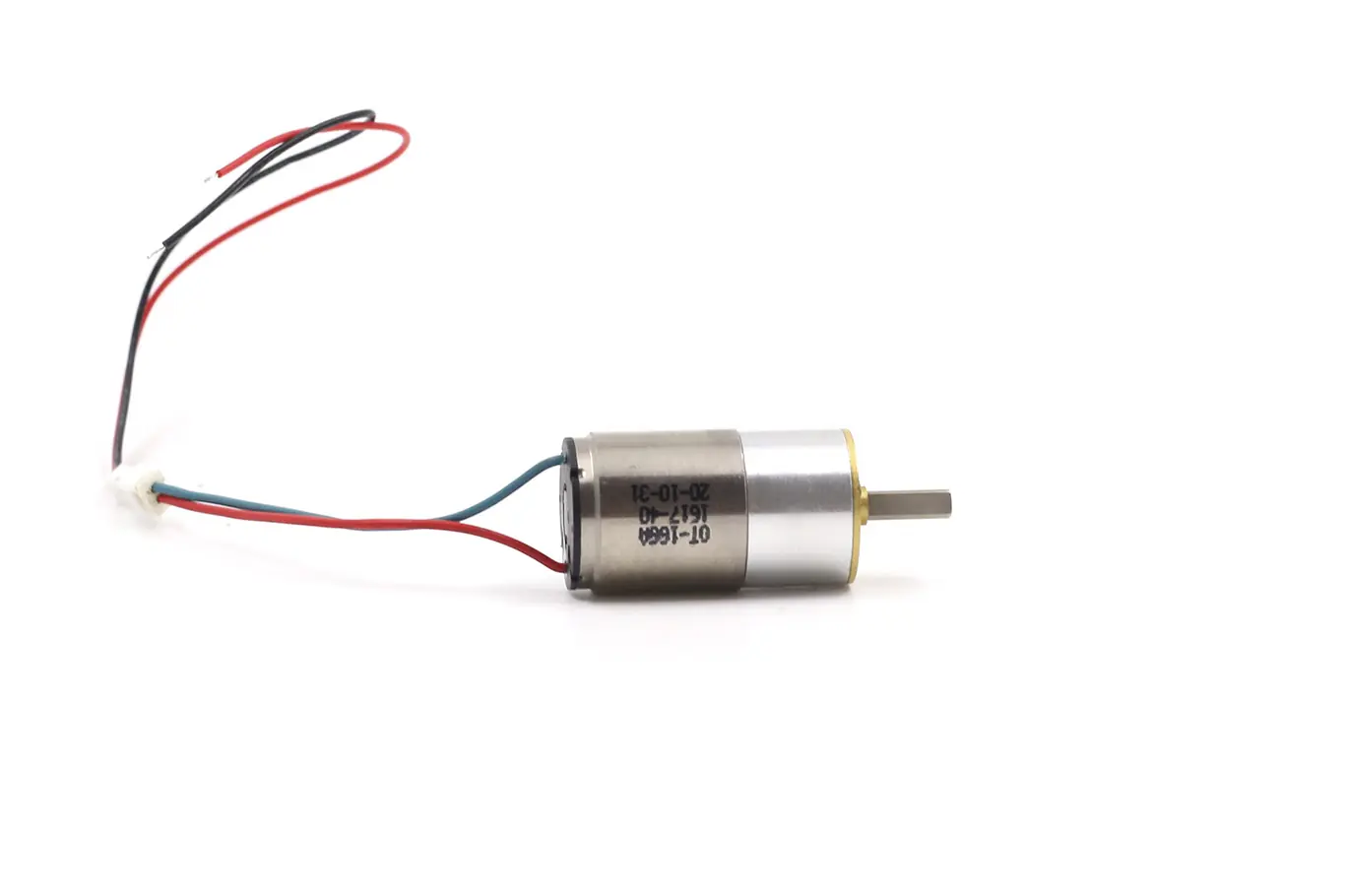

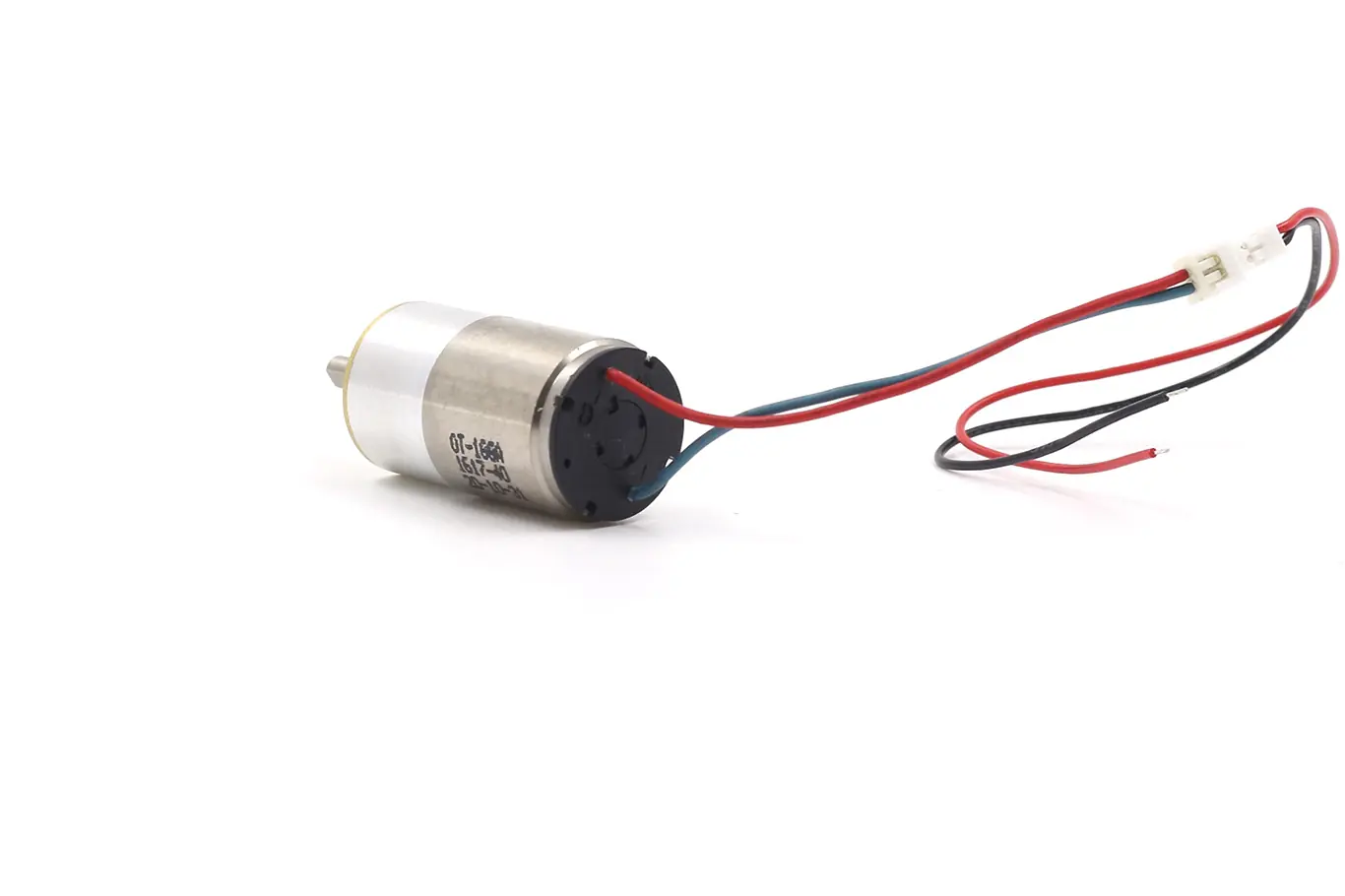

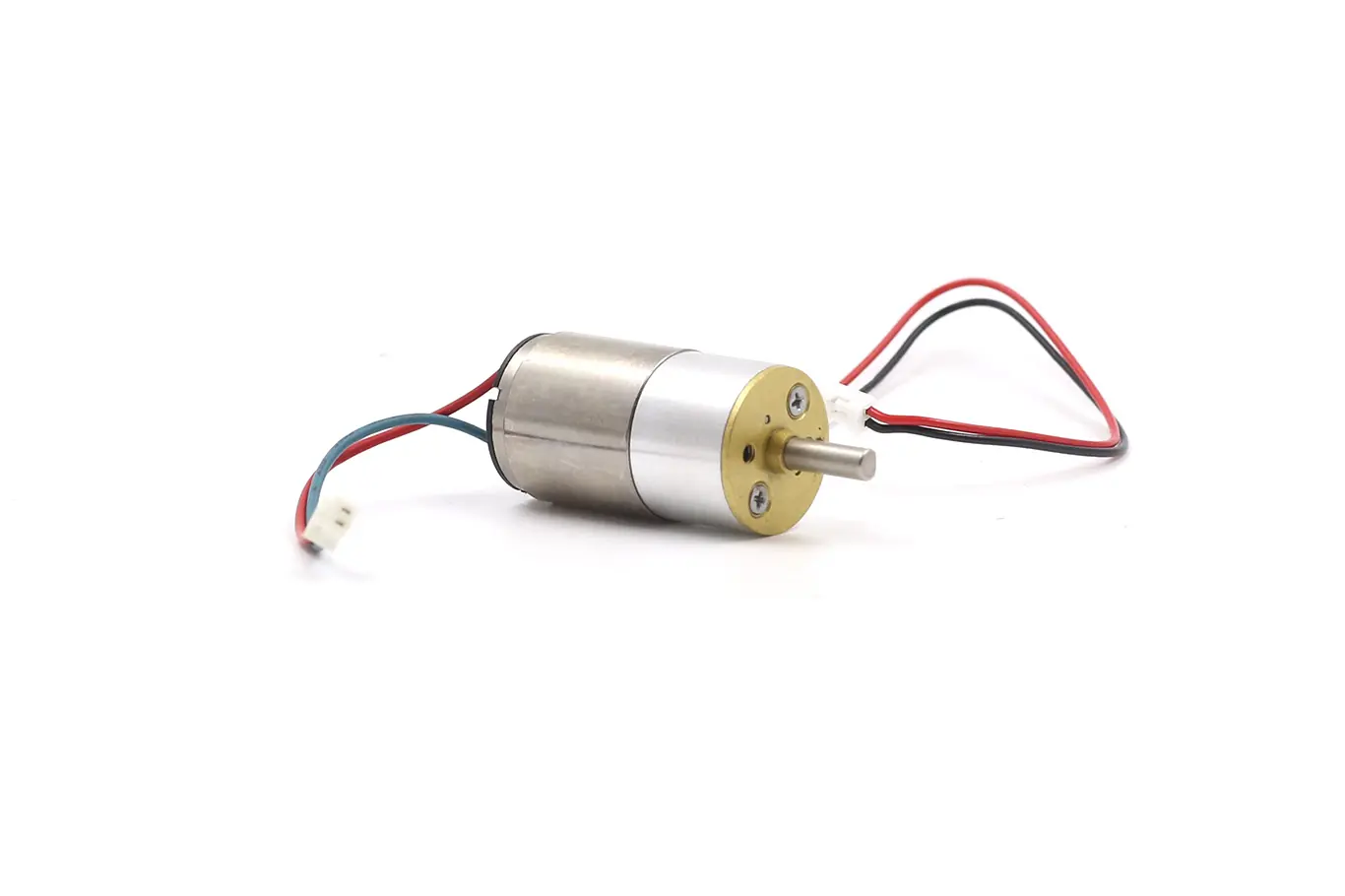

16mm Coreless DC Motor With Spur Gearbox Model TSL-GM16-C1629
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM16-C1629
- Voltage:DC 6V/Customizable
- Shaft Diameater:3mm D2.5mm
- Shaft Length:10mm
- No Load Speed:40rpm – 1450rpm
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Smart Home Devices: Smart Locks, Automated Window Blinds, Intelligent Valves.
- Personal Care & Medical: Electric Toothbrushes, Beauty Devices (Massagers, Cleansing Brushes), Medical Dosing Pumps.
- Portable Equipment: Mini Vacuum Cleaners, Cordless Power Tools, Portable Drones/UAV Actuators.
- Office Automation: Precision Actuators for Printers, Cash Handling Machines.
Small Electrical Motor For Small Appliance Micro Gear DC Motor Specifications
Need a small electrical motor for small appliance? Look no further. This is a 16mm Coreless DC Motor. It features an integrated gearbox. It is built for high energy efficiency. Coreless design reduces energy loss. This means longer battery life for your device. It minimizes power consumption. It offers maximum power in a minimal space. Reliable power for smart living.
Don’t let the size fool you. This is a High Torque Micro Gear Motor. It packs serious power. Maximum torque reaches 2.8 Kg.cm. Excellent power density. It handles sudden, heavy loads easily. Perfect for smart lock actuation. The design is low inertia. This guarantees fast response. Your appliance starts and stops instantly. Performance is always consistent.
Users demand quiet operation. Our motor runs with low acoustic noise. Vibration is minimal. It uses precision control technology. This ensures smooth, quiet operation. This coreless dc small electrical motor for small appliance. Use it in beauty devices. Use it in quiet automation. It is durable. It extends product life. Upgrade your appliance with this High Efficiency DC Motor. Deliver superior user experience.
| Ratio | Voltage | No Load | Rated Load | Stall | ||||
| i:1 | Current | Speed | Current | Speed | Torque | Current | Torque | |
| 10:1 | DC 6.0V | ≤50mA | 1450RPM | ≤0.28A | 1050RPM | 0.08kg.cm | ≤1.4A | ≥0.25kg.cm |
| 20:1 | DC 6.0V | ≤50mA | 720RPM | ≤0.28A | 530RPM | 0.15kg.cm | ≤1.4A | ≥0.55kg.cm |
| 35:1 | DC 6.0V | ≤50mA | 410RPM | ≤0.28A | 300RPM | 0.27kg.cm | ≤1.4A | ≥1.0kg.cm |
| 63:1 | DC 6.0V | ≤50mA | 228RPM | ≤0.28A | 170RPM | 0.5kg.cm | ≤1.4A | ≥1.7kg.cm |
| 86:1 | DC 6.0V | ≤50mA | 167RPM | ≤0.28A | 125RPM | 0.65kg.cm | ≤1.4A | ≥2.3kg.cm |
| 115:1 | DC 6.0V | ≤50mA | 126RPM | ≤0.28A | 93RPM | 0.9kg.cm | ≤1.4A | ≤3.0kg.cm |
| 150:1 | DC 6.0V | ≤50mA | 95RPM | ≤0.28A | 72RPM | 1.1kg.cm | ≤1.4A | ≤3.0kg.cm |
| 250:1 | DC 6.0V | ≤50mA | 57RPM | ≤0.28A | 43RPM | 1.9kg.cm | ≤1.4A | ≤3.0kg.cm |
| 360:1 | DC 6.0V | ≤50mA | 40RPM | ≤0.28A | 30RPM | 2.8kg.cm | ≤1.4A | ≤3.0kg.cm |
💕The 6V small electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

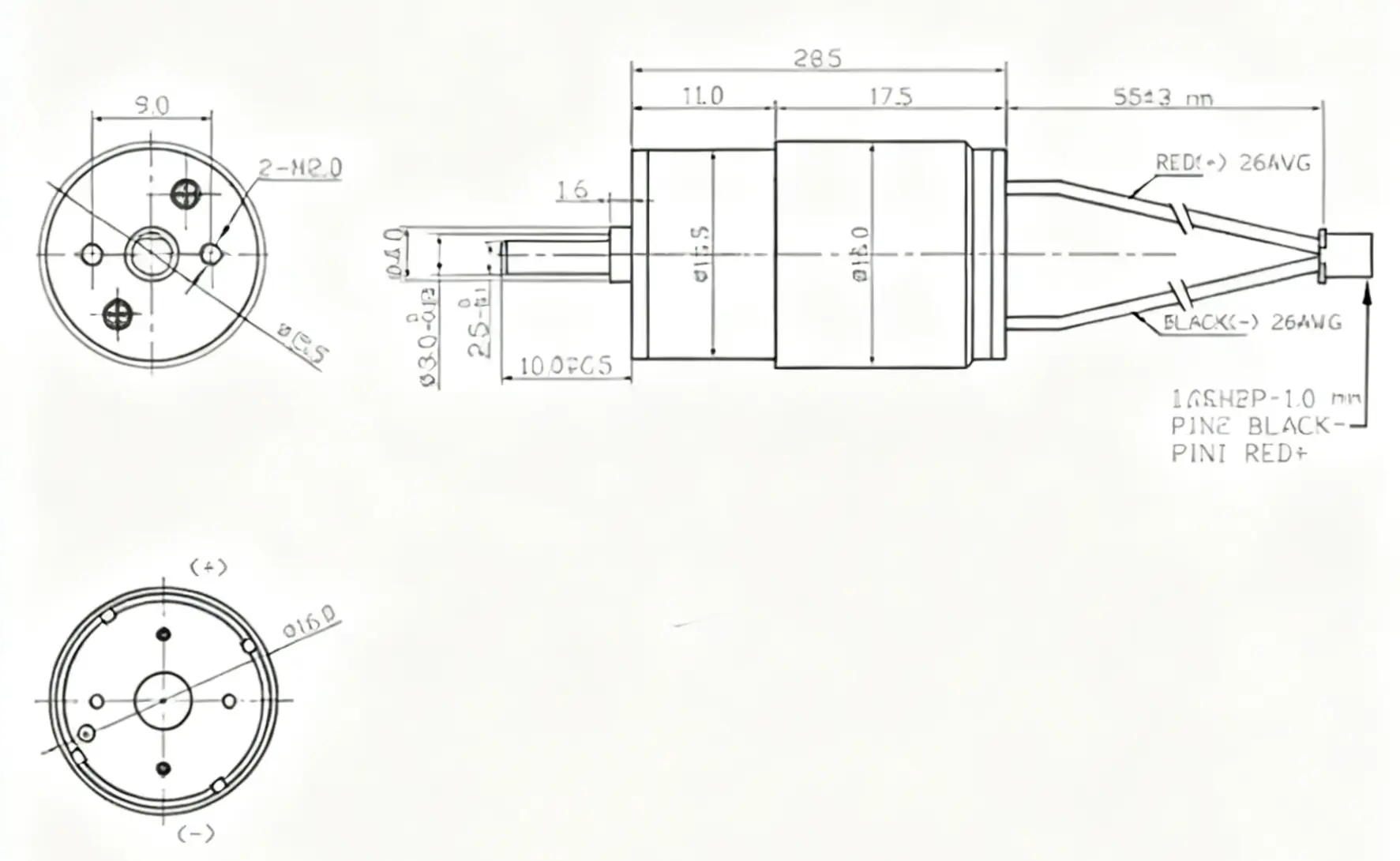

Small Electrical Motor For Small Appliance Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

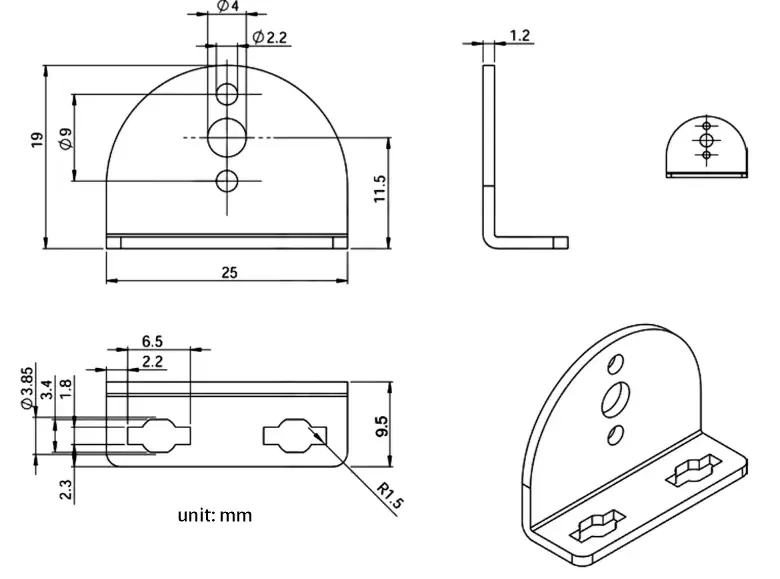

16MM Small Electrical Motor For Small Appliance Mounting Bracket Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Why Choose Our Small Electrical Motor for Small Appliance
It Solves Your Core Problems
Tired of bulky, noisy motors? Our 16mm Coreless Gear Motor is the small electrical motor for small appliance. It offers the torque you need. It does this without the size. We solve noise issues. We solve low battery life problems. This small electrical motor for small appliance is a direct upgrade. It simplifies your product design. It guarantees superior performance.
Data-Backed Efficiency and Power
Demand high efficiency. We deliver quantifiable results. Our no-load current is minimal (). This saves battery power. Maximum stall torque reaches over . This handles tough loads. It offers multiple gear ratios. This ensures application flexibility. This is the high efficiency DC small electrical motor for small appliance. It delivers reliable power.
The Competitive Advantage
Your customers expect perfection. We provide it. The Coreless Gear Motor design means low vibration. It ensures long life. Its low acoustic noise is a key selling point. Quiet operation enhances user experience. It’s perfectly sized for portability. It is ideal for modern small appliances. Choose us for a competitive edge. Choose our superior small electrical motor for small appliance.
Keywords:
small electric dc motor，6v dc motor，6 volt electric motor，electric motor small ，mini electric motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for spur gear motor
Q：What is a Spur Gear Motor?
A:A spur gear motor combines a spur gearbox and a motor, typically using a 3-24V voltage. The output shaft is usually eccentric. These motors are precision cylindrical gear motors that transfer motion between two parallel shafts with straight, parallel teeth.
If you want to know more about how spur gears work, you can click on this link：How Gears Work | HowStuffWorks
Q:Can Spur Gear Motor Be Customized?
A: Yes,spur gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
