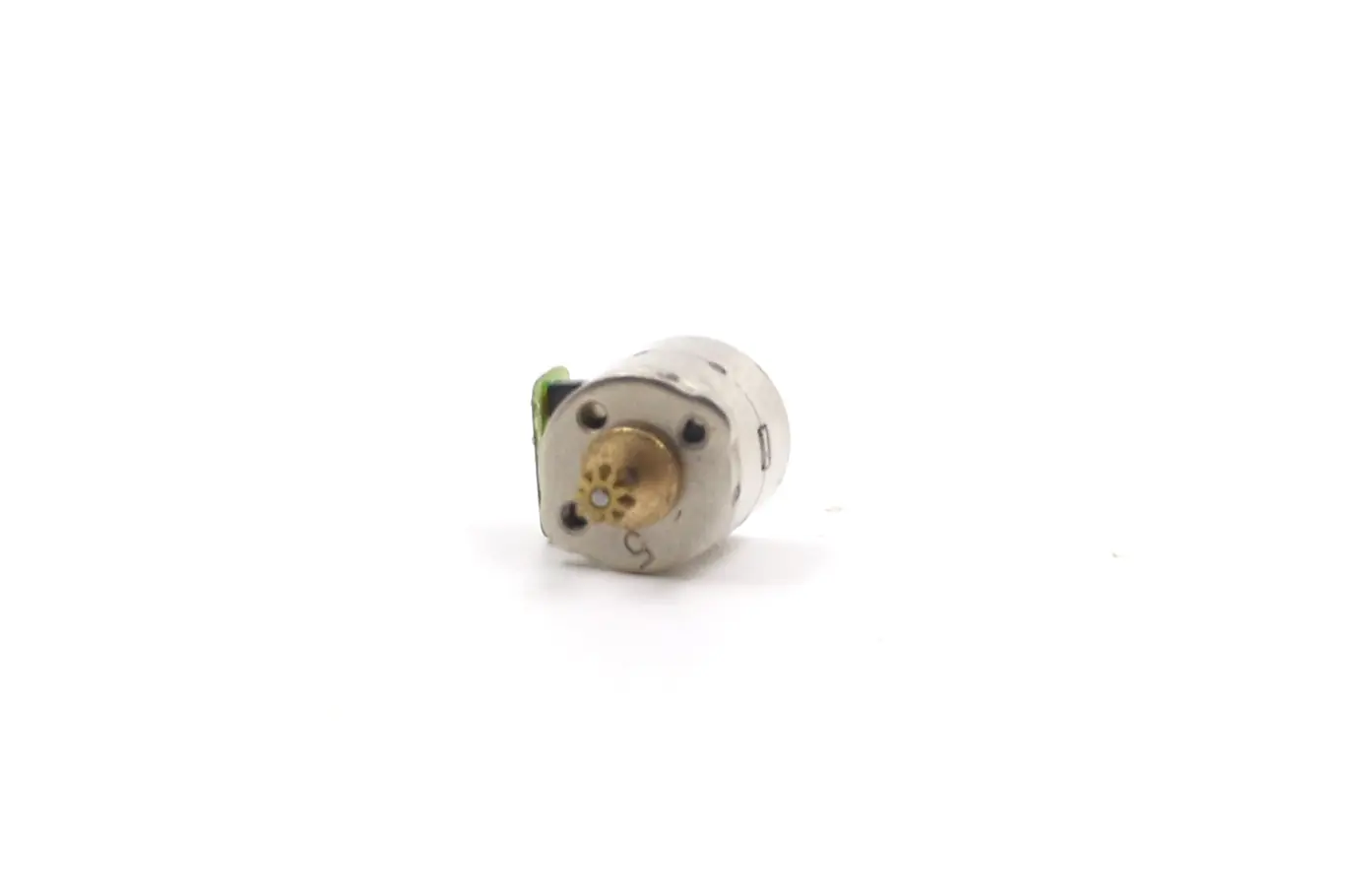

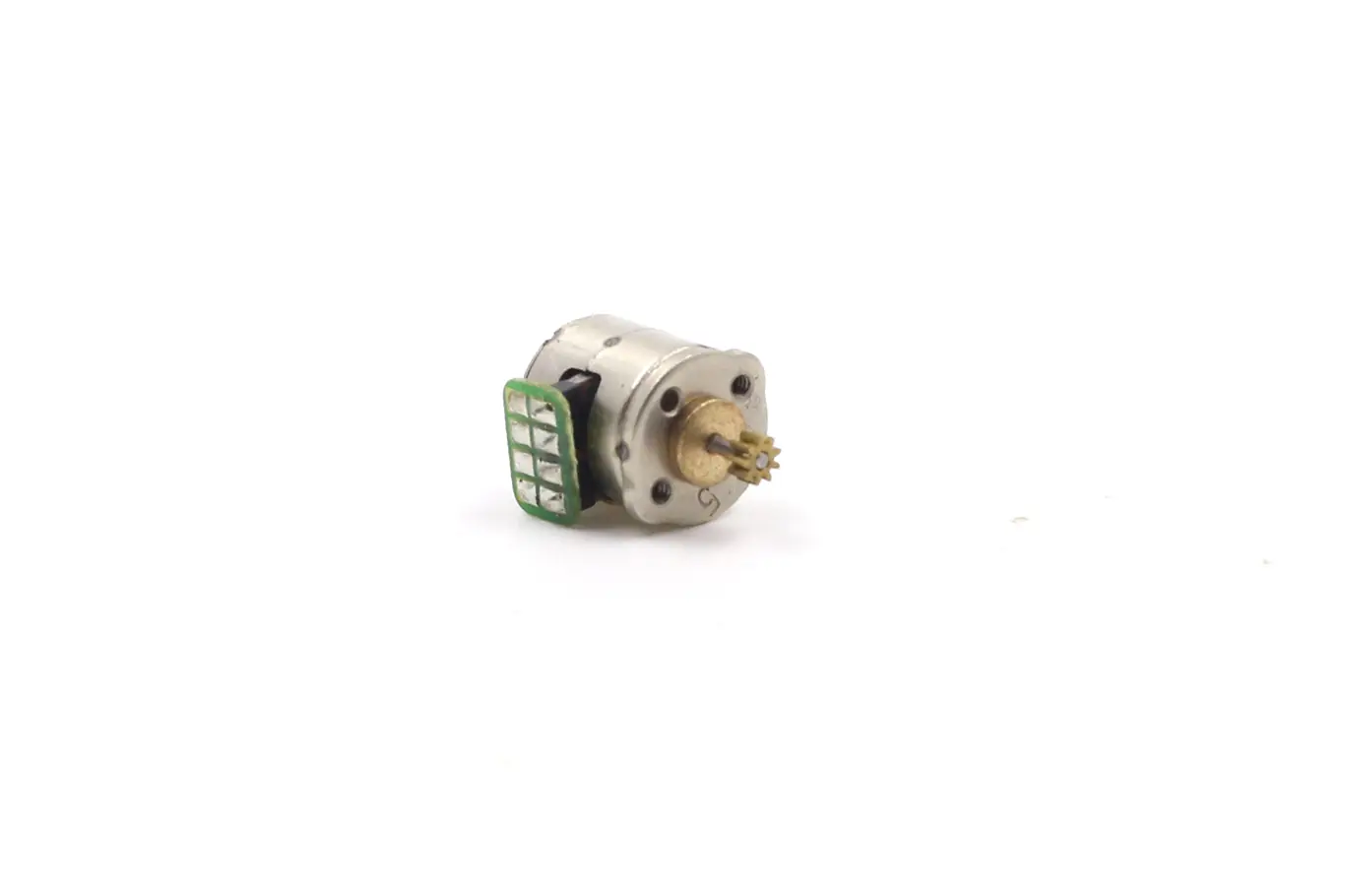

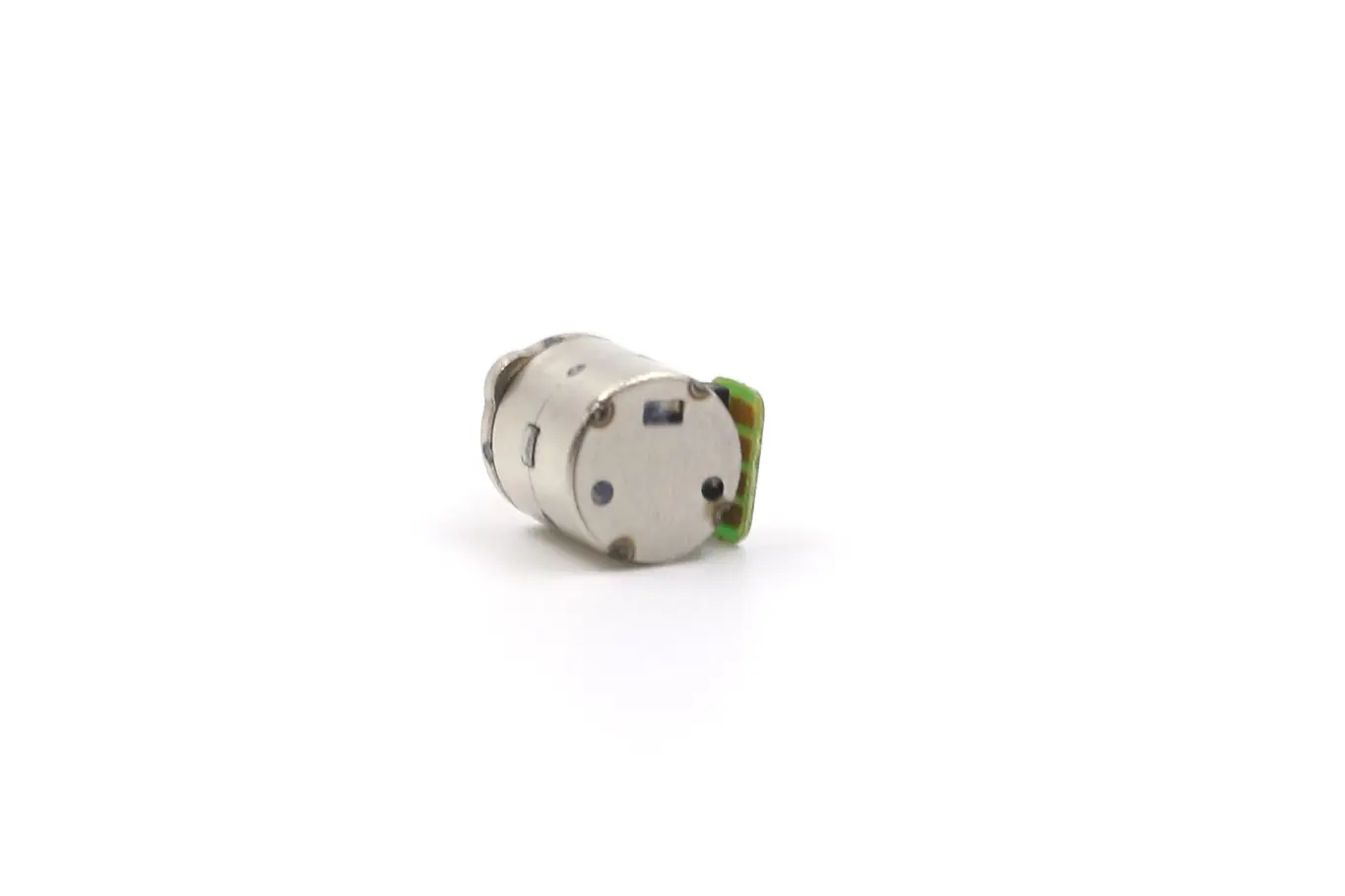

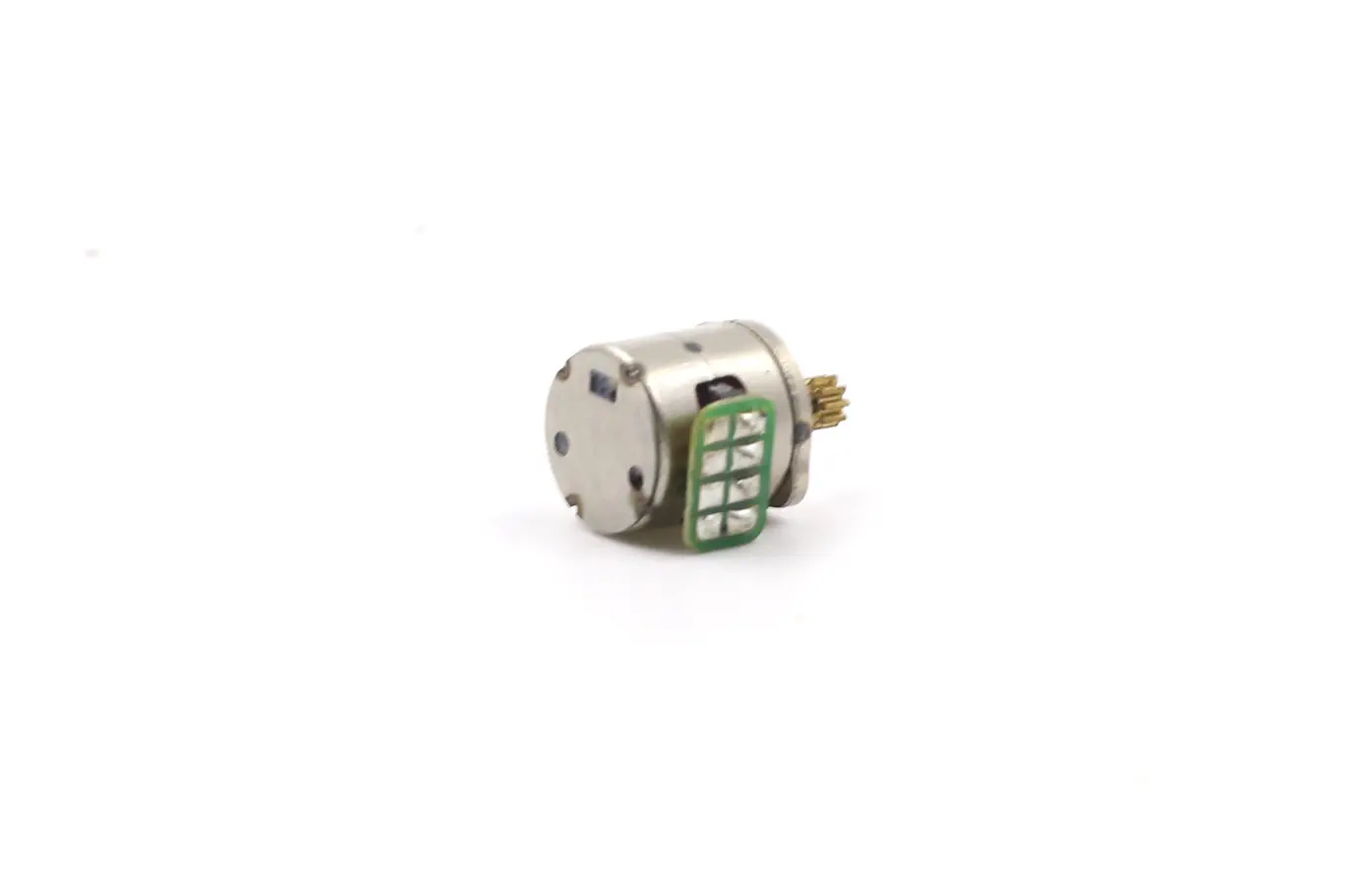

8mm Stepper DC Motor 3.3V DC Type Model TSL-SM08133
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-SM08133
- Voltage: 3.3 V
- Step Angle:18°
- No. of phases:2 phases
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- cameras, lenses, optical instruments
- lashlights and precision medical equipment
- Automatic door locks
Stepper Electric Motor With Gear Datasheet
The SM08133 is a precision micro stepper electric motor. It has a small body, measuring 8MM in diameter and 8.2MM in length. The motor shaft is 1MM in diameter. Its length is customizable. It easily fits various output devices. These include gears, pulleys, worms, and screws.
This micro stepper electric motor offers high precision. Its basic step angle is . It completes a full rotation in just 20 steps. Control is simple and straightforward. This tiny motor is used widely due to its small size and accurate movement.
The micro stepper electric motor is crucial for cameras, lenses, and optical instruments. It’s also found in flashlights and precision medical equipment. Automatic door locks use it too. We focus on meeting customer needs. Your requirements guide our development. Please contact us with any needs you have.
| Motor Model:TSL-SM08133 | |
| RATED VOLTAGE | 3.3 V DC |
| COIL RESISTANCE | 40Ω±10% |
| NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/STEP |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 0.8 gf-cm min. (AT 480 PPS , 3.3V DC) |
| PULL OUT TORQUE | 1.0 gf-cm min. (AT 480 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100V AC FOR ONE SECOND(3mA MAX) |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10~+60 ℃ |

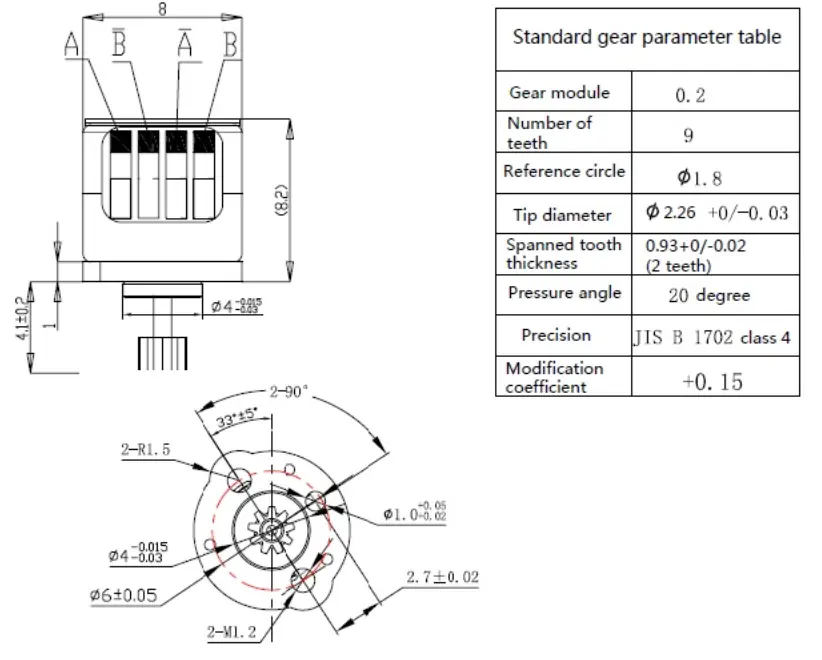

8mm Stepper Electric Motor Outline Drawing
