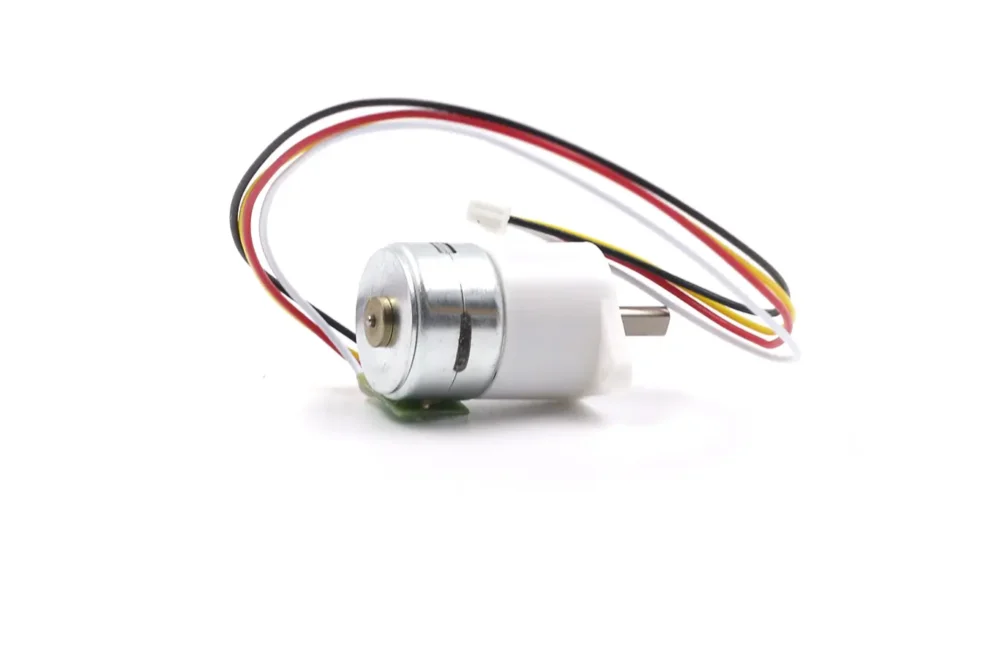

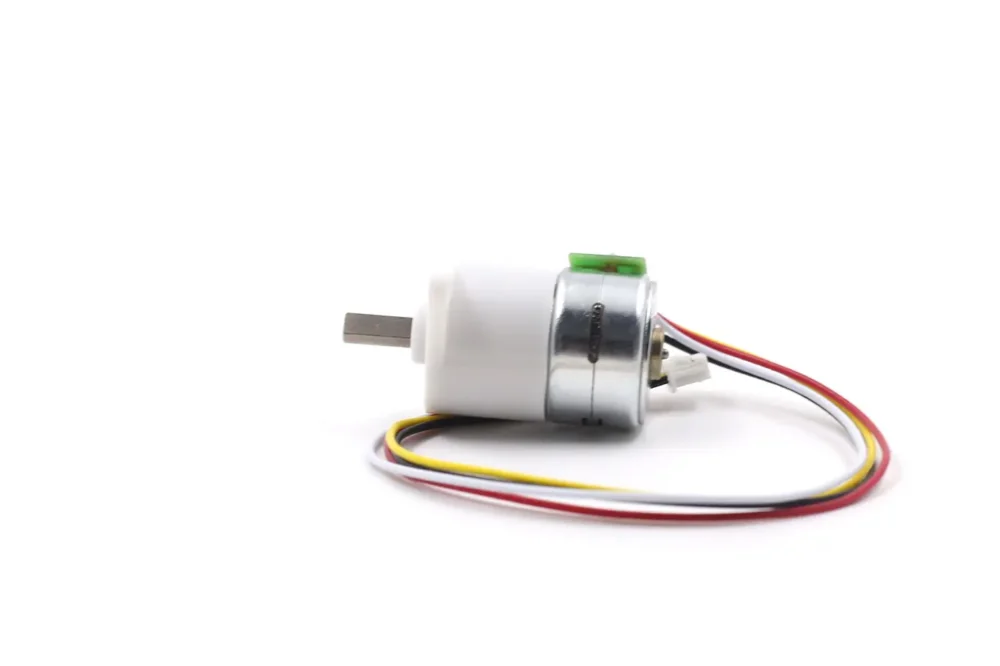

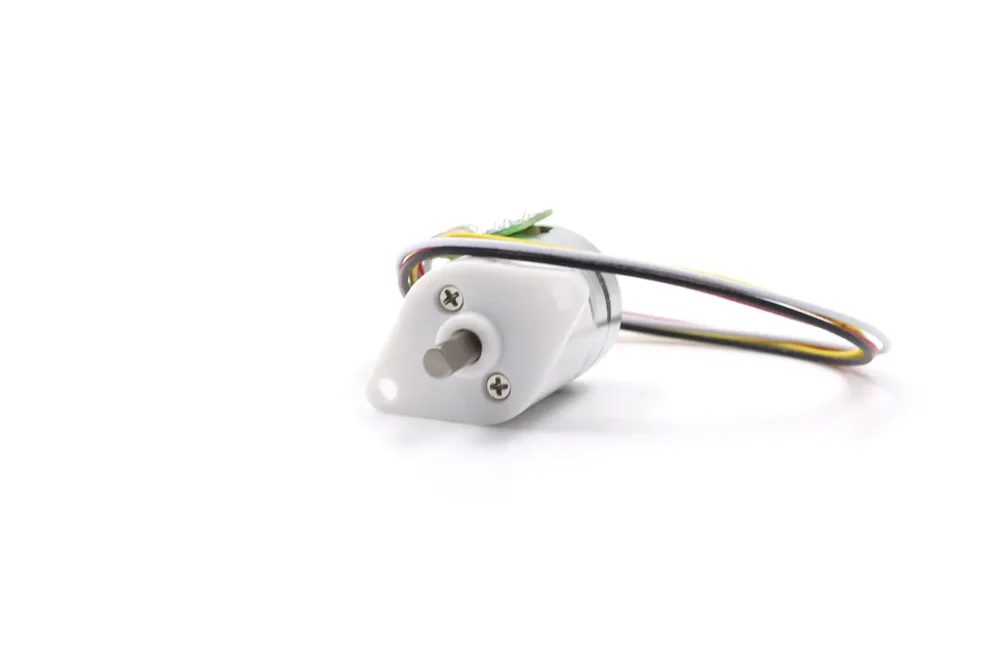

15mm Stepper Motor With Spur Gearbox TSL-GM12-15SM-DP
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM12-15SM-DP
- Shaft length:8mm D Shaft
- Shaft Diameter:Φ3mm
- Rated Voltage:5V DC
- Operating Voltage:DC 5V-12V
- Umber of phase:2 Phase
- Step Angel:18° Step Angle
- Phase Resistance:30 Ω
- Wiring: Red A-, White A+, Black B-, Yellow B+
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- Smart Robots/Smart Robotic Arms
- Smart Home/ Smart Focusing Systems/ Micro Gimbals
Stepper Motor Two Phase Dustproof Input Stepper Motor Parameters
You’ll love this stepper motor two phase—it’s built to last and engineered to impress. The all-metal gears mean it’s incredibly durable, and the two-phase, four-wire design gives you precise control. We’ve added a solid D-shaft output so your connections are always secure, and with forward and reverse functionality, you can run it exactly how you need to. But the real star is the built-in dustproof cover, which keeps out all the gunk and grime, ensuring this motor stays reliable for the long haul. If you need a two-phase stepper motor that’s tough, precise, and dependable, this is the one.
- All-metal gears: Durable and strong.
- Two-phase: Precise control.
- D-shaft: Secure connections.
- Dustproof: Long-lasting.
| Motor Model:TSL-GM12-15SM-DP | |||
| Rated Voltage | 5V DC (Driver IC:16219) | Current Per Phase | 600mA/Phase |
| Coil Resistance | 30±7% ohm/phase | No.Of Phases | 2 Phases |
| Step Angle | 18°/step | Excitation Method | 2 Phases Excitation |
| Drive Mode | Blpolar Drive | Coil Inductance | 9.5 mH/Phase |
| Pull-out Torque | More Than 4 gf-cm at 500 pps | Holding Torque | More Than 16 gf-cm At 0 pps |
| Max Response frequency | More Than 1200 pps | Max Starting Frequency | More Than 900 pps |
| Insulation Class | Class E For Coils | Insulation Strength | 100 V AC For One Second |
| Insulation Resistance | 50MΩ DC 500V | Operating Temperature | -0~+55°C |
Stepper Motor Two Phase Dustproof Output Parameters
This tiny stepper motor two phase is an essential component for the next generation of smart technology. It’s perfect for the precision required in modern gadgets.
| Motor Model:TSL-GM12-15SM-DP | ||||||||||
| Rated Voltage:DC 5.0V(Driver IC:L6219) | ||||||||||
| Ratio | Precise Ratio | Step Angle | 1000PPS Speed | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Pull-Out Torque | Maximum Starting Frequency | Maximum Response Frequency |
| 1:10 | 9.68 | 1.86° | 300rpm | 150mA / Phase | 30± ohm/Phase | 9.5 mH/Phase | 0.14 kgf.cm | 0.04 kgf.cm | More Than 1200 pps | More Than 900 pps |
| 1:20 | 19.36 | 0.93° | 200rpm | 0.28 kgf.cm | 0.08 kgf.cm | |||||
| 1:30 | 29.47 | 0.61° | 100rpm | 0.42 kgf.cm | 0.12 kgf.cm | |||||
| 1:50 | 51.1 | 0.35° | 60rpm | 0.7 kgf.cm | 0.2 kgf.cm | |||||
| 1:100 | 99.3 | 0.18° | 30rpm | 1.4 kgf.cm | 0.4 kgf.cm | |||||
| 1:150 | 150.96 | 0.12° | 20rpm | 2.1 kgf.cm | 0.6 kgf.cm | |||||
| 1:210 | 209.76 | 0.086° | 14rpm | 2.9 kgf.cm | 0.84 kgf.cm | |||||
| 1:298 | 297.9 | 0.06° | 10rpm | Max. 3 kgf.cm | 1.2 kgf.cm | |||||
| 1:380 | 379.16 | 0.047° | 8rpm | 1.5 kgf.cm | ||||||
💕The speed is calculated using the following formula: Speed (rpm) = Step Angle × Frequency × 60 ÷ 360.
💕The stepper motor two phase’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
Stepper Motor Two Phase Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Internal Structure of the Stepper Motor Two Phase’s Dustproof Cover
Crafted with all-metal gears, this motor is designed to be highly wear-resistant, significantly extending its service life.
Brushless DC Stepper Motor Two Phase Connection Diagram
With 2-2 phase excitation, the stepper motor two phase rotates clockwise when viewed from the mounting face, looking at the output shaft end.
