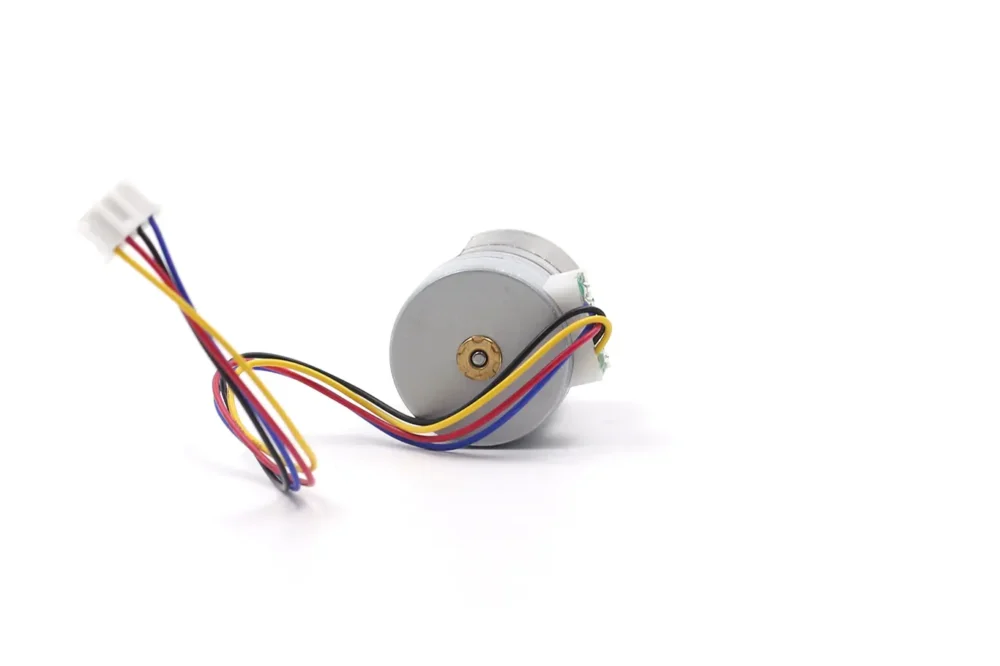

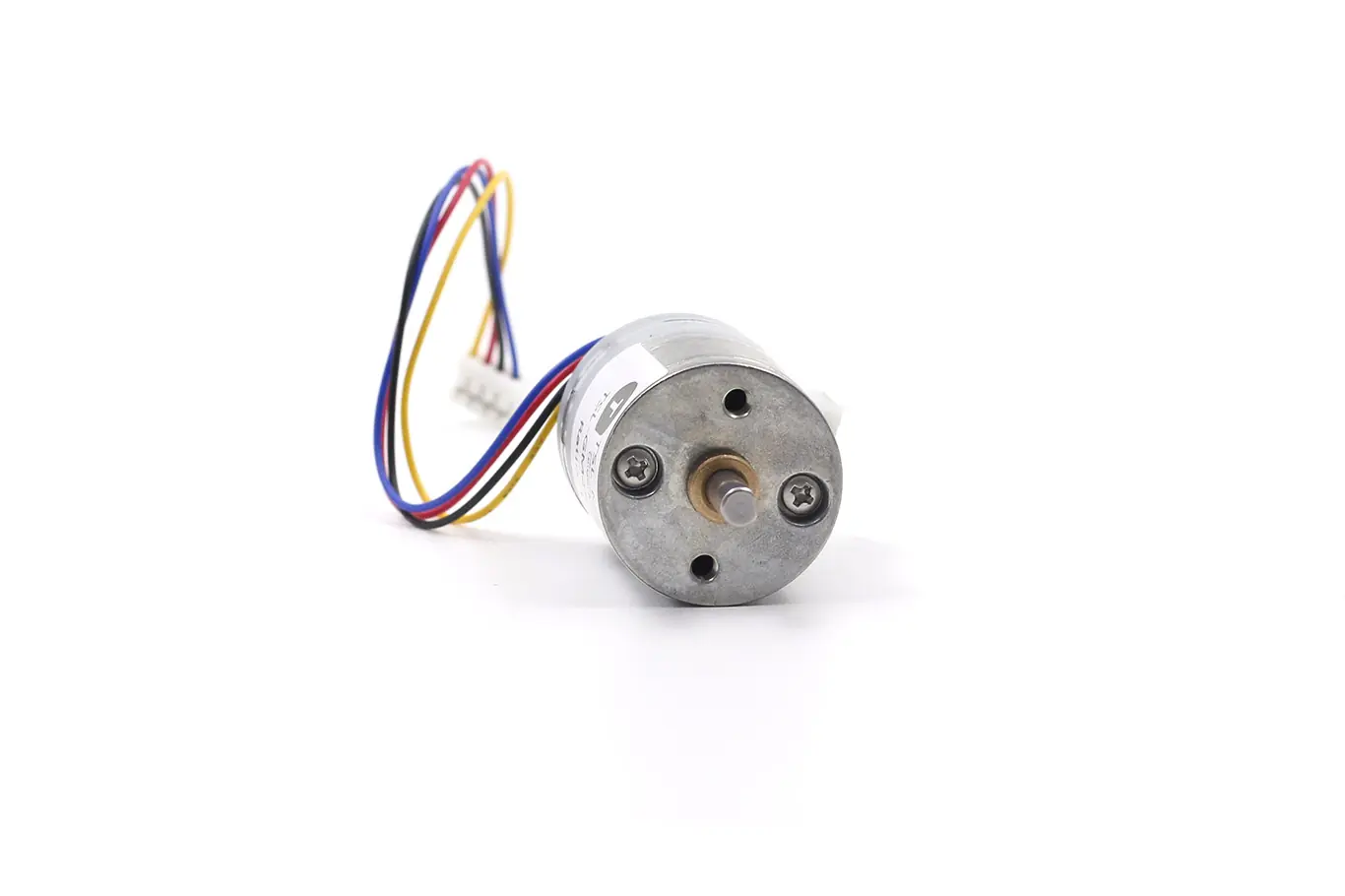

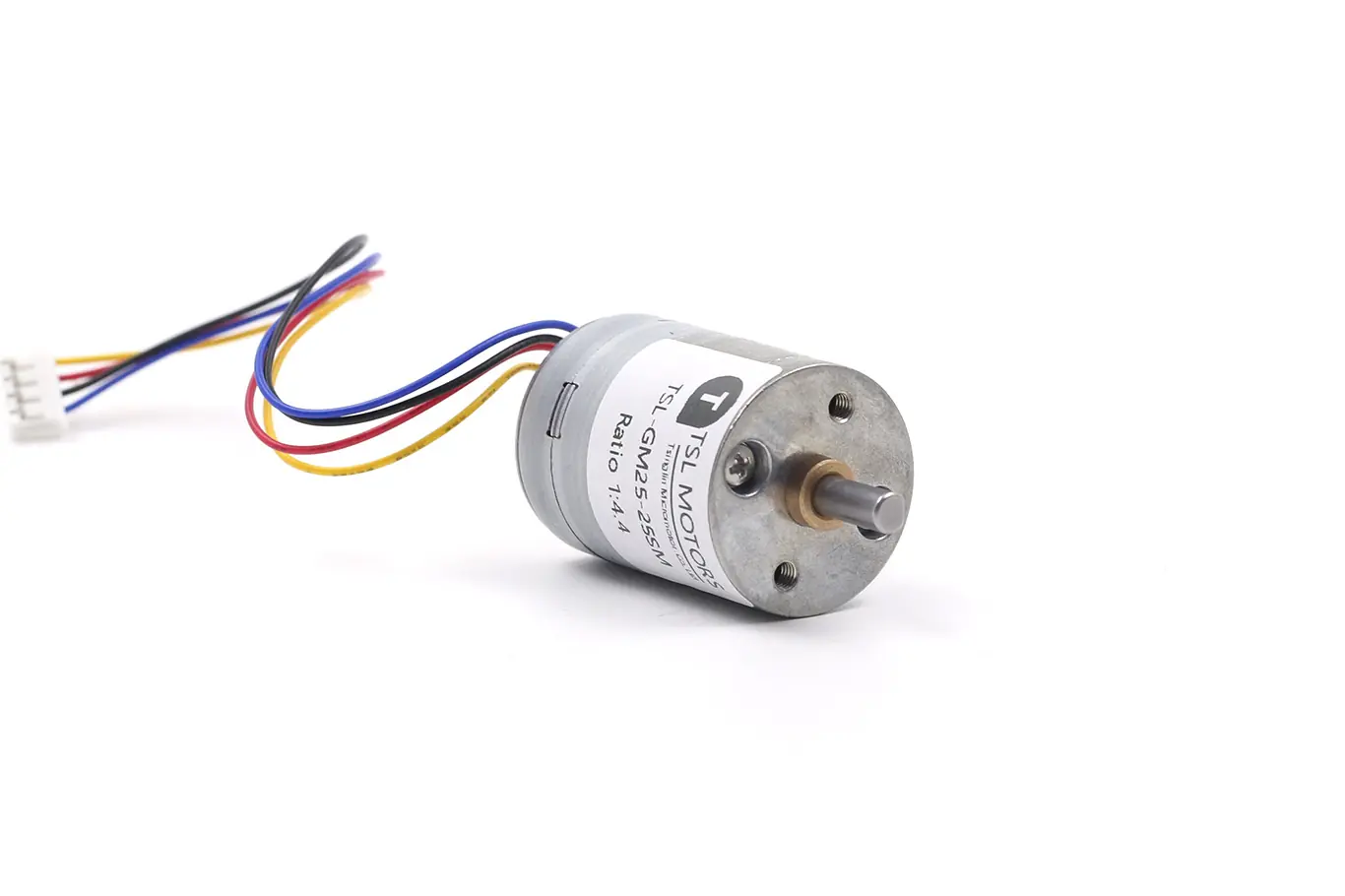

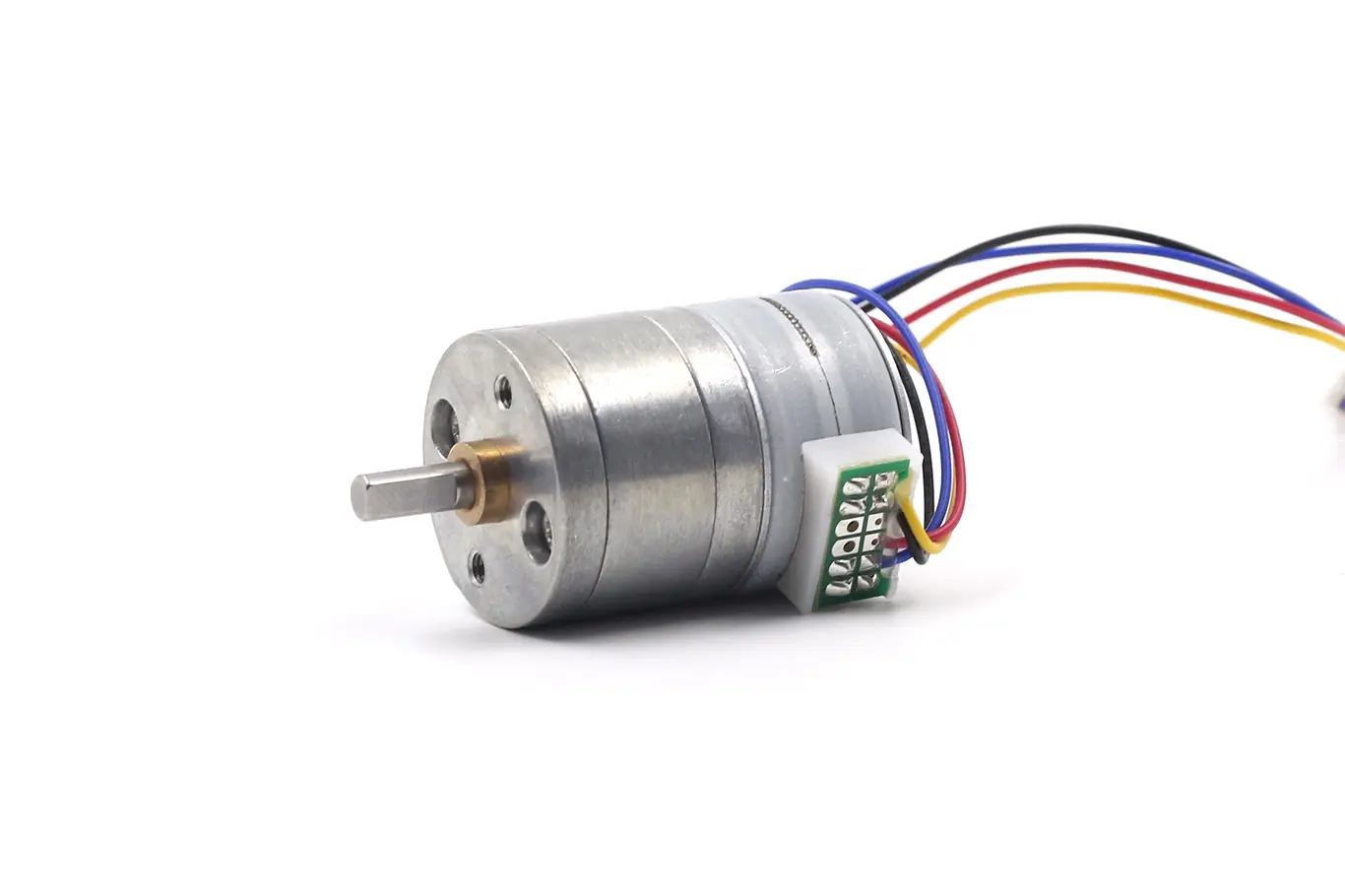

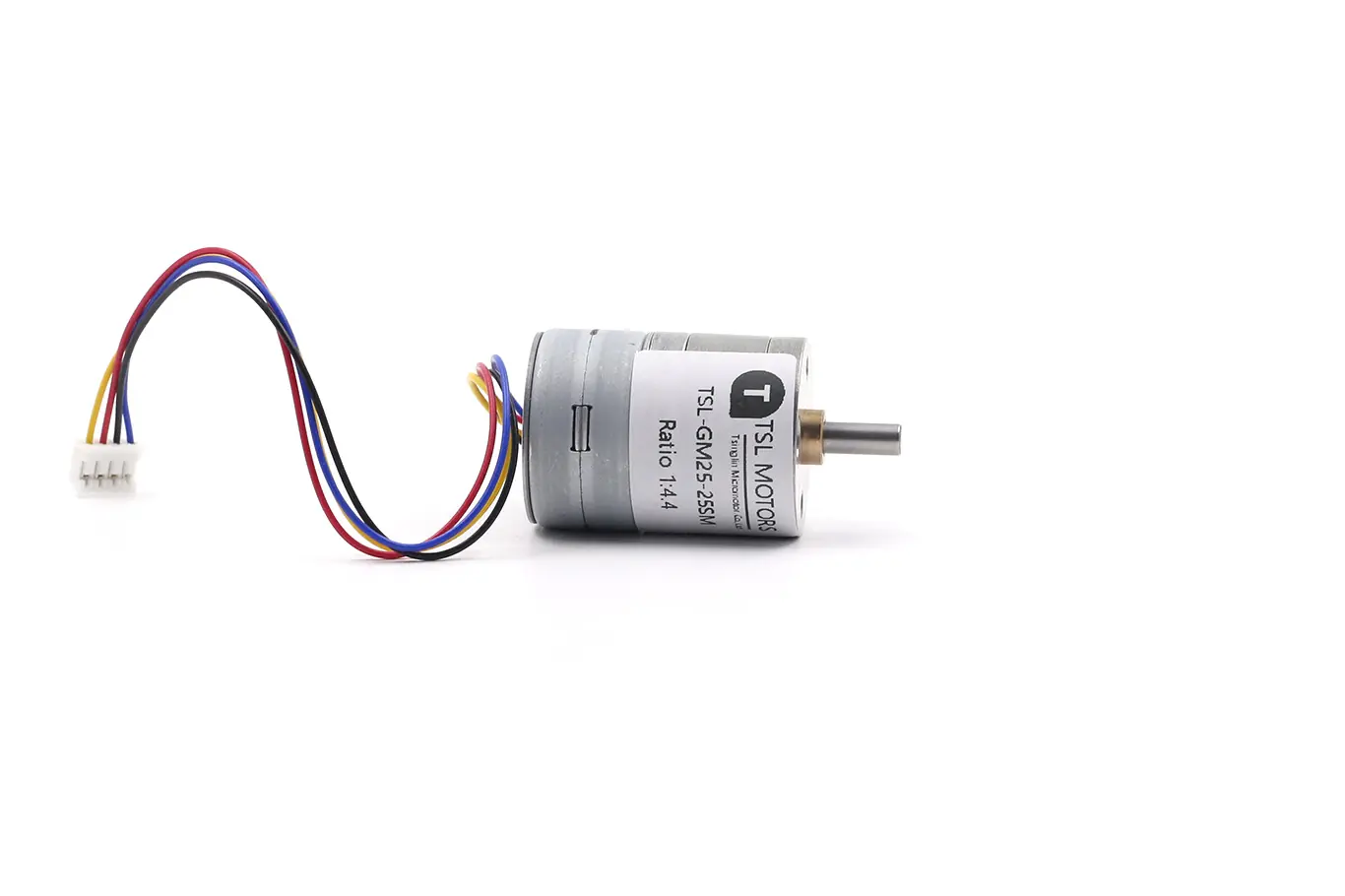

25mm Stepper Gear Motor Model TSL-GM25-25SM
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-GM25-25SM
- Shaft length:12mm D 8mm
- Shaft Dianeter:Φ4mm, D thickness 3.5mm
- Rated Voltage:12V DC
- Operating Voltage:5V-24V
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- 3D Printers,CNC Machines
- Robotics,Automation Systems
- Medical Devices,Smart Home Devices
Stepper Motor With Gearbox Input Stepper Motor Parameters
Looking for a stepper motor with gearbox? Check out our 25BY series. We’re a top Chinese factory specializing in DC stepping gear motors. This model, the TSL-GM25-25SM, is perfect for DIY projects. Need something specific? We offer customized options. For your business, we handle both wholesale and bulk orders. Many models are in stock and ready to ship. Get a reliable micro stepping gear motor from a trusted manufacturer.
| Motor Model | |||
| TSL-GM25-25SM | |||
| RATED VOLTAGE | 12 V DC(DrIVER IC:l6219) | CURRENT PER PHASE | 300mA / PHASE |
| COIL RESISTANCE | 10±7% ohm / PHASE | NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 15° / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
| DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 7.5 mH / PHASE |
| PULL-OUT TORQUE | MORE THAN60 gf-cm AT 100 pps | HOLDING TORQUE | MORE THAN75 gf-cm AT 0 pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1300 pps | MAX STARTING FREQUENCY | MORE THAN 800 pps |
| INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FORONE SECOND |
| INSULATION RESISTANCE | 100MΩ DC 500V | OPERATINGTEMPERATURE | -10 ～ +55℃ |
Brushless DC Stepper Motor With Gearbox Output Parameters
Our stepper motor with gearbox is built to last. It features full metal gears for incredible durability. This means a longer life and reliable performance, every time. Plus, it’s engineered for low noise. So it’s perfect for projects where quiet operation is a must.
| Motor Model:TSL-GM25-25SM | ||||
| Voltage:DC 12V | ||||
| Reduction ratio | STEP ANGLE(STEP) | No-load speed700PPS(rpm) | Holding torque（kg.cm) | Pull-out torque（kg.cm) |
| 1：4.4 | 3.40 | 397.7 | ≥0.3 | ≥0.25 |
| 1：9.3 | 1.61 | 188.2 | ≥0.6 | ≥0.50 |
| 1：15 | 1.0 | 116.7 | ≥1.0 | ≥0.8 |
| 1：20 | 0.75 | 87.5 | ≥1.3 | ≥1.0 |
| 1：34 | 0.44 | 51.5 | ≥2.0 | ≥1.8 |
| 1：44.9 | 0.33 | 38.98 | ≥3.0 | ≥2.50 |
| 1：57 | 0.26 | 30.7 | ≥3.5 | ≥3.0 |
| 1：74.8 | 0.2 | 23.4 | ≥5.0 | ≥4.0 |
| 1：98.8 | 0.15 | 17.7 | ≥6.5 | ≥5.5 |
| 1：125 | 0.12 | 14 | ≥8.0 | ≥7.0 |
| 1：165 | 0.09 | 10.6 | can't exceed 9.0kg.cm | can't exceed 9.0kg.cm |
| 1：217 | 0.069 | 8.1 | ||
| 1：362 | 0.041 | 4.8 | ||
| 1：478 | 0.031 | 3.7 | ||
💕The stepper motor with gearbox’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1
Brushless Stepper Motor With Gearbox 25mm Mechanical Drawing
| Reduction Ratio | Transmission Stages | Gearbox Length (L) |
| 4.4 :1 | 2-stage transmission | 19mm |
| 9.3 :1 | 3-stage transmission | 19mm |
| 15.46 :1 | 4-stage transmission | 19mm |
| 20.41 :1 | 4-stage transmission | 21mm |
| 34.01 :1 | 5-stage transmission | 21mm |
| 44.9 :1 | 5-stage transmission | 21mm |
| 74.83 :1 | 6-stage transmission | 23mm |
| 98.78 :1 | 6-stage transmission | 25mm |
| 164.63 :1 | 7-stage transmission | 25mm |
| 217.31 :1 | 7-stage transmission | 27mm |
| 362.18 :1 | 8-stage transmission | 27mm |
| 478.08 :1 | 8-stage transmission | 27mm |
| Reduction Ratio | Transmission Stages | Gearbox Length (L) |
| 4.4 :1 | 2-stage transmission | 19mm |
| 9.3 :1 | 3-stage transmission | 19mm |
| 15.46 :1 | 4-stage transmission | 19mm |
Stepper Motor With Gearbox Connection Diagram
Keywords:
inline c-face gear motors，inline geared motor，inline speed gear motor
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for stepper gear motor
Q：What is a Stepper Motor?
A:A stepper gear motor combines a stepper motor with a gearbox.It’s a brushless DC motor that moves in small, precise steps. You can set it to any position without a sensor. The gearbox then lets it drive heavier loads with slow, controlled movements.
If you want to know more about how stepper motor work, you can click on this link：Stepper motor – Wikipedia
Q:Can Stepper Gear Motor Be Customized?
A: Yes,stepper gear motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
