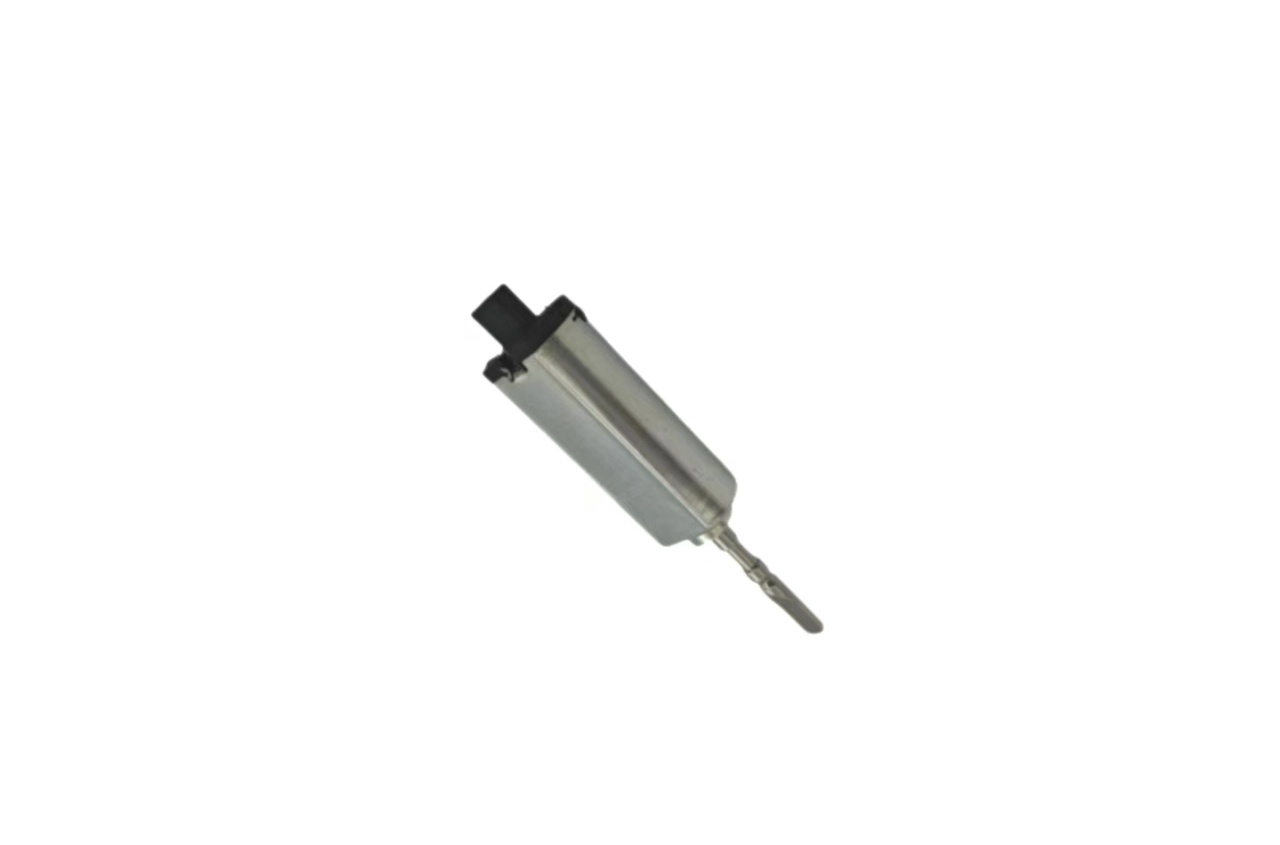

Ultrasonic dc motor for electric toothbrush TSL-1814
♦ Basic Info:
Brand:TSL
Origin:China
Motor Model:TSL-1814
Certification: ISO9001,ISO14001,IS045001
Green product: ROHS/REACH compliant
Motor Diameter:18.1 ± 0.1 mm
Motor Height:13.7 ± 0.1 mm
Available Customized Designs
1. Shaft length;
2. Technical Data;
3. Board for the PCB driver;
4. Cable length
If you request a quotation for mass production quantities, contact us for customizations and integration.
Product Details of Ultrasonic dc motor
The ultrasonic dc motor for electric toothbrush – model TSL-1814 is a high-performance motor specifically designed to power electric toothbrushes with precision and reliability. Operating on a rated voltage of 3.7V DC, this motor offers a wide operating voltage range from 2.5V to 4.5V, ensuring compatibility with a variety of power sources. The ultrasonic dc motor features an operating frequency range of 170-400Hz and a rated frequency of 270Hz, delivering consistent ultrasonic vibrations that help optimize cleaning performance.
Designed to provide a powerful yet gentle brushing experience, the ultrasonic dc motor for electric toothbrush TSL-1814 ensures effective plaque removal and thorough oral care with every use. The motor’s rated load of 5.0g contributes to smooth, stable vibration delivery, promoting a comfortable brushing experience while ensuring durability. Its low power consumption enhances energy efficiency, allowing longer battery life for users, which translates into extended use between charges. The ultrasonic dc motor for electric toothbrush is engineered for long-lasting performance, even under the wet and humid conditions typical of electric toothbrush environments. This motor is an ideal solution for manufacturers aiming to create high-quality, efficient, and reliable electric toothbrush products for superior daily oral hygiene.
The CW/CCW steel shaft is a precious metal. PCB drive boards Customized electric performance and accessories are realized after an review.
Technical Parameter
| Motor Model | TSL-1814 |
| Rated Voltage | 3.7V |
| Operating voltage | 2.5-4.5V |
| Operating frequency | 170-400Hz |
| Rated frequency | 270Hz |
| Rated Load | 5.0g |
| Motor Position | Any positions |
| Load Curren | ≤260mA |
| The Deflectionof Around | 32400±10% |
| Low Noise | 55dB |
OutLine Drawing for this Ultrasonic dc motor For Electric Toothbrush
Keywords:
eccentric mass motor, cylinder-based coreless vibrating motor,DC permanent magnetic micro motors,removes the power loss triggered by Eddy current,Surface mount SMT vibration pager motor
FAQ For Sonic Vibration Motor
Q:What is the minimum order quantity (MOQ)?
A: There are no minimum order quantity (MOQ) requirements from our side. However, please note that customized components must comply with our material supplier’s established MOQ specifications. For detailed requirements and pricing specifics, kindly refer to the attached quotation document.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
Answer: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
