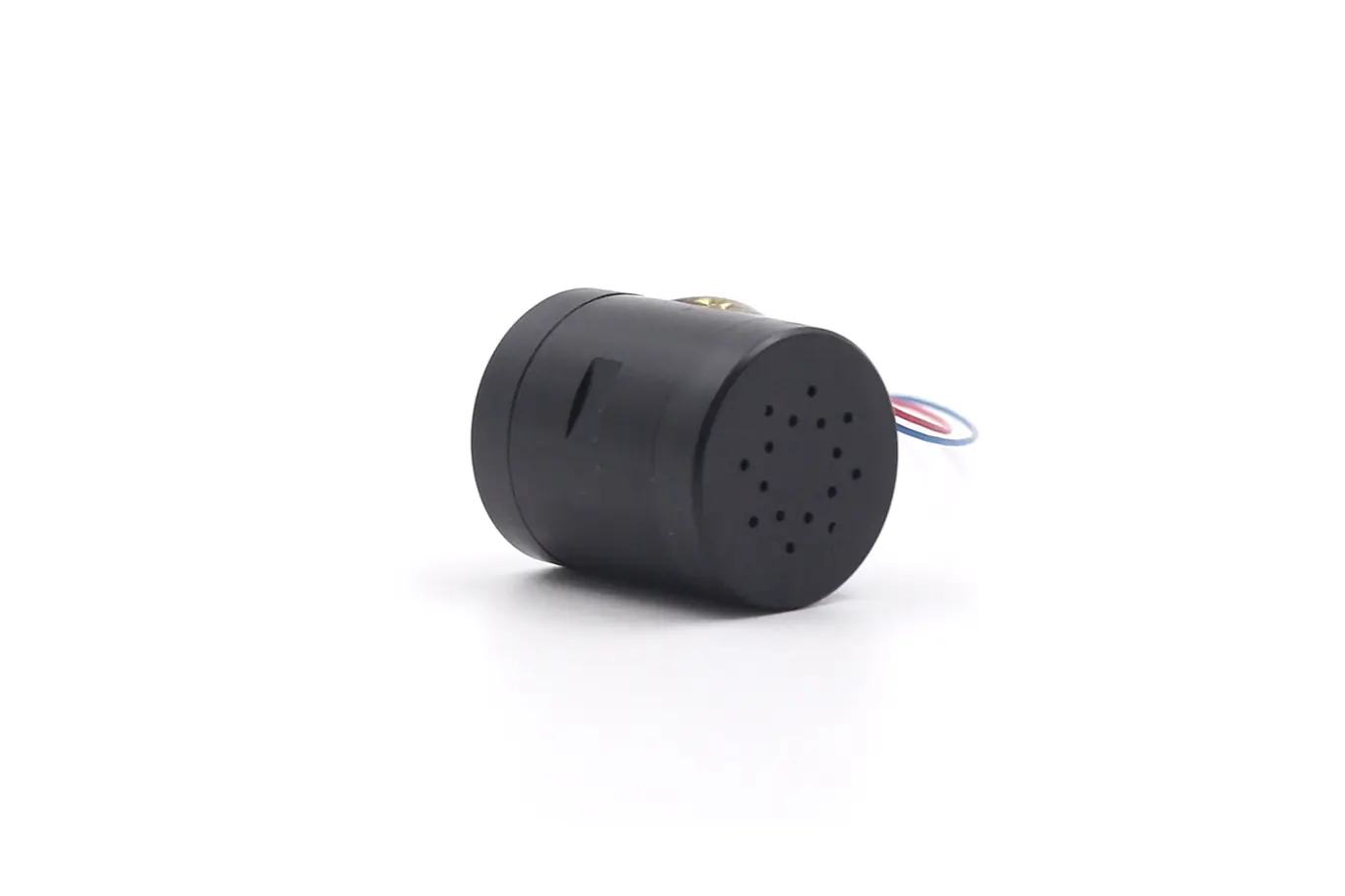

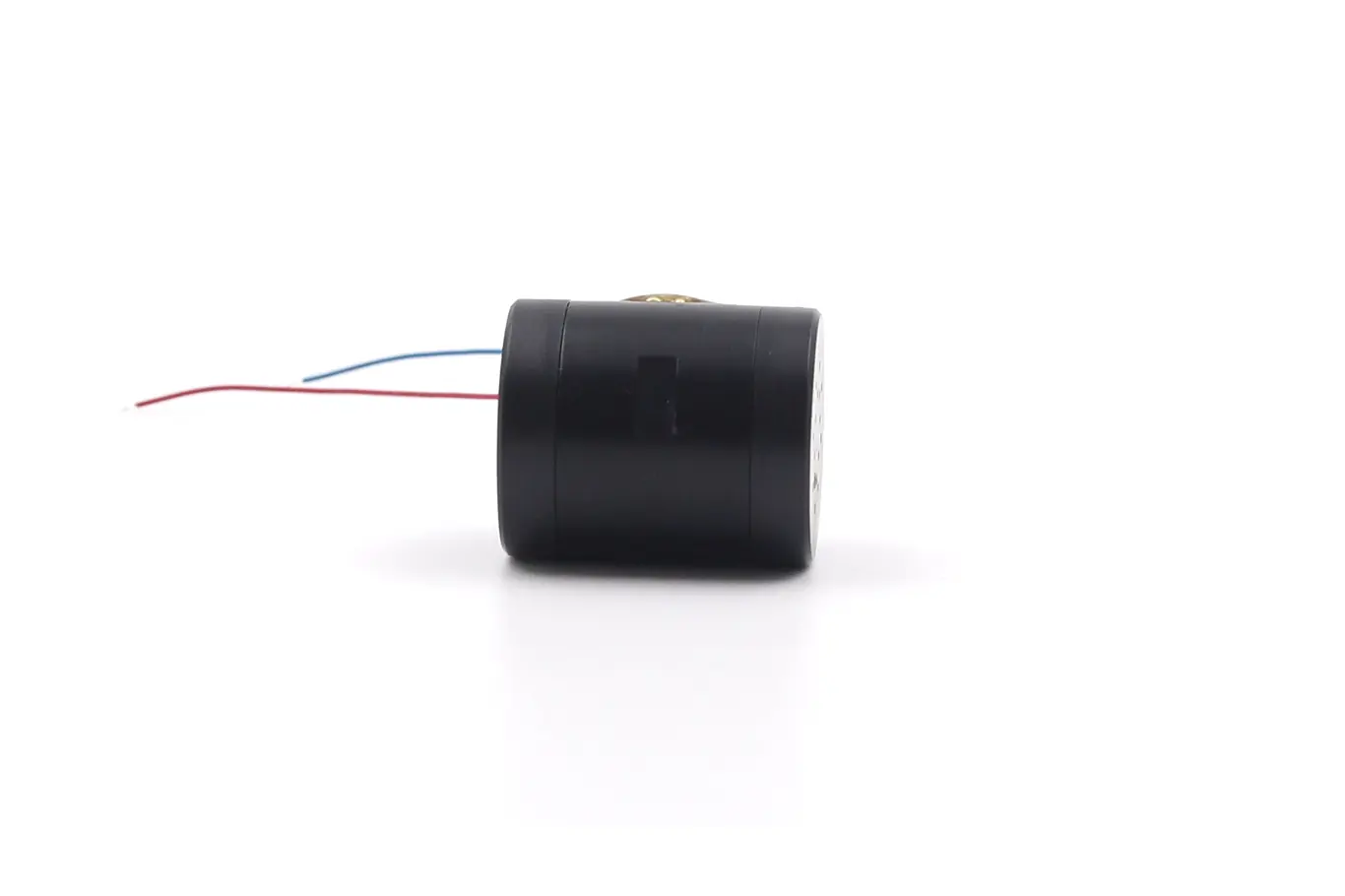

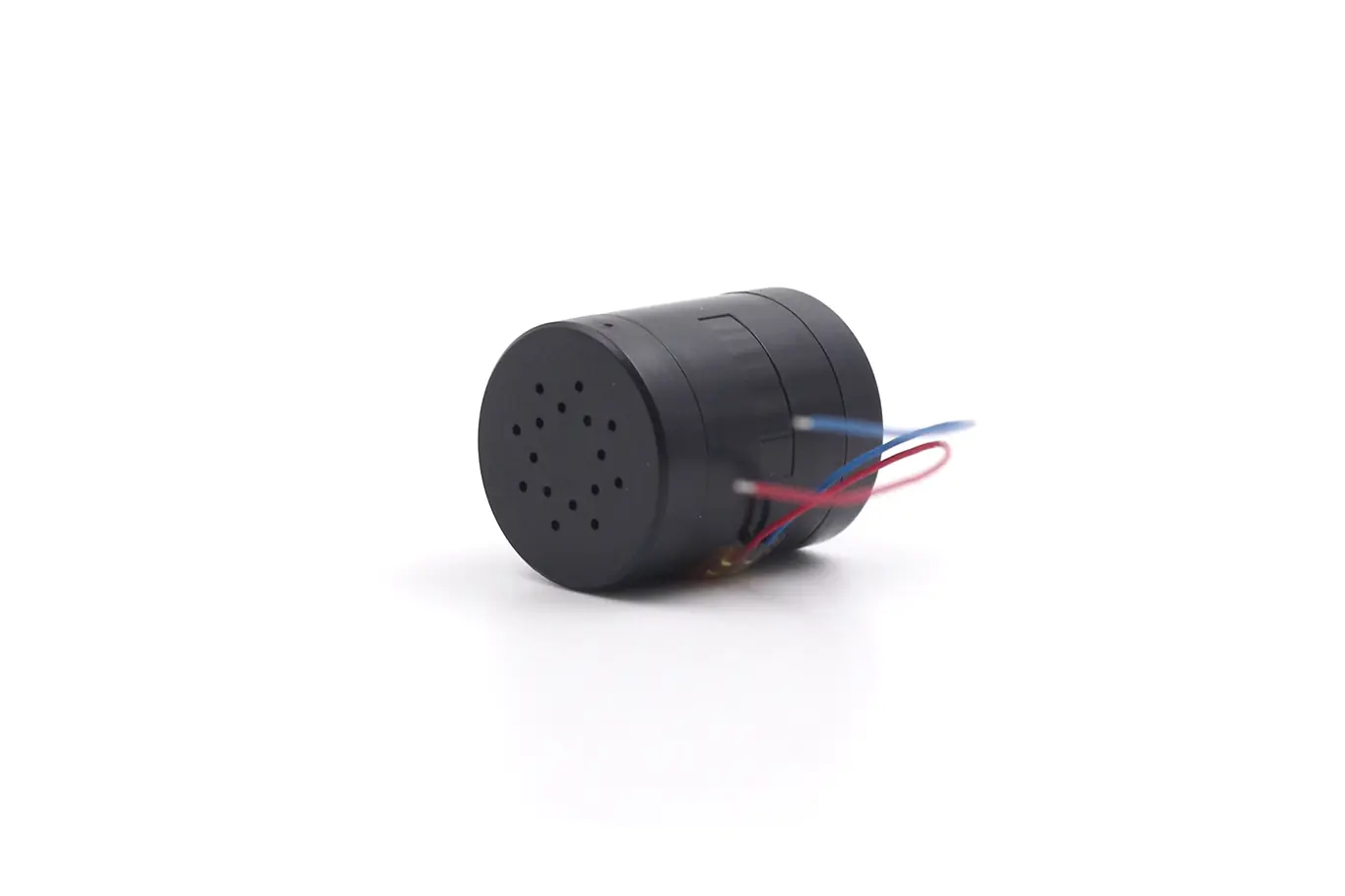

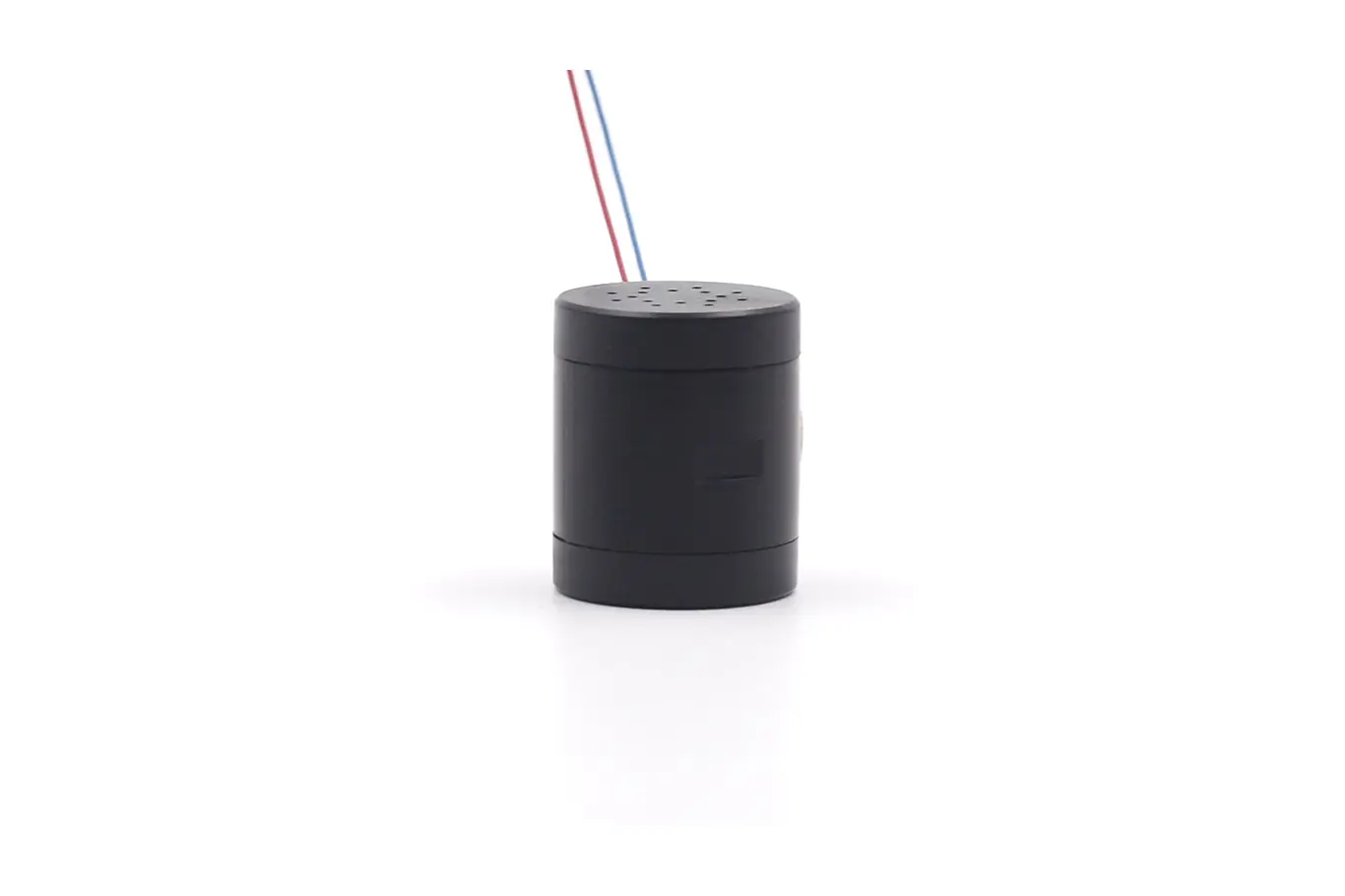

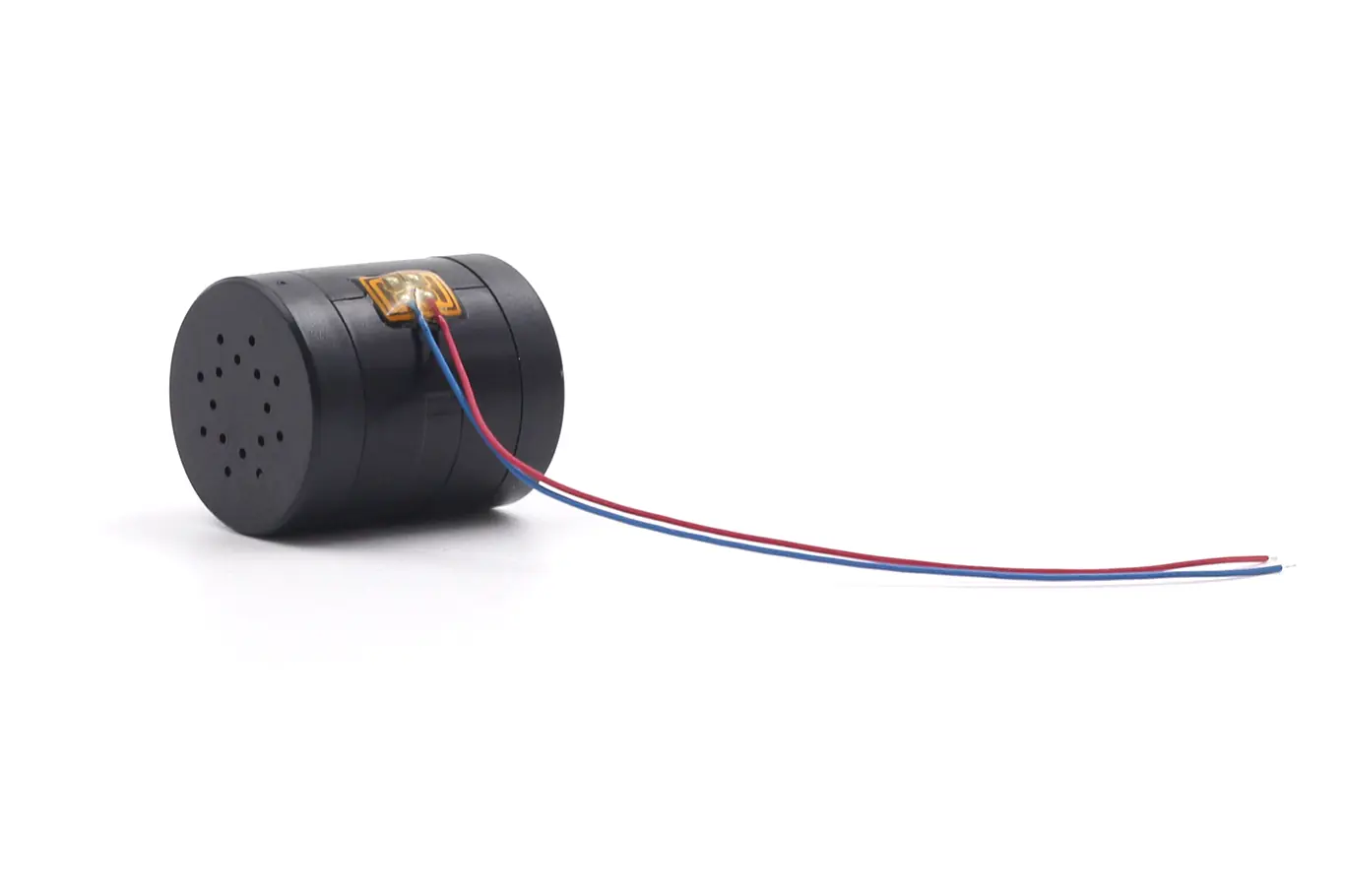

24mm Length LRA Motor – 20mm Type Model TSL-2024A
Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-2024A
- Voltage:1.2VAC
- Diameter : 20mm
- Length:24mm
- Rated Frequency : 65±10Hz
- Direction of vibration: Z axis
- Vibration Force: 2.5±0.5G
- #More Specifications
- #Outline Drawing
♦ Typical Applications:
- igh-end phones and smartwatches
- VR glasses, game controllers
LRA Vibration Motor For Haptic Feedback Specification
TSL‑2024A is a vibration motor for haptic feedback designed with a Dia 20mm × 24T linear resonant structure. It delivers fast response, stable performance, and smooth tactile output under a 1.2Vrms AC sine‑wave drive.
With its ultra‑wide frequency range, long lifespan, low noise, and adjustable vibration characteristics, this LRA vibration motor is ideal for devices requiring precise haptic feedback such as game controllers, VR equipment, premium smartphones, and wearables.
| Motor Model: | TSL-2024A |
| Diameter (mm): | 20 |
| Thickness (mm): | 24 |
| Rated Voltage (VAc): | 1.2 |
| Operating Voltage (Vdc): | 0.1~1.2VrmsAC |
| Rated Current MAX (mA): | 200 |
| Rated Frequency (Hz): | 65±10Hz |
| Direction of vibration: | Z axis |
| Vibration Force (Grms): | 2.5±0.5G |
| Rise Time (msec): | Max 50msec |
| Falling Time (msec): | Max 80msec |
| Life Time: | 1000000 cycles (1 cycle: 2s on, 1s off) |
💕The vibration motor for haptic feedback’s technical specifications are for guidance，we offer custom solutions upon request.

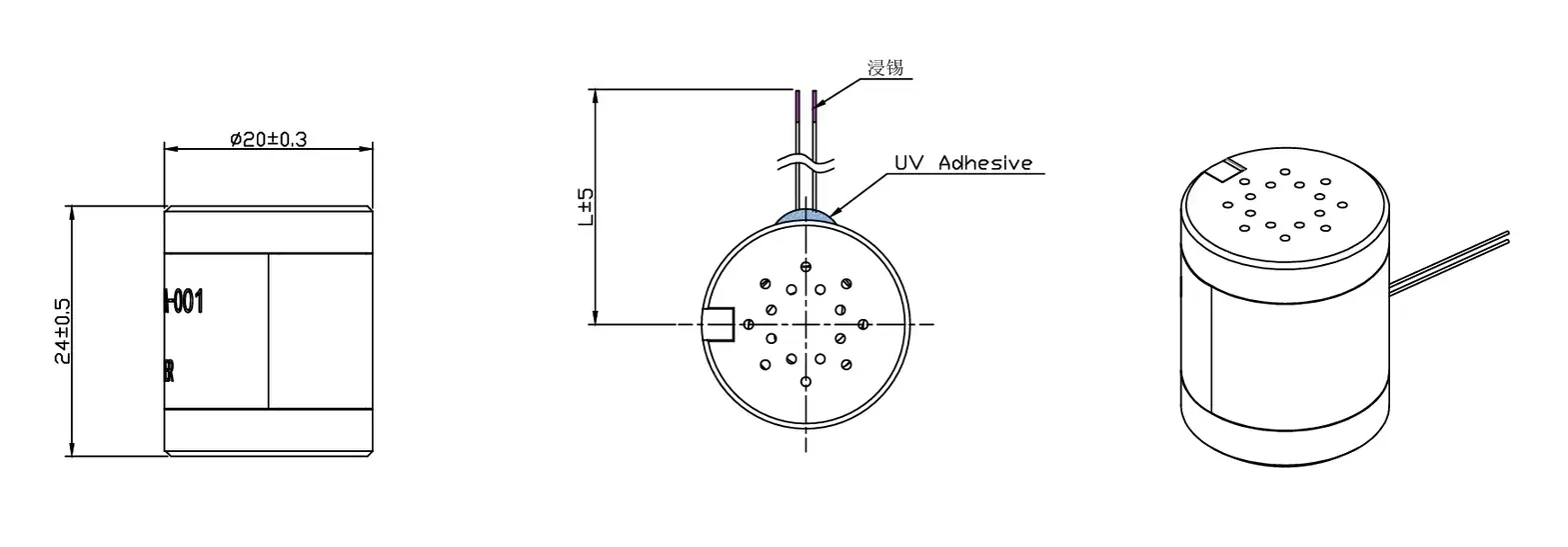

Ultra Wide Frequency LRA Vibration Motor for Haptic Feedback Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Development Samples:
If you need samples, please contact us.
Engineering & Manufacturing:
Contact any or the Sales Engineers for a quotation for production or consultation on the integration and customization of your product.
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ for LRA Vibration Motor
Q：What is a LRA Motor?
A:An LRA motor is a vibration motor for haptic feedback. It uses a resonant moving‑mass system to create fast, precise, and low‑noise vibration.
Q: What driver should I use to control a linear resonant actuator (LRA)?
A：To control an actuator that is linear resonant of this kind it is recommended to use the DRV26XX series by Texas Instruments is a suitable choice. It can be acquired through this link: https://www.digikey.com/en/product-highlight/t/texas-instruments/drv2605-haptic-driver.
Q: How do I place an order?
A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery
Q: What about Sample Order?
A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.
Tap:If you request a quotation for mass production quantities, contact us for customizations and integration.
