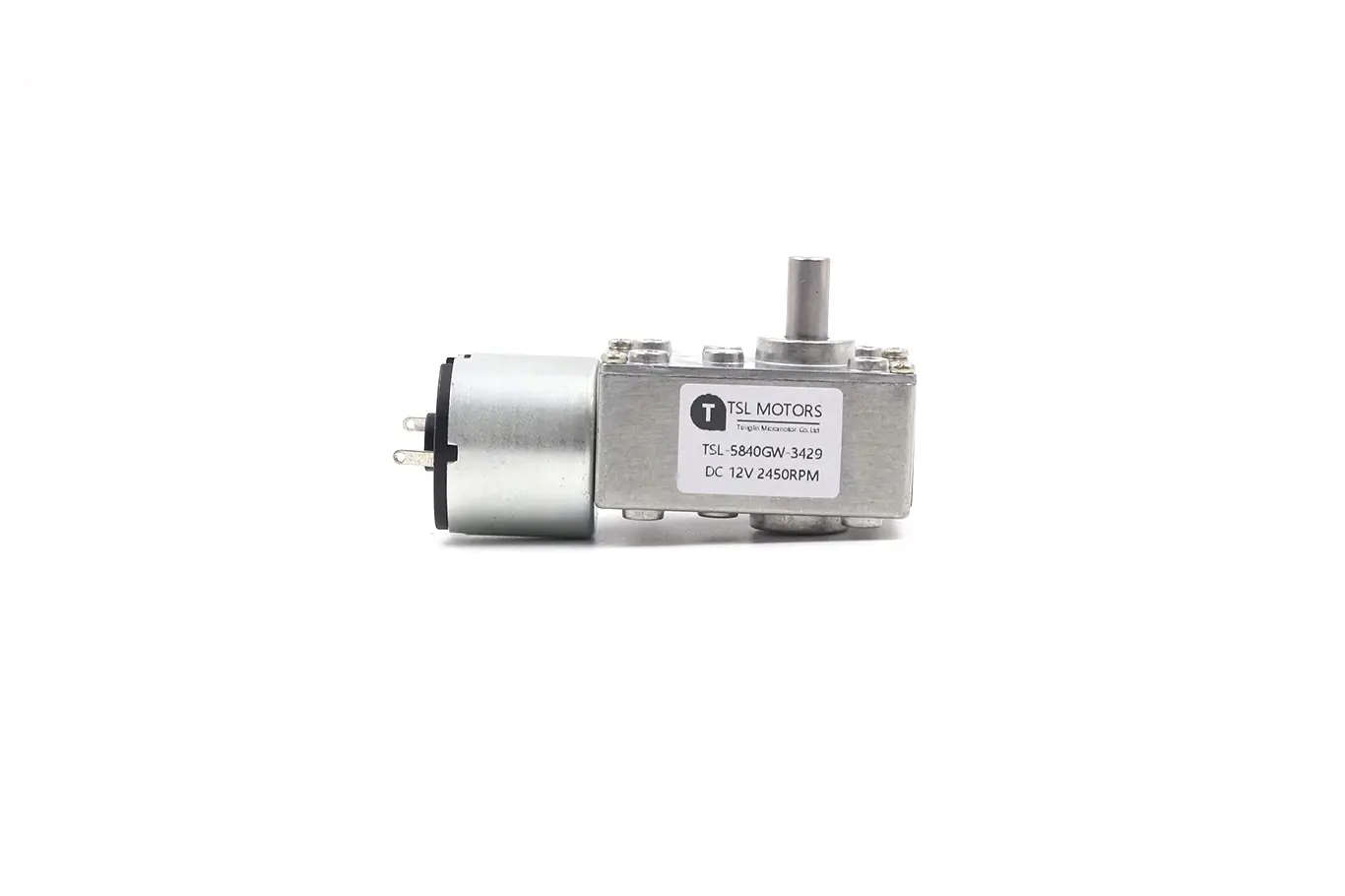

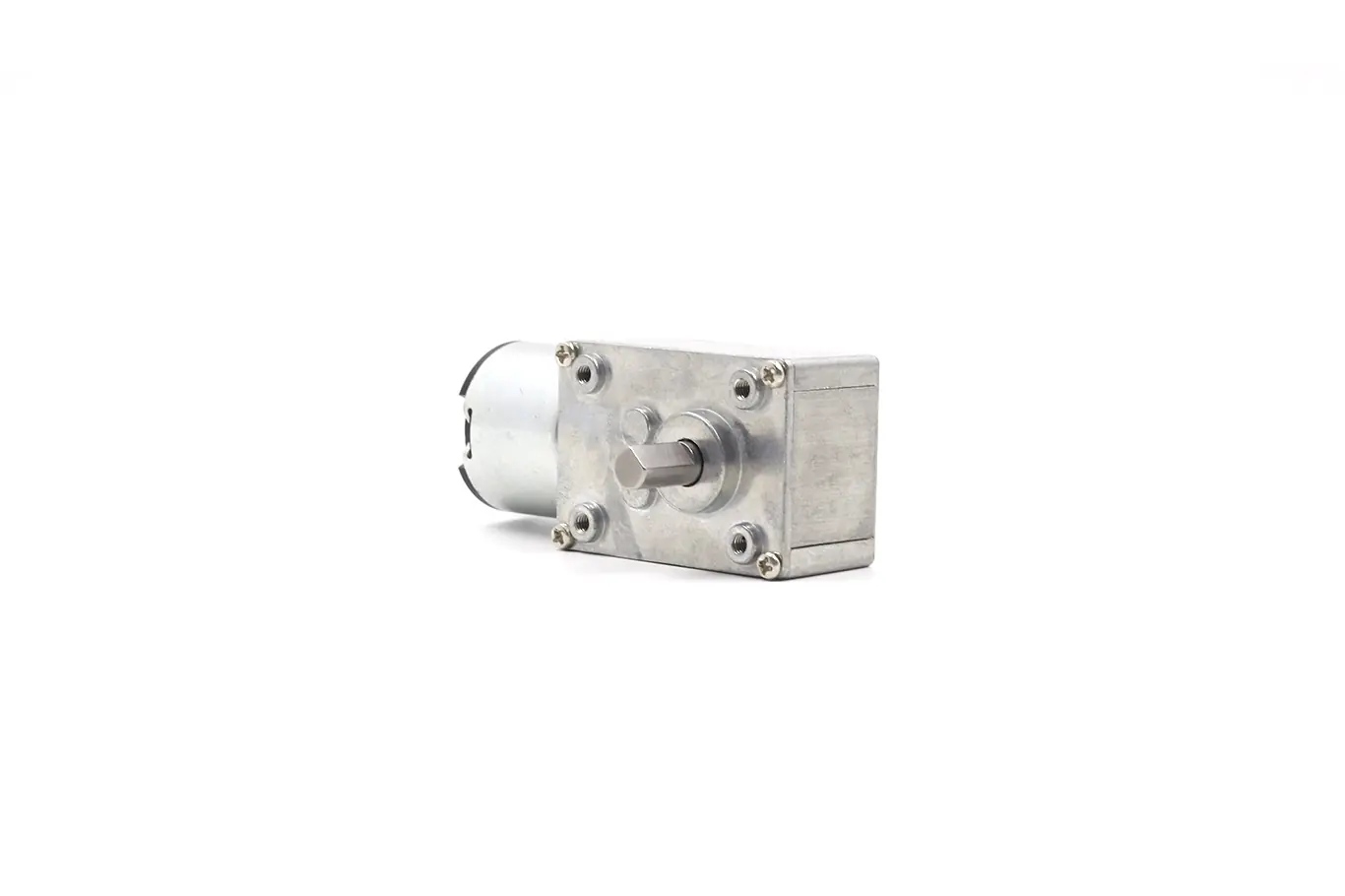

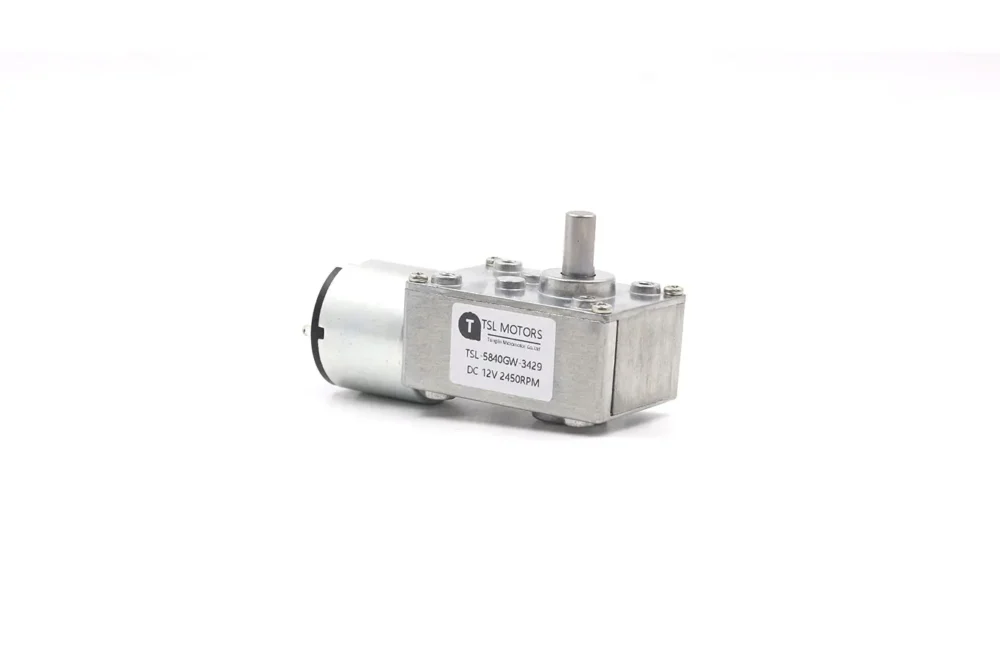

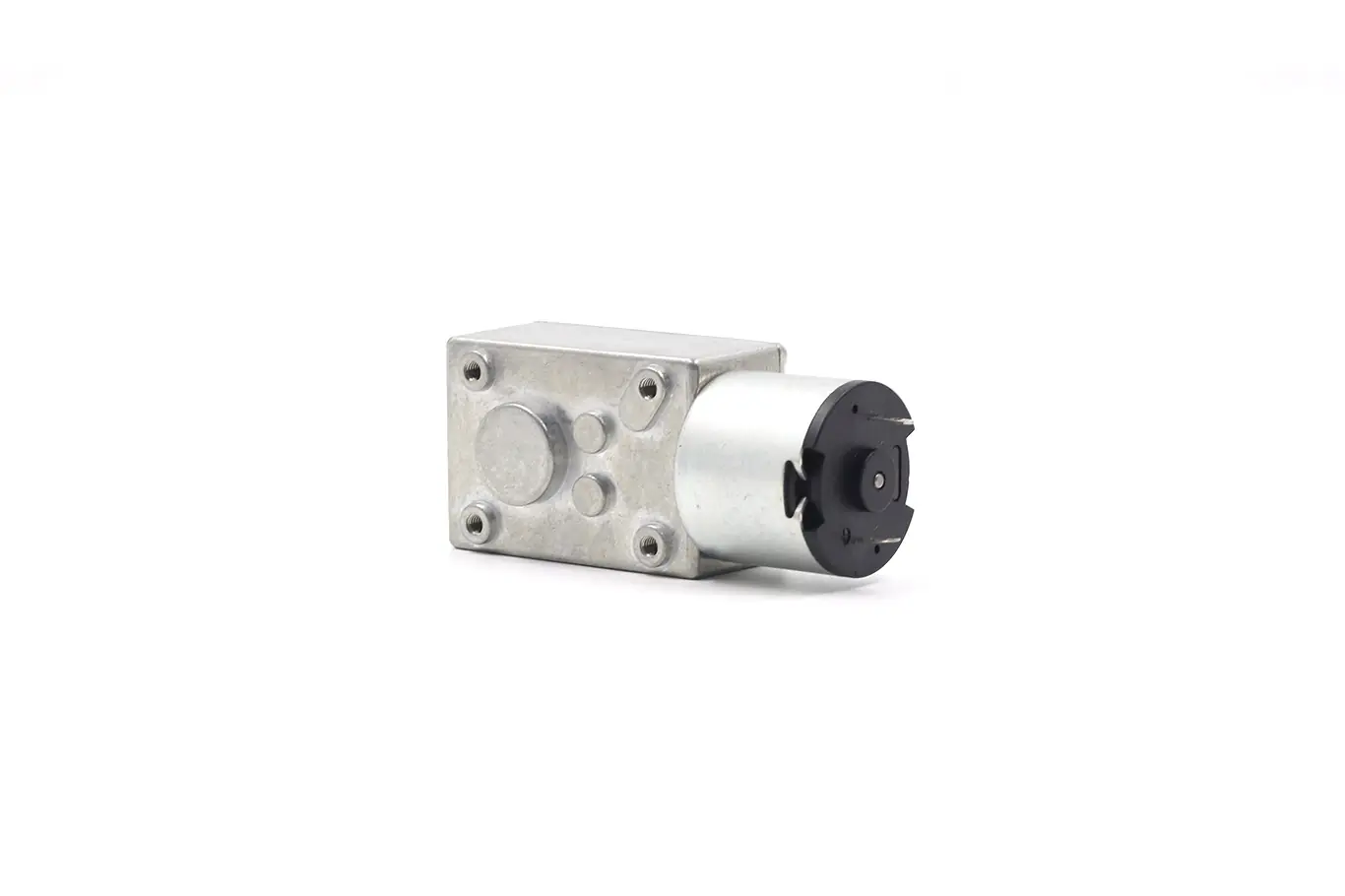

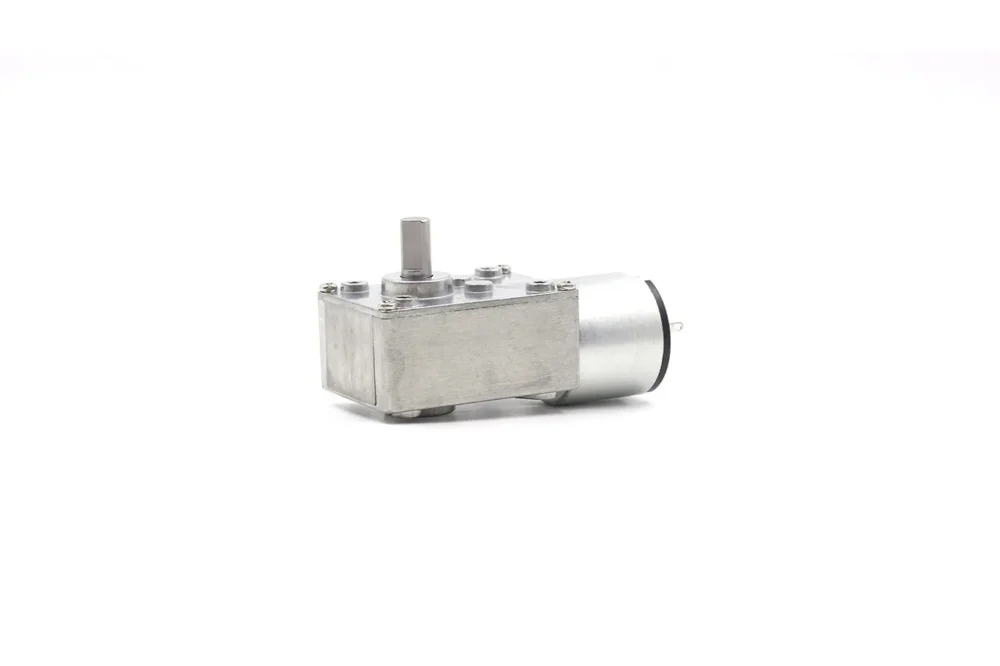

32mm Worm Gear Motor Model TSL-5840GW-3429

Intelligent robot, household appliances
electriccurtains, electric clothes hangers

Worm Drive Motor DC Worm Gear Motor Datasheet

The rotor features pure copper wire windings, which provide low resistance and superior conductivity. This core design directly results in increased motor torque for powerful, consistent performance. The D-shaped shaft is engineered for easier installation and is less prone to slipping, which significantly reduces assembly time.

The worm drive motor utilizes an all-metal internal structure for exceptional wear resistance and high torsional strength. This robust construction ensures stable, long-term operation and contributes to the worm drive motor’s extended lifespan even under demanding conditions.

A complete full ball bearing structure minimizes frictional resistance and ensures low-noise performance. The bearings also enable fast heat dissipation, maintaining the motor’s high precision and strong composite load capacity throughout its operation.

TSL-5840GW-3429,DC 24V,Max 5.0W

Ratio	No Load		Rated			Stall
Ratio	Current	Speed	Torque	Speed	Current	Torque	Current
1:i	mA	rpm	Kg.cm	rpm	A	Kg.cm	A
1:36	≤100	145	4.00	95	≤0.45	≥10	≤1.2 stop running for a long time or start repeatedly
1:54	≤100	95	6.00	65	≤0.45	≥17
1:72	≤100	72	8.00	48	≤0.45	≥23
1:108	≤100	48	12.00	32	≤0.45	≥35
1:280	≤100	18.5	30.00	12	≤0.45	≥50
1:522	≤100	10	50.00	6.5	≤0.45	≥50

💕The worm drive motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz1

TSL-5840GW-3429,DC 12V,Max 1.3W

Ratio	No Load		Rated			Stall
Ratio	Current	Speed	Torque	Speed	Current	Torque	Current
1:i	mA	rpm	Kg.cm	rpm	A	Kg.cm	A
1:36	≤70	70	2.00	48	≤0.2	≥5	≤0.55 stop running for a long time or start repeatedly
1:54	≤70	46	3.00	32	≤0.2	≥8
1:72	≤70	35	4.00	24	≤0.2	≥11
1:108	≤70	23	6.00	16	≤0.2	≥17
1:280	≤70	9	16.00	6	≤0.2	≥40
1:522	≤70	5	30.00	3	≤0.2	≥50

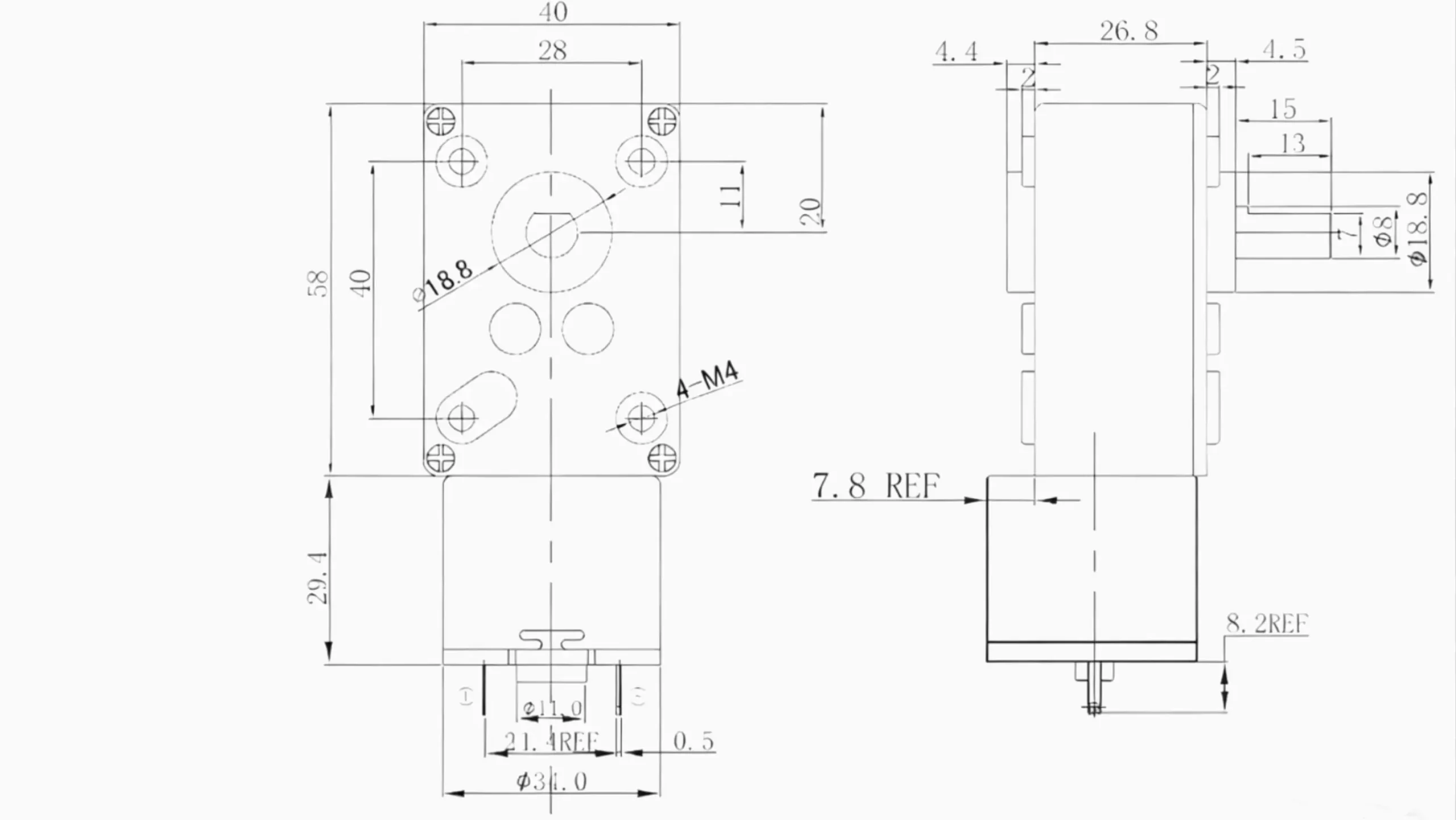

Worm Drive Motor Mechanical Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

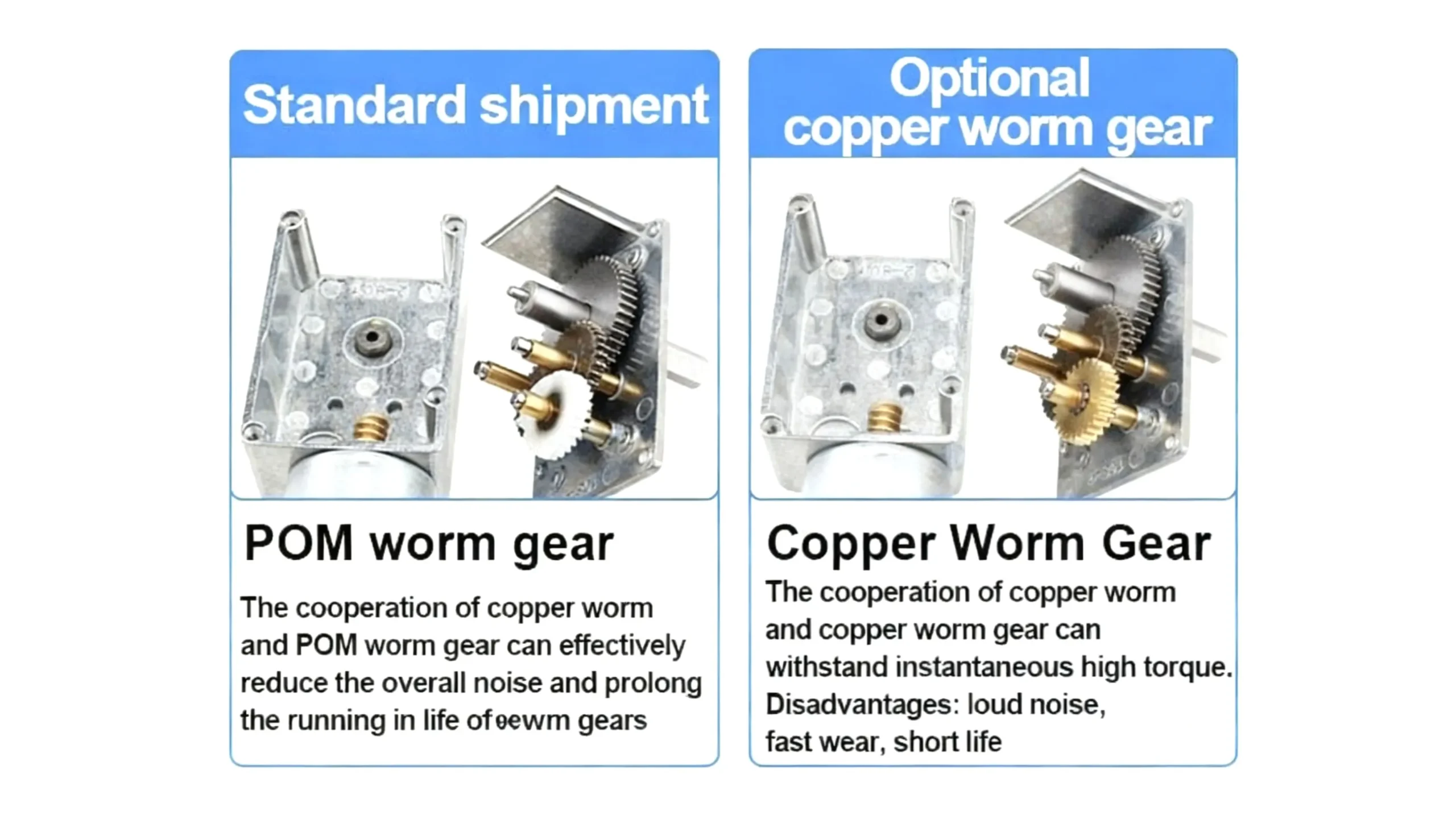

Worm Drive Motor Gear Distinction

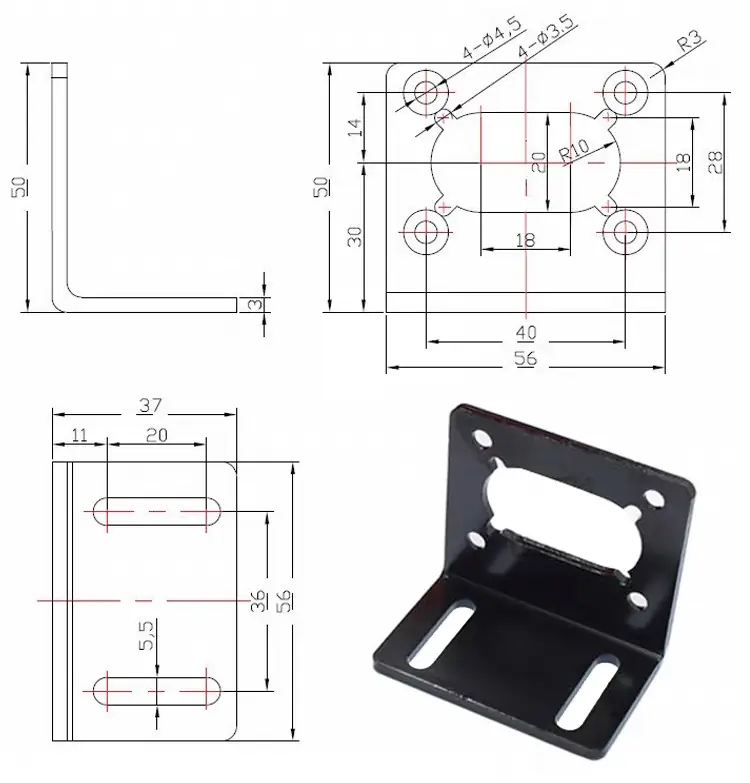

Worm Drive Motor Mounting Bracket Drawing

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
