Worm Gear And Motor BLDC Datasheet

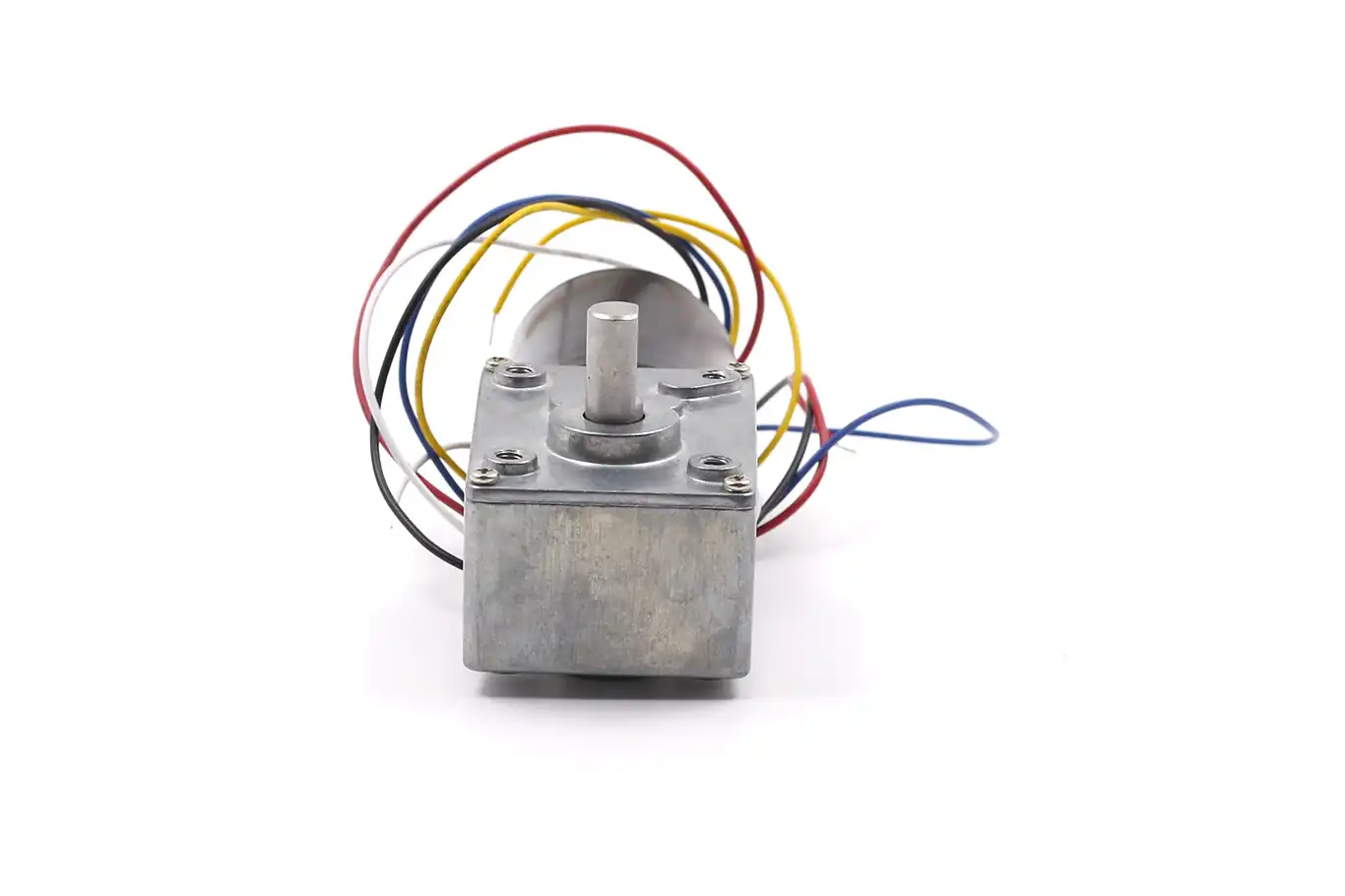

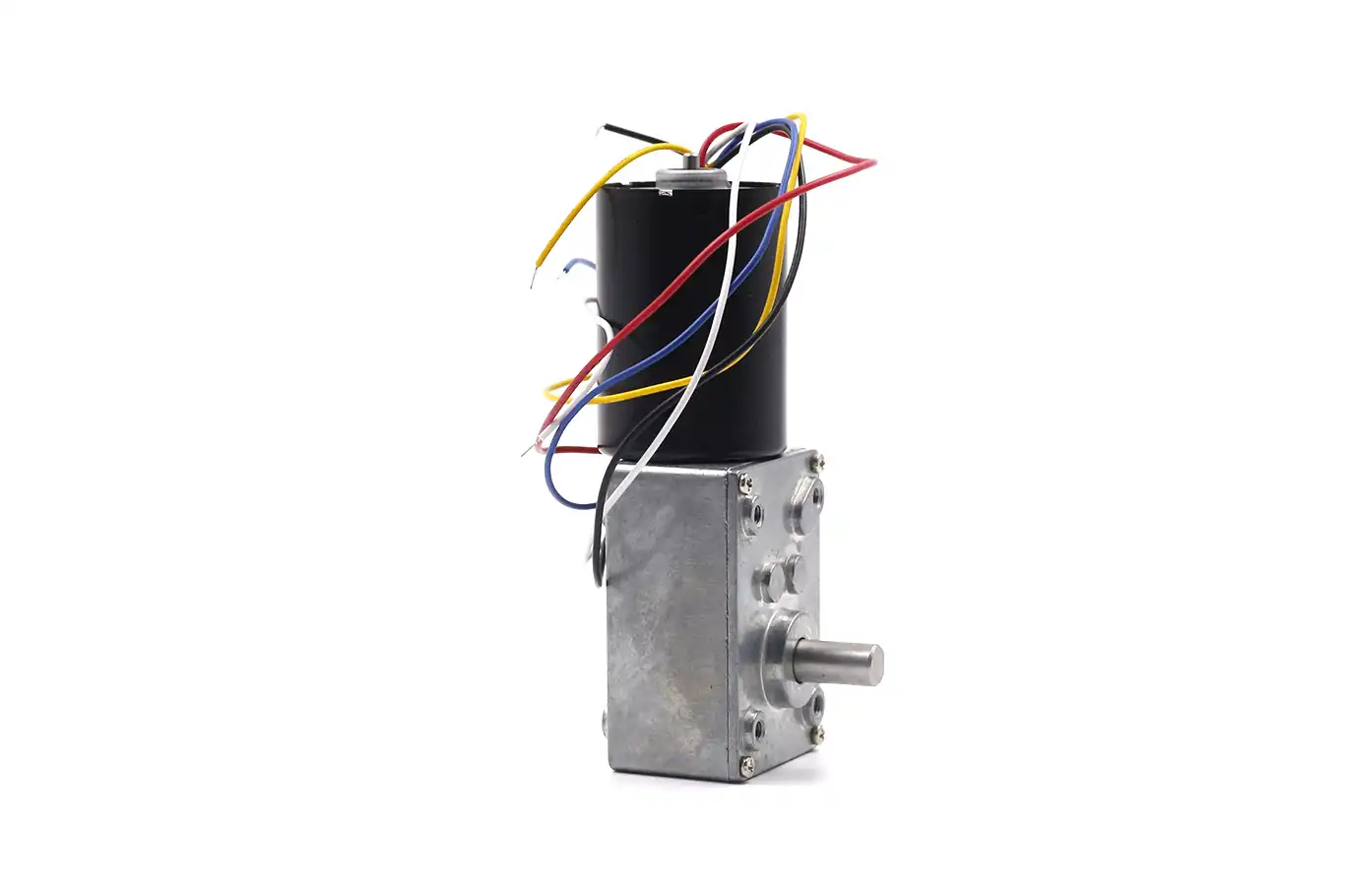

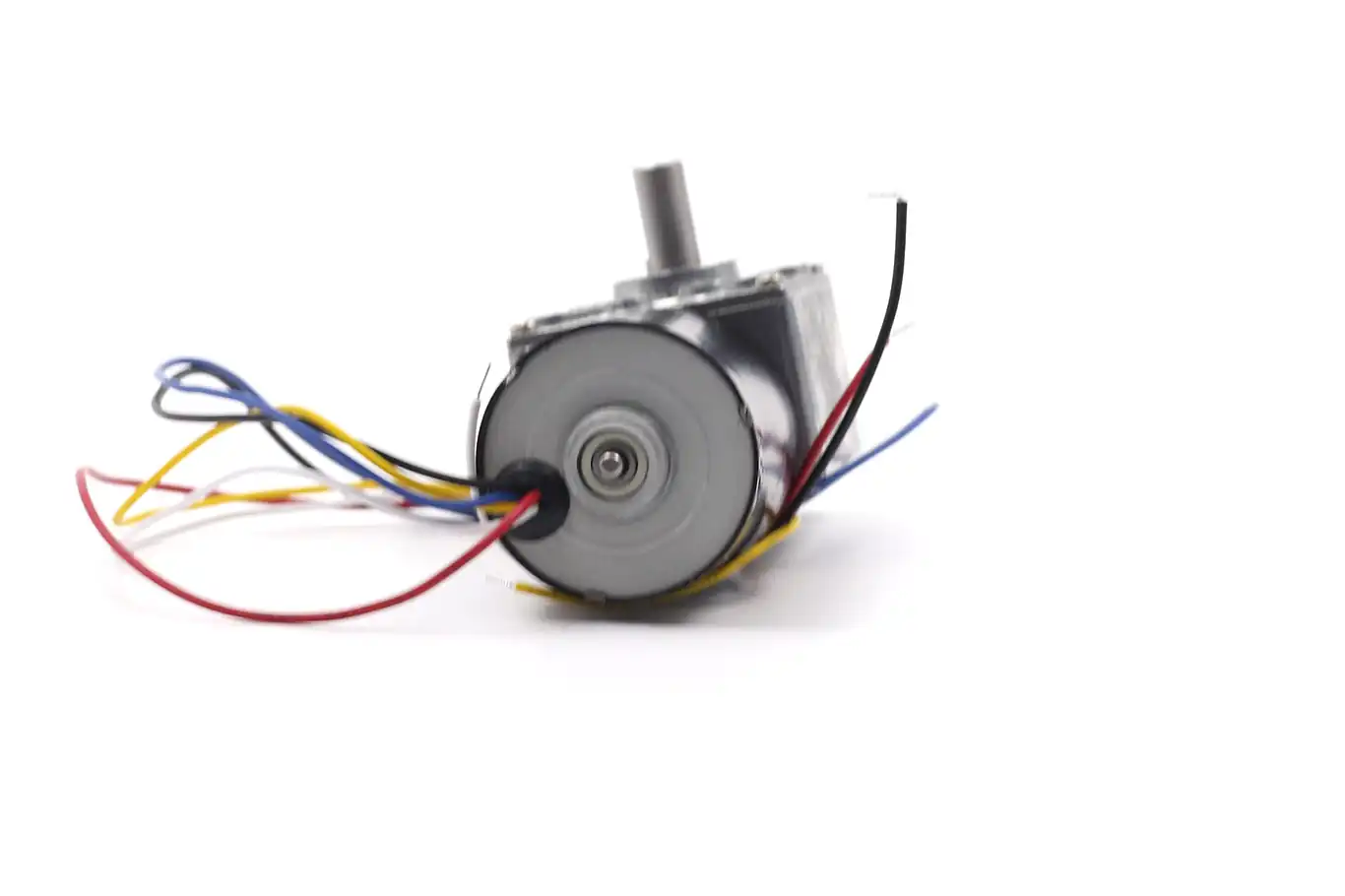

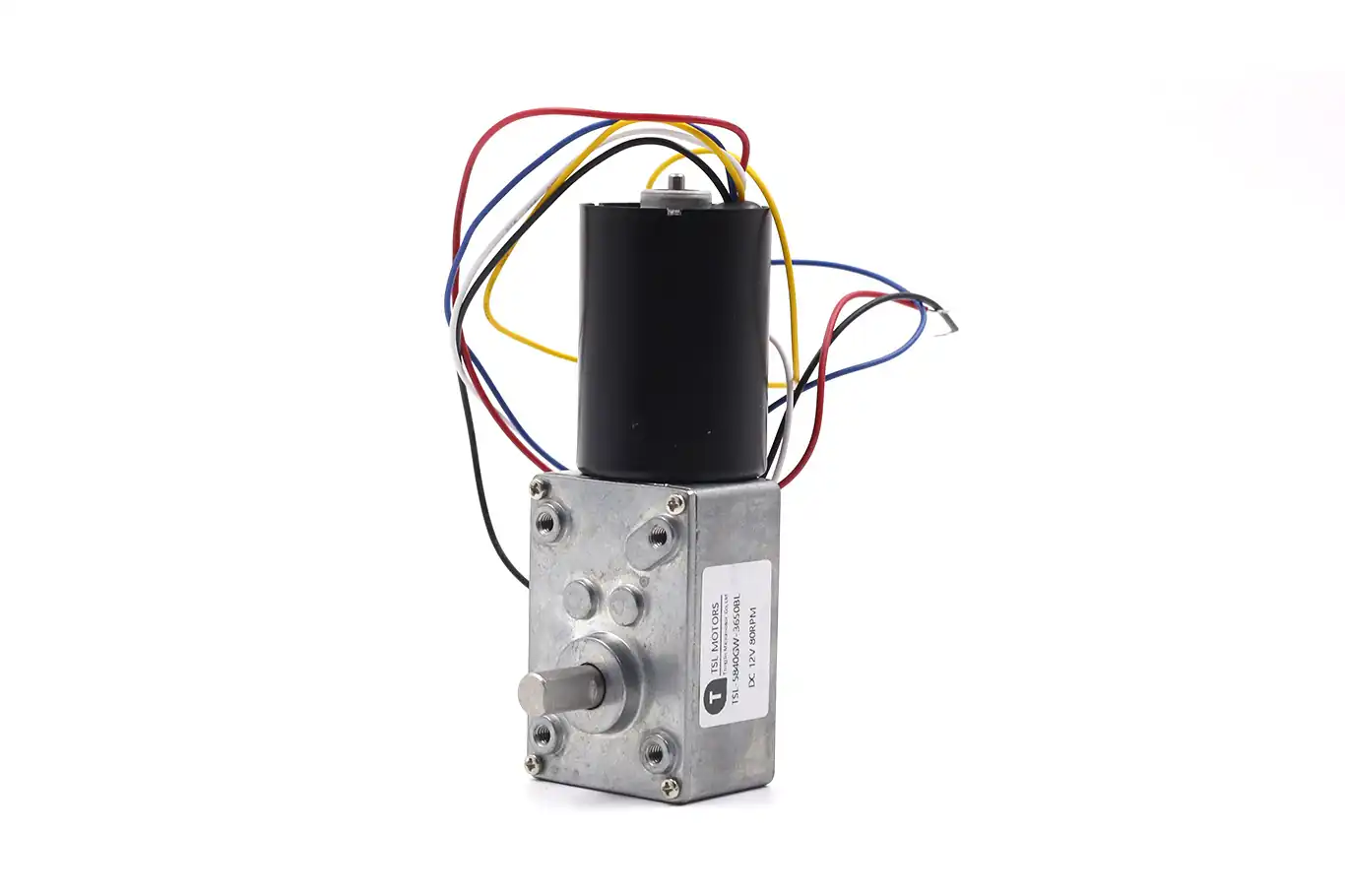

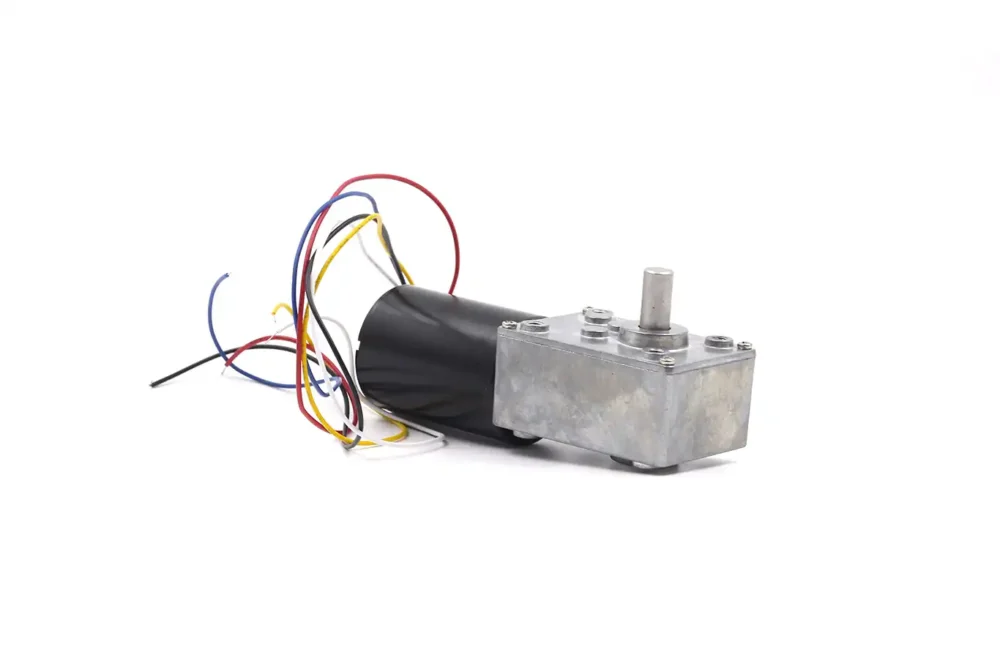

The worm gear and motor bldc motor TSL-5840GW-3650BL offers exceptional performance. It delivers an impressive 100 kg.cm of torque. This makes it ideal for heavy-duty tasks. Think industrial automation, robotics, and machinery. It provides the precise and powerful motion control these applications demand.

This worm gear and motor works with both 12V and 24V power systems. This versatility gives you more options. Use 12V for better energy efficiency. Use 24V for more power. The worm gear and motor TSL-5840GW-3650BL adapts to your specific needs. It’s a flexible choice for a wide range of applications.

TSL-5840GW-3650BL-1240,  12V DC

Note: all reduced no-load speeds have a tolerance of ±10%.

🩷The engineer recommends：Blocked(Stall) rotor is not supported above 200 ratio.

💟The worm gear and motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-5840GW-3650BL-1280,  12V DC

Note: all reduced no-load speeds have a tolerance of ±10%.

🩷The engineer recommends：Blocked(Stall) rotor is not supported above 200 ratio.

💟The worm gear and motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

TSL-5840GW-3650BL-2480,  24V DC

Note: all reduced no-load speeds have a tolerance of ±10%.

🩷The engineer recommends：Blocked(Stall) rotor is not supported above 200 ratio.

💟The worm gear and motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

Worm Gear And Motor Brushless DC Motor Bracket Dimension

Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

Precision Worm Gear And Motor Brushless Wiring Instruction

3650 (Wiring Instructions for 5-wire Motor)

🔴Red wire: Motor power positive (+) “DC power supply is selected according to motor specifications”

⚫ Black wire: Motor power negative (-)

🟡Yellow wire: FG signal output (for external devices to detect motor speed, the motor outputs 6 square wave pulses per revolution)

⚪White wire: Motor forward and reverse rotation control: When the port is not connected, the motor rotates CCW; when the port is connected to a low level (≤0.6V), the motor rotates CW

🔵Blue wire: Speed control-Analog voltage speed regulation

3650 (Wiring Instructions for 6-wire Motor)

🔴- Red wire: Motor power positive (+) “DC power supply is selected according to motor specifications”

⚫- Black wire: Motor power negative (-)

🟡- Yellow wire: FG signal output (for external devices to detect motor speed, the motor outputs 6 square wave pulses per revolution)

⚪- White wire: Motor forward and reverse rotation control: When the port is not connected, the motor rotates CCW; when the port is connected to a low level (≤0.6V), the motor rotates CW

🔵- Blue wire: Speed control-PWM speed regulation

🟢- Green wire: Brake-When the port is floating, the motor runs; when connected to the negative pole (0V), the brake is applied

💞The difference between a 6-wire and 5-wire 3650 motor is that the 6-wire version has an extra wire for braking.
