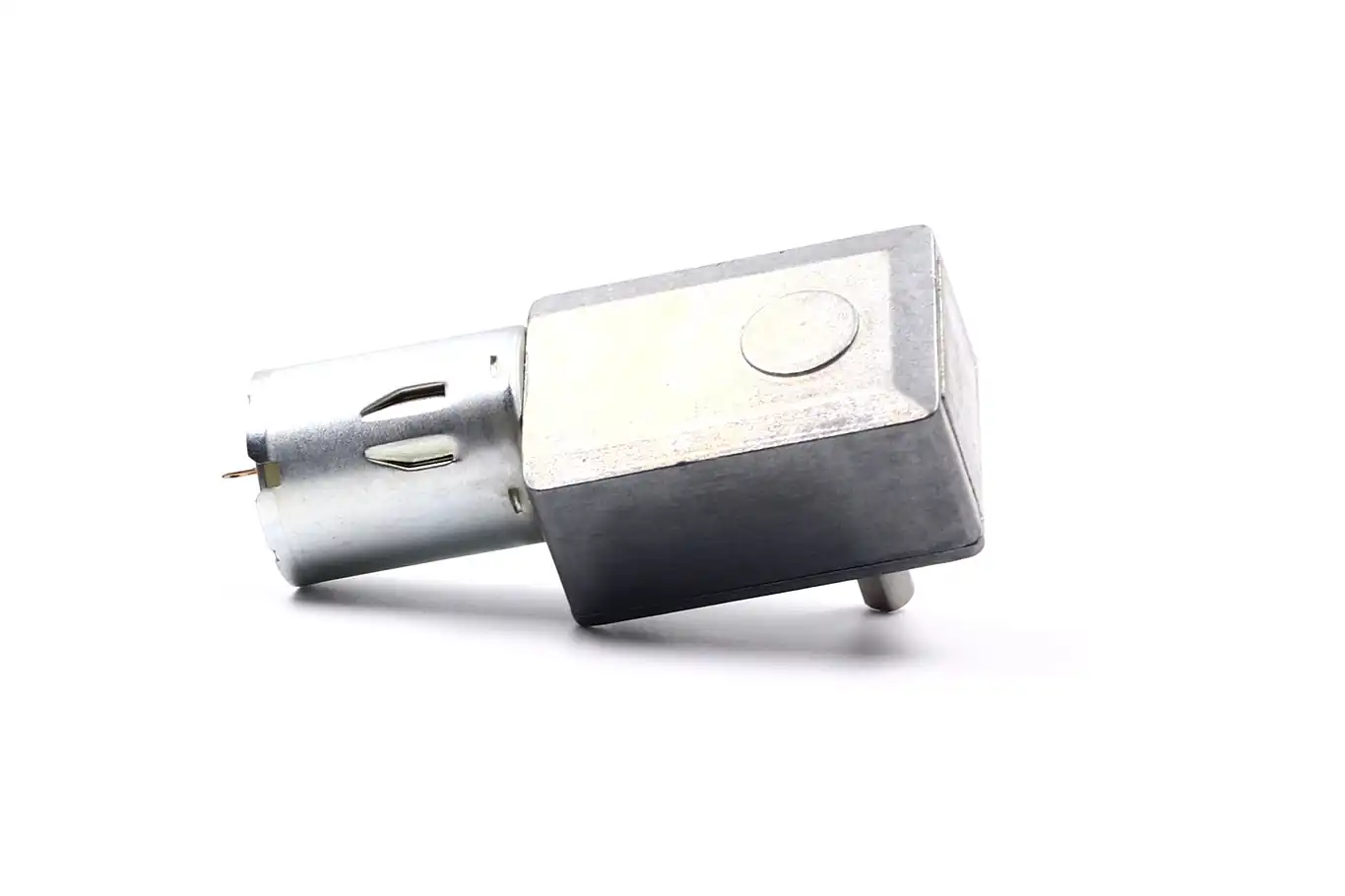

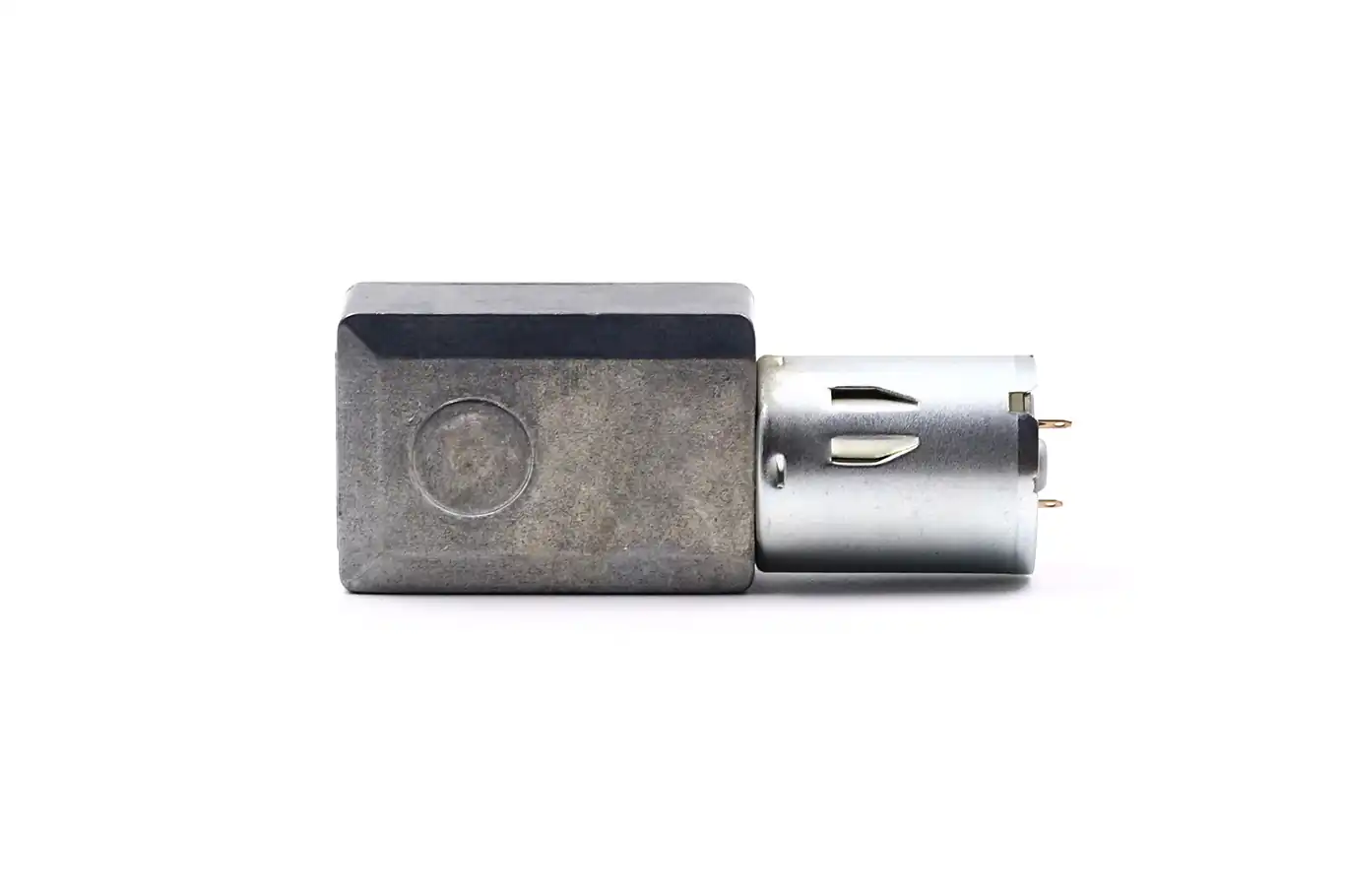

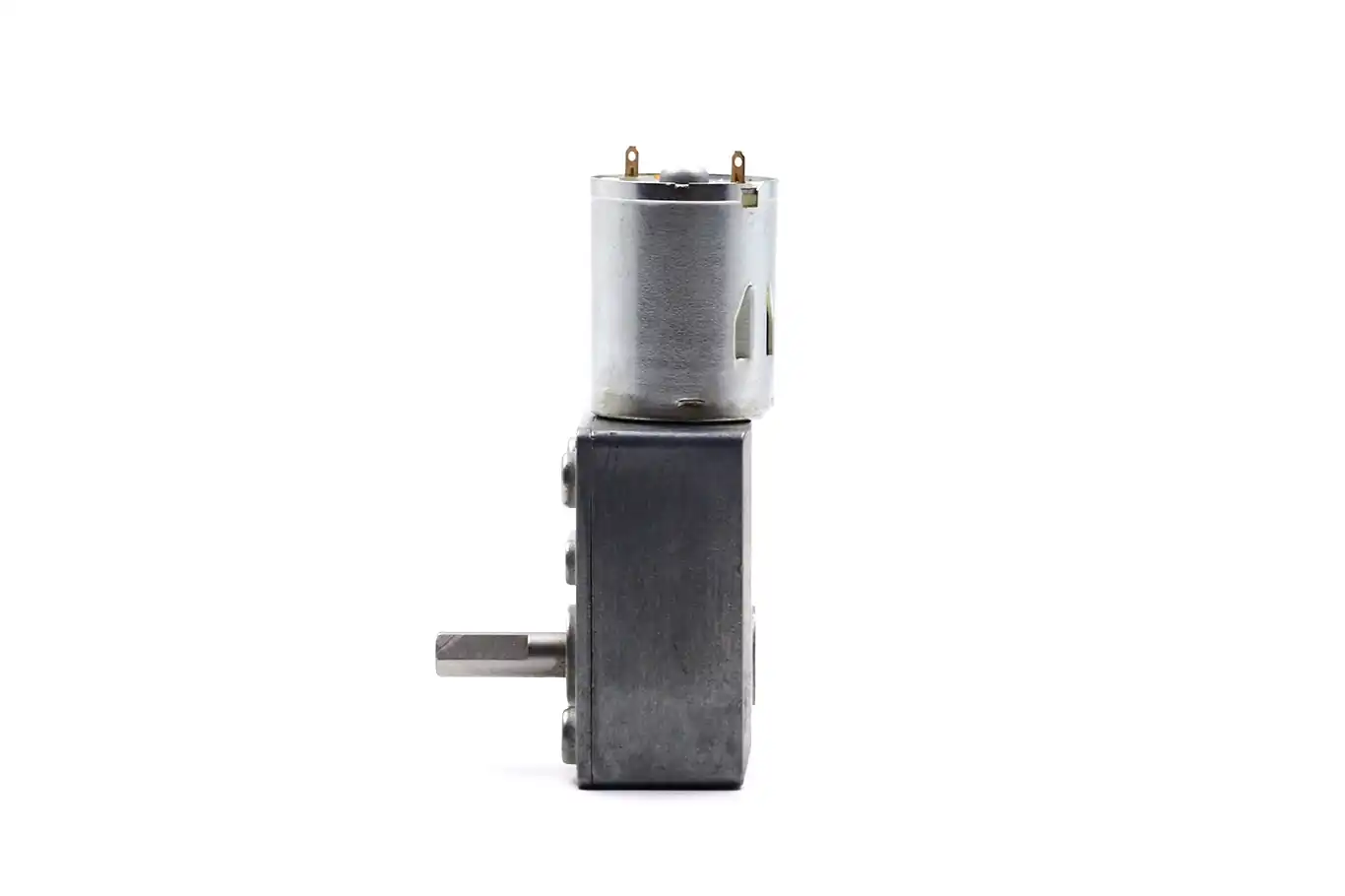

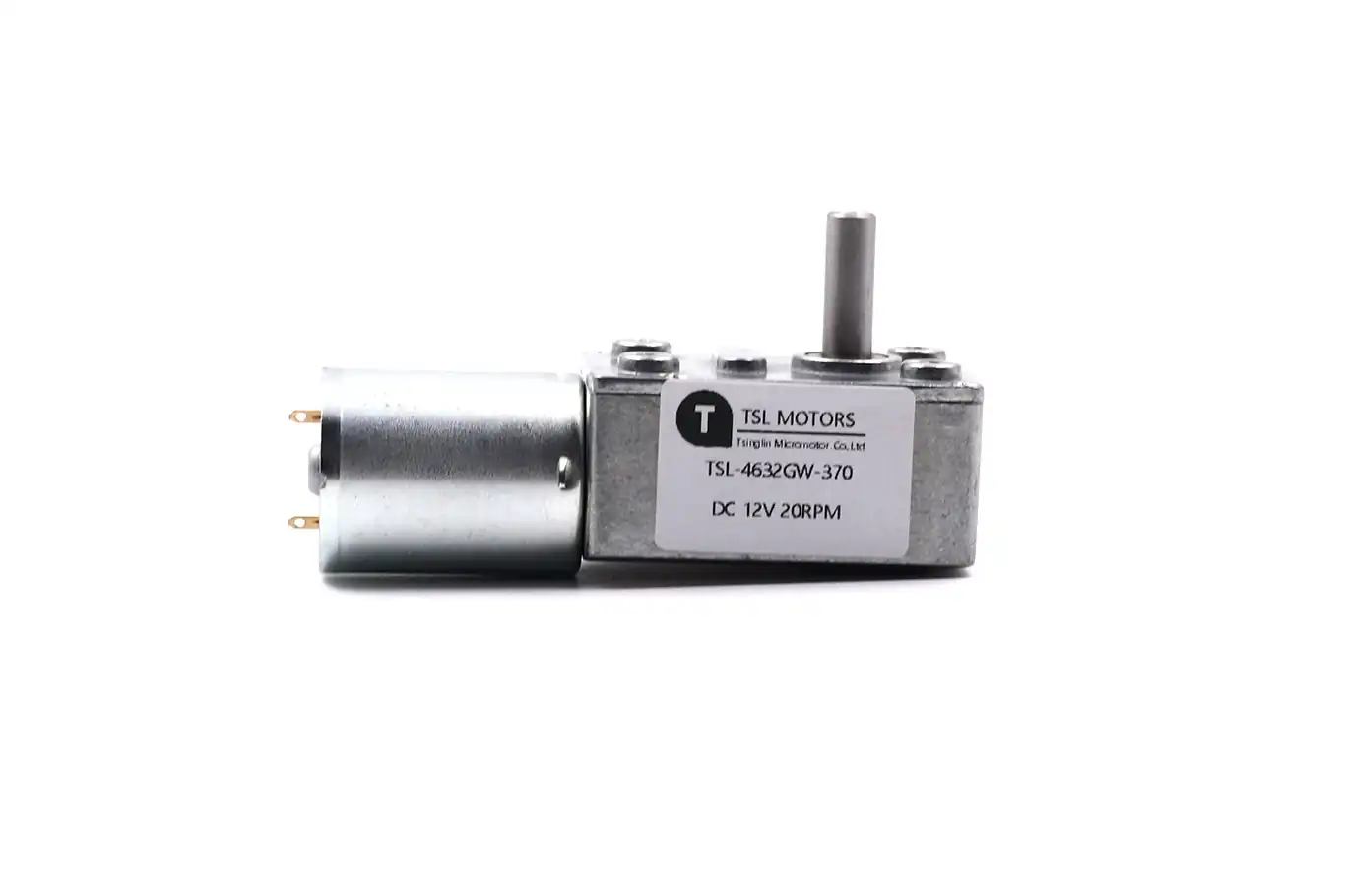

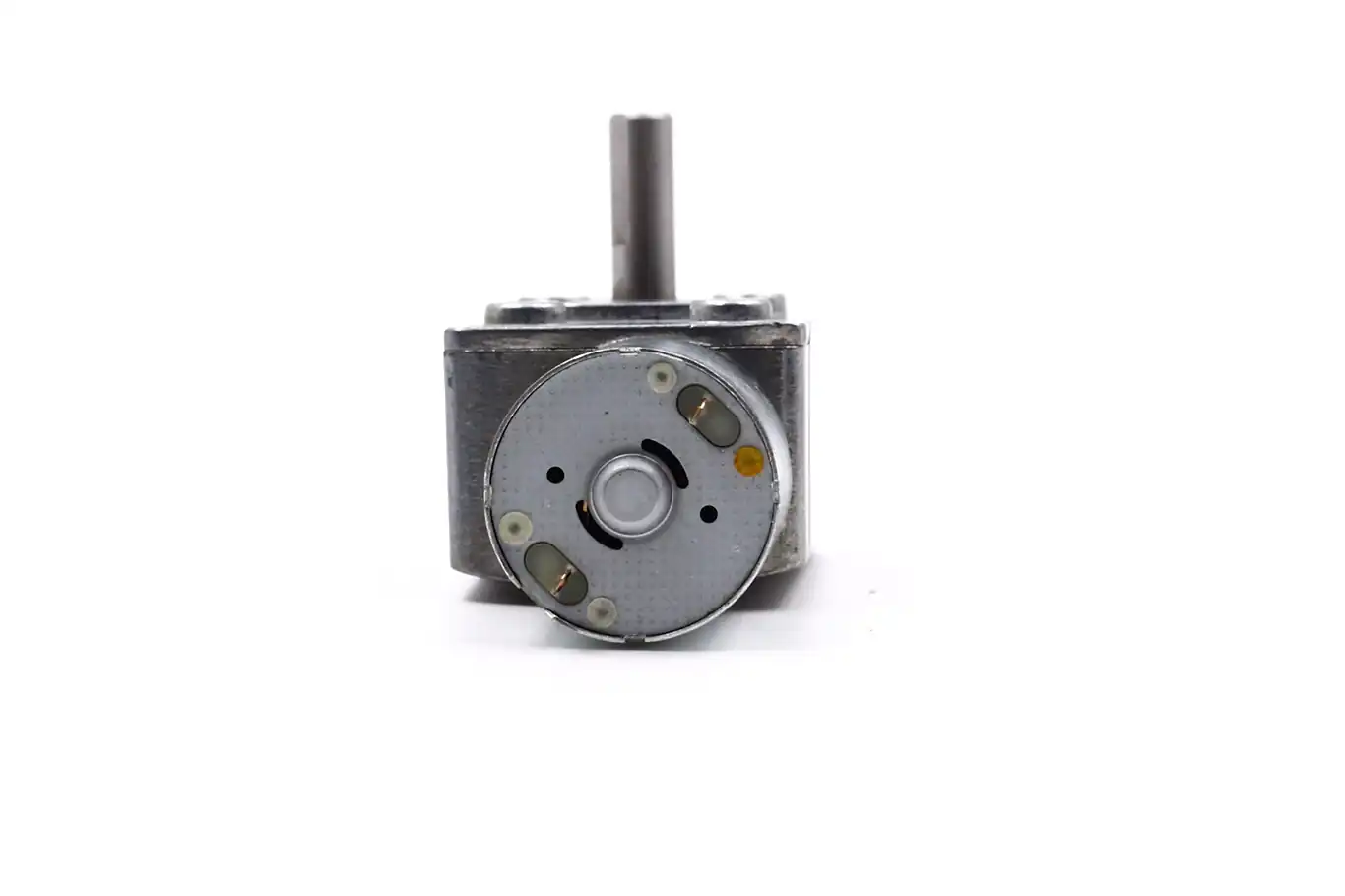

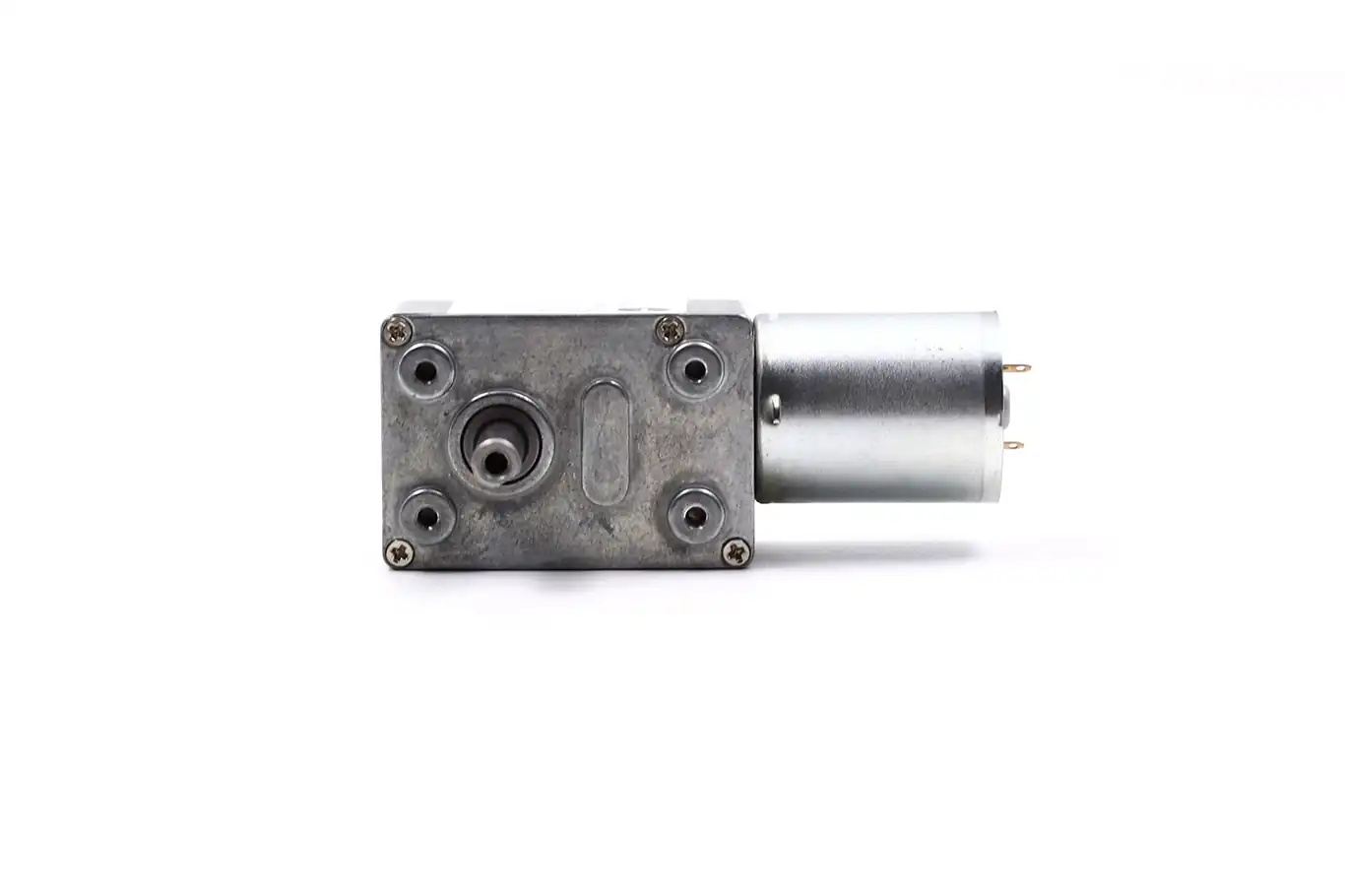

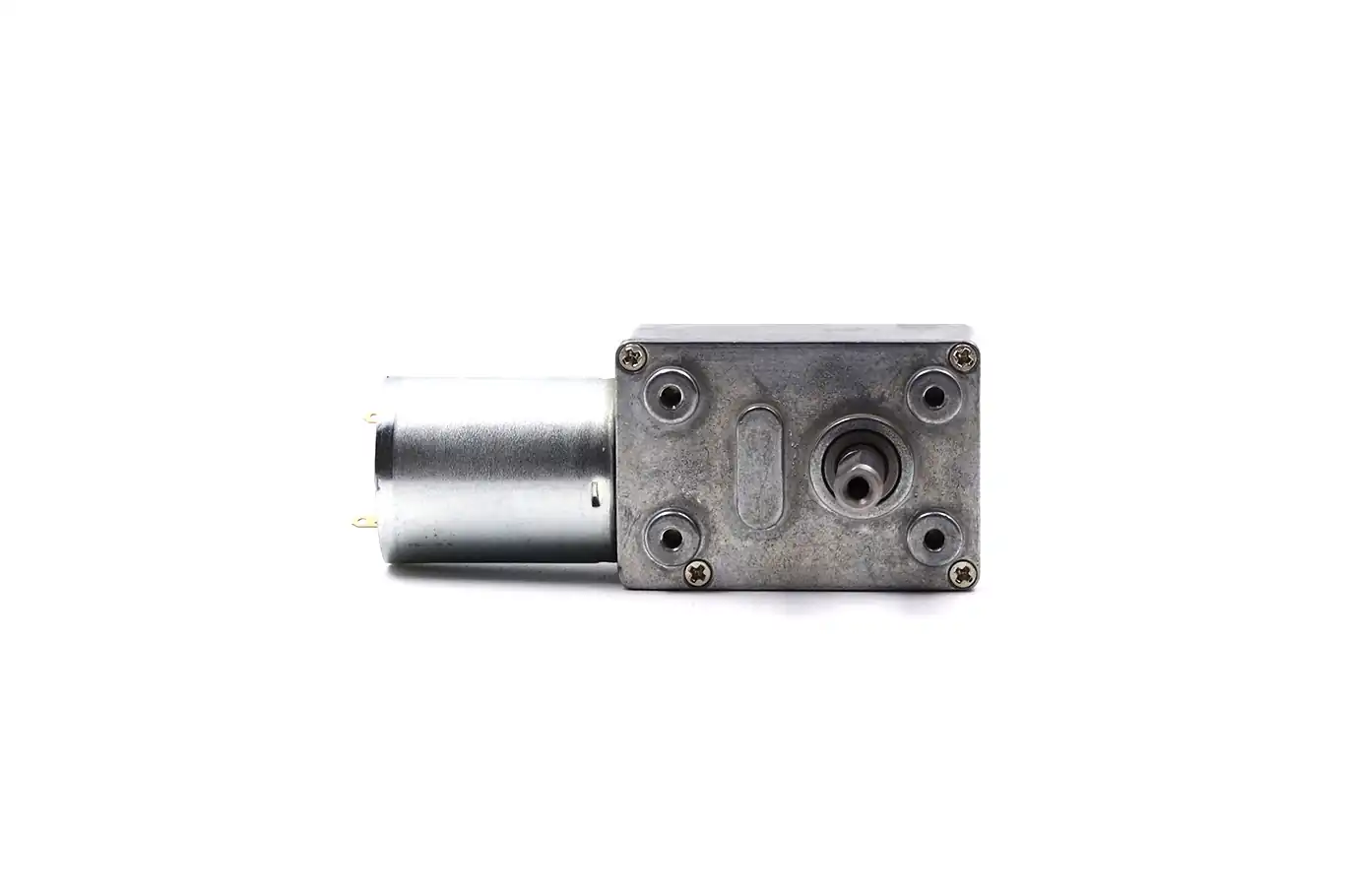

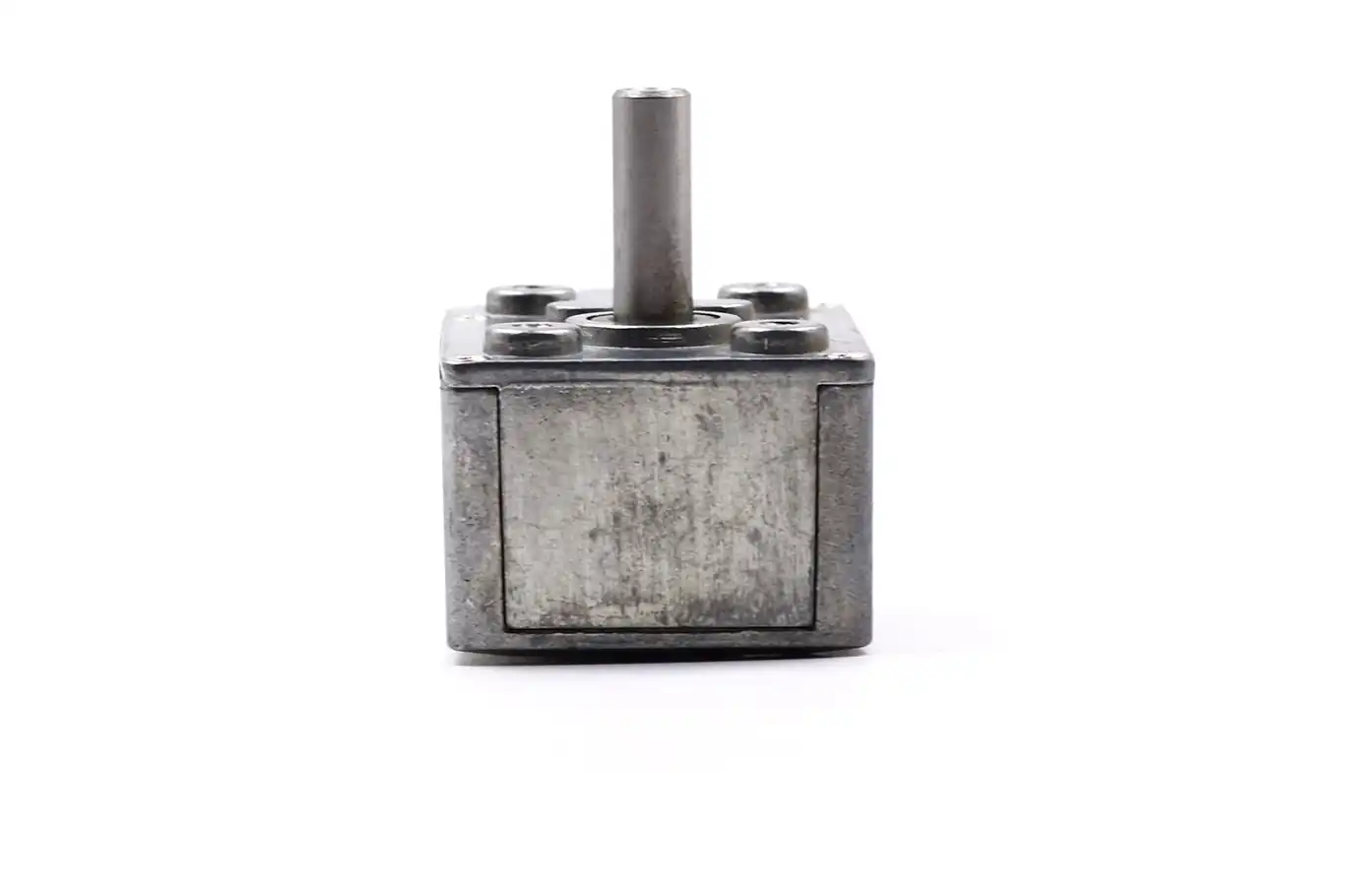

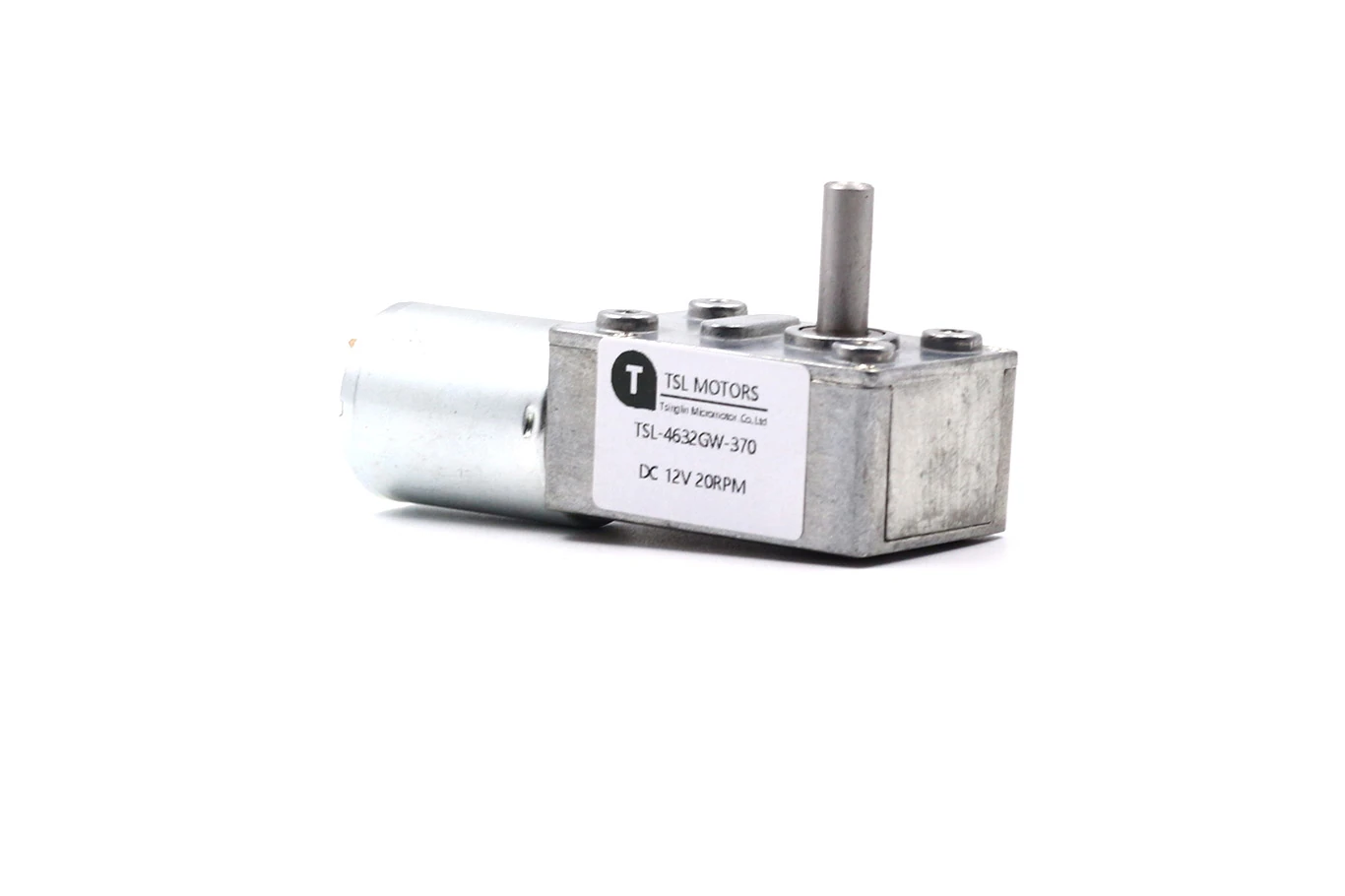

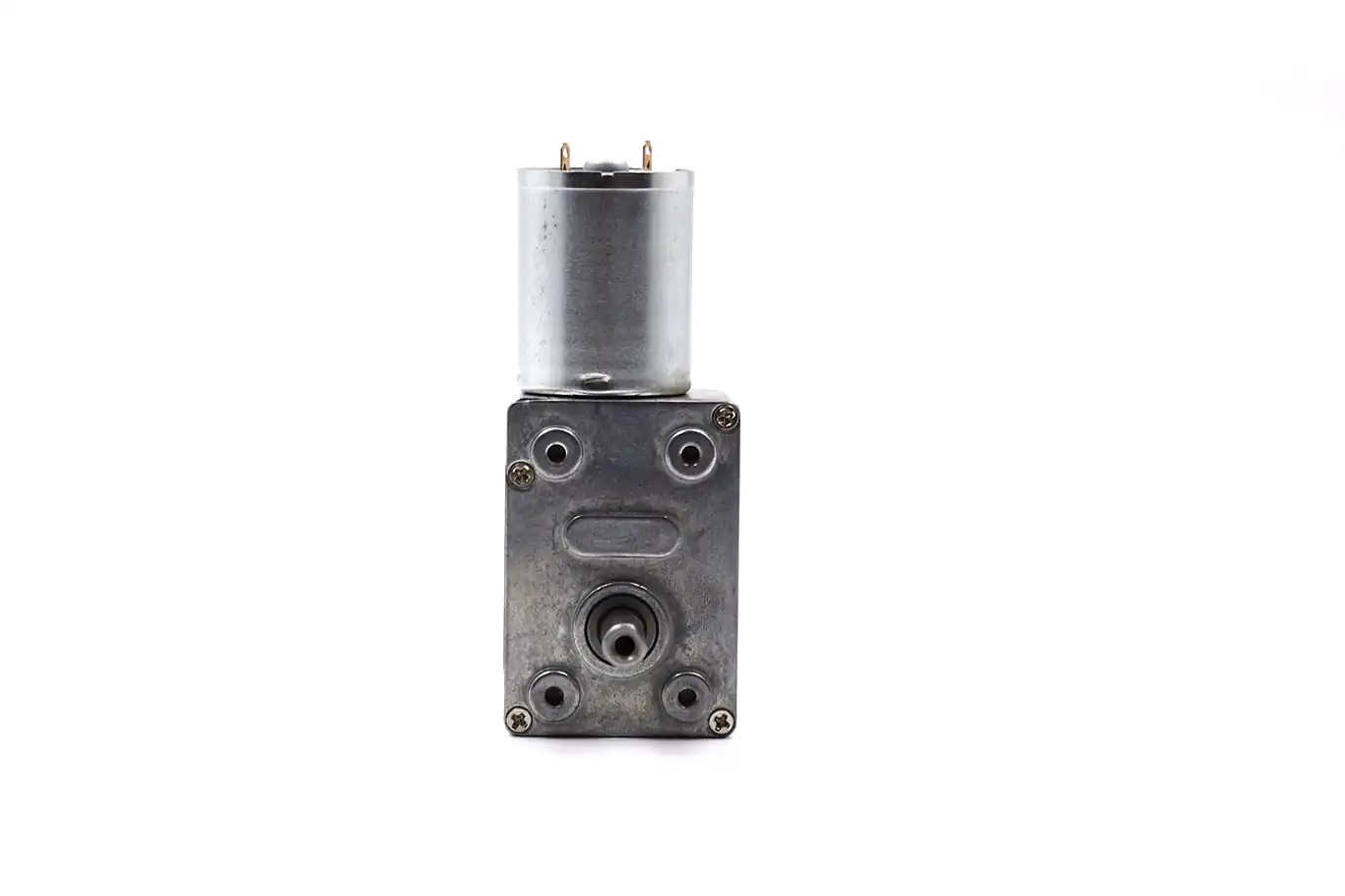

24mm Worm Gear Motor Model TSL-4632GW-370
Basic Info:
- Motor Type:Worm Gear Motor
- Shaft Diameter:Φ6mm (D-shaped)
- Shaft Length:18.5mm (D-cut: 12mm)
- Rotation:CW / CCW
- Weight:200g
- Size:46x32x25mm
- Rated Voltage:6V / 12V / 24V DC
- #More Specifications
Typical application:
- robotics, automation equipment, or precision instruments,etc
Worm Gear Electric Motor Specifications
Worm Gear Electric Motor: Smooth, Safe, and Silent
Looking for a Worm Gear Electric Motor? Our design ensures smooth and quiet operation. It features a precision worm gear mechanism. This provides inherent self-locking capability. Your designs gain safety and stability. It prevents back-driving. Position is maintained without extra brakes. This motor is excellent for motorized windows, adjustable beds, and lifts.
Worm Gear Electric Motor: Built to Last
Our Worm Gear Electric Motor boasts durable construction. It’s built with high-quality materials and expert craftsmanship. This motor is designed for long service life. Its robust build withstands continuous operation. It tackles harsh conditions. Expect reduced maintenance costs and less downtime. From industrial machinery to consumer electronics, this motor delivers reliable performance, every time.
Worm Gear Electric Motor: Simple Integration, Tailored Solutions
Integrating our Worm Gear Electric Motor is easy. It comes in standard sizes and configurations. This allows for simple integration into existing systems. Need custom options? We offer customizable shaft lengths, gear ratios, and various mounting options. This provides the adaptability your specific projects require. Engineers and designers can seamlessly incorporate this motor. It accelerates development and boosts overall efficiency.
TSL-4632GW-370, 6V DC, Max output power: 1.5W, A-Type
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 32: 1 | 180 rpm | ≤150mA | 110 rpm | ≤1A | 1 kg.cm | 2.5 kg.cm | ≤2.8A |
| 65: 1 | 90 rpm | ≤150mA | 55 rpm | ≤1A | 2 kg.cm | 5 kg.cm | ≤2.8A |
| 158: 1 | 38 rpm | ≤150mA | 22 rpm | ≤1A | 5 kg.cm | 12 kg.cm | ≤2.8A |
| 200: 1 | 30 rpm | ≤150mA | 18 rpm | ≤1A | 6 kg.cm | 15 kg.cm | ≤2.8A |
| 337: 1 | 18 rpm | ≤150mA | 10.5 rpm | ≤1A | 10 kg.cm | 25 kg.cm | ≤2.8A |
| 564: 1 | 10 rpm | ≤150mA | 6 rpm | ≤1A | 16 kg.cm | ≥35 kg.cm | ≤2.8A |
| 1019: 1 | 6 rpm | ≤150mA | 4 rpm | ≤1A | 30 kg.cm | ≥35 kg.cm | ≤2.8A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
➡️For the 564:1 and 1019:1 ratios, continuous operation at a stalled (locked rotor) condition is not recommended.
The worm gear electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-4632GW-370, 12V DC, Max output power: 6W, A-Type
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 32: 1 | 375 rpm | ≤250mA | 260 rpm | ≤1.3A | 1.5 kg.cm | 5 kg.cm | ≤5.5A |
| 65: 1 | 180 rpm | ≤250mA | 130 rpm | ≤1.3A | 3 kg.cm | 10 kg.cm | ≤5.5A |
| 158: 1 | 75 rpm | ≤250mA | 52 rpm | ≤1.3A | 7 kg.cm | 24 kg.cm | ≤5.5A |
| 200: 1 | 60 rpm | ≤250mA | 42 rpm | ≤1.3A | 9 kg.cm | 30 kg.cm | ≤5.5A |
| 337: 1 | 35 rpm | ≤250mA | 25 rpm | ≤1.3A | 14 kg.cm | ≥35 kg.cm | ≤5.5A |
| 564: 1 | 21 rpm | ≤250mA | 15 rpm | ≤1.3A | 23 kg.cm | ≥35 kg.cm | ≤5.5A |
| 1019: 1 | 12 rpm | ≤250mA | 8 rpm | ≤1.3A | 30 kg.cm | ≥35 kg.cm | ≤5.5A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
➡️For the 564:1 and 1019:1 ratios, continuous operation at a stalled (locked rotor) condition is not recommended.
The worm gear electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-4632GW-370, 12V DC, Max output power: 1.5W, B-Type
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 32: 1 | 180 rpm | ≤150mA | 110 rpm | ≤0.6A | 1 kg.cm | 2.5 kg.cm | ≤1.5A |
| 65: 1 | 90 rpm | ≤150mA | 55 rpm | ≤0.6A | 2 kg.cm | 5 kg.cm | ≤1.5A |
| 158: 1 | 38 rpm | ≤150mA | 22 rpm | ≤0.6A | 5 kg.cm | 12 kg.cm | ≤1.5A |
| 200: 1 | 30 rpm | ≤150mA | 18 rpm | ≤0.6A | 6 kg.cm | 15 kg.cm | ≤1.5A |
| 337: 1 | 18 rpm | ≤150mA | 10.5 rpm | ≤0.6A | 10 kg.cm | 25 kg.cm | ≤1.5A |
| 564: 1 | 10 rpm | ≤150mA | 6 rpm | ≤0.6A | 16 kg.cm | ≥35 kg.cm | ≤1.5A |
| 1019: 1 | 6 rpm | ≤150mA | 4 rpm | ≤0.6A | 30 kg.cm | ≥35 kg.cm | ≤1.5A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
➡️For the 564:1 and 1019:1 ratios, continuous operation at a stalled (locked rotor) condition is not recommended.
The worm gear electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-4632GW-370, 24V DC, Max output power: 6W, B-Type
| Ratio | No Load | Rated Load | Stall | ||||
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 32: 1 | 375 rpm | ≤200mA | 260 rpm | ≤0.7A | 1.5 kg.cm | 5 kg.cm | ≤2.5A |
| 65: 1 | 180 rpm | ≤200mA | 130 rpm | ≤0.7A | 3 kg.cm | 10 kg.cm | ≤2.5A |
| 158: 1 | 74 rpm | ≤200mA | 52 rpm | ≤0.7A | 7 kg.cm | 24 kg.cm | ≤2.5A |
| 200: 1 | 60 rpm | ≤200mA | 42 rpm | ≤0.7A | 9 kg.cm | 30 kg.cm | ≤2.5A |
| 337: 1 | 35 rpm | ≤200mA | 25 rpm | ≤0.7A | 14 kg.cm | ≥35 kg.cm | ≤2.5A |
| 564: 1 | 21 rpm | ≤200mA | 15 rpm | ≤0.7A | 23 kg.cm | ≥35 kg.cm | ≤2.5A |
| 1019: 1 | 12 rpm | ≤200mA | 8 rpm | ≤0.7A | 30 kg.cm | ≥35 kg.cm | ≤2.5A |
➡️All reduced no-load speeds have a rated tolerance of ±15%.
➡️For the 564:1 and 1019:1 ratios, continuous operation at a stalled (locked rotor) condition is not recommended.
The worm gear electric motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
Worm Gear Electric Motor Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
Worm Gear Electric Motor Mounting Bracket Dimensions
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
