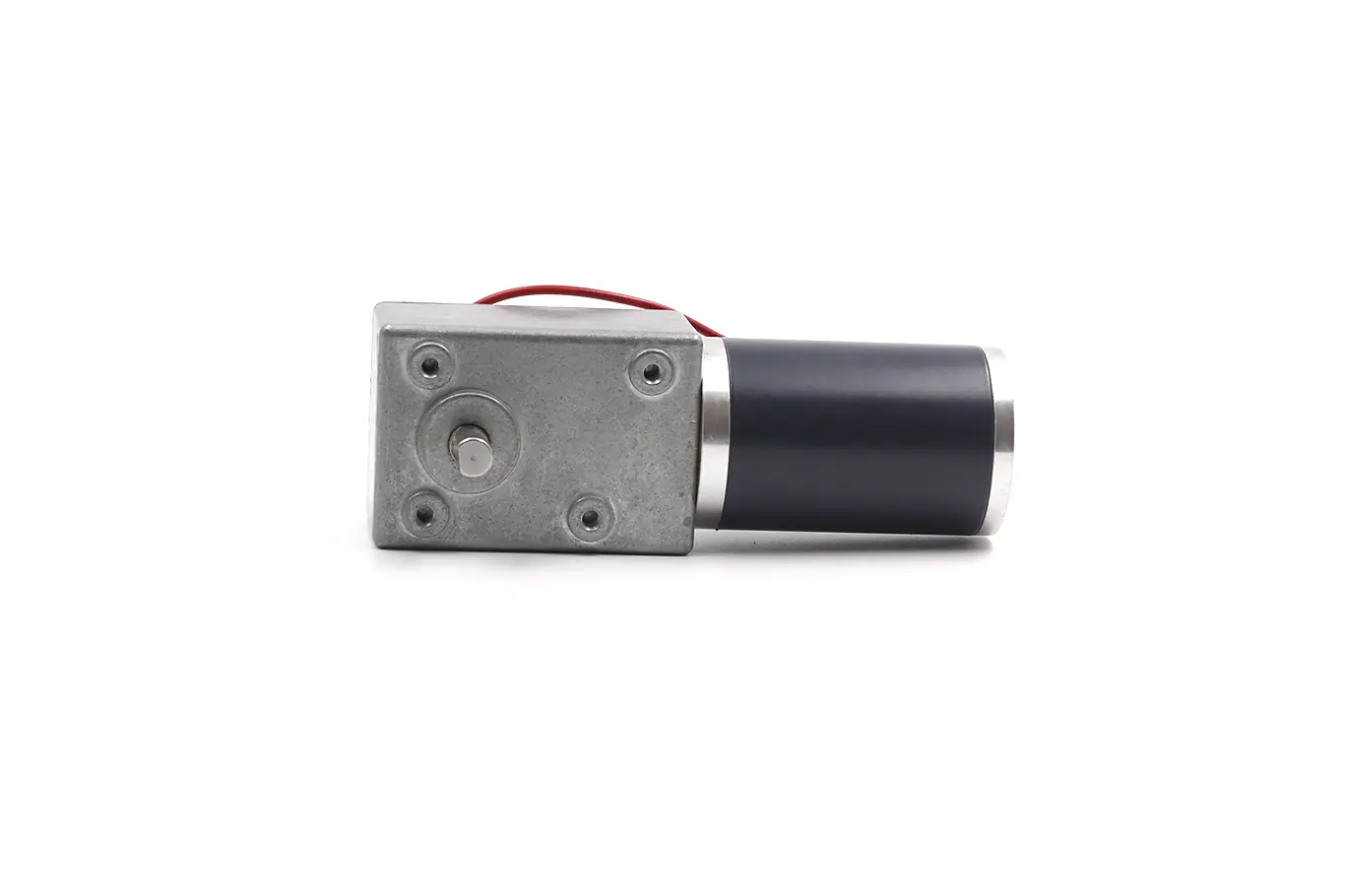

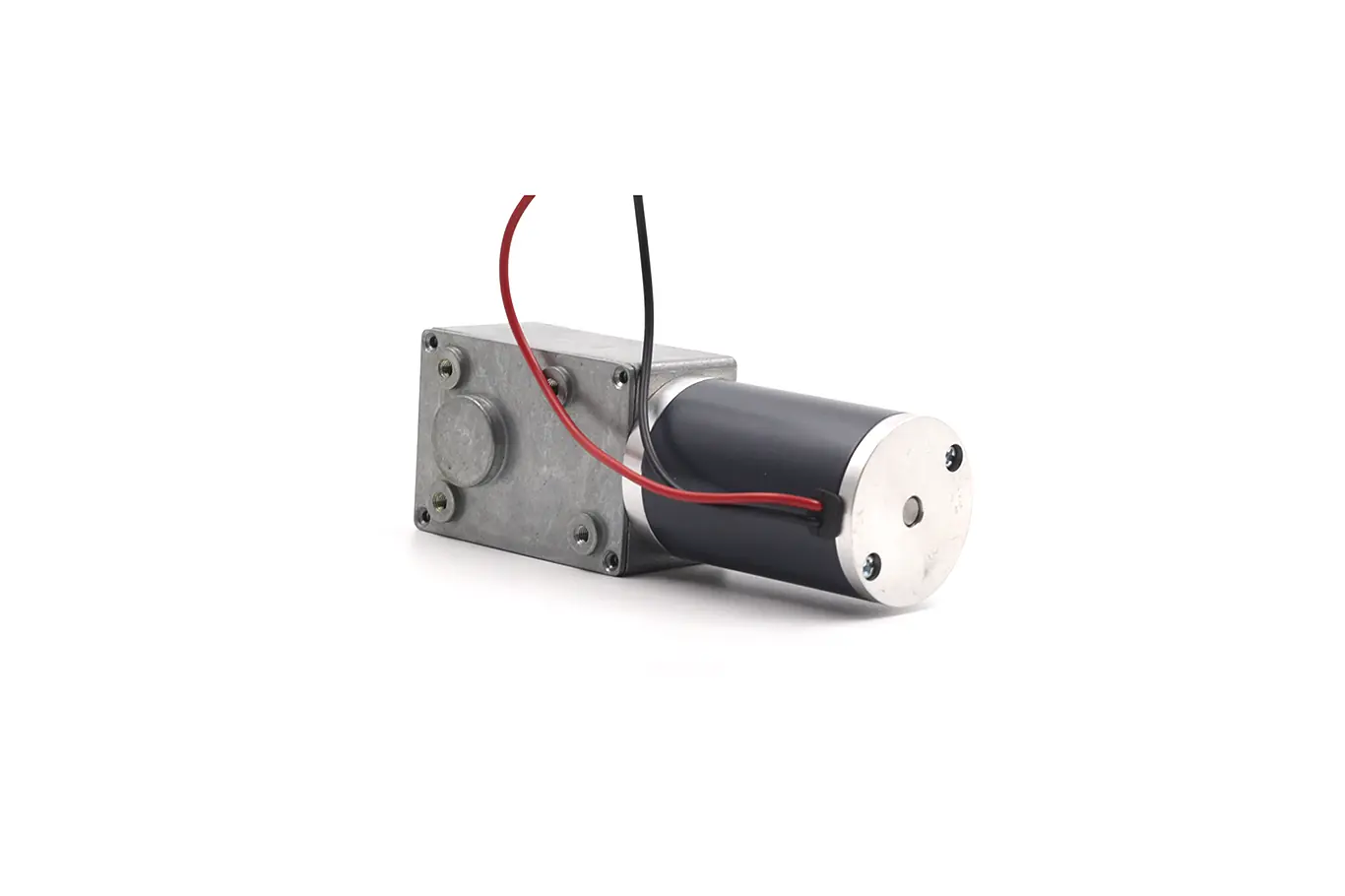

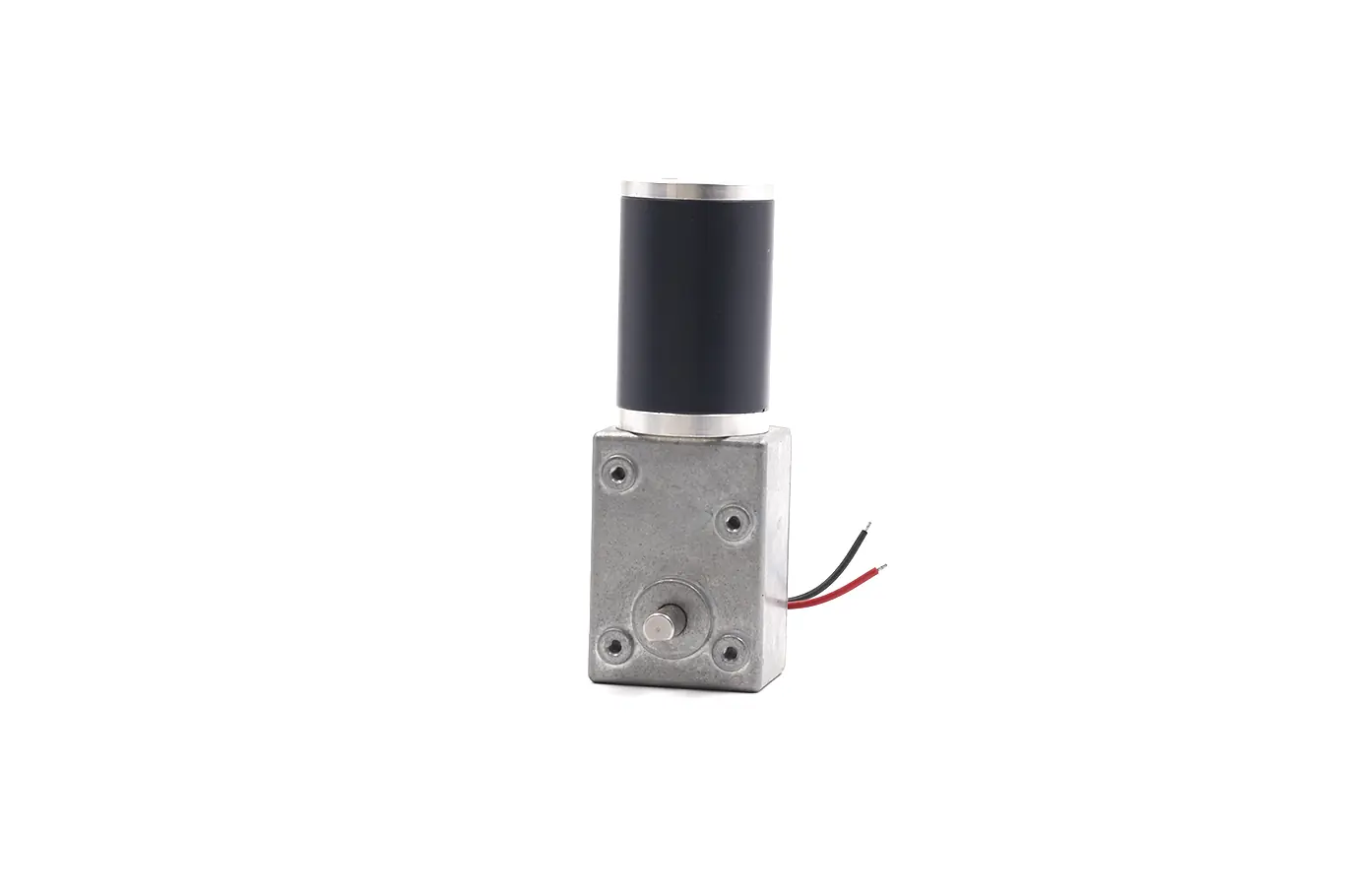

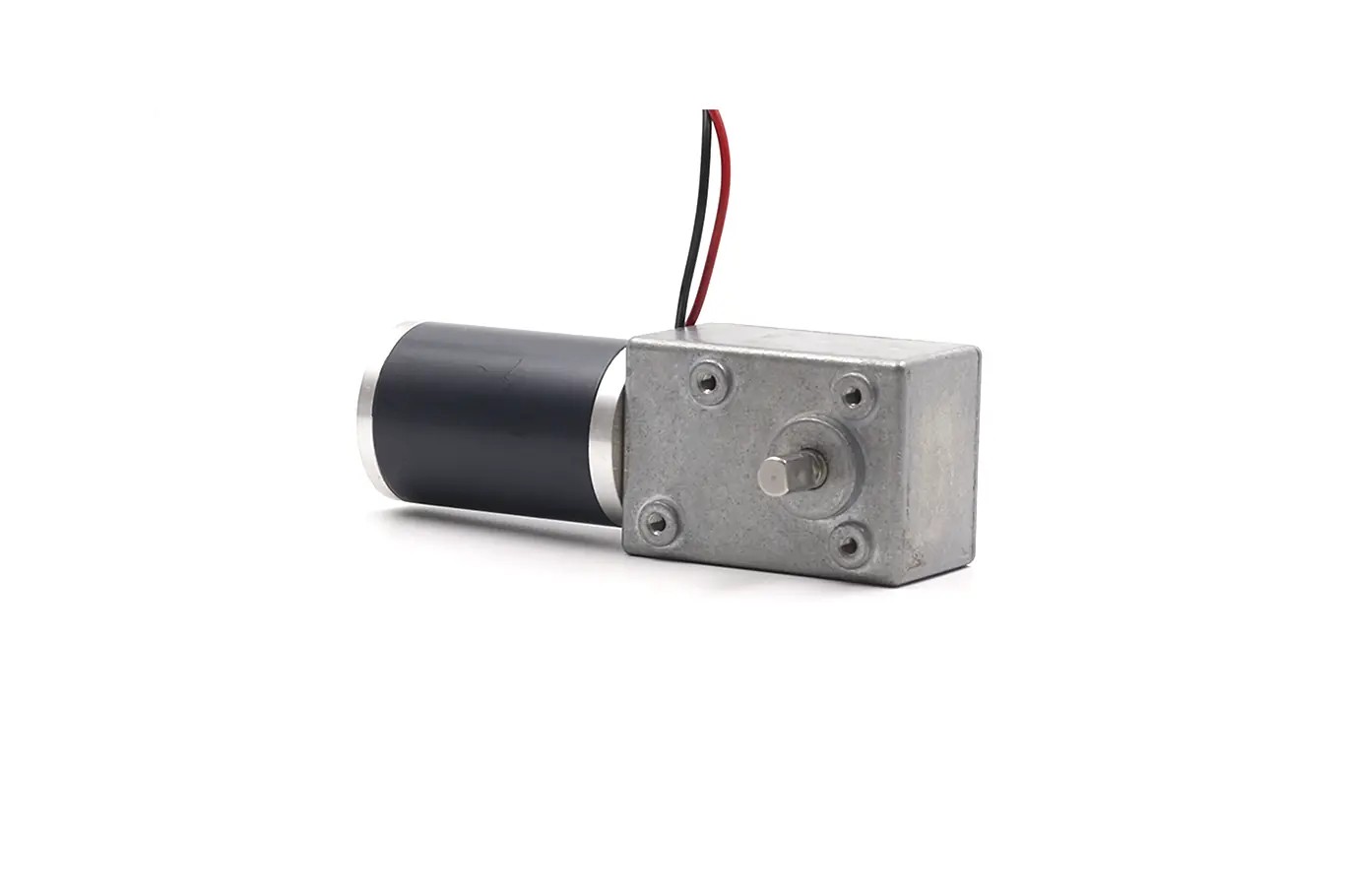

50mm Worm Gear Motor Model TSL-5882GW-50ZY
Basic Info:
- Motor Type:Worm Gear Motor
- Motor Model:TSL-5840GW-555
- Rated Voltage:12V /24V DC/Customizable
- Max No Load Speed:440rpm
- Min No Load Speed:1.5RPM
- Rated Torque:200Kg.cm
- Rotation:CW/CCW
- Product Features：All-metal worm gear and worm wheel structure with power-off self-locking capability.
- #More Specifications
- #Outline Drawing
Worm Gear Motor 12v High Torque Parameters
The TSL‑5882GW‑50ZY worm gear motor 12V high torque is engineered for applications that demand strong, stable, and long‑lasting torque output. Its all‑metal gear structure provides a large contact surface, delivering powerful transmission and exceptional load capacity. With a maximum load torque of 200Kg, it maintains smooth, low‑noise performance even under heavy workloads. Forward and reverse rotation are easily switchable, making it adaptable to a wide range of mechanical systems.
Built for durability and efficiency, this worm gear motor 12V high torque features high‑strength magnetic tiles that withstand elevated temperatures and a one‑piece molded rotor that ensures consistent, reliable output. The gear system is highly wear‑resistant, reducing the risk of tooth damage and extending service life significantly. Available in 12V, 24V, and custom voltage options, it offers a robust solution for anyone seeking a worm gear motor 12V high torque configuration with long‑term stability and dependable performance.
TSL-5882GW-50ZY, 12V DC
| Reduction Ratio | No-Load | Rated Load | Stall | |||||
| Rated Voltage | Speed | Current | Speed | Current | Torque | Torque | Current | |
| V | RPM±10% | A | RPM±10% | A | Kg.cm | Kg.cm | A | |
| 16 | 12 | 440 | 2 | 280 | 8.5 | 10 | 25 | 16 |
| 16 | 12 | 310 | 1.2 | 185 | 6.3 | 10 | 20 | 12 |
| 32 | 12 | 190 | 2 | 126 | 6.5 | 20 | 40 | 16 |
| 48 | 12 | 150 | 2 | 99 | 6.4 | 30 | 60 | 14.5 |
| 48 | 12 | 120 | 1.5 | 83 | 5.5 | 35 | 50 | 13 |
| 89 | 12 | 80 | 2 | 58 | 6.5 | 50 | 110 | 19 |
| 89 | 12 | 68 | 1.8 | 45 | 5.8 | 60 | 100 | 15.5 |
| 169 | 12 | 42 | 1.7 | 30 | 5.3 | 70 | 180 | 16 |
| 169 | 12 | 35 | 1.5 | 26 | 5.2 | 80 | 160 | 15 |
| 255 | 12 | 24 | 1.5 | 18 | 6.2 | 120 | Forbid Stall | 17 |
| 392 | 12 | 18 | 2 | 14 | 6.5 | 180 | 16.5 | |
| 510 | 12 | 12 | 1.7 | 8 | 6.2 | 200 | Forbid Stall | 17.5 |
| 694 | 12 | 9 | 2 | 6 | 5.8 | 200 | 17.5 | |
| 1015 | 12 | 6 | 1.5 | 4 | 6 | 200 | 15.5 | |
| 1015 | 12 | 3 | 0.3 | 2 | 1.5 | 200 | 5 | |
| 1015 | 12 | 1.5 | 0.3 | 1 | 1 | 200 | 2 | |
💟The worm gear motor 12V high torque’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz
TSL-5882GW-50ZY, 24V DC
| Reduction Ratio | No-Load | Rated Load | Stall | |||||
| Rated Voltage | Speed | Current | Speed | Current | Torque | Torque | Current | |
| V | RPM±10% | A | RPM±10% | A | Kg.cm | Kg.cm | A | |
| 16 | 24 | 440 | 1.2 | 295 | 4.2 | 10 | 30 | 12 |
| 16 | 24 | 310 | 0.6 | 205 | 3 | 12 | 25 | 8 |
| 32 | 24 | 190 | 1 | 135 | 3.8 | 25 | 50 | 13 |
| 48 | 24 | 150 | 1.1 | 105 | 6 | 40 | 140 | 16 |
| 48 | 24 | 120 | 0.9 | 86 | 4.5 | 50 | 100 | 12 |
| 89 | 24 | 90 | 1.2 | 65 | 5.5 | 55 | 180 | 16 |
| 89 | 24 | 70 | 0.8 | 51 | 3.5 | 70 | 160 | 12 |
| 169 | 24 | 50 | 0.9 | 42 | 6.2 | 110 | Forbid Stall | 18.5 |
| 169 | 24 | 35 | 0.9 | 26 | 3.2 | 140 | 240 | 11 |
| 255 | 24 | 24 | 0.7 | 17 | 4 | 150 | Forbid Stall | 12.5 |
| 392 | 24 | 18 | 0.9 | 13 | 3.5 | 200 | 13 | |
| 510 | 24 | 12 | 0.7 | 8 | 3.6 | 200 | Forbid Stall | 12 |
| 694 | 24 | 9 | 0.9 | 6 | 3 | 200 | 13.5 | |
| 1015 | 24 | 6 | 0.7 | 4 | 3.5 | 200 | 11.5 | |
| 1015 | 24 | 3 | 0.4 | 2 | 1.3 | 200 | 4 | |
| 1015 | 24 | 1.5 | 0.35 | 1 | 0.9 | 200 | 2 | |
💟The worm gear motor 12V high torque’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

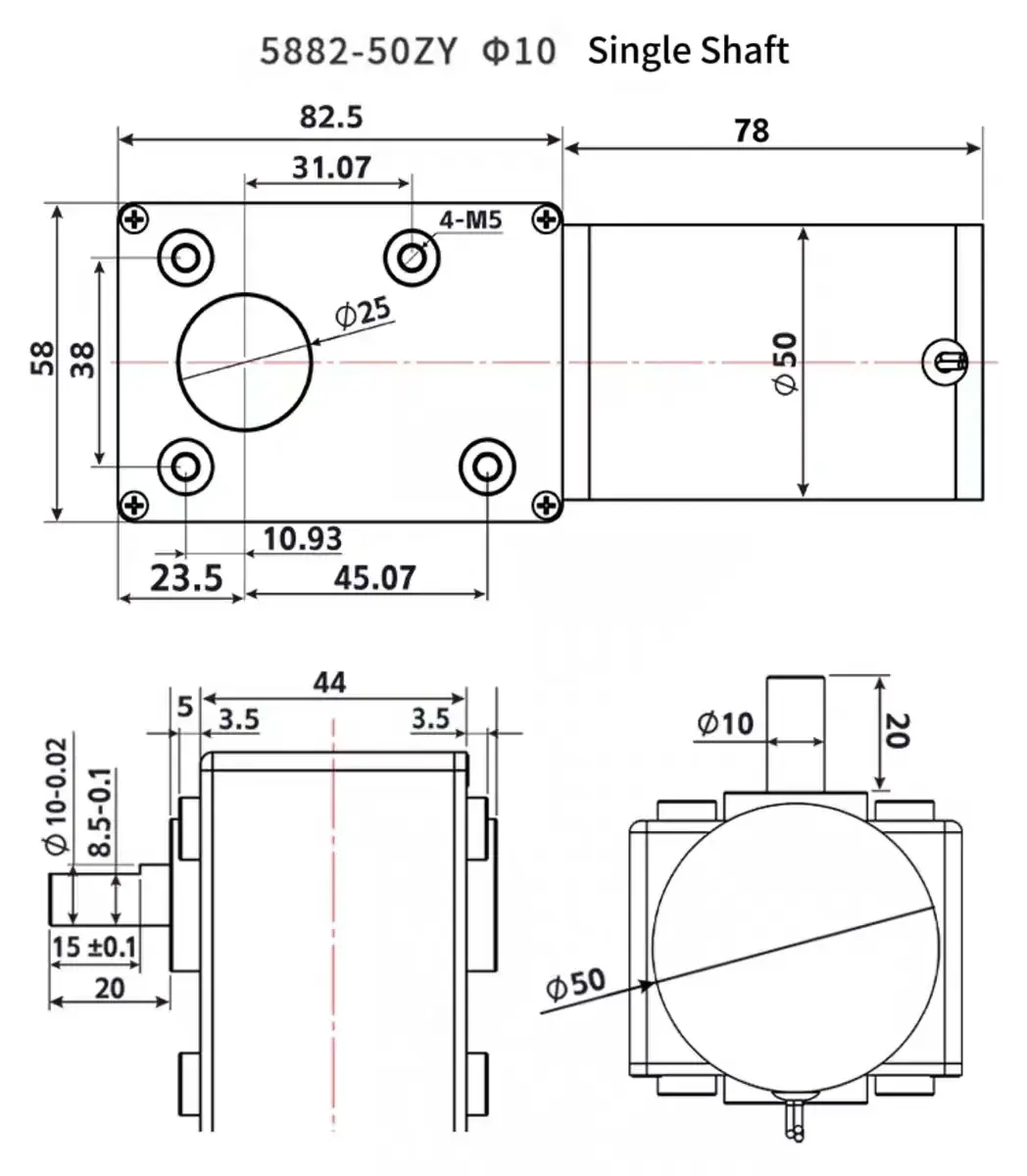

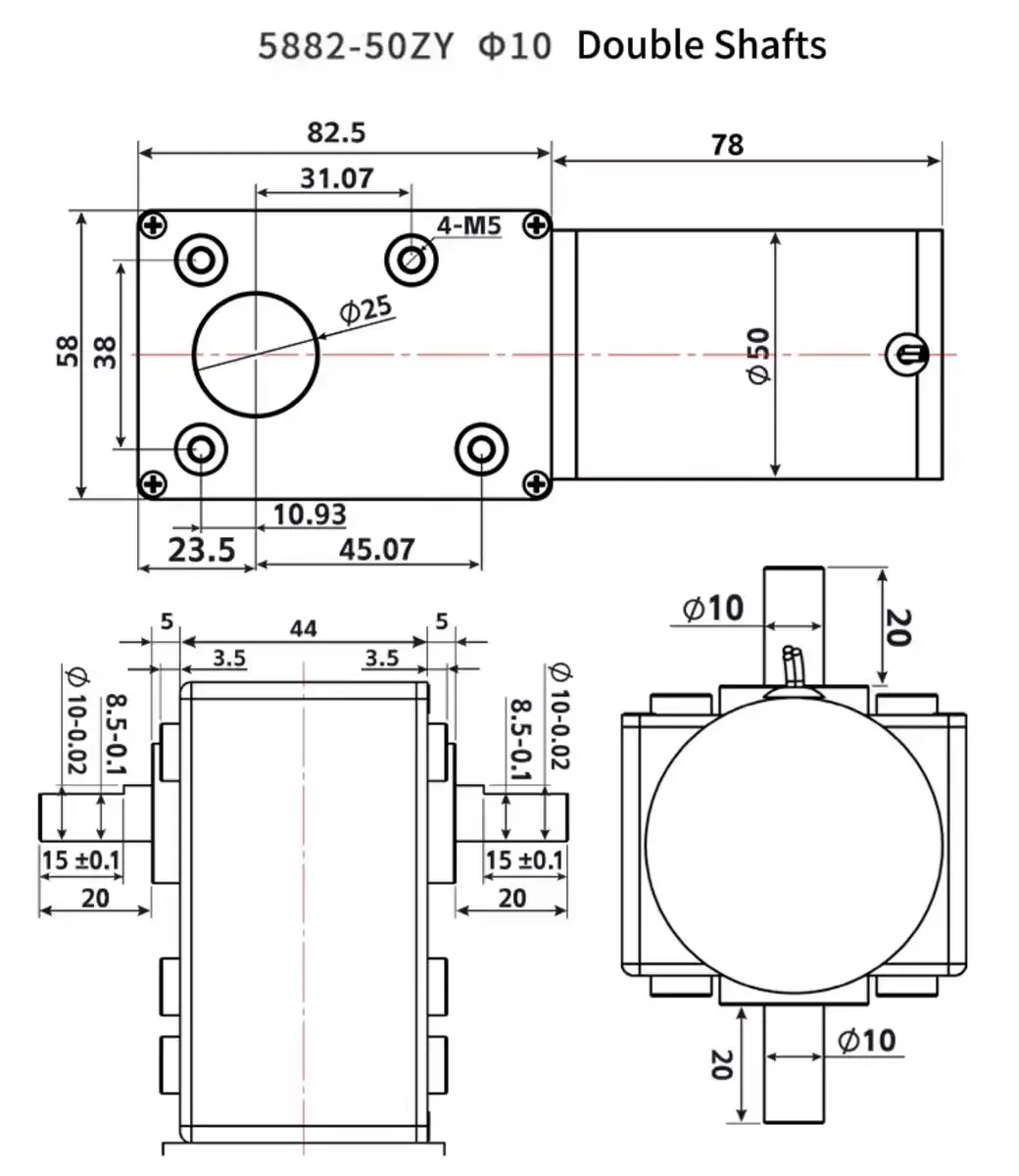

Worm Gear motor 12V High Torque Outline Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.

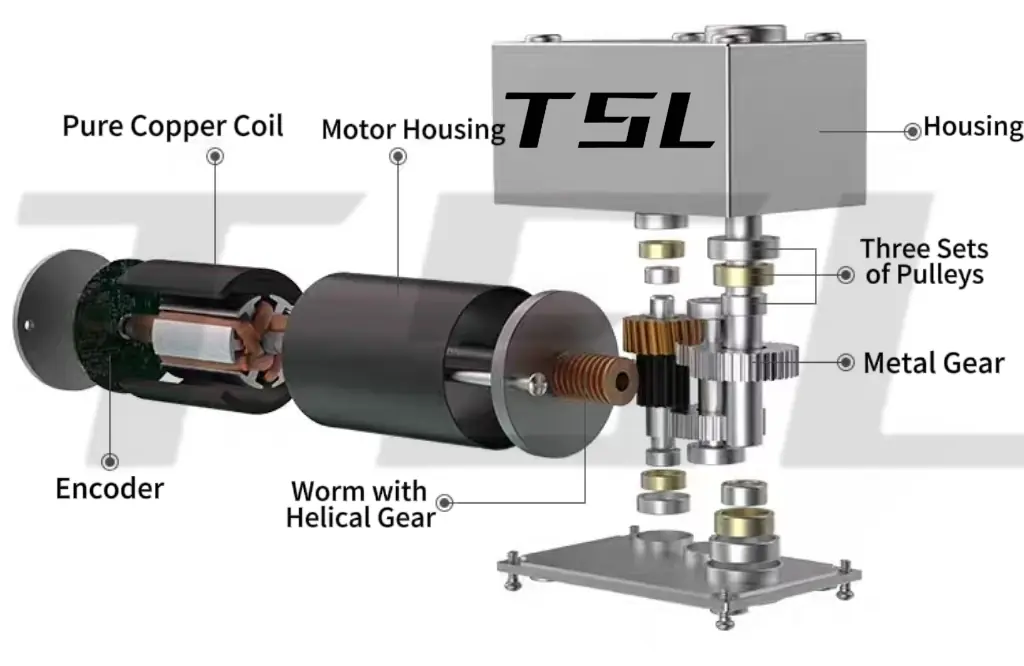

TSL-5882GW-50ZY Worm Gear Motor 12V High Torque Exploded View

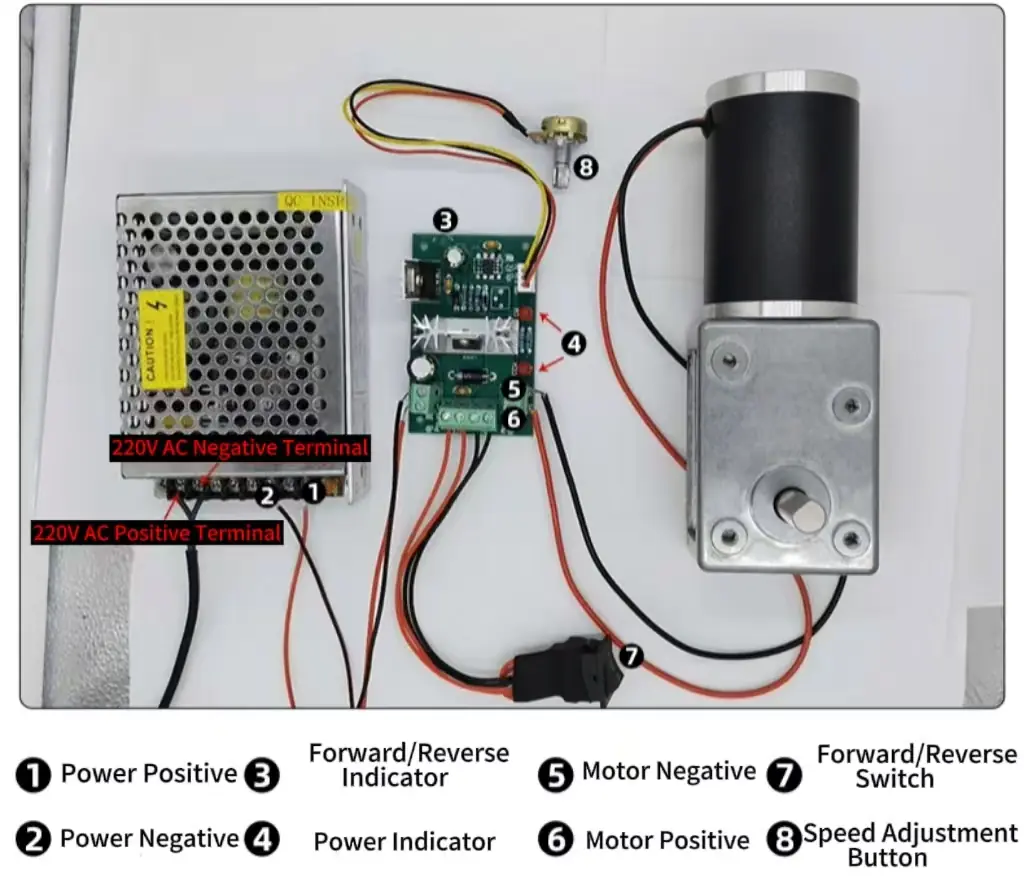

TSL-5882GW-50ZY Worm Gear motor 12V High Torque Wring Method
